Introduction of RS-106R-P
¨RS-106R-P Quick-change cartridges RO system
®
PurePro ROYALRO system usesthe most advancedwater treatment technology:
"Reverse Osmosis". Reverse Osmosis (RO) is recognized as one of the best
available technologies for producing best quality drinking water. It's also the
same method used by many bottled water companies to make safe and great
tasting water. No other home water treatment system can offer you as much
protection and reliability.
®
PurePro ROYALRO system uses 100GPD membrane whichis powerful, fast and
excellent efficiency. 100GPD membrane increase the daily production capacity
and the speedof RO waterproduction. This allows for betterassurance that there
is adequate wateravailable when desired,even during heavyuse times ofthe day.
PurePro ROYALRO with itssupreme quality ensuresa great waterflow rate with
absolutely the leastwasting of water.
The newly designed ROYAL RO system is user friendly with design simplicity in
mind. It requires no tools for filter changes. Use twist and quick-change cartridge
design makes filter changes fast, clean and easy. This space saving allows
maximum use ofyour under counterspace.
Maintenance checking list
Production: 100 GPD/ 378 LPD
Water storagetank: 3.2gallons /12.2 liters
With a boosterpump (optional): Inputin AC110Volt, 220Voltor 240Volt (50/60Hz)
Operation pressure: 5-80 psi
Dimensions: (cm)27.5 (L)x 44.5(H) x26.5 (W)
Weight: 8 kg - system
4 kg -tank
¨Specifications
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage 6th stage

Q: What is the guaranteeon the PurePro system ?
The PurePro system (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect thequantity and the quality of the water production?
There are four major variablesto consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76 F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes TW30-1812-100 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: Can the PurePro systembe connected to an extra faucet?
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run PureProsystem to all of their bathrooms.
Q: What does the PureProseries drinking water taste like?
The taste of the PurePro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water(moderate mineral content).
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly itwill remove allmicroorganisms from tapwater and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow isreversed, water fromthe salt solutionis forced topass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening outthe salts andother contaminants.
13
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM

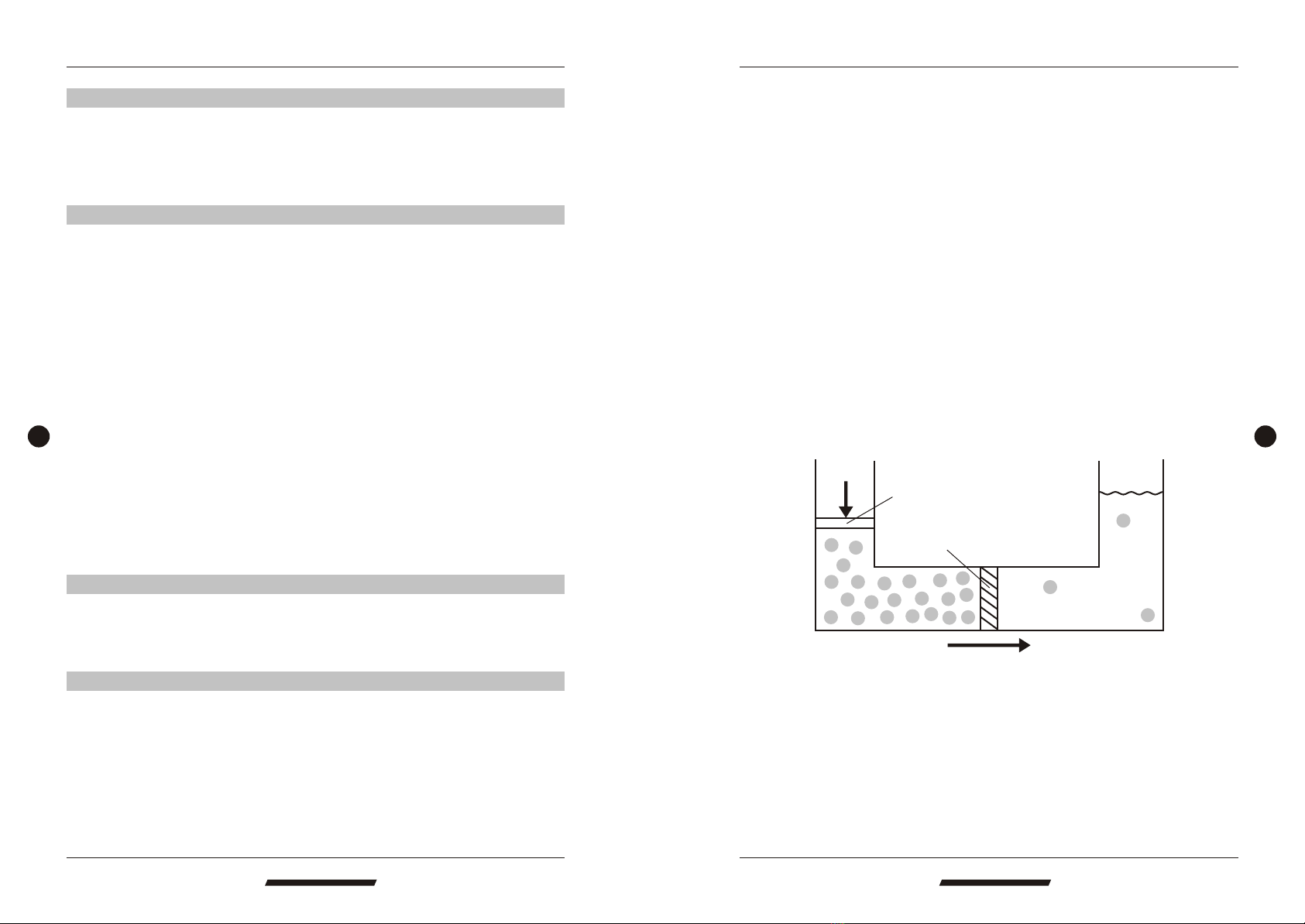

What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
FAQ
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems

03
PURE-PRO REVERSE OSMOSIS SYSTEM
12
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM

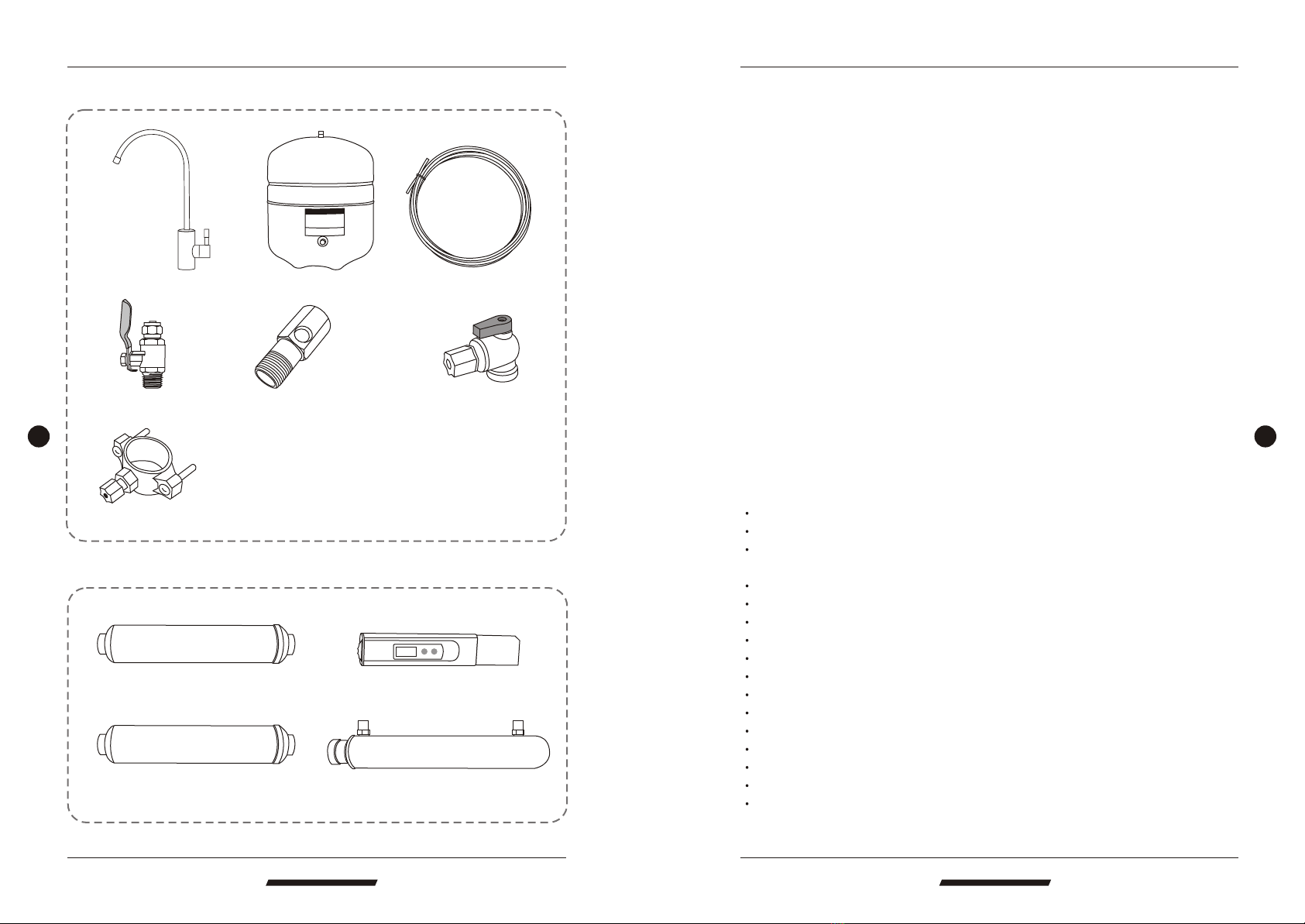

Components & Selected filters
Water storagetank
Deliver-valve Water supplyconnector
Drain saddle
Tankball shut-off valve
Tubing
¨Selected filters
¨Components
Infra-red cartridge filter
PRO
P
URE
DRINKING WATE R SYSTEM
T.D.S
UVC-LIGHTING
ULTRAVIOLETWATER STERILIZER
Mineral cartridge filter
UV water sterilizer
TDS meter
Infra-Red
Mineral
European ceramic faucet
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
The functions of Infra-Red filter
Far Infrared rays(FIR) are partof the sunlightspectrum, which isinvisible to thenaked
eye. The wavelengthof the farinfrared rays rangesfrom 4 micronsto 1000 microns.The
recent studies inbiotechnology field revealedthat the far-infraredrays played an
important role forformation and growthof all livingorganisms. For thisreason, these
specific far-infrared raysare called "biogeneticrays". Water and proteins arethe integral
parts of allliving organisms onEarth. Water molecules are alwaysoscillating. Water
makes up 70%of mass ofthe human body. FIR isable to activate,revitalize, reactivate,
develop and strengthenvarious organs inour bodies whenit is absorbed.
In the variousorgans of humanbody, thecirculatory system playsan important role,
especially in micro-circulatorysystem. When thereare problems withmicro-circulatory
system, various ailmentswill occur.FIR vibrating ata frequency similarto that ofhuman
body is ableto penetrate thebody activates cellsand reactivates aswell as strengthens
the micro-circulatory systems.It regulates theblood flow andblood in bloodvessels,
which have beenblocked due toblood clots andat the sametime reactivate thevital
energy in thebody.
Elevation of theimmunity of ourbodies against diseasesis another benefitof FIR waves.
This is partof the effectsof the improvementin micro-circulatory systemand metabolism
of the body. It helpsslow down theaging process, increase resistance against diseases
and increases longevity.
The effect ofFar-infra-red rays toour human bodyis as follows:
Activating water moleculesin our body
Improving oxygen leveland nervous inour body
Warming andeliminating fats, chemicals,toxins, and other waster from ourblood and
thus smoothening theflow of blood
Reducing the acidiclevel in ourbody
Preventing bacteria fromgrowing
Relieving pain
Softening of hardwater
Eliminating bad odorin water
Purifying air
Strengthening and improvinghealth
Speeding up repairof body cells
Balancing acid levelin human bodies
Normalizing blood cholesterol
Preventing mould
Enhancing and maintainfreshness
Helping plants growbetter

11
PURE-PRO REVERSE OSMOSIS SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Cartridge filters
PRO
P
URE
DRINKING WATE R SYSTEM
A.With everything connected,turn on thewater check forleaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on firsttime use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink topfaucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOTUSE FIRST TANKOF WATER.***
G.Close the sinktop faucet. The system isnow ready foruse.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
0
1.Do not usehot water (over45 C)!
2.Do not freezethe machine!
3.Switch off electricity and water source if away for more than5 days,
and drain outpure water.

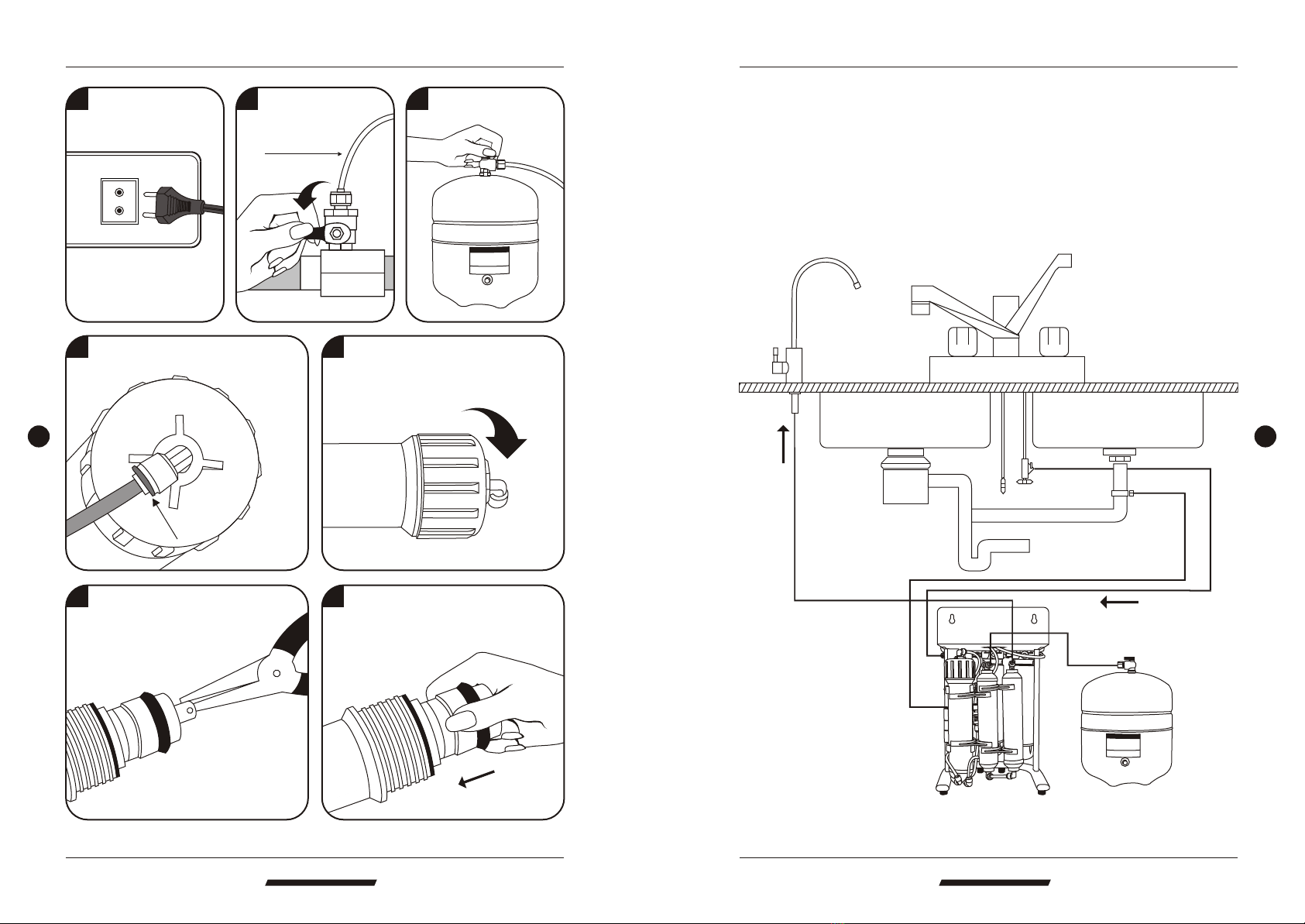

Operation regulation
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
GAC Carbon Filter
A thin film composite (TFC) high quality
membrane that processes 100 gallons per day. It
remove the following hard water contaminants
that may be present in your water: lead, cooper,
barium, chromium, mercury, sodium, cadmium,
fluoride, nitrite, nitrate,and selenium.
CTO Carbon Filter
RS300ST
With only five micron rating. It is effective in
removing dirt, rustand sand particles.
RS300ND
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor,and color.
RS300RD
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor,and color.
Service Life
6 Months
2 Years
1 Year
Stage 1
Stage3
Stage 2
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter
Cartridge Filters Filter Description
6 Months
6 Months
NSF approved. Thispost carbon filter is designed
to improve taste. It removes any residual
impurities and odorsfrom the tankand provides a
finer conditioning ofpure water.
5 Micron
Sediment Filter
Stage 6 1 Year
Infra-Red Filter
This Infra-Red filter can activate water molecules
in our bodyand improve oxygen level in our body.
Warm and eliminate fats, chemicals and toxins
from our blood and thus smoothen the flow of
blood.

4 Let the waterrun for atleast 30
minutes. This flushes the carbon
filters on firsttime use.
05
PURE-PRO REVERSE OSMOSIS SYSTEM
10
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
3 Switch on watertank.
PRO
P
URE
DRINKING WATE R SYSTEM
Operation regulation

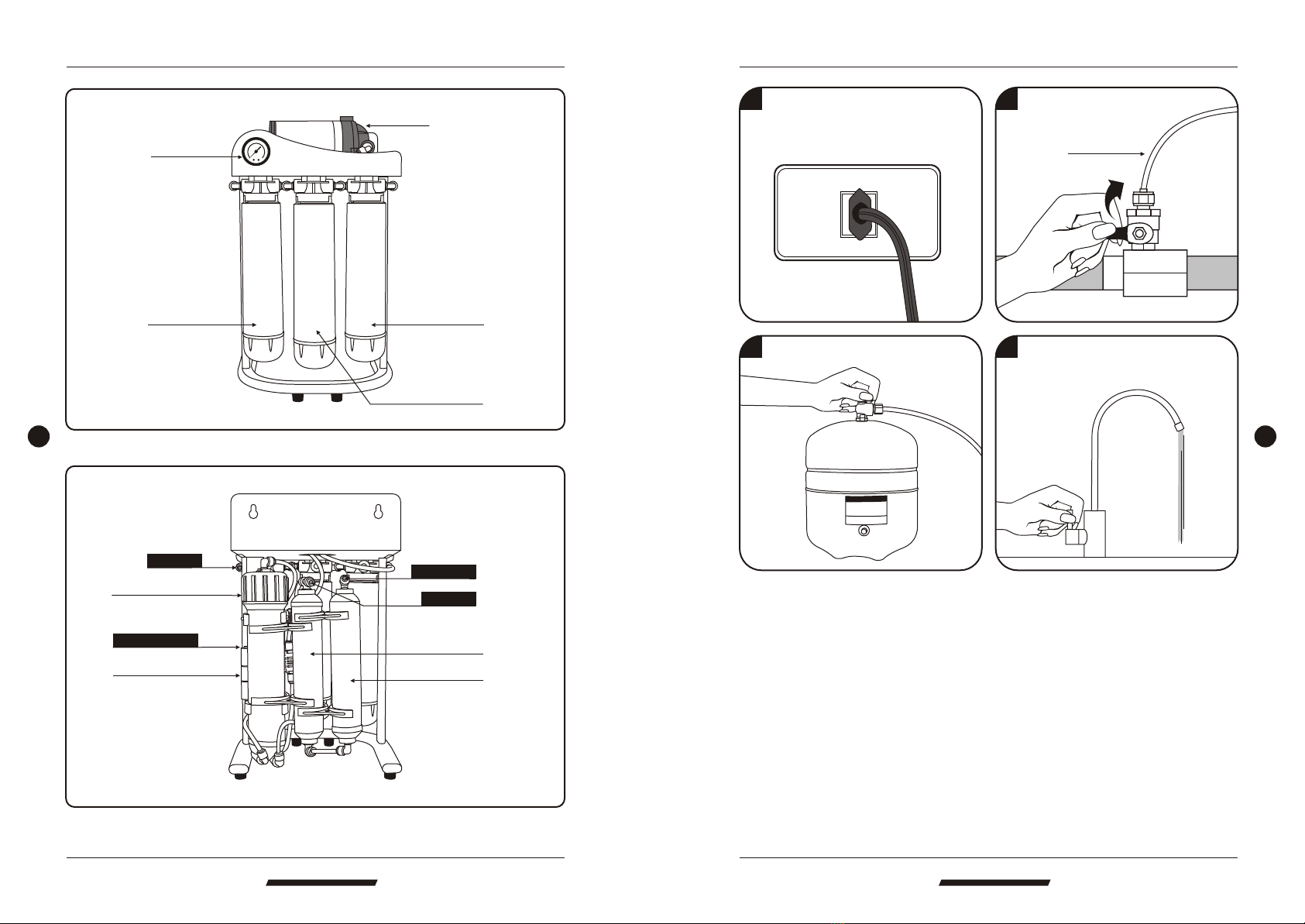

The parts of RS-106R-P
1 Plug in electricity. 2 Turn onwater source.
ToRO system
The 1st stage filterThe 3rd stage filter
The 2nd stage filter
Pump
Pressure gauge
RO membrane housing
To the faucet
Input water
Flow restrictor
Todrain out tube
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
Infra-red filter
Post carbon filter
To the tank

09
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKINGWATE RSYSTEM
PRO
P
URE
DRINKINGWATERSYSTEM
6Remove the membrane by a pincer. 7Install the membrane by carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
Change membrane
ToRO system
1Unplug electricity. 2Turn off water source. 3Switch off water tank.
06
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM

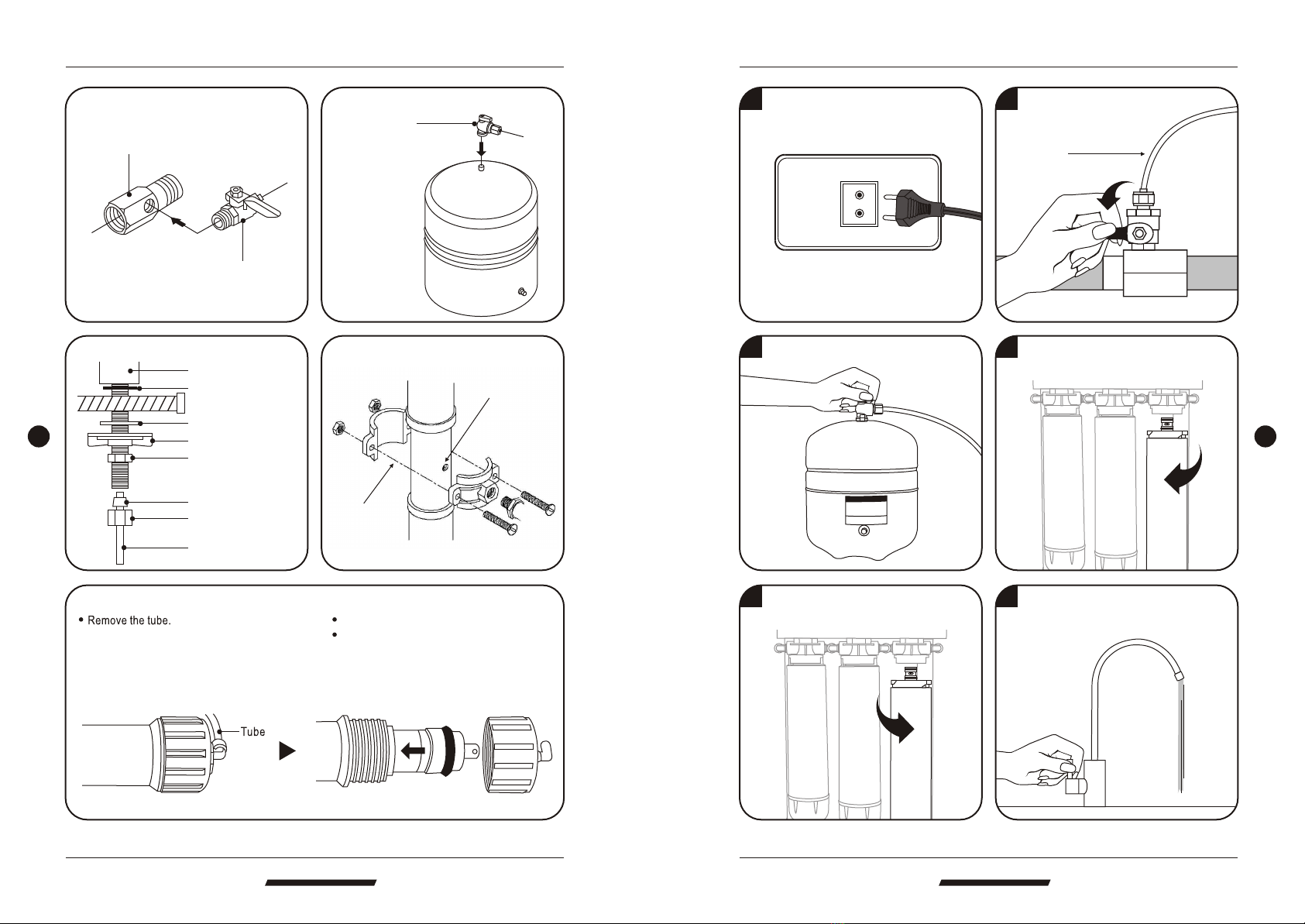

Tubing connection diagram
Faucet
Tank
Drain
Input water
CONNECTING THE COLORTUBING:
A. Connect theWHITE tubing tothe water supplyconnector.
B. Connect theBLUE tubing tothe sink topfaucet.
C. Connect theBLACK tubing tothe drain saddle.
D. Connect theRED tubing tothe storage tank.
A
B
C
D
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
4Remove the tube. 5Remove the membranehousing
cap anticlockwise.

PURE-PRO REVERSE OSMOSIS SYSTEM
07 08
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Installation diagram
5 Screw in andinstall the newfilter
anticlockwise.
PRO
P
URE
DRINKING WATE R SYSTEM
Change filters
4 Loose the used pre-filter clockwise
and remove it.
3Switch off water tank.
2Turn off water source.
ToRO system
1 Unplug electricity.
6 Drain out 1Gallon of waterto
purify replacement filters.
Input water : Install water tank:
Install drain saddle:
Drill a 1/4"hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Faucet
Kitchenware table
Twisted plasticlocker
Rubber gasket
Flat metal piece
Screw locker
Tubing
Cutting ring
Concave type screw
Install faucet :
Hand tighten
plastic shut-off
valve to tank.
Then connect
color tubing.
ToRO system
Tankball shut-
off valve
ToRO system
Deliver valve
Water supply connector
Towater
source pipe
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
Assemble membrane :
Remove the membranehousing cap.
Install the membraneby carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
PRO
P
URE
DRINKINGWATERSYSTEM
