Introduction of RS-106M-P
¨RS-106M-P Quick-change cartridges RO system
®
PurePro ROYALRO system usesthe most advancedwater treatment technology:
"Reverse Osmosis". Reverse Osmosis (RO) is recognized as one of the best
available technologies for producing best quality drinking water. It's also the
same method used by many bottled water companies to make safe and great
tasting water. No other home water treatment system can offer you as much
protection and reliability.
®
PurePro ROYALRO system uses 100GPD membrane whichis powerful, fast and
excellent efficiency. 100GPD membrane increase the daily production capacity
and the speedof RO waterproduction. This allows for betterassurance that there
is adequate wateravailable when desired,even during heavyuse times ofthe day.
PurePro ROYALRO with itssupreme quality ensuresa great waterflow rate with
absolutely the leastwasting of water.
The newly designed ROYAL RO system is user friendly with design simplicity in
mind. It requires no tools for filter changes. Use twist and quick-change cartridge
design makes filter changes fast, clean and easy. This space saving allows
maximum use ofyour under counterspace.
Maintenance checking list
Production: 100 GPD/ 378 LPD
Water storagetank: 3.2gallons /12.2 liters
With a boosterpump (optional): Inputin AC110Volt, 220Voltor 240Volt (50/60Hz)
Operation pressure: 5-80 psi
Dimensions: (cm)27.5 (L)x 44.5(H) x26.5 (W)
Weight: 8 kg - system
4 kg -tank
¨Specifications
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage 6th stage

Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly itwill remove allmicroorganisms from tapwater and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow isreversed, water fromthe salt solutionis forced topass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening outthe salts andother contaminants.
13
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
Q: What is the guaranteeon the PurePro system ?
The PurePro system (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect thequantity and the quality of the water production?
There are four major variablesto consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76 F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes TW30-1812-100 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: Can the PurePro systembe connected to an extra faucet?
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run PureProsystem to all of their bathrooms.
Q: What does the PureProseries drinking water taste like?
The taste of the PurePro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water(moderate mineral content).
FAQ

03
PURE-PRO REVERSE OSMOSIS SYSTEM
12
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM

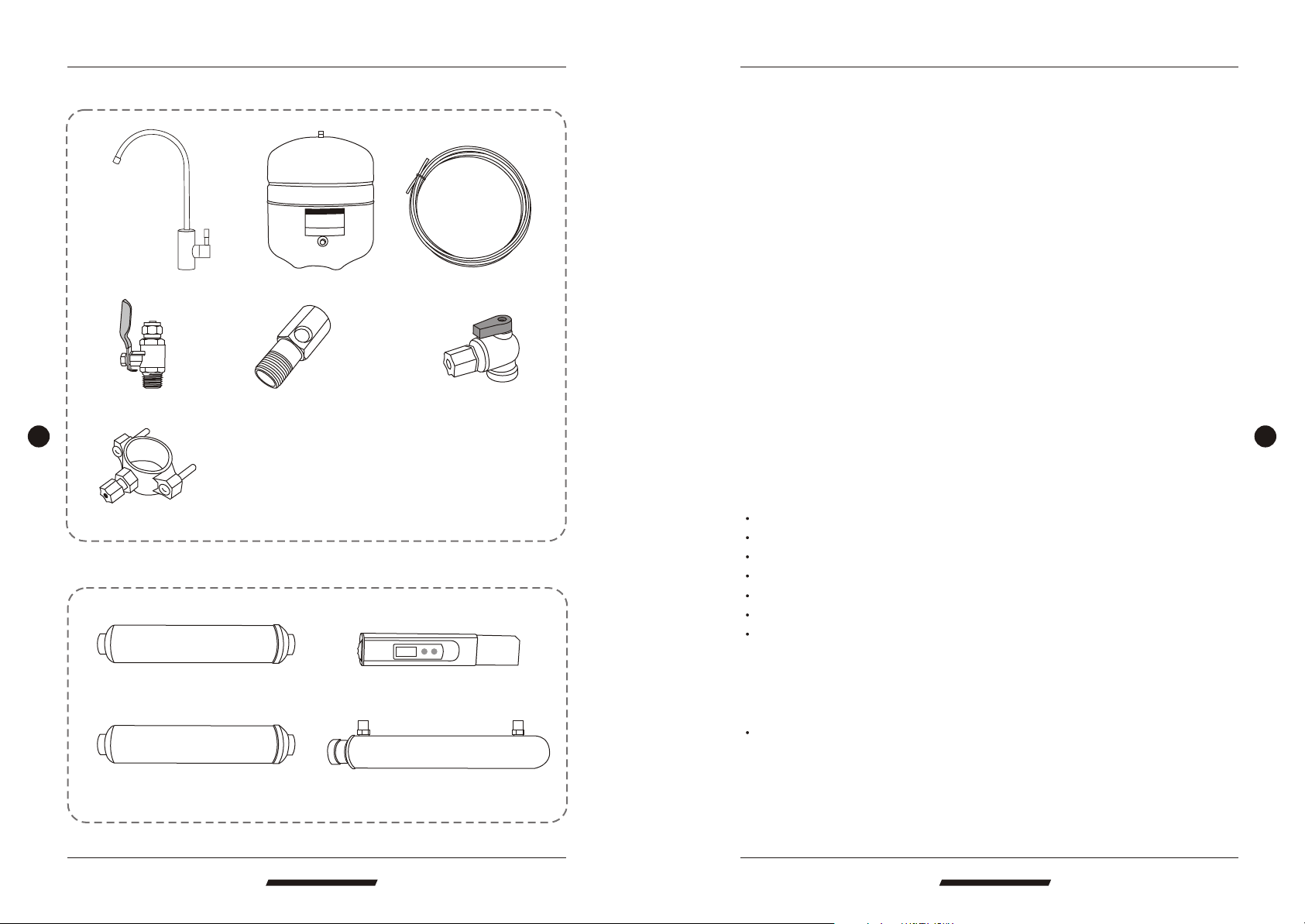

Components & Selected filters
Water storagetank
Deliver-valve Water supplyconnector
Drain saddle
Tankball shut-off valve
Tubing
¨Selected filters
¨Components
Infra-red cartridge filter
PRO
P
URE
DRINKING WATE R SYSTEM
T.D.S
UVC-LIGHTING
ULTRAVIOLETWATER STERILIZER
Mineral cartridge filter
UV water sterilizer
TDS meter
Infra-Red
Mineral
European ceramic faucet
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
The mineralized water after the Mineralized filter has perfectly balanced proportions
of minerals necessary for healthy development of the human body. The Mineralized
filter was designedby top specialists in The Military Medical Academy in Taiwan. This
filter improves thequalities of clean water by adding necessary health minerals, such
as Calcium, Magnesium, Sodium, Potassium, as well as others readily found in many
natural mineral waters for proper human development. Mineral filters are mainly
installed with ROsystems to complementtheir absolute filtrationqualities.
Calcium-It is the basic mineral for building teeth and bones. It allows proper
digestion, and is necessary to regulate normal and healthy heart rhythm as well as
good functions ofarteries and muscles.
Magnesium-takes part in over 300 different biochemical functions inside human
bodies. It's a deciding factor for the immune system and proper blood circulation. It
prevents cancer relatedillnesses, atherosclerosis, strokes,and kidney diseasesfrom
happening.
Sodium-It is responsible for controlling the water adsorption and retention of a
human body aswell as properbalance of pH.This is anexcellent moderator ofblood.
Daily absorption ofminerals in waterdoesn't have a major impact onthe physiological
functions of our body, but it can be a great addition to the regular daily mineral intake
with solid foodsand supplements.
TechnicalSpecifications:
Diameter: 53mm
Length: 254mm
Max. flow rate:250 l/24h
Max. pressure: 6bar
0
Max. temperature: 51 C
Capacity: 6000 liters
Cations in filteredwater:
2+
Ca : 34mg/l
2+
Mg : 12mg/l
+
Na : 22mg/l
+
K : 8.5mg/l
Anions in filteredwater:
2-
CO : 10mg/l
3
2-
SO : 0.3mg/l
4
-
Cl : 0.8mg/l
-
F : 0.06mg/l
The functions of Mineral Filter

11
PURE-PRO REVERSE OSMOSIS SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM

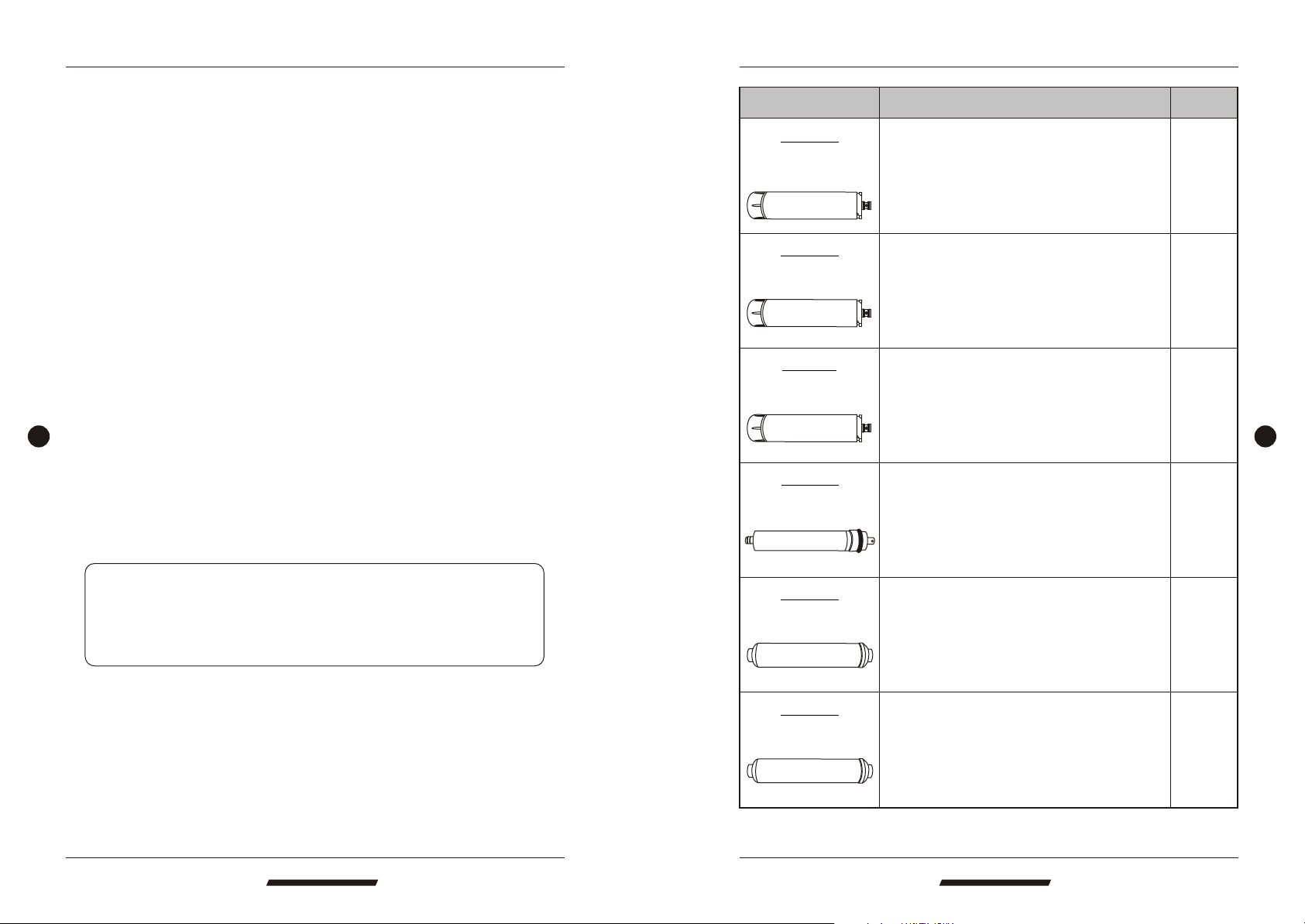

Cartridge filters
PRO
P
URE
DRINKING WATE R SYSTEM
A.With everything connected,turn on thewater check forleaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on firsttime use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink topfaucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOTUSE FIRST TANKOF WATER.***
G.Close the sinktop faucet. The system isnow ready foruse.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
0
1.Do not usehot water (over45 C)!
2.Do not freezethe machine!
3.Switch off electricity and water source if away for more than5 days,
and drain outpure water.
Operation regulation
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
GAC Carbon Filter
A thin film composite (TFC) high quality
membrane that processes 100 gallons per day. It
remove the following hard water contaminants
that may be present in your water: lead, cooper,
barium, chromium, mercury, sodium, cadmium,
fluoride, nitrite, nitrate,and selenium.
CTO Carbon Filter
RS300ST
With only five micron rating. It is effective in
removing dirt, rustand sand particles.
RS300ND
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor,and color.
RS300RD
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor,and color.
Service Life
6 Months
2 Years
1 Year
Stage 1
Stage3
Stage 2
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter
Cartridge Filters Filter Description
6 Months
6 Months
NSF approved. Thispost carbon filter is designed
to improve taste. It removes any residual
impurities and odorsfrom the tankand provides a
finer conditioning ofpure water.
5 Micron
Sediment Filter
Stage 6
Mineral Filter
This filter improves the qualities of clean water by
adding necessary health minerals, such as Calcium,
Magnesium, Sodium, Potassium, as well as others
readily found in many natural mineralwaters for proper
human development. Mineral filters are mainly
installed with RO systems to complement their
absolute filtration qualities.
1 Year

4 Let the waterrun for atleast 30
minutes. This flushes the carbon
filters on firsttime use.
05
PURE-PRO REVERSE OSMOSIS SYSTEM
10
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
3 Switch on watertank.
PRO
P
URE
DRINKING WATE R SYSTEM
Operation regulation

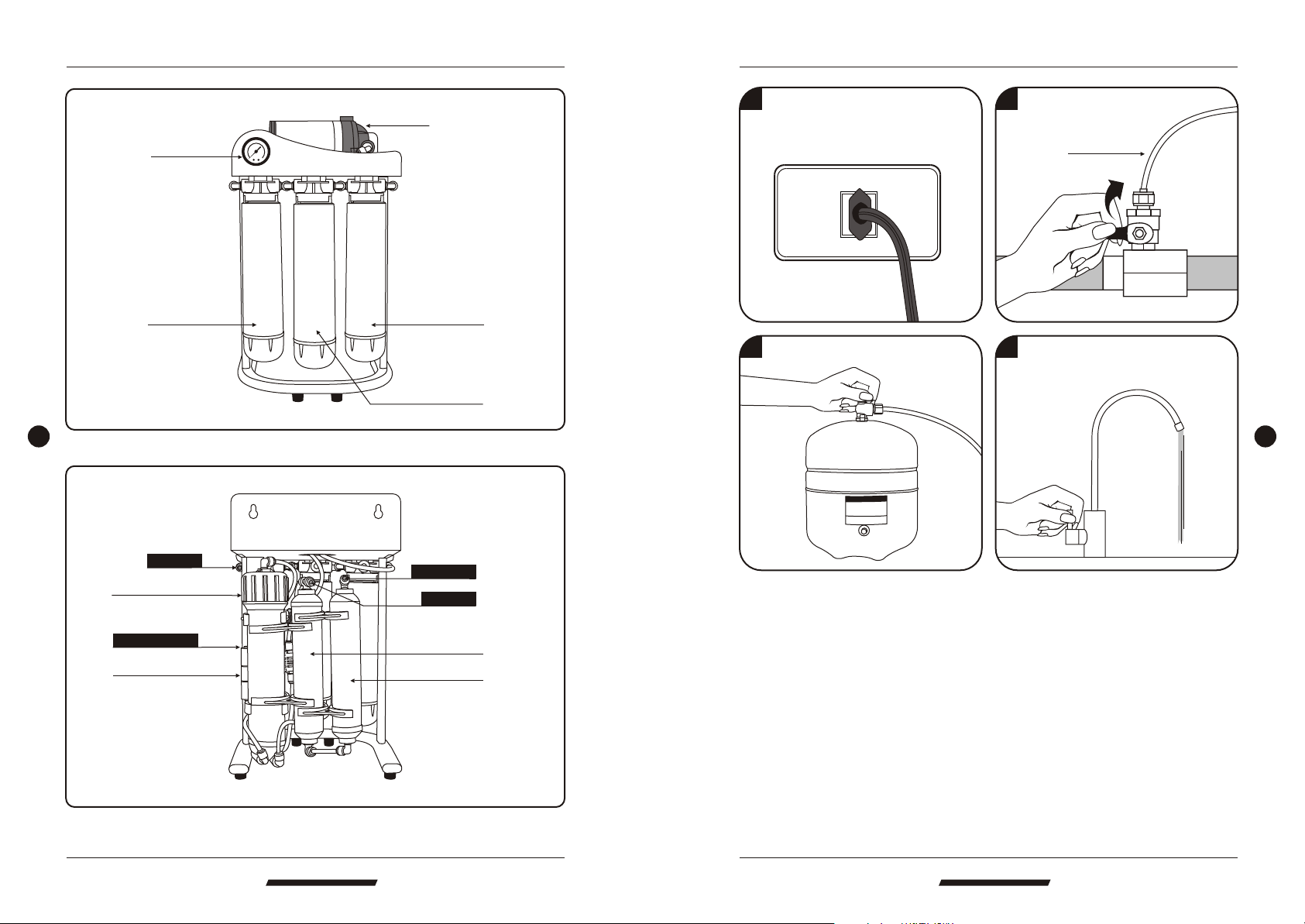

The parts of RS-106M-P
1 Plug in electricity. 2 Turn onwater source.
ToRO system
The 1st stage filterThe 3rd stage filter
The 2nd stage filter
Pump
Pressure gauge
RO membrane housing
To the faucet
Input water
Flow restrictor
Todrain out tube
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
Mineral filter
Post carbon filter
To the tank

09
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKINGWATE RSYSTEM
PRO
P
URE
DRINKINGWATERSYSTEM
6Remove the membrane by a pincer. 7Install the membrane by carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
Change membrane
ToRO system
1Unplug electricity. 2Turn off water source. 3Switch off water tank.
06
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM

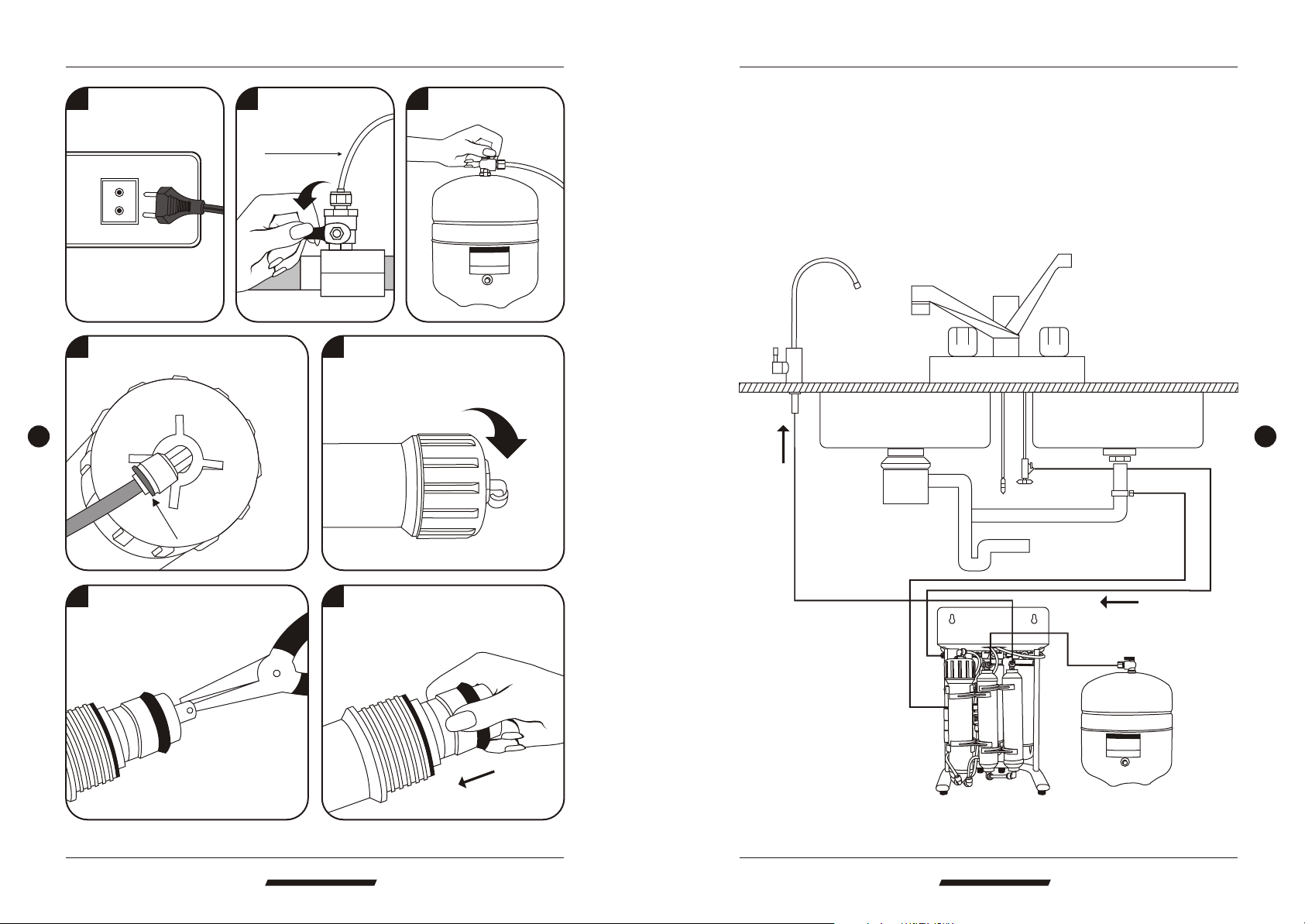

Tubing connection diagram
Faucet
Tank
Drain
Input water
CONNECTING THE COLORTUBING:
A. Connect theWHITE tubing tothe water supplyconnector.
B. Connect theBLUE tubing tothe sink topfaucet.
C. Connect theBLACK tubing tothe drain saddle.
D. Connect theRED tubing tothe storage tank.
A
B
C
D
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
4Remove the tube. 5Remove the membranehousing
cap anticlockwise.

PURE-PRO REVERSE OSMOSIS SYSTEM
07 08
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Installation diagram
5 Screw in andinstall the newfilter
anticlockwise.
PRO
P
URE
DRINKING WATE R SYSTEM
Change filters
4 Loose the used pre-filter clockwise
and remove it.
3Switch off water tank.
2Turn off water source.
ToRO system
1 Unplug electricity.
6 Drain out 1Gallon of waterto
purify replacement filters.

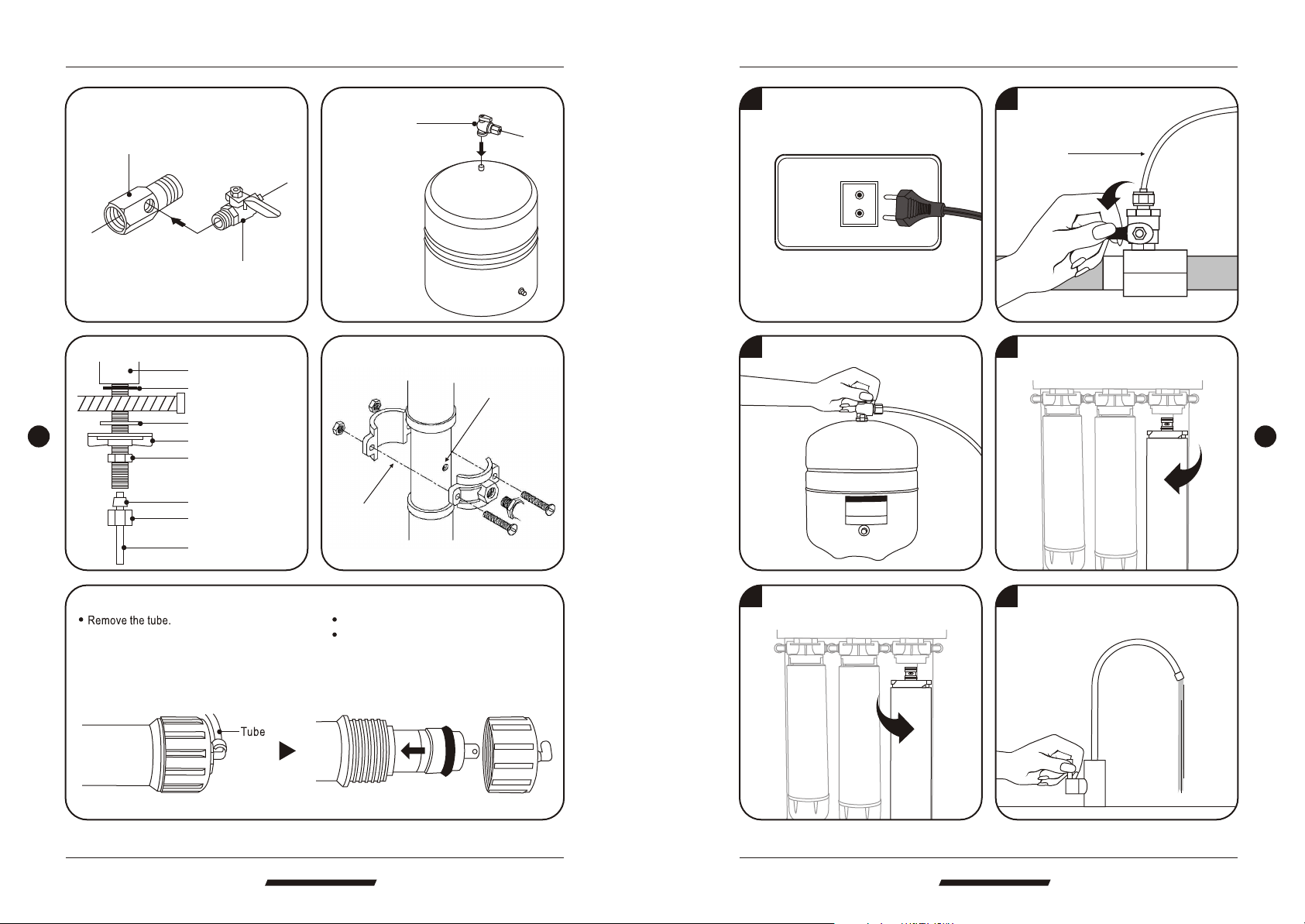

Input water : Install water tank:
Install drain saddle:
Drill a 1/4"hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Faucet
Kitchenware table
Twisted plasticlocker
Rubber gasket
Flat metal piece
Screw locker
Tubing
Cutting ring
Concave type screw
Install faucet :
Hand tighten
plastic shut-off
valve to tank.
Then connect
color tubing.
ToRO system
Tankball shut-
off valve
ToRO system
Deliver valve
Water supply connector
Towater
source pipe
ROYAL Reverse Osmosis Drinking Water Systems ROYAL Reverse Osmosis Drinking Water Systems
Assemble membrane :
Remove the membranehousing cap.
Install the membraneby carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
PRO
P
URE
DRINKINGWATERSYSTEM
