DANGER!
Please make sure you observe these operat-
ing instructions.
Failure to observe these operating instruc-
tions:
• may result in serious injury and death,
• can result in damage to the device and to the
environment.
– Read these instructions carefully before put-
ting this device into operation.
– Please observe the instructions and the code
of conduct required to operate the device
safely.
– Please make the operating instructions and
additional information from the manufacturer
available to the personnel at their workplace.
– Should you sell this device or give it to anoth-
er party for use, please make sure that you
provide them with these operating instruc-
tions.

Gebrauchsanweisung - 3/24
Table of contents
Table of contents
Legal notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General information . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Symbol explanation. . . . . . . . . . . . . . . . . . . . . . . . . 4
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Proper Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Function description . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Location of the type plate . . . . . . . . . . . . . . . . . . . . 8
Transport and storage. . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Environmental protection . . . . . . . . . . . . . . . . . . . 10
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Warranty and liability exclusions . . . . . . . . . . . . . . 11
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . 12
Description of device. . . . . . . . . . . . . . . . . . . . . . . 13
Installation and operation . . . . . . . . . . . . . . . . . . . . 14
Identification on the cardboard box . . . . . . . . . . . . 14
Setting up the floor-standing device . . . . . . . . . . . 15
Moving the floor-standing device . . . . . . . . . . . . . 17
Switching the device off. . . . . . . . . . . . . . . . . . . . . 19
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning the filter . . . . . . . . . . . . . . . . . . . . . . . . . 21
Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Other technical data . . . . . . . . . . . . . . . . . . . . . . . 23
Environmental conditions . . . . . . . . . . . . . . . . . . . 23
EC Declaration of Conformity . . . . . . . . . . . . . . . . . 24

4/24 - pure STERIBASE 300 1025009-00 07/2020
General information
General information
Symbol explanation
The following types of safety notices are employed in
these operating instructions:
Definitions
Electrician
A person with suitable professional training, knowledge
and experience which enables them to identify and avoid
the dangers which can arise from working with electricity.
Authorized, trained and qualified personnel
Qualified staff from an external company who have been
trained and authorized by the manufacturer to undertake
assembly and maintenance work on specific equipment.
Proper Use
The device has been designed for commercial use and
domestic use.
This device may be used by children over the age of 8,
persons with reduced physical, sensory or mental capa-
bilities and persons who have little knowledge or experi-
ence of the device; however, they must be supervised at
all times.
The device is equipped with two UV-C lamps and is used
for room air sterilisation. It prevents the propagation of
mould, bacteria and viruses in the air conducted through
it.
Any other use shall be considered improper. The manu-
facturer cannot be held liable for damage or injuries re-
sulting from improper use. The operator alone bears the
risk for improper use.
Proper use also includes compliance with the instructions
and operating and maintenance conditions prescribed by
the manufacturer. The device may only be maintained
and repaired by persons who have been trained and in-
formed of the dangers by the manufacturer or a dealer au-
thorized by the manufacturer.
Function description
Intensive UV-C radiation can prevent the reproduction of
mould, bacteria and viruses.
DANGER!
Type and source of hazard
This safety notice indicates the existence of a di-
rect danger to body and life.
DANGER!
Type and source of hazard
This safety notice warns of dangers to body and
life which are caused by electricity.
DANGER!
Type and source of hazard
– This safety notice warns of dangers to body
and life which are caused by UV-C radiation.
CAUTION!
Type and source of hazard
This safety notice warns of machine, material or
environmental damage.
Note:
This symbol does not identify any safety notices,
but provides additional information to better un-
derstand the processes.

Gebrauchsanweisung - 5/24
General information
Safety instructions
1) In Germany: VDE regulations
General safety instructions
– Unauthorized changes to the device are prohibited.
The manufacturer shall bear no liability for damage or
injuries resulting from such actions.
– The brackets are sealed to prevent unauthorized open-
ing. Brackets that do not have a seal or brackets with a
damaged seal may lead to a hazard to the user and to
the loss of the manufacturer’s guarantee.
– The device is only to be used if it is in perfect working
order!
– No safety equipment (e.g. stickers, seals, protective
covers or other components/attached parts) may be
removed or deactivated if this could impair the safe op-
eration of the device!
– If it is obvious that the device is damaged, it must not
be put into operation!
– Air intake and air outlet openings should not be cov-
ered!
DANGER!
Personal danger due to electric shock or
burns!
Assembly and electrical connection must comply
with the national regulations.1)
The upgrading, maintenance or repair of the de-
vice may only be carried out by specially trained
and instructed personnel.
– Disconnect the device from the power supply
before performing any work.
DANGER!
Risk of eye and skin damage due to UV-C ra-
diation!
Even when radiation periods are short, UV-C ra-
diation can severely damage the skin and, par-
ticularly, the eyes! Direct irradiation of eyes and
skin must be strictly avoided.
– Disconnect the device from the power supply
before carrying out any maintenance work
and before opening the device.
– Never operate UV-C lamps outside the device
or when it is open!
DANGER!
Risk of eye and skin damage due to UV-C ra-
diation!
Connection to the mains can be made before as
well as after installation. It is imperative that the
power supply is switched off during assembly so
that the device cannot be turned on by mistake
and UV-C radiation cannot escape.
– Switch off the power supply before assembly
and back on only after the assembly work has
been fully completed.
DANGER!
Danger to persons due to maintenance work
not carried out!
If the maintenance work is not carried out, mate-
rial damage and personal injury may occur!
– Maintenance work may only be carried out by
persons who have been authorised, trained
and qualified by JK-International GmbH, JK-
Global Service department!
– The operator is responsible for compliance
with the maintenance intervals!
CAUTION!
To protect the device from unauthorised opening
and to secure the guarantee claims, all brackets
must be sealed!
CAUTION!
Using unsuitable lamps can eliminate the
effectiveness of the device and void the CE
conformity!
– Use genuine UV-C lamps only.
CAUTION!
Risk of damage to the device!
UV-C lamps are sensitive components and may
be easily damaged.
– Do not touch the lamps with bare hands.
Wear protective gloves.
– Take care when touching and installing the
lamps. Do not bend. Do not rest on the pins.
CAUTION!
Only use genuine spare parts of the same type!
Using other spare parts can eliminate the
effectiveness of the device and void the CE con-
formity!
Any liability is excluded in case of damage or
injury proven to be the result of the use of non-
genuine spare parts.

6/24 - pure STERIBASE 300 1025009-00 07/2020
General information
Electrical safety
– The device must not be connected to the mains socket
if the mains plug or cables are damaged. The mains
power cable must be replaced with a special power ca-
ble available from the manufacturer or its Customer
Service.
Order number: see page 12.
– This device is only to be operated with an alternating
voltage of 230-240 V with 50 Hz.
– The device must only be connected to a socket with
correctly installed earthing contacts.
– The system should be protected using a residual-cur-
rent circuit breaker (residual-current device) with a
maximum rated residual current of 30 mA.
– Before connecting the device, please make sure that
the power supply corresponds to the device's power
supply data.
Notes on installing and operating the device
– The device is intended for installation in rooms or facil-
ities that are dry and not exposed to splashing or drip-
ping water. It must not be installed in rooms where the
maximum relative humidity is over 60%.
– Adaptation of the device by the Customer Service de-
partment is required for operating altitudes greater
than 2000 m above sea level in order to guarantee
trouble-free operation.
– Trouble-free operation in mobile facilities (ship, bus,
train) is not guaranteed. If necessary, the prerequisites
can be created via modification by the Customer Ser-
vice.
– The installation location must be easy to access for
maintenance work.
– The device must be completely assembled and in-
stalled so that no UV-C radiation can escape.
– Please adhere to the prescribed maintenance inter-
vals.
– This device may be used by children over the age of 8,
persons with reduced physical, sensory or mental ca-
pabilities and persons who have little knowledge or ex-
perience of the device; however, they must be super-
vised at all times. Do not allow children to play with the
device. Cleaning and user maintenance tasks must not
be carried out by children.
– When the installation conditions are no longer fulfilled
(e.g. due to changes to the operating environment), the
device must not be operated any more.
– A socket with earthing contact must be provided by the
customer near to the device.
– The installation location must be selected so that de-
germed air can equally flow through the room.
– Avoid positioning in the immediate vicinity of seating
areas or workplaces as well as beds (hospital wards)
due to bothersome air flow.
– The air circulation should not be interrupted by barriers
such as room partitions, large plants, etc.
– When installing on a floor with carpet, more dust parti-
cles will be extracted that overload the filter additional-
ly. We recommend the operation on a smooth floor or
with a smooth subframe placed underneath (e.g a pan-
el).
– With longer periods of absence or during operating in-
terferences, pull out the mains plug to disconnect the
device from the power supply. Even when the mains
switch is located in the OFF position, the device is not
fully separated from the mains supply. We recommend
turning the device off at the mains plug if the device is
not used for temporary periods (e.g. overnight).
– The following minimum clearances must be observed
for the selection of the installation location.
a≥2 500 mm
b≥500 mm
h = 1640 mm
b
h
b
a
230 - 240 V
40325 / 1

Gebrauchsanweisung - 7/24
General information
What to do if one of the fluorescent lamps
breaks?
– Before cleaning, air the room for around 15 minutes
and make sure that nobody enters the room during this
period.
– Protect your hands against shards of glass and mercu-
ry, for example by wearing rubber gloves.
– Do not use a broom, dustpan and brush or vacuum
cleaner for the initial cleaning process. A vacuum
cleaner will stir up the mercury, distributing it back into
the air.
“Sweep” the shards of glass together using a piece of
cardboard or similar.
– Gather up smaller shards and powder using a damp
paper towel or adhesive tape.
– Place all remaining parts of the lamp, shards and pow-
der into an airtight container.
– Only use a vacuum cleaner once this initial cleaning
process is complete. After vacuuming, clean the vacu-
um cleaner nozzle using a damp paper towel. Dispose
of the dust bag and dust filter in a dustbin that is not lo-
cated in a sealed room.
– Dispose of any materials that have been heavily soiled.
Clean any lightly soiled materials, e.g. using adhesive
tape. Then clean these materials in a washing ma-
chine.
– Wipe down any shoes that have come into direct con-
tact with glass or mercury powder using a damp paper
towel.
– Any paper towels and adhesive tape used during the
cleaning process should be placed in the container
with the broken lamp. Dispose of this waste at a lamp
waste collection point.
– Dispose of all cleaning materials and the rubber gloves
in a dustbin that is not located in a sealed room.
– Once the cleaning process is complete, air the room
again for a short period of time.
– Wash hands thoroughly.
Warning label
The warning label is located on the device near to the On
/ Off switch.
– The warning label must be replaced immediately if it
has been damaged or removed or becomes difficult to
read.
Note:
Fluorescent lamps contain mercury.
Note:
The quantity of mercury released when a fluo-
rescent lamp breaks is too low in general to pose
a threat to health.
(Source: Federal Environmental Agency, Ger-
many, 2013)
Note:
Comprehensive information related to broken
lamps can be found on the German Environmen-
tal Agency's website:
www.umweltbundesamt.de
The instructions must be read before using
and opening the device!
The instructions must be read and the mains
plug removed before opening the device!
Extreme danger! Dangerous voltage!
The device starts up automatically!
Caution, UV-C lamps!
WARNING:
UV rays may cause damage to the eyes and skin.
UV-C components must not be used outside of the
device.
40332 / 2

8/24 - pure STERIBASE 300 1025009-00 07/2020
General information
Location of the type plate Transport and storage
Note:
When fitting and during maintenance, the serial
numbers must be transferred into the service
booklet!
Steritube basic
IP
100001429
403
24
/
140324 / 2
Stackability on a pallet
Keep dry
Weight including packaging
This way up
Permitted temperature during
transport and storage
Centre of gravity
CAUTION!
Device may be damaged by condensation
If the device has been transported or stored at
low temperatures, please wait until the device
has adjusted to the temperature in the room be-
fore putting it into operation.
220 cm
110 cm
75 cm

Gebrauchsanweisung - 9/24
General information
Cleaning
Cleaning the device
– The inside of the device may not be cleaned as com-
ponents may be damaged.
– If desired, the outside of the device can be wiped with
a damp cloth (where necessary with a mild cleaning
agent). Wipe dry afterwards!
– The device is not watertight. It must not be cleaned
with a low-pressure or high-pressure cleaner.
Cleaning the lamps
The lamps only have to be cleaned if dirt gets on them
during installation or they are mistakenly touched with
bare hands! Regular cleaning is not necessary.
The lamps are highly sensitive to finger sweat and alka-
line cleaning agents!
– Wear clean and soft gloves (cotton or non-powdered
latex) to avoid applying new dirt. Only use soft, clean
cotton cloths.
– Clean with clear water (with a little washing-up liquid
when necessary).
– Wipe dry afterwards.
Cleaning the filter
(see also page 21)
The cleaning intervals are highly dependent on the oper-
ating conditions.
– Check the filter on the inside and outside as well as the
protective grille behind the filters for visible soiling on a
regular basis.
Dry cleaning of the filter and protective grille: Vacuum
cleaner (depending on the degree of soiling).
Moist cleaning (filter only!): water and detergent, also a
dishwasher.
Maintenance
Maintenance must be carried out after 9000 hours or 1
year.
The next maintenance appointment is indicated on the
maintenance sticker as well as the service booklet.
Please make an appointment in good time with Customer
Service (see page 2). The maintenance is carried out by
replacing the reflector and lamps on-location.
Assessment of the condition after 10 years
When the device reaches an age of 10 years after the
date of manufacture, the condition of the device must be
assessed by a certified service technician from JK-Inter-
national GmbH, JK-Global Service Department before the
device may be used further.
If this device assessment is not carried out, personal inju-
ry or material damage may occur.
Any liability is excluded if the device remains in use 10
years after the date of manufacture without its condition
being assessed.
2020 2021 2022 2023 2024
40352 / 3
1007345
40300 / 2

10/24 - pure STERIBASE 300 1025009-00 07/2020
General information
Directives
This device was constructed in accordance with the fol-
lowing directives:
• See the EC Declaration of Conformity included.
Export
We emphasize that these devices are intended for the Eu-
ropean market only and must not be exported to the USA
or Canada and operated in those countries! The manufac-
turer does not accept any liability in the event of non-com-
pliance! We explicitly emphasize that non-observance of
this instruction may result in high liability risks for the ex-
porter and/or operator.
Environmental protection
Environmental regulations – disposal of lamps
and batteries
UV lamps contain fluorescent materials and other waste
products containing mercury. Batteries contain heavy
metal compounds.
Within the European Union the national implementation of
the Waste Framework Directive 2018/851/EC applies. Ac-
cording to the national waste disposal laws and in accord-
ance with the municipal waste regulations, proof must be
provided of the proper disposal of lamps and batteries.
The JK International GmbH Customer Service depart-
ment will be happy to assist you with the disposal of lamps
and batteries:
– Report the number of lamps and batteries to the Cus-
tomer Service department by telephone or in writing.
The Customer Service department will provide you with
the name of a free delivery point for your lamps or will
handle the collection and proper disposal of the lamps in
cooperation with a disposal company. This service is
available for a fee.
Local national laws apply outside Germany. Please con-
tact JK-International GmbH Customer Service.
Packaging
All packaging consists of 100% recyclable materials.
Packaging brought into circulation by the JK Corporate
Group that is no longer required can be returned to the JK
Corporate Group. Your Customer Service or dealer will be
happy to advise you.
Disposal of Old Devices
The device has been manufactured using recyclable ma-
terials. The JK Corporate Group will provide you with in-
formation on the content or potential hazards of the
materials used.
In accordance with the 2012/19/EU directive,
implemented in Germany in the Electrical
and Electronic Equipment Act (ElektroG),
the manufacturer is obliged to take back and
dispose of certain electrical and electronic
components. The components and devices are labelled
with the following symbol:
On request, this device will be disposed of correctly by the
JK Corporate Group1). This service is available free of
charge. JK-International GmbH Customer Service will be
happy to advise you.
Registration numbers
Companies within the JK Corporate Group are registered
as manufacturers in Germany and assume all obligations
in connection with the German Electrical and Electronic
Equipment Act.
Registry number JK-International GmbH, JK-Licht divi-
sion (lamps):
WEEE-DE 61515020
Registry number JK-Products GmbH (devices):
WEEE-DE 62655951
Warranty
JK-International GmbH accepts liability for any defects to
the equipment that arise in accordance with the following
regulations on behalf of customers who have purchased
a room air degerminator for private or commercial utilisa-
tion; wear parts such as UV-C lamps and the reflector are
not covered by the warranty.
Should the product contain faults, JK-International GmbH
is entitled and obligated to repair or replace the product at
its own discretion. Where it is not possible to repair or re-
place the product, the customer may withdraw from the
purchase agreement or reduce the purchase price by a
suitable amount.
The warranty period is one year from delivery or from ac-
ceptance, if an acceptance process is required.
This does not affect the rights of the customer under the
existing warranty with regard to any claims that the cus-
tomer might have in accordance with the contract of pur-
chase.
1) The respective national laws apply. Please contact
your local dealer.

Gebrauchsanweisung - 11/24
General information
Warranty and liability exclusions
Warranty and liability claims for personal injury and prop-
erty damage are excluded if they are the result of one or
more of the following causes:
• improper use of the device;
• improper assembly, commissioning, operation or
maintenance of the device;
• operating the device with faulty safety equipment or
improperly attached or non-functional safety and
protective equipment including warning signs;
• continued operation 10 years (after date of
manufacture) without condition assessment by a
certified JK-International GmbH service technician;
• not complying with the information in the operating
instructions regarding transport, storage, assembly,
commissioning, operation and maintenance;
• the use of untrained personnel;
• unauthorized changes to the device or the control unit;
• inadequate monitoring of parts subject to wear;
• repairs carried out improperly;
• the use of non-genuine spare parts;
• emergencies and disasters resulting from the influence
of foreign materials or force majeure.

12/24 - pure STERIBASE 300 1025009-00 07/2020
Description
Description
Scope of delivery
40326 / 4
1
11
3
2
4
Scope of delivery:
2100003739-.. pure STERIBASE 300
11024949.. Operating instructions
31503309-.. Mains power cable (2.5 m)
b1007345-.. Service booklet
41005911-.. 2x UV-C lamps B114

Gebrauchsanweisung - 13/24
Description
Description of device
1. Lightlock, UV-C light shield and air outlet
2. Control panel
3. STERITUBE PLUS with 2 UV-C lamps
4. Pedestal with fan
5. Air inlet filter, three-part
6. Mains connection with On/Off switch
7. Type plate
8. Warning label
9. Maintenance sticker
Steritube basic
IP
100001429
2020 2021 2022 2023 2024
1
3
2
4
6
5
5
9
8
7
40365 / 4

14/24 - pure STERIBASE 300 1025009-00 07/2020
Installation and operation
Installation and operation

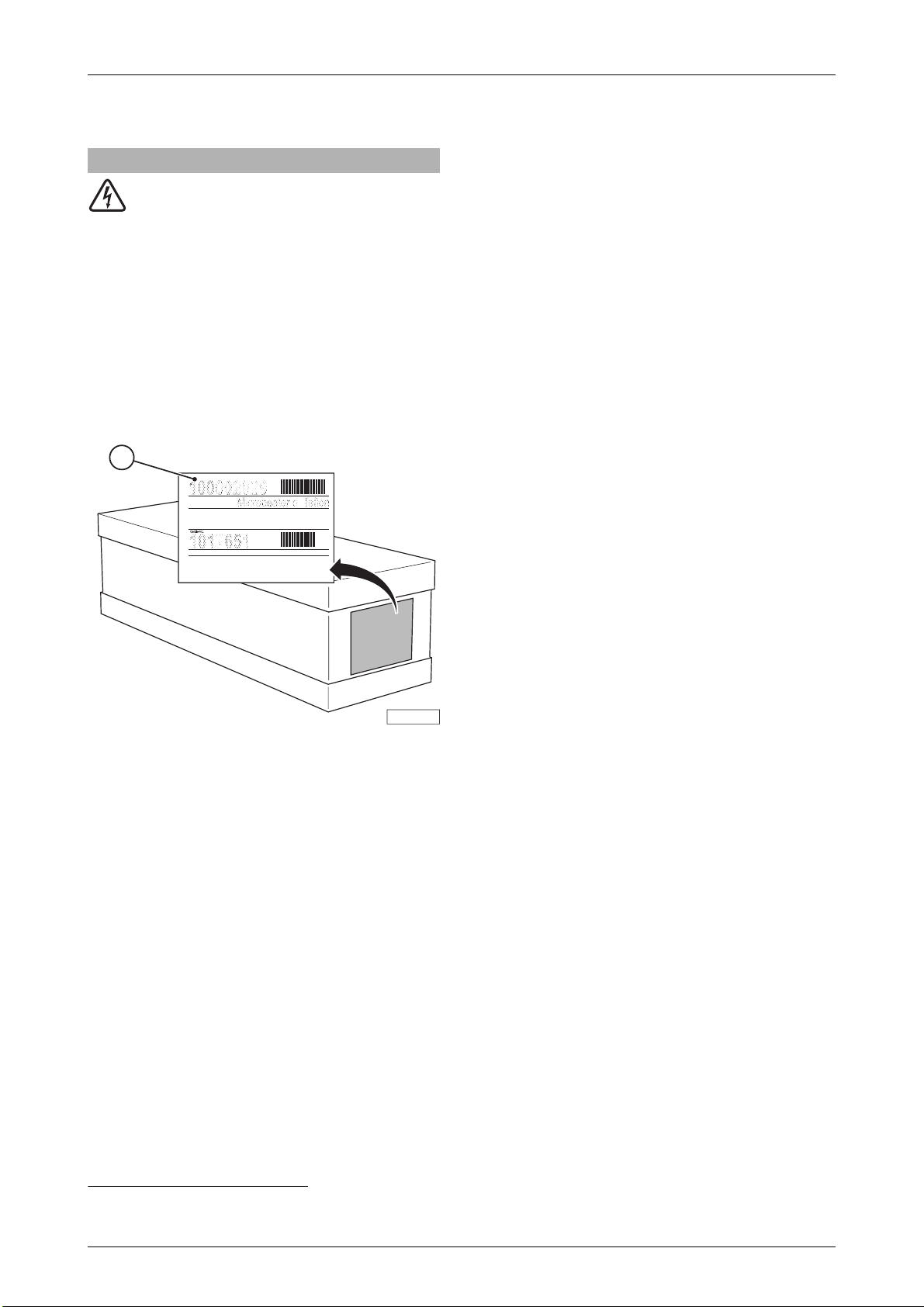

Identification on the cardboard box
The cardboard box has been provided with a label where
information such as the model type and device no. (a) can
be found.
1) In Germany: VDE regulations
DANGER!
Personal danger due to electric shock or
burns!
Assembly and electrical connection must comply
with the national regulations.1)
The upgrading, maintenance or repair of the de-
vice may only be carried out by specially trained
and instructed personnel.
– Disconnect the device from the power supply
before performing any work.
a
4
0372
/
140372 / 2

Gebrauchsanweisung - 15/24
Installation and operation
Setting up the floor-standing device
Note:
Please observe the notes on installation and
operation on p. 6.
40329 / 1
1
40558 / 0
2
40559 / 0
3
ca. 45°
40563 / 0
4
40564 / 0
5

16/24 - pure STERIBASE 300 1025009-00 07/2020
Installation and operation
Setting up the floor-standing device

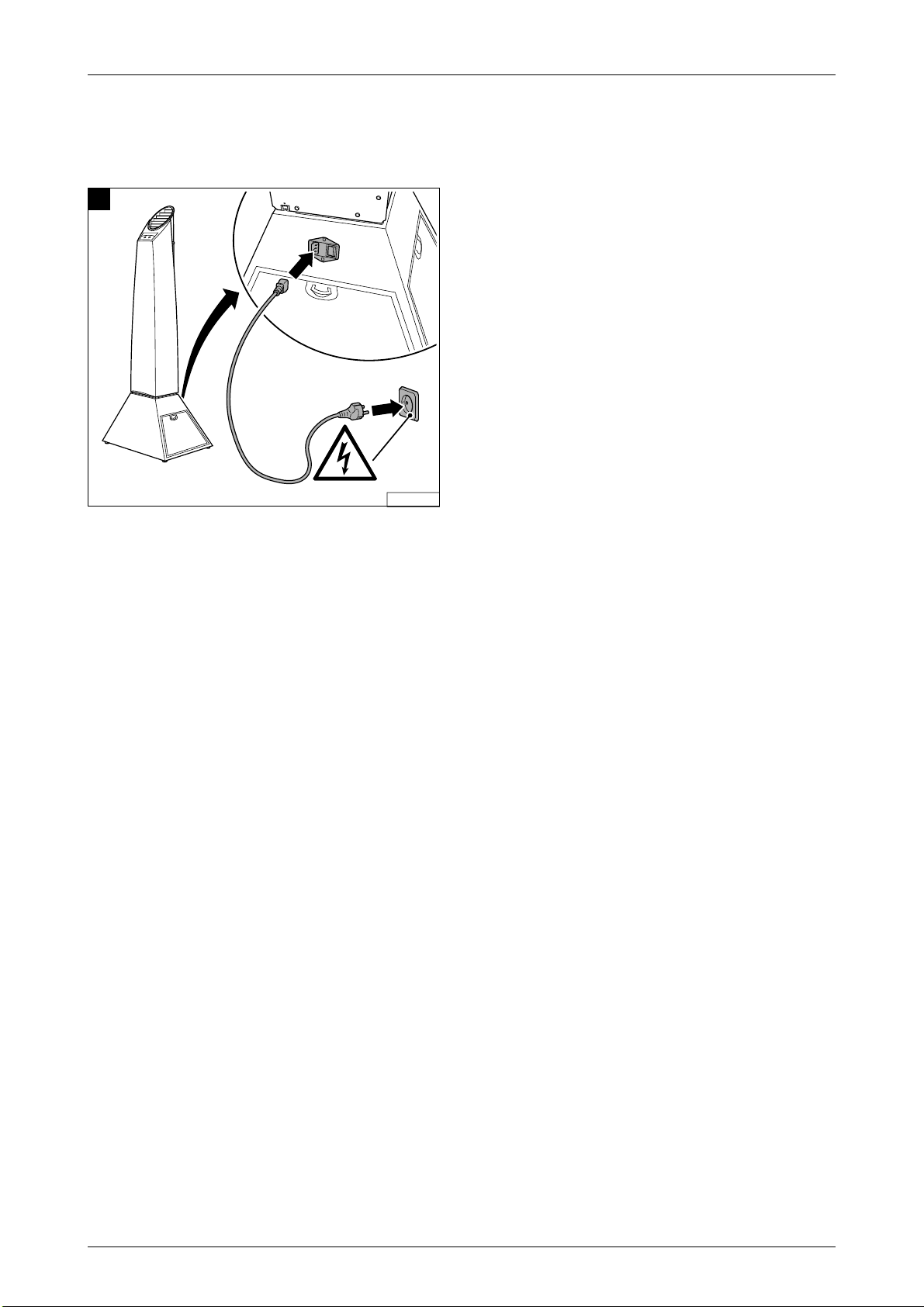

230 - 240 V 40350 / 1
6Note:
If the mains switch is switched on, the device
starts with the lamps switched off (Position "0").
230 - 240 V
40368 / 0
7

Gebrauchsanweisung - 17/24
Installation and operation
Moving the floor-standing device
Note:
Please observe the notes on installation and
operation on p. 6.
230 - 240 V
40562 / 0
1
40558 / 0
2
40559 / 0
3
ca. 45°
40563 / 0
4
40564 / 0
5

18/24 - pure STERIBASE 300 1025009-00 07/2020
Installation and operation
Moving the floor-standing device
230 - 240 V 40350 / 1
6
