PureAiro DSC 55S
The DSC55 is built small compact and portable ideal for tight space
dehumidification. With the patent for invention protected. This unit has CE, ETL
certification.
Applications
moisture remains the greatest threat to your home’s structural integrity.
Increased humidity levels indoors can cause the growth of mold and mildew
and an increase in dust mites. These are known allergens that cause
respiratory problems and asthma. This is why need to invest in a dehumidifier
today.
Overview
PRODUCT INTRODUCE
Safety Notes
Identification
Electrical Supply
Principle of Operation
Installation
Operating Instructions
Diagram
Maintenance
Troubleshooting
Warranty Information
02
03
03
03
04
04
05
06
08
09
00

LDENTIFICATION
ELECTRICAL SUPPLY
PRINCIPLE OF OPERATION
For future reference, write down the model, serial number, and date of purchase for your
dehumidifier.
This is extremely helpful if you need to seek assistance in the future. The data label on the
side of your unit has the key characteristics of your specific machine.
The Sentinel Series Dehumidifier utilizes its integral humidistat to monitor the conditioned
space.When the relative humidity goes above the selected set point, the dehumidifier will
energize. Air is drawn across an evaporator coil, which is cooler than the dew point of air.
This means moisture will condense out of the air. The air is then reheated through the
condenser coil and distributed back into the room.
For aditional questions concerming your dehumildifer, the following options
are available:
Contact your installing contractor
E-mail; [e-mail]
MODEL NUMBER:
SERIAL NUMBER: DATE OF PURCHASE:
POWER SUPPLY:
OUTLET REQUIREMENT:
CIRCUIT PROTECTOR:
240 Volts AC may cause serious injury from electric shock.
WARNING
TO REDUCE RISK OF INJURY:
1. Disconnect electrical power before servicing
2. Only plug unit into grounded electrical circuit
3. Do not use an extension cord.
4. Do not use a plug adapter
WARRANTY REGISTRATION
SAFETY NOTES
Congratulations on purchasing a new Sentinel Dehumidifier. Your new dehumidifier
comes with an extensive warranty plan. To register, simply fill out and return the
warranty form provided in the dehumidfier box.
Be sure to note your dehumidifier serial number as you will need it for registration.
The Sentinel Series Dehumidifier must always be connected using a grounded electrical
connection (as required for all electrical appliances). If non-grounded wiring is used, all
liability reverts to owner and the warranty is voided.
Sentinel Dehumidifiers should only be maintained and repaired by a qualified
technician.
Sentinel Dehumidifiers are only intended for operation when oriented with the unit stting
on its feet and level. Operating the unit in any other orientation could allow water to
flood electrical components.
If there is a chance that water flooded the dehumidifier, it should be opened and allowed
to dry thoroughly before reconnecting to electrical power and restarting.
To ensure proper operation, neither the inlet nor discharge should be positioned against
a wall. The inlet requires a minimum of 12”clearance and the discharge requires a
minimum of 36" clearance.
The best option for proper diffusion of air throughout the room is to have the discharge
blowing away from a wall and the inlet pulling air in parallel to a wall.
Always unplug dehumidifier before moving.
Do not insert your fingers or any object into the inlet or discharge.
AlI work on the dehumidifier should be done with the unit “off” and unplugged.
Do not use water to clean the exterior of the machine. To clean unit, unplug from power,
then use a damp cloth to wipe exterior.
Do not stand on the machine or use it as a device to hang clothes.
PureAiro DSC 55S
PureAiro DSC 55S
115 V, 60 Hz AC, Single Phase
3-Prong,GFI
15 Amp
02 03
INSTALLATION
The area to be controlled should be sealed with a vapor barrier. If unit is installed in a
crawlspace,all vents should be sealed.
Do not install your dehumidifier in a corrosive environment. Some liquid vapor
barriers dry via“solvent evaporation". Always make sure that barrier is
completely dry and area is throughly ventilated before installing dehumidifier.
WARNING
STEP #1: PLACE DEHUMIDIFIER ON A LEVEL SURFACE.
Do not place directly on vapor barrier. For example, use blocks, or pavers to create a level
surface.
If the unit is handled in such a manner that the compressor did not remain in the upright
postion,it is necessary to place on a level surface and wait a minimum of 2 hours before
turning the unit“on”

INDICATOR LIGHTS
ARROW BUTTONS
Use the up and down arrow button to set the desired humidity setpoint on the display screen.
The setpoint can be any number between 36-90%. Creating a setpoint means that when
the indoor humidity is lower than the set point, the machine will stop automatically.
Conversely, when the indoor humidity is higher than the set level, the unit will operate.
NOTE: The humidty levels displayed are approximate only (+/- 5%)
CONTINUOUS MODE
To switch into continuous mode, simply use the down arrow to set the humidity below 36%.
The Cont light should iluminate green on the display board to indicate that you have
successfully switched into continuous mode. The display screen will show“CO”.
When set to continuous, the dehumidifier will run constantly, regardless of the humidity level.
To stop the machine, turn the unit off or switch back to normal humidistat operation. If you
would like to switch back to normal humidistat operation, simply move the setpoint above 36%.
CENTRAL CONTROL
This mode is not applicable on the PureAiro DSC 55S.
AUXILLARY TERMINALS A5/A6
The A5/A6 on the teminal strip can be used as a safety switch for extermal condensate
pumps.
It should be set to N/O (normally open) at the dehumidifier. If an E4 error occurs, switch the
wiring to NC (normally closed).
HUMIDITY DISPLAY SCREEN
The display screen has two functions:
POWER INDICATOR LIGHT
CONTINUOUS MODE/AUTODEFROST LIGHT
This light indicates that the unit is properly powered on and ready to operate. Always make
sure the unit is "off" prior to performing any service.
When this light iluminates green, it indicates that the dehumidifer is set to continuous
operation mode.
1. When the unit is powered on, it shows the humidity of the space.
2. While setting the desired humidity level, the screen wil show the set humidity. After a brief
delay,the display will revert to current humidity level.
When the light glows red, it means the unit is in auto defrost mode and clearing the
evaporator coil of any ice buildup.
NOTE: PureAiro DSC 55S Dehumidifiers can't sit directly on floor unless the unit is
feeding directly into a sump pump next to it. Elevation is required to allow gravity flow
of condensate water drain.
STEP #2: SET UP DRAIN LINE
The drain line should be routed to a suitable drain on the outside. It must flow down to a drain
without any loops, dips, or valleys.
Recommended Drain Option-Transition to PVC Pipe
Cut a piece of 3/4" OD PVC that is approx. 6”long.
Insert the open end of the tubing into the 3/4" pipe so that it does not extend into the elbow
fitting. For proper flow, a minimum downward slope of 1”per 10' run is required.
(Note: If a proper downward angle is not possible, then it is recommended to use a
PureAiro DSC 55S which includes an integrated pump. Alternatively you can use an
external condensate pump).
Support the PVC tubing so that it maintains a
smooth downward flow to drain.
Always test the drain before leaving the
installation area.
STEP #3: PLUG UNIT INTO 15 AMP GROUNDED CIRCUIT.
Use this button to turn the dehumidifier on and off. Press once to turn machine on. You will
hear 2 beeps and the light will illuminate green. Press the power button a second time and
you will hear one beep as the machine shuts down. Note that there is a one minute fan delay
on shut - down.
POWER KEY
Key Functions
88
Power
Cont.
Defrost
Comp
Central control
Drain Tube- 12 inches Long.19 mm OD.
PureAiro DSC 55S
1
2
3
4
Insert PVC into a 3/4”elbow, then attach to a 3/4" OD length of PVC to drain.
(Note: Keep the length of PVC drain pipe to a minimum)
5
1
2
3
4
5
1
2
3
04 05

OPERATING INSTRUCTIONS
Press this button to switch the unit into continuous mode.
Use this button if the unit will not be in use for an extended period of time. Pressing the drain
pump button will remove
water from the pump reservoir, so the unit can be safely moved or stored.
THIS FUNCTION IS ONLY AVAIL .ABLE ON THE Sentinel HDi90 model.
CONTINUOUS
DRAIN PUMP
c
P
Cont. will appear on the display to indicate continuous mode.
Press the power key to turn the machine on.
START THE MACHINE
Use the up and down arrow keys to adjust your desired setpoint (typically 50-55%).
ADJUST THE SETTINGS
Press the power key again and the machine will stop. Note the fan will continue to operate
for 1 minute after the unit has turned off. NOTE: Do not disconnect the power cord to force
unit to stop. Always use the power button.
STOP THE MACHINE
During normal operation, the PureAiro DSC 55S will automatically drain by the force of
gravity.If you want to move or store your machine, wait at least 10 minutes to allow the
machine to completely defrost, then lean unit gently towards drain to ensure that it is
completely drained.
WATER DRAINAGE

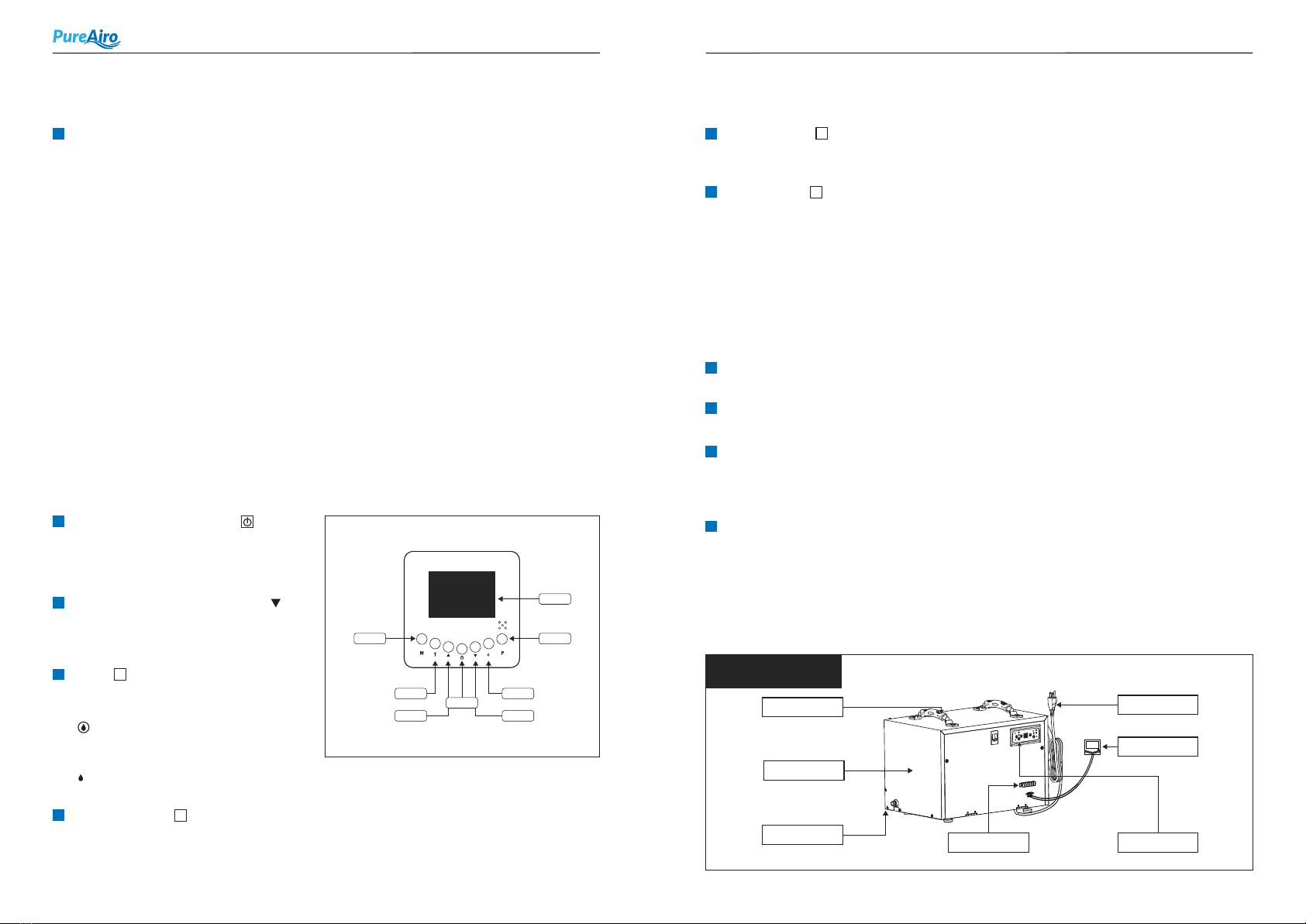

PUREAIRO DSC 55S DIAGRAM
REMOTE CONTROL INSTRUCTIONS
When the compressor light glows red, it indicates the compressor has been initiated but is
currenty warming up.
Once the compressor light switches to green, it indicates the compressor is in working
status.
Sentinel Dehumidifiers can be controlled using an optional remote accessory.The Sentinel
Remote Control connects to your Sentinel Series Dehumidifier via a 25' CAT 5 cable. The
remote control contains an integrated sensor which gives you multiple options for remotely
controlling your unit, in addition to monitoring the conditions surrounding the dehumidifer.
One application for the remote control is to install the dehumidifier in one room with the
conditioned air ducted into a second room that contains the remote. For example, the
dehumidifier could be installed in a laundry room and ducted into a living room. The remote
would then be mounted in the living room so the remote sensor can control the humidity and
provide easy controls for the user.
COMPRESSOR LIGHT
Another useful application for the remote control is if the dehumidifier is in area that's
difficult to access on a regular basis. For instance, if your dehumidifier is installed in your
crawl space, the remote could be mounted in your living space or garage. This provides you
with an easy way to monitor the dehumidifier.
Press the on/off button and the machine will
start running (one beep). Press the button
again to the turn the machine off.
Use the Up and Down arrow buttons to adjust
the humidity level.
ON/OFF (POWER)BUTTON
UP BUTTON▲ / DOWN BUTTON
Use the Mode button to switch between
dehumidification and a ducted application.
MODE
The symbol on the display board indicates
the sensor on the remote control is being
utilized.
The symbol on the display board indicates the sensor on the dehumidifier is being utilized.
TEMPERATURE
Press the temperature button to display the current temperature on the screen. Press the
button again to turn off the display.
PureAiro DSC 55S
4
1
2
3M
4T
5
6
NOTE: Symbols indicated above will only appear when the dehumidifier is powered on.
1
2
3
4
DRA IN PUMP
MODE
LCD M ONITOR
CONTINUOUSTEMPERATURE
DOW N BUTTONUP BU TTON
ON/OFF
06 07
Front View
POWER CORD
CONTROL PANEL
REMOTE CONTROL
A5/A6 AUX.TERMINAL
FOR OPTIONAL COND.PUMP
DRAIN CONNECT
UNIT COVER
HABDLE

DEHUMIDIFIER STORAGE
If the unit will be stored for an extended period of time, complete the
following steps:
1. Turn off the unit and allow to dry
2. Wrap and secure the power cord,
3. Cover the filter mesh.
4. Store in a clean, dry space.
DUCTED APPLICATIONS
Ducting the dehumidifier allows the unit to be in one room while conditioning an adjacent
room.The supply grille is designed for 6”flex ducting. Be sure to secure the ducting with tie
wrap. Also,keep in mind that the supply ducting can be screwed into an adapter if necessary.
DUCTING INSATALLATION
Maximum length for ducting= 6'
Note: The supply duct adapter is standard on all units.
REMOVING SUPPLY DUCT ADAPTER
If it is necessary to remove the adapter,
place hand at bottom of adapter and use
your fingers to pull out and down on base
of adapter. This will lift hooks out of cover
holes.
INSTALLING SUPPLY DUCT ADAPTER
To install adapter, line up with holes
on the side of unit and push up from
base of adapter.
Maintenance
Always unplug the unit before doing any maintenance.
WARNING
CLEANING THE MACHINE BODY
CLEANING THE FILTER
Use a soft damp cloth to clean exterior of unit. Do not use any soap or solvents.
Unplug the unit.
Slide out the filter.
Clean the filter mesh by vacuuming
or washing with warm water (no soap
or solvents).
Be sure filter is completely dry before restarting
unit.
COIL MAINTENANCE
Once per year, clean the coils with an approved coil cleaner
Coil cleaner should be a self rinsing, foaming cleaner such as WEBR Coil Cleaner.
R
PureAiro DSC 55S
1.
2.
3.
4.
1.
1.
2.
08 09
FLEX DUCT INSTALLATION
Rotate the flex duct counter-
clockwise
FLEX DUCT REMOVAL
Rotate flex duct clockwise.
Back View
HANDLE
MERV 8 FITER
HUMIDITY SENSOR
UNIT COVER
OUTLET END CAP
POWER CORD

PUREAIRO DSC 55S SPARE PARTS
ALL SENTINEL MODELS-PARTS
Part# Description
S-100
S-101
S-102
S-107
S-108
S-109
S-110
Remote Control
Remote Control Cable,25'
Fiexible Supply Duct,72"
Main Control Board
Display Board
RH/Temperature Sensor
PUREAIRO DSC 55S-PARTS
Part# Description
S-500
S-501
S-502
S-503
S-504
S-505.
S-506.
S-508
S-509
S-510
S-513
Fan Motor
Complete Fan Assembly
Fan Capacitor
Compressor
Compressor Capacitor
Coil Assembly
Hot Gas Bypass Coil
RH/Temperature Sensor Cable
Display Cable
CAT 5 Prot Internal Cable
Foot,adjustable
PUREAIRO DSC 55S-FILTERS
Part# Description
S-517
S-518
S-519
MERV-8 Filter
HEPA Filter
Carbon Filter
TROUBLESHOOTING
SYMPTOM CAUSE SOLUTION
Verify that there is power to the
outlet and that the plug is
properly installed in outlet
Power Supply
Machine
Won't Run
Clean the filter mesh according
to instructions listed in manual.
Air Filter is Clogged
Low Air Flow
Clear the blockage from inlet or
outlet.
Machine is Not Level
Loud Noise
Check to ensure that wire is
connected at both ends. If no
issues are visible, the sensor
may be faulty.
E1=Humidity Sensor issues
Trouble
Code E:1
The unit is outside the operating
temperature range. Modify the
room conditions so the
temperature is between
33°-105°F and operation will
commence. If room conditions
are within temperature range,
replace defective sensor.
Room Temperature Over 105°F
or Below 33°F (Display LO)
Trouble
Code:
HI or LO
Room Temperature Over 105°F
(Display HI) or Below 33°F
(Display LO)
The unit is outside the operating
temperature range. Modify the
room conditions so the
temperature is between 33°-105°F
and operation will commence.
Air Inlet or Outlet is Blocked.
Move the dehumidifier to flat,
firm ground.
Filter Mesh is Blocked Clean the filter mesh according
to instructions listed in manual.
PureAiro DSC 55S
Remote Control Package(cable+remote )
10 11

LIMITED WARRANTY EXCLUSIONS
EXCLUSIONS:
DAMAGE DUE TO THE FOLL OWING IS NOT COVERED UNDER WARRANTY
ACTS OF NATURE- INCLUDING BUT NOT LIMITED TO:
FLOODING
FIRE
WATER DAMAGE
HURRICANE / STORM DAMAGE
IMPROPER USAGE- INCLUDING BUT NOT LIMITED TO:
POOL / SPA / TUB APPLICATIONS
MISUSE, ABUSE, OR TAMPERING WHETHER INTENTIONAL OR ACCIDENTAL
IMPROPER INSTALL ATION OR DESIGN
IMPROPER VOLTAGE
LACK OF NORMAL CARE
FAILURE TO FOLLOW INSTRUCTIONS
CORROSION
FREEZING
ANY ADDITIONAL COSTS DUE TO CHANGES IN LAWS OR BUILDING CODES
FREIGHT CHARGES
ANY COSTS DUE TO LOST PROFIT OR DELAY
DAMAGE TO PROPERTY
CAUSE BEYOND CONTROL
CONSUMABLE PARTS, INCLUDING BUT NOT LIMITED TO:
FILTERS
BATTERIES
POWER CORDS
VALVES
SWITCHES
RUBBER PARTS
DIRECT, INDIRECT, COLLATERAL OR INCONSEQUENTIAL DAMAGES OF ANY KIND
THE WARRANTIES AND LIABILITIES SET FORTH ARE IN LIEU OF ALL OTHER
WARRANTIES EXPRESSED OR IMPLIED, IN LAW OR IN FACT, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE.
PureAiro's total liability, regardless of nature of claim shall not exceed original purchase
exceed original purchase price of the product if a product or component is replaced while
under warranty, the applicable warranty period shall not be extended beyond the original
warranty time period.
LIMITED WARRANTY
All warranty benefits apply to the original owner only. Warranty cannot be transferred or
assigned.
1 YEAR (FROM DATE OF PURCHASE): PureAiro warrants the dehumidifier will operate
free of defects in workmanship and materials. At it's discretion, PureAiro will repair or
replace any malfunctioning components, free of charge (excluding transportation costs)
3 YEARS (FROM DATE OF PURCHASE): PureAiro warrants the refrigeration circuit
(compressor, condenser and evaporator) will operate free of defects in material or
workmanship. At it's discretion, PureAiro will replace defective parts,including factory labor
or refrigerant. This does not include transportation.
5 YEARS (FROM DATE OF PURCHASE): PureAiro warrants the compressor, condenser,
and evaporator will operate free of any defects in material or workmanship. At it's
discretion, PureAiro will repair or replace the defective parts. This does not include labor,
transportation, or refrigerant.
CUSTOMER RESPONSIBILITIES: In order to take advantage of the warranty service, the
customer must do the following:
Customer must provide normal care and maintenance (including, but not limited to
cleaning filters, coils and pumps)
If customer cannot return unit to certified repair center, all costs associated with freight
shipment are borne by the customer. In addition, all duties related to freight shipments,
including but not limited to palletizing, wrapping, labeling,and pickup are associated with
customer.
If shipped, customer is responsible for all risk of loss or damage.
PRUEAIRO WARRANTY STEPS:
Once goods are received customers must log in www.pureairo.com to fill out the warranty
Registration form and submit to PureAiro company. We will receive your purchasing and
installation information and save it.
If no warranty registration is sent to us, warranty period will begin the day the shipment
left the warehouse. Please be sure to record serial # and date of installation. You will
need this information to receive the RA number.
If warranty service is necessary, customers must contact PureAiro Tech Support by
[e-mail] or local technical service phone to receive a Return Authorization
(RA number). Once an RA has been issued, customers should bring the unit to a certified
repair center. PureAiro wil arrange the shipping to bring the unit back to the Alorair
warehouse (at the expense of the customers) if customers are not available.
After the unit has been received by PureAiro (whether at a repair center or the
warehouse), PureAiro will have an initial inspection. If it is determined to be invalid
warranty claim (see exclusions below), customers have to pay for all associated repair
costs and shipping costs for units repair.
Customers can pick up the unit after repair at their own expense for shipping. Units will
have a rigorous testing before sending it back to customers.
If the unit can no longer be fixed , and it is in the warranty period and determined to be
valid claim, we will ship the customer a new unit within the same year warranty from the
date of replacement.
After parts are repaired or replaced by PureAiro, the original warranty period continues
to apply until it meets its deadline.No extensions to the original warranty period.
1
2
3
4
Removal and re-installation of unit is the sole responsibility of owner.
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
PureAiro DSC 55S
12 13
