PureAiro GUARDIAN 155 User manual

Installation & Operations Manual
GUARDIAN 155
(Plasma Sterilizer)
PureAiro solutions inc.
Add: Berlin, Germany
Tel: [phone]
E-mail: [email protected]

TABLE OF
CONTENTS
PureAiro Guardian 155
Precautions in the manual
General safety instructions
Device description
Technical data
Transportation and storage
Store
Installation and commissioning
Operations And Functions
Set Up Equipment
Overall Workflow
Release
Maintenance service
Maintenance cycle
Cleaning
Maintenance service
Accessories
Troubleshooting
Electrical wiring diagram
Limited Warranty
01
01
02
03
03
03
03
04
04
04
06
06
06
07
07
08
09
10
11
This operating manual contains all the important information needed for the safe commissioning
and use of the Guardian 155（Plasma Sterilizer）.
Please read this manual carefully before using the Guardian 155（Plasma Sterilizer） for the first
time.
Please keep this operation manual in a place within reach for reference when necessary.
If the device is available for use by others, this manual should be attached to the device.
It provides you with support for operating equipment and remediation of possible problems, as well
as information on disposal and customer service.
Please observe all safety instructions and information on use and maintenance in this manual.
Warning!
Behind this symbol is a hazard warning, which contains instructions that, if not
followed, may cause serious injury/death/property damage.
The message is preceded by a signal word, which is designated as a certain level
of danger.
Danger!
Risk of serious injury
Warning!
Risk of property damage
Dangerous serious or fatal injury
!
PRECAUTIONS IN THE MANUAL
GENERAL SAFETY INSTRUCTIONS
!
This manual is part of the Guardian 155 (Plasma Sterilizer). Read this manual carefully
before using this equipment for the first time. Please use it only in accordance with the
instructions for use of this device and keep it within your reach for easy reference
during use.
If you have any unanswered questions about the use and operation of the Guardian
155Plasma Sterilizer, please do not operate the equipment. In this case, please
contact PureAiro customer service or a certified expert seminar to clarify any existing
ambiguities.
Any behavior that does not follow these instructions may cause property damage,
endanger human health and damage the environment.
Please observe the following safety instructions!
01

02
PureAiro Guardian 155
TECHNICAL DATA
03
The product must be grounded!
There is a risk of injury and damage to the equipment!
Do not use any damaged equipment or components! These are repaired with special accessories
The equipment must not be exposed to any type of liquid (rain, splashing water). If water enters the
interior of the Guardian 155（Plasma Sterilizer）, please turn off the device and contact customer
service for inspection.
Do not cover the device during operation! Do not insert any objects into the device.
There is a risk of electric shock and injury!
Please keep the intake and exhaust ports open at all times!
If the cover is not completely closed, it is forbidden to put the equipment into operation!
Before opening the Guardian 155（Plasma Sterilizer） housing, make sure to disconnect the power
cord.
Do not connect the device to an exposed power source!
The device must not be operated in a room where there is a risk of explosion.
DEVICE DESCRIPTION
The odor neutralizer can effectively remove odors such as kitchen or musty odor, smoke odor, or
residual odor after fire.
In this process, through the corona discharge that occurs between the electrodes, the oxygen in the
indoor air is converted into singlet oxygen (O ), and then the odor molecules are oxidized and
2
degraded. The Guardian 155（Plasma Sterilizer）, which in addition to singlet oxygen also produces
3
a very small amount of ozone (O )(max.0.05ppm/m ). These amounts amount of ozone (O ) are not
3 3
harmful to health.
The Guardian 155（Plasma Sterilizer） is used to neutralize the smell in a closed room. The fan
draws air from the surrounding air, guides it through the electrodes, and then blows it out of the
socket gap and returns to the room for treatment.
Parameter Value
220V / 50Hz
130CFM / 220CMH
+2.000.000/cm3 positive ions
-3.0000.000/cm3 negative ions
-10℃ ~ 35℃
<65 db
240 x 165 x 210mm
Power
Airflow
Ion generator
concentration
Operating temperature
Sound Pressure Level
Dimensions (L×W×H)

04 05
PureAiro Guardian 155
1
2
3
4
5
6
Do not install this machine near flammable substances or gases.
Ensure that there are no obstructions at the air inlet and outlet.
Please place the device in the center of the room as much as possible to ensure the best air
circulation.
Make sure to place the device on a dry and vibration-free surface.
Ensure that the equipment is protected from splash water.
Only use the Guardian 155（Plasma Sterilizer） according to the parameters provided in the
"Technical Data" chapter.
INSTALLATION AND COMMISSIONING
The following requirements must be met when installing a Guardian 155（Plasma Sterilizer）:
OPERATIONS AND FUNCTIONS
Set Up Equipment
By default, the power on is OFF. When the power is ON, the indicator light is on, and the Ion
generator and fan are always running.
Rotate the arrow of the knob to the corresponding position, and set the running time as the
corresponding working time between 00:00 and 03:00,
During the operation, the indicator light is on, the Ion generator sterilizer and the fan keep
running, and the knob arrow returns to OFF to shut down.
Place the Guardian 155（Plasma Sterilizer） in the center of the room.
Set the timer to the required run time.
Make sure that the equipment and connecting cables are not damaged.
Connect the power cable and connect the device to the power source. Observe the technical
parameters.
Then turn on the device. The display panel will light up. The cleaning cycle will begin
immediately. Once the preset time has passed, the Guardian 155（Plasma Sterilizer） will
automatically shut down.
Overall Workflow
When performing odor neutralization and cleaning cycles, follow
the steps below:
1
2
3
4
5
TRANSPORTATION AND STORAGE
!Equipment damage due to vibration
Strong vibration will damage the electrode.
During transportation, the safety of the Guardian 155（Plasma Sterilizer） must be
ensured to prevent vibration and sliding.
Warning!
Store the Guardian 155（Plasma Sterilizer） in a dry place to prevent bad weather
from affecting the performance of the machine.
Choose a dust-free storage location.
When not using the device, be sure to disconnect the power supply.
Store

06 07
PureAiro Guardian 155
The perception of smell is subjective. Therefore, it is impossible to specify a linear reference value
based on room size or temperature.
Please Eliminate The Smell As Follows:
!
If you no longer smell any unpleasant odors in the next 1-2 days, you do not need
to turn on the Guardian 155（Plasma Sterilizer） to purify the air.
The risk of ozone(0 ) causing harm to the human body! Although the ozone(0 )
3 3
produced is only a trace amount, please pay attention! During use, if you smell
ozone outside the work area, stop the machine immediately. Ventilate the room
thoroughly.
Warning!
The treatment time required for the operating parameters depends on many factors.
Aspects to consider include:
...
Room size
Temperature
Gas source material composition
The time the room is exposed to the source of odor
The source of odor affects the depth of the material
Type/strength of harmful gas
At the end of the treatment, there should be a noticeable decrease in odor intensity and/or a
slight ozone odor.
Before the first use, ventilate thoroughly.
Note: Each time you change the setting, wait for the specified duration before making another
adjustment.
After a certain period of time, before any parameter setting, thoroughly ventilate the room!
Start the Guardian 155（Plasma Sterilizer）. The larger the room, the longer the equipment will
run.
Due to this personal opinion, it is not feasible to make comprehensive recommendations on dosage
and usage. Whether it's the musty smell in the basement, the fuel smell in the garage or the musty
smell of wood, everyone feels different.
For a successful machine, in addition to the correct settings, raising the temperature of the
environment is also very important. Heat increases the speed at which the odorant diffuses from the
substance. Once the odor enters the air, it will be bound by oxygen.
If in winter, the indoor temperature is too low (below 12°C), the smell may come back suddenly in
summer. In the cold season, additional heating helps release odor particles that have not yet
spread. Therefore, the correct temperature for effective purification must be tested repeatedly to
obtain the perception and evaluation of odor.
Please Remember:
This device is an air purifier, not an odor modifier. Just because the neutralization and chemical
combination of odors produced by electro-oxidation does not mean that fragrances will be emitted
in the purified air.
RELEASE
The device is designed such that once the set time is exceeded, it will automatically shut down.
Corresponding functions are integrated in the form of a timer (see above). After the working cycle is
over, the power is automatically cut off to end the work of the machine.
MAINTENANCE SERVICE
The frequency and type of maintenance work basically depend on the operating environment, and
how and how long the Guardian 155（Plasma Sterilizer） is used. Over time, dust and moisture
accumulate on the components, which may damage the function and performance of the device.
In order to ensure the normal operation and trouble-free operation of the equipment, it must be
cleaned and maintained regularly.
In rooms with high levels of dust and pollution or recovery after a fire (high humidity), you should
check for maintenance after several uses.
In a dry environment, such as a hotel or within the permitted maintenance range, the maintenance
interval may be as long as several months.
Criteria for determining the maintenance interval
Uninterrupted operation for several hours
Many days per month
In a heavily polluted room
In a humid room
The device is in operation:
Regardless of the conditions of use described, the following signs indicate
that the equipment should be maintained:
The noise level of the fan is higher than normal.
The electrode is damaged (typical sign: the hissing sound when singlet oxygen is transmitted is
almost inaudible).
Clean
In the framework of regular maintenance work, it is not only necessary to check the normal
condition of the equipment and its accessories, but also to perform a thorough cleaning of the
equipment and its components.
In order to ensure the normal and trouble-free operation of the equipment, the equipment must be
cleaned and maintained regularly.
1
2
1
2
3
4

08 09
PureAiro Guardian 155
Cleaning fan
The electrode can be cleaned in its built-in state. Before cleaning the electrode, check it for
cracks or cracks. Do not use damaged parts! Use a dry (lint-free) or damp cloth to clean the
components. Make sure that there are no fibers (fluff) left on the electrode after cleaning. Make
sure not to use the device until the electrodes are completely dry.
Loosen the screws on the boot shell
Disassemble the shell
Disassemble and clean the fan. Always check whether the fan is working properly. If it is only
slightly polluted, you can use a vacuum cleaner or a water tap to clean it. If it is heavily
contaminated, clean the reaction generator with a soap solution. After cleaning, the fan can
only be inserted after it is completely dry!
Cleaning electrode
If you have any questions about the function and operation of the Guardian 155（Plasma Sterilizer）,
or if you want more information on claims or guarantees, please feel free to contact us.
Before contacting our customer service to solve an existing technical problem, please try to
eliminate the error by following the instructions described in the "Troubleshooting" chapter.
Address: Tel:
Berlin, Germany [phone]
!Loss of electrodes causes equipment damage!
Operate only with inserted electrodes!
Warning!
1
2
3

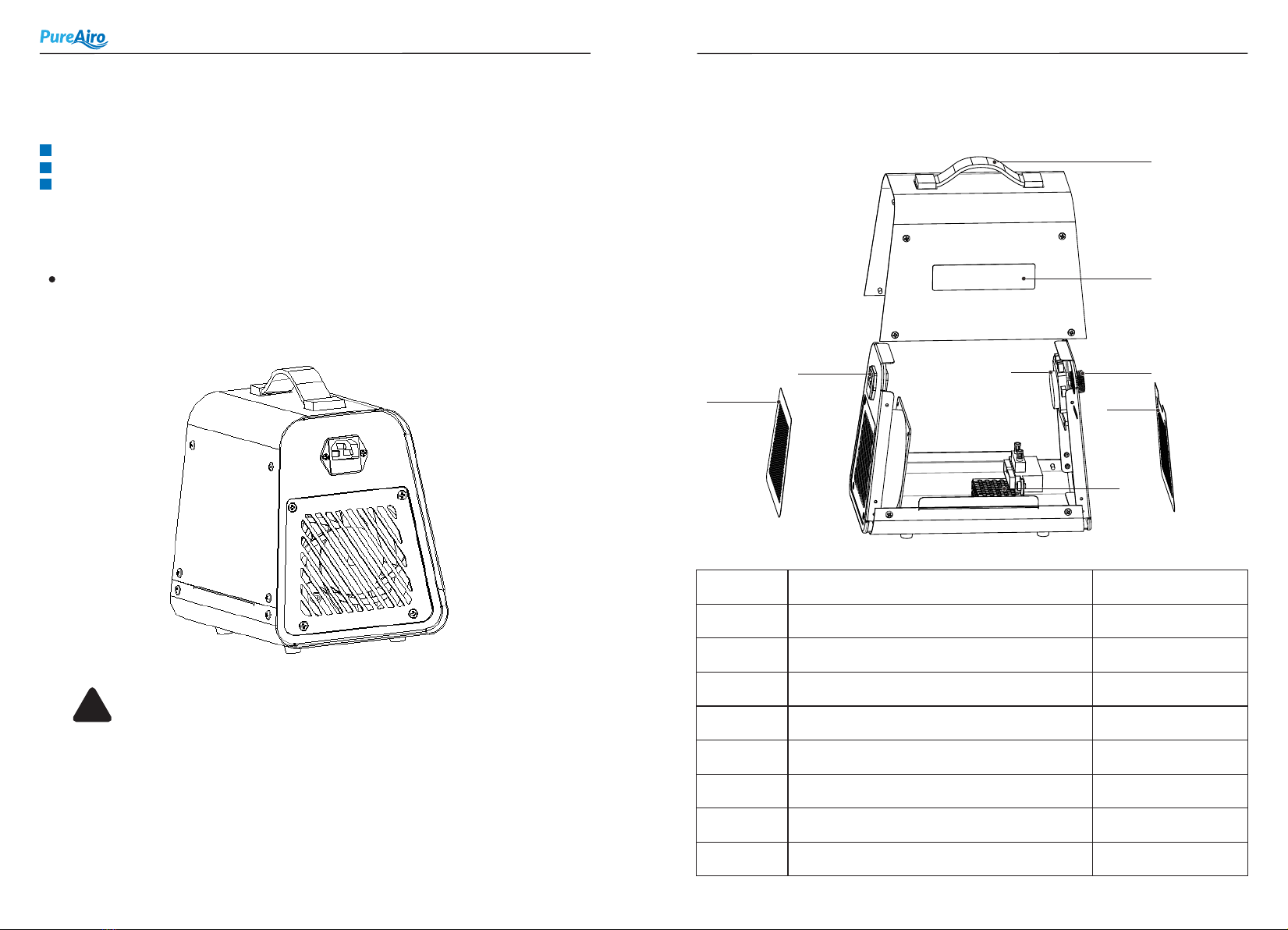

ACCESSORIES
1
2
3
4
6
7
8
Designation
1
2
3
4
No.
5
Leather handle
Stickers
Knob
Soft tile 1
Ion generator generator
Timer
Socket tail
Soft tile 2
1
1
Quantity
1
6
7
81
5
1
1
1
1

PureAiro Guardian 155
TROUBLESHOOTING
Problem Cause
Device does
not work
The fuse is blown
The power plug
is damaged
Solution
Replace the damaged fuse and/or
reopen the fuse. Be careful! The fuse
does not need to be repaired, but it
must be replaced at any time. In most
cases, the fuse is triggered by a serious
technical failure. Please authorized
service personnel to replace each fuse!
Let certified personnel inspect the
equipment.
Place the device on a flat, solid, dry
surface.
Loud noise
Disconnect the power supply of the
device and check whether the power
plug and connecting cable are
damaged.
Power supply is
not connected. Plug the plug into the socket.
The connection
parameters do not match
the technical
specifications.
Check the connection to the main line.
Connection parameters: 110 V/ 60Hz.
Even if the cleaning
process has been
completed, the odor
pollution still persists
with the same
intensity.
Send the equipment to a certified
professional workshop for repair.
Damage to the fan and/or
its bearings.
This device is placed in
an uneven place.
Reactor damage
Ion generator
ELECTRICAL WIRING DIAGRAM
10 11

WIRING DIAGRAMLIMITED WARRANTY
Warranty becomes effective since the date of original purchase and will last for two (2) years.
After parts are repaired or replaced by PureAiro, the original warranty period continues
to applies until meet its deadline. No extensions to the original warranty period.
Customers can pick up the unit after repair at their own expense for shipping. Units will
have a rigorous testing before sending it back to customers.
If the unit can no longer be fixed, and it is in the warranty period and determined to be
valid claim, we will ship the customer a new unit within the same year warranty from the
date of replacement.
Once receive the goods, customers must log in www.PureAiro.com to fill out the
warranty Registration form and submit to PureAiro company. We will receive your
purchasing and installation information and save it.
If no warranty registration is sent to us, warranty period will begin the day the shipment
left the warehouse. Please be sure to record serial # and date of installation. You will
need this information to receive the RA number.
If warranty service is necessary, customers must contact PureAiro Tech Support by
[e-mail] or local technical service phone to receive a Return Authorization
(RA number). Once an RA has been issued, customers should bring the unit to a certified
repair center. PureAiro will arrange the shipping to bring the unit back to the PureAiro
warehouse (at the expense of the customers) if customers are not available.
After the unit has been received by PureAiro (whether at a repair center or the
warehouse), PureAiro will have an initial inspection If it is determined to be invalid
warranty claim (see exclusions below), customers have to pay for all associated repair
costs and shipping costs for units repair.
PureAiro Warranty Steps:
This limited warranty is only effective for the original purchaser. It is NOT transferable.
Who’s covered?
Warranty Period
This limited warranty is only effective for the original purchaser. It is NOT transferable.
Who’s Not covered?
2. Damage caused by misuse, abuse, neglect, alterations or unauthorized repair.
1. Damage caused by the owner when attempting to fix or alter the product by himself or herself.
3. Natural depreciation.
How to request warranty services?
To obtain the benefit of this warranty, please leave your message online (www.PureAiro.com), or send an email to
[email protected].
Our customer service will address your issue in 24hs.
All warranty benefits apply to the original owner only. Warranty cannot be transferred or assigned.
3
1
2
4
5
6
7
Flooding
ACTS OF NATURE- INCLUDING BUT NOT LIMITED TO:
Fire
Water Damage
Hurricane Storm Damage
EXCLUSIONS:
DAMAGE DUE TO THE FOLLOWING IS NOT COVERED UNDER WARRANTY
THE WARRANTIES AND LIABILITIES SET FORTH ARE IN LIEU OF ALL OTHER
WARRANTIES EXPRESSED OR IMPLIED IN LAW OR IN FACT, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE.
PureAiro's total liability, regardless of nature of claim shall not exceed original purchase
exceed original purchase price of the product, if a product or component is replaced while
under warranty, the applicable warranty period shall not be extended beyond the original
warranty time period.
The foregoing shall constitute the total liability of seller in the case of defective performance
of all or any of the equipment or services provided to buyer. Buyer agrees to accept and
hereby accepts the foregoing as the sole and exclusive remedy for any breach or alleged
breach of warranty by seller.
Any dishonesty or fraud in connection with PureAiro warranty thoroughly voids all warranty
policies. PureAiro expressly reserves the right to pursue legal action in the event of
dishonesty, fraud, or attempted fraud.
IMPROPER USAGE-INCLUDING BUT NOT LIMITED TO:
Pool/spa/tub Applications
Misuse, Abuse Or Tampering Whether Intentional Or Accidental
Improper Installation Or Design
Mproper Voltage
Lack Of Normal Care
Failure To Follow Instructions
CORROSION
ANY ADDITIONAL COSTS DUE TO CHANGES IN LAWS OR BUILDING CODES
FREIGHT CHARGES
DAMAGE TO PROPERTY
FREEZING
CAUSE BEYOND CONTROL
ANY COSTS DUE TO LOST PROFIT OR DELAY
Switches
Filters
CONSUMABLE PARTS INCLUDING BUT NOT LIMITED TO:
Batteries
Power Cords
Valves
Rubber Parts
DIRECT, INDIRECT, COLLATERAL OR INCONSEQUENTIAL DAMAGES OF ANY KIND
1
2
3
4
5
6
7
8
9
10
11
PureAiro Guardian 155
12 13
