PureLink PT-SP-HD12-4K User manual

User Manual
PT-SP-HD12-4K
User Manual
1x2 HDMI Distribution Amplier with 4K2K & HDCP Support
Model PT-SP-HD12-4K
Designed in Germany
© 2016 PureLink GmbH All rights reserved.

User Manual
PT-SP-HD12-4K
Please read all of these instructions carefully before you use the device. Save this manual for future reference.
The PT-SP-HD12-4K 1x2 HDMI Distribution Amplier with 4K2K & HDCP Support has been tested for conformance
to safety regulations and requirements, and has been certied for international use. However, like all electronic
equipments, the PT-SP-HD12-4K should be used with care. Please read and follow the safety instructions to pro-
tect yourself from possible injury and to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice .................................................................................. 2
2. Introduction ....................................................................................... 3
3. Features ........................................................................................... 3
4. Package Contents .................................................................................. 3
5. Specication....................................................................................... 4
6. Connection Diagram................................................................................ 5
7. Panel Description .................................................................................. 6
8. Installation ........................................................................................ 7
9. Notice ............................................................................................. 7
10. Warranty .......................................................................................... 8
2

User Manual
PT-SP-HD12-4K
• Supports HDMI Deep Color & 3D / DVI 1.0 compliant
• HDCP 1.3 compliant
• Wide frequency range: 25MHz~340MHz
• Video bandwidth: 10.2Gbps
• Resolution up to 4K2K @30
• Supports default EDID and has ability to learn the EDID of displays
• Supports xvYCC, x.v.Color & Deep Color
• Mini-USB firmware update for expanding compatibility
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
• Easy installation
3. Features
The PT-SP-HD12-4K 1x2 HDMI Distribution Amplier with 4K2K & HDCP Support provides the most cost eective
and advanced HDMI splitter solution on the market, by which the high denition video and high quality audio can
be transmitted to 2 dierent locations without losing quality. PT-SP-HD12-4K supports all 3D formats and the true
4K2K video!
With built-in Mini-USB rmware update mechanism, the compatibility among countless HDMI sources and recei-
vers can be further guaranteed. With the upmost 36 bit deep color video and high denition audio support, PT-SP-
HD12-4K is suitable for high quality HDMI broadcasting, digital signage and education applications!
2. Introduction
3
• 1x PT-SP-HD12-4K
• 1x DC 5V2A wall wart
• 1x User Manual
4. Package Contents

User Manual
PT-SP-HD12-4K
5.Specications
Item Description
Units Distribution Amplier [Splitter]
HDMI Compliance HDMI Deep Color, full 3D & 4K2K
DVI Compliance DVI 1.10
HDCP Compliance HDCP 1.3
Video Bandwidth Single-link 340MHz [10.2Gbps]
Video Support Up to 4K2K @30
Audio Support DTS-HD Master Audio, Dolby TrueHD Dolby Digital,
DTS, DVD-Audio, LPCM, SACD, MPCM
ESD Protection −Human body model — ±19kV (air-gap discharge) & ±12kV (contact discharge)
−Core chipset — ±2kV
PCB stack-up 4-layer board [impedance control — dierential 100Ω; single 50Ω]
Firmware update Feasible via Mini-USB port
ARC N/A
HDMI 1.4 Ethernet N/A
Input 1x HDMI [7.1ch audio & video]
Output 2x HDMI [7.1ch audio & video]
HDMI Connector Type A [19-pin female]
Rotary control switch EDID Mode selection
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 113 x 62.5 x 25mm [4.4" x 2.5" x 1"]
Package 198 x 137x 74mm [7.8" x 5.39" x 2.91"]
Carton 420 x 400 x 300mm [16.53" x 15.75" x 11.81"]
Weight Model 463g [16.3 oz]
Package 946g [1.0 lbs]
Fixedness Wall-mounting case
Power supply 5V 2A DC
Power consumption 10 Watt (max)
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH (no condensation)
4

User Manual
PT-SP-HD12-4K
6. Connection Diagram
5

User Manual
PT-SP-HD12-4K

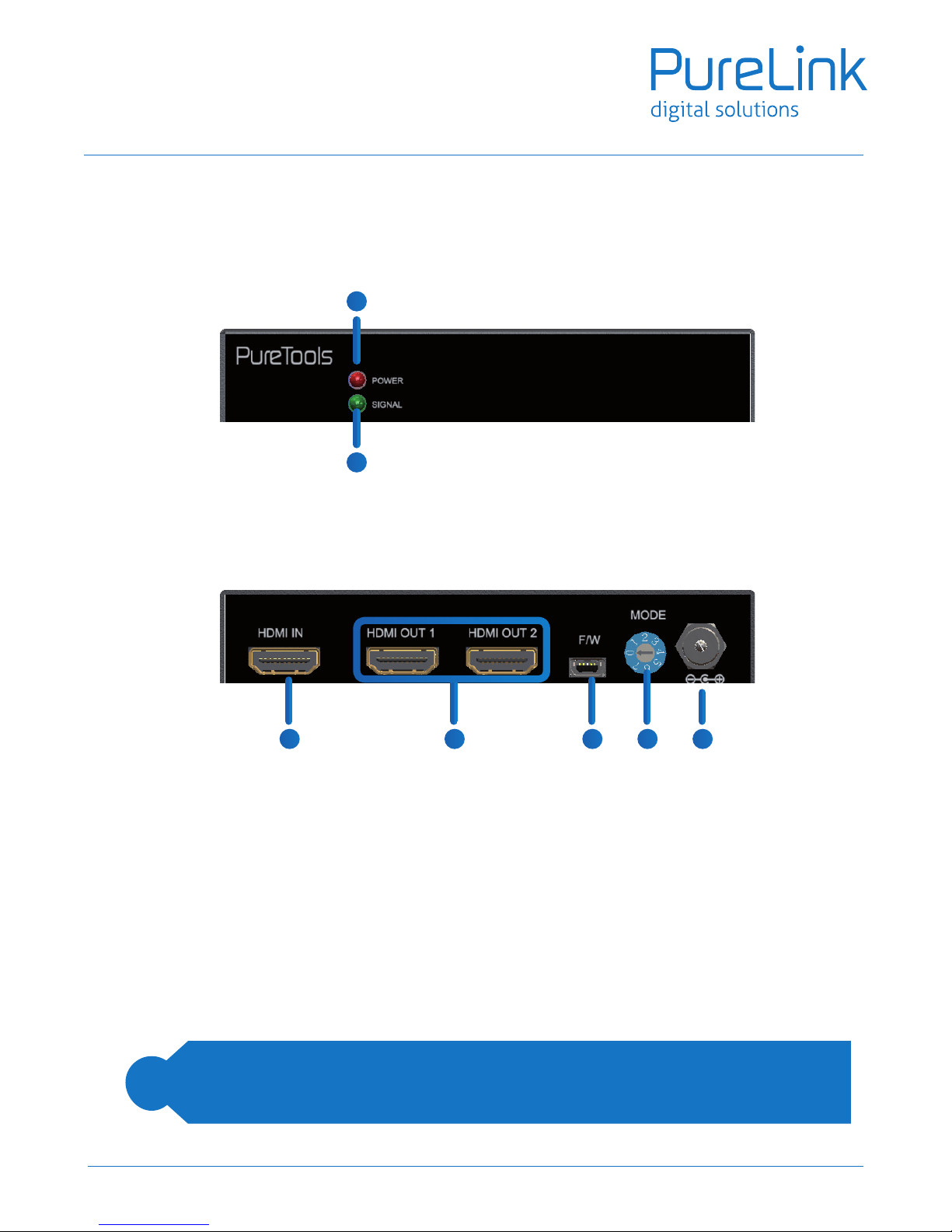

7. Panel Description
Front Panel
Rear Panel
1. Power LED: Lights on when device is ready
2. Signal LED:Signal LED indicator
3. HDMI IN: Connect to a HDMI input source
4. HDMI OUT1-2: HDMI outputs to HDMI displays
[HDMI OUT1: EDID Learn Default]
5. Mini-USB: For technical support only [firmware update]
6. MODE:0 - F/W update mode
1 - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio
2 - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio
3 - EDID Ultra-HD(4K2K@30) - 24bit 2D video & 7.1ch audio
4 - EDID Ultra-HD(4K2K@30) - 24bit 2D video & 2ch audio
5 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio
6 - Auto EDID analysis learning mode
7 - EDID learning mode
[Please use HDMI OUT 1port for learning EDID from display]
7. +5V DC: Connect to the +5V DC 2A power supply unit
6
43
2
1
5 6 7
1. Automatic EDID learning will detect all the connected HDMI equipped monitors and analyze all
the content of EDID. The EDID with minimal resolution support will be the reference EDID for
incoming HDMI source players.
i

User Manual
PT-SP-HD12-4K
7
8. Installation
9. Notice
1. Switch o all devices, including monitors.
2. Connect to the displays.
3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In.
4. Plug in 5V DC power supply.
5. Power on the HDMI monitors.
6. Power on the HDMI source.
1. While connecting a new monitor to the splitter under mode6(auto EDID) & mode7(EDID learning), experien-
cing a short period of time without display might be expected. The splitter will do Automatic EDID learning
which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update!.]

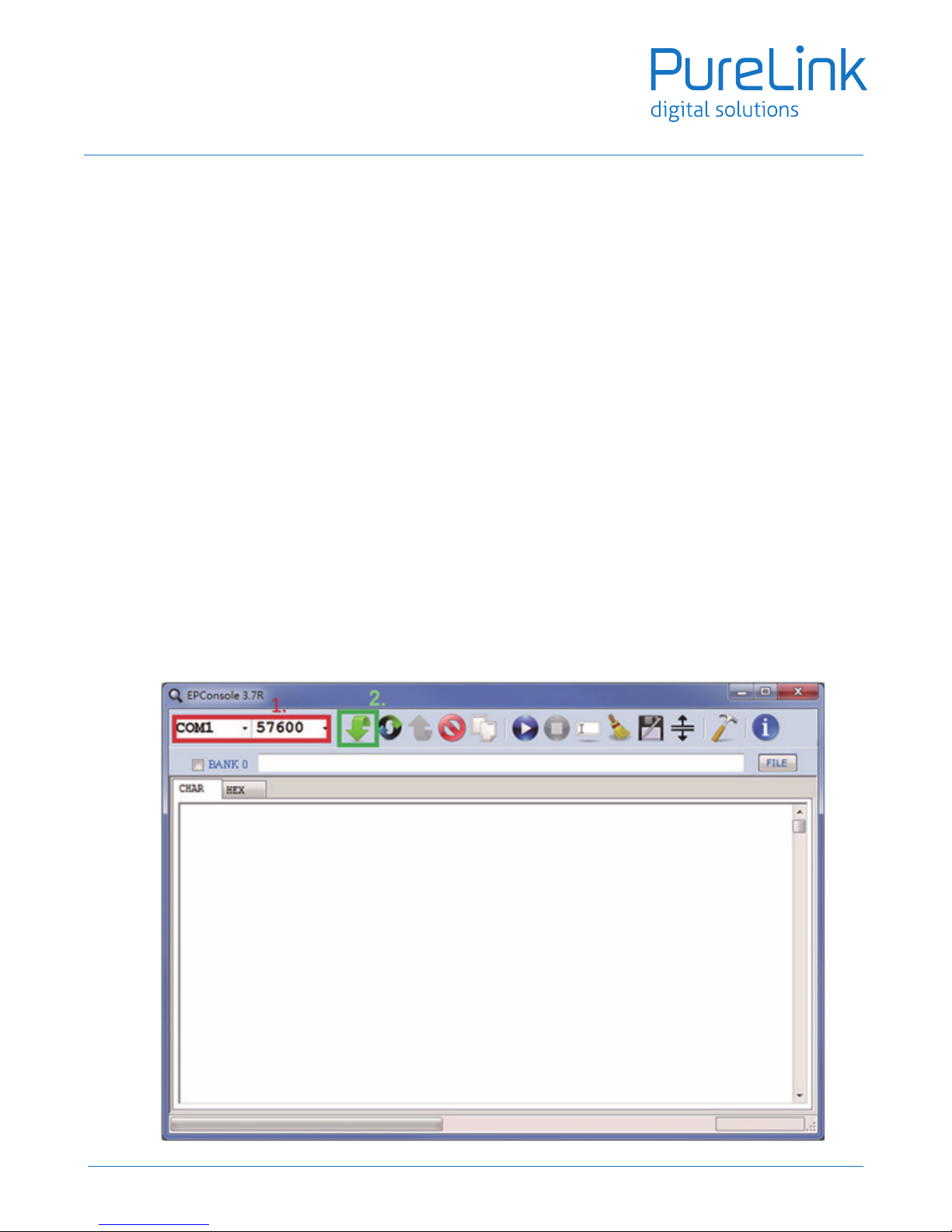

2. For rmware update through Mini-USB, users MUST turn the power o, set the dip switch to “ON”, and then
connect an Mini-USB cable between PC and device. Open the rmware update software, [1] set the correct
com port and baud rate (57600 is recommended), [2] click the “File” button to direct to the rmware HEX or
BIN le, power on the device and press “Program MCU” symbol to rmware update. Once update process is
done, please power o the device and set the dip switch back to “1”.
Broadcasts HDMI signal to 2 DVI displays!

User Manual
PT-SP-HD12-4K
8
10. Limited Warranty
The SELLER warrants the PT-SP-HD12-4K 1x2 HDMI Distribution Amplier with 4K2K & HDCP Support to be free
from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an autho-
rized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its
option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modications including static discharge and power surge. This warranty is oered by the SELLER for
its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in
eect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the
unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under
no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other im-
plied warranty or tness or merchantability for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for shipping
charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and must be free from
any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assu-
mes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for
direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual,
even if advised of the possibility of such damages. Also, the technical information contained herein regarding the
PT-SP-HD12-4K features and specications is subject to change without further notice.
