1. Product Introduction
Compliant with HDMI 2.0 & HDCP 2.2, the HDBaseT 2.0 KVM Extender Set PT-HDBT-1002 from
PureTools is a 4K HDMI Extender set consisting of transmitter and receiver and developed
with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB
2.0, control signals and PoC over a single CAT5e/6 cable. The unidirectional PoC compliant
extender comes with only one power supply; the receiver can be powered via the transmitter.
1.1 Features
• Compatible with HDMI1.4 and backwards compatible with all previous HDMI standards,
delivering high-resolution AV signals up to FullHD / 1080p, 3D, 4K@60Hz
• Supports HDBT2.0, transmitting a 1080p / 4K@60 (4:2:0) signal in up to 100m over a single
Cat.6 cable
• EDID Pass-Through
• HDCP2.2 compliant
• Front panel status LEDs for power, link & HDCP
• USB & RS232 control
• Unidirectional PoC (Power over Cable)
1.2 Packing List
• 1 x PT-HDBT-1002 Transmitter
• 1 x PT-HDBT-1002 Receiver
• 4 x Detachable Mounting Ears
• 4 x Screws
• 1 x Power Adapter (DC 12V 2A)
• 8 x Plastic Cushions
• 1 x User manual
Note: Please contact your distributor immediately if any damage or defect in the components
is found.
User Manual
PT-HDBT-1002
7
2. Panel Description

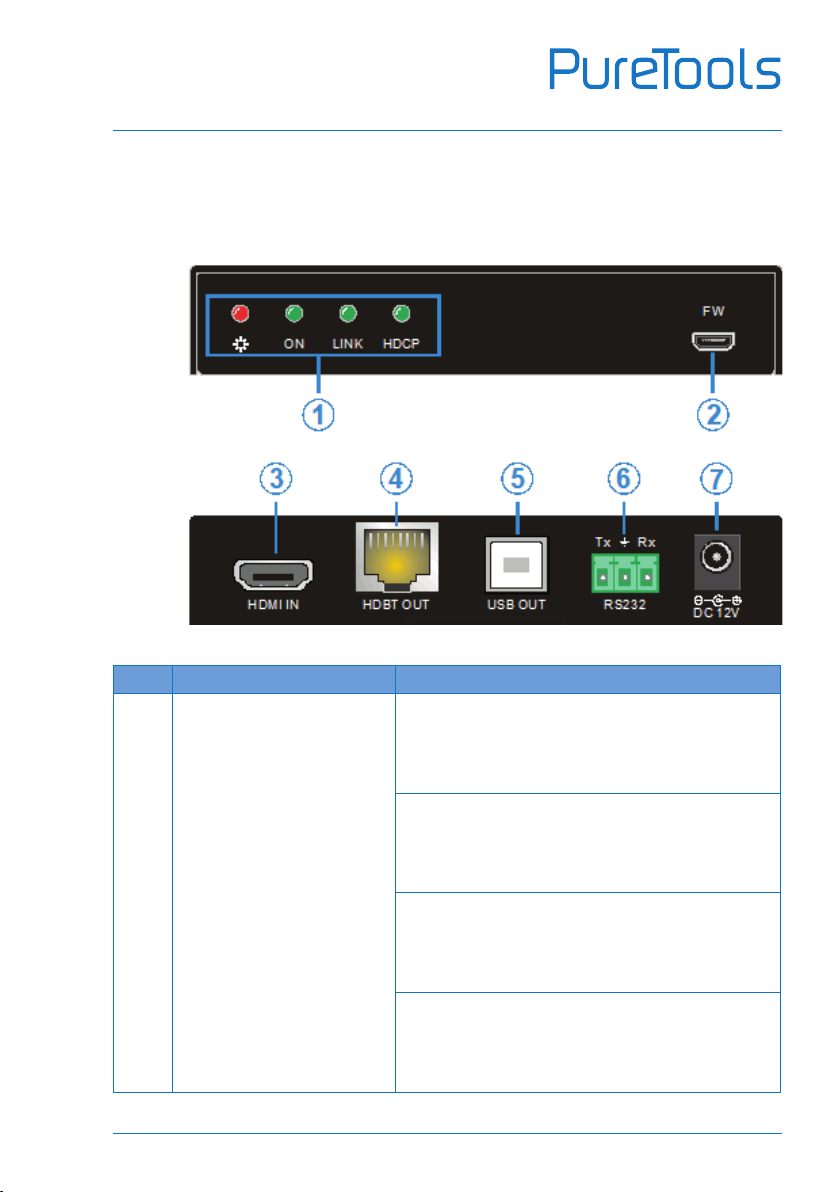

2.1 Transmitter
No. Name Description
1 Indicators
Power:
• OFF: No power
• RED: DC power present
ON: Working status indicator
• OFF: Not operational
• Blinking GREEN: Normal operation
LINK: HDBT Link status indicator
• OFF: No Link
• GREEN: Link successful
• Blinking GREEN: Link problem
HDCP: HDCP compliant indicator
• OFF: No HDMI tra c(no picture)
• GREEN: HDMI signal with HDCP
• Blinking GREEN: HDMI signal without HDCP
Front
Rear
User Manual
PT-HDBT-1002
8
No. Name Description
2FW
Micro USB port, used for rmware update.
Firmware updated need auxiliary equipment,
please contact with our after-sales department for
more details.
3 HDMI IN Connect with HDMI source.
4 HDBT OUT
Connect to the HDBT IN port on rear panel of the
Receiver via CAT5e/CAT6a cable, compliant with
HDBT2.0 and support unidirectional PoC to power
the Receiver.
5USB OUT Type-B USB port, connect to PC to receive remote
USB control
6RS232
Serial port, connects with control device or device
to be controlled, supports bi-directional RS232
control.
7 DC 12V Connect with a DC12V 2A power adapter.
! Pictures for reference only, subject to our existing products.

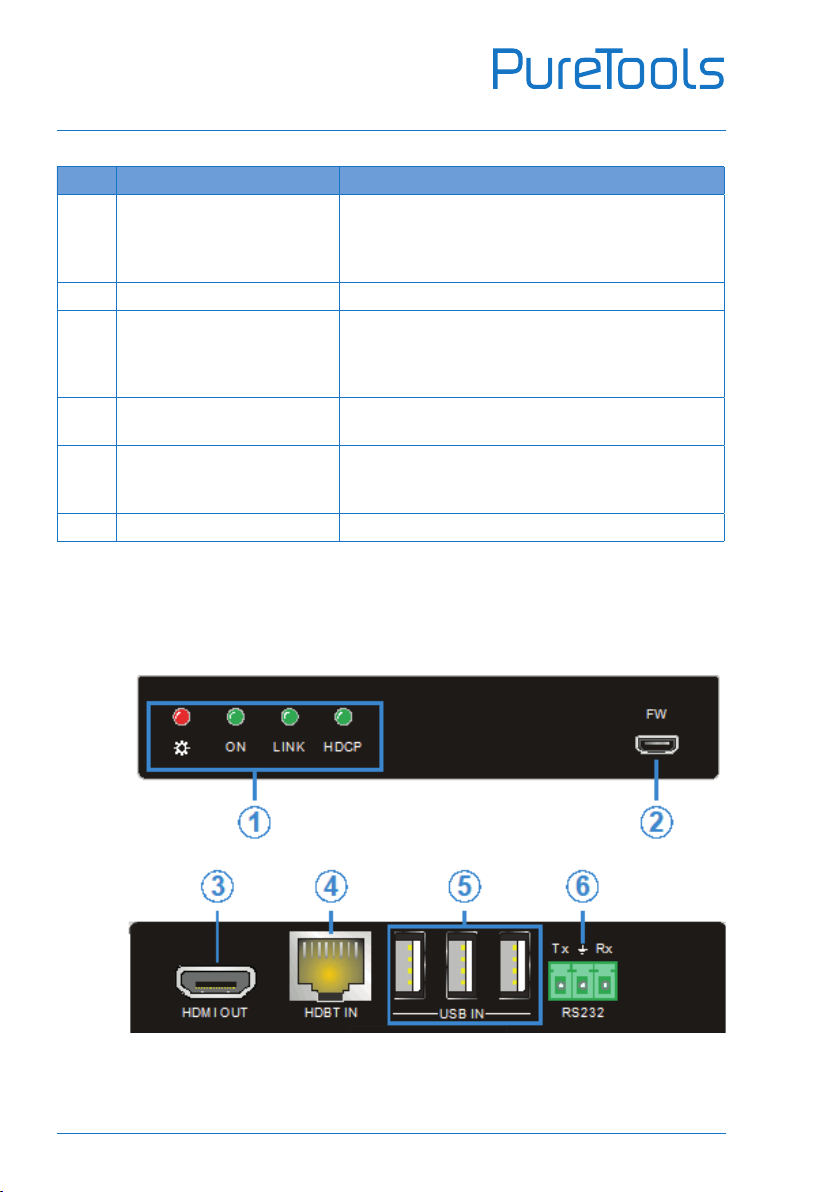

2.2 Receiver
Front
Rear
User Manual
PT-HDBT-1002
9
No. Name Description
1 Indicators
Power:
• OFF: No power
• RED: DC power present
ON: Working status indicator
• OFF: Not operational
• Blinking GREEN: Normal operation
LINK: HDBT Link status indicator
• OFF: No Link
• GREEN: Link successful
• Blinking GREEN: Link problem
HDCP: HDCP compliant indicator
• OFF: No HDMI trac(no picture)
• GREEN: HDMI signal with HDCP
• Blinking GREEN: HDMI signal without HDCP
2FW
Micro USB port, used for rmware update.
Firmware updated need auxiliary equipment,
please contact with our after-sales department for
more details.
3HDMI OUT Connect with HDMI display.
4HDBT IN Connect to the HDBT OUT port on the Transmitter
via CAT5e/ CAT6a cable, compliant with HDBT2.0.
5 USB IN Type-A USB ports, connect to mouse/ keyboard/
U-disk for remote USB access.
6RS232
Serial port, connects with control device or device
to be controlled, supports bi-directional RS232
control.
User Manual
PT-HDBT-1002
10
3. System Connection
3.1 Usage Precautions
• Make sure all components and accessories are included before installation.
• System should be installed in a clean environment with proper temperature and humidity.
• All of the power switches, plugs, sockets, and power cords should be insulated and safe.
• All devices should be connected before power on.
3.2 System Diagram
User Manual
PT-HDBT-1002
11
3.3 Connection Procedure
Step1.
Connect HDMI source (such as PC) to HDMI IN port of the Transmitter with an HDMI cable.
Step2.
Connect HDBT OUT port of the Transmitter to HDBT IN port of the Receiver through a
straight-thru CAT5e/CAT6 cable.
Step3.
Connect a HDMI display to HDMI OUT port of the Receiver with HDMI cable;
Step4.
When using the USB control, do the following:
a) Connect PC to the USB OUT port of Transmitter.
b) Connect Mouse/ Keyboard/U-disk to the USB IN port(s) of Receiver.
Step5.
When using the bi-directional RS232 control, do the following:
a) Connect PC to the RS232 port at either the Transmitter or the Receiver.
b) Connect a third-party device (such as projector) need to be controlled to the RS232
port at the other end.
c) Send RS232 commands to control the third-party device. For more details about
RS232 commands, please refer to the user manual for the third-party device.
Step6.
Connect with DC12V power adaptor to the power port of Transmitter, the Receiver will be
powered synchronously via PoC.
Note:
• System Diagram shown in this manual is for reference only, more specic schemes depend
on real-time applications.
• Connect HDBT ports via straight-thru CAT5e/6 cable with TIA/EIAT568B standard termin-
ations at both ends.
• RS232 communication protocol: Baud Rate: 9600; data bit: 8; stop bit: 1; parity: none. HDBT
Transceiver receives RS232 control from devices with various baud rate (2400, 4800, 9600,
19200, 38400, 57600, 115200).
User Manual
PT-HDBT-1002
12
4. Specication
Transmitter
Input • 1x HDMI (19 pin Type-A male)
Output • 1x HDBT (RJ45 female); 1x USB OUT (Type-B)
Other • 1x RS232 (3-pin pluggable terminal block)
Receiver
Input 1x HDBT (RJ45 female); 1x USB IN (Type-A)
Output 1x HDMI (19 pin Type-A male)
Other 1x RS232 (3-pin pluggable terminal block)
General
HDMI Embedded audio PCM/Dolby Digital/DTS/DTS-HD
Signal Standard HDMI1.4 & HDCP2.2
Transmission Mode HDBaseT 2.0
Transmission Distance 1080p / 4K@60 (4:2:0) ≤100m(Cat6)
Resolution Up to 4K@60Hz 4:2:0 / UltraHD
Bandwidth 10.2Gbps
EDID Management EDID Pass-Through
Operation Temperature 0 ~ +40°C
Storage Temperature -10 ~ +55°C
Relative Humidity 10% ~ 90%
External Power Supply Input:100V~240V AC; Output: DC 12V 2A
Power Consumption 18W(max)
Dimension (W*H*D) 4.5”x 0.86” x 3.74”/116 x 22 x 95(mm)
Net weight TX:197g; RX:198g
Note: All nominal levels are at ±10%.
User Manual
PT-HDBT-1002
13
5. Panel Drawing
FW
ON LINK HD CP
DC 12V
Tx Rx
RS232HDBT OUTHDMI IN USB OUT
116.00 mm
21.50 mm
95.00 mm
PT-HDBT-1002-TX
TX Transmitter
HDBaseT Extender
4K (60Hz 4:2:0) with USB2.0 KVM
USB IN
Tx Rx
HDBT IN
HDMI OU T RS232
FW
ON LINK HD CP
116.00 mm
21.50 mm
95.00 mm
PT-HDBT-1002-RX
RX Receiver
HDBaseT Extender
4K (60Hz 4:2:0) with USB2.0 KVM
Transmitter
Receiver
User Manual
PT-HDBT-1002
14
6. Troubleshooting & Maintenance
Problems Potential Causes Solutions
No reaction to any
operation, power indicator
is o
Haven’t been powered on Insert power adapter to
Transmitter
Abnormal indication of the
status LEDs
Wrong specication of the
power adapter
Change for DC 12V 2A
power adapter.
Color lose or poor picture
quality
Signal loss caused by long
transmission distance
beyond eective value
Make sure the connecting
cable is within 100m and of
good quality.
Bad quality of the HDMI
cable
Ensure the HDMI cables
used at source, Transmitter,
Receiver and display are
properly connected and are
of good quality
Cannot use the device the device is broken Send it to authorized dealer
for repairing.
Note: If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
7. After Sales Service
The return of a product implies the full agreement of the terms and conditions hereinafter.
There terms and conditions may be changed without prior notice. If there appear some
problems when running the product, please check and deal with the problems referring to this
user manual. The conditions apply to the customer service provided only for products sold
by an authorized distributor. Any transport costs are borne by the users during the warranty.
Customer Service will accept defective product(s) in the scope of warranty coverage at the
sole condition that the defeat has been clearly dened, and upon reception of the documents
or copy of invoice, indicating the date of purchase, the type of product, the serial number, and
the name of distributor.
User Manual
PT-HDBT-1002
15
1) Product Limited Warranty
This product will be free from defects in materials and workmanship for two years.
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the
unit is within the warranty period must be presented to obtain warranty service.
2) What the warranty does not cover (servicing available for a fee).
• Warranty expiration.
• Factory applied serial number has been altered or removed from the product.
• Damage, deterioration or malfunction caused by:
• Normal wear and tear.
• Use of supplies or parts not meeting our specications.
• No certicate or invoice as the proof of warranty.
• The product model showed on the warranty card does not match with the model of the
product for repairing or had been altered.
• Damage caused by acts of god.
• Servicing not authorized by distributor.
• Any other causes which does not relate to a product defect.
• Shipping fees, installation or labor charges for installation or setup of the product.
3) Technical Support
For any questions or problems, contact your distributor or reseller and tell them the respective
product name and version, the detailed failure situation as well as the formation of the cases.
User Manual
PT-HDBT-1002
16
Asking for Assistance
Technical Support:
Phone: +49 5971 800299 - 0
Fax: +49 5971 800299 - 99
Technical Support Hours:
8:30 AM to 5:00 PM Monday thru Thursday
8:30 AM to 4:00 PM Friday
Write To:
PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
www.purelink.de
info@purelink.de
Table of contents
Other PureTools Extender manuals
