Thanks for choosing the PT-HDBT-210 HDMI 2.0 via HDBaseT Extender, which
consists of a transmitter and a receiver module. It can extend 4K video to a distance
up to 40 meters and 1080p video to distances up to 70 meters over a single CATx
cable. It supports audio de-embedding and ARC. It also supports bidirectional IR and
RS232 to be passed through to control source or display device remotely. The PoC
feature allows the transmitter and the receiver to be powered by only one power
adapter in the system. Besides passing EDID information from the display, there are
multiple built-in EDID settings that can be selected by the 4-pin DIP switch on the
front panel of the transmitter. Further, the extender supports convenient firmware
upgrades using the Micro-USB port.
Features
Supports HDMI 2.0 and the HDMI video resolutions up to 4K@60Hz 4:4:4 HDR.
HDMI input supports HDCP 2.2 and the output supports HDCP Active / Passive
mode.
Extends 4K signals to distances up to 131 feet (40 meters) and 1080p signals to
distances up to 70 meters (229 ft.) over a single CATx cable.
Supports video resolution up-scaling for 1080p inputs to be automatically
upscaled to 4K output.
S/PDIF output on receiver for source audio de-embedding.
18Gbps high bandwidth.
Advanced EDID management: multiple built-in EDID settings can be selected.
Built-in 4K & 1080p test pattern images for troubleshooting.
Bidirectional IR, RS232 and 24V PoC.
Supports ARC.
Supports CEC pass-through.
Provides LEDs indicators of the current operating status.
Firmware upgrade by Micro-USB port.

User Manual
PT-HDBT-210
5
Packing List
1x PT-HDBT-210-TX Transmitter
1x PT-HDBT-210-RX Receiver
2x TX Mounting Ears with 4 Screws
2x RX Mounting Ears with 4 Screws
4x TX Plastic Cushions
4x RX Plastic Cushions
1x 3-pin Terminal Block
1x Power Adapter (24V DC 1.25A)
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.
Transmitter Panel Description
1. Power LED: The LED illuminates red when power is applied.
2. Test Pattern: Press the button with a paper clip or another pointy tool to enable
test patterns - The left LED illuminates blue and the product generates an
image of 1080p/60Hz (color bars) as output signal. Press this button again and
the left LED blinks blue at an interval of 500ms while the product generates a
4K@60Hz (4:4:4) color bar test pattern to be output. Press and hold this button
for three seconds to exit the test pattern mode.
3. 1080p →4K Upscaling: Press and hold the button at least three seconds with
paper clip or other sharp tool to enable 1080P to 4K up-scaling, and then the
left LED illuminates blue. Press and hold it again to exit.
4. EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer
to the chapter EDID Management for more details.
Tx Rx
LINKHDCP
123 4 5678910 11 12
HDBTOut
HDMI In
IROut
IRIn ARC Aud io O ut

User Manual
PT-HDBT-210
6
5. FW: Micro-USB port for firmware updates and user-defined EDID upload.
6. HDMI In: Type-A female HDMI input port to connect an HDMI source.
7. ARC Audio Out: Toslink connector to connect speaker or amplifier for ARC audio
output.
8. IR In: 3.5mm jack to connect the IR receiver for IR pass-through.
9. IR Out: 3.5mm jack to connect the IR emitter for IR pass-through.
10. RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a
third-party device to be controlled.
11. HDBT Out: RJ45 port to connect the HDBT input port of receiver with a CATx
Ethernet cable. The LINK LED illuminates orange when there is a valid HDBaseT
link between the transmitter and the receiver. The HDCP LED illuminates green
when the video contains HDCP content.
12. DC 24V: DC connector for the power adapter connection.
Receiver Panel Description
1. Power LED: The LED illuminates red when power is applied.
2. ARC Mode: Press the button with a paper clip or another pointy tool to enable
the ARC mode - the left LED illuminates blue. Press the button again to exit ARC
mode - the LED turns off.
3. ARC Audio In: Toslink connector to connect ARC audio source device (e.g. TV).
4. FW: Micro-USB port for firmware updates.
12345678911
10

User Manual
PT-HDBT-210
7
5. HDMI Out: Type-A female HDMI output port to connect HDMI display (e.g. TV).
6. Audio Breakout: If ARC mode is turned off, the Toslink connector is connected
to the speaker or amplifier for HDMI source audio de-embedding. Note, that if
ARC mode is enabled, this port does not output audio.
7. IR In: 3.5mm jack to connect the IR receiver for IR pass-through.
8. IR Out: 3.5mm jack to connect the IR emitter for IR pass-through.
9. RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a
third-party device to be controlled.
10. HDBT In: RJ45 port to connect to the HDBaseT output port of the transmitter
using a CATx Ethernet cable. The Link LED illuminates orange when there is a
valid HDBaseT link between the transmitter and the receiver. The HDCP LED
illuminates green when the video contains HDCP content.
11. DC 24V: DC connector for the power adapter connection.
DIP Switch Operation
EDID Management
The Extended Display Identification Data (EDID) is used by the source device to
match its video resolution with the connected display. By default, the source device
obtains its EDID from the first connected display. Meanwhile, since the displays
with different capabilities are connected to the extender, the DIP switch on the
front panel of transmitter can be used to set the EDID to a fixed value to ensure the
compatibility in video resolution and aspect-ratio.

User Manual
PT-HDBT-210
8
The switch represents “0” when in the lower (OFF) position, and it represents “1”
when putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID settings. The DIP switch status and its corresponding
setting are shown at the back of the product.
Switch Status
Video Resolution
Audio Format
000
Pass Through
001
1080p
2CH
010
3840x2160@30Hz
2CH
011
3840x2160@30Hz
Multi-CH
100
3840x2160@60Hz
2CH
101
3840x2160@60Hz
Multi-CH
110
3840x2160@60Hz HDR
Multi-CH (Supports PCM
2CH, PCM5.1, Dolby
Digital 5.1,DTS 2CH)
111
User-defined EDID (Upload the EDID by Micro-USB port)
1 2 3
EDID Setting
Default
1 2 3 4
ON
OFF
1
0ON
OFF
4
HDCP Active
HDCP Passive
Pass Through
1080p 2CH
4K/30Hz Multi-CH
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
4K/30Hz 2CH
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
4K/60Hz 2CH
4K/60Hz Multi-CH
4K/60Hz HDR Multi-CH
ON
OFF
1 2 3
User Defined

User Manual
PT-HDBT-210
9
Note:
2CH: Supports LPCM 2CH.
Multi-CH: Supports LPCM 8CH, Dolby TrueHD, DTS-HD , Dolby Digital5.1, DTS 5.1,
Dolby Digital Plus.
User-defined EDID Setting
Except directly invoking the built-in EDID, the specific EDID can be customized by
following the process below..
1) Rename the user-defined EDID according to the following format.
EC_xx_xxxxx_xxxx_xxx.bin
EC: Fixed value
xx: EDID ID. It is “15”.
xxxxx: Video resolution.
xxxx: Refresh rate.
xxx: Audio format.
Example: EC_15_3840x2160_60Hz_ Dolby.bin
2) Connect the USB port of the transmitter to the PC using a USB cable and then
power on the transmitter. The PC will automatically detect a virtual disk named
“BOOTDISK”.
3) Double-click to open the disk, a file named of “READY.TXT” will be showed.
4) Copy the user-defined EDID (such as EC_15_3840x2160_60Hz_Dolby.bin) to
the “BOOTDISK” disk.
5) Reopen the disk to check if the filename “READY.TXT” has changed to
"SUCCESS.TXT”. If yes, the user-defined EDID was successfully imported into
the transmitter and saved as its corresponding EDID successfully.
6) Remove the USB cable, and then reboot the transmitter.
7) Now the new EDID can be invoked by setting the DIP switch status to “111”.

User Manual
PT-HDBT-210
10
HDCP Mode
Switch the DIP 4 into “ON” position to select HDCP Active mode or into “OFF”
position for HDCP Passive mode.
Switch Status
Mode
HDCP
OFF (0)
Passive
(Default)
Automatically follows the HDCP version of source
device.
ON (1)
Active
If the input video has HDCP content, the HDCP
version of HDMI output is HDCP 1.4 for a greater
display compatibility.
If the input video has no HDCP content, the HDMI
output has no HDCP too.
ARC Mode
The front panel of receiver provides a buttons to enable or disable ARC mode, as
shown below:
Press the button with paper clip or other sharp tool to enable the ARC mode, and
then the left LED illuminates blue. Press it again to exit the ARC mode and the LED is
off.
ARC Mode
Display (e.g.TV)
Audio Transmission Path
ON
ARC is supported.
The TV audio is transmitted from the TV
back to the receiver directly using a
standard HDMI cable, and then it will be
output by the ARC Audio Out port of
transmitter.
ARC is not supported.
Connect the TV to the ARC Audio In port of
receiver with an audio cable. The TV audio is

User Manual
PT-HDBT-210
11
transmitted from the TV back to the receiver
via the audio cable, and will be output by
the ARC Audio Out port of the transmitter.
Note that if the ARC mode is ON, the Audio
Breakout port of the receiver has no audio
output.
OFF
/
The TV audio is not routed back to the ARC
Audio Out port of transmitter. The Audio
Breakout port of receiver is connected to
speaker or amplifier for HDMI source audio
de-embedding.

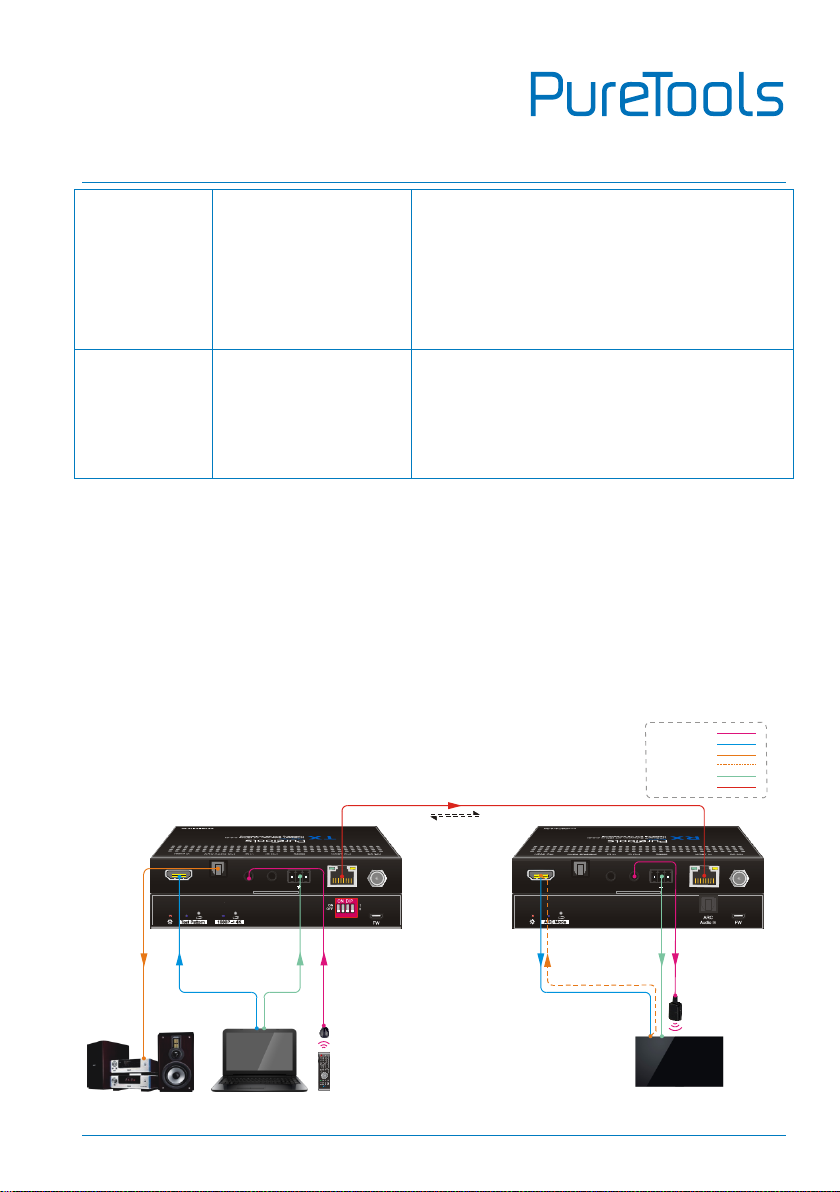

System Connection
The following diagram illustrates the typical input and output connections of the
extender:
1) The ARC mode of receiver is ON, and the display device (e.g. HDTV) supports
ARC. The TV audio is transmitted from the TV back to the receiver via HDMI
cable, and then it will be output by the ARC Audio Out port of transmitter.
Tx Rx
LINKHDCP
1 2 3 4
Tx Rx
LINKHDCP
Speaker Laptop Remote HDTV
HDMI:
HDBaseT:
IR:
Audio:
ARC Channel:
RS232:
ARC
ARC
Tx Rx
IR
Receiver
PoC
4K 40m 1080P 70m,
IR
Emitter

User Manual
PT-HDBT-210
12
2) The ARC mode of receiver is ON, but the display device (e.g. HDTV) doesn’t
support ARC. The TV audio is transmitted from the TV back to the receiver via
the audio cable, and then it will be output by the ARC Audio Out port of
transmitter.
Note: The STP cable is recommended to be used to ensure optimal machine
performance in ARC mode.
Tx Rx
LINKHDCP
1 2 3 4
Tx Rx
LINKHDCP
Speaker Laptop Remote HDTV
HDMI:
HDBaseT:
IR:
Audio:
ARC Channel:
RS232:
ARC
Tx Rx
ARC
IR
Receiver
PoC
4K 40m 1080P 70m,
IR
Emitter

User Manual
PT-HDBT-210
13
3) The ARC mode of receiver is OFF. The TV audio can’t be back to the ARC Audio
Out port of transmitter. The Audio Breakout port of receiver is connected to
speaker or amplifier for HDMI source audio de-embedding.
Tx Rx
LINKHDCP
1 2 3 4
Tx Rx
LINKHDCP
Laptop Remote HDTV Speaker
HDMI:
HDBaseT:
IR:
Audio:
ARC Channel:
RS232:
Tx Rx
IR
Receiver
PoC
4K 40m 1080P 70m,
IR
Emitter

User Manual
PT-HDBT-210
14
Technical Specification
Transmitter
Receiver
Video
Input
(1) HDMI
(1) HDBT
Input Connector
(1) Type-A female HDMI
(1) RJ45
Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDR10
Up to 4Kx2K@60Hz 4:2:0
Output
(1) HDBT Out
(1) HDMI
Output Connector
(1) RJ45
(1) Type-A female HDMI
Output Resolution
Up to 4Kx2K@60Hz 4:2:0
Up to 4Kx2K@60Hz 4:4:4 8bit
HDR10
Audio
Input
-
(1) ARC Audio In
Input Connector
-
(1) Toslink Connector
Output
(1) ARC Audio Out
(1) Audio Breakout
Output Connector
(1) Toslink connector
(1) Toslink connector
Audio Format
Supports PCM, Dolby Digital, Dolby True-HD, DTS and DTS-HD.
Frequency Response
20Hz –20KHz, ±3dB
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV)
nominal consumer line level signal
THD+N
< 0.05% (-80dB), 20Hz –20KHz bandwidth, 1KHz sine at 0dBFS level
(or max level)
SNR
> 85dB, 20Hz-20 kHz bandwidth
Crosstalk Isolation
> 70dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation
< 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response
Deviation
< ± 0.5dB 20Hz - 20KHz
Output Load Capability
1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Stereo Channel
Separation
>70dB@1KHz

User Manual
PT-HDBT-210
15
Control
Control Part
(1) Test Pattern button,
(1)1080p →4K button,
(1) EDID 4-pin DIP switch,
(1) FW, (1) IR In, (1) IR Out,
(1) RS232
(1) ARC Mode button, (1) FW,
(1) IR In, (1) IR Out, (1) RS232
Control Connector
(1) Micro-USB port,
(2) 3.5mm jacks,
(1) 3-pin terminal block
(1) Micro-USB port,
(2) 3.5mm jacks,
(1) 3-pin terminal block
General
Bandwidth
18Gbps
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant
CEC
Pass-through
Bidirectional PoC
Supported
HDMI 2.0 Cable Length
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080p ≤ 20m
Transmission Standard
HDBaseT
Transmission Distance
1080p@60Hz up to 70 meters (229 ft.)
4K@60Hz up to 40 meters (131 ft.)
Operation Temperature
-5~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humidity
10%-90%
Power Supply
Input:100V~240V AC; Output:24V DC 1.25A
Power Consumption
12W (Max)
Dimension (W*H*D)
TX/RX: 140mm x 19.5mm x 84mm
Net Weight
TX:275g, RX:290g
Note: Please adopt high-quality HDMI cables, fully compliant with HDMI 2.0 for a
reliable transmission and connection.

User Manual
PT-HDBT-210
16
After-Sales Service
If problems appear when using the product, please deal with the problems referring
to this user manual. During the warranty period, any transport costs are borne by
the customer.
1) Product Limited Warranty: The product will be free from defects in materials
and workmanship for two years (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is
evidence that the unit is within the Warranty period must be presented to obtain
warranty service.
2) What the warranty does not cover (servicing available for a fee):
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model shown on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Delivery, installation or labor charges for installation or setup of the product.
3) Technical Support: For any questions or problems, contact your distributor or
reseller and tell them the respective product name and version, the detailed
failure situation as well as the formation of the cases.

User Manual
PT-HDBT-210

User Manual
PT-HDBT-210

User Manual
PT-HDBT-210
Asking for Assistance
Technical Support:
Phone: [phone] - 0
Fax: [phone] - 99
Technical Support Hours:
8:30 AM to 5:00 PM Monday thru Thursday
8:30 AM to 4:00 PM Friday
Write to:
PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
www.purelink.de
[email protected]
