GENERAL INFORMATION
Important Safety Instructions
To ensure reliable service, your power inverter must be installed and used properly. Please read the installation and
operating instructions thoroughly prior to installation and use. Pay particular attention to the WARNING and CAUTION
statements advice against certain conditions and practices that may result in damage to your inverter. The WARNING
statements identify conditions or practices that may result in personal injury.
Read All Instructions Before Using This Power Inverter!
WARNINGS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, EXPLOSION OR INJURY
1. Do not connect to AC distribution wiring.
2. Remove appliance plug from outlet strip or turn off inverter before working on the appliance. Multiple outlet
power strips with switches and circuit breakers only interrupt power to the “hot” receptacle terminals. The
“neutral” terminals remain powered with respect to the “ground” terminal.
3. Do not make any electrical connections or disconnections in areas designated as IGNITION
PROTECTED. This includes 12 Volt DC cigarette plug connections, and terminal connections.
4. This is not a toy.
5. DO NOT install object into air vents.
CAUTIONS
1. Do not use with positive ground electrical systems. (All late model tractors or trucks have negative ground
systems) Reverse polarity connections will result in a blown fuse and may cause permanent damage to the
inverter.
2. This inverter will not operate high wattage appliances over the output power limit or surge power limit.
3. Grounding the neutral will cause the inverter to shut down. Do not operate this inverter if it is wet. Do not install
in the engine compartment –please install in a well-ventilated area.
4. This inverter is not tested for use with medical devices.

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
3
IMPORTANT CABLE INFORMATION
Substantial power loss and reduced battery operating time results from inverters installed with cables that are not able to
supply full power. Symptoms of low battery power can result from cables that are either excessively long or an insufficient
gage. The installer /operator should be especially aware of the requirements to maintain secure, tight, water-resistant
electrical connections and to provide strain relief for the DC cables and the appliance wiring. Cable insulation must be the
appropriate type for the environment. The inverter harness supplied by Purkeys Fleet Electric was specifically designed
for each tractor model. This harness meets or exceeds all requirements for safe and effective inverter operation.
INTRODUCTION
Your new power inverter is an advance designed DC to AC inverter. With proper care and appropriate usage, it will give
you years of dependable service. This inverter is designed with a universal protection circuit that provides added safety
features, automatic shutdown, earth fault protection and a low battery alarm to prevent damage to your battery system.
This power inverter is configured with the latest low interference technology (L.I.T.), Universal Protection Circuit (UP-
-Circuit) and Soft Start circuit to improve the inverter operation.
UP-Circuit provides full automatic inverter and battery pack protection. This includes overheat protection, battery pack
protection; overload protection, short circuit protection and earth fault protection.
L.I.T. greatly improves the interference problems of common power inverters. You now will enjoy a clean and powerful
AC source.
Soft Start Circuit provides three major features. First, a gradual voltage ramp-up during inverter start--up. This
eliminates failed cold starts under load. Second, output that momentarily dips in the voltage and quickly recovers. This
eliminates most shutdowns from momentary overloads. Last, the inverter automatically re-starts when an overload that
caused the inverter to shutdown is removed.
PROTECTIVE FEATURES OF THE INVERTER
OVER TEMPERATURE PROTECTION –If the temperature inside the inverter is too high, the unit will automatically
shut down. Allow the unit to cool for at least 15 minutes before restarting after a heat –related shutdown. Unplug
unit while cooling.

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
4
LOW BATTERY VOLTAGE PROTECTION –This condition is not harmful to the inverter but could shorten battery life.
The inverter automatically shuts down when the input voltage drops to 11.5 volts.
OVER VOLTAGE PROTECTION –The inverter will automatically shut down when the input voltage exceeds 15.5 volts DC.
Input voltage exceeding 16 volts could damage the inverter.
OVERLOAD PROTECTION –The inverter will automatically shut down when the continuous draw exceeds rated watts.
SHORT CIRCUIT PROTECTION –This inverter will shut down. Remove the short circuit and restart the inverter.
EARTH FAULT PROTECTION –This inverter complies with the standard current leakage allowance. When large current
leakage to earth terminal occurs, the protection circuit will activate and shut down the inverter, which prevents electric
shock. To restart the inverter, turn it off. Then unplug the fault AC appliance and turn the inverter back on.
LOW BATTERY ALARM –An alarm will sound when the voltage from the battery pack drops to 11.0 volts. This is an
indication that the battery pack needs to be recharged or there is excessive voltage drop in the input cables. NOTE: It is
normal for the alarm to sound while the unit is being connected to or disconnected from the power source. This is not
indicative of problems.

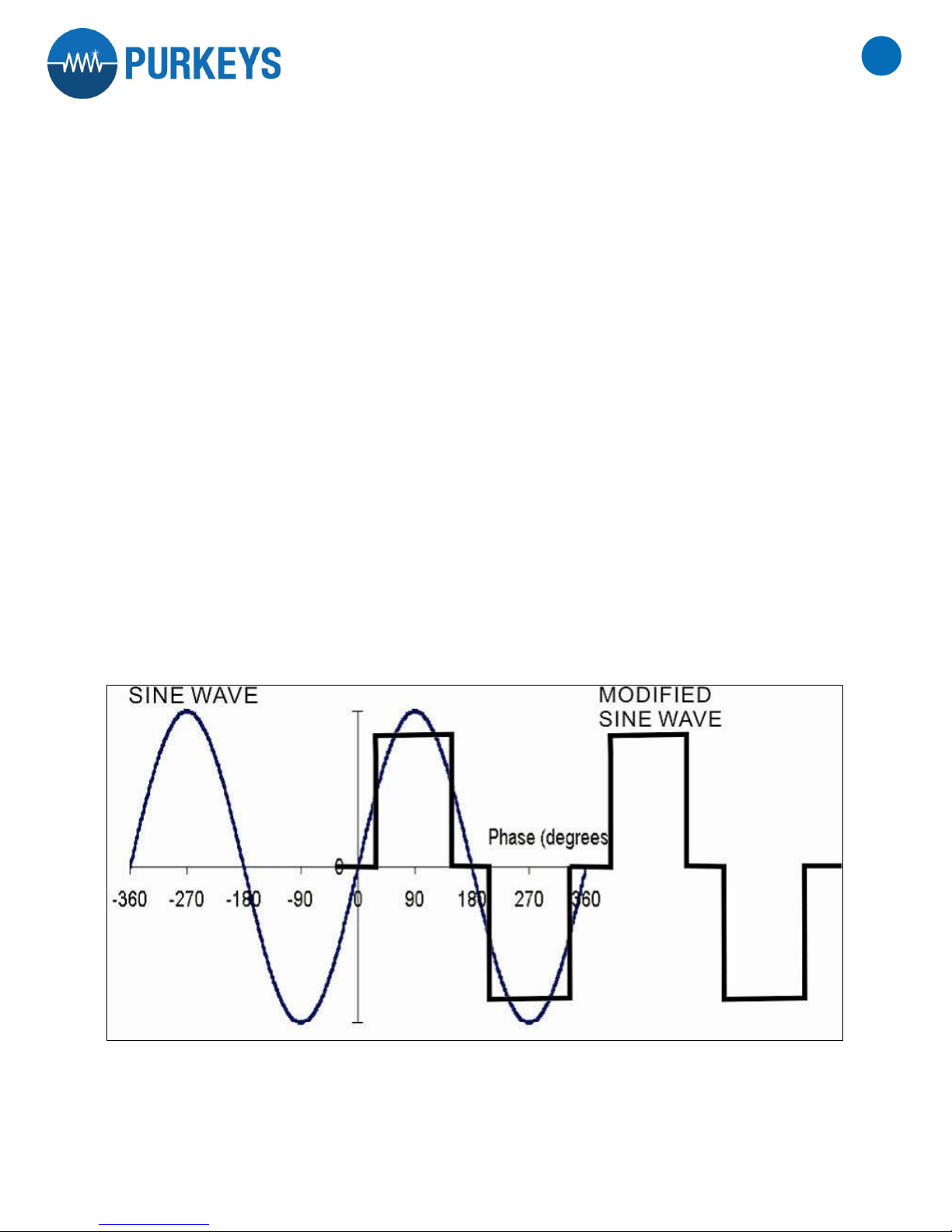

WAVE FORM –This inverter is a Modified/Quasi wave sine. Some devices like medical equipment may require a PURE
SINE WAVE inverter. Please check with us to verify.

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
5
OPERATING ENVIRONMENT
For best operating results, the inverter should be placed on a flat surface such as a floor, wall or other solid surface. The
inverter should only be used in locations that meet the following criteria:
DRY-Do not allow water and/or other liquids to come in contact with the power inverter.
Cool-Ambient air temperature should be between 30 degrees F and 105 degree F. Do not place the inverter on or near
a heating vent or any piece of equipment that is generating heat above room temperature. Keep the power inverter
away from direct sunlight if possible.
Ventilated- Keep the area surrounding the power inverter clear to ensure free air circulation around the unit. Do not
place items on or over the power inverter during operation.
Safe- Do not use the power inverter near flammable materials or in any locations that may accumulate flammable fumes
or gasses.
Mounting- The power inverter can be operated in any position, however if mounted on a wall, mount it horizontally so
the indicators, switch, outlets and terminals blocks located on the front panel are visible and accessible.

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
6
INVERTER FEATURES
Mini DIN Connector is for
programming and timing out
the inverter
Bottom three LED’s
(red, yellow and
green) indicate
inverter functions
Top LED’s indicate
Timer Functions

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
7
INSTALLATION INSTRUCTIONS
As each inverter installation environment is unique, our custom harnesses contain vehicle specific instructions for each
vehicle manufacturer.
Wiring Harness Kit

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
8
CHASSIS GROUND OR FAULT GROUND CABLE- The chassis ground lug is used to connect the chassis of the inverter to
the DC grounding point as required by regulations. Installing the grounding cable is a protective measure used to provide a
path for fault currents. The inverter has 12 volt positive and negative connected to the electronics inside the inverter. If the
positive cable somehow came in contact with the chassis of the inverter, the ground cable would conduct the fault currents
long enough to cause the over current protection (fuse or breaker) to interrupt the circuit between the inverter and the
battery. (Should be Zero volts)
R-TERMINAL OR REMOTE SENSE STUD- The R-Terminal or Remote Sense stud is used to be able to tell the inverter if
the engine is running or off. (Should be 7 to 14 volts when the engine is running and zero volts when the engine is off.)

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
9
INVERTER TROUBLESHOOTING
DC Input Power Issues
TROUBLE/INDICATION
POSSIBIBLE CAUSE
SUGGESTED REMEDY
No AC output: yellow LED lit;
green LED not lit
DC input below 10.5 volts
Test batteries and conduct voltage drop test.
Also check the vehicle charging system
No AC output; Red and Green LED
not lit.
Inverter fuse cube open
Check fuse cube at battery
Low battery alarm sounds
abnormal
Bad connection or wiring issues
Conduct voltage drop test and repair or
replace as needed.
Low battery alarm sound
Low battery voltage
Recharge or replace batteries. Also check
the vehicle charging system
Yellow LED lit when power is on
weak batteries or cables issues
Test batteries and conduct voltage drop test
AC Output power issues
No AC output; Yellow LED lit;
Green LED not lit
Inverter overheat
Remove or reduce load, wait for inverter to
cool
No AC output; Red and Green LE
not lit
Inverter output power limited
by overload/short circuit
protection circuit
Reduce load or remove short circuit. Use
Kill-a-Watt to measure load
TV/Radio interference; snow in
picture, buzz in speakers
Appliance too close to inverter
Keep inverter and antenna distant from each
other. Use shielded antenna cable. Connect
antenna with amplifier
Motorized power tool won't start
Excessive start up load
If appliance does not start, then appliance is
drawing excessive wattage and will not work
with this inverter. Check with Kill-a-Watt
tester
Motorized power tool does not
operate at correct speed
Purely inductive load
Make the load not purely inductive. Operate
an incandescent lamp at the same time as
motor

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
10
INVERTER TROUBLESHOOTING CONT’D
Timer controlled unit issues
TROUBLE/INDICATION
POSSIBIBLE CAUSE
SUGGESTED REMEDY
Red LED light turns off and on and
The on/off switch is on
Timer has timed out. The
inverter has been used the
entire run time during this time
period.
Must wait until the remaining time of set
period expires or reset the timer. See page
13 for timer reset instructions.
Red LED light is on and the on/off
switch is off
The timer is turned off, but the
set period time is still running
No action required. Inverter must be turned on
if you need the inverter to run.
Green LED light is on and the
on/off switch is on
The timer is on and the set
period timer is on.
No action required. If the inverter is not being
used then turn the inverter off to save run time.

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
11
INVERTER VOLTAGE DROP TEST

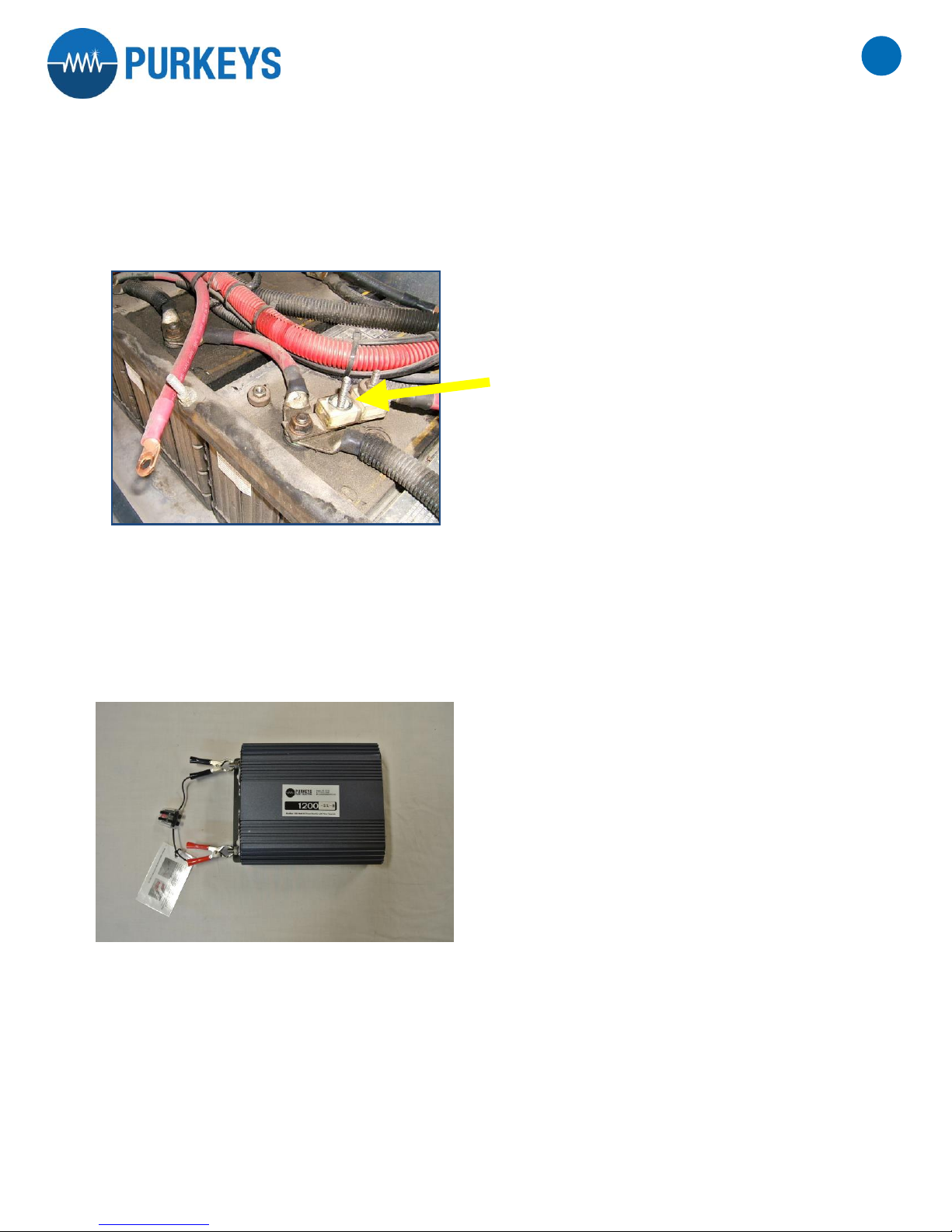

1. Using the Auto Meter BCT-200J tester: Turn the tester on, press “Y” for menu.
2. Select “V Drop Menu” and press “ENTER”.
3. Select “Generic V Drop” and press “ENTER”.
4. Enter in the rated current to test at (USE 120 Amps to test the inverter harness) and press “ENTER”.
5. Connect the large alligator clips to the inverter input posts (red to positive and black to negative) and press
“ENTER”.
6. Connect the small alligator clips to the battery pack (red to positive and black to negative) and press “ENTER”.
7. The tester will show the results for the voltage drop on the positive cable and the results for the voltage
drop on the negative cable.
8. The positive and negative results must be added together to get the total voltage drop for the complete
circuit.
9. The total voltage drop for the complete circuit must be less than “.396” to be within spec.
Positive Voltage Drop
+ Negative Voltage Drop
----------------------------------
= Total Voltage Drop
(Must be less than .396 to be within spec)

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
12
KILL-A-WATT OPERATION

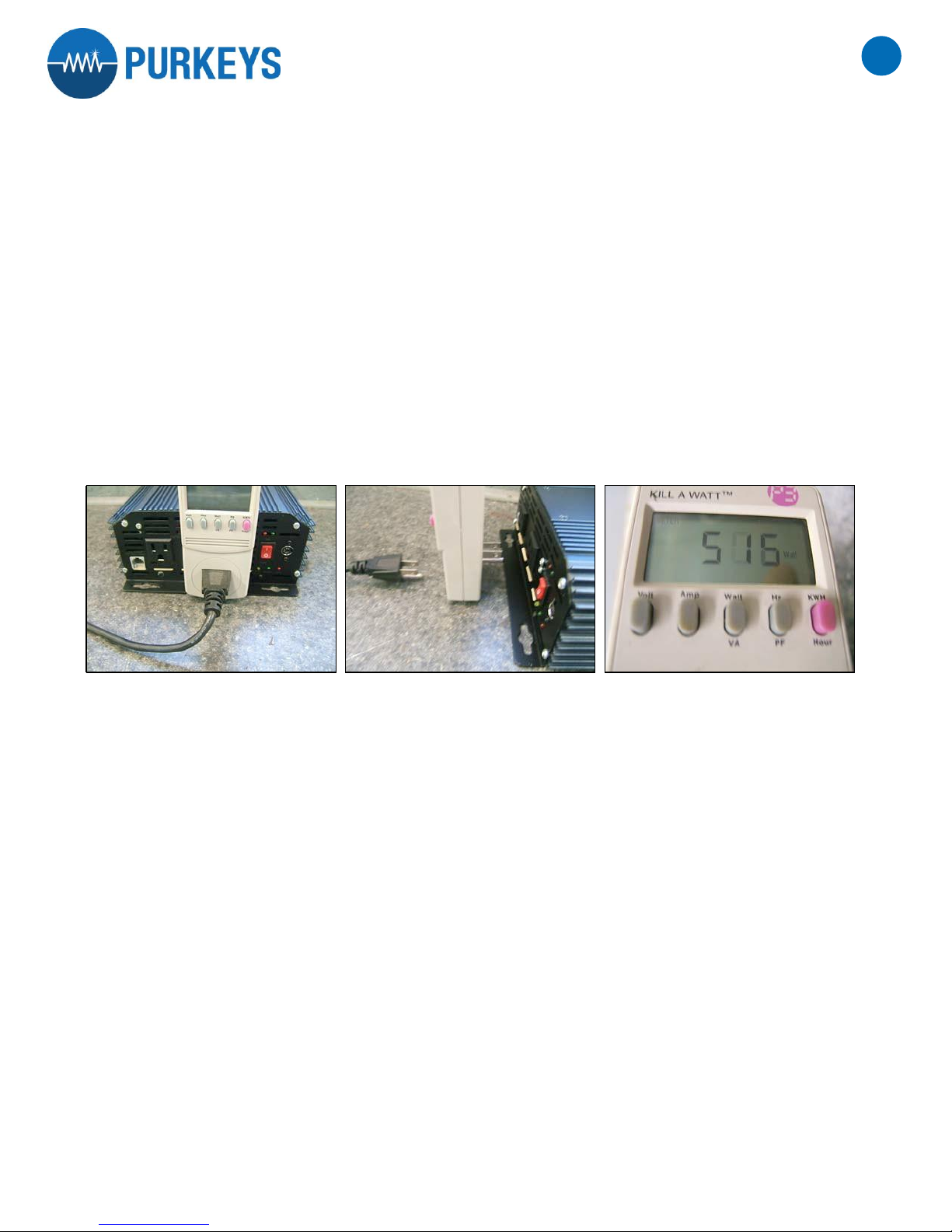

1. The LCD shows all meter readings: Volts, Current, Watts, Frequency, Power Factor, and VA. The unit will start
to accumulate KWH and powered duration time (hour) after power is applied.
2. Press Volt button for true RMS Voltage (Volts) display.
3. Press Amp button for true RMS output current (Amps) display.
4. The Watt/VA button is a toggle function button. Press the Watt/VA button once to display Watt meter, then
press button again to display VA meter. The LCD will display Watts as the active power, where VA is the
apparent Power. (VA--‐Vrms Arms)
5. The HZ/PF button is a toggle function button. Press the HZ/PF button once to display the frequency (Hertz),
then press the button again to display the Power Factor. HZ is the Frequency of output Voltage, where PF is
the Power Factor. (PF=W/Vrms Arms)
WARNING: Do not exceed maximum ratings as detailed on the label.
The KWH/Hour button is a toggle function button. Press the KWH/Hour button once to display the cumulative
energy consumption since power was applied to the unit. Press the button again to display the cumulative time
since power was applied to the unit.
Consumption will be displayed in Kilowatt--Hours (from 0.01 KWH to 9999 KWH). Time will initially be displayed
as Hours: Minutes (from 00:00) and switch to Hours (to 9999). Counters will recycle to zero when they reach
their maximum. To reset, remove power from unit momentarily.

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
13
INVERTER TOOL INSTRUCTIONS
1. Turn the inverter on. If you see two green lights the inverter does not need to be reset. (Inverter is
ready for use) Reference image example 1.
Image Example 1
2. If the red LED is flashing on, then the inverter has timed out and needs to be reset. (proceed to step 3)
Reference image example 2
Image example 2
3. Turn the inverter off.

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH TIMER V1.00
OWNERS MANUAL
14
4. Disconnect the power going to the inverter by removing the red (+) positive lead off of the fuse cube in the battery
box.
Reference image example 3
Image example 3
5. Short out the power inputs using the special tool by connecting the positive and negative on the inverter. This will
drain the internal inverter capacitors. Reference image example 4
Image example 4
6. Remove capacitor drain tool (referenced in step 5).

P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
1200+ WITH LVD V1.00
OWNERS MANUAL
14
7. Insert the resetting adapter tool into the inverter’s mini-din connector to reset the timer. Reference image
example 5
Image example 5
8. Hook power back up to the inverter (reverse of step 4) and turn the on/off switch to “ON”. The red and green
LED light should come on at the same time. Wait five (5) seconds and detach the reset adapter.
9. Turn the inverter off and then back on. Both green lights should come on and the inverter will turn on. Reference
image example 6
Image example 6

P: 479.419.4800 │F: 479.419.4801 │www.purkeys.net
LIMITED COMMERCIAL WARRANTY POLICY
Purkeys Fleet Electric, Inc. (hereafter “Purkeys”), warrants each product to be free of defects in
material or workmanship under normal use and service. This warranty is for the benefit of Original
Equipment Manufacturers, Dealers, Warehouse Distributors, Fleets, or other End Users (hereafter
“Customers”) and covers products manufactured by Purkeys and sold new to Customers either
directly by Purkeys or by its authorized dealers, distributors, or agents. The length of the Warranty
Period is 24 months.
The warranty period commences on the in-service or install date and is not transferable. Failure to
provide the in-service or install date on the warranty claim form will cause the warranty period to
begin on the date the part was manufactured or date of sale recorded on the original sales invoice,
whichever is earlier.
A completed warranty claim form should accompany all parts submitted to Purkeys for consideration
for repair or replacement under warranty. The submitted claim form should contain all of the
information required. Lack of a properly or fully completed claim form will result in delay or denial of
warranty claim. Claims must be submitted no later than 30 days after part is removed.
This warranty does not apply if, in sole judgement of Purkeys, the product has been damaged or
subjected to accident, faulty repair, improper adjustment, improper installation or wiring, neglect,
misuse, or alteration or if the product failure is caused by defects in peripheral vehicle components or
components attached to the Product or failure of a part not manufactured by Purkeys.
This warranty shall not apply if any Purkeys product is used for a purpose for which it is not designed
or is in any way altered without the specific prior written consent of Purkeys. ANY Product alleged by
a Customer to be defective must be inspected by Purkeys as a part of the warranty claims process in
order to confirm that the part has failed as a result of a defect in material or workmanship.
Transportation for products and parts submitted to Purkeys for warranty consideration must be
prepaid by Customer. Repaired or replaced products and or components will be returned to Customer
pre-paid by Customer or “freight collect” to the address provided by Customer in the warranty claim
form. No charge will be made for labor or material in effecting such repairs.
The Warranty provided by Purkeys hereunder is specifically limited to repair or replacement of the
Product as Purkeys deems most appropriate in its sole discretion. Purkeys neither assumes nor
authorizes any other person to assume on its behalf any other warranty or liabilities in connection with
Purkeys products. The Warranty does not apply to fuses or other “consumable” or maintenance items
which are or may be a part of any Purkeys product.

P: 479.419.4800 │F: 479.419.4801 │www.purkeys.net
THIS WARRANTY DOES NOT APPLY TO LOSS OF VEHICLE OR EQUIPMENT, LOSS OF TIME,
INCONVENIENCE, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. PURKEYS
SPECIFICALLY DISCLAIMS AND SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES arising out of or from the use of Purkeys products by the Customer.
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, INCLUDING COMMON
LAW WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, AND
ANY OTHER EXPRESS OR IMPLIED WARRANTIES. ALL OTHER SUCH WARRANTIES ARE
SPECIFICALLY DISCLAIMED.
This Limited Commercial Warranty supersedes all previous Warranty Policies issued by Purkeys and
any of its suppliers.
