PXM PANEL DOTYKOWY User manual

MANUAL
TOUCH PANEL
PX 181
R

Contents
3
3
4
4
5
5
6
6
7
7
8
9
10
10
11
13
15
16
16
17
17
17
18
18
19
21
22
23
25
26
The manufacturer reserves the right to make changes in the functioning and operation of the
controller, in order to improve the product.
Rev.1.6.
PXM Marek Żupnik spółka komandytowa
ul. Przemysłowa 12
30-701 Kraków, Poland
tel.: [phone]
fax: [phone]
E-mail:
www.pxm.pl
+48 1
[email protected]
1. General description..........................................................................................................................
2. Safety conditions..............................................................................................................................
3. 3. Operation of the device................................................................................................................
3.1. Clock.........................................................................................................................................
3.2. Panel number and home page..................................................................................................
3.3. Signals from PX140...................................................................................................................
3.4. Screen settings...........................................................................................................................
3.5. Changing passwords..................................................................................................................
4. PC software......................................................................................................................................
4.1. Installation..................................................................................................................................
4.2. Application window......................................................................................................................
4.2.1. Tool bar................................................................................................................................
4.2.2. Status bar.............................................................................................................................
4.2.3. Preview ...............................................................................................................................
4.3. Creating a page...........................................................................................................................
4.3.1 Buttons.................................................................................................................................
4.3.2. Sliders.................................................................................................................................
4.3.3. Control lights.......................................................................................................................
4.3.4. Alerts...................................................................................................................................
4.3.5. Clocks.................................................................................................................................
4.4. Descriptions of signals...............................................................................................................
4.5. Export to PDF............................................................................................................................
4.6. Firmware update........................................................................................................................
4.7. Loading data from your computer..............................................................................................
5. Connecting the device to the computer............................................................................................
6. Dimensions of the device.................................................................................................................
7. Assembly...........................................................................................................................................
8. Connection procedure......................................................................................................................
9. Technical specification......................................................................................................................
10. Declaration of conformity................................................................................................................

1. General description
A PX181 touch panel for managing the performance of the configuration saved on a PX140
control. PX181 is fitted with a colour 5.7" LCD screen with a diagonal of 5.7 " and resolution of 320 x
240 px.
As opposed to traditional systems, where the number and the look of control elements is pre-
defined, the touch panel allows the user to have a panel with any number of keys and sliders and to
set the look and description as well as easily change the settings as needed.
A PC app supplied along with the panel allows the user to design the look and functionality of the
panel. The application offers a library of basic graphic designs that can be used but the user can
also upload their own images.
Additionally, you can protect the access to specific pages of the panel with a password.
2. Safety conditions
While using the PX181 module, you should at all times obey the rules set forth below:
1. The device can be connected to 12 V DC (stabilised voltage) with current-carrying capacity
compatible with technical data.
2. All the conductors should be protected against mechanical and thermal damage.
3. In case of damage to a conductor, it should be replaced with a conductor of the same technical
data and attestations.
4. Connection of DMX signal can be made with a shielded conductor only.
5. All repairs, connecting and disconnecting of cables can only be made with cut off power
supply.
6. The device should be strictly protected against contact with water and other liquids.
7. All sudden shocks, particularly dropping, should be avoided.
8. The device cannot be turned on in places with humidity exceeding 90%.
9. The device cannot be used in places with temperature lower than +2 C or higher than +40 C.
10. Clean with damp cloth only.
Symbols used in this manual:
o o
For the purpose of this manual, this sign implies that information it is associated with
might have an impact on the safety of the device.
As used in the manual, this sign refers to a useful piece of information.
3

To set the internal panel clock, select a clock icon in the main menu. The page of the clock
displays the current time of the panel and a button facilitating synchronisation with the PX140
control.
3. Operation of the device
3.1. Clock
When you switch it on, the panel displays the main menu. The menu allows you to go to saved
pages or change panel settings.
The device can be used individually by 4 various users. Each user has its own home page.
The first user has a home page No. 1 ascribed. Other users have home pages with consecutive
numbers. The access to user's home page can be protected with a password. To navigate to a
given page, select an icon of a relevant user in the home page window. A message "Error no
page" displayed on the screen shows that the page with a given number does not exist.
To change settings, select the settings icon. The settings page shows the panel's firmware
version, its serial number and buttons enabling the user to change individual parameters.
4
Back
Admin
passw.
change
User 1
passw.
change
Px181
ID
change
User 2
passw.
change
User 3
passw.
change
User 4
passw.
change
Signal
from
Px140
Screen
Back
Admin
passw.
change
User 1
passw.
change
Px181
ID
change
User 2
passw.
change
User 2
passw.
change
User 2
passw.
change
Signals
from
Px140
Screen

3.2. Panel number and home page
You can connect the maximum of 14 panels to the PX140 control. To ensure proper
communication between the control unit and panels, ID numbers of the panels need to be
properly configured. By default, each panel has 'ID 1'. In the ‘Change panel ID’ window, you can
enter a new ID number.
In the same window, you can also set a home page displayed at the time the panel is switched
on (instead of the window of the main menu). For that purpose, enter a page number and select
the 'Auto page ON' option.
The PX140 controller can send signals to panels. You can programme the panel so that it
responds to signals coming from a Px140 control by displaying an alert or showing or hiding panel
indicator lights. Irrespective of whether the panel responds to a given signal or not, in the 'Signals
from PX140' window, you can see all signals coming from the control. While configuring the
panel, you can add a description to each signal number; if you do so, it will be shown in this list.
You can display all or just new signals.
'Accept' and 'Delete' buttons are available for
each item in the list on an individual basis or
globally – for the entire list. If you accept an item
on the list, it will not be displayed in the list of new
signals; if you delete an item, this item will not be
displayed on any list.
3.3. Signals from PX140
If you switch on the home page, make
sure to place a button for transition to
the main menu on one of the pages.
Make sure you have saved your
settings before leaving the screen.
5
Back
Zmian
hasła
admin
Zmian
hasła
user 1
Zmian
hasła
user 2
Zmian
hasła
user 3
Zmian
hasła
user 4
Ekran
Enter
Px181
ID
Back
1
1Change
Start
Page
Number
Auto Page OFF
Save
Wprowadź
ID
Panela
Back
1
1
Auto Page OFF
Save
All 0 Cur:1

The access to individual users' pages and the screen with settings can be protected with a
password. To set a password for the screen with settings, select "Admin passw. change" to set a
password for the user, select "User n passw. change"
Type a new password in the screen displayed. If the password is displayed in the window at
the bottom of the screen, the password has been set correctly.
To delete the password, press "enter" on the keyboard without entering any password.
In the 'Screen' page, you can set main brightness of the screen and activate the screensaver
option. You can set brightness level to which the screen will be dimmed and the time after which
the screen will be dimmed.
You can use the slider on the screen to set the main brightness of the screen more easily.
3.5. Changing passwords
3.4. Screen settings
6
Make sure you have saved your settings
before leaving the screen.
Wprowadź
ID
Panela
Wprowadź
ID
Panela
Back
1
1Wprowadź
nr strony
startowej
Auto Page OFF
Save
Screensaver
Delay
Screensaver OFF
Save
999
200
60
Screensaver
Brightness
Brightness
Back
New
passw.

4. PC software
4.1. Installation
The PX181 touch panel can be fully configured by means of a PC app. With the app, you can
set up new pages, move between pages and also programme interactions with the PX140
control.
During the configuration, the touch panel does not need to be connected to the computer, you
can save your design on the hard drive and load it to the device at any time.
You can install the app on any computer with the the XP/7/8 version of the of Windows operating
system. The installation process is very easy and consists of just 6 steps.
1. Select a language – you will be asked to select a language in which the installation process
will be completed.
2. Licence – to continue, the user needs to accept the terms and conditions of the licence
agreement.
3. Selection of components – the user can choose to install the application and a USB driver. If
you do not install the USB driver, it will not be possible to connect the application to the
panel.
4. Selection of an installation folder – the user can change the default folder for component
installation (however, it is recommended not to change the default settings).
5. Selection of the Start Menu folder – the user can specify a Menu Start folder of the system in
which the application will be installed (it is recommended not to change default settings).
6. Completion – after the installation process having been successfully completed, the user
can press the "finish" button.
The application will be ready to use.
7

8
4.2. Application window.
The window of the application consists of 6 basic areas:
Main menu – access to all functions of the;
Item area – configuration of an item marked;

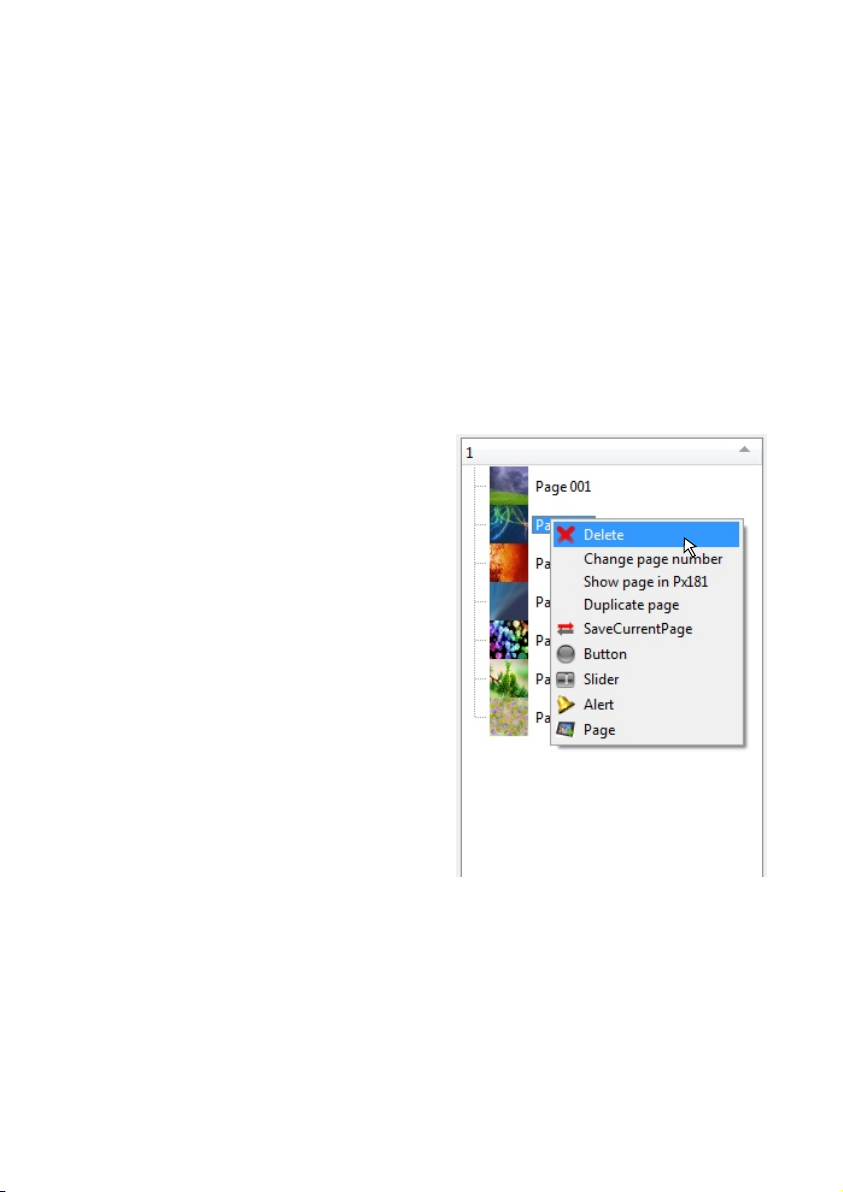

Pages area – a list of all pages and items located within those pages;
Preview – a preview of a page marked within the pages area;
Quick access bar – quick access to the most frequently used functions;
Status bar – information about the connection with the panel.
1
2
3
4
2 3
41 5
5
6
6

4.2.1. Tool bar
The tool bar is a roll-up menu consisting of the following categories:
File contains basic options of the project:
- New project: creates a new, empty project;
- Load: opens the pre-saved project;
- Save: saves a created project as a file;
- LoadPage: opens a pre-saved page;
- SavePage: saves the current page as a file;
- Add configuration: adds pages from the selected configuration to the current configuration;
- Save configuration to PDF: saves pages and relations between them as a PDF file (section
4.5).
Add is used to create new elements:
- Button (Section 4.3.1);
- Slider (Section 4.3.2);
- Alert (Section 4.3.4);
- Clock (Section 4.3.5);
- Page (Section 4.3);
- Add Control (Section 4.3.3);
- SnapToGrid;
- SetXGrid;
- SetYGrid;
Px181 USB serves communication with the panel:
- Save AllPages: saves all pages created within the panel;
- SaveCurrentPage: saves the presently created page within the panel;
- GetConfigurationFromPanel: loads a configuration saved in the panel to the application;
- PX140 signals: opens a window in which you can add descriptions for signals coming from
the driver (Section 4.4);
- Firmware upgrade: updates software in the panel (Section 4.6);
- Password clear: clears admin's and users' passwords set in the panel.
Language changes the language of the application (the change forces the app to restart).
Help displays information about the current version of the app and the producer's contact details.
9

The preview window displays the
currently selected page.
You can select items shown there by clicking
the left mouse button.
You can move an item anywhere you want by
simply dragging it.
To change the size of an item, drag its
right bottom corner.
Context menu
Upon clicking the right mouse button in
the preview area, a context menu will pop up.
You can use it to:
- Add items to the page;
- Add a page;
- Change the graphic design of the background;
- Save the page as an image;
- Turn on the "snap to grid" feature;
- Set the size of the grid in X and Y axes
4.2.2. Status bar
The status bar displays information about connection with the device. The panel connects
with the app automatically upon being connected to the computer. If the app does not detect the
device, this will be announced with a message "USB PX181 Disconnected." If the application
detects a device, then the message "USB PX181 Connected," a series number of the panel and a
number of the firmware installed will be displayed.
10
4.2.3. Preview
To select a group of items, click on
each while holding the Ctrl button.
In the case you want to bring an item
outside the working area, it will be
moved along the shortest route to the
edge of the desktop area.
zaznaczanie
rozciąganie

After activating the application, the first page will be created by default. You can add other
pages by:
- Selecting "Add" -> "Page" in the tools bar;
- Selecting "Add Page" in the quick access bar;
- Clicking the right mouse button on the list of pages and selecting "Page" from the context
menu;
- Clicking the right mouse button on the existing page in the list of pages and selecting
"Duplicate page" from the context menu.
A new page is added with a default background and the next number available. You can
change the page number by clicking the right mouse button and selecting "Change page number"
in the context menu.
All pages created are shown on the list of pages. You
can edit each of them by selecting a given page. An active
page is displayed within the preview window.
On each page, you can add buttons, sliders, indicator
lights, alerts and clocks. The preview window allows you
to arrange the items located on the page. To have an even
arrangement, you can activate the "snap to grid" feature
("Add" -> "SnapToGrid"). The size of the grid (separately
for axes x and y) can be adjusted within the 1-160x range.
The grid is invisible, even if active.
The pages area includes a list of pages created within
the application. It enables convenient navigation
between pages you want to edit. If you click "+" on the
page name, the list will pop up showing all items located
on a given page. If you click the name of a given item on
the list, that item will be automatically selected within the
preview window.
4.3. Creating a page
11
You can explore the area of pages also by means
of arrow keys. The "Up" arrow moves what is
selected upwards and opens a page selected; the
"Down" arrow moves what is selected downwards;
the "Right" arrow rolls up the tree, and the "Left"
arrow rolls down the tree.
Upon selecting a given page and pressing the right
arrow key, the content of the page will be
displayed. If you press the left key over the same
position, the content of a given page will be rolled
down.

12
To change the background of a given page, you need to select that page and click the right
mouse button within the preview window, and then select "Change background" from the context
menu that will appear. A graphic file selection window will pop up. The recommended resolution of
the file is 320 x 240px.
To delete a page, click the right mouse button on it and select "Delete" from the context menu
or otherwise select the page and press the "Delete" key.
Context menu
If you click the right mouse button on a page on the list, a context menu will be displayed that
includes a compilation of the most frequently used functions.
- Delete - deletes a page;
- Change page number - changes page number;
- Show page in PX181 - if the panel is connected to the application, this feature allows you to
display a page with this number on the panel;
- Duplicate page - creates a page with the same parameters and the same content;
- SaveCurrentPage - sends a selected page to the panel;
- Button - adds a new button to the page;
- Slider - adds a new slider to the page;
- Alert - adds a new alert to the page;
- Page - adds a new page.

- Action in PX140: this feature allows you to select an event pre-programmed on the PX140
control that will be triggered with a press of a button. Available options:
- DMX Input Slot - 1 On: a range between 1 and 512;
- DMX Input Slot - 1 Off: a range between 1 and 512;
- Internal Event: between 2 and 1024;
- Sunrise Time Event;
- Sunset Time Event;
- Time Event: a range between 3 and 1024;
- Power ON Event;
- DMX Output Slot - 1 On: a range between 1 and 512;
- DMX Output Slot - 1 Off: a range between 1 and 512;
- Delay: a range between 1 and 512;
- Remote Key 1 - pressed: a range between 1 and 64;
- Remote Key 1 - repeated: a range between 1 and 64;
- Remote Key 1 - released: a range between 1 and 64;
- Input: 1 On: a range between 1 and 24;
- Input: 1 Off: a range between 1 and 24;
- No Action: no action at all.
- 3 colour sliders (RGB) – you can set brightness of each colour component of an object within
the range between 0 and 255, which changes the colour of an item or its brightness.
- Font: fields enabling you to select a font, size and colour of a button description;
- Text: add a description of a button;
- Bitmap: you can change the graphic design of a button;
- Remove Bitmap: delete the graphic design of a button.
14
If you have created a link to a page
and assigned an Event to a button,
the Event will be triggered and the
panel will go to a given page. If you
set up a link to the Main Menu and
an Event, then you will be
redirected to the Main Menu only.
If you set all sliders to ‘0’, the colour of the graphic design will be black, and if you set
them to 255, the original colour will be restored.

A button allows you to trigger a given event on the PX140 control or navigate between pages
on PX181. You can assign any picture and text to a given button (the colour of an image may also
be modified). You can add buttons in a few ways:
1. Choose "Add" -> "Button" in the toolbar;
2. Choose "Add button" in the quick access bar;
3. Click the right mouse button in the preview window and select "Add button"
from the context menu;
4. Click the right mouse button on the list of pages and select "Button" from the context menu;
5. Select an existing button and press the following combination of keys: Ctrl+C, Ctrl+v
Within the item area, you can modify
the properties of the button highlighted.
Available parameters:
- Width and height: fields that allow you
to change the dimensions of a button;
- Position X and Y: you can see the
position of the upper left corner of a button;
- Page Link: a field where you can set
up a link to another page of the panel.
Available features:
- Don’t change any page: the button does
not trigger any action;
- Main menu: the button will bring you to
the main menu of the panel;
- Send action: the button will trigger an
event on the PX140 control;
- Go to page (1 - 99): the button will bring
you to another page of the panel;
You can highlight several items (by
holding the Ctrl button) and enter
a common value of a given
parameter for all of them.
13
4.3.1 Buttons

The slider allows you to trigger an event on the PX140 control and to send a value to it. This
feature allows you, e.g., to control the brightness of the lamp in a smooth way. An event is
triggered upon each change in the value of the slider.
You can add a slider to the page in the same way as you do with a button. In the area of the
object, you can modify properties of the slider.
Available parameters:
- Slider Width and Height: fields allowing
you to change the dimensions of the
slider,
- Position X and Y: fields allowing you to
determine a position of the upper left
corner of the slider
- Orientation: vertical and horizontal orientation,
- Action Number: you can select an event programmed on the PX140 controller that will be
triggered with the slider. Available options - the same as for the button.
- 3 colour sliders (RGB) – you can set brightness of each colour component of an object within
the range between 0 and 255, which changes the colour of an item or its brightness.
4.3.2. Sliders
If you set all sliders to ‘0’, the colour of the graphic design will be black, and if you set them
to 255, the original colour will be restored.
15
You can highlight several items (by
holding the Ctrl button) and enter
a common value of a given
parameter for all of them.

An control light responds to specific signals coming from the PX140 controller. Each control
light has 2 kinds of statuses (ON and OFF) - each status is ascribed to a different colour and a
different controller signal number that triggers this status. By default, upon switching the device
on, all control lights will be ON.
Available parameters:
- Width and height: fields that allow you to
change the dimensions of an control light;
- Position X and Y: you can determine the
position of the upper left corner of an control
light;
- State "On": the fields that let you
determine a signal to which the control light
should respond by switching on and which
colour it is supposed to display;
- State "OFF": the fields that let you determine a signal to which the control light should
respond by switching off and which colour it is supposed to display.
4.3.3. Control lights
16
An alert responds to all signals coming from the PX140 control. By default, the alert is
invisible. Upon receiving a signal from the control, a symbol of an alert will be displayed. If you
click the alert symbol, a list of signals will be displayed. The symbol of alert will be displayed until
you have confirmed or deleted signals on the list. If you decide to leave the list of events, you will
return to the page where the alert appeared. You can set both the position and dimensions of the
alert.
4.3.4. Alerts
You can highlight several items (by
holding the Ctrl button) and enter
a common value of a given
parameter for all of them.

The PX140 control can send signals with numbers between 0 and 255 to the panels. You can
add descriptions to the signals so that you can always make sure how they work. For that
purpose, select "PX181 USB" -> "PX140 signals" from the toolbar. A new window will be opened
where you can set up descriptions for each of the signals.
The "Get Signal Description" button lets you load descriptions pre-saved on PX181. The "Set
Signal Description" button lets you send a list of descriptions entered by the user to the panel. The
descriptions of signals are sent irrespective of other configuration.
The layout of pages created, transitions between the pages and events triggered by individual
items can be exported to a PDF file. To do so, select "File" -> "Save configuration to PDF” in the
toolbar. A preview window will be opened where you can highlight elements to be a part of the
PDF file.
- Show events - this feature adds a description of an event for each item that triggers the
event;
- Show Events Icons - this feature adds an icon symbolising a type of event for each element
triggering an event;
- Show links - this feature adds a line to a given page for each item that triggers transition to
another page;
With the "Print PDF" button, you can save the file onto the hard drive.
4.4. Descriptions of signals
4.5. Export to PDF
17
You can insert on a page a clock showing the current time on the Px181.
You can also set the position and dimensions of the clock.
4.3.5. Clocks

To update the firmware, select "PX181 USB"-> "Firmware upgrade" from the toolbar.
The update window will be displayed. After a short while, the "Get Update file" button will be
active. Click on the button and select a select a file with an .upg extension from your hard drive.
Confirm your selection to commence the updating process.
It is normal for the panel to flicker while the firmware is being updated. During the firmware
update, all settings and files loaded to the panel will be removed.
4.6. Firmware update
The latest update files are on the manufacturer's website: www.pxm.pl.
18
While using the device, obey safety rules at all times; in particular, do not disconnect the
device from power supply, as it may damage the device.
4.7. Loading data from your computer
You can load your panel configuration to the panel at any time. For that purpose, connect the
panel to the computer using the USB cable. The status bar will display information that the
application has been connected to the panel.
Open the desired configuration within the application and then select "PX181 USB” ->
”SaveAllPages” or “SaveCurrentPage” from the menu. The progress bar shows the number of
items successfully sent to the panel. It may take quite a while to send an extensive configuration
with a number of pages.
If you made only small changes to the configuration that has been already loaded to the panel,
it is better to use the option of sending the current page in order to save your time.
While sending the entire configuration, the application deletes the previous configuration
from the panel; however, when the process has been completed, you need to go to the main
menu or restart the panel to refresh the view.

5. Connecting the device to the computer
To connect this device to the computer, please remove the frame mounted with two screws.
Plug the cable into the USB socket underneath.
If the panel is connected to the computer for the first time ever, the operating system will run a
standard "new device" installation. The panel connected to the computer will be detected and the
system will automatically activate a wizard searching for new equipment.
If the system asks you if you want to access the Windows Update website to find new
software, select "Do not connect" and manually indicate a folder to which you want to install a
USB driver.
19

20
The driver for the touch panel is located in the directory where the configuration application
was installed. By default, it is the Program Files -> PXM -> Px181 -> usb_driver directory.
When the driver has been successfully installed, the configuration application will display Usb
Px181 Connected. in the status bar.
1
2
