PXM PxAqua 6 SH 12V User manual

MANUAL
PX373
PxAqua 6
SH 12V
R

1. General description...................................................................................................
2. Safety conditions.......................................................................................................
3. Version data...............................................................................................................
4. Lamp description.......................................................................................................
5. Wiring diagram...........................................................................................................
6. Dimensions................................................................................................................
7. Technical data............................................................................................................
Declaration of conformity...............................................................................................
3
3
5
5
7
8
8
9
tel.: [phone]
fax: [phone]
E-mail: [email protected]
Internet: www.pxm.pl
Rev 1.1
PXM Marek Żupnik spółka komandytowa
Podłęże 654
32-003 Podłęże
TABLE OF CONTENTS
Manufacturer reserves the right to make modifications in order to improve device operation.

3
PxAqua 6 LED lamp 12V SH is designed for underwater lighting. It can also be used to illuminate
the interior and exterior architectural details.
The lamp uses six high-power LEDs from OSRAM Oslon. The LEDs are available in 3 different
color temperatures: cold white, warm white or neutral white. The lamp may be provided with
optics of lighting beam angles 10°, 25° (standard), 50° or elliptical 35°x12°. The casing is made of
stainless steel (316L), and provides protection class IP68.
The device is provided with a two-meter cable.
The PX373 may only be powered from 12V or 24V DC using voltage LED drivers or voltage power
supply. In case of using a voltage driver e.g. PX254, PX282 or PX370, it is possible for dimming of
this product.
1. GENERAL DESCRIPTION
2. SAFETY CONDITIONS
Caution! Before installing, connecting, using and maintaining the lamp, you
must absolutely read this document.
The following symbols are used to emphasise important information on security conditions on the
product and in this manual.
Danger!
Risk of loss of life and
health.
Warning!
Fire hazard.
Warning!
LED light emission.
The risk of eye
damage.
Warning!
The risk of burns.
Warning!
Read this instruction
manual.
Caution!
Do not look at the LEDs at a shorter distance than 2.0 m from the front surface of the
tube without proper eye protection. At a shorter distance, LEDs can cause damage or
eye irritation. Do not look at the light source directly through any optical instruments,
which focus the light rays.
From a distance of more than 2.2 m from the outer housing of the lamp and LEDs, the
light is harmless to unprotected eyes.

PX373 PxAqua 6 SH 12V is a device powered with safe voltage 12; however, during its
installation and use the following rules must be strictly observed:
1. Installation should be performed by a person holding the appropriate qualifications,
according to the instruction manual.
2. The device may only be connected to 12 -24 V DC with current-carrying capacity compatible
with technical data.
3. All the conductors should be protected against mechanical and thermal damage.
4. In the event of damaging any conductor, it should be replaced with a conductor of the same
technical data.
5. All repairs and connections of outputs can only be made with cut off power supply.
6. All sudden shocks, particularly dropping, should be avoided.
7. PX361 should be strictly protected against contact with water and other liquids.
4
While working outdoors in normal conditions, the housing unit can heat up to +60°C.
Make sure that accidental contact with the device during use is impossible.
In case of improper usage of the product it may cause a risk of serious injury or death,
because of the threat of fire.

Light fixture PX373 is available in several versions featuring lenses with different beam
angles.
PX373 version markings and their meanings are provided below:
PX373 - XX - YYY - ZZ
XX - lens beam angle
o
10 - 10o
25 - 25o
50 - 50
EL - elliptical 35x12°
YYY - LED colours
W - warm white
N - neutral white
C - cold white
ZZ - light fixture housing option
SH - with a handle
When ordering please select the colour of LEDs in the light fixture.
Specimen light fixture marking:
PX373 - 25 - WWW - SH
Housing option:
Water-resistant IP68
The light fixture housing, which is IP68 rated, allows you to install PX361 light fixtures underwater,
e.g. in fountains, pools as well as locations exposed to the elements.
3. VERSION DATA
colour of applied LEDs: 3 x warm white
o
the reflector angle: 25
lamp catalogue number
5
lamp housing option: with a
handle

4. LAMP DESCRIPTION
6
6 LEDs
1
2
a handle
a hole for the bolt fastening the handle to the surface
3
4
A bolt with a spring washer to fasten the handle to the body (this allows for
adjusting the fixture inclination angle in vertical plane)
4
2
3
1

Use a three-conductor cable to connect monochromatic light fixtures, as shown in the drawings
below.
Depending on the number of light fixtures to be installed, select a power supply with suitable
power rating (one light fixture consumes ca. 7 W).

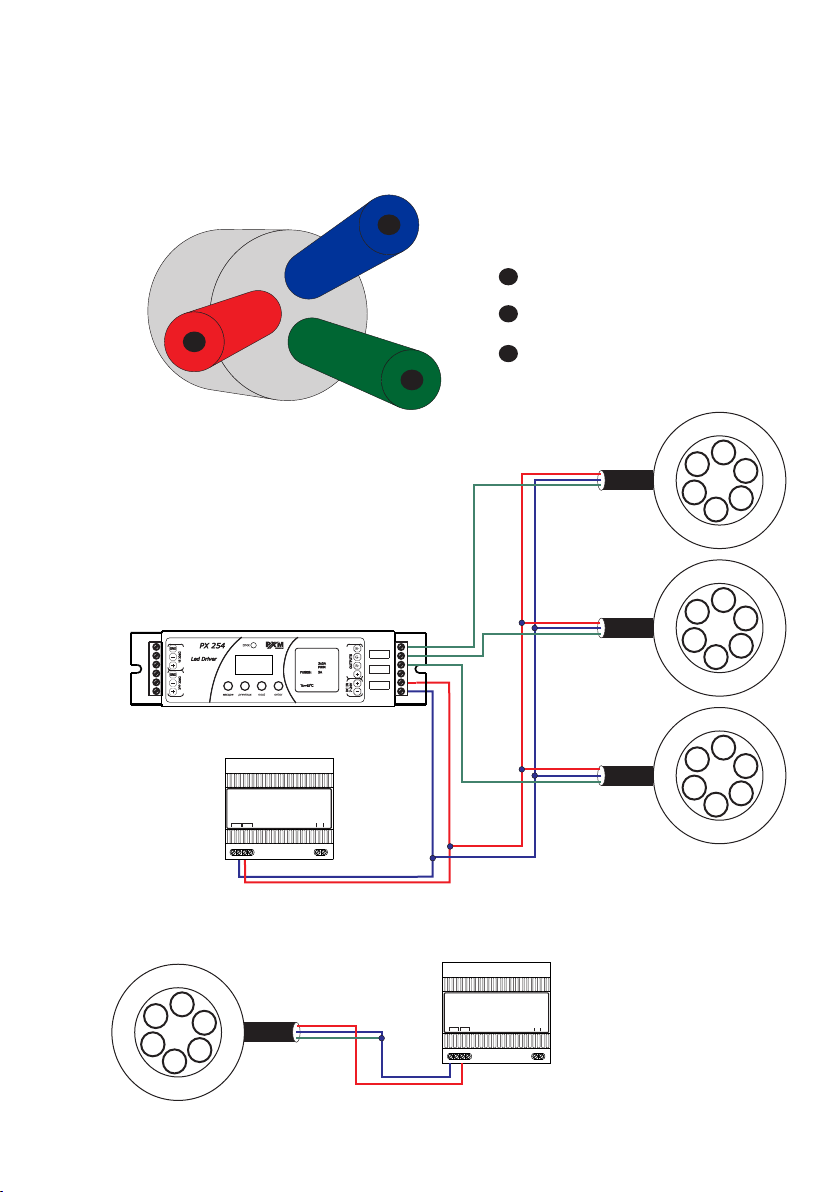

5. WIRING DIAGRAM
7
a) Light fixture and driver connection schematic
power supply voltage 12V DC
V- V+ L N
b) Light fixture and power supply connection schematic
+ (red)
PWM (green)
1
3
3
– (blue)
2
1
2
LED driver
power supply 12V DC
7-24VDC
15A max
OUTPUT:
INPUT:
V- V+ L N

8
6. DIMENSIONS
Number of LEDs:
Power supply:
Current consumption:
International Protection Marking:
Casing material:
CRI:
Lenses beam angle:
Available LEDs colors:
Brightness (22° odl. 1 m.):
Masa:
Wymiary:
6
12-24 V DC
max. 600mA
max. 0,3 A (for 24V DC)
IP68
stainless steel (316L)
80
25° (typical); (on order): 10°, 50°, EL(35°x12°)
warm white, cold white, biały neutralny
2500 lx
0,77 kg
diameter: 84 mm
height: 27 mm
height, including the case foot: 91 mm
7. TECHNICAL DATA
Note!!!
When installing the light fixture remember to leave
enough space for the cable gland through which the
power cable is fed.
27
91
43
ø84
43
21,5
25
9
5
15
30
ø5,5
A-A
AA

9
PXM Marek Żupnik sp.k.
ul. Przemysłowa 12
30-701 Kraków
PxAqua 6 SH 12V
PX373
PN-EN 60598-1:2011
PN-EN 62031:2010
PN-EN 62471:2010
1. Power may be supplied to PX373 only by power
supplies or voltage drivers with output voltage of
12V or 24V DC.
mgr inż. Marek Żupnik.
Name of producer:
Address of producer:
declares that the product:
Name of product:
Type:
answers the following product specifications:
Additional informations:
Kraków, 18.03.2015
DECLARATION OF CONFORMITY
according to guide line 2006/95/WE
