Pyle BlueTech PBT70R User manual

Bluetooth Hands-free Car Kit
with LCD display
PBT70R
User Manual
®
110.00 mm
90.00 mm
Environmental
friendly

()

3
I. Profile and Its Function…………...................…..........………………………………………………….…4
I-1 Profile…….……...................…...............………………………………………………………….…4
I-2 Function……...................................…………………………………………………………….……5
II. How to Use……...............................…………………………………………………………………………6
II-1 Installation of the Hands-Free Car Kit ......................................….………………………..…..6
II-2 Optional mounting method ..........................................................….………………………..…..7
II-3 Turn on the Hands-free Car Kit....…................................…………………………………….……8
II-4 Pair the Hands-free Car Kit with Your Mobile Phone…......................................……8
II-5 Establish Link…………………………….............................……………………..……..9
II-6 2-link operation and its LCD display status….…..........……………………………………………10
II-7 LCD display general status …...….................. ..............…….......…………..……………..……..11
II- 8 Answer an Incoming Call...…...................….........…………………………………………..……. 14
II-9 Transfer Calls between this Hands-free Car Kit and your Phone............................ 14
II-10 Make a New Call by Using Voice Dialing.......................................…..…………………………14
II-11 Answer the call waiting ................................ ..............................…....………………………….15
II-12 Mute the Microphone …..................... .........…....…………………………………………….……15
II-13 End a Call ……........…................. .........…………………………………………………………….15
II-14 Reject a Call …….…….…......... …….................………………………………………………….15
II-15 Redial Last Dialed Number …................. ...........…………………………………….……………15
II-16 Adjust the Speaker Volume…….......... ...................………………………………………………15
II-17 Turn off the Hands-free Car Kit …............…..............…..…………………………..……………16
II-18 Auto connection to the Bluetooth Mobile Phone .......……….. ……............. …………….16
III. Maintenance and Safe Use…......... ....................……………………………………………………….16
IV. Package Contents……………………………………………………………………………………………16
FCC Interference Statement…............... ..........................……………..……………………………………17
Bluetooth
Bluetooth
Bluetooth
TableofContent

4
I. Profile and Its Function
()I-1 Profile please refer to Fig.1
1. On/Off
2. Volume Up
3. Volume Down
4. LED
5. Speaker
6. 12 - 24V Power Connector
7. LCD display
Mic
Phone 1 icon
Phone 2 icon
Mute icon
Battery icon
Built-in Microphone
Metal Stand
with 2-side tape
Fig.1
PBT70R
LD77A
Mic
1
2
3
5
6
7
4

5
I-2 Function
1On/Off
2 Volume Up
3 Volume Down
4LED
5 Speaker
6 12-24V Power Connector
7 LCD display
(please refer to Fig.1)
.
If you press “On / Off ”, you can:
Switch on and off
Pair
Answer a new call
Reject a call
Make a new call using voice dialing
.
Increase the speaker volume
Mute / un-mute the microphone
.
Redial the last dialed number
Decrease the speaker volume
Answer call waiting
.
There are two LED colors ( blue and red ) to indicate the state of this Car Kit.
.
.
Connect the Car Kit with the cigarette lighter and power the Car Kit.
.
It displays a caller’s ID and operating status.

6
II. HowtoUse
II-1 Installation of the Hands-free Car Kit please refer to Fig.2 Fig.3 and Fig.4
Thank you for buying the PBT70R, Hands-free Car Kit.
Whenever you use the Hands-free Car Kit, please plug the Car Kit into the cigarette lighter socket
in your car to get the power.
(,)
Bluetooth
1. Attach the metal stand to the desired position.
Fig.2
2. Put the PBT70R into the cigarette lighter socket.
cigarette lighter socket
Fig.3
3. Slide the LCD 77A LCD display
into the metal stand.
Installation complete.
Fig.4

7
II-2 Optional mounting method (user needs to purchase the air vent clip separately).
please refer to Fig.5 Fig.6 and Fig.7(,)
1 Put the PBT70R into the cigarette lighter socket..
Air vent window
Cigarette socketlighter
Fig.5
3 Installation complete..
Fig.7
2 Slide the air vent clip into the air vent
window in your car as indicated.
.
Air vent window
Air vent clipLD 77A
Fig.6

8
II-3 Turn on the Hands-free Car Kit
II-4 Pair the Hands-free Car Kit with Your Mobile Phone
1 Put the hands-free Car Kit in pairing mode
2 Put your mobile phone in pairing mode
When the car kit is plugged to the cigarette lighter socket in your car and your car is on, the car
kit will turn on automatically and try to auto reconnect the last connected mobile phone. A long
tone indicates that the hands-free Car Kit has turned on. At the same time, blue LED will flash
for a second. Blue LED will keep on flashing every 3 seconds.
After the Car Kit has turned on automatically, it will try to auto reconnect the last connected
mobile phone. If it fails connecting for the first time, it will enter pairing mode immediately. A
double tone will be heard. The red and blue LEDs will flash alternatively, which indicates the
hands-free Car Kit has entered into the pairing mode.
2.1 Follow the operation manual of your mobile phone to start the pairing process.
Typically, this has to be done by going to a setup or connect menu and then selecting the
options to discover devices. may take several seconds to establish a
connection.
2..2 Your phone's display will indicate that it has found the new device “PBT70R ”. When you
want to pair it, the phone's display would demand a passkey or PIN. You can enter a
sequence of “0000”.
Note: The Car Kit can also be turned on manually by pressing and holding the “On/Off ” key for 2
seconds when it is off.
Note: The Car Kit can also be put in pairing mode manually by pressing and holding the
“On/Off ” key for 5 seconds when it is off.
Bluetooth
Bluetooth
Bluetooth
Bluetooth Bluetooth

9
3 Pair the hands-free Car Kit with your Mobile Phone
II-5 Establish Link
Bluetooth
Bluetooth
The blue LED of hands-free Car Kit will flash every 3 seconds indicating successful pairing.
The phone may also ask whether you want to change the Car Kit's name. We recommend you
should approve the name of “PBT70R ” and do not change it.
.
After pairing, the mobile phone usually has “connect” menu. Please select it to establish the link.
A beep tone will indicate that the Car Kit is connected. Now you are ready to make and answer
calls on the hands-free Car Kit.
Note: Make sure if pairing does not occur as expected, turn off the hands-free car kit and your
phone, then wait for 10 seconds. Turn on them again and repeat from Step 1 to Step 3

10
II-6 2-link operation and its LCD display status
The Car Kit is able to connect to 2 mobile phones at the same time.
Pair with the the first mobile phone (II3-4).
Connect to the second mobile phone(II-5).
Swith off the PBT70R, and then switch on
again to enter into pairing mode(the Blue &
Red LEDs will flash alternatively which
indicates the Car Kit has entered into the
pairing mode).
Pair with the second mobile phone (II3-4).
Connect to the first mobile phone (II-5).
It will operate with the last connected or activated mobile phone and automatically
switch between them.

When the car kit is turned on and idle, the
LCD displays “RE DY”.A
When the car kit is being turned off, the LCD
displays “OFF” with LED on for a few
seconds. When the car kit is still in
connection with power, the LCD displays
“OFF” without LED on.
When the Car Kit is in pairing mode, the LCD
screen displays “PAIRING”.
While the car kit is connecting to the mobile
phone, the LCD screen displays
“CONNECTING .”
After the car kit has connected to the mobile
phone successfully, the LCD screen displays
“CONNECTED”.

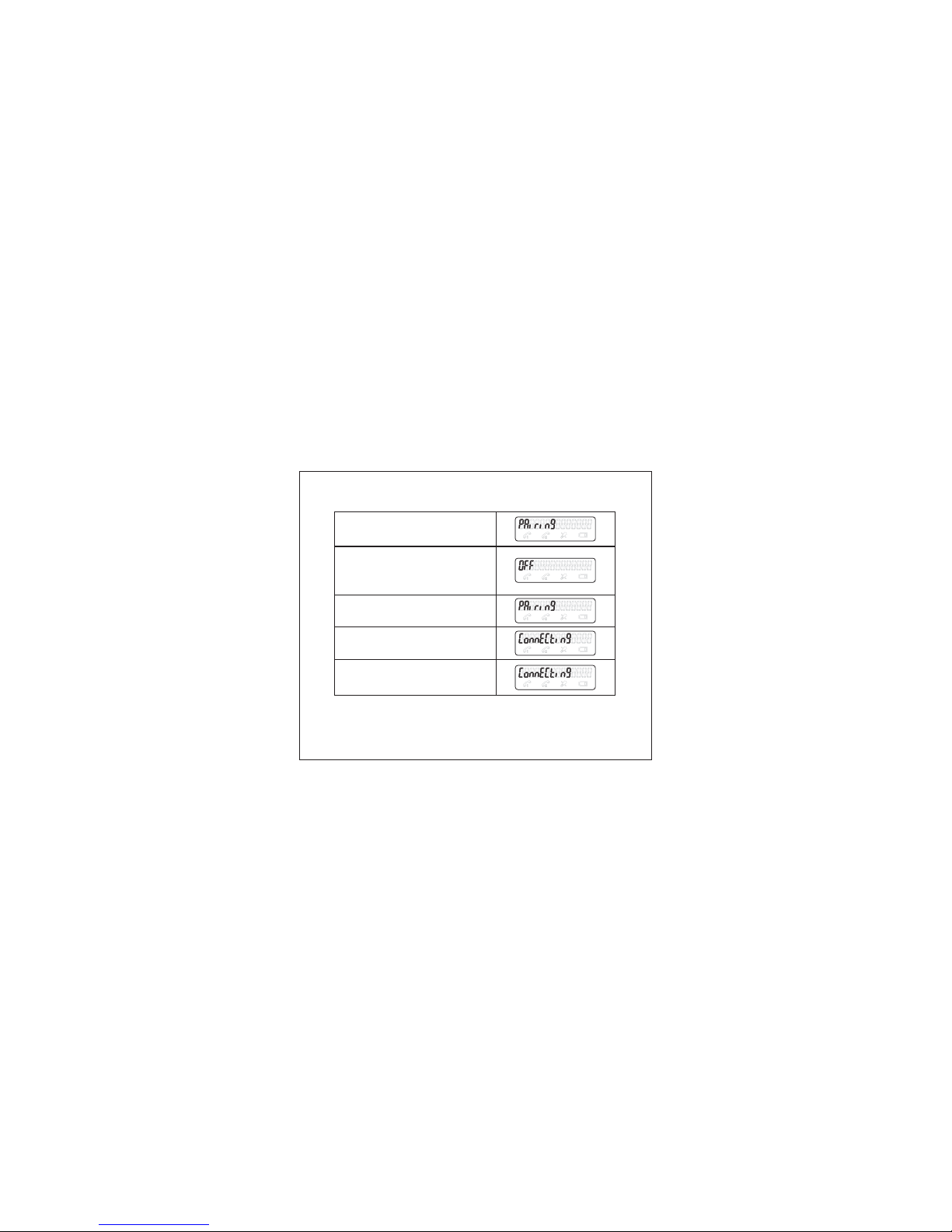

7.1 On / Off and Pairing
II-7 LCD display general status
11

12

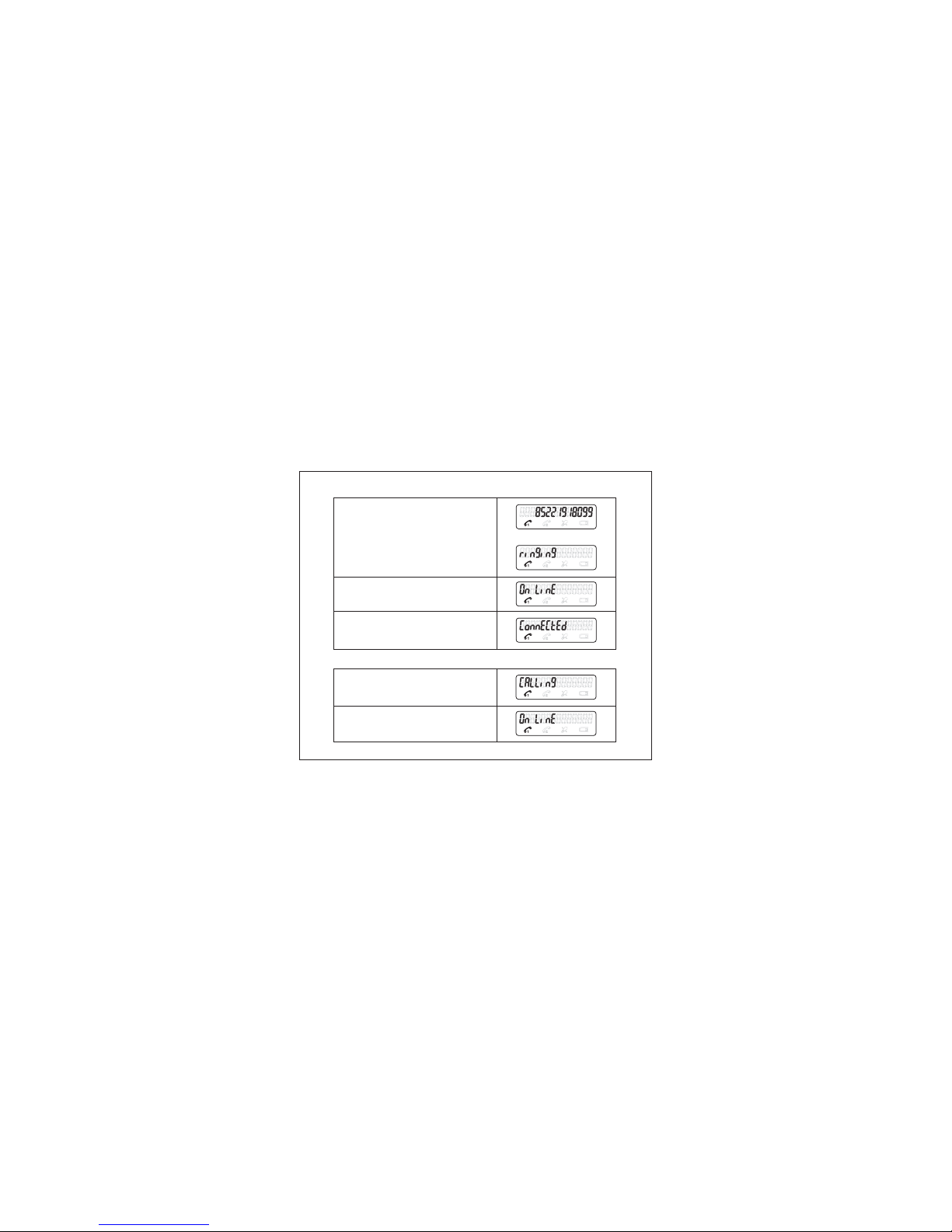

7.2 Calling in
When there is an incoming call, the LCD screen
displays Caller ID if it is received or “RINGING”.
Note: Some mobile phones may not display
Caller ID via this LCD Display unit.
When the call is answered, the LCD screen
displays “ON LINE”.
In case the call is rejected, it will go back to
standby state and the LCD screen displays
“CONNECTED”.
When the call is made successfully, the LCD
screen displays “ON LINE”.
When there is an outgoing call from the mobile
phone, the LCD screen displays “CALLING”.
OR RINGING
7.3 Calling out

13

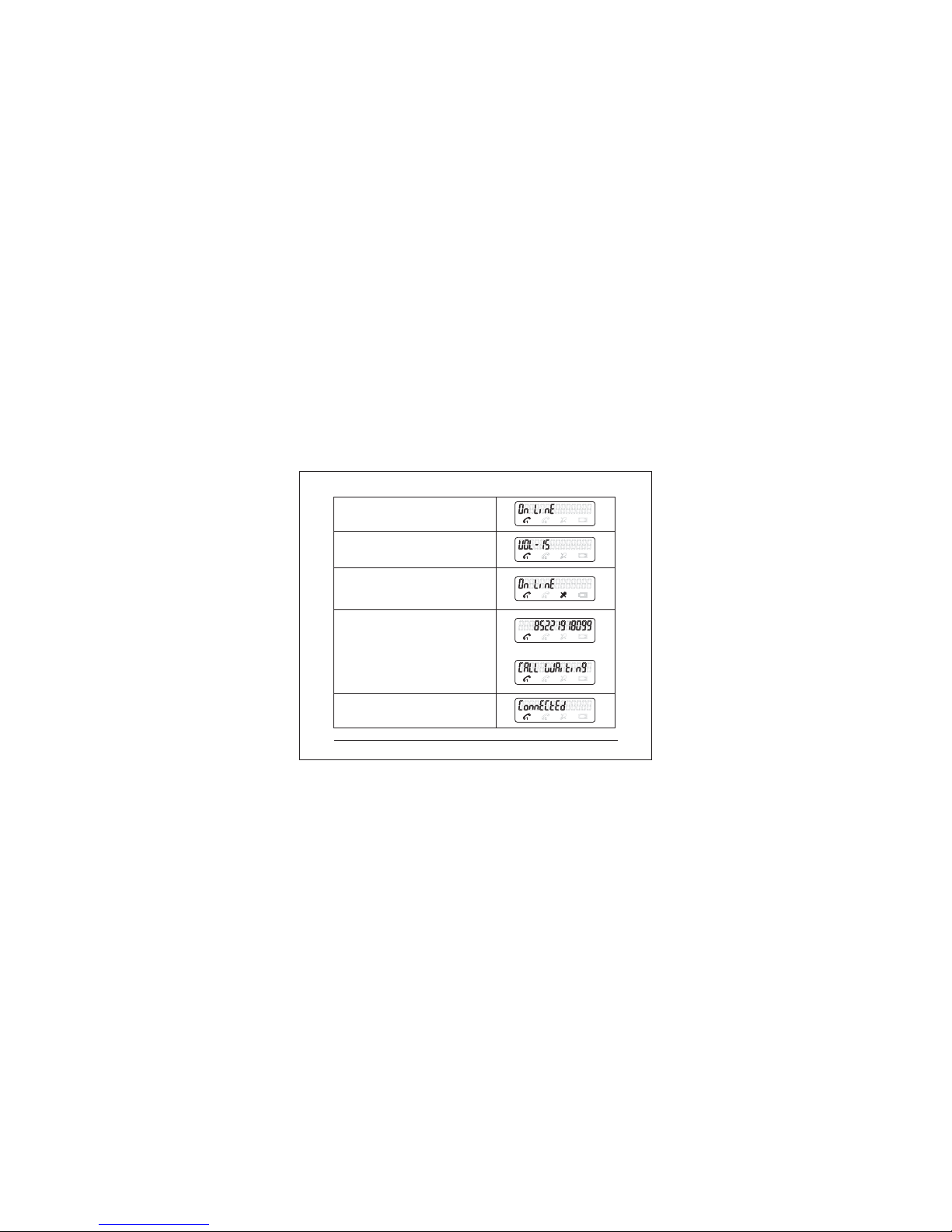

7.4 On Line
When you are talking on line, the LCD screen
displays “ON LINE”.
Whenever the Volume Up key or Volume Down
key is pressed, the LCD screen displays “ VOL”
and the current volume setting for 2 seconds.
If you mute the microphone, the mute icon
will be turned on. And it stays on until you
cancel it.
When the call is ended, it will go back to the
standby state. The LCD screen displays
“CONNECTED”.
When there is another call incoming while
you are on line, the LCD screen will show
Caller ID if it is received or “CALL WAITING”.
Note:
1. Some mobile phones may not display
“CALL WAITING” or Caller ID via this LCD
Display unit.
2. Some phones may not support this feature.
OR CALL WAITING
Note: Phone 2 icon will be shown instead if the Car Kit is operating with mobile phone 2.

14
II-8 Answer an Incoming Call
II-9 Transfer Calls between this Hands-free Car Kit and your Phone
1 From Phone to the Car Kit
2 From Car Kit to the Phone
II-10 Make a New Call by Using Voice Dialing
1 When using a Mobile Phone:
2 When using a mobile phone without built-in and requiring a
dongle:
When an incoming call is present, the hands-free Car Kit will ring. Press “On / Off ” key and you
can answer the call. The blue LED will continue to flash once a second while the call is in
session.
When you are in session, calls can be transferred from your Phone to the hands-free
Car Kit and vice versa.
Press “On / Off ” key once, the call will be transferred to the Car Kit.
Please follow the operation manual of your phone.
1.1 Press “On / Off ” key on the hands-free Car Kit shortly when the Car Kit is standby.
1.2 Put through the call
After the beep tone on the hands-free Car Kit, you can make a voice dial by saying the
name of the person on the hands-free Car Kit. The call will be connected in a few
seconds.
2.1 Press “On / Off ” key on the hands-free Car Kit shortly when the Car Kit is standby.
2.2 Put through the call
After the beep tone on the hands - free Car Kit, you can make a voice dial and the call will
be connected in a few seconds.
Bluetooth
Bluetooth
Bluetooth
Bluetooth
Bluetooth Bluetooth
Bluetooth
Note: Make sure that the voice dialing function is properly set up in the mobile phone and
it is within the range of the hands-free Car Kit.
Note: Make sure that the voice dialing function is properly set up in the Mobile phone and
it is within the range of the hands-free Car Kit.

15
II-11 Answer the call waiting
II-12 Mute the Microphone
1 Tomuteacall
2 Toun-muteacall
II-13 End a Call
II-14 Reject a Call
II-15 Redial Last Dialed Number
II-16 Adjust the Speaker Volume
During the active call in session if another call is coming, pressing “Volume Down” key for 2
seconds will make the mobile phone switch to the waiting call and place the active call on
hold. Press “Volume Down” key for 2 seconds again, mobile phone will come back to the first
active call.
Press“ Volume Up” key for about 2 seconds and a beep tone will indicate the microphone is
muted. A periodic reminder tone will be heard while the mute function is active.
When the microphone is muted, press “Volume Up” key for about 2 seconds. Then the mute
function will end and the periodic reminder tone will stop.
While a call is in session on the hands-free Car Kit, press “On/Off ” key and you will disconnect
the call. A long tone will indicate that the call has ended After the call is disconnected, the
blue LED will flash normally.
When the hands - free Car Kit is ringing, press “On/Off ” key for 2 seconds. Ringing will stop and a
long tone will indicate that the call is rejected.
To redial the last dialed number, press “Volume Down” key for 2 seconds when the Car Kit is
standby, a beep tone will indicate an attempt to redial.
While a call is in session, pressing and releasing “Volume Up” key will increase the speaker
volume, and pressing and releasing “Volume Down” key will decrease the speaker volume. A
double tone will be heard whenever the volume limit is reached
.
.

Accessories Status
1 x Metal stand Provided
2 x Double-sided adhesive tape
for metal stand Provided
Provided
1 x Alcoholpreppad
Alcohol
Prep Pad
FORPROFESSIONAL AND HOSPITAL USE
1x Air Vent Clip Optional
16
II-17 Turn off the Hands-free Car Kit
II-18 Auto connection to the Mobile Phone
III. Maintenance and Safe Use
When the hands-free Car Kit is on, press and hold “On/Off ” key for 5 seconds. A long tone will
indicate that the Car Kit starts to power off. LED continues to flash for a few seconds. At last
LED will turn off and the Car Kit is powered off.
The Car Kit has already been paired with a Bluetooth mobile phone. If it is turned off and
turned back on again, it will search for the last connected Bluetooth link. If the previously
paired mobile phone’s Bluetooth feature is on, the Car Kit and the mobile phone will re-
establish the Bluetooth link automatically.
- Use dry cloth to clean hands-free car kit!
- Do not expose the car kit to liquid or moisture!
- Do not expose the car kit to fire or open flames!
Bluetooth
Note: Not all functions may be available on all phones.
IV. Package Contents

17
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Note:
BQB, CE and FCC approved
The word mark and logos are owned by the SIG, Inc.
And any use of such marks by is under license. Other trademarks and trade
names are those of their respective owners.
Bluetooth Bluetooth
Bluetooth functions and operations may not be available or may vary depending on different
mobile phones.
Sound Around Inc.

18
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
,
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
declares that (FCC ID: NV6-CS8110) is limited in CH1~CH11 for 2.4
GHz by specified firmware controlled in U.S.A.
Sound Around Inc. PBT70R
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Bluetooth Qualified Design ID: B012322
Sound Around Inc.
1600 63rd Street
Brooklyn N.Y. 11204, USA
Phone: [phone]
Fax: [phone]

()

()
