Pyle Power Sports PLUTV49BTR User manual

4’’ Waterproof Rated Off-Road Speakers
800 Watt Compact PowerSport Vehicle Speaker System
for ATV, UTV, 4x4, Jeep with RGB Lights
and Remote Control (2 Pair)
PLUTV49BTR

www.PyleUSA.com
2
PRECAUTIONS
• This unit is designed for negative ground 12-14.50 Volts (DC) operation only.• Use speakers with an impedance of 4 Ohms• Avoid installing the unit where:• It would be subject to high temperatures, such as from direct sunlight or hot air from the heater.• It would be exposed to rain or moisture.• It would be subject to dust or dirt.• If your vehicle or boat is parked in direct sunlight and there is a considerable rise in temperature inside the car, allow the unit to cool off before operation.• When installing the unit horizontally, be sure not to cover the heatsink ns with the oor carpet.• If this unit is placed too close to the resources radio, an interference may occur. In this case, separate the amplier from the car radio.• This power amplier employs a protection circuit to protect the transistors and speakers if the amplier malfunctions. Do not attempt to test the protection circuits by covering the heatsink or connecting improper loads.• Do not use the unit with a weak auto battery as its optimum performance depends on a normal battery supply voltage.• For safety reasons, keep the volume of your audio system moderate so that you can still hear normal traffic sounds in a reasonable distance.WIRING INSTRUCTIONS
POWER CONNECTION
The battery terminal (BATT ) must be connected directly to the positive terminal of the vehicle battery to provide an adequate voltage source and minimize noise.Connecting the battery terminal lead to any other point (such as the fuse block)will reduce the power output and may cause noise and distortion. Use only #12gauge or thicker (smaller gauge #) wire for this lead and connect it to the terminalof the battery after all other wiring is completed.GROUND CONNECTION
The ground terminal (GND) connection is also critical to the correct operation ofthe amplier. Use a wire of the same gauge as the power connection (#8 or thicker)and connect it between the ground terminal (GND) of the amplier and a metalpart of the vehicle close to the mounting location. This wire should be as short aspossible and any paint or rust at the grounding point should be scraped away toprovide a clean metal surface to which the end of the ground wire can be screwedor bolted.

www.PyleUSA.com 3
REMOTE TURN-ON CONNECTION
The amplier is turned on by applying +12V to the remote turn-on terminal (REM).The wire lead to this terminal should be connected to the "Auto-Antenna" lead from the vehicle/or boat stereo resources which will provide the +12V only when the stereo resources is turned on. If the car stereo does not provide an "Auto-Antenna" lead, the remote turn-on lead may be wired to an "Accessory" or "Radio" terminal in the vehicle’s/or boat’s fuse block. This will turn the amplier on and off with the ignition key, regardless of whether the stereo resources is on or off.The remote turn-on lead does not carry large currents. So #16 gauge wire may beused for this application.SPEAKER CONNECTIONS
Depending on the type and number of speakers used with the amplier wire them to the speaker terminals as per the appropriate wiring diagram. For most applications#18 gauge wire should be used for the speaker leads but in no case thinner than#16 gauge. For leads is excess of 10 feet #12 gauge is recommended. When wiringthe speakers, pay careful attention to the polarity of the terminals on the speakersand make certain they correspond to the polarity of the corresponding terminalson the amplier. Do not ground any speaker leads to the chassis of the vehicle/orboat.OPERATION
After the amplier has been installed and all connectios have been made carefullyand securely, turn the radio on so that the amplier is switched on automatically.After a short power-on period, the amplier reaches its full performance. Now turn up the volume slowly using the volume control of the radio. If there is no sound or only a distorted replay, switch off the radio immediately - the amplier will also switch off automatically - and check if all connections have been made correctly.GND (-) = GROUND CONNECTION
Connect the GND terminal to the chassis ground of your vehicle/or boat and take care of best electric and mechanic contact. In doing so, drill a hole into the vehicle/or boat chassis near the amplier then remove color, dirt or any other substance from the ground point. Thereafter fasten the cable end with added ring terminal by using a screw. Ensure that the ground connection is as short as possible and that the cable diameter is sufficient (min 4mm). Route the ground cables from the radio and all other equipment parts, like equalizer, active crossover network orother ampliers, to the same ground point.

www.PyleUSA.com
4
+ 12V = POWER SUPPLY
Connect the BATT terminal to the positive pole of the battery with a lead cable and add a fuse into the power cable in a distance of not more than 30 cm from thebattery. The lead cable’s diameter should be at least 4 mm’ for a length of 3m and6mm” for a length of 6m.REM (ON/OFF) REMOTE CONTROL
Connect the REM terminal to the automatic antenna connector of your vehicle/orboat radio. Now when turning on and off your vehicle/or boat radio, the amplierautomatically switches ON and OFF. A cable diameter of 0.5mm2 is sufficient.SPEAKERS CONNECTIONS

www.PyleUSA.com 5
NOTES ON THE POWER SUPPLY
• Connect the +12V power input lead only after all other leads have been connected.• Be sure to connect the ground wire of the unit securely to a metal part of the vehicle/or boat.• Loose or faulty connection may cause amplier malfunction• REM: The unit is turned on by applying +12 Volts to this terminal. This terminal does not draw heavy current like the tow Power Terminals so a thinner connecting wire is acceptable. Standard 18 GAUGE is ne and the standard color is red. If the radio is equipped with a Power Antenna control wire, it can drive this terminal. If the Power Antenna wire is already in use, you can still splice into it. With this method, the unit will turn ON automatically with the radio.• Use the power supply lead with a fuse attached whose value is the same as original fuse.• Place the fuse in the power supply lead as close as possible to the car battery.• During a full power operation, Maximum current will run through the system. Therefore, make sure that the leads to be connected to the +12V and GND terminals of the unit respectively must be larger than 18-Gauge (AWG.18) proper Bridged operation. If only mono signal is available, a "Y" adapter is required.FUSE REPLACEMENT
If the fuse blows, check the power connection and replace the fuse. If the fuse blowsagain after replacement, there may be an internal malfunction. In this case, consult your dealer.WARNING
Use the specied amperage fuse. Use of a higher amperage fuse may cause serious damage.PROTECTION CIRCUIT
This amplifier is provided with a protection circuit which operates in the
following cases when:
• the unit is overheated.• the speaker terminals are short circuited.HOW TO PROCEED IN CASE OF FAULTS
No Function:
• The connection cable is not connected correctly (=terminal +12V/GND/REM). Ensure that all connections and mechanic contact and that the jacket has been removed. The fuse is defective-pay attention to the correct value of a new fuse!

www.PyleUSA.com
6
No Sound:
• Speaker cable or speaker plug are not connected correctly.• The plus and minus wires of the speaker cable have contact, thus eliminate the short circuit. If you use, pay attention only 4 ohm load speaker is allowed. No 2 ohm or less impedance speaker connection is allowed.Poor Sound Quality (Distortions):
• The speakers are overloaded, therefore turn down the volume level and check the volume control positions.No Stereo Sound And A Weak Bass:
• Speaker cables (+) and (-) are mixed up, unit wired out of phase.INTERFERENCE
All cables can source and create interference. The power cable and Cinch/RCA
audio cable are very prone to interference; the remote cables are less prone.
There is often interference caused by the generator (piping), ignition (cracking)
or other vehicle/or boat electronic parts. Most of these problems can be
eliminated by correct and careful cabling. In doing so, here are the following
guidelines:
• Use only a screened audio cable for the wiring between “low level in” of the amplier and RCA or DIN output of the radio.• Lay the signal, speaker and power cables separately with enough distance from one another and also from each other car cable. If not possible, you can lay the circuit and ground cable together with the serial cables. Audio and speaker cable should be as far away from these as possible. The REM cable to the automatic antenna output of the radio can be laid together with the signal cables.• Avoid ground loops by laying the ground wiring of all components to a center point in a star-like way. you can nd the best central point in measuring the voltage directly at the battery. Now compare this voltage value with the chosen ground point and the (+) terminal of the amplier. If measured voltage is only slightly different, you’ve found the correct central. Otherwise you have to look for another point. You should measure with the ignition point for earth being switched on and additionally switched on consumers (rear window heating and light).• If there are pickups from external electrical sources into the speaker cables, divide the core leads and twist them together.• If there are noises from the car electrics, add an interference suppression choke into the power wiring.

www.PyleUSA.com 7
• If there are humming noises, use thicker ground cables or add further ground cables to the chassis.• To reduce contact resistance and bad and loose contacts, please solder the cable ends or use multi core cable ends, spade terminals or others. Gold Plated spade terminal are free of corrosion and have the lowest contact resistance.• Should all these meaures be without any success, the use of a ground loop isolator may solve the problem.PLUTV49BTR Speaker Installation

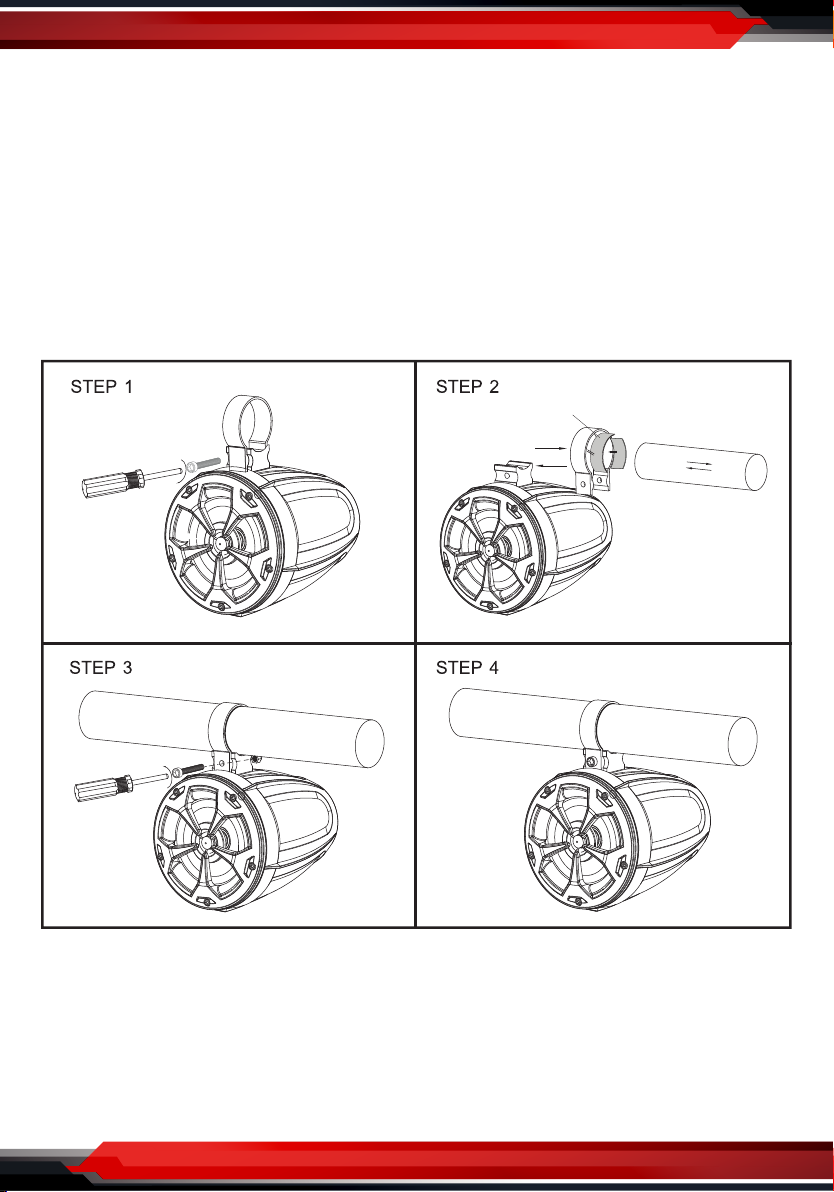

Speaker Mounting suggestion as below:
Auto Reconnection:
Step 1: Unbolting the mounting bracket.Step 2: Slide in the buckle with rubber pad attached to the bracket stand of the speaker. Attach the set to the handle bar of vehicle/ship.Step 3/4: Attach screw to lock the buckle.Rubber Pad

www.PyleUSA.com
8
Remote Control Functions
• 16 static colors for choice with 8 kind of brightness which can adjust up and down.• 3 colors ash, 4 colors strobe, 7 colors fade, 7 colors smooth, all modes can adjust the brightness and speed.• In static color mode, the brightness can adjust up and down.WIRELESS BT PAIRING AND CONNECTION
Power:
1. Press and hold to power ON/OFF.Wireless BT Streaming Connection:
a. Ensure BT ability is activated, then search for the PLUTV49BTR from your BT-enabled device. The light will turn blue and blinks while waiting for BT connection.b. The PLUTV49BTR BT Network Name will appear as “PyleUSA” (No password is required for connecting).c. When the BT is connected, the light will turn blue and stops blinking.AUX-IN/USB
Short press to switch BT mode to AUX-IN mode/USB mode.

www.PyleUSA.com 9
Auto Reconnection
a. When the device is out of BT range, BT will be disconnected automatically, the light turns blue while blinking.b. BT will automatically reconnect when detected in range again in 10 minutes.c. Disconnected BT after 10 minutes, you need to process BT connection steps (above) to reconnect BT again.d. If the other device occupied the BT during this period (10mins), you need to process BT connection steps (above).PLAYING MUSIC
1. Press and hold for 3 seconds to Power ON/OFF. Short press to switch in BT/AUX IN/USB mode.2. Short press to play/pause. Press and hold for LED off/on.3. Short press for previous song.4. Short press for next song.5. Short press to increase volume by one scale. Press and hold to continuously increase volume.6. Short press to decrease volume by one scale. Press and hold to continuously decrease volume.
Next SongPrevious SongBT/AUX/USBSwitchPlay / PauseVolume UpVolume Down

www.PyleUSA.com
10

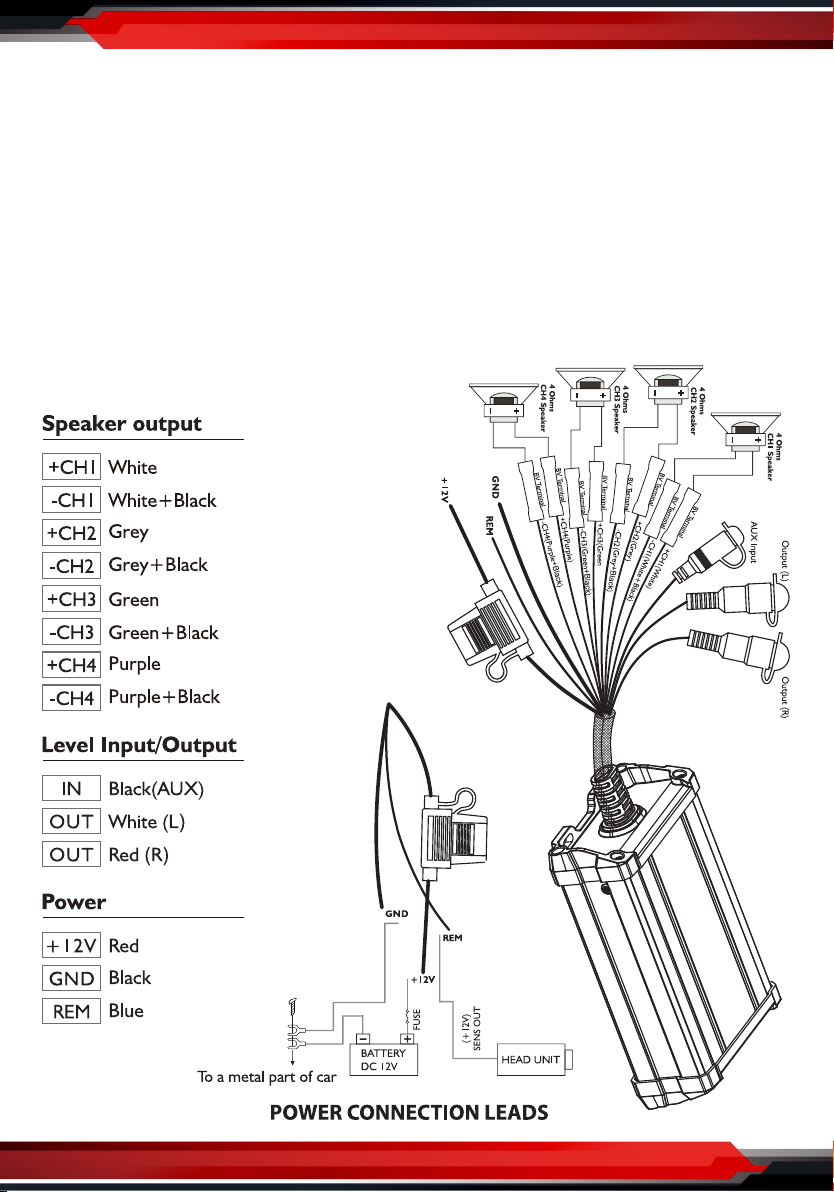

WIRE DIAGRAM
INSTALLATION (SEAMLESS FLUSH MOUNT)
AUX Input
Line out-L Line out-R
USB
Remote Out
(Blue)
ACC Remote In
(Red)
Fuse: 5A
+YELLOW
-BLACK
DC12V(+)
Recommended wiringwith fuse (parts are not included)DC12V(-)
Grounded tometal chassisWire Color
YellowBlackWhiteRedRedBlueDescription
Battery (+), 12dcBattery (-), GroundLine out- LLine out- RACCREMOTE2.19” / 55.8mm3.81” / 97mm1.47” / 37.4mm1.11” / 28.4mm3.34” / 85mm1.99” / 50.7mmSize:
· 97mm/3.81” (Overall Lenght)· 37.4mm/1.47” (Overall Height)· 55.8mm/2.20” (Overall Depth)· 50.7 x 85mm/1.99”x3.34” (Mounting Hole Size)

Universal Bluetooth
Remote Controller
2nd RGB Slave200mm200mm200mm4000mm4000mm4000mm
2000mm
200mm
2000mm
2000mm
Grey(+)
Grey+Black(-)
350mm3rd RGB Slave4th RGB SlaveAUX InputUSB: 1500mmLine out: 150mmAUX Input: 150mmACC: 150mm (18AWG)GND: 150mm (18AWG)REM: 150mm (18AWG)
2nd RGB Slave200mm200mm200mm4000mm4000mm4000mm
2000mm
200mm
2000mm
2000mm
Grey(+)
Grey+Black(-)
350mm3rd RGB Slave4th RGB SlaveAUX InputUSB: 1500mmLine out: 150mmAUX Input: 150mmACC: 150mm (18AWG)GND: 150mm (18AWG)REM: 150mm (18AWG)
www.PyleUSA.com 11

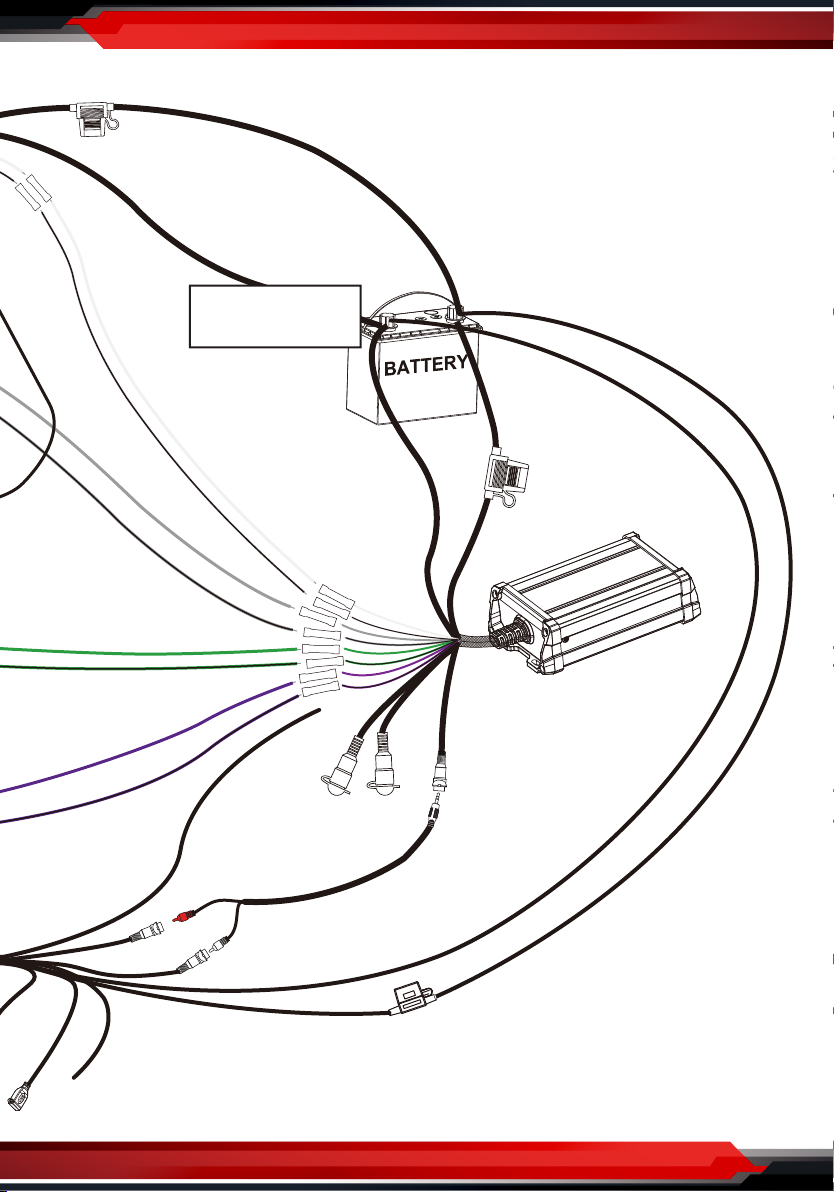

PLUTV49BTR WIRE DIAGRAM

2000mm
2000mmRecommended wiringwith fuse (parts are not included)Grounded to metalchassis, or directly to negativepolarity of battery.
Purple(+)
Green(+)
White(+)
White+Black(-)
Green+Black(-)
Purple+Black(-)
Output (R)Line out-LLine out-RAUX InputSpeaker out: 200mm (20AWG)AUX Input: 200mmLine out: 200mmACC: 200mm (16AWG)GND: 200mm (16AWG)REM: 200mm (18AWG)Output (L)-BLACKFuse:10A+YELLOW
RED
ACC
USB
2000mm
2000mmDC12V(+)
Recommended wiringwith fuse (parts are not included)DC12V(-) Grounded to metalchassis, or directly to negativepolarity of battery.
Purple(+)
Green(+)
White(+)
White+Black(-)
Green+Black(-)
Purple+Black(-)
GND +12V
REM
BLUE
REMOTE Output (R)Line out-LLine out-RAUX InputSpeaker out: 200mm (20AWG)AUX Input: 200mmLine out: 200mm+12V: 200mm (16AWG)GND: 200mm (16AWG)REM: 200mm (18AWG)Output (L)-BLACKFuse:10A+YELLOW
www.PyleUSA.com
12

www.PyleUSA.com 13
Features:
• Pro Audio Power Sports Speakers with RGB Lights• Pro Audio Power Sports Amplier System Kit• Universal Mount BT Control Unit• 4-Channel Marine Audio Amplier• Marine Grade Rugged Construction• Waterproof Rated & Weather-Resistant Connectors• Perfect for Custom Installations & Applications• Ability to Connect & Stream Audio from External Devices• Speaker Wiring Connectivity• Connect & Stream Audio from Additional External Devices• Aux (3.5mm) Input connector Jack/USB Port• Full-Range Stereo Sound Reproduction• Integrated Power Wiring Harness• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/Full-Range Amplier• Anti-Thump On/Off Option• Soft Turn On/Off Option• Overload & Power Protection Circuitry• Great For Cars, Trucks, ATV’s, UTV’s, 4x4’s, Boats, Marine Watercrafts, & Power Sport VehiclesBT Control Unit:
• Marine Grade Waterproof Rating: IPX6• Fuse: 5A• RCA Line Out (Pre-Amp): 1 Pair (Left & Right) 2.5Volts• Aux Line Input: Plug 3.5mm• Remote Out: 200mA• USB Player: 4FT Extension Cord• Cut-Out Dimension: 1.99” x 3.34” -inches• Mounting Depth: 1.47” -inches• Power: DC 12V-14.4V• Total Unit Dimensions (Lx W x H):• 3.81” x 2.20” x 1.97” -inches (Flush Mount)

www.PyleUSA.com
14
Marine Amplifier:
• Amplier Type: 4-Ch. Audio Component• Power Output: 1500 Watt MAX• 4 x 45 Watts RMS @ 4 Ohm• 4 x 150 Watts MAX @ 4 Ohm• Marine Grade IP-65 Rating• T.H.D: 0.1%• S/N Ratio: > 93dB• Channel Separation: > 50dB• Frequency Response: 20Hz-20kHz• Fuse: 20A• Power: DC 12V• Amp Dimensions (L x W x H): 5.9’’ x 3.6’’ x 1.97’’ –inchesMarine Speakers:
• Pro Audio Power Sport Speakers• Sound System: (4) x 4” Woofers + (4) x 0.5’’ Tweeters• 2-Way Full Range Stereo Sound Reproduction• Quick-Connect Spring-Loaded Speaker Terminals• Impressive Bass Response• Sleek Design, Machine Molded Speaker Cabinet Housing• Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-CageWireless BT Music Streaming:
• Simple & Hassle-Free Pairing• Instant Wireless Audio-Streaming Receiver• Works with All of Today's Latest Devices• Smartphones, Tablets, Laptops, Computers, etc.• Wireless BT Version: 5.0• Wireless BT Network Name: 'PyleUSA'• Wireless Range: Up to 30+ ft

Ca lifo rnia Pro p 65 Wa rning
WARNING :
This p ro d uc t c o nta ins Di (2-e thylhe xyl) p htha la te (DEHP) whic h
is kno wn to the sta te o f Ca lifo rnia to c a use c a nc e r b irth
de fe c ts a nd o the r re p ro d uc tive ha rm. Do no t ing e st.
Fo r m ore info g o to : www.P65wa rning s.c a .g o v
www.PyleUSA.com 15
What’s in the Box:
• (1) Wireless BT Control Unit• (1) 3.5 mm Auto Connection Cable• (4) 4'' -inch Off-Road Speakers• Compact 4 Channel Marine Amp• (4) 2 Meters Speaker Wire• (4) 5.9’’ x 0.7’’ x 0.2’’ -inches Rubber Pads• (4) 6.5’’ x 0.7’’ x 0.08’’ -inches Rubber Pads• (16) Butt Connector• (Red Color For A.W.G 16-22)• (1) RGB Connection Wire, 6.6’ ft.• (3) RGB Connection Wire, 13.2’ ft.• (1) RGB Connection Wire, 1.15’ ft.• Remote ControlMarine Technical Specs:
• Power Output: 800 Watt MAX• Marine Grade Waterproof Rating: IP-X5• Speaker Style: Passive Speakers• Speaker Type: Polypropylene Cone, Butyl Rubber Surround (x4)• Tweeter Type: Neodymium Dome (x4)• Frequency Response: 144Hz-20kHz• Impedance: 4 Ohm• Magnet Type: 20 oz. Circuit• Mid-Woofer Voice Coil Type: 1.0'', Aluminum• Sensitivity: 90 dB +/- 2 dB @ 1M/1W• Universal Mounting Brackets Roll-Bar / Roll-Cage Diameter: 1.25’’ ~ 2.0’’ -inches• Power Supply: DC 12V• Remote Control Battery Operated, Requires (1) x CR2025 Batteries (Included)• Battery Type: 3.2V Lithium-ion 150mAh (Not Recharageable)• Speaker Dimensions: 5.6’’ x 8.4’’ x 7.3’’ -inches, with Bracket (-Each)
