Pylo Health 200-LTE User manual

Thank you for choosing Pylo Health!
This manual outlines how to use your Pylo LTE weight
scale safely and correctly. Please be sure to read it
thoroughly and keep it for future reference.
User Manual
Pylo 200-LTE
Cellular Scale
Distributed by
Pylo Health
3250 N Post Road, STE 180
Indianapolis, IN 46226
Model: 200-LTE
200-LTE

4
5
6
6
8
9
10
11
12
12
2
7
3
3
13
14
14
7
Table of Contents
Device Components
LCD Display
General Instructions
Inserting the Batteries
Daily Measurement
Error Prompts
Troubleshooting Guide
Changing the Measurement Unit
Use and Storage Environment
Efficient Use of Your Scale
Overview
Initial Start-Up
Start Measuring
Troubleshooting
Specifications
Maintenance
Warranty
Safety Information
Symbol Legend
FCC Regulations
Appendix
EMC Guidance
Warnings
How to check and re-install the SIM card
1

The symbols below may be in user manual, labeling or other component. They are the standard requirement of using.
On a slippery flooring surface, such as tile,
Directly next to a cell phone, microwave oven or other electromagnetically active devices.
Place the scale on a hard, flat surface. So or uneven surfaces will negatively aect the safety
and accuracy of the scale.
Take your weight measurements at the same time each day.
Avoid measurement immediately aer strenuous exercise, sauna or bathing.
Avoid measurements within two hours of eating a moderate or large meal.
This device is not intended for use in an oxygen rich environment.
Any information provided by this scale is in no way meant to treat, cure or prevent any disease
or illness. If in doubt, always contact your physician.
The device is designed for use in the home.
Immediately aer a shower or otherwise with wet feet,
Symbol Meanings
CAUTION
The Pylo 200-LTE oers you a way to manage your health. Please be aware that this device is designed for use by those
over the age of 10. Any information provided by this device is in no way meant to treat cure or prevent any disease or illness.
The Pylo 200 LTE was designed for self-measurement of weight. No third-party operation is required.
Please use the device under the operating conditions provided in this user manual. Otherwise, the performance and
lifetime of the device may be impacted.
Store your device in a clean and dry place. Never place any heavy objects on it.
Dispose of accessories, detachable parts, and the device according to local guidelines.
transmitting data. Nearby portable and mobile RF communications equipment can aect the performance of the device.
Portable and mobile RF communications equipment can aect the measuring accuracy of the Pylo 200-LTE device.
The Pylo 200-LTE is equipped with a data transmission function and may emit electromagnetic energy while connecting and
The use of accessories, transducers or cables other than those specified or those sold by the manufacturer as replacement
parts for internal components, may result in increased electromagneteic emissions or decreased immunity.
The misuse of electrical equipment, such as this device, can cause electric shock, burns, fire and other hazards. Please do
not use the device in a flammable gas environment.
The Pylo LTE-200 should not be used while adjacent to or stacked with other equipment.
The device comes pre-calibrated and is rated to not need recalibrating for at least five years of standard use.
The glass surface of the scale is a type BF Applied part.
Safety Information
INDICATIONS FOR USE
The Pylo 200-LTE is intended for adults and children over 10 years old for measuring body weight at home.
Your Scale and Its Environment
Efficient Use of Your Scale
To ensure your safety as well as the service life of your scale, DO NOT use the scale:
Near water or other liquids.
Where the device may be exposed to extreme temperatures, humidity, moisture, direct sunlight, dust, or salt air.
Where there is risk of shock or dropping the scale.
Where you store chemicals or corrosive gases.
Where in reach of the infants or children.
To ensure the accuracy of measurement, please follow below instructions
when you start measurement.
32
Avoid storage in the following locations:
Refer to instruction manual/booklet
To signify that the instruction manual/booklet must be read.
Caution
Indicates that caution is necessary
when operating the device or that the
to where the symbol is placed, or that the
current situation needs operator awareness
or operator action in order to avoid undesir
able consequences.
General symbol for recovery/recyclable
The symbol indicates that the product
should not be discarded as unsorted
waste but must be sent to separate
collection facilities for recovery and
recycling.
Serial Number
Direct Current
Type BF applied part
Humidity limitation
Date of Manufacture
Temperature limit
Atmospheric pressure limitation

LCD Display
Included Components
54
Overview Overview
Device Components
1. Pylo 200-LTE Scale
2. Four AA-size Batteries (1.5V per each)
3. User Manual
4. QuickStartGuide
LCD Display
Battery Compartment
UNIT Button
Mobile signalKilogram
Stone
Pound
Battery symbol
Data transmitting
There are readings stored
to transmit.
No SIM card information

The unit switch button is on the back of the scale. The default measurement unit is “ lb”.
You may press the button to choose among “pound”, “kilogram” and “stone”.
76
Initial Start-Up
General Instructions
The Pylo 200-LTE utilizes step sensing technology. It is not necessary to turn the scale on or o
manually. Instead, the scale will turn on when it detects a user and automatically turn itself o aer
the measurement is complete.
Once batteries are inserted correctly, the screen will briefly flash all digits, like below:

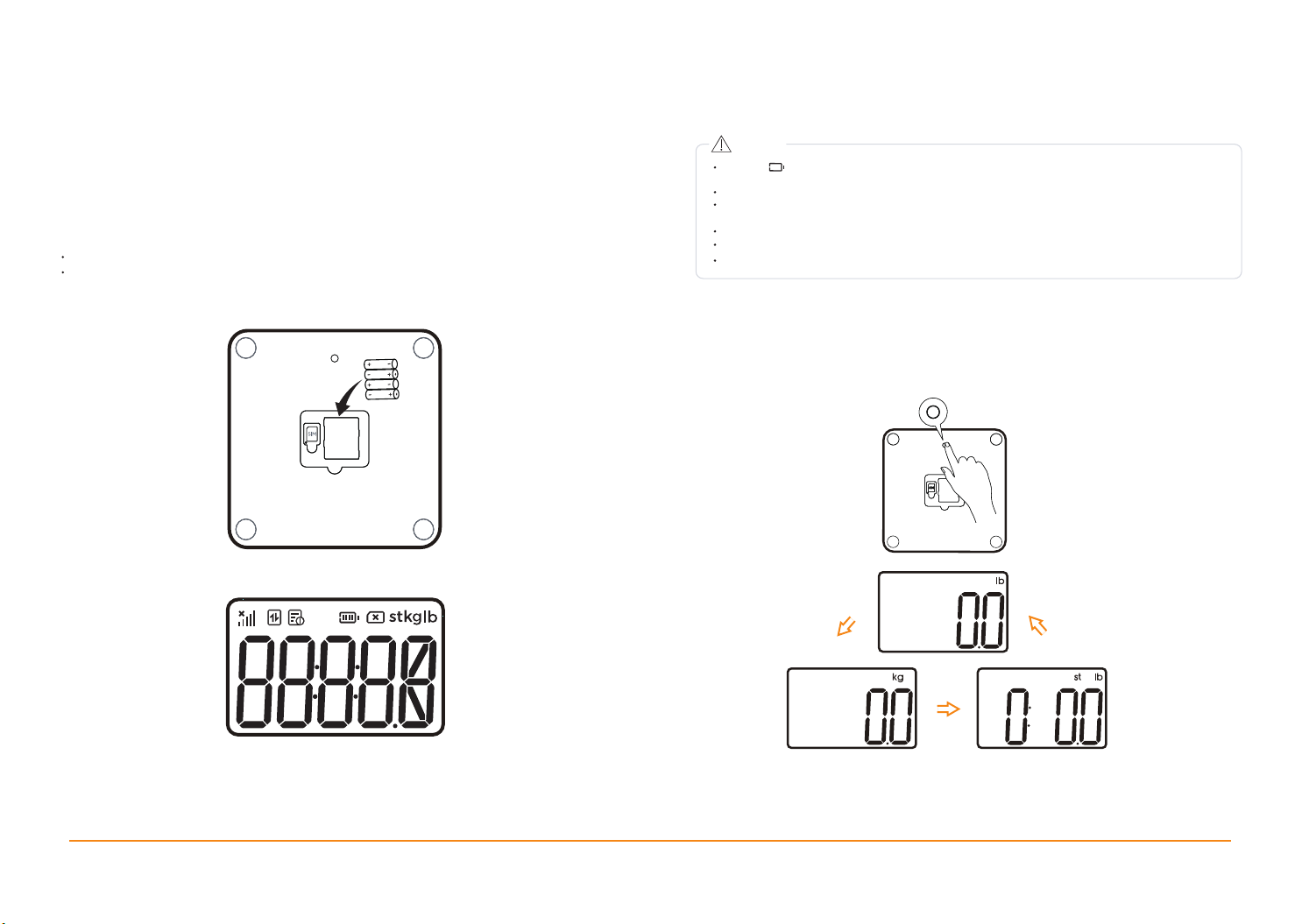

Inserting the Batteries
Open the battery door in the back of the scale.
Insert the batteries (4 x 1.5V AA) according to the polarity indications marked inside the battery
compartment.
When the symbol is shown, it is time to replace the batteries on the device. Please replace all four batteries at once.
Do not mix used and new batteries.
Depleted batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries and
scrapped device.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.
If you do not intend to use this unit for a prolonged period of time, remove the batteries before storing.
If the scale is used three times per day, fresh batteries can be expected to last around one year.
Changing the Measurement Unit
CAUTION

98
Aer connecting to internet, the weight data will be transmitted. When data is successfully transmitted, “OK”
will be displayed and digit “ ” appears.
Aer placing the scale on a flat and hard surface, step onto
the scale platform to initiate a weight measurement.
Be sure to take o your shoes and any bulky items of clothing!
TroubleshootingDaily Measurement
Error Prompts
In the event that the scale is unable to reach the mobile network, “ ” will be displayed. In this case, the measurement
is saved and will be sent on the next successful transmission. When a measurement is saved pending transmission, the
“ ” is shown until success.
Symbol & Code Description How to solve
Hardware error
No cellular coverage or
Cellular connection error
The pre-loaded SIM card is
replaced or the SIM service
subscription suspended /
terminated.
No signal.
Data transmission error
Server connection error
Certificate error
Hardware error (such as the
communication between the
MCU and the module is
abnormal.)
SIM error.
Overload.
Retake measurement.
If the issue persists, please check if your weight
is out of measurement range (11 lb to 440 lb /
5 kg to 200 kg / 0 st : 11 lb to 31 st : 1 lb)
Retake measurement.
If the issue persists, contact customer support.
Move to another area, preferably closer to a
window.
Attempt to use the device at a location where
you get a strong cellular signal with your mobile
phone.
Move to another area, preferably closer to a
window, try again.
Use the device at a location where you get
strong cellular signal with your mobile phone.
If the issue persists, contact customer support.
Contact customer support.
If the issue persists, contact customer support.
Retake measurement.
If the issue persists, contact customer support.
Move to another area, preferably closer to a
window.
Use the device at a location where you get
strong cellular signal with your mobile phone.
1. Move the scale to an area with better signal
such as near a window.
2. Contact customer support.
If the issue persists, contact customer support.
taken and locked. The scale will then automatically connected to the internet to send the reading.
Stand still and keep full contact with the scale. Once the display screen blinks twice a measurement has been

1110
Problem Root Cause Solution
Batteries not yet installed
Worn batteries
Worn batteries
The device powers off
automatically
No display on LCD
when the device
powers on Replace device batteries with four new
AA batteries.
Install the batteries.
(Please refer to Insert the Battery)
Troubleshooting Specifications
Troubleshooting Guide
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed
by the manufacturer. Please refer to the above table for the descriptions on accuracy.
This product is specially designed for the measurement of body weight.
It should NOT be used for commercial transactions based on weight or other measurement.
Dimension
Net Weight
Product Name
Display
Measurement Unit
Measurement Range
Division
Accuracy
Working Environment
Storage Environment
Power Source
Auto-ON
Auto-OFF
Accessories
Mode of Operation
Protection Against
Ingress of Water
Degree of protection
Pylo 200-LTE Weight Scale
Approximately 2.16 kg (Excluding the drycells)
Digital LCD
Pound / Kilogram / Stone
IP21 (2: Protected against solid foreign objects of 12.5 mm
Ф
and greater. 1 : Protection against vertically falling
water drops.)
11 lb to 440 lb / 5 kg to 200 kg / 0 st : 11 lb to 31 st : 1 lb
Approx 320x320x28.5 mm
0.1 kg / 0.2 lb
6V (Four AA-size Batteries)
Automatic when user steps on platform.
About 10 seconds when no weight is present on platform.
Continuous Operation
Type BF applied part
1. Four AA-size Batteries
2. User Manual
3.QuickStartGuide
50 ± 0.2 kg; 100 ± 0.3 kg; 150 ± 0.4 kg;
Temperature: 5 40 Relative Humidity: ≤90% RH
Atmospheric pressure: 86 kPa to 106 kPa
Temperature: -20 to 60 Relative Humidity: ≤90% RH
Atmospheric pressure: 50 kPa to 106 kPa
200 ± 0.5 kg;
to ℃
℃
℃
℃
Replace device batteries with four new
AA batteries.

1312
FCC User Guide Information
Radio Frequency Interface Requirements - FCC
Radio Transmitters (Part 15)
FCC SAR statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Consult the dealer or an experienced radio / TV technician for help.
Connect the equipment into an outlet on a circuit dierence from that to which the receiver
is connected;
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This warranty does NOT cover damages caused by misuse or abuse, including but not limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Maintenance
Warranty
FCC Regulations
Clean the device aer use.
DO use a dry so cloth to wipe the dust.
DO use a wet so cloth, dipped into water and wrung out, to wipe the dirt. Then use a dry so
cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of discolor or
malfunction.
Do not attempt to repair the device or replace components (e.g., transducers, LCD, etc.) by
yourself. If you suspect incorrect operation, contact customer support for further assistance.
At the request of authorized service personnel, circuit diagrams, component part lists,
descriptions, and calibration procedures will be made available by the manufacturer or
distributor.
Do Not disassemble this device. If you have problems, contact customer support (Please refer to
the section of “Warranty” for customer support information).
No service and maintenance while in use.
When carrying out usual maintenance, please ensure practice of the following Do’s and Don’ts:
Pylo Health warrants that this device is free of defects in materials and workmanship in normal use for a
period of one year from the date of purchase.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
End user must follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The portable device is designed to meet the requirements for exposure to radio waves
established by the Federal Communications Commission (USA).
These requirements set a SAR limit of 4.0 W/kg averaged over one gram of tissue.
The highest SAR value reported under this standard during produ ct certification for use when
properly worn on the extremity (hands/feet/ankle/wrist).

1514
Warning
EMC Guidance
Appendix Appendix
Table 1
Table 2
Guidance and manufacturer’s declaration-electromagnetic immunity
Immunity Test IEC 60601-1-2
Test level Compliance level
Guidance and manufacturer’s declaration - electromagnetic emissions
Emissions test Compliance
Warning: Don’t use device near active HF surgical equipment or in the RF shielded room of an ME system
for magnetic resonance imaging, where the intensity of EM disturbances is high.
Warning: Use of this equipment adjacent to or stacked with other equipment should be avoided
because it could result in improper operation. If such use is necessary, this equipment and the
other equipment should be observed to verify that they are operating normally.
Warning: Use of accessories, transducers and cables other than those specified or provided by
the manufacturer of this equipment could could result in increased electromagnetic emissions
or decreased electromagnetic immunity of this equipment and result in improper operation.
Warning: Portable RF communications equipment (including peripherals such as antenna
cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of
the device, including cables specified by the manufacturer. Otherwise,
degradation of the performance of this equipment could result.
NOTE U
T is the a.c. mians voltage prior to application of test level
±8 kV contact
±2 kV, ±4 kV, ±8 kV, ±15 kV air
Not applicable
Not applicable
Not applicable
Not applicable
30 A/m
50 Hz/60 Hz
10 V/m
80 MHz-2.7 GHz
80% AM at 1 kHz
±8 kV contact
±2 kV, ±4 kV, ±8 kV, ±15 kV air
Not applicable
Not applicable
Not applicable
Not applicable
30 A/m
50 Hz/60 Hz
10 V/m
80 MHz-2.7 GHz
80% AM at 1 kHz
field
Electrostatic discharge (ESD)
IEC 61000-4-2
Electrical fast transient/burst
IEC 61000-4-4
Voltage dips, short
interruptions and voltage
variations on power supply
input lines
IEC 61000-4-11
Surge
IEC 61000-4-5
Power frequency magnetic
IEC 61000-4-8
Conducted RF
IEC 61000-4-8
Radiated RF
IEC 61000-4-3
Group 1
Class B
Not applicable
Not applicable
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/flicker
emissions
IEC 61000-3-3
The included Medical Electrical (ME) equipment/system is suitable for home healthcare environments.
Guidance and manufacturer’s declaration-electromagnetic emissions and lmmunity.

16
Appendix
Table 3
Guidance and manufacturer’s declaration - electromagnetic immunity
Service ModulationTest
Frequency
(MHz)
Maximum
Power
(W)
Compliance
level
(V/m)
IEC
60601-1-2
Test Level
Band
(MHz)
Distance
(m)
(V/m)
17
Pulse
modulation
18 Hz
FM ±5k Hz
deviation
1 kHz sine
Pulse
modulation
217 Hz
Pulse
modulation
217 Hz
Pulse
modulation
217 Hz
Pulse
modulation
217 Hz
Pulse
modulation
18 Hz
TETRA
400
GMRS 460,
FRS 460
LTE Band
13,
GSM
800/900,
TETRA 800,
iDEN 820,
CDMA 850,
LTE Band 5
GSM 1800;
CDMA 1900;
GSM 1900;
DECT;
LTE Band 1,
3, 4, 25;
UMTS
Bluetooth,
WLAN,
802.11
b/g/n, RFID
2450, LTE
Band 7
WLAN,
802.11
a/n
380-390
430-470
704-787
800-960
1700-
1990
2400-
2570
5100-
5800
385
450
710
745
780
810
870
930
1720
1845
1970
2450
5240
5500
5785
0.3 271.8
2 0.3 28
0.2 0.3 9
2 0.3 28
2 0.3 28
2 0.3 28
0.2 0.3 9
27
28
9
28
28
9
28
Radiated RF
IEC61000-4-3
(Test
specifications
for
ENCLOSURE
PORT
IMMUNITY to
RF wireless
communica-
tions
equipment)
