Pylontech PowerCube-H1 Reference guide
Page 1
Contact SegenSolar (PTY) Ltd | e: info@segensolar.co.za | t: 08780 20663
PYLONTECH
Product Presentation
Page 2
01 PRODUCT OVERVIEW
03 INSTALLATION
04 TROUBLE SHOOTING
02 APPLICATION & CONFIGURATION
Page 4
Table 1 Powercube H series product parameters[1]
System parameter feature
95% 95%
Page 5
Table 2 Powercube H series product parameters[2]
Battery module parameter feature
Page 6
Ascendancy
Compared with most types of LV batteries in the market,
Pylon batteries posses:
A. DoD –95%
B. Focused on ESS, has more than 10 years manufacturing experience
C. Voltage output –Max. 1000V with 74 Ah module
D. Weight –32kG for a 3.6kWh module
E. Efficiency –96%
F. Safety –IEC62619/CE/UL 1973 proved
G. Life span –more than 6000 cycles
H. Warranty –10yrs
I. Operation environment –5% ~ 95% humidity, 0 –50 ℃
Page 7
APPLICATION & CONFIGURATION
02
Page 9
Commercial Note: For the PV/battery sizing ratio, there is no strict rules but
guidance at 1:2 as min. (e.g. 1kW PV shall sizing 2kWh battery system
as min. capacity) for back-up and off-grid application.
Page 10
System Configuration
Item Racks Amount Capacity
(kWh)
Voltage
(Vdc)
Charge upper
voltage (Vdc) Discharge lower-
voltage (Vdc) Current level
0.5C constant
H48074
Single
rack
517.8 240 270 217.5
Max. 80A
@15s
621.3 288 324 261
724.9 336 378 304.5
828.4 384 432 348
932.0 432 486 391.5
10 35.5 480 540 435
11 39.1 528 594 478.5
12 42.6 576 648 522
Additional
rack
13 46.2 624 702 565.5
14 49.7 672 756 609
15 53.3 720 810 652.5
16 56.8 768 864 696
17 60.4 816 918 739.5
18 63.9 864 972 783
Table 3 Powercube H48074 system configuration
Page 11
Quotation items
1.Battery Module(BMS & H48074) –
varying amount depends on
application.
2.External Cable kits
3.Brackets/Cabinets –if necessary.
Page 13
CHECKING LIST
For battery module package:
One power cable (Serial Connection) ,one battery communication
cable for each battery package:
Figure 1: PowerCube H2 battery module package
Page 14
CHECKING LIST
For BMS Controller connects to inverter:
One positive power cable (orange to orange ),one communication cable
and user manual for each Controller package:
Figure 2: PowerCube H2 battery module package
Page 15
External cable kits
1 Pair of power cables
- One positive power cable (orange)
- One negative power cable (black)
Figure 6: Battery external cable kits
CHECKING LIST
Page 16
BEFORE YOU START
Before you install. please make sure all the requirements for the insallation location &
environment are met. Please refer to the installation manual and make sure you have all the
necessary tools required.
PLEASE CHECK THE FOLLOWING
•The ambient temperature is within the range of 0°C to 50°C.
•Please DO NOT connect the batteries in parallel;
•Do not connect battery with PV solar or AC power directly;
•Cut off the grid power and make sure the battery is in the turned-off mode;
•Make sure the voltage of the battery system is in the PCS DC Output voltage range .
Page 17
Battery Module Front Interface:
Figure 3: H48050 front interface
Installation
Page 18
Battery BMS Module (SC0500/1000-100S) Front Interface:
Figure 4: BMS module front interface
Installation
Page 19
Battery 3rd Level Control Module (MBMS) Front Interface:
Figure 5: MBMS front interface
Installation
Page 20
Attention:
•The orange terminal of power cable should connect to the orange
terminal of the battery while the black terminal of power cable
should connect to the black terminal of the battery.
•HV system's grounding is based on metal directly touch between
the module’s surface and rack’s surface.
•Please DO NOT connect the batteries in parallel;
•Do not connect battery with PV solar or AC power directly;
•Do not connect the battery system to the grid power before
finishing cable connection and switching on the batteries.
Other manuals for PowerCube-H1
4
This manual suits for next models
3
Table of contents
Other Pylontech Inverter manuals
Popular Inverter manuals by other brands
Mitsubishi Electric
Mitsubishi Electric FR-AF700-EC Series Installation guidelines
Generac Power Systems
Generac Power Systems Quietsource 004917-3 owner's manual
Mitsubishi Electric

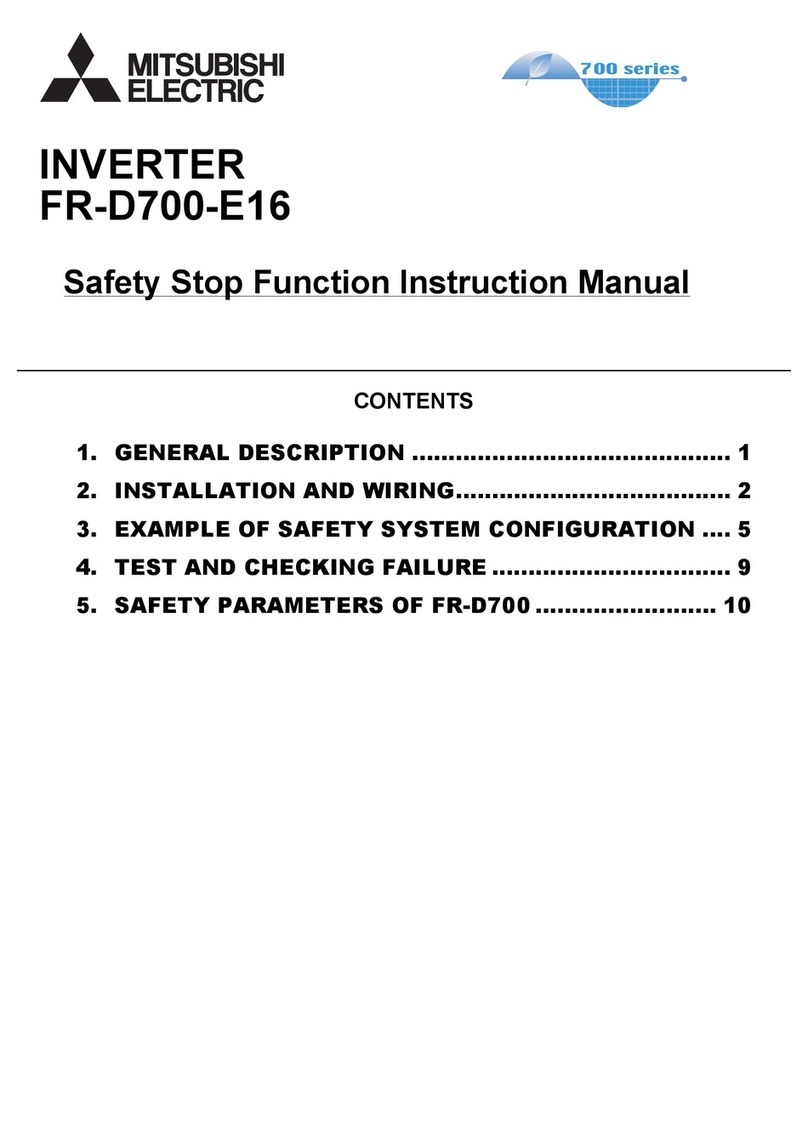

Mitsubishi Electric 700 Series instruction manual
