Qdos Extending SafeGate User manual

USER GUIDE

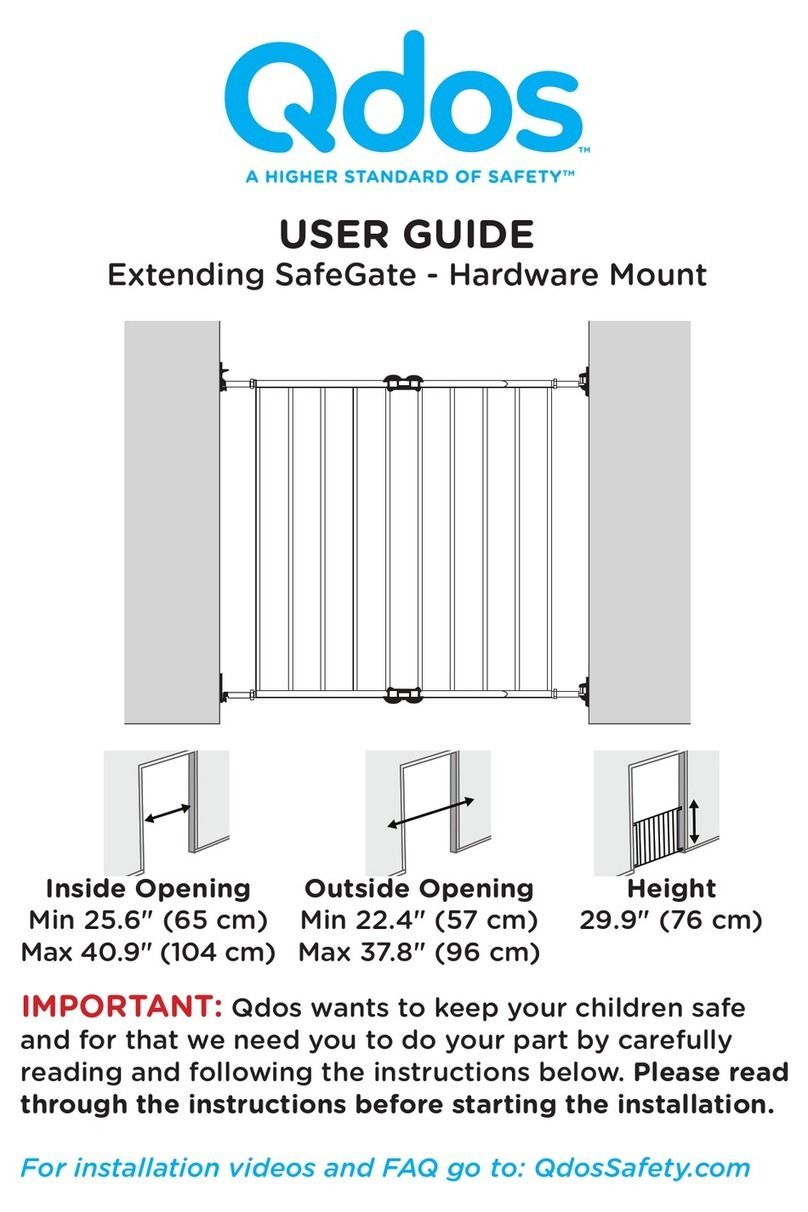

Extending SafeGate - Hardware Mount
Height 30” (76 cm)
Minimum Opening 25” (63 cm)
Maximum Opening 41” (104 cm)
IMPORTANT: Qdos wants to keep your children safe
and for that we need you to do your part by carefully
reading and following the instructions below. Please read
through the instructions before starting the installation.
For installation videos and FAQ go to: QdosSafety.com

2 3
IMPORTANT!
PLEASE READ AND FOLLOW THESE INSTRUCTIONS
CAREFULLY AND KEEP FOR FUTURE REFERENCE
When installed between two strong and rigid surfaces
and according to these instructions, this gate has been
tested to meet or exceed the following Safety Standards,
US- ASTM F-1004, Canada- SOR/90-39, and European-
EN 1930.
WARNING
• To prevent serious injury or death, securely
install gate and use according to manufacturer’s
instructions.
• Install according to manufacturer’s instructions
• Intended for use with children from 6 months up
to 24 months of age.
• NEVER use to keep child away from pool.
• NEVER use with a child able to climb over or
dislodge/open the gate.
• This product will not necessarily prevent all
accidents. NEVER leave child unattended.
• Use only with the locking mechanism securely
engaged.
• Regularly check all hardware and do not use if any
part of gate is broken or missing.
• NEVER step or climb over the gate, always open
to pass through.
• For indoor use only.
• Fits openings 25-41” (63-104 cm)
HELP?
To help you install your gate quickly and easily, please go
to qdossafety.com for installation videos and FAQ’s to help
you succeed. You may also contact our customer service at
[e-mail] or by phone at 800-593-5522.
MAINTENANCE AND CLEANING
Check the gate regularly to ensure all the hardware and
mountings are tightened. Clean using a mild soap and
wipe with a damp cloth.
WARRANTY
Your Qdos product is warranted to be free from
manufacturing defects in material or workmanship for
a period of 1 year from date of purchase, when used
under normal conditions and in compliance with these
instructions.
Qdos will either repair, or at its option replace, free of
charge, any parts necessary to correct any defect in
material or workmanship during the warranty period.
USE LOCATIONS
This gate can be used on top of or at the bottom of
stairs, as well as inside and in front of doorways and
openings when installed between two strong and rigid
surfaces.
Top of stairs Bottom of stairs Opening/doorway
!

4 5
OPENING SIZE AND ANGLE MOUNTING
The SafeGate Extending will fit in openings from 25”-41”
(63-104 cm). The size of the gate is adjustable by how
you clamp the two gate sections together as shown
below. Thanks to the design, the gate can also be
installed at various angles across the opening.
Opening
Size Where to clamp gate together (Top and Bottom)
25”-27.5”
(63-70 cm)
27.5”-30”
(70-77 cm)
30”-33”
(77-84 cm)
33”-35.75”
(84-91 cm)
35.75”-38.5”
(91-98 cm)
38.5”-41”
(98-104 cm)
Besides the normal perpendicular mounting, the
Extending SafeGate can also be mounted at any angle
within 180 degrees. This allows the gate to be mounted
inside the opening, in between odd angled locations, as
well as in front of openings.
INSTALLATION
General
This gate may be installed at the top and bottom of
stairs, in openings and doorways, that are strong and
rigid with a smooth and clean mounting surface. For
challenging installation situations and surfaces, one or
more of the following installation accessories might be
necessary to use for a secure installation.
Qdos Universal Baseboard Kit –
If installing where a baseboard is
present. Fits over baseboards 7/8”
(22 mm) thick and 7” (18 cm) tall.
Qdos Universal Stair Mounting Kit –
If installing on stair banisters or
spindles.

6 7
PART LIST:
2x Clamping
Brackets
8x Socket Screws
2x Bottom Covers
for Clamping
Bracket
2x Top Covers for
Clamping Bracket
1x Lower Locking
Bracket
1x Top Locking
Bracket
1x Gate Section with
Two Hinge Spindles
1x Gate Section with
Two Locking Spindles
2x Hinge Brackets
1x Installation
Template
6x Short 3/4” (20 mm)
Screws
2x Top Covers
for Hinges
2x One-Way Stop
6x Medium 1.5”
(40 mm) Screws
2x Long 2” (50 mm)
Screws
1x Installation
Wrench
Installation Level
with Marking Tool

8 9
Determine Installation Position
Your gate can be installed in two dierent ways.
In between two surfaces or
inside an opening In front of an opening
See step 1 See step 8
Step 1
Determine the size your gate needs to be in the sizing
chart on page 4. When putting your panels together the
flat side of the curved plastic end caps (on the end of the
panel) must line up flush with the other panel.
Place one of the Clamping Brackets just under the top
rail between the spindles in the center opening, with the
studs pointing up. Match up one of the Top Covers to
nest with the Clamping Bracket. Use two of the Socket
Screws and screw the Top Cover and Clamping Bracket
together. It might be helpful to lay the gate down or turn
the gate over to screw them in. Then attach the second
Top Cover.
Repeat Step 1 for the second Clamping Bracket at the
bottom of the gate.
IMPORTANT:
REGARDING THE INCLUDED MOUNTING SCREWS!
Before marking where to attach the gate, make sure you
have chosen a solid surface for mounting the gate to. The
included screws are intended for the following locations.
Directly into wood
Use the 2 Medium 1.5” (40 mm) Screws for the lower
holes in the hinges and the 6 Short 3/4” (20 mm) Screws
for the other holes when mounting directly into wood,
for example in a door frame or other framed opening. If
installing into hardwood, first drill a pilot hole.
Into a stud behind drywall
Use a stud finder to locate where there is a stud behind
the drywall. Use 2 Long 2” (50 mm) Screws for the lower
holes in the hinges and 6 Medium 1.5” (40 mm) Screws
for the other holes when mounting the gate into a stud.
Any other surface
If mounting into drywall only, brick or other surface, use
only the appropriate hardware for that surface. Consult
with a certified child proofer, a handyman or your local
hardware store if you are unsure.
Top Bottom

10 11
Step 2
Before marking the holes for the hinges, using the Hinge
side of the Installation Template(Side B), decide which
way is the best direction for the gate to swing. Once the
location of the Hinge side of the gate is decided place
the template with the bottom edge touching the floor.
It is very important that you use the Installation Level to
ensure that the template is VERTICAL. Now use a pencil
to mark the 4 holes, 2 for each hinge bracket.
Step 3
Repeat step 2 on the opposite side using the Locking
side of the Installation Template (Side A) for the upper
and lower Locking Brackets.
Step 4
Attach the two Hinges through the bottom holes only at
this time using the appropriate screws. The Hinges are
both identical so there is no top or bottom hinge.
Step 5
Before attaching the Top and Bottom Locking Brackets
decide if the gate should only open in one direction. For
top of stairs, the gate should never open out over the
stairs. If needed, attach the one-way Stop from behind
the Top and Bottom Locking brackets and tilt into place.
Step 6
Attach the Top Locking
Bracket using the
appropriate screws.
Step 7
Attach the Bottom
Locking Bracket using the
appropriate screws.
Top left stop Bottom left stop
Bottom right stopTop right stop

12 13

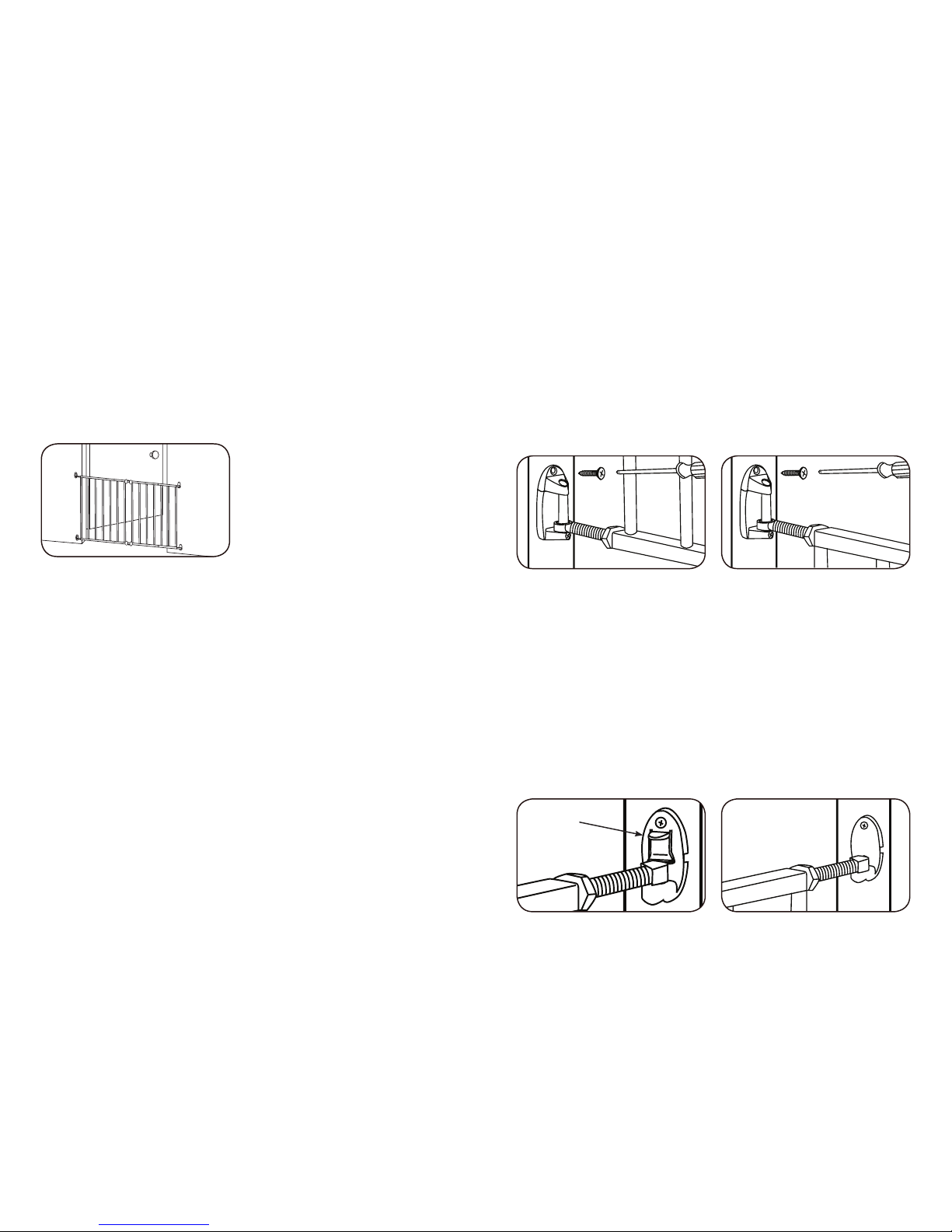

Step 8
When installing the gate on the outside of an opening,
use both templates to mark positions of screws. If there
is a baseboard interfering with the installation, you must
use one or two Qdos Baseboard Kits to create a smooth
vertical surface to mount the gate to. Now follow Steps
1 – 7 above.
Step 9
To fit the gate to the hinge and locking brackets, hold the
gate centered inside or in front of the opening. Starting
with Top Spindles, unscrew those and extend until they
are lined up with the hinge and lock.
IMPORTANT:
If the Installation Level held horizontally fits through
the gap between the outmost vertical bar and the frame
of the opening, the gap is too big and you will need to
adjust the width of the gate panels out one space at a
time until the correct length is reached (see table on
page 4). Reassemble gate and adjust spindles.
Adjust the lower spindles to the same length as the top
ones. Do not tighten the Locking Nuts yet.
Step 10
Hang the gate on the Hinge Brackets and make sure
the gate is horizontal with the Locking Brackets. If
not, remove to adjust one of the spindles and test until
horizontal.
Place the Hinge Top Covers on the Hinge Brackets and
attach them, with the appropriate screws.
Step 11
Adjust the length of the Top and Bottom Locking
Spindles so they line up perfectly with the locking
sockets.
Now lock the gate by lifting it up slightly and line up with
the locking sockets and push it into the locked position.
To open the gate push down on the release latch on the
Top Lock, while simultaneously lifting the gate. If not
operating smoothly, adjust the Locking spindles in or out
as needed so they line up with the locking sockets.
Release Latch

14 15
Step 12
With the gate in the locked position hand tighten all four
Locking Nuts and finally secure them firmly using the
Installation Wrench.
The gate is now installed and ready to be used.
GATE OPERATION
To open the gate with one hand, push down on the
release latch with your thumb on the Top Lock, while
simultaneously lifting the gate.
1
2

Distributed by Regal Lager, Inc.
Kennesaw, GA 30144 USA
1-800-593-5522 • www.QdosSafety.com
©2018 Qdos All rights reserved.
Qdos is a trademark of Regal Lager, Inc.
Made in China
05/2018
