QiLocks Qi730 User manual

Qi730
DIGITAL
COMBINATION
LOCK

COMPANY REG.: 6535355
VAT NO.: GB 936 5596 78
MK730
Digital Combination Lock
TECHNICAL DRAWING
FEATURES
Page 1 of 4
Metal Lock
Horizontal & Vertical Models
Different
Colour
options (available
upon request)
Easy to set / Change Code
Master Key for Emergency
Opening
Switch between Private and Public
mode easily
Easy to installation
Rector fit existing Punch Hole
(19 x 16.1mm mechanical locks)
Meets IP55 rating
L = 20mm or 30mm

COMPANY REG.: 6535355
VAT NO.: GB 936 5596 78
Operator Instructions
Page 2 of 4

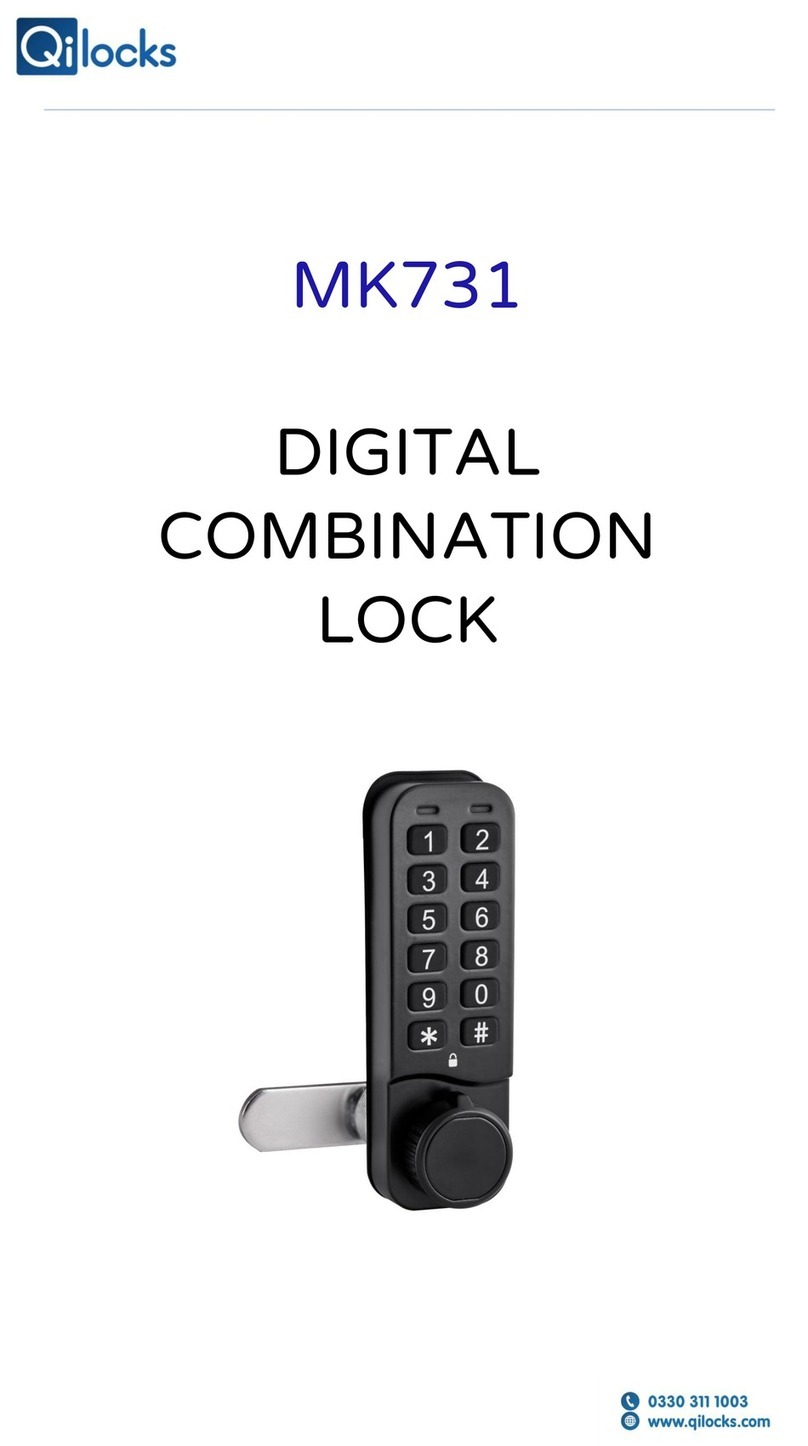

MK731
Digital Combination Lock
The lock has a 10 button keypad , a *button and a # button.
The lock has three code levels that allow you to perform the following
actions:
o
Master code(8 digit code)
o
Sub-master code(8 digit code)
o
User code(4 digit code)
Default Settings
Master code = 20050330 (8 digit code)
User code =1111 (4 digit code)
Private Mode
Functions
Before programming, select the most appropriate function for the
application:
A) Private Mode
or
A) Public Mode
Private Mode
Note: this is the default function and is already pre-programmed into
each lock. This is the most common
mode and is used where the same code will be repeatedly used.
To set to Private Mode: * -- Master code - -#--07--#
Example: * -20050330 - -#--07--#
Result: The lock will revert back to default Private Mode, factory set user
code 1111 will now work until reprogrammed.
Public Mode
This function is used for short term, multi user applications. The code is
only used one time
To set to Public Mode: * -- Master code - -#--06--#
Result: the lock will now remain open until next user enters their own
code into the lock as follow:
Step 1: enter new user code --Close the locker which will now be locked
Step 2: enter user code-- The lock will now remain open until next 4 digit
code is entered

COMPANY REG.: 6535355
VAT NO.: GB 936 5596 78 Page 3 of 4
Setup
New locks operate with the default user and master codes. A new user
and master code must be programmed to prevent the default codes
from operating the lock and reducing lock security.
Master Code Functions:
1)Open:
Enter master code
(The user code will be deleted when using master code when the lock is
in public mode)
2) Programming Master Code
Press *--current master code –-#--01--#--- new master code - -#--new
master code--#
Example: *—20050330—#---12345678--#--12345678--#
Result: Master code has been changed to 12345678
3) Set or change the sub-master Code
Press *–- master code---#--04---new sub-master code---#
4) Delete sub-master code
Press *--Master code---#-05--#
5) Set or change the User Code (Private Mode)
Press * –master code - -#- -02--- new user code - -#
Example: *--20050330--#-02 --1234--#
Result: New user code 1234 now operative
6) Delete User code(Private Mode)
Press *--Master code--#--03-- #
7)Set or change the Technician code (Public Mode)
Press*--Master code--#--08--#--new technician code--#
Note: the technician code must be 6 digit code
8)Delete the Technician code (Public Mode)
Press *--Master code--#--09--#
9)Activate/Deactivate the Auto-unlock Function (Public Mode)
Activate:
Press *--Master code--#--11--#
Deactivate:
Press*--Master code--#--12--#
10)Set Auto-open time (Public Mode)
Press *--Master code--#--10--#--XX--#
Example: Press*--20050330#--10#-02#, the door unlock in 2 hours later
Note: until the door locked, the lock begins to count and unlock 2 two
hours later and the “xx” is from 01 to 12

COMPANY REG.: 6535355
VAT NO.: GB 936 5596 78 Page 2 of 3
Sub-Master Code Functions:
1)Open
Enter sub-master code
(The user code will be deleted when using sub-master code when the lock
is
in public mode)
2) Change the Sub-master Code
Press *---current sub-master code --- # --- 04--#--new sub-master code -
-- #
3) Set/Change the User Code (Private Mode)
Press--*--current sub-master code ---#---02--#-- new user code --- #
User Code Function:
Private Mode
•Open: Enter user code
2) Change the User Code
Press *-- current user code --#–-new user code---#
Public Mode
•Set code: enter any 4 digit code
•Open: Enter user code
Note: The 4 digit code is one time valid only. The door keep open until
another one set a new code
Initialize
* ---99--#-Press the reset button by a clip/pin from back hole
Lock resetsto default settings

Emergency Opening
--Remove the cover plate with a magnet
--Master key for emergency opening.
The existing code will be retained by the lock when using the Master Key
Over-ride
Low power alarm Function
Alarm will sound if the battery power is low (5 beeps, red light flashes
3 times before blue light flashes once) informing users to replace
the batteries.
COMPANY REG.: 6535355
VAT NO.: GB 936 5596 78 Page 4 of 4
Additional Functions
Occupied Status Indicator (Public Mode) –deactivated by default
When activated the green light will flash every 6 seconds to indicate the
locker is in use
Activate: Press *--Master code--#--13--#
Deactivate: Press *--Master code--#--14--#
Password protection –deactivated by default
Entering incorrect codes 5 times will cause the lock to shutdown for
5 minutes
Automatically locked in Private Mode
The PCB will be lock 4 seconds after being opened

Qi LOCKS LIMITED
Unit 14
Stephenson Court
Priory Business Park
Bedford
MK44 3WJ
0330 311 1003
[e-mail]
www.qilocks.com
