QMotion Cassette User manual

2
3
(1) Install mounting brackets using supplied
screws for inside mount using top mount holes.
Measure/ mark/ pre-drill and install brackets 2-6
inches from edge of bracket to window jamb.
Be Advised: For Cassette systems greater than
4 ft, you will be supplied with additional mounting
brackets. Evenly space these brackets dividing the
total width of window opening by the number of
brackets supplied.
(3) Rotate cassette into vertical position towards
wall or window until you hear and see the bottom
of mounting bracket snap into place.
Be Advised: Check to be sure all brackets have
snapped into position before releasing the cassette
system.
INSTALLATION TYPE: INSIDE MOUNT
INSTALLATION TYPE: OUTSIDE MOUNT
(1) Install mounting brackets using supplied
screws for outside mount using back mount
holes. Measure/ mark/ pre-drill and install brack-
ets 2-6 inches from edge of bracket to edge of
shade
1
1
(2) Position cassette as shown to hook bracket
on cassette.
Shown in bracket lock position
Back mounting
holes
Top mounting
holes
2”- 6”
2”- 6”
Cassette Installation Instructions
Always wear personal protection equipment, including safety glasses and gloves, when installing. If the shade is
out of reach, use a ladder per its manufacturer’s instructions.
9000142 - Revision 10.10.14

(6) Squeeze and then pull the plastic battery
cover off exposing the batteries.
(7) Replace batteries with fresh D-Cell batteries.
(8) Press any button. The shade will move to that
position.
1
INSIDE MOUNT AND OUTSIDE MOUNT

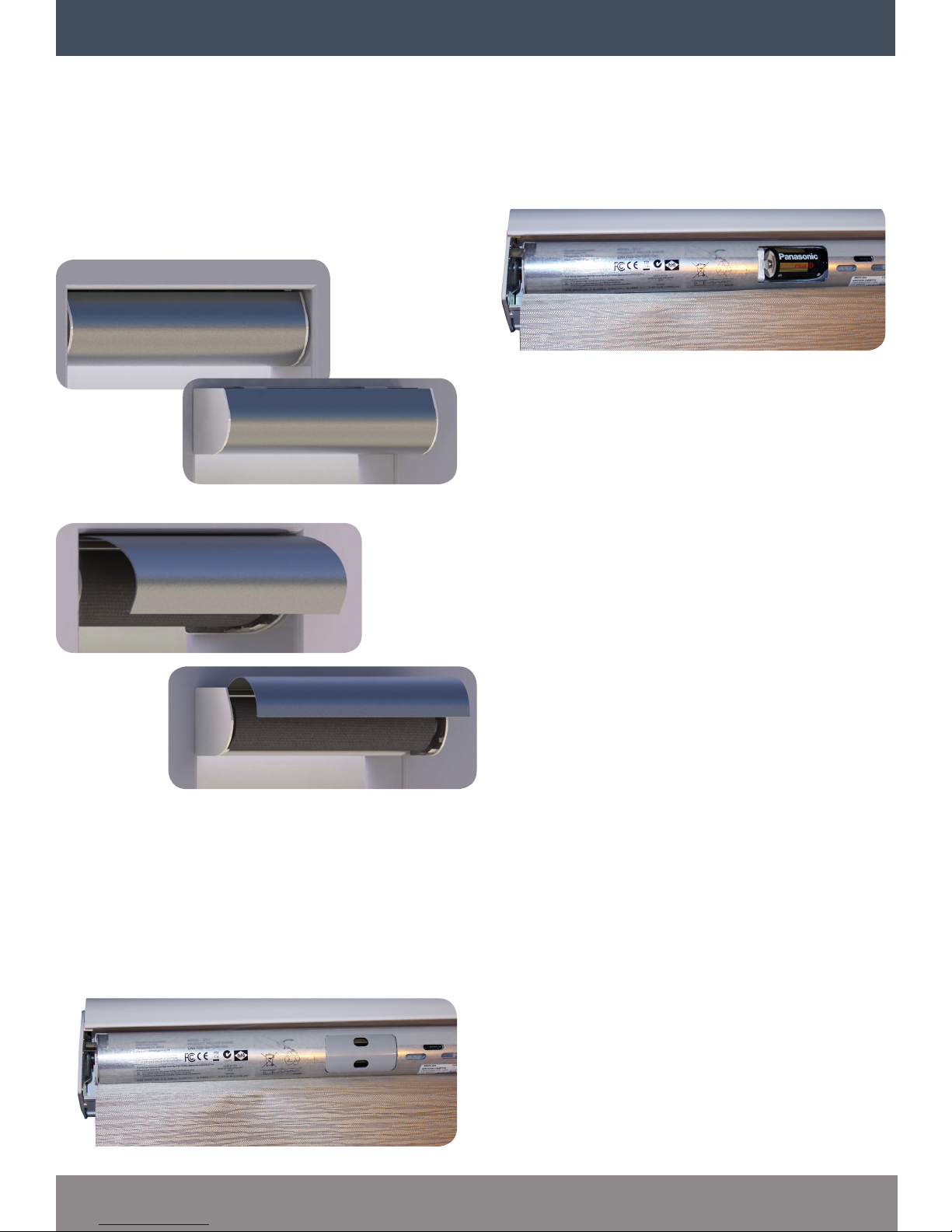

BATTERY CHANGE AND SHADE PROGRAMMING
(1) Un-clip curved fascia at ends. DO NOT PULL
FROM CENTER.
(2) Rotate towards interior of the room.
2
(3) Move the shade to down position by pressing
the DOWN button on the remote.
(4) Tug the shade past the down position. The
shade then returns to the 75% position.
(5) Pull the shade downward until the battery
window is exposed.
(1) Send the shade to the position to be changed.
(2) Press & Hold the button desired to be changed
after the shade has stopped (ex. if the position to
be programmed is the upper limit, press and hold
the UP button)
(3) After about 5 seconds the shade will Jog down
3 inches and back up.
(a) Release the position button to be
changed.
(b) Tug the shade 6 inches to enter learn
mode for the button position.
(c) Move the shade to the new position by
hand or press the UP button to send the
shade to the TOP, then pull down to the
desired position.
(d) Press and Hold the position button to
be set until the shade begins to move
U P.
(e) The shade will travel to the “hard stop,”
the new position has been set.
REMOTE PROGRAMMING
