First Use
Box Contents
•Assembled QOD Trolley
•Lithium Battery with Charger
•QOD Trolley Manual (What you are reading) Pictures in the manual are for illustration
purposes. They may vary slightly with your cart but the working principals of the cart are
the same.
•
Trolley and Battery & Charger Manual
Assembly Instructions
1
On unpacking the box, put the battery on charge and verify battery
charging information in the battery manual. Make sure the charger does
not share the same wall plug as another appliance that is constantly
drawing power such as a fridge or an appliance with a lot of power draw
such as a dryer. When disconnecting the battery from the charger makes
sure the power point is turned off. If you don’t you may damage the
connectors with power spikes.
2

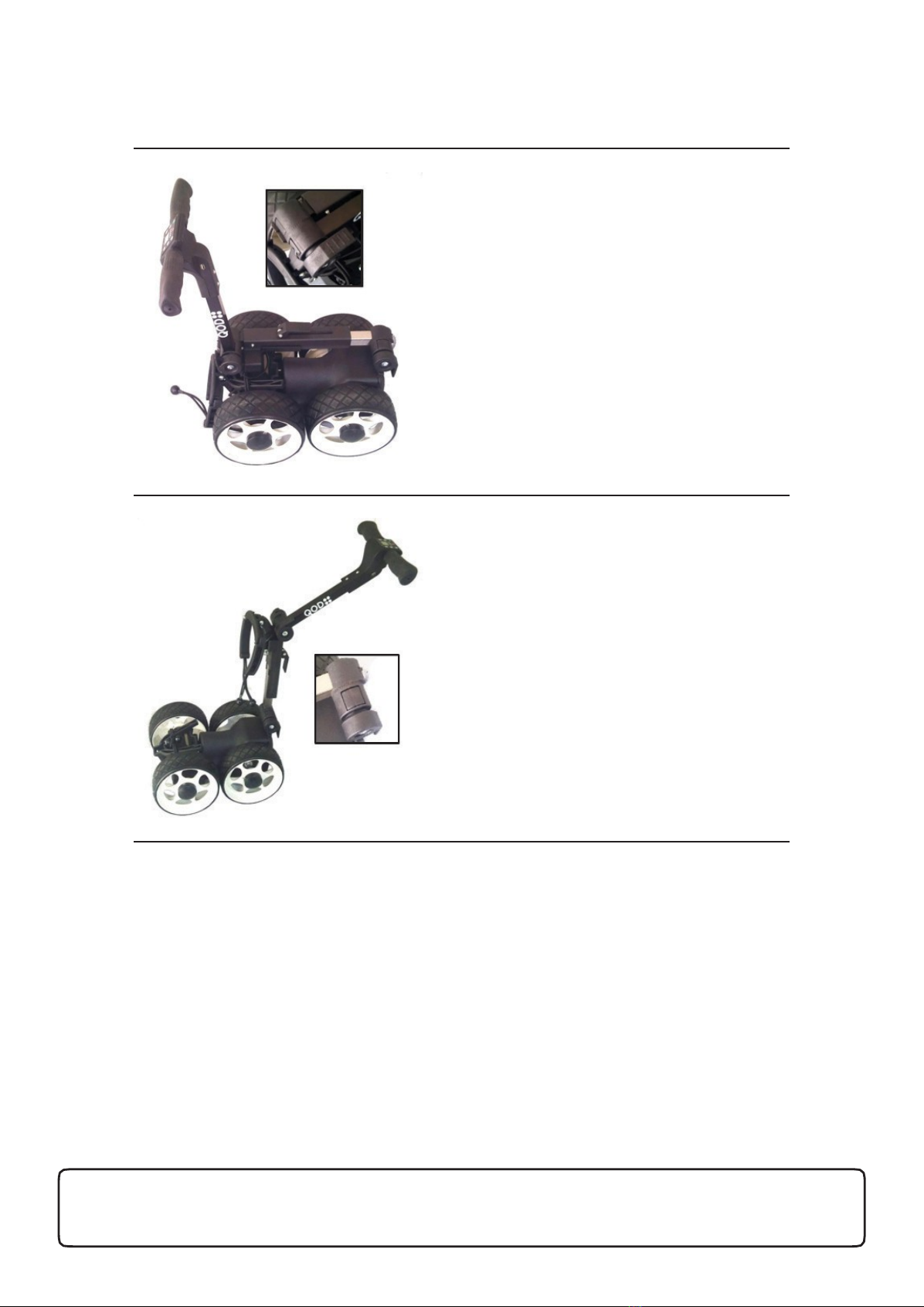

Expand the trolley to its setup position as per instructions in this manual.
Please note that the bottom arm on the QOD trolley is designed to be vertical
for proper balance and control. The upper arm with the T handle can be
adjusted to any height you desire for your playing comfort.
3
Put the battery in the cradle. Make sure the trolley is switched off before
connecting the battery cable to the trolley
4
You must complete the warranty information online at www.qodgolf.com or
fill out the warranty card and send it back to us in order to validate your
warranty. Please include your email address and give us permission to
communicate with you so that we are able to keep you informed about special
offers and helpful hints on how to maintain your cart through our newsletters.
General Purpose Use of Your QOD Trolley
The trolley is designed to carry your golf bag on any golf course that you would
normally walk or drive on a ride on golf cart. The heavier the bag the more energy
it requires to propel the trolley and bag. Use good judgment as to where you want
to walk. If you normally walk around a hill or steep incline then do so with the QOD
trolley. The harder you work it, the harder you work yourself. The design of this
trolley is to transport your golf bag with a minimum of effort. It is not designed to
climb steep slopes that you would normally not climb or ride up or down in a
riding trolley. The trolley was designed to accommodate a standard golf bag with
clubs. Extra-large golf bags with a maximum diameter at the top of 22cm also fit
the trolley.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
, Remote controller
Page 5of 29
The intent of the cart is to assist you to convey your golf bag around the course with a minimum of effort
to allow you to concentrate on your game and fully enjoy the game itself. Work with the cart and it will
make your golf game so much more effortless and enjoyable.
The battery supplied is a Dual Motor Lithium battery. The charger is specially designed for the type of
usage experienced by a golf cart – fully charging before use and discharging during use, unlike a car
which has a constant re-charging via the alternator. The charger supplied will only charge your battery
until completely charged and will not drain your battery if the charger is disconnected from mains supply.
Use of a general automotive style battery charger may compromise the charging capacity of your battery
and shorten its life.
Like any buggy used on a golf course, your cart will inevitably collect soil, mud, grass and dirty water
during a game. To keep your cart working properly you should regularly clean it as you would any other
cart. Remove accumulated dirt and objects from the underside, wheels, axles and any moving parts.
Give the frame a wipe over to maintain the powder coated finish. Ensure bolts and nuts are tight and
secure and spray any corrosion with a suitable water dispersant spray such as WD40. High pressure
washers should not be used as water may penetrate the electrical components and bearings and render
the cart inoperative.
Important Notice:
The pictures in this manual are for illustrative purposes only and may vary from the actual model
purchased. Model variations may occur as new models and upgrades and enhancements are released
over time. The principles of the instructions however are unchanged. If you are ever unsure of any
instruction please call your local distributor or call QOD::® in Australia on +611300787924. Email
enquiries are also welcome, our email address is info@QODGolf.com.If you need us to call you or we
need to discuss your concern in person, please include a contact phone number and we will return your
call to anywhere in the world.
FCC Notice:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by the manufacturer could void your
authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 6of 29
Using your cart
Your QOD::® Q1; Q2; Q3 Walking Electric Cart is designed to maximise your golfing pleasure and
minimise exertion not directly related to the game itself. The following guide will help you to get the
maximum performance out of your cart.
•Be alert and act responsibly at all times while operating your cart , just as you would when
operating a riding cart, motor vehicle or any other type of machinery. We do not recommend
operating your cart under the influence of alcohol or any other recreational drug.
•Do not operate the cart using the remote control in narrow or difficult locations. When
manoeuvring your cart in enclosed areas, such as car parks, locker rooms, pro-shops or areas
where pedestrian traffic creates an obstacle, operate your cart in free-wheeling mode with
power turned to Off.
•Always ensure the cart power switch is turned to the Off position when you park and
leave the cart for any reason, either on or off course.
•With its optimized balance and straight front wheel the cart has extraordinarily narrow and
responsive turning and manoeuvring abilities, however it may react unexpectedly to uneven
weight distribution or steep slope variations where it follows the gradient of the slope. To
avoid such occurrences ensure that the weight in your bag is distributed evenly by moving
heavy items to both sides, or shifting the bag on the cart.
•When operating your cart by remote control anticipate the slope of the course in order to
avoid frequent corrections in directions. In some extreme environments, such as very uneven
terrain, steep hills, narrow and/or sloped cart paths, muddy areas, close to bunkers and
hazard, around bushes and trees, it is recommended to operate the cart via manual control in
order to prevent any collisions, damage or the need for complicated direction correctional
manoeuvres.
Flat Terrain
•On flat fairways you will most likely walk along beside or behind the cart. The cart will drive in
a straight line by itself, but you should control the cart and never operate the cart faster than
you would normally walk.
•If the terrain is undulating or the surface is uneven, ensure you keep hold of the cart handle
to avoid the cart veering should it encounter an unexpected bump or rut.
Downhill Terrain
•When travelling down a slope control the cart by reducing the forward speed and use the
motor and gearbox for braking.
•Do not allow the cart to go downhill unaided as it could accelerate and exceed the remote
controllers signal distance.
Going Backwards
•If you need to pull the cart backwards, the cart needs to be put into free-wheeling mode. To
activate the free wheeling mode turn the main switch to “Off” or (0). The cart can now be
pulled or pushed manually without resistance. The cart is not designed to be operated in this
manner for extended distances.
•Power is not required for the cart to be operated in free-wheeling mode.
Seat

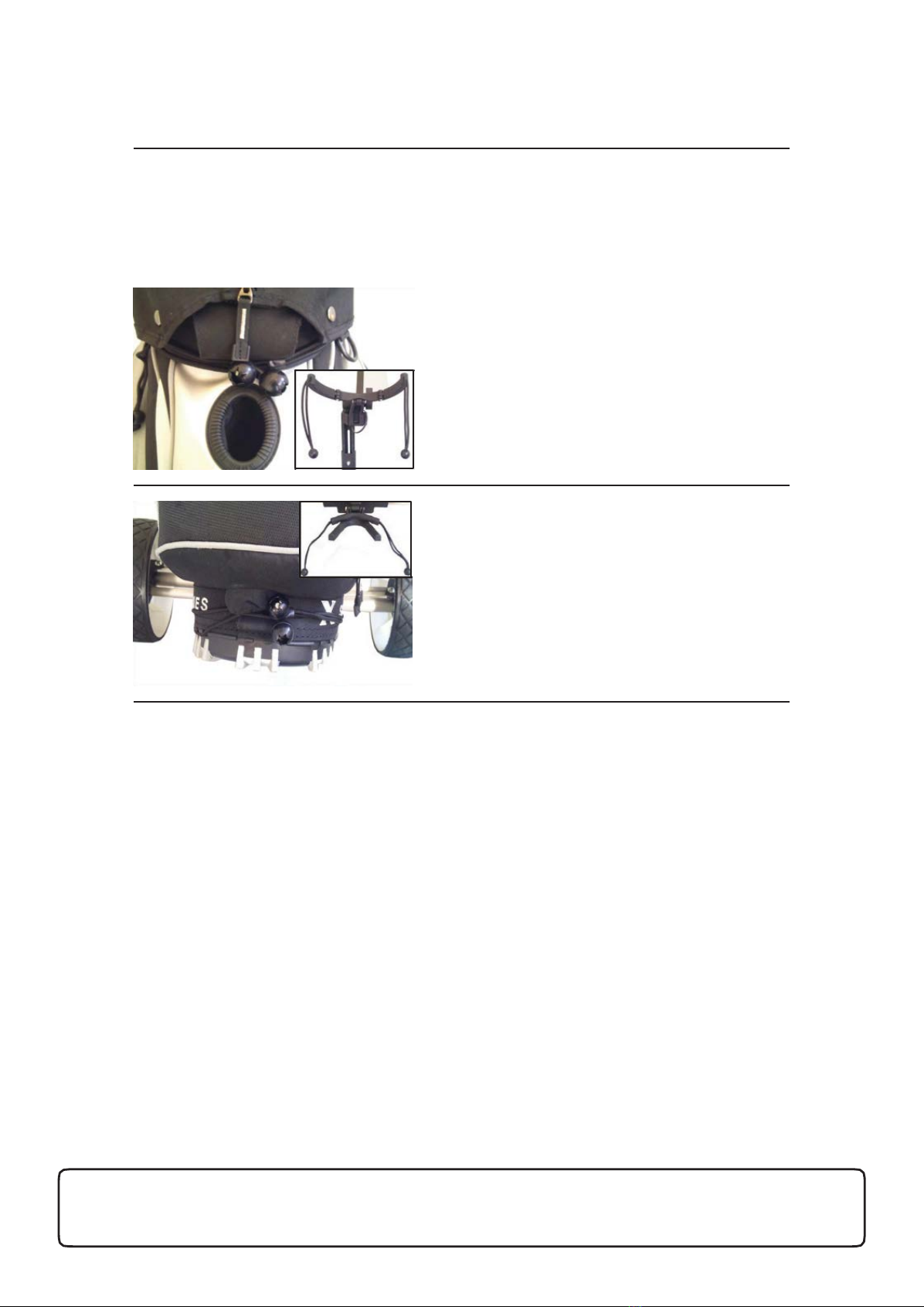

•When using the optional seat, be sure the seat base is firmly on the turf and that your seating
position is balanced so as not to cause the buggy to become unstable. The seat will
automatically lift when you stand up.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 7of 29
Tracking
•Tracking is set at the factory, however it may be impacted by the weight and positioning of
your bag and club. Your cart is equipped with a tracking adjustment system that allows you to
adjust the tracking if required. Note that tracking adjustments should be done on a flat, level
grass surface as would be found on most fairways.
Lifting
•When lifting the cart or battery at any time, lift with your legs and not with your back to help
prevent injury.
•Never lift or pull on the electrical cable between the upper and lower arms. This is not a
handle and excessive pulling on this cable can cause the wires to be detached from the handle
or controller unit and render the cart inoperable.
•Always tighten the knuckle knobs in both the extended and collapsed position. Make sure
the teeth in the round knuckles mesh before tightening the lock nut. Failure to tighten the
locking nut can cause damage to the knuckle assembly during transit.
•Take care when folding the cart to avoid catching your hand or clothes between the frame and
arms.
Frame
•Never stand on the frame or base of the cart. The weight of a person or even a large child
could cause the frame to bend or the axles to be damaged. The cart is designed for the
average weight of a fully equipped golf bag and clubs and is not suitable for conveying a
passenger.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 8of 29
Testing Your cart Operations
Before using your cart, test it's operations to ensure it is operating correctly.
Test the cart power supply by turning the On/Off switch to the On position – all control lights
should come on and the cart should be operable by both the manual control on the handle and
the optional remote control.
It is recommended that you familiarise yourself with the handle and remote control functions
before using the cart for the first time.
Manual controls showing speed control rheostat
Test Environment
Select an open and safe suitable location free of obstructions to perform your tests. Do not test
your cart near traffic, parked cars, bodies of water, steep slopes or anywhere the cart could cause
damage or be damaged in the event of a control failure.
Manual Control Operation
Test the manual function first.
Turn the main switch to the On position. The manual functions of the cart are controlled through
the rheostat control wheel on the right side of the handle. Turning the wheel forwards will
increase the forward speed of the cart. Turning the wheel backwards will slow or stop forward
movement of the cart.
Remote Control Operation
Ensure you remain close to the cart at all times while testing remote operations and
familiarizing yourself with the remote control functions
Ensure the rheostat control wheel is in the off position and turn the main switch to the On
position.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 9of 29
Pressing the Forward or Backward arrows will initiate movement in the chosen direction. Pressing
the arrow again will increase the speed.
To stop the cart press the button in the middle of the remote or turn the cart power off
with the 'OFF' button.
To turn the cart either left or right press the left or right buttons respectively. The cart will
continue to turn in the chosen direction whilst the turn button is depressed.
The cart reacts immediately to any turn commands, so practice will assist you to best judge the
turning input required to perform the direction change manoeuvres.
To move your cart forward automatically in increments of 10 metres (up to 40 metres), press the
Timer button as needed.
Note that turning and overall performance of the cart will be affected by the operating surface
(grass, asphalt, concrete) and the weight of the cart (with or without golf bag).
Operational Range of the Remote controller
The remote controller is designed to have a maximum range of between 40-80 meters,
depending on terrain. It is recommended that the working limit for operation be no more than 30
metres and a maximum of 50 metres to ensure visual contact is maintained with the cart at all
times. Operation of the cart beyond this distance may allow your cart to collide with obstructions,
fellow golfers or fall into hazards not otherwise visible.
An additional safety feature of this cart is that it will stop moving if it does not receive a signal
from the remote control at least every 60 seconds. This reduces the possibility of your cart
travelling outside of your range of control or ending up in a lake or other hazard.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Forward
Left
Right
Backward
Stop
Timer
Page 10 of 29
Features
•Telescoping technology folds to the smallest footprint (27 cm x 30 cm x 42 cm)
•Weighing only approximately 11kg and varies with accessories
•USB Connection for your electrical appliances.
•Silent and powerful 180 watt motor - for cruising around those rough,
rugged, hilly courses
•Long lasting LiFePO4 lithium battery with battery case and charger
•Four wheels for perfect balance
•Floatation Rubber tyres with gripping thread for smooth operation on the
roughest of courses
•Front tires adjust in for storage and out for stability during use
•Folds with ease in seconds - with no essential separate parts to attach except
the battery
•Simple to operate and steer
•Variable speeds - match it to your walking pace
•Cruise control for flat or gradual sloping fairways
•Comfortable for right or left-hand users
•Solid slope performance
•Handle adjusts up and down - perfect for golfers of any height
•Minimum boot space required (Fit four easily in the boot of a full size car.)
•Frame is constructed from powder coated aluminum - high grade bolts, grips
and fasteners throughout for long dependable use
•Sure lock ratchet, locks handle into operating position
•Stringently tested in Australia, United States and the United Kingdom
•Low maintenance
•Distant control with countdown feature
•Water resistance (not water proof)
•Optional Remote Control features, Currently forward and reverse control. Soon to be
released is with complete navigation using the same remote controller.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 11 of 29
Controls
Your cart has two modes of operation – manual controls through the T-handle control panel and remote
operation by use of the remote transmitter if you have that option.
Manual Handle Controls
•The main power switch (green) activates/de-activates the cart
•The LED light on top of handle control indicates if the power is on the cart.
•A flashing red light indicates the battery is out of power
•The rheostat speed control knob lets you vary the speed to the desired pace
•The timer advance function can be activated by using the distance control buttons. Press
10s to send the cart approx 10 metres. Press 20s to send the cart approx 20 metres.
Press 30s to send the cart approximately 30 metres.
Distance Function
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 12 of 29
Remote Transmitter Controls
Functions
•Stop Button : The red button in the middle of the directional arrows is the stop button –
pressing this will stop the cart regardless of the direction of travel
•ON/OFF Switch: Located on the right side of the remote for turning remote on and off. (UP=
ON & DWN = Off)
•Timer: 10, 20, 30 metres, Stop (same as manual control timer function)
•Forward Arrow: Pushing the forward arrow will set the cart in forward motion. – 5 Speed
and speed can be adjusted to slower with Backward Arrow
•Left Arrow: initiates left turns. When the arrows are released the cart stops turning and
continues straight with the original speed prior to turning.
•Right Arrow: same as left arrow function
•Backward Arrow: Pressing the back arrow will set the cart in backward motion - 5 Speed
and speed can be adjusted to slower with Forward Arrow
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Forward
Backward
Left
Right
Stop
Timer
On/Off
Page 13 of 29
Maintaining your remote
•Change the remote control batteries once the indicator LED gets weak
•The remote control uses two commonly available 1.5V AAA batteries.
•It is recommended to keep a set of extra batteries safely ready as replacement if you need it. We
suggest keeping it in a sealed plastic container.
•To change the batteries open up the battery compartment cover and place the batteries according
to the diagram in the battery compartment
•The remote control system is designed so it does not interfere with other remote controlled
electric carts.
•The maximum range of the remote control varies between 40-80 metres. .
•It is strongly recommended to operate the cart at a maximum range not exceeding 50
metres in order to prevent the loss of control of the unit
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 14 of 29
Replacing Remote Transmitter Batteries
•Open the slide cover in the rear of the remote transmitter unit
•Following the guide inside the compartment, replace both batteries with 2 new AAA 1.5 volt
alkaline or lithium batteries.
Replacing Remote controller.
The Remote controller needs to be returned to your QOD product . Each remote control
handset is unique to each QOD.
To tune in your remote control follow these procedures.
Be careful to do this procedure in open space to allow the remote to work and
to avoid knocking into something when the remote control connects to the cart.
•Connect the battery to the QOD Cart and do not turn on the power to the QOD cart.
•Turn on the power to the Remote handset.
•Press and hold the forward button of the remote handset, the red led light on the handset should
be illuminated
•Whilst holding the remote with the led light on, turn on the QOD trolley at the T handle.
•Keep holding the remote control led light on.
•Test all operations of the remote control operation.
.
.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 15 of 29
Battery & Charger Care (Brief)
.
Important: Battery should be charged overnight prior to using your trolley.
For full guidelines including tips for warranty & prolonging battery life, please refer to the
battery instruction booklet enclosed with your trolley. It is important that you read the full
charging information to ensure safe use of your battery and charger.
•All batteries must be charged as soon as possible after each use. Leaving batteries
discharged for long periods of time may affect the battery life.
•The Lithium battery charger MUST NOT be used to charge any other battery and is
designed for use with QOD Lithium batteries only.
•The battery must be stored and charged a dry environment between 0º Celsius to 35º
Celsius.
•When connecting your battery to the trolley, please ensure that the connections match
up black to black and red to red depending on your battery type.
Lead Acid
Never charge the battery outside or in conditions that may allow moisture to penetrate the
charger or connections. If the battery is not used for prolonged periods of time, please charge
your battery at regular intervals (every 6 weeks). Please do not leave it on charge or
connected to the charger.
The battery should be charged for at least 12 hours before using it for the first time, please be
aware that the charger can take up to a further 8 hours to show fully charged once the
battery has reached 90% charge.
Lithium Battery
1. Charge your battery by plugging the charger plug into the socket located on the side of
the battery.
2. When the charging led indicator has turned green, the battery is fully charged and ready
to be used.
3. The charging process will take between 3 to 5 hours depending on the depth of discharge
(please be aware that this may take longer for the first few charges).
4. Once charging is complete please disconnect the charger from the mains power supply.
5. Finally disconnect the charger from the battery.
Caring for your Lithium Battery
•Do not connect unmatched batteries or charger otherwise the warranty on each will
be void.
•Try to avoid getting the battery too wet(Don’t submerge the battery in water)
•Dropping the battery may cause damage to the internal cells.
•Use a damp cloth to clean off any dirt.
•Do not use the trolley to pull you up the hills
Note: The battery is a sealed battery. If you are intending to take your trolley and battery on
air travel, we advise you contact your airline prior to travel.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 16 of 29
Specification
Drive Train/Transmission
Weight
Speed
Distance/Range
Maximum Load
Climbing Ability
USB Power Output
Construction
Dimensions (cm)
Type: Power Polymer Gear, Steel Worm
Drive, with 25:1 Gear Ratio Rate
Net Weight Trolley: Approx. 11 kg
Approximately 8.0 km
20 km/ 18 Holes
35 kg
20 degrees
+5v
Stainless Steel, Aluminum, Zinc Plated
Steel and Nylon 6.6
Folded: 42(L) x 30(W) x 27(H)
Full: 66(L) x 59(W) x Adjustable to 140(H)
Folded
42(L) x 30(W) x 32 (H) cm
Expanded
66(L) x 59(W) Adjustable to 140(H) cm
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 17 of 29
Expanding Your QOD Trolley
Step 1
Undo the top knuckle lever on the trolley
to extend top arm and lock off after
positioning.
Step 2
Undo the bottom knuckle lever to adjust the
position of the lower arm to be parallel and
lock off.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 18 of 29
Step 3
Loosen back lever and pull the arm upwards
extending its full height and lock off lever.
(It is designed to only sit on one position
when extended with the locking system)
Step 4
Standing in front of your QOD trolley, pull
the front piece of the trolley towards you for
extending the length of your trolley and let
down bottom bag support.
Step 5
Lift wheels off the ground and turn the
lever on the front end piece anti clock wise
to loosen the wheels lock position then pull
both front wheels outwards at the same
time to extend.
You have now finished extending your QOD Golf Trolley. To pack down your QOD
Trolley, please reverse the steps/procedures above
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 19 of 29
Battery Fitting
Step 1
Locate the battery cradle on the trolley
Step 2
Place the battery in the battery cradle with
lead facing to the rear of trolley
Step 3
Locate the battery connection plug on the
trolley located on the side of the trolley
Step 4
Plug the connection on the battery into the
trolley. Make sure the connections align black
to black and red to red and the wheel is not
rubbing on the battery lead
Important: Please refer back to battery manual for battery usage and care.
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
Page 20 of 29
Golf Bag Fitting
Place and position your golf bag in the centre on the bag holders and stretch the bungee
cord around your golf bag to lock the bag in position onto your trolley. Push one of the
end knobs into the cord of the other like shown in the photos to lock the bag off as
followed:
Step 1
Upper bag holder
Step 2
Lower bag holder
QOD Golf International. www.qodgolf.com
Warning: Product Patent Protected, Design Protected, Copyright Protected. All rights Reserved
This manual suits for next models
2
Table of contents
Other QOD Golf Trolley manuals
