Ticad Andante Manual

5 6 V 17– 01

READ ME FIRST

TiCadANDANTE

Technical data and dimensions

Model TiCad Andante

Weight of frame + wheels 4.4 kg

Pack size 66 x 32 x 17 cm

YOUR NOTES

READ ME FIRST

TiCad ANDANTE

PUBLISHER

TiCad GmbH & Co. KG, Heegwaldstr. 3–5, D-63674 Altenstadt

www.ticad.de

The above information, wording and images have been largely

standardised and are primarily intended to describe the trolley‘s

basic functions. For this reason, the product supplied to you may

slightly differ from the above descriptions, in particular if your

trolley is a new version. This „Read Me First“ manual must not be

copied or used otherwise in whole or part without TiCad GmbH

& Co. KG‘s consent.

Please carefully retain your Read Me First manual and the origi-

nal packaging.

Please read our General Terms and Conditions of Business at

www.ticad.de.

Concept & graphic implementation:

Bild, Satz und Sieg – Eugen-Kaiser-Straße 18, 63450 Hanau

www.bild-satz-und-sieg.de

WARRANTY

Your TiCad trolley has been designed and built with great care.

Please get in touch with your specialist dealer or contact TiCad

directly if you notice anything unusual. The provision of spare

parts or repairs performed under warranty do not extend the

warranty period. The warranty does not apply to damage caused

by carelessness or rough handling, overloading the trolley, inap-

propriate operation, external force, submersion in water and un-

authorised persons‘ actions.The warranty only applies if the en-

closed operating instructions have been observed and the trolley

is being appropriately used and cared for. Technical changes and

new developments do not entitle warranty holders to upgrades.

The warranty period for the titanium frame and the wheels is 5

years from the date of purchase. The warranty does not apply to

wear parts such as e.g. tyres, leather handle, fastening straps.

SERVICE

If you experience any problems with your TiCad trolley, please

first contact your specialist dealer or get in touch with us at our

office in Altenstadt, Germany.

We will then arrange for your TiCad trolley to be collected and

returned to us and help you with the packaging material. If you

want us to perform an inspection or repair, we also offer to assist

you directly without contacting your specialist dealer.

For trolleys located outside Germany, please always contact your

specialist dealer first or contact us directly.

Postal address: TiCad GmbH & Co. KG

Heegwaldstr. 3–5

D-63674 Altenstadt -Waldsiedlung

Germany

Phone: +49 (0)6047 / 987 90-14

Fax: +49 (0)6047 / 987 90-39

E-Mail: service@ticad.de

2 3 4

YOUR TICAD ANDANTE IN DETAIL

1 Delta leather handle

2 Umbrella adapter

3 Drawbar

4 Top firm-fix connection

5 Top bag holder

6 Fastening straps

7 Centre bar

8 Bottom firm-fix connection

9 Shaft

10 Locking pin

11 Locking brake

12 Knurled sleeve

13 Wheel made of GRP*

14 Bottom bar

15 Bottom bag holder

16 Front shaft

17 Front wheel made of GRP*

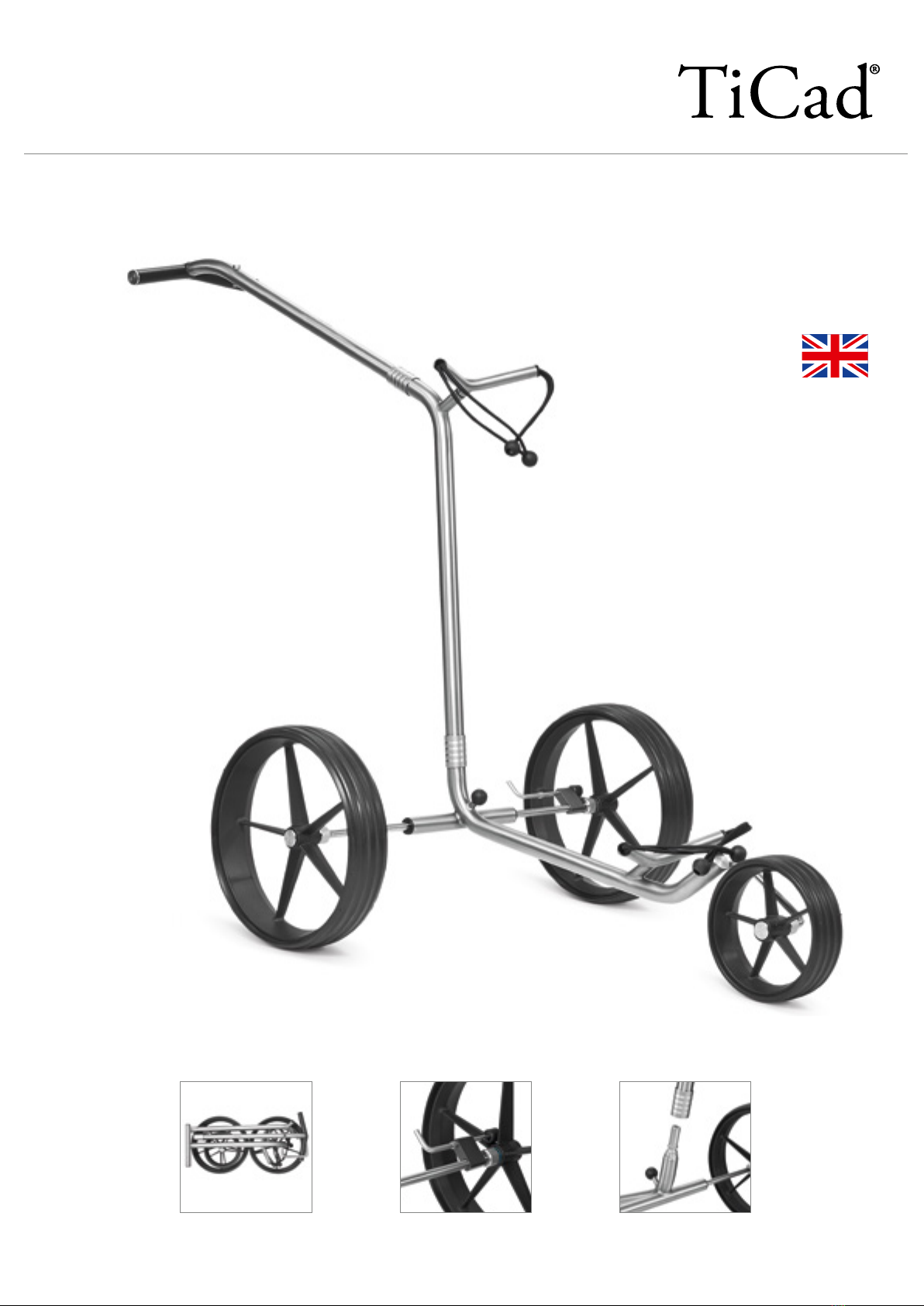

Image:

TiCad Andantewith GRP* wheels, also available as

TiCad AndanteClassic with titanium wheels

SETTING UP YOUR TROLLEY

Fitting the shaft:

Before fitting the shaft, pull back the locking pin (black round

handle) and turn it slightly to the right (about 45°). Next, in-

sert the shaft halfway into the frame with the brake mounted on

the left and release the locking pin by turning the black handle

back again. You can now insert the shaft fully into the frame

until it engages. To lock the shaft into place for the integrated

locking brake, continue turning it until it engages again.

Removing and attaching the wheels

READ ME FIRST

TiCadANDANTE

*Glass-fibre reinforced plastic (PA 6 GF 30)

Congratulations!

You have chosen an excellent product manufactured by TiCad! All

of our high-quality products are carefully handmade at our pro-

duction facility in Altenstadt (Hessen, Germany).

To ensure that you will be able to enjoy your trolley for a very

long time, please take some time to carefully read through these

operating instructions, which contain important information that

will make using your trolley a lot easier.

If you have any further questions regarding the use or care of your

trolley, please contact your specialist dealer.

We would like to wish you many enjoyable games

of golf and a lot of success! Your TiCad team

Shaft with locking pin groove and arrester Locking pin

Frame connections (firm-fix connections):

The frame of your TiCad trolley is assembled with firm-fix con-

nections. To connect the frame sections, simply press them into

one another and slightly turn one of the sections to allow the cou-

pling system to engage (1+2). It will have engaged once the outer

ring has slid over the joint. To open the connection, pull the outer

ring back (3). 1

Engaging (1+2) and opening (3) the

firm-fix connections

Bag holder:

The top bag holder is fitted into place with an expansion bolt.

The expansion bolt must not be turned in too far (see images),

because there has to be a gap between the expansion bolt and

the start of the thread. To fit the bag holder, insert it into the frame

and then align and fix it into place by twisting the bag holder.

Expansion bolt turned in too far

Bag holder Expansion bolt in the correct position

Attaching the golf bag:

Put your golf bag onto the trolley before attaching the drawbar.

To fasten the golf bag, insert one of the round fasteners into the

strap of the opposite fastening strap. When doing so, make sure

not to flick the fasteners, as this may cause injury. To undo the

fastening straps, hold on to the bottom strap and then pull out the

top fastening strap with your other hand.

We recommend fitting the drawbar only once the golf bag

has been attached to prevent the trolley from tipping over.

Umbrella adapter:

The umbrella adapter is located at the top end of the drawbar.

Screw the umbrella holder into the tapered adapter. The adapter

can only be used in the standard position on the drawbar.

Umbrella adapter with

TiCad umbrella holder

Locking brake:

The locking brake has to be fitted on the left wheel. To open and

apply the brake, simply move the locking lever back or forward.

Locking brake when opened Locking brake when applied

Care:

The frame of your TiCad trolley is made of a high-quality, rust-

proof material and has been sealed to keep out rain. The frame

can be cleaned with a conventional household cleaning prod-

uct – but not with abrasive cleaners. The titanium‘s shine can

be restored with a special cleaning oil available from TiCad.

The hubs of the wheels and the couplings must not be oiled or

greased.

USING YOUR TROLLEY

Always handle your TiCad trolley slowly and carefully when

moving over rough ground that contains stones or pot-

holes. Avoid kerb edges.

1 2

3 4

Attaching the wheels:

The wheels can be attached and removed by pulling back the

knurled sleeve. When attaching the wheels, slightly turning the

sleeve can make it easier for the wheels to engage.

Always make sure that no dirt gets into the hub. The hubs

must not be oiled or greased.

2 3 4

YOUR TICAD ANDANTE IN DETAIL

1 Delta leather handle

2 Umbrella adapter

3 Drawbar

4 Top firm-fix connection

5 Top bag holder

6 Fastening straps

7 Centre bar

8 Bottom firm-fix connection

9 Shaft

10 Locking pin

11 Locking brake

12 Knurled sleeve

13 Wheel made of GRP*

14 Bottom bar

15 Bottom bag holder

16 Front shaft

17 Front wheel made of GRP*

Image:

TiCad Andantewith GRP* wheels, also available as

TiCad AndanteClassic with titanium wheels

SETTING UP YOUR TROLLEY

Fitting the shaft:

Before fitting the shaft, pull back the locking pin (black round

handle) and turn it slightly to the right (about 45°). Next, in-

sert the shaft halfway into the frame with the brake mounted on

the left and release the locking pin by turning the black handle

back again. You can now insert the shaft fully into the frame

until it engages. To lock the shaft into place for the integrated

locking brake, continue turning it until it engages again.

Removing and attaching the wheels

READ ME FIRST

TiCadANDANTE

*Glass-fibre reinforced plastic (PA 6 GF 30)

Congratulations!

You have chosen an excellent product manufactured by TiCad! All

of our high-quality products are carefully handmade at our pro-

duction facility in Altenstadt (Hessen, Germany).

To ensure that you will be able to enjoy your trolley for a very

long time, please take some time to carefully read through these

operating instructions, which contain important information that

will make using your trolley a lot easier.

If you have any further questions regarding the use or care of your

trolley, please contact your specialist dealer.

We would like to wish you many enjoyable games

of golf and a lot of success! Your TiCad team

Shaft with locking pin groove and arrester Locking pin

Frame connections (firm-fix connections):

The frame of your TiCad trolley is assembled with firm-fix con-

nections. To connect the frame sections, simply press them into

one another and slightly turn one of the sections to allow the cou-

pling system to engage (1+2). It will have engaged once the outer

ring has slid over the joint. To open the connection, pull the outer

ring back (3). 1

Engaging (1+2) and opening (3) the

firm-fix connections

Bag holder:

The top bag holder is fitted into place with an expansion bolt.

The expansion bolt must not be turned in too far (see images),

because there has to be a gap between the expansion bolt and

the start of the thread. To fit the bag holder, insert it into the frame

and then align and fix it into place by twisting the bag holder.

Expansion bolt turned in too far

Bag holder Expansion bolt in the correct position

Attaching the golf bag:

Put your golf bag onto the trolley before attaching the drawbar.

To fasten the golf bag, insert one of the round fasteners into the

strap of the opposite fastening strap. When doing so, make sure

not to flick the fasteners, as this may cause injury. To undo the

fastening straps, hold on to the bottom strap and then pull out the

top fastening strap with your other hand.

We recommend fitting the drawbar only once the golf bag

has been attached to prevent the trolley from tipping over.

Umbrella adapter:

The umbrella adapter is located at the top end of the drawbar.

Screw the umbrella holder into the tapered adapter. The adapter

can only be used in the standard position on the drawbar.

Umbrella adapter with

TiCad umbrella holder

Locking brake:

The locking brake has to be fitted on the left wheel. To open and

apply the brake, simply move the locking lever back or forward.

Locking brake when opened Locking brake when applied

Care:

The frame of your TiCad trolley is made of a high-quality, rust-

proof material and has been sealed to keep out rain. The frame

can be cleaned with a conventional household cleaning prod-

uct – but not with abrasive cleaners. The titanium‘s shine can

be restored with a special cleaning oil available from TiCad.

The hubs of the wheels and the couplings must not be oiled or

greased.

USING YOUR TROLLEY

Always handle your TiCad trolley slowly and carefully when

moving over rough ground that contains stones or pot-

holes. Avoid kerb edges.

1 2

3 4

Attaching the wheels:

The wheels can be attached and removed by pulling back the

knurled sleeve. When attaching the wheels, slightly turning the

sleeve can make it easier for the wheels to engage.

Always make sure that no dirt gets into the hub. The hubs

must not be oiled or greased.

2 3 4

YOUR TICAD ANDANTE IN DETAIL

1 Delta leather handle

2 Umbrella adapter

3 Drawbar

4 Top firm-fix connection

5 Top bag holder

6 Fastening straps

7 Centre bar

8 Bottom firm-fix connection

9 Shaft

10 Locking pin

11 Locking brake

12 Knurled sleeve

13 Wheel made of GRP*

14 Bottom bar

15 Bottom bag holder

16 Front shaft

17 Front wheel made of GRP*

Image:

TiCad Andantewith GRP* wheels, also available as

TiCad AndanteClassic with titanium wheels

SETTING UP YOUR TROLLEY

Fitting the shaft:

Before fitting the shaft, pull back the locking pin (black round

handle) and turn it slightly to the right (about 45°). Next, in-

sert the shaft halfway into the frame with the brake mounted on

the left and release the locking pin by turning the black handle

back again. You can now insert the shaft fully into the frame

until it engages. To lock the shaft into place for the integrated

locking brake, continue turning it until it engages again.

Removing and attaching the wheels

READ ME FIRST

TiCadANDANTE

*Glass-fibre reinforced plastic (PA 6 GF 30)

Congratulations!

You have chosen an excellent product manufactured by TiCad! All

of our high-quality products are carefully handmade at our pro-

duction facility in Altenstadt (Hessen, Germany).

To ensure that you will be able to enjoy your trolley for a very

long time, please take some time to carefully read through these

operating instructions, which contain important information that

will make using your trolley a lot easier.

If you have any further questions regarding the use or care of your

trolley, please contact your specialist dealer.

We would like to wish you many enjoyable games

of golf and a lot of success! Your TiCad team

Shaft with locking pin groove and arrester Locking pin

Frame connections (firm-fix connections):

The frame of your TiCad trolley is assembled with firm-fix con-

nections. To connect the frame sections, simply press them into

one another and slightly turn one of the sections to allow the cou-

pling system to engage (1+2). It will have engaged once the outer

ring has slid over the joint. To open the connection, pull the outer

ring back (3). 1

Engaging (1+2) and opening (3) the

firm-fix connections

Bag holder:

The top bag holder is fitted into place with an expansion bolt.

The expansion bolt must not be turned in too far (see images),

because there has to be a gap between the expansion bolt and

the start of the thread. To fit the bag holder, insert it into the frame

and then align and fix it into place by twisting the bag holder.

Expansion bolt turned in too far

Bag holder Expansion bolt in the correct position

Attaching the golf bag:

Put your golf bag onto the trolley before attaching the drawbar.

To fasten the golf bag, insert one of the round fasteners into the

strap of the opposite fastening strap. When doing so, make sure

not to flick the fasteners, as this may cause injury. To undo the

fastening straps, hold on to the bottom strap and then pull out the

top fastening strap with your other hand.

We recommend fitting the drawbar only once the golf bag

has been attached to prevent the trolley from tipping over.

Umbrella adapter:

The umbrella adapter is located at the top end of the drawbar.

Screw the umbrella holder into the tapered adapter. The adapter

can only be used in the standard position on the drawbar.

Umbrella adapter with

TiCad umbrella holder

Locking brake:

The locking brake has to be fitted on the left wheel. To open and

apply the brake, simply move the locking lever back or forward.

Locking brake when opened Locking brake when applied

Care:

The frame of your TiCad trolley is made of a high-quality, rust-

proof material and has been sealed to keep out rain. The frame

can be cleaned with a conventional household cleaning prod-

uct – but not with abrasive cleaners. The titanium‘s shine can

be restored with a special cleaning oil available from TiCad.

The hubs of the wheels and the couplings must not be oiled or

greased.

USING YOUR TROLLEY

Always handle your TiCad trolley slowly and carefully when

moving over rough ground that contains stones or pot-

holes. Avoid kerb edges.

1 2

3 4

Attaching the wheels:

The wheels can be attached and removed by pulling back the

knurled sleeve. When attaching the wheels, slightly turning the

sleeve can make it easier for the wheels to engage.

Always make sure that no dirt gets into the hub. The hubs

must not be oiled or greased.
