QT Medical PCA 500 Installation and user guide

What’s Included in
Your Kit?
Compact ECG recorder that connects to
the PCA 500 Electrode Strip and pairs
with the QT ECG App via Bluetooth.
PCA 500 Recorder
How To Record an ECG with
Xpress ECG by QT Medical
1360 Valley Vista Dr., Suite 203, Diamond Bar, CA 91765 www.qtmedical.com
[email protected]
855-722-6006O /
310-755-3108
F /
Contact Us
Prepositioned 12-lead ECG electrode
strip for easy and accurate application
of the 12-lead ECG without any training
necessary.
PCA 500 Electrode Strip
Also included: prepaid packaging for easy return.

Getting Started
1. You need a compatible mobile device (smartphone or tablet). Please check if your device is
supported at: https://www.qtmedical.com/compatibility
Placing the Electrode Strip & Connecting PCA 500
1. Prior to placing the electrode, remove your shirt or blouse.
Android iOS
2. Download the QT ECG App on the Google Play Store or App Store by scanning the
QR code.
3. You should receive your username and password along with your kit. Simply login with the
info, follow in-app instructions and record an ECG.
2. Open the QT ECG Electrode Strip package. Remove the release liner using the pull tab to
expose the adhesive side of the Strip.
a.
b.
c.
For females, to keep the bra on or not depends on
whether the electrode strip can be applied correctly
and comfortably with or without the bra. This can be
a personal decision.
For males, remove all clothing from the torso.
Make sure the chest is clean and dry. For males with a
lot of chest hair, it may be necessary to trim the hair in
the area where the electrode will be placed to
improve electrode adherence.
2

a. For women, the strip should wrap
around the underside of the left
breast.
5. Press down on all parts of the electrode strip to ensure it has adhered to your skin.
6. Turn on the PCA 500 Recorder by holding the power button
on the side of the device for about 5 seconds or until the
lights on the front of the device begin to flash.
3. First, position the Blue Box at the center of the chest, between the nipples, then wrap the
Strip from the center of the chest around the left side of the chest. The Red Arrow should
be pointing to the left nipple. For females, the Strip should go under the left breast.
4. Pull the lead marked “Left Arm” and stick to the left arm, the
lead marked “Left Leg” to the left leg, and the lead marked
“Right Arm” to the right arm.
7. Connect PCA 500 Recorder to the electrode strip using
the large receptacle on the top of the Recorder. Place a
piece of gauze or tissue between the device and your skin.
Left
Arm
Left
Leg
Right
Arm
3

Recording an ECG with the QT ECG App
Note : you must be connected
to the internet to use the app. If
not connected, go to Settings
→WiFi on iPhone to connect a
local wifi network.
Open the QT ECG App;
input your username and
password; hit the center
button to login.
1
2
3
Tap the “Record” button.
Tap on the highlighted
blue button in the top
left corner to input the
patient profile.
4Input your Medical
Record Number (or your
phone number if
unknown), name
(official, no aliases),
date of birth, gender,
and electrode size into
the fields. Then tap the
back button in the top
left corner.
4

5Tap on the highlighted
blue connect button in
the top left corner.
6A popup box will appear
notifying you that you
need to connect the
recorder. Tap OK.
7Tap on the number that
corresponds to the
Serial Number of the
device. Tap OK on the
next popup box.
8If any leads are not
correctly placed, tap
on the yellow leads off
button to see which
leads need to be
reconnected. Press on
the highlighted area of
the strip to ensure it is
making good skin
contact.
9Once correctly
connected, tap the
record button in the top
left corner. Ensure your
name and MRN are
correct and then tap OK.
5

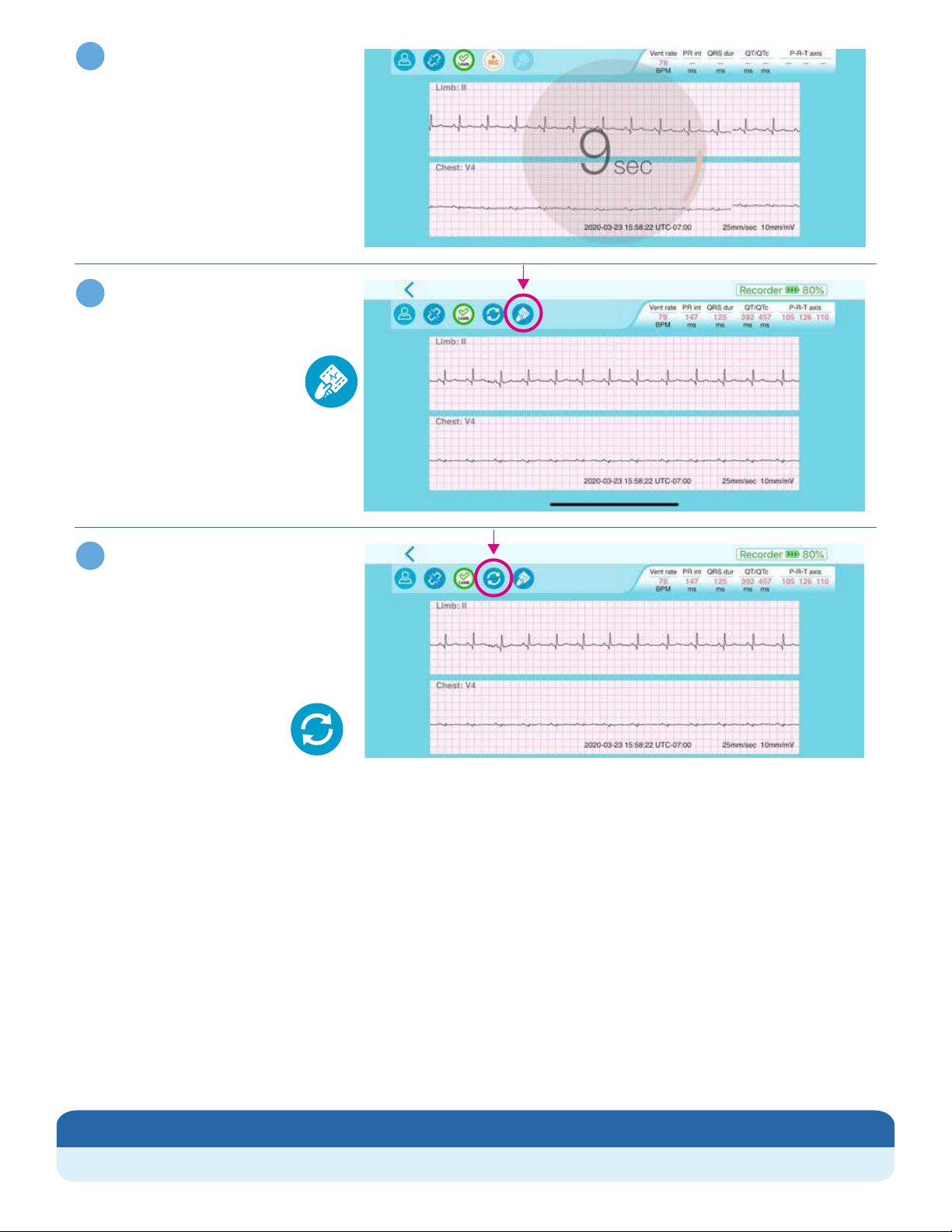

The ECG recording will
begin and a 10-second
countdown will appear.
Ensure to remain still
during this recording.
10
Once completed, the ECG
will be uploaded to the
cloud for your physician to
review.
11
If you moved during the
recording or an electrode
became detached, please
record another ECG by
tapping the refresh button
in the top left corner and
then follow steps 9 and 10.
12
Please note that QT
Medical is not involved in
the interpretation of test
results. Please contact
your physician directly
for any questions
regarding results.
a.
Returning PCA 500 Recorder to QT Medical
1. Once completed with the 12-lead ECG, power off and disconnect PCA 500 Recorder from the PCA 500
Electrode Strip, carefully remove the Electrode Strip, and dispose of it properly.
2. Place PCA 500 Recorder in the cardboard box. Then place the box in the prepaid USPS padded
envelope provided to you in the Xpress ECG kit and seal the envelope.
3. Place the envelope in your outgoing mail to be picked up by USPS. Alternatively, drop the envelope at
any US Postal Office or USPS drop off location.
a. Please ship the device back within TWO (2) business days after initial delivery of the package to
avoid any late fees.
4. Once the device has arrived at QT Medical, you will receive an email confirmation!
O : 855-722-6006 / E-mail : [email protected] /www.qtmedical.com
For any questions or concerns, please contact us at :
Congratulations! You have completed a 12-lead ECG. Your physician who ordered this test will
contact you regarding the results. Thank you for using QT Medical as your ECG provider!
