Qtx 3D SPIRO 2.0 User manual

152.760UK User Manual
TECHNICAL SPECIFICATION
Voltage : 230Vac, 50/60Hz Blue : 300mW 455nm
Fuse : 2A Slow blow DMX Channels : 10
Laser Class : 3B Dimensions : 220 x 176 x 99mm
Red Laser: 100mW 638nm Power Consumption : 45W
Green Power : 50mW 532nm Weight : 1.6k
IMPORTANT NOTE: This product conformed to Laser & LE Safety standard
BSEN60825-1 2007 incorporating corrigendum 2008
DISPOSAL:
Please disposal of the unserviceable device according to the current statutory requirement
Errors and omissions excepted.
Copyright© 2012. AVSL Group Ltd.
3D SPIRO 2.0
RGB LASER
Order ref: 152.760UK
User Manual
IMPORTANT SAFETY NOTICE
Please Read this manual before operating
VERSION 1.0

152.760UK User Manual
152.760UK User Manual
DMX CHANNEL DMX
VALUE DESCRIPTION
1 (Mode)
000-010 Blackout
011-062 Sound to light
063-125 Auto Mode
126-189 MX 512 Mode 1
190-255 MX 512 Mode 2
2 (Pa ern Selec ) 000-255 Laser Pattern select (when CH1 in MX mode 1)
000-255 Laser Pattern select (when CH1 in MX mode 2)
3 (X Movemen )
000 No rotation
001-120 Adjust position
121-185 Auto left / right movement
186-255 Auto left / right movement cycle
4 (Y Movemen )
000 No rotation
001-120 Adjust position
121-185 Auto up / down movement
186-255 Auto up / down movement cycle
5 (Zoom in/ou )
000 No zoom in/out
001-100 Manual adjust
101-150 Zoom out
151-200 Zoom in
201-255 Zoom in/out
6 (X axis ro a ing)
000 No rotation
001-110 Manual rotate position
111-255 Auto rotating position
7 (Y axis ro a ing)
000 No rotation
001-110 Manual rotate position
111-255 Auto rotating position
8 (Z axis ro a ing)
000 No rotation
001-140 Manual adjust position
141-217 Auto clockwise rotation
218-255 Auto anti-clockwise rotation
9 (Colour selec ) 000-255 Colour selection
10 (Scanning
Speed) 000-255 Control the scanner speed of the patterns

152.760UK User Manual
DMX
The fixture is equipped with 3-pin XLR connectors for MX input and output. The SE
connectors are wired in parallel. Only use a shielded twisted-pair cable designed for 3-pin XLR-
plugs and connectors in order to connect the controller with the fixture or one fixture with
another.
Building a serial MX-chain:
Cau ion: At the last fixture, the MX-cable has to end with a terminator. Solder a 120 Ohm
resistor between PIN 2 (-) and PIN 3 (+) into a 3-pin XLR-plug and plug it in the MX-output
of the last fixture.
When in MX mode there are two channels with the following function:
152.760UK User Manual
INTRODUCTION:
3D SPIRO 2.0 RGB LASER
Thank you for purchasing this 3 Spiro 2.0 laser.
This updated version of our ever-popular Spiro Laser has a range of exciting additional 3
patterns. The high power 638nm red laser diode produces a much brighter beam with the
benefits of reduced laser radiation. The colour-changing beam and pattern effects are best
viewed when projected onto a flat surface, and adding smoke or haze will further enhance the
impressive effects making it ideal for mobile Js and venue installation.
Unique 3 patterns
Brighter 638nm Red laser technology
0.45W total laser power (Red: 100mW, Green 50mW, Blue: 300mW)
Auto, sound-to-light, pattern select and 10 channel MX modes
Master/slave mode
Easy digital display to set the mode of operation
Key controlled for laser safety
We recommend that this product is used within the guidelines HSG95

152.760UK User Manual
CAUTION
•Please read his manual fully before ins alling or opera ing his
produc as i con ains impor an safe y informa ion rela ing o i s
ins alla ion and opera ion.
•This Class 3B laser produc emi s hazardous levels of op ical
radia ion and will cause injury o he eyes if viewed direc ly.
•This produc is no sui able for projec ion direc ly a audiences or
o her personnel.
•This produc mus no be used for any form of audience scanning
applica ion and is for professional use only.
152.760UK User Manual

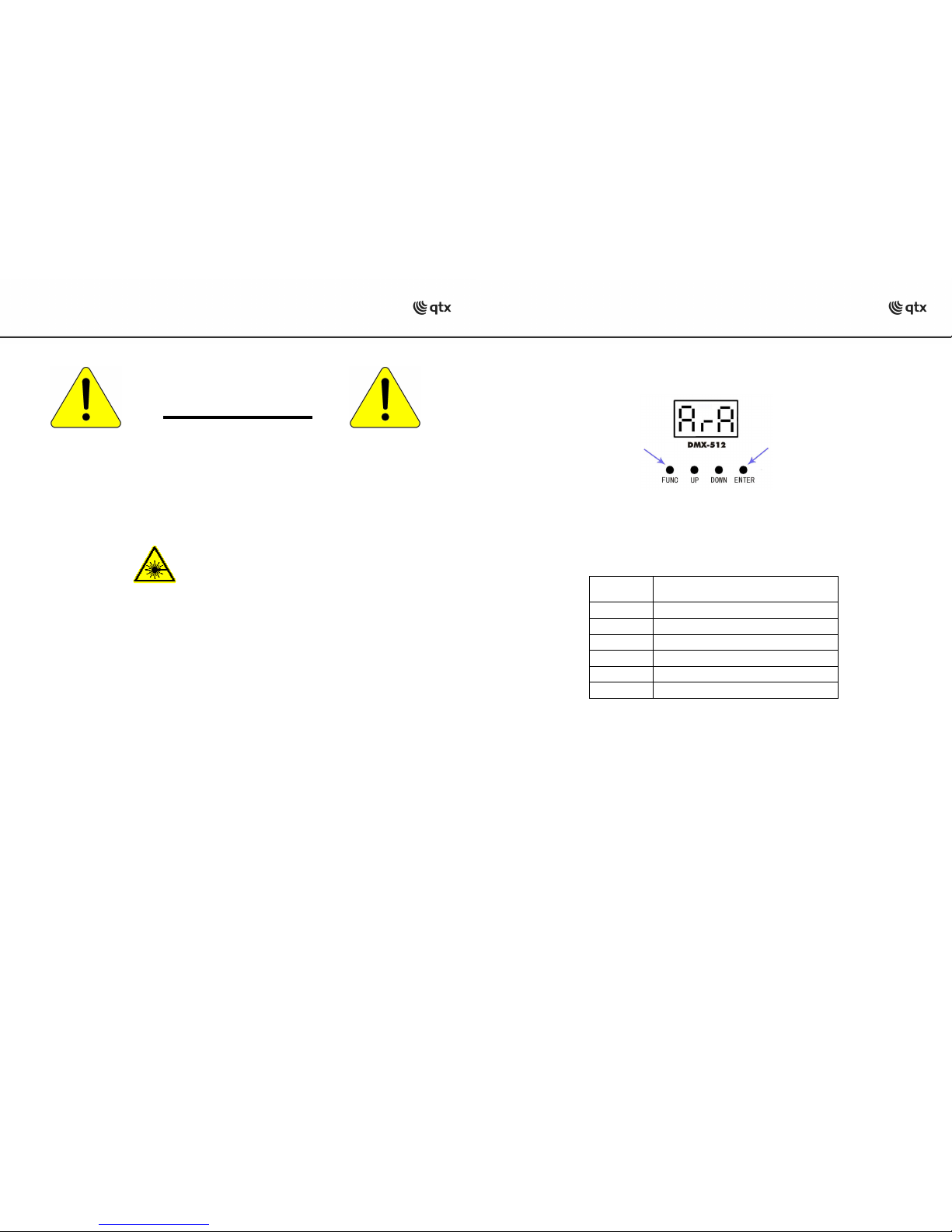

OPERATION FOR SPIRO 2.0
Press the “FUNC” button to enter setup mode followed by the “UP” & “ OWN” keys to select
the mode you desire. To confirm your selection press “ENTER”
Display Func ion
AUt Auto running random effects cycle
SOU Sound activated random effects cycle
rgb Colour select mode
P00-P42 Pattern select
001-512 MX address
SLA Slave mode

152.760UK User Manual

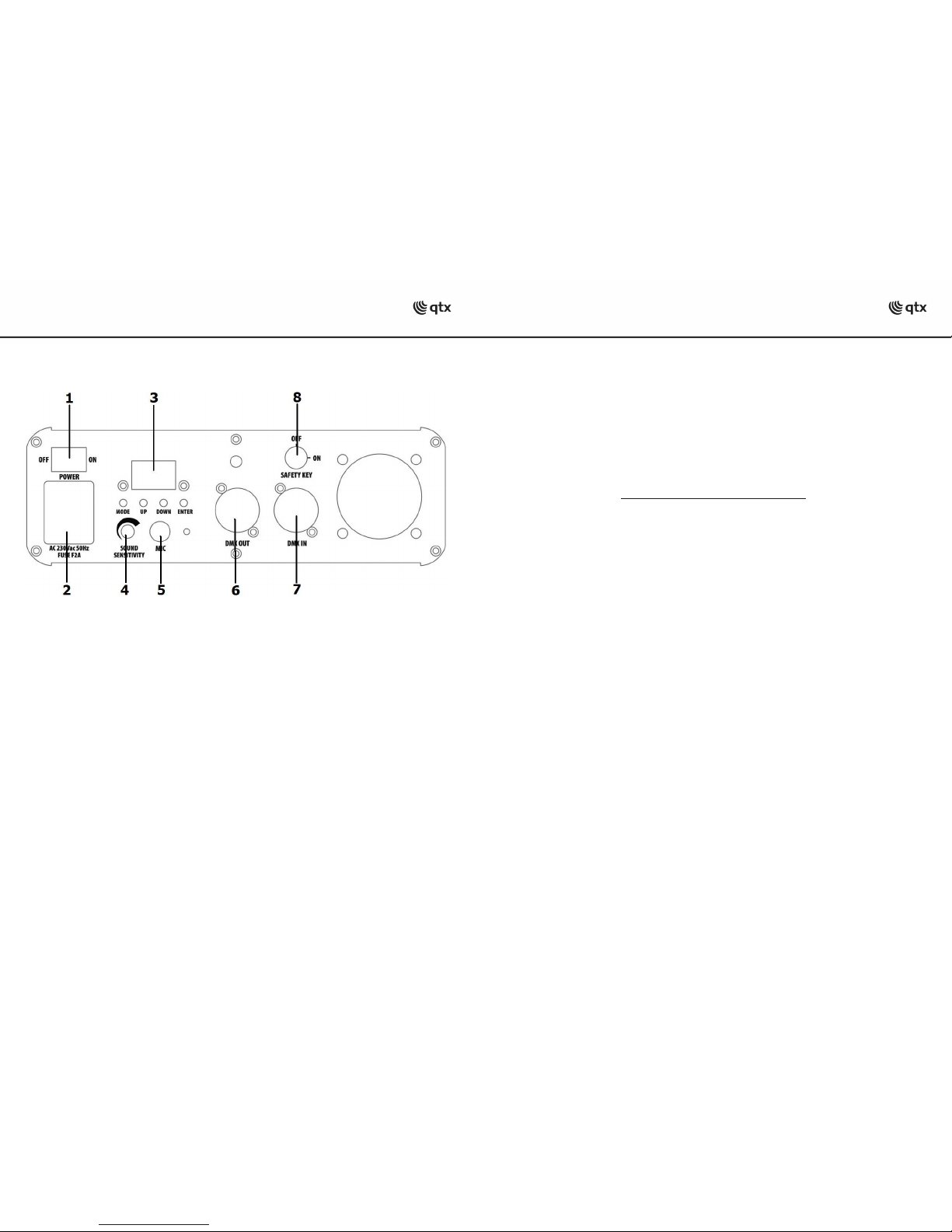

REAR PANAL SPIRO 2.0:
1. Power ON/OFF Switch
2. IEC Power IN
3. igital display
4. Sound sensitivity
5. Microphone
6. MX OUT
7. MX IN
8. Safety Key
152.760UK User Manual
IMPORTANT INFOMATION:
This product is a Class 3B laser and should only be installed and used by personal who are
trained in the management of laser radiation and are able to operate in accordance within the
guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of
Lasers used for isplay purposes”.
Copies of this guide can be downloaded from the HSE website below:
www.hse.gov.uk/pubns/priced/hsg95.pdf
This product contains no user-serviceable parts. Under no circumstances should any attempt
be made by the user to dismantle or modify it in any way.
INSTALLATION AND MOUNTING INSTRUCTIONS:
This product must be securely mounted so that its emission is always directed away from
people and objects that are able to reflect the emission towards people. In this regard the
separation distances of 3 metres vertically and 2.5 metres horizontally, cited in HS(G)95 and
shown overleaf must be observed.

152.760UK User Manual

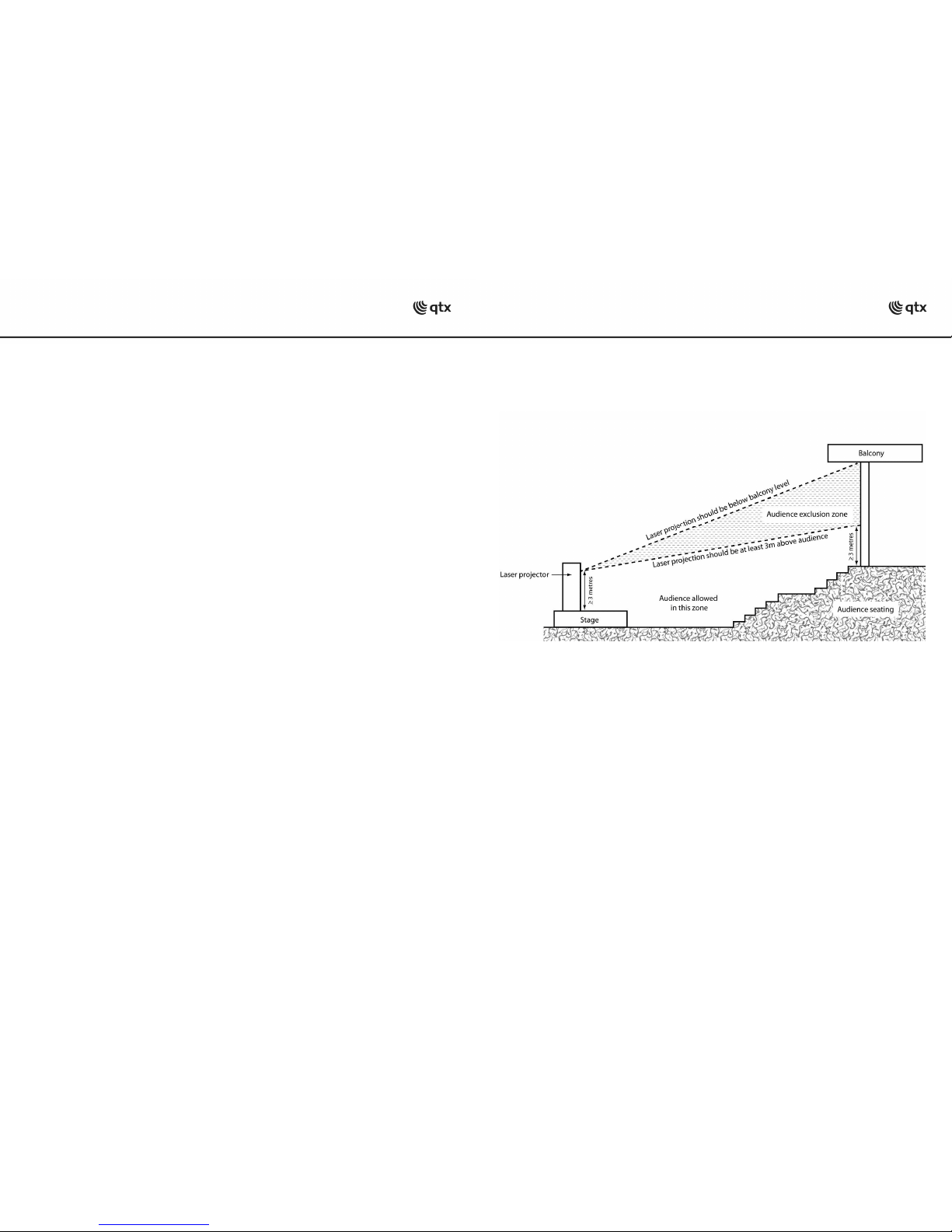

VERTICAL BIRDS EYE VIEW:
152.760UK User Manual

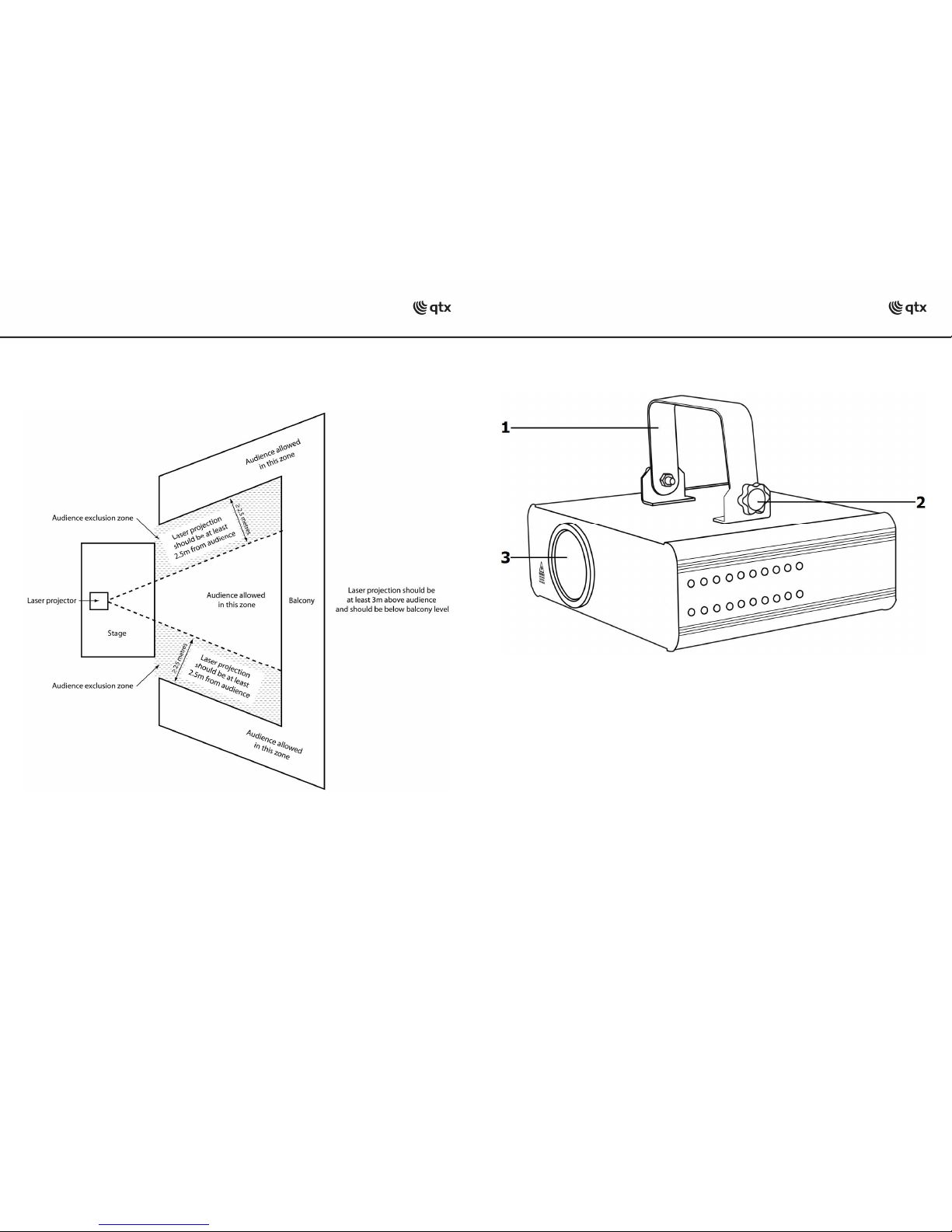

LAYOUT SPIRO 2.0:
1. Mounting bracket
2. Thumb screw
3. Laser Aperture

152.760UK User Manual
TROUBLESHOOTING
If he uni is no func ioning properly
Check that the IEC cable is connected properly
Check that the mains power switch is on.
Check the fuse hasn’t blown (see below guide)
Check that the unit isn’t in MX mode.
Check the safety key is turned to the on position.
If in sound to light mode ensure the microphone sensitivity is turned up.
REPLACING FUSE
First disconnect from the mains power supply then remove the fuse holder above the IEC
Socket to reveal the fuse. Replace with the correct fuse rating as stated on the product or in
the user manual. Then lock the fuse holder cover back into place.
GENERAL MAINTENANCE
Be sure to power off the fixture before conducting maintenance.
To maintain optimum performance and minimise wear, fixtures should be cleaned frequently.
Usage and environment are contributing factors in determining frequency. As a general rule,
fixtures should be cleaned at least twice a month. ust build-up reduces light output &
performance as well as overheating. This can lead to reduced life and increased mechanical
wear.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust
collected on external vents and internal components. Clean all glass when fixture is cold with a
mild solution to the cloth or tissue, and drag dirt and grime to the outside of the lens. Gently
polish optical surfaces until they are free of haze and lint.
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimise light output. Cleaning frequently depends on the environment in which
the fixture operates: damp, smoky or particularly dirty surroundings can require cleaning fluid.
Always dry the parts carefully. Clean the external optics at least every 20 days.
152.760UK User Manual
VERTICAL CROSS SECTIONAL VIEW:

152.760UK User Manual
PACKAGE CONTENTS:
Please check the contents to ensure that the product has been received in good condition.
Laser x 1unit User’s Guide x 1pc
IEC Power Lead x 1pc Safety Keys x 2pcs
If you find any accessory is missing or the product has arrived with any problems, please
contact your retailer at once.
This product contains no user-serviceable parts so make no attempt to try to fix or modify this
item yourself as this will invalidate the warranty. We recommend you keep the original
package and proof of purchase for any possible replacement or returned demand.
SETUP:
1. Unpack the laser ensuring all packaging and tape is removed.
2. Always test the laser before fixing in a permanent location.
3. Connect the IEC mains plug and power up.
4. Insert the safety key and turn to a quarter turn clockwise. At this moment ensure that
no one is exposed to laser radiation.
5. Select which mode you want to operate the laser in.
6. Leave the laser to run for 10 minutes before installing in its location.
152.760UK User Manual
CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE
CONNECTED:
Use the supplied IEC lead to connect to the main power supply as follows:
Wire Connec ion In erna ional signal
Brown Live L
Blue Neutral N
Yellow /Cyan Earth
For your safety, please kindly pay attention to all of the warnings below:
Always plug in the power plug last and disconnect from the mains when the device is
not in use or before cleaning.
o not install and operate the device in rain or extreme heat, moisture or dusty
environments.
This device is for indoor use only and in a dry environment.
o not switch on immediately. Wait until the unit reaches room temperature.
o not shake the device and avoid brute force when installing or operating.
o not use the device during thunderstorms and please disconnect the power.
o not use solvents or aggressive detergent to clean the device. Use a soft and clean
cloth.
o not modify the device or the connected power cord without authorisation.
o not stare into the aperture. This product emits hazardous levels of optical radiation
and will cause serious injury to the eyes if viewed at close range.
This product should be securely mounted so that its output emission is always directed
away from people and at objects that are able to reflect emission towards people. In
this regard, the separation distances cited in HS(G)95 should be observed.
The symbol determines the minimum distance from lighted objects. The
minimum distance between light-output and the illuminated surface must be more than
0.5m.
