Model XC-QL4 4-Channel 6/12V DC Charger Multiplier

Model XC-QL4 Feature and Use Guide
Table of Contents
Features.................................................................... Inside front cover
User Guide ............................................................................... 1 – 3
Specifications ......................................................................................3
Battery Charger Use..........................................................................3
FAQs ...................................................................................................... 4
5-Year Limited Warranty...........................................Inside back cover
Xtreme Charge®Products and Accessories..............................Back cover
Features
Thank you for your purchase of the Xtreme Charge®QuadLink®from PulseTech®
Products Corporation.
PulseTech®Products Corporation (www.PulseTech.net) is nationally recognized for
its innovative technologies specifically designed to improve 6/12V battery perfor-
mance, trim replacement costs by extending battery life cycles and contributing to
the nation’s environmental movement to think and act Green by keeping batteries
healthy and out of the waste stream, landfills and smelters.

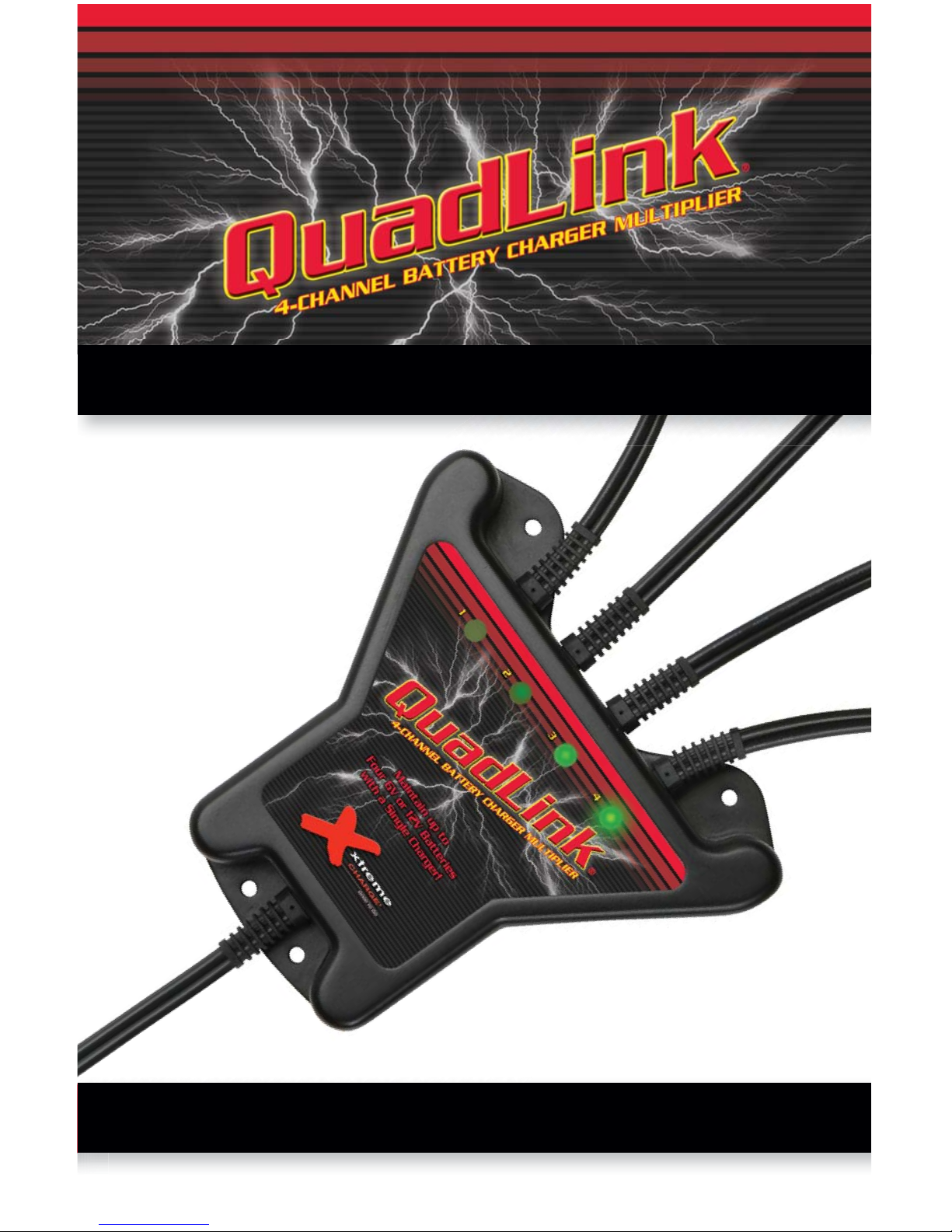

With the development of the QuadLink, Xtreme Charge®has multiplied this useful
application by 4 times—turning any 6V or 12V DC battery charger (using the stan-
dard 2-prong output connector) into a 4-station maintenance charger.
There’s no more need to spend time or to remember to switch back and forth
between vehicles or batteries in storage. Utilizing a simple, plug and play system,
QuadLink automatically splits and distributes 10-minute charge segments to up to
four batteries.
Applications include a wide variety of vehicles and equipment, including automobiles,
light trucks, SUVs, motorcycles, motor homes, small boats and watercraft, lawn
mowers and equipment, ATVs and even golf carts. When mated with a typical
maintenance charger (see User Guide) the QuadLink’s microprocessor automatically
adapts to the number of batteries actually connected.
Included with your QuadLink purchase:
1 – QuadLink 4-station charger multiplier
4 - Eyelet lug adaptor cables
4 - 5' extension leads
(Additional 5'and 25' lead extensions available separately)

User Guide
1
Do not operate without first reading these important safety notices and use instructions.
Additionally, do not use this without first reading important safety notices and use
instructions that come with your battery charger/maintainer and your battery.
NOTE: As part of good safety routine, this product is designed for use only with automatically controlled
charger maintainers and is optimized for use with the Xtreme Charge family of products. It is not
suggested for use with manual maintenance chargers that cannot be used without constant supervision.
1. Inspect all cable leads and connections to be sure that they are all in good working condi-
tion. Never use cable leads or clips that are worn, damaged or frayed in any way. Replace
worn or damaged leads prior to use. Do not alter or otherwise modify cables as this could
cause an unsafe condition possibly resulting in personal injury, explosion or fire.
2. Connect the output of your battery charger/
maintainer to the input of the QuadLink.
Note: The charger must have the same industry
standard 2-prong connector to mate properly
with the QuadLink.

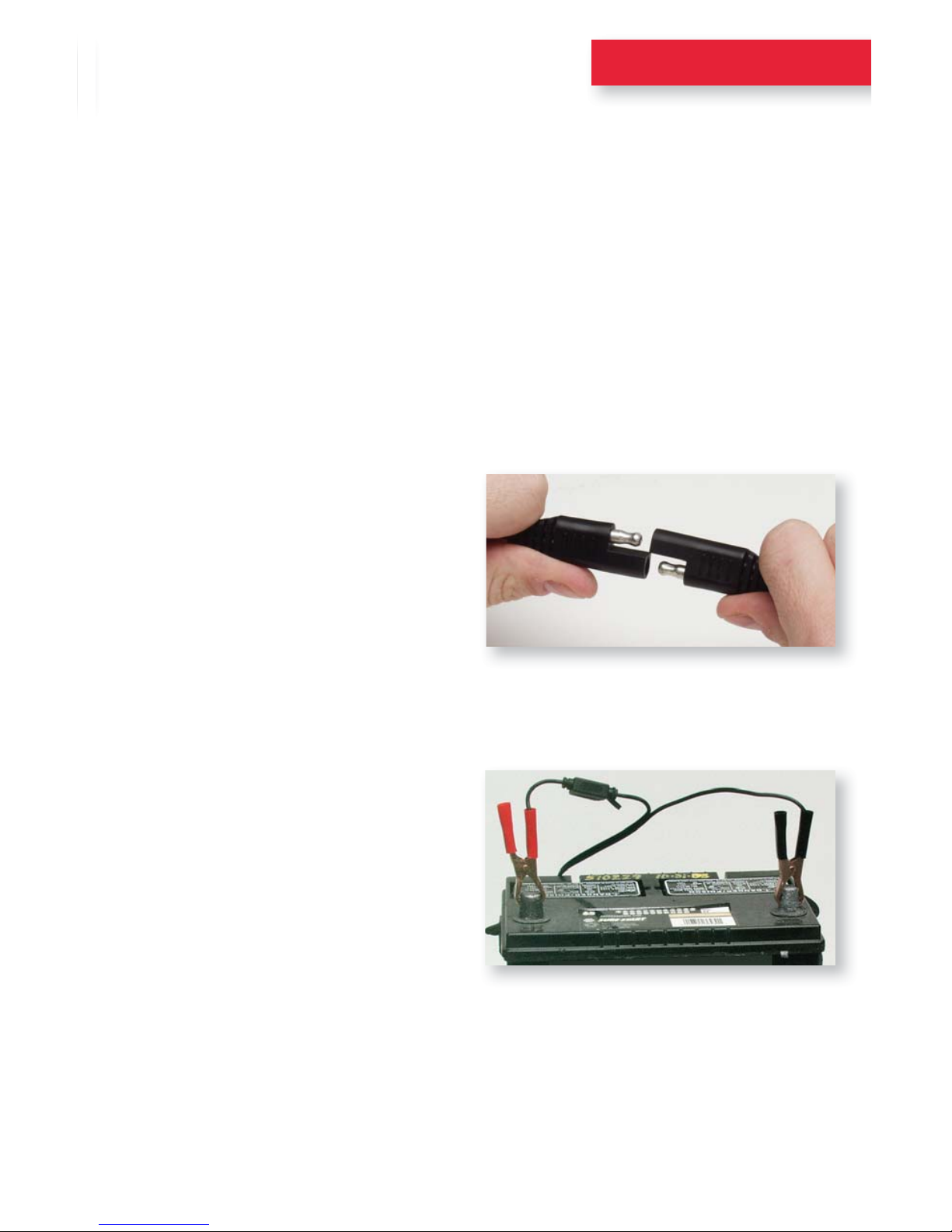

3. Connect the extension leads that come with the QuadLink to either the standard attached
battery eyelet connector on each vehicle battery and/or to the charging clip set that comes
with your charger. Be sure to first connect the red battery clip to the positive (+) battery
terminal. Then connect the black battery clip
to the negative (-) battery terminal. Also, be
sure to double check that your attached eyelet
terminal cable sets are properly polarized.
Once you have connected the cable leads to
all batteries in use, you can begin the battery
maintenance process by plugging in your
charger to your AC power source.
4. What is happening:
A. Your battery charger is still in full control of the charging processes. Always refer to the
battery charger manufacturer’s instructions or the user interface on your charger to
determine what state of charge your battery is in.
B. The QuadLink is almost transparent to the battery. It does not add to the charging
capabilities of your charger, just to the number of batteries being maintained. Your
charger is still the “brain” in the system.

2

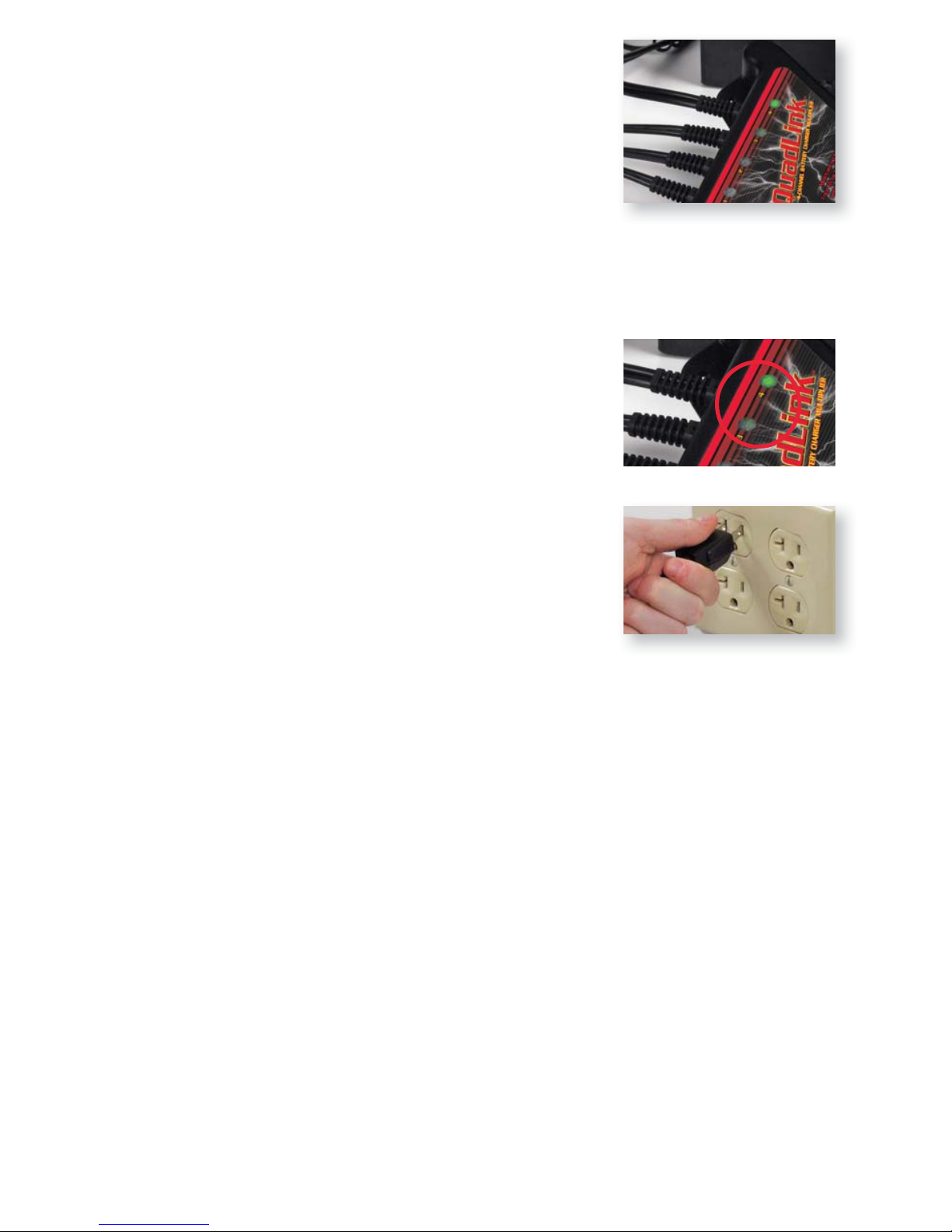

C. A blinking green LED light will indicate the first battery
connected to the QuadLink. Once additional batteries are
connected, a solid glowing green LED light will verify
connection to all additional connected stations. Once the
charger is connected to the QuadLink and plugged into the
AC power source, the charging cycle begins. From this point
forward, the station or battery that is currently “live” or
being charged is indicated by a blinking green LED light.
D. Every 10 minutes, the QuadLink will switch to the next battery in line. If there is no
battery connected to any given channel, the channel will be skipped after a short qualifi-
cation process.
E. Cycle rotation will continue indefinitely, maintaining the
charge of all 4 batteries for you automatically. The
QuadLink distributes your charger’s full power, moving
from battery to battery in 10-minute increments.
F. If you would like to remove a battery from the chain, it is
always best to unplug the QuadLink from the charger and
the charger from the AC power source first. Once the battery
is disconnected and the units are plugged back in, the
QuadLink will reset and recognize the batteries in the circuit
and skip any open channels after a circuit verification test.
G. If you replace or add a battery to an open channel, again it is always best to unplug
the QuadLink from the charger and the charger from the AC power source first. Once
you have connected the new battery to the circuit and plugged the units back in, the
QuadLink will reset and recognize the additional battery in the circuit and begin the
process again.
Use Comments and Suggestions:
1. If you are putting a vehicle/battery away for an extended period, it is always best to give
the battery a good charge on its own for a few days and test it prior to putting it away for a
season or any extended period. This will assure that proper storage maintenance will occur
without a hitch.
2. If there is ever a power outage, it is likely that during the outage, the charger may and the
QuadLink will consume a small amount of power via LED light indication of the batteries’
state of charge and channel indication. This is common and will not cause noticeable dis-
charge of the batteries in the circuit unless the power is out for an extended period of time.
Note: If either AC input power to the charger or DC power from the charger to the QuadLink
is purposely disconnected for any extended period for any reason, disconnect the QuadLink
from the batteries in the circuit until power is restored. This will assure that the batteries are not
unintentionally discharged.

3. If for any reason the QuadLink is not unplugged from the DC power source and allowed
to reset during removal of a battery, the LED channel indicator will remain illuminated
until the next cycle provides a circuit verification test indicating an open circuit. The output
previously associated with the removed battery will then in turn be skipped.
4. For use more customized to your specific needs, including additional 5' extension leads
(part #100X805) and 25' extension leads (part #100X825), please visit www.PulseTech.net.
Additional Functionality:

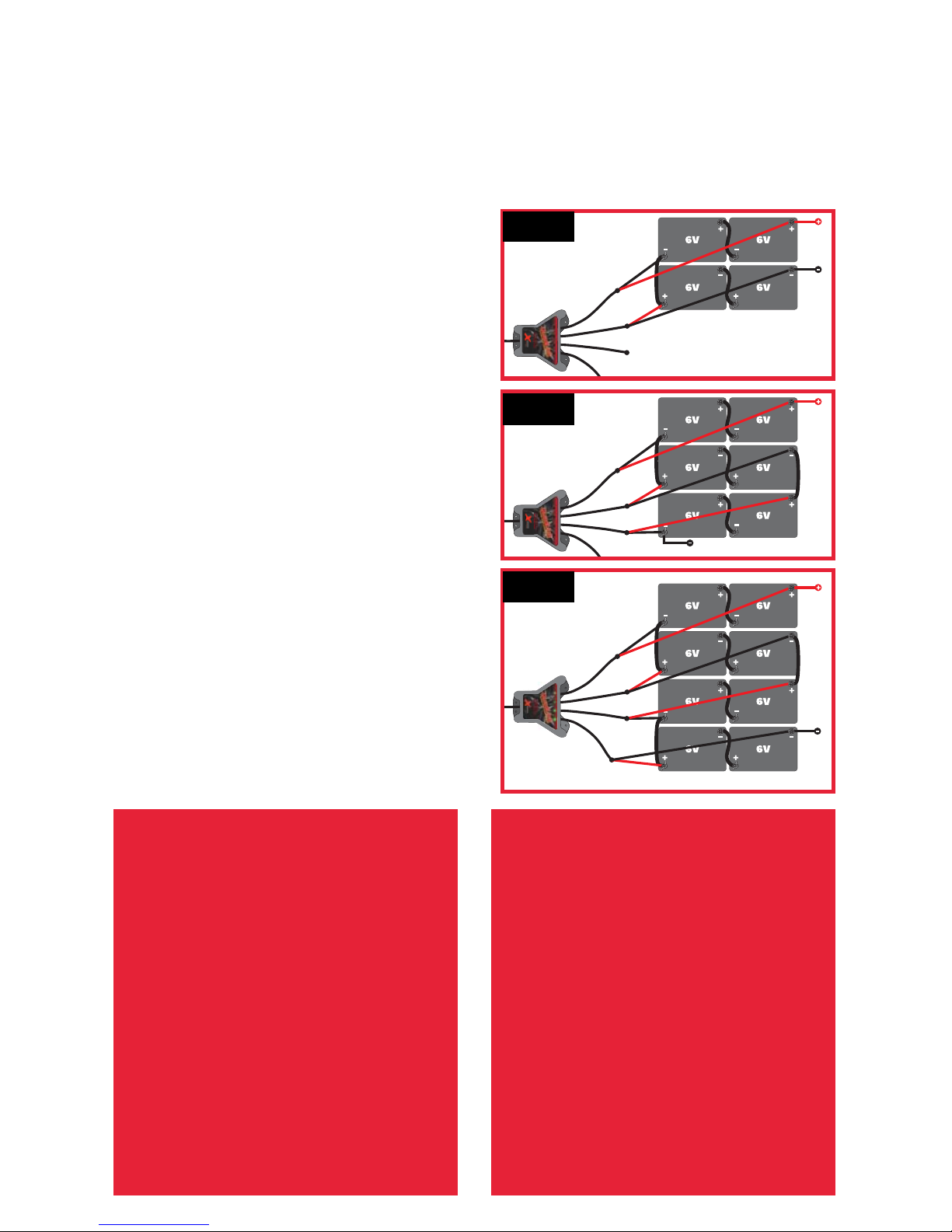

The QuadLink is also uniquely designed to
provide a very useful service of maintaining the
state of charge of multiple 6V or 12V batteries
in 24, 36 and 48V series connected configura-
tions typically used in Golf Carts or similarly
designed vehicles or battery packs.
The user would simply connect each output
lead using the provided eyelet lug connectors
(up to 4) to each of the 6V or 12V segments of
the multiple battery configurations and in doing
so allow the QuadLink to maintenance charge
each of the 6V or 12V segments of the pack in
10-minute intervals. This will ensure that the
entire pack is maintained at the state of charge
that they were left at when stored or left unused
for an extended period.
Specifications Battery
Charger Use
Description: 4-channel 6/12V DC Char-
ger Multiplier
Input Voltage: 4Vdc to 18Vdc
Input Amperage: 8A Max
Functional Output Cable Length: 5'9"
(per channel) Note: Additional 5' and 25'
cable extensions available separately
Mounting: Yes, via 4 holes in housing
(use housing to mark holes on
mounting surface)
IMPORTANT: Please follow the use
and safety recommendations that were
included with the maintenance char-
ger that will be used with your new
QuadLink. This information should
provide explicit important safety,
operation and maintenance instruc-
tions for the user, and, if applicable,
with assembly, moving and storage
instructions. 3
24V
36V
48V

4
Frequently Asked Questions
1. Can the QuadLink be used with a Solar Charger? YES, if the Solar Charger uses the same connector, is 6V or 12V
DC and does not exceed 8 Amp output.
2. Is the QuadLink water resistant? YES, it is water resistant but not waterproof. It cannot be submerged or left in
pooled water or driving rain. Safety dictates that one should never use an electrical product in wet conditions.
3. Does the “bad battery” function still work when using the QuadLink? The QuadLink is not a charger but a
charge conduit. If your charger has a “bad battery” indicator, it will work through the QuadLink connection.
4. Will the QuadLink work if batteries are connected to first, second, and fourth outlet, skipping the third
position? YES, the QuadLink will sense the open circuit and skip it after a few seconds.
5. Will the QuadLink work on multiple battery types and styles simultaneously? For instance, AGM and Gel or
Deep Cycle marine and small Motorcycle batteries all connected to each of the 4 stations? YES, your charger
is still the “brain” in the system. If your charger has the ability to properly charge all of these battery types automati-
cally, the QuadLink will allow it. If your charger has to be manually switched to alternate settings to enable proper
charge output for these different battery types, the answer would be NO. If this is your situation, we suggest using
the Xtreme Charge to charge multiple battery types automatically.
6. Knowing that the QuadLink is optimized for use with the Xtreme Charge battery charger; does it also work
with other brands of chargers? YES, as long as your charger is fully automatic and utilizes the same DC connector.
7. When connected to Gel, maintenance free and AGM battery with a charger that requires the use of a battery
selection dial for charging different battery types, what happens? We suggest that you do not use the QuadLink
with this type of charger. Consider buying an Xtreme Charge to properly charge all these types on the QuadLink au-
tomatically.
8. If there is no battery connected, is power flowing to the battery clips or eyelet connector? The answer is NO
if you are using a fully automatic charger and it is functioning properly. We suggest that a manual charger NOT BE
USED with the QuadLink. Remember, the charger is always in control of the charge process, not the QuadLink.
9. Can I use this on my vehicle that has 4 batteries connected in parallel (in a 12V system)? YES, as long as
you are connecting only one station lead to this 12V pack. Although it will cause no harm, we do not suggest the
QuadLink be used in a parallel connected multi battery scenario as there is no additional charging benefit when com-
pared to single station charging to the pack.
10. Can I start my vehicle with the QuadLink still attached? YES, as long as your charger allows this capability. The
QuadLink does not control the charge going into the battery; it is only a conduit for the power going to each station.
11. Can I change the timing so that one battery charges longer before moving to the next battery? NO, the micro-
processor is not adjustable.
12. Can I connect two sets of leads to one battery so it will charge for an extended period? YES, if you want to
allow a certain battery to have more relative charge time within the charge cycle, you can “double connect” a
station to any given battery. This will give that battery 10 additional minutes of charge time per cycle.
For answers to additional questions, please see your dealer or contact PulseTech Products Corporation at
1-800-580-7554, 8 a.m. to 5 p.m. Monday through Friday CST or go to www.PulseTech.net.

PulseTech Products Corporation
What Does This Warranty Cover? This warranty covers any defects in workmanship or materials in the
product under normal use and service.
How Long Does The Coverage Last? This warranty runs for five (5) years from the date of purchase.
What Will PulseTech Do? PulseTech will, at its option, repair the unit or replace the unit with a
remanufactured unit at no charge.
What Does This Warranty Not Cover? This warranty applies only to the product and does not cover
any other equipment, static damage, water damage, overvoltage, dropping of the unit or damage result-
ing from extraneous causes. The warranty is void if the owner attempts to disassemble the unit or modify
the cable assembly. In addition, PulseTech will not be responsible under this warranty if PulseTech de-
termines that (1) upon examination that the unit’s failure was (A) caused by misuse, neglect, accident,
alteration, or abnormal condition of operating or handling (including the failure to install the product in
accordance with PulseTech’s instructions and observe the warnings on the product and the instruction
manual), or other conditions beyond the control of PulseTech or (B) damaged in transit to PulseTech,
or (2) the owner is not the original purchaser that purchased the product from PulseTech directly or
through an authorized PulseTech dealer or distributor. IN NO EVENT SHALL PULSETECH BE
LIABLE FOR ANY DIRECT, SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL, PUNI-
TIVE OR EXEMPLARY DAMAGES, EXPENSES, LOST SAVINGS OR LOST PROFITS OR ANY
OTHER DAMAGES OF ANY KIND FROM ANY BREACH OF THIS WARRANTY OR OTHER-
WISE. Some states, provinces or countries do not allow the exclusion or limitation of incidental or conse-
quential damages, so the above limitation may not apply to you.
How To Get Service? Send the product postage prepaid with proof of purchase (sales receipt) within
the warranty period to the authorized reseller where the product was purchased or contact PulseTech
directly by calling 1-800-580-7554.
How Does State, Province or Country Law Apply? This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state, province to province or country to country.
THIS WARRANTY IS THE SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL
OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
i
5-Year Limited Warranty
Southlake, TX 76092
Patent Pending
Model XC-QL4

PRODUCTS & ACCESSORIES
12V Xtreme Charger w/Pulse Maintenance
Ideally suited for AGM and Maintenance-Free
batteries. Increases the duty
and life cycle of all 12V
batteries up to five
times longer.
Part #: 100X010
Model: XC-100-P
Quick Mount Wall Bracket
Part #: 100X808
Model: XC-QM
Full Enclosure Wall Bracket
Part #: 100X810
Model: XC-BKT
12V 2-Channel Charger w/Pulse Maintenance
Double the charging capabilities
of the popular XC-100-P
Xtreme Charge® 12V
Battery Charger. Each
station charges at a 2.5 A
(5 A effective) charge rate
at over 14.8V.
Part # 100X200
Model: X2
QuadLink™ 4-Channel Battery Charger Multiplier
Turns any 6/12V battery charger
(using the standard 2-prong
output connector) into a
4-station maintenance charger.
Part # 100X004
Model: XC-QL4
Battery Lead with Clips
This 7.5-amp fuse-protected cable is
supplied with a quick-disconnect
terminal. Lead is 2 feet long.
Part #: 100X827
Model: XC-CLIPS
“Leave-On” Battery Lead with Lugs
Xtreme Charge® 7.5-amp fuse-protected cable
comes with a quick-disconnect terminal.
Lead is 2 feet long.
Part #: 100X830
Model: XC-LUGS
5' and 25' Extension Lead
Extend a standard lead by 5 or 25 feet with these
extensions. They feature quick-disconnect
terminals on both ends. Lead is 5 feet
or 25 feet long.
Part #: 100X805
Model: XC-EXT-5
Part #: 100X825
Model: XC-EXT-25
Quick Battery Tester
Assess your 12V battery’s state of charge
quickly with this pocket-sized tester.
It will be the most used tester in shops,
garages and any areas where battery
checks are performed.
Part #: 100X822
Model: XC-822-TEST
TO PURCHASE ANY OF THESE ITEMS, VISIT WWW.PULSETECH.NET
998XM104 04/11
