Quadra-Fire QV36DB-A User manual

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 1
Model:
QV36DB-A
Owner’s Manual
Installation and Operation
• Donotstoreorusegasolineorotherflamma-
blevapors and liquidsin the vicinityof this or
anyotherappliance.
• What to do if you smell gas
- Donottry to lightanyappliance
- Do not touch any electrical switch. Do not
useanyphoneinyourbuilding.
- Immediately call your gas supplier from a
neighbor’sphone.Followthegassupplier’s
instructions.
- If you cannot reach your gas supplier, call
thefiredepartment.
• Installationandservicemustbeperformedby
aqualifiedinstaller,serviceagency,orthegas
supplier.
WARNING: Iftheinformationinthese
instructionsis not followed exactly, afire
or explosion may result causing proper-
ty damage, personal injury, or death.
HOTSURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
•DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
WARNING
• CAREFULLYSUPERVISEchildreninsame roomasfireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
DO NOT DISCARD THIS MANUAL
CAUTION
Important operating
and maintenance
instructions included.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must
be installed in accordance with the manufacturer’s instruc-
tions and the manufactured home construction and safety
standard, Title 24 CFR, Part 3280 or Standard for Installa-
tion in Mobile Homes, CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indi-
cated on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
TechnologiessuggestsNFIcertified or factory-trained
professionals, or technicians supervised by an NFI
certified professional.
•• •
In the Commonwealth of Massachusetts installation must
be performed by a licensed plumber or gas fitter.
See Table of Contents for location of additional
Commonwealth of Massachusetts requirements.
Read, understand and follow
these instructions for safe
installation and operation.
Leave this manual with
party responsible for
use and operation.
Í
DO NODO NO
DO NODO NO
DO NOTT
TT
T
DISCARDDISCARD
DISCARDDISCARD
DISCARD
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
!

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 3
TABLE OF CONTENTS
Safety and Warning Information ................................................ 2
Service Parts Lists ..................................................................... 4
Section 1: Approvals and Codes............................................... 7
ApplianceCertification................................................................... 7
Installation Codes.......................................................................... 7
HighAltitude Installations............................................................... 7
Section 2: Getting Started ......................................................... 8
Introducing the Quadra-Fire Gas Fireplaces................................. 8
Pre-installationPreparation ........................................................... 8
Section 3: Installing the Fireplace .......................................... 10
Constructing the Fireplace Chase .............................................. 10
Step 1 Locating the Fireplace ................................................. 10
Step 2 Framing the Fireplace...................................................11
Step 3 Installing the Vent System............................................ 13
A. Vent SystemApprovals........................................... 13
B. Installing Vent Components.................................... 20
C. Vent Termination .................................................... 23
Step 4 Positioning, Leveling,and
Securing the Fireplace................................................. 26
Step 5 The Gas Control System............................................. 26
Step 6 The Gas Supply Line ................................................... 27
Step 7 Gas Pressure Requirements ...................................... 27
Step 8 Wiring the Fireplace .................................................... 28
Step 9 Finishing ...................................................................... 29
Step 10 Installing Trim, Logs, and Ember Material.................... 30
Installing theTrim......................................................... 30
Refractory Kit Placement .............................................. 30
Positioning the Logs .................................................... 31
Shutter Settings........................................................... 31
Placing the Ember Material.......................................... 31
Glass Specifications ..................................................... 31
Step 11 Before Lighting the Fireplace ....................................... 31
Step 12 LightingtheAppliance .................................................. 32
Step 13 Climate Control............................................................ 33
After theInstallation ..................................................................... 33
Section 4: Maintaining and Servicing Your Fireplace. ........ 33
Section 5: Troubleshooting. ................................................... 34
Limited Lifetime Warranty. ....................................................... 36
Contact Information..................................................................... 37
Î= Containsupdatedinformation.
Î
Î

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
4
Part number list on following page.
Log Set Assembly
Service Parts QV36DB-A
Beginning Manufacturing Date: June 2003
Ending Manufacturing Date: ______
Service Parts Diagram
6
7
8
9
10
11
12 14
13
35
4
2
1
Î

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 5
Service Parts List QV36DB-A
Pilot Orifice LP 446-517 Y
Additional service part numbers appear on following page.
ITEM DESCRIPTION SERIAL # PART NUMBER
Log Set Assembly LOGS-2018 Y
1Log1 SRV2018-701 N
2Log2 SRV385-736 N
3Log3 SRV278-704 N
4Log4 SRV2018-704 N
5Log5 SRV780-707 N
6 Non Combustible board 385-401 N
7 Refractory Kit (Sold as set only) BRICK-292 N
8 Log Grate 2018-001 N
9 Andirons, Cast 80784 N
10 Base Refractory NG, LP 2018-100 N
11 Surround 2026-108 N
12 Glass Door Assembly GLA-6TRXI Y
13 Burner 2018-005 Y
14 Junction Box 4021-013 Y
Mesh Mesh -6000 Y
Glass Latch Assembly 386-122A Y
Exhaust Restrictor 2027-102 N
Pilot Tube SRV485-301 Y
Thermocouple 446-511 Y
Thermopile 060-512 Y
Lava Rock Bag 060-721 N
Mineral Wool 050-721 N
Gasket Assembly
Includes: Vent, Seal Cap, Burner Neck, Shutter
Bracket, and Valve Plate Gaskets
Touch Up Paint TUP-GBK-12 N
Conversion Kit NG NGK-2018 Y
Conversion Kit LP LPK-2018 Y
Regulator NG 060-518 Y
Regulator LP 060-519 Y
Pilot Orifice NG 446-505 Y
IMPORTANT: THIS IS DATED INFORMATION. When Requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer. Stocked
at Depot
N385-402A
Î

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

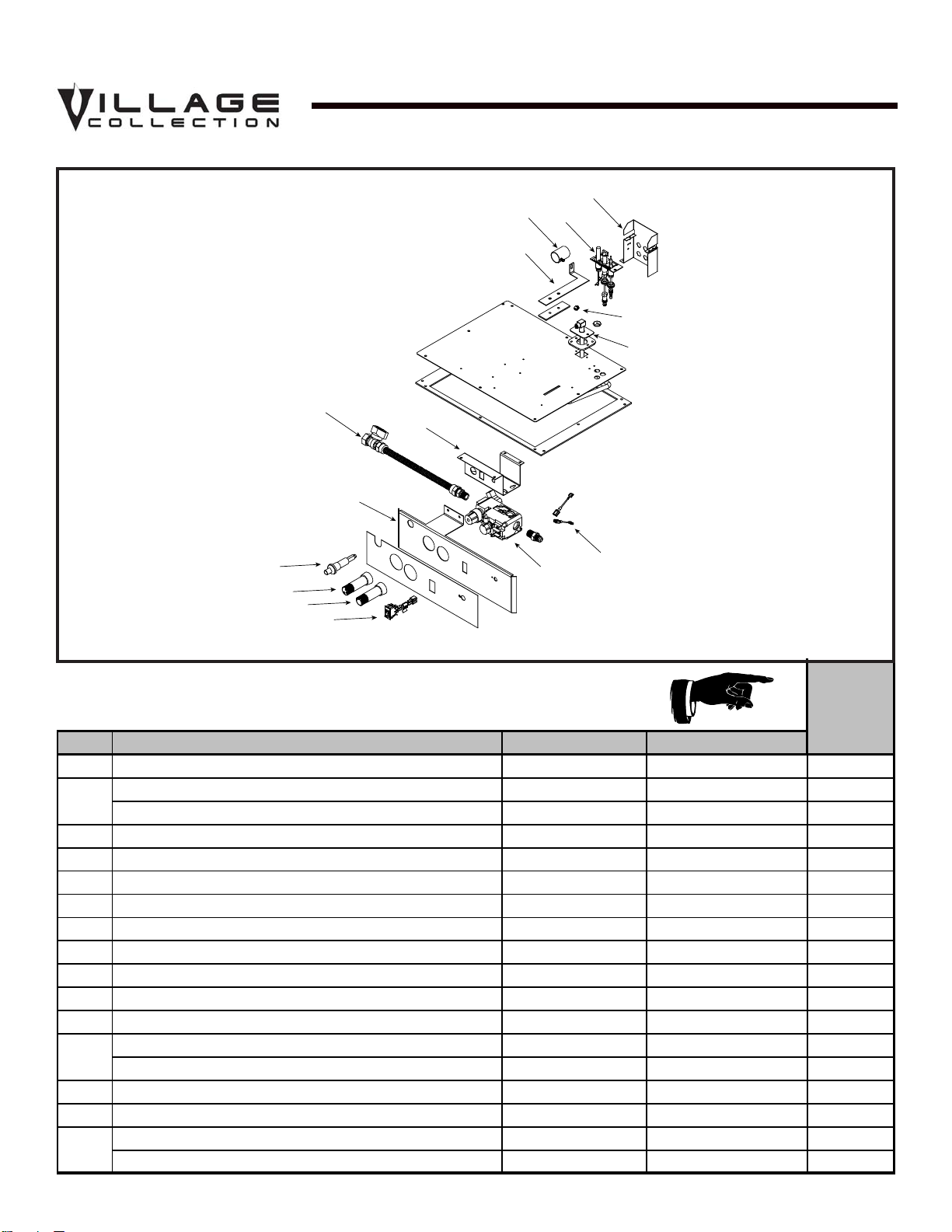

Valve Assembly Diagram
Service Parts QV36DB-A
Beginning Manufacturing Date: June 2003
Ending Manufacturing Date: ______
Standing Pilot Ignition
ValveAssembly
ITEM DESCRIPTION SERIAL # PART NUMBER
1 Pilot Bracket 2018-107 N
Pilot Assembly NG 530-510A Y
Pilot Assembly LP 530-511A Y
3 Shutter Assembly 319-316A Y
4 Shutter Bracket Assembly 2026-017 Y
5 Valve Bracket 550-169 N
6Flex Ball Valve Assembly 302-320A Y
7 Control Panel 295-119 N
8Piezo Ignitor 291-513 Y
9 Pilot Control Knob 571-530 Y
10 Flame Control Knob 571-531 Y
11 ON/OFF Rocker Switch 060-521A Y
Valve NG 060-522 Y
Valve LP 060-523 Y
13 Wire Assembly 049-552A Y
14 Flexible Gas Connector 383-302A Y
Orifice NG (3.1 MM) 582-8310 Y
Orifice LP ( 1.8 MM) 582-818 Y
15
12
2
Stocked
at Depot
IMPORTANT: THIS IS DATED INFORMATION. When Requesting service or
replacement parts for your appliance please provide model number and serial number.
All parts listed in this manual may be ordered from an authorized dealer.
Î

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 7
Appliance Certification
The fireplacemodeldiscussedinthisInstallers Guide has
been tested to certification standards and listed by the
applicablelaboratories.
Certification
MODEL: QV36DB-A
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSIZ21.88-2000•CSA2.33-M98•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Inthe absenceof localcodes,the fireplaceinstallationmust
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates)or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric CodeANSI/NFPANo. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
This model may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
1Approvals and
Codes
HighAltitude Installations
U.L. Listed gas appliances are tested and approved with-
outrequiringchangesforelevationsfrom0to2,000feetin
the U. S.A. and in Canada.
Wheninstallingthisapplianceat an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changingtheexistingburnerorificeto a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000 and4500 feetin Canada.Iftheheatingvalue
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
Ifinstalling this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
8
2Getting Started
Introducing the Village Collection Gas
Fireplaces
Quadra-Firedirectvent gas fireplaces are designed to op-
erate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
notedotherwise, applies to all models and gas control sys-
tems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-installation Preparation
Thisgas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Reportto your dealer any parts damaged inshipment,par-
ticularlythe condition of the glass. Do not install any unit
with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
The Hearth & Home Technologies Warranty will be voided
by, and Hearth & Home Technologies disclaims any
responsibilityfor, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/or use ofanycomponent part notmanu-
facturedand approved by Hearth&HomeTechnologies,
not withstanding any independent testing laboratory or
other party approval of such component part or acces-
sory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•Thevent system configuration to be used.
•Gas supply piping.
•Electricalwiring.
•Framingandfinishingdetails.
•Whether optional accessories—devices such as a fan,
wallswitch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplaceshould be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 9
Figure 1. Diagram of the QV36DB-A
41 1/8
[1044mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
8 5/8
[219mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
8 5/8 [219mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]
TOP
STANDOFFS
HOOD
ELECTRICAL
ACCESS
GAS
CONTROLS
RATING
PLATE AND
LABELS
GAS
LINE
ACCESS -

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
10
3Installing the Fireplace
Step 1. Locating the Fireplace
Thefollowing diagramshows spaceandclearance require-
ments for locating a fireplace within a room.
ABCD E
42” 22” 36” 51” 72”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front........................ 36 .................... 914
Floor ................................... 0 ....................... 0
Rear ...................................1/2 ..................... 13
Sides .................................1/2 ..................... 13
SurroundSides*.................. 0 ....................... 0
Top................................... 3 1/2 ................... 89
Ceiling**............................. 31 .................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ............. 1 ................ 25
Horizontal Sections
Top..................................... 3 ................ 75
Bottom ............................... 1 ................ 25
Sides ................................. 1 ................ 25
At Wall Firestops
Top.................................. 2 1/2 ............63.7
Bottom ..............................1/2............... 13
Sides ................................. 1 ................ 25
* See Figure 3.
**Theclearancetotheceilingismeasuredfromthetop
of the unit, excluding the standoffs (see Figure 36).
Thedistance from the unit to combustibleconstruction
is to be measured from the unit outer wrap surface to
thecombustibleconstruction,NOTfromthescrewheads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearancediagrams (see Figures 30 and31).
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimum clearance toaperpendicularwall
extendingpast theface of thefireplace isoneinch (25mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/or itsvent system. Vertical ventsthat run
ontheoutside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OFFIRESTOPSPACERSAND
CONSTRUCTIONOFTHE CHASEMAYVARYWITHTHE
TYPEOFBUILDING. THESE INSTRUCTIONSARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES. THEREFORE,YOUR LOCALBUILD-
INGCODESMUST BE CHECKED TO DETERMINE THE
REQUIREMENTSFOR THESE STEPS.
Factory-builtfireplace chasesshouldbe constructed inthe
manner of all outside walls of the home to prevent cold air
draftingproblems. The chase should notbreakthe outside
buildingenvelope inany manner.
This means that the walls, ceiling, base plate and cantile-
ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home. Additionally, we
recommend that the inside surfaces be sheetrocked and
taped for maximum air tightness.
Tofurther preventdrafts, the firestopsshould be caulkedto
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywoodbeplaced underneath to prevent conducting cold
up into the room.
THECHASESHOULD BE CONSTRUCTED SO THATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 11
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ............. 42”*
B. .........38 1/2”
C. ............... 22”
D. .........42 3/4”
E. .........27 7/8”

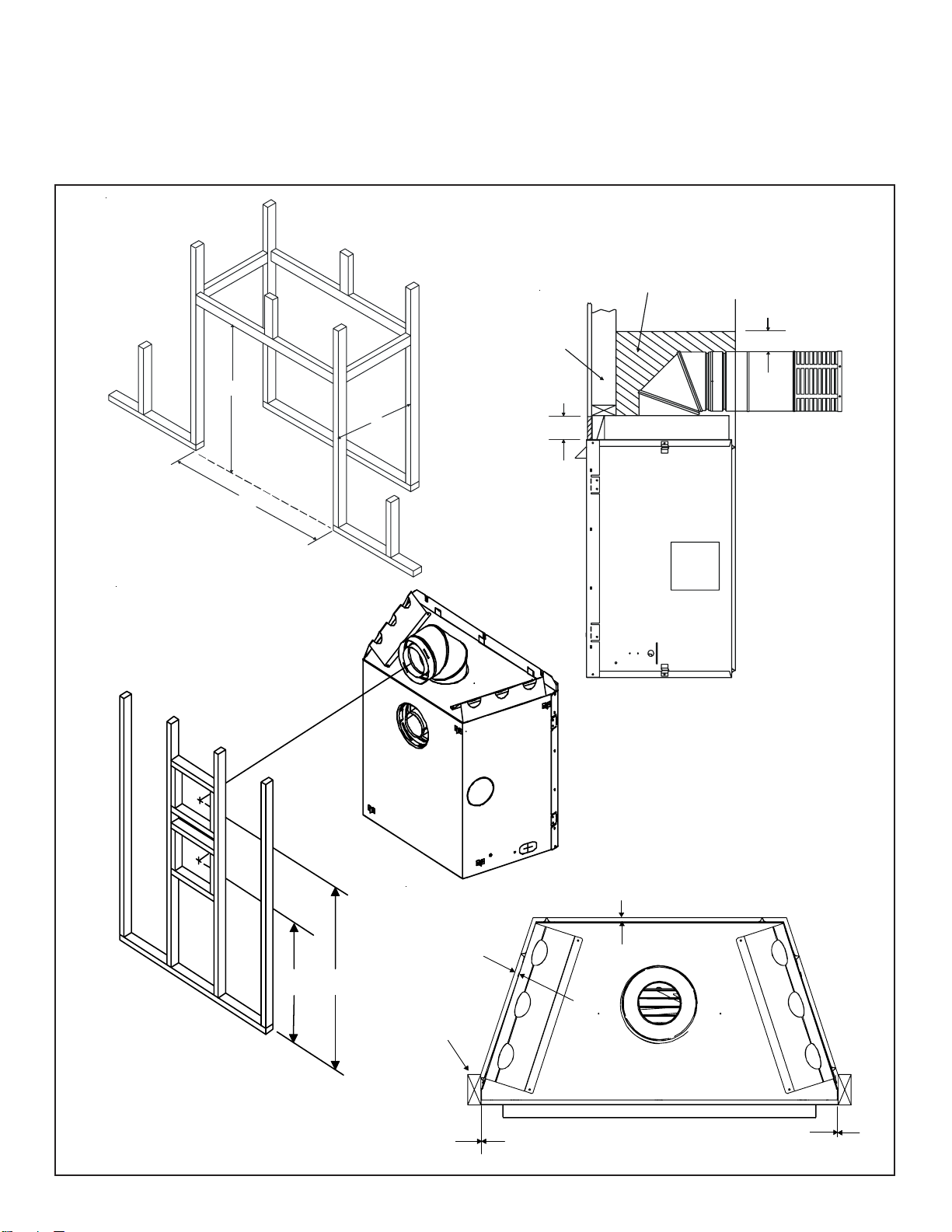

Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplaceframing canbebuilt beforeorafter thefireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelow showsframingreference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Shows
center of 10” x
12” vent framing
holes for top and rear
venting. The center of the
hole is one (1) inch (25.4mm)
above the center of the horizontal
vent pipe.
Noncombustible zone is defined
by 3” above the elbow for the
entire width and depth (behind
the front header) of the firebox.
E D
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
A
B
C
WALL
STUD
3 1/2”
3 ”

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
12

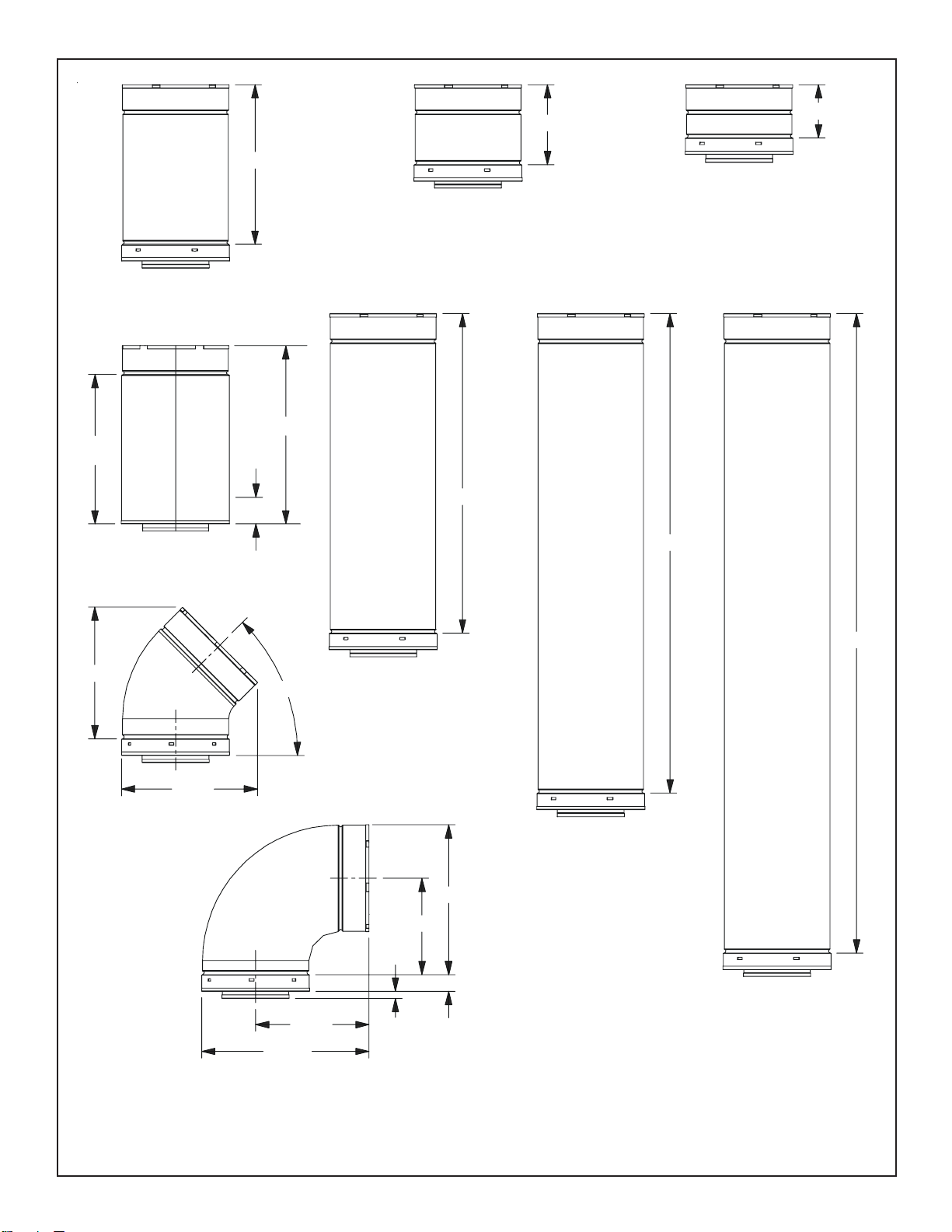

Figure 4. DVP-Series Direct Vent Component Specifications (5-inch inner pipe / 8-inch outer pipe)
NOTE: PIPESOVERLAP 1-1/4 INCHESAT EACH JOINT.
DVP90ST
12-9/16
11-1/4
7-1/4
1-1/4 TYP
1/2 TYP
8-9/16
DVP36
DVP48
48
24
36
4
6
DVP4
DVP6
12
DVP12
2
MIN.
DVP12A
12-3/16
MAX.
DVP24
9-7/8
45.0
O
10-1/4
DVP45
14-1/4

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 13
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thismodelisapprovedtouse DVP-series direct vent pipe
components and terminations (see Figures 4 and 5).Ap-
provedventsystemcomponents are labeled for identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosedwall. Thereis no requirementfor inspectionopen-
ingsateachjoint within the wall. There is no required pitch
forhorizontal vent runs. NO OTHER VENTING SYSTEMS
OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each
vent termination kit and should be used in conjunction
with this Installers Guide. The flame and ember appear-
ance may vary based on the type of fuel burned and the
venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionshipsofverticalrisetohorizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
risetorunrelationshipsareshown in the venting drawings
andtables.Refer tothediagramsonthe nextseveralpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel has vent startingcollarson both the topandthe
back of the unit. Depending upon the installation, decide
whichONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
Terminations Kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
PIPE LENGTH
CEILING
FIRESTOP
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
DVP-TVHW
DVP-TRAP DVP-TB1
(Required to have
a minimum of 3 feet
of vertical in the
vent system)
SERIES

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
14

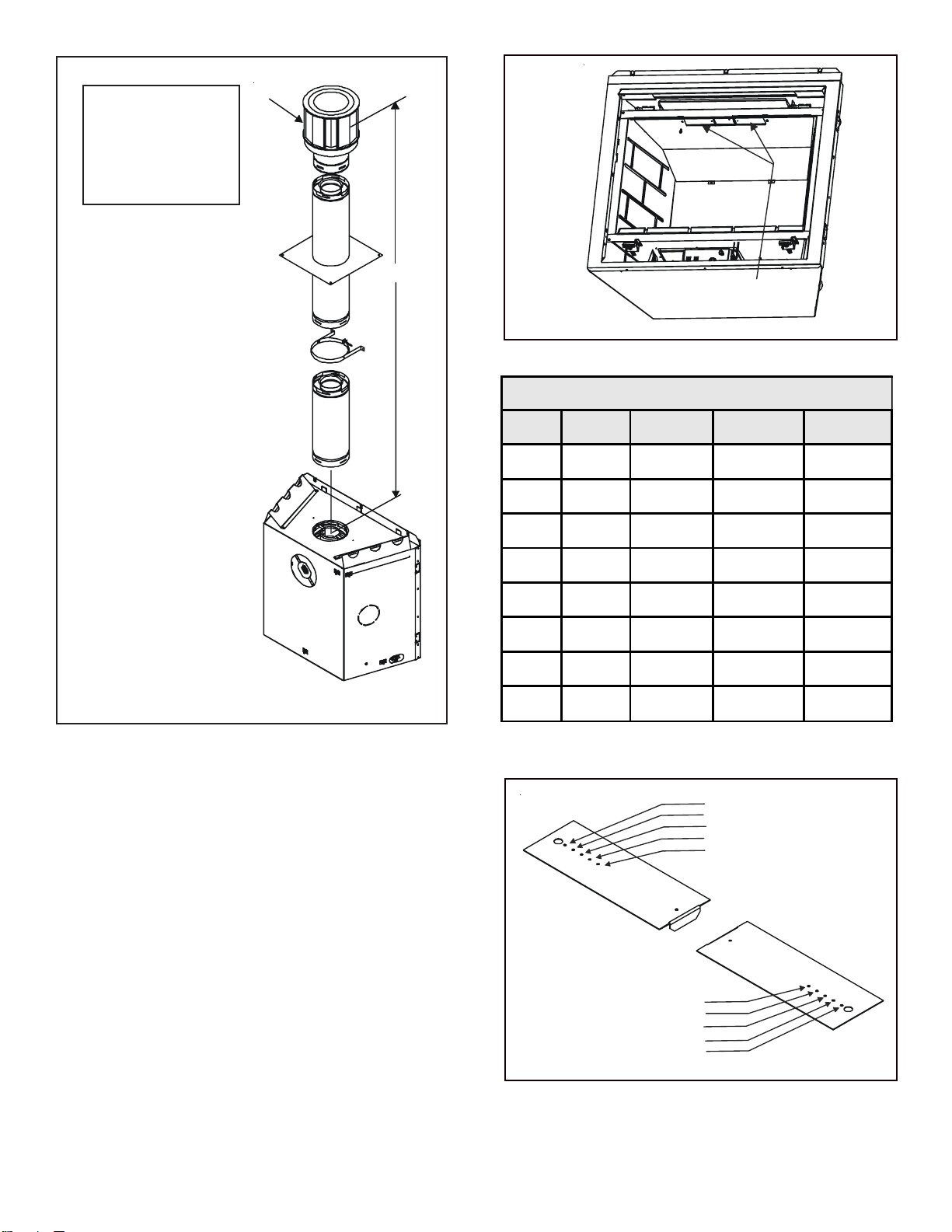

Figure 6.
Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)
Flue Restrictor Instructions
1. Remove screws with a 1/4 nut driver. Adjust to
desired position per table. See Flue Restricting
chart.
NOTE:Onverticalventing
configurations over 20
feetinstall theflue restric-
tor (2027-102). See flue
restrictor installation in-
structions.
CAP
V
Figure 7.
Figure 8
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4' 2-2 2-3 No
Restrictor No Restrictor
8' 3-3 2-3 2-2 No
Restrictor
15' 3-4 3-4 3-3 2-3
20' 4-4 3-4 3-4 3-4
25' 4-4 3-4 3-4 3-4
30' 4-4 4-4 4-4 3-4
35' 4-4 4-4 4-4 3-4
40' 4-5 4-4 4-4 4-4
ADJUSTABLE FLUE
RESTRICTORS (2)
Adjustable Flue Restrictor (see Figure 8).
5
4
3
2
1
1
2
3
4
5

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 15
HORIZONTALVENTING
KitNo. H Max. Run
DVP-TRAP 24" (610 mm)

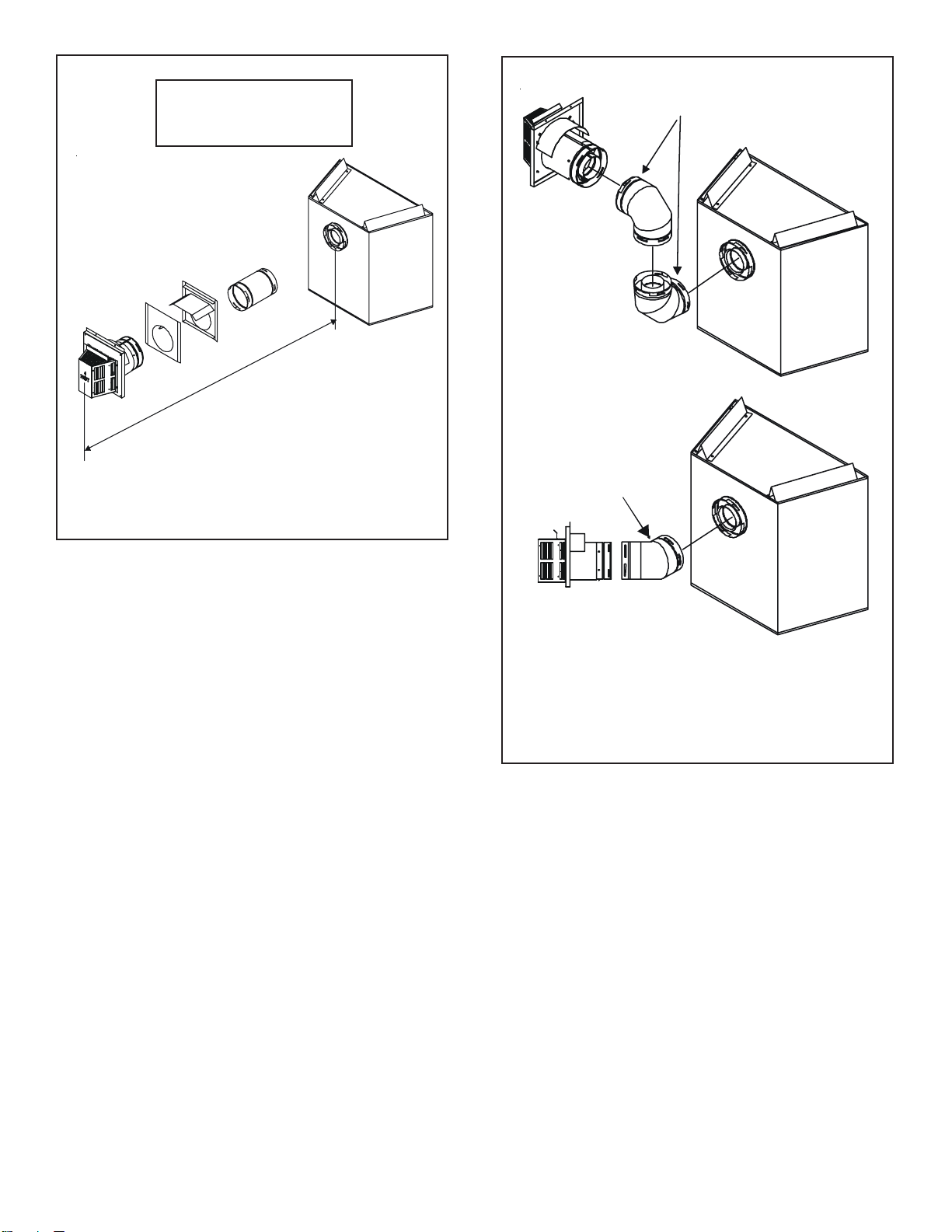

Figure 10. Corner Installation
NOTE: This model is tested and approved to use
45° elbows in corner installations. However, 90°
elbows will result in better performance.
Figure 9. Horizontal Installation
90-DEGREE
ELBOWS
45-DEGREE
ELBOW
H

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
16
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE:Onvertical ventingconfigurationswhere
the vertical component is over 10 feet install
the vertical baffle included in the manual bag
assemblyto improve flame appearance.
Figure 11. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 12. Venting with One 90° Elbow
NOTE: If a 90oelbow is
first attached to the unit,
themaximum horizontal
runis 3-feet (914mm).
NOTE: Forcorner installations:A6-inch(152mm)
section of straight pipe may need to be attached to
thefireplacebefore a 90o elbow, to allow the vent
pipe to clear the top standoffs.
V
H
H
V
H
V

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 17

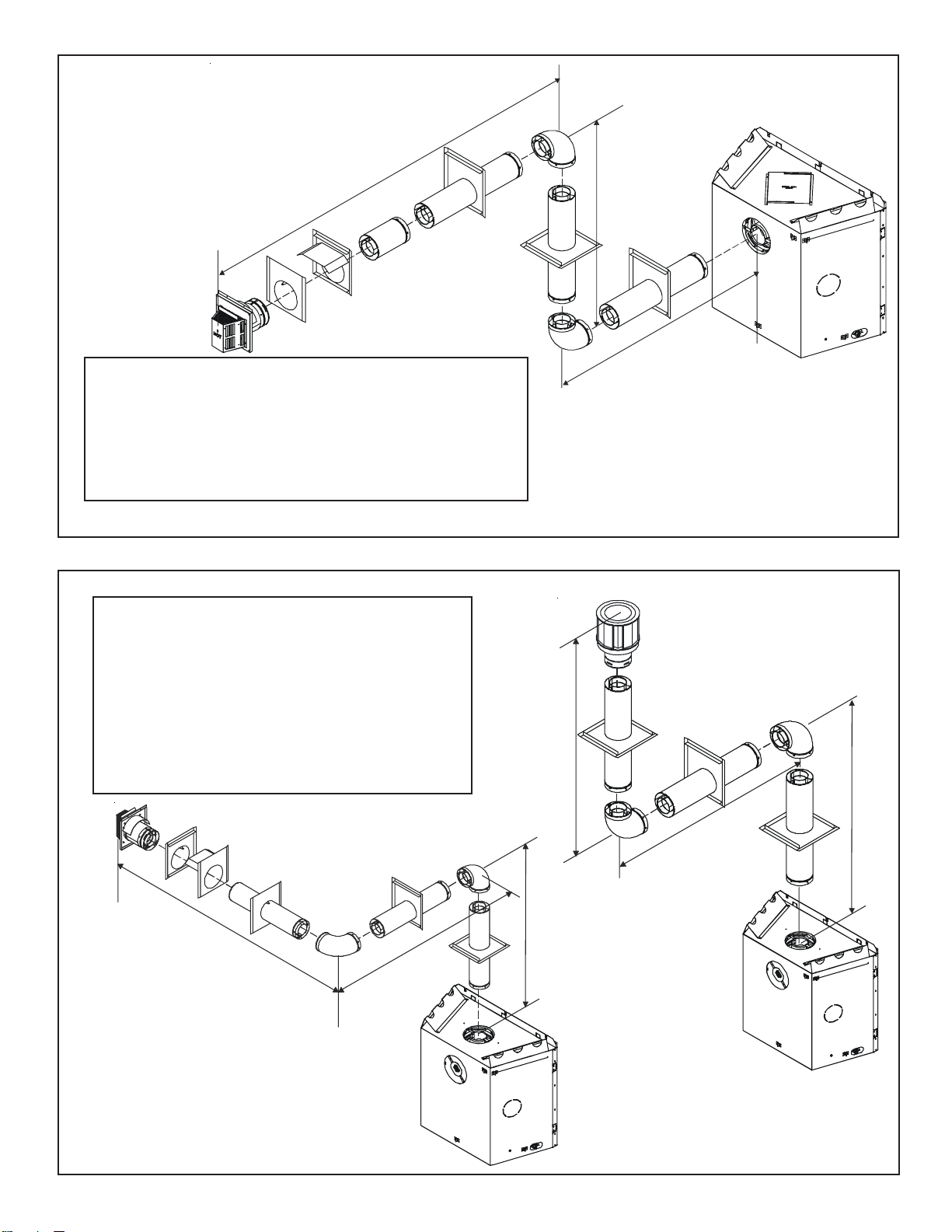

Figure 13. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 =40´ MAX.(12.4m) H =8´MAX. (2.48 m) H+H
1
=20´MAX.(6.2m)
Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´MAX. (3.1m)
3' MIN. (914mm) 15´MAX. (4.65m)
4' MIN. (1.22m) 20´MAX. (6.2m)
V+H+H1=40' MAX.(12.4m) H+H
1
= 20´ MAX.(6.2m)
V+V1+H=40'MAX.(12.4m)
H
1
V
H
V
V
1
H
H
1
H
V

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
18

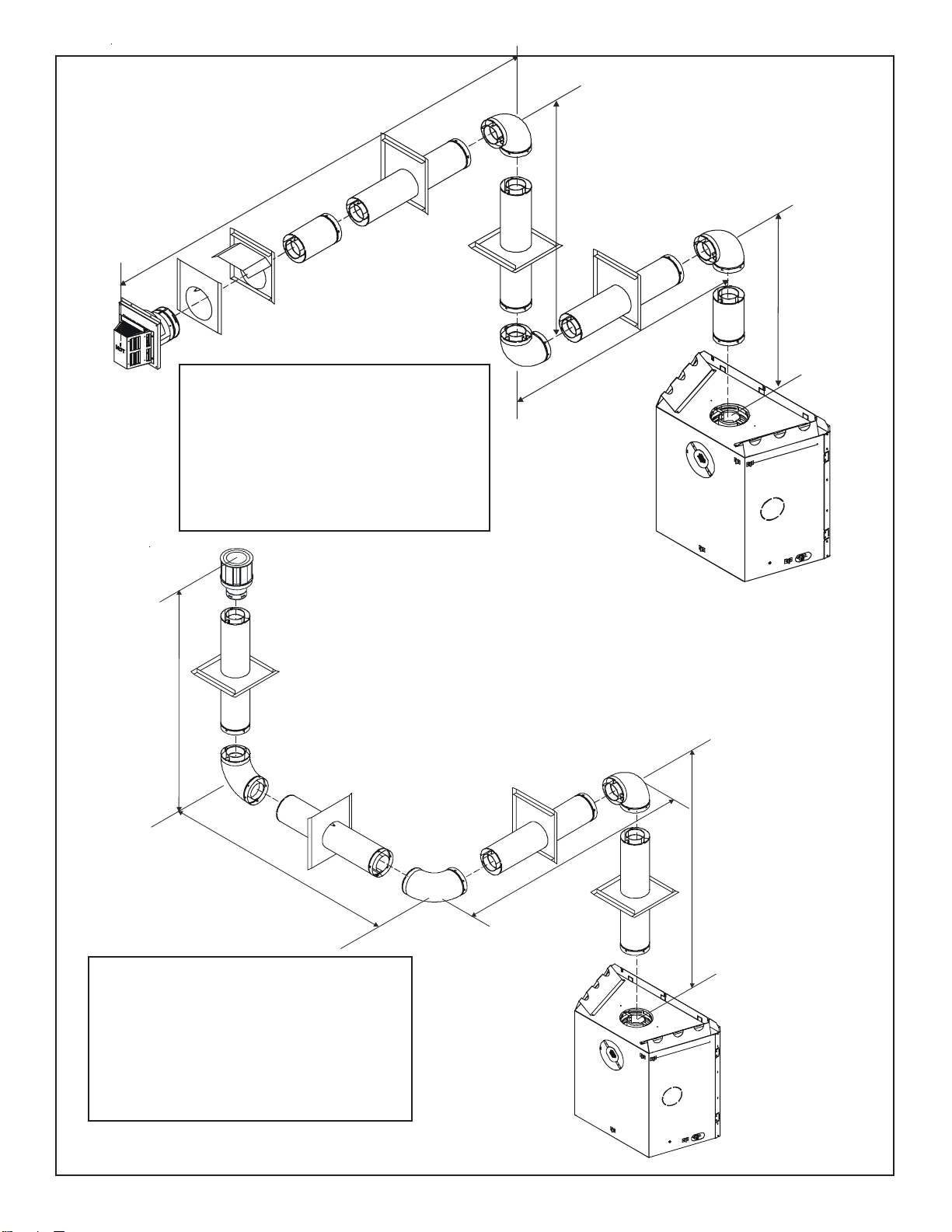

Figure 15. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V H H + H1 + H2
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
H
V
H
1
V
1
H
H
1
H
2
V

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 19
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15'MAX.(4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX.(1.52m)
2' MIN.(610mm) 10' MAX.(3.1m)
3' MIN.(914mm) 15' MAX.(4.65m)
4' MIN.(1.22m) 20' MAX.(6.2m)
H+H1= 20' MAX. (6.2m)
NOTE:V+V1+H+H1=40'MAX.(12.4m)
Figure 16. Venting with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1

Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07
20

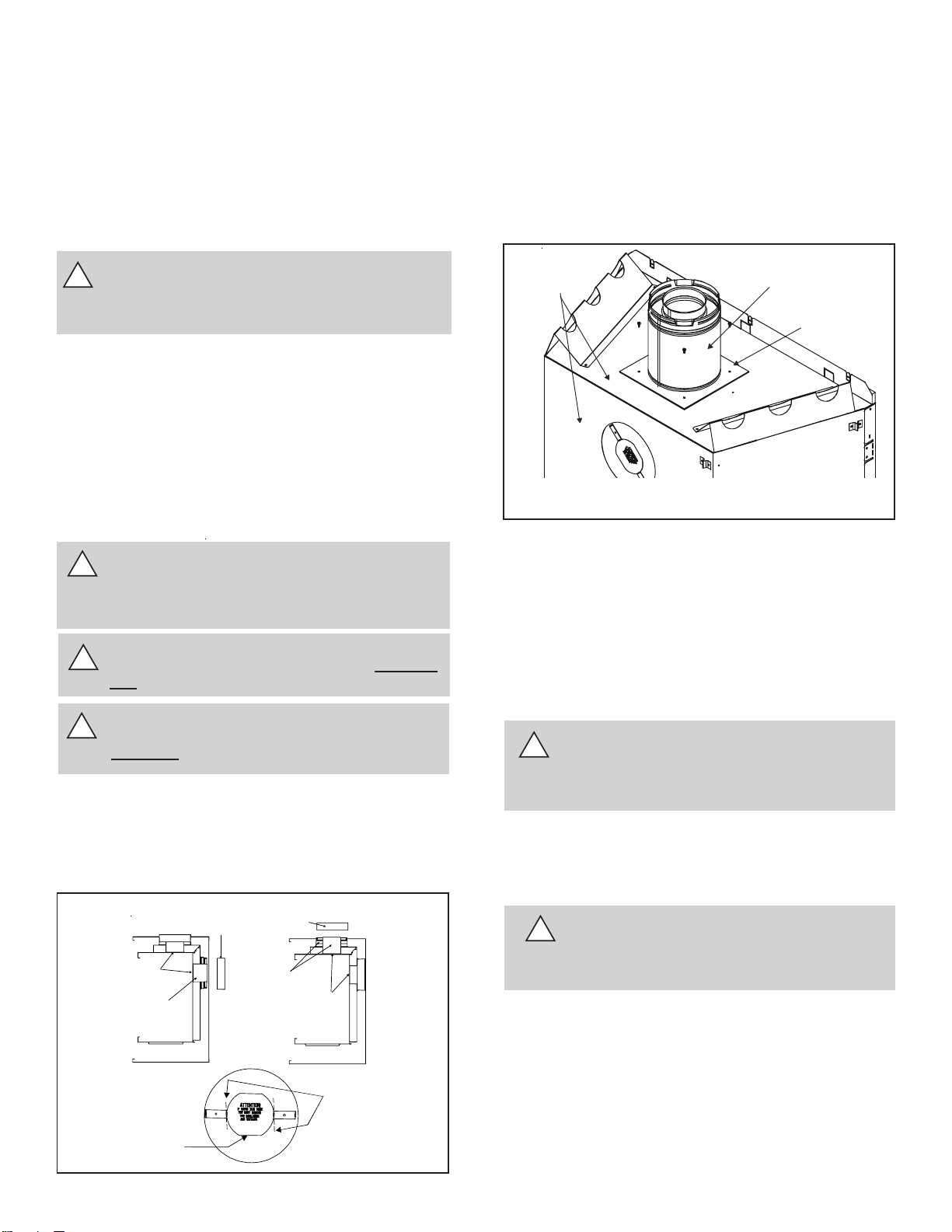

Figure 17.
B. Installing Vent Components
After determining which set of starting collars will be used
(toporrear),followventinginstructionsaccordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (see Figure 17).
Followtheventconfiguration tables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING:THETOPHEATSHIELD (INSIDE THE
FIREBOX) MUST REMAIN ATTACHED IF THE
VENT SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 17.
Venting Out the Top Vent
Removethetwoscrewsinthetopventcollarsealcapand
remove the top vent collar seal cap and the two pieces of
insulationinsidethetoptwo startingcollars (SeeFigure 17).
Remove the heat shield from inside the TOP five inch flue
fromoutsideof the firebox.
Youhaveto takethe glass offagain for positioningthelogs
whentheunitisfinallyinstalled inplace andfinished around
it. Re-install the glass door. Attach vent system to the top
starting collars.
WARNING: FAILURE TO REMOVE INSULA-
TION IN THE SET OF COLLARS YOU ARE US-
ING COULD CAUSE A FIRE.
WARNING: THE REAR VENT COLLAR SEAL
CAPMUSTREMAINATTACHED TOTHEREAR
VENTCOLLARSIFTHE VENT SYSTEM ISATTACHED
TOTHE TOPSTARTINGCOLLARS. SEE FIGURE 18.
WARNING: YOU MUST LEAVE THE INSULA-
TIONINPLACEIN THE SETOFCOLLARSYOU
ARE NOT USING.
If your vertical vent component is over 10 feet, you may
want to install the included vertical baffle to improve flame
appearance.Verticalbaffle is located in the bag containing
theinstruction manual. Center the vertical baffleonthe five
inch flue being used, and with self tapping screws secure
the baffle to the inside of the firebox.
!
!
!
!
Cut the seal cap
strapandremove white
gasketmaterial.
CUT
HERE
Venting Out Rear Venting Out Top
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars of
thefireplace:
• Make sure that the fiberglass gasket supplied in the
manual bag seals between the first 8 inch (203mm)
vent component and the outer fireplace wrap. Using 2
self-tapping screws from the manual bag secure that
gasket to the outer wrap (see Figure 18).
Figure 18. Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP
DVP PIPE:
2. Assembling Vent Sections
Refer to Cinch Pipe and Termination Cap installation in-
structions.
1. Attaching the Venting to the Fireplace
Refer to Cinch Pipe and Termination Cap installation in-
structions.
!
WARNING: ENSURE THATTHE FIBERGLASS
GASKET SUPPLIED WITH THE FIREPLACE
SEALS BETWEEN THE FIRST VENT COMPONENT
ANDTHEOUTERFIREPLACEWRAP.
If the installation is for a termination cap attached directly
tothe fireplace, skip to the sections, Install Firestops and
Vent Termination.
3. Continue Adding Vent Components
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRES THE USE OF A HEAT
SHIELD ABOVE THE FIRST 900ELBOW IN THE
VENTING SYSTEM.
!
