Quadra-Fire MTVI-E2-MBK User manual

1 7082-131J August 3, 2015
MT. VERNON E2 INSERT
PELLET STOVE
Model(s):
MTVI-E2-MBK
MTVI-E2-CSB
MTVI-E2-PMH
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney con-
nector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
WARNING
Please read this entire manual before installation and use of this
pellet fuel-burning room heater. Failure to follow these instructions
could result in property damage, bodily injury or even death.
061-S-84-2
CAUTION
Tested and approved for wood pellets and shelled
corn only. Burning of any other type of fuel voids your
warranty.
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
00Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
NOTE
A 2:1 mix of pellets to corn is approved, but may require the
firepot to be cleaned more frequently. CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fire officials or authorities having juris-
diction about restrictions, installation inspection, and permits.

2 7082-131J August 3, 2015
MT VERNON E2 INSERT
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1 Important Safety Information.............3
A. Appliance Certification......................................................3
B. BTU & Efficiency Specifications........................................3
C. Glass Specifications.........................................................3
D. Electrical Rating................................................................3
E. Mobile Home Approved ....................................................3
F. Non-Combustible Materials................................................3
G. Combustible Materials.......................................................3
2 Getting Started....................................4
A . Design, Installation & Location Considerations ..........................4
B. Tools And Supplies Needed...............................................5
C. Inspect Appliance and Components .................................5
D. Install Checklist..................................................................6
3 Dimensions and Clearances..............7
A. Appliance Dimensions ......................................................7
B. Clearance To Combustibles, US & Canada.......................8
C. Masonry & Zero Clearance Fireplaces.............................9
D. Floor Protection................................................................9
E. Minimum Opening for Masonry & Zero Clearance
Fireplaces..........................................................................9
F. Installation into a Factory-Built Fireplace...........................10
G. Installation into a Masonry Fireplace................................11
H. Prefabricated Metal Chimney...........................................11
4 Vent Information................................12
A. Venting Termination Minimum Requirements...................12
B. Avoiding Smoke and Odors...............................................13
C. Negative Pressure............................................................14
D. Draft..................................................................................14
E. Chimney and Exhaust Connection ..................................14
F. Equivalent Feet of Pipe ....................................................15
G. Pipe Selection Chart ........................................................15
5 Venting Systems...............................16
A. Full Reline With Outside Air - Horizontal ..........................16
B. Full Reline With Outside Air - Vertical ..............................17
6 Appliance Set-Up..............................18
A. Leveling System ................................................................18
B. Outside Air Kit Instructions ................................................18
C. Hearth Support..................................................................18
D. Removal of Cast Sides......................................................19
E. Surround and Trim Set - Cast............................................19
F. Surround & Trim Set, Basic................................................20
G. Optional Log Set Placement Instructions..........................20
H. Programmable Wall Thermostat Installation......................21
I. Power Cord........................................................................22
J. Trim Adjustment..................................................................23
7 Mobile Home Installation..................24
8 Accessory List ..................................25

August 3, 2015 7082-131J 3
MT VERNON E2 INSERT
The Quadra-Fire Mt. Vernon E2 Pellet Insert meets the U.S. Envi-
ronmental Protection Agency’s emission limits for pellet inserts
sold after May 15, 2015.
This pellet insert needs periodic inspection and repair for proper
operation.It isagainst federalregulations tooperate thispellet insert
in a manner inconsistent with operating instructions in this manual.
EPA Certification #: 984-15
EPA Certified Emissions: 0.5 grams per hour
*LHV Tested Efficiency: 81.6 %
**HHV Tested Efficiency: 75.5* %
***EPA BTU Output: 13,900 to 42,200 / hr.
****BTU Input: 18,100 to 55,000 / hr.
Vent Size: 3 or 4 inches, “L” or “PL”
Hopper Capacity: 52 lbs.
Fuel Wood Pellets
* Weighted average LHV efficiency using data collected during
EPA emissions test.
**Weighted average HHV efficiency using data collected during
EPA emissions test.
***A range of BTU outputs based on EPA Default Efficiency and
the burn rates from the low and high EPA tests.
****Based on the maximum feed rate per hour multiplied by
approximately 8600 BTU’s which is the average BTU’s from a
pound of pellets.
1 Important Safety Information
NOTE: Hearth & Home Technologies, manufacturer of this appli-
ance, reserves the right to alter its products, their specifications
and/or price without notice.
Improperinstallation, adjustment,alteration, serviceor maintenance
can cause injury or property damage.
Forassistance or additionalinformation, consulta qualifiedinstaller,
service agency or your dealer.
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved by
Hearth & Home Technologies.
• Operating appliance without fully assembling all components.
• Operatingappliance withoutlegs attached(if suppliedwithunit).
• Do NOT Overfire - If appliance or chimney connector glows,
you are overfiring.
Any such action that may cause a fire hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
C. Glass Specifications
This stove is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
D. Electrical Rating
115 VAC, 60 Hz, Start 2.9 Amps, Run 2.45 Amps
Model Mt. Vernon Insert Pellet Stove E2
Laboratory OMNI Test Laboratories, Inc.
Report No. 061-S-84-2
Type Solid Fuel Room Heater, Pellet and
Shelled Corn Fuel Burning Type
Standard ASTM E1509-12, ULC-S628-93 and
(UM) 84-HUD, Mobile Home Approved.
FCC Complies with Part 15 of FCC Rules.
Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
A. Appliance Certification
NOTICE: This installation must conform with local codes. In
the absence of local codes you must comply with the ASTM
E1509-12, ULC S628-93, (UM) 84-HUD and ULC/ORD-
C-1482.
B. BTU & Efficiency Specifications
E. Mobile Home Approved
• This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside
combustion air inlet is provided.
• The structural integrity of the mobile home floor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home and use only Listed pellet vent Class “L”
or “PL” connector pipe.
• Outside Air Kit (OAK-3) must be installed in a mobile
home installation.
F. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel - Plaster
- Brick - Iron
- Concrete - Tile
- Glass - Slate
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750° C.
G. Combustible Materials
Material made of/or surfaced with any of the following
materials:
- Wood - Compressed Paper
- Plant Fibers - Plastic
- Plywood/OSB - Sheet Rock (drywall)
Any material that can ignite and burn: flame proofed or not,
plastered or un-plastered.

4 7082-131J August 3, 2015
MT VERNON E2 INSERT Install Guide
2 Getting Started

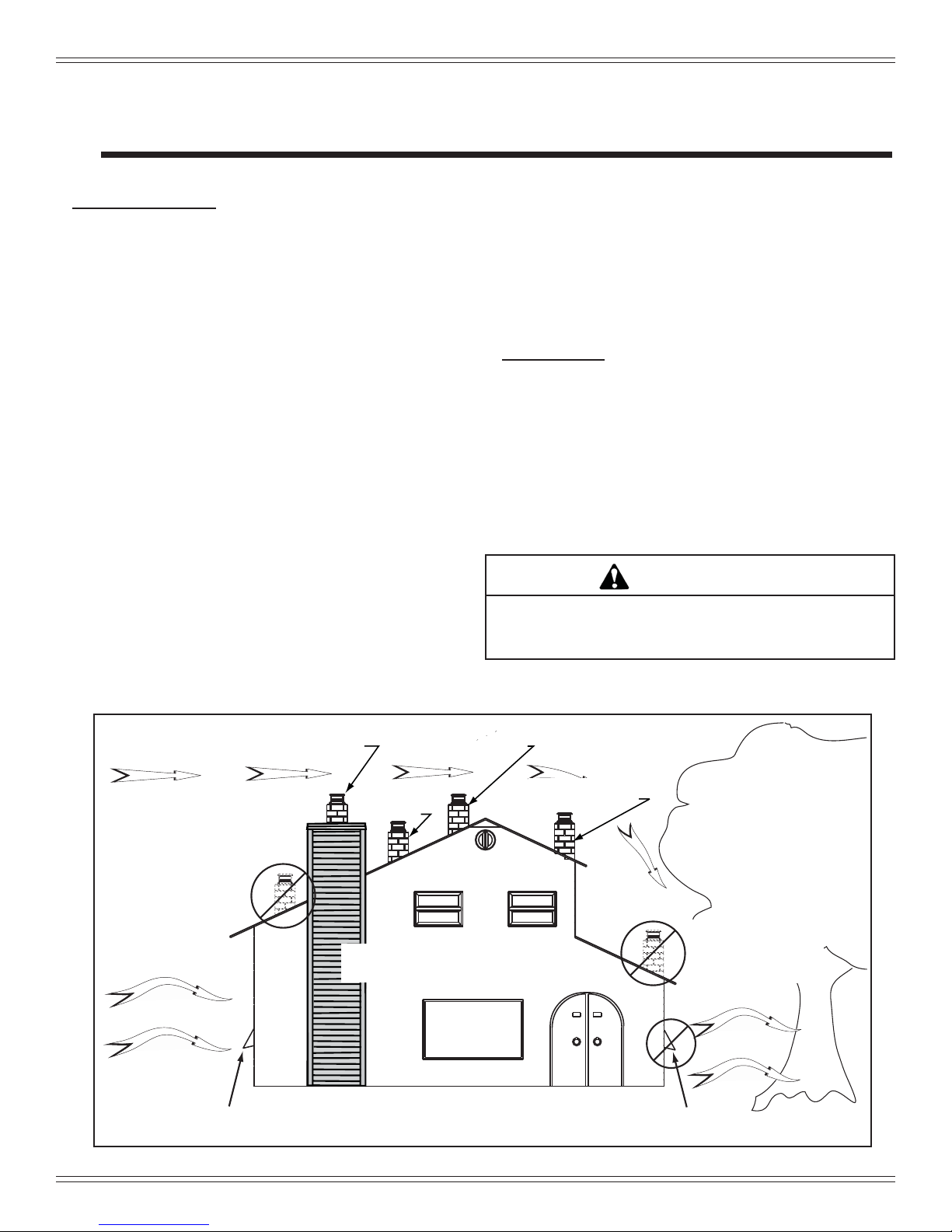

Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended:
Outside Air Intake
on windward side
NOT recommended:
Outside Air Intake
on leeward side
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible
Figure 4.1
A . Design, Installation & Location Considerations
1. Appliance Location
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, fire
officials or authorities having jurisdiction over restrictions,
installation inspection and permits.
Itis a good ideato planyour installationon paper, using exact
measurements for clearances and floor protection, before
actually beginning the installation. Location of the appliance
and chimney will affect performance.
Consideration must be given to:
• Safety, convenience, traffic flow
• Placement of the chimney and chimney connector and to
minimize the use of chimney offsets.
• Place the appliance where there will be a clear passage
for a Listed chimney through the ceiling and roof (vertical)
or through exterior wall (horizontal).
• Installing the required outside air kit will affect the location
of the vent termination.
When locating vent and venting termination, the ideal loca-
tion is to vent above roof line when possible. This minimizes
the affects of wind loading.
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, soffits, porch roofs, adjacent walls
• Landscaping, vegetation
• Horizontal or vertical vent termination
2. Floor Support
The supporting floor under the appliance must be able to
handle the weight of the appliance, fuel load and the weight
of the chimney.
Ensure that your floor will support these weights prior to
installation. Add sufficient additional support to meet this
weight requirement prior to installation. The weight of the
appliance is 510 lbs. with a full load of fuel the max weight
is 557 lbs.
WARNING
Risk of Fire! Damaged parts could impair safe operation.
Do NOT install damaged, incomplete or substitute com-
ponents.

August 3, 2015 7082-131J 5
MT VERNON E2 INSERT
• Installation and use of any damaged
appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved by
Hearth & Home Technologies.
• Operating appliance without fully assembling all components.
• Do NOT Overfire
Or any such action that may cause a fire hazard.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
Reciprocating Saw Channel Locks
Hammer Phillips Screwdriver
Tape Measure Plumb Line
1/4” Self-Tapping Screws Framing Material
Hi-temp Caulking Material Gloves
Safety Glasses Framing Square
Electric Drill & Bits (1/4”) Level
May also need:
Vent Support Straps Venting Paint
Tools and building supplies normally required
for installation, unless installing into an existing
masonry fireplace:
B. Tools And Supplies Needed C. Inspect Appliance and Components
• Open the appliance and remove all the parts and articles
packed inside the Component Pack. Inspect all the parts
and glass for shipping damage.
• Report to your dealer any parts damaged in shipment.
• All labels have been removed from the glass door.
• Plated surfaces have been wiped clean with a soft cloth,
if applicable.
• Readalltheinstructionsbeforestartingtheinstallation.
Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
• Follow pipe manufacturer instructions for installation
and air clearance requirements.
NOTE: Upon removing the appliance from the fireplace
a tag shall be permanently attached to the fireplace
indicating it has been altered and should be inspected
by a qualified person prior to re-use as a convectional
fireplace (tag included in component pack).
Risk of Fire!
Damaged parts could impair safe operation.
Do NOT install damaged, incomplete or
substitute components.
WARNING

6 7082-131J August 3, 2015
MT VERNON E2 INSERT
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot/Address:
Location of Fireplace:
Installer:
Dealer/ Distributor Phone #:
Serial #:
Model (circle one): MTVI-E2-MBK MTVI-E2-CSB MTVI-E2-PMH
WARNING! Risk of Fire or Explosion! Failure to install fireplace according to these instructions can lead to a fire or explosion.
D. Install Checklist
Appliance Install
Required non-combustible floor protection (Pg. 8)
Verified clearance to combustible (Pg. 8)
Unit is leveled and secured
Venting/Chimney Section 4 (Pg. 12)
Venting configuration complies with diagrams
Venting installed, sealed and secured in place with proper clearance
Exterior wall/roof flashing installed and sealed
Terminations installed and sealed
OAK installed and sealed (if needed) (Pg. 18)
Electrical
120VAC unswitched power provided to the appliance (Pg. 21)
Appliance Setup Section 6 (Pg. 18)
All packaging and protective materials removed
Accessories installed properly
Started appliance and verified that all motors and blowers operate as the should
Manual bag and all of its contents are removed from inside/under the fireplace
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the fireplace until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible by on
(Builder/Gen. Contractor) (Installer) (Date)
Part # 4017-254 • Rev B • 01/29/13
YES IF NO, WHY?

August 3, 2015 7082-131J 7
MT VERNON E2 INSERT
Figure 7.2 - Front View with Basic Surround Panel Set
Figure 7.1 - Top View Figure 7.3 - Side View
23-7/8 [606]
32 [812]
26-1/4 [667]
7/8
[23]
15
[382]
13-1/8
[333]
29-3/4
[756] 23-7/8
[605]
26-7/8 [683]
16-1/2 [419]
50 [1270]
33
[838]
46-1/8 [1171]
34-7/8
[886]
36-5/8 [930]
Figure 7.4 - Front View with Cast Panel Set

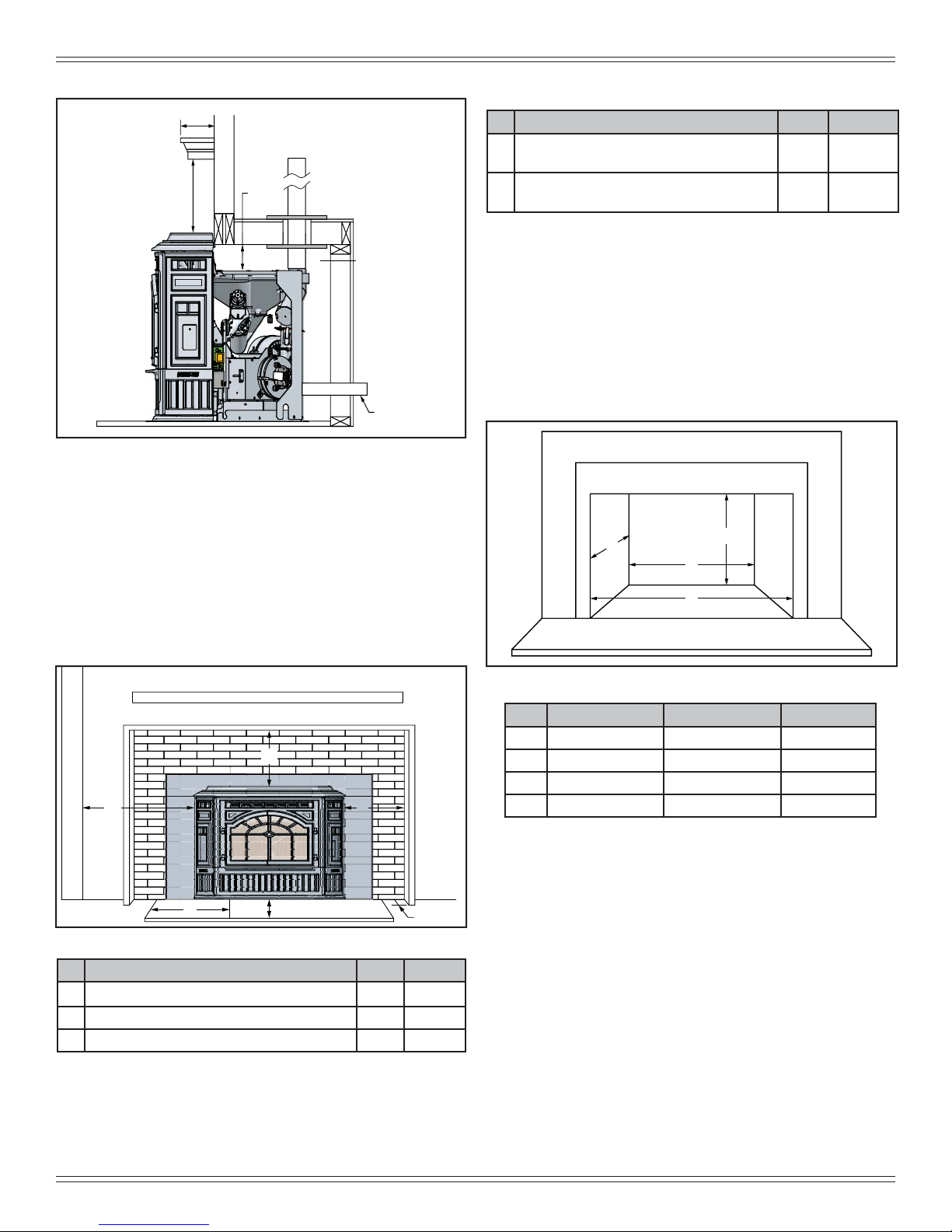

3 Dimensions and Clearances
A. Appliance Dimensions

8 7082-131J August 3, 2015
MT VERNON E2 INSERT
Fire Risk.
Comply with all minimum clearances to
combustibles as specified.
Failure to comply may cause house
fire.
WARNING
Note:
•Illustrations reflect typical installations and
are FOR DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual
design preference.
C
A
B
A
B. Clearance To Combustibles, US & Canada
Location Configuration Inches Millimeters
A Side of Outside Skin Top or Rear Vent 2 51
B Vent Pipe to Combustible Top or Rear Vent 3 76
C Cast Side to Side Wall Top or Rear Vent 6 152
J
K
3 in
[76mm]
Outside
Air
3 in
[76mm]
6 in
[152mm]
3 in
[76mm]
Built-in Unit - Rear Vent with Outside Air
Figure 8.1
Figure 8.2
Built-in Unit - Rear Vent
Note: In Canada where passage through a
wall or partition of combustible construction is
desired, the installation shall conform to
CAN/CSA-B365.
Through the wall, horizontal termination cap
must be a minimum of 6” (152mm) from the
wall. Approved for mobile home installations.
Must use 3” or 4” (76-102mm) “L” or “PL”
listed pellet venting or listed double wall pipe
and a Quadrafire outside air kit (OAK3) in
mobile homes.

August 3, 2015 7082-131J 9
MT VERNON E2 INSERT
E. Minimum Opening for Masonry & Zero
Clearance Fireplaces
Location Inches Millimeters
A Insert side to combustible side wall 6 152
B Insert top to max. 2-1/4 inch face trim 0 0
C
Insert side to max. 2-1/4 inch face trim 00
** Face Trim not to exceed 3/4”
Location Inches Millimeters
F Rear Width 24 610
G Depth 16-1/2 381
H Height 23-7/8 606
I Front Width 34 864
Figure 9.2
Figure 9.3
C. Masonry & Zero Clearance Fireplaces
Location Inches Millimeters
D Floor protection hearth extension from
door opening 6 152
E Floor protection to the side of door
opening 6 152
D. Floor Protection
F
GH
I
Mantel
Side Wall
D
E
A
B
C
2-1/4
Built-In Vertical
Figure 9.1
3 in
[76mm]
Outside
Air
J
K
The maximum mantel depth (J) is 12 inches (305mm) with a
minimum vertical height (K) of 12 inches (305mm).
However if your mantel has a depth of 10 inches (254mm)
then the vertical minimum height is 10 inches (254mm).
• Use a non-combustible floor protector, extending beneath
appliance and to the front, and sides as indicated.
• If employing a hearth extension, any parts or materials used in
construction must be non-combustible.

10 7082-131J August 3, 2015
MT VERNON E2 INSERT
Mark area of
floor to cut
Starter hole
Use 2 x 4 from insert
packaging to support insert

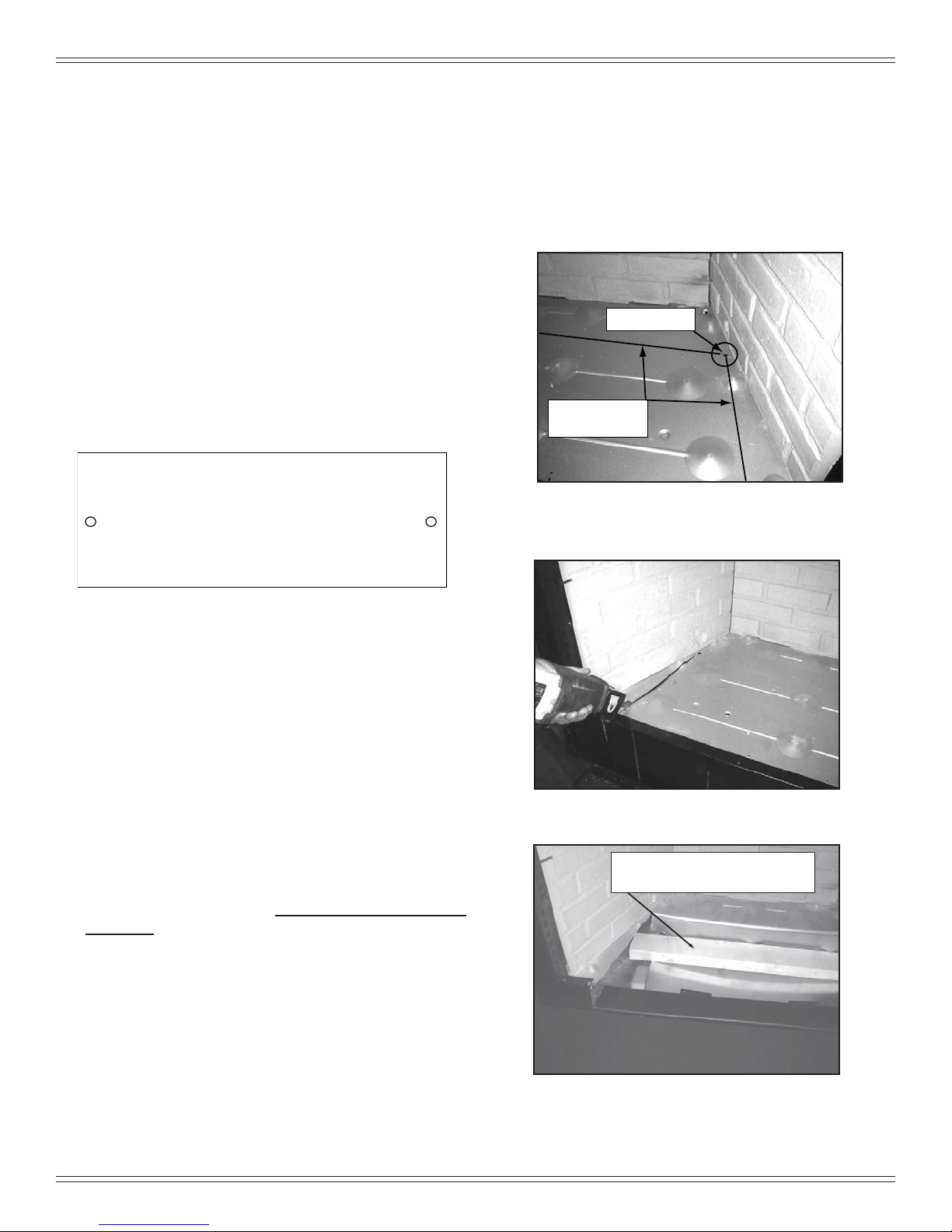

F. Installation into a Factory-Built Fireplace
The following modifications are permissible:
• Removal of damper or locked in open position
• Removal of smoke shelf or baffle
• Removal of ember catches
• Removel of fire grate
• Removal of view screen/curtain
• Removal of doors
• Removal of factory-built fireplace floor
• External trim pieces which do not affect the operation of
thefireplacemay be removed providing they can bestored
on or within the fireplace for reassembly if the insert is
removed.
• The permanent metal warning label provided must be
attached to the back of the fireplace, with screws or
nails, stating that the fireplace may have been altered to
accommodate the insert, and must be returned to original
conditionfor use as aconventional fireplace. Figure 10.1
Figure 10.2. Measure and mark the metal
floor for cutting. With a drill, make a starter
hole in each corner.
Figure 10.3. Using a saws-all, cut out the
floor.
Figure 10.4. If the floor is made of thin
metal, we recommend using the 2 x 4 from
the insert packaging to support the insert.
The 2 x 4 may need to be cut to the appro-
priate size.
250-2061
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TOACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS A SOLID FUEL BURNING
FIREPLACE. 250-2061
Figure 10.1
• Ifthe hearth extension islower thanthe fireplaceopening,
theportion of the insertextending ontothe hearthmustbe
supported.
• Manufacturer designed adjustable support kit can be
ordered from your dealer.
NOTE: Refer to chimney liner manufacturer for recom-
mendations on supporting the liner. Installation
into fireplaces without a permit will void the listing.•
• The firebrick (refractory), glass doors, screen rails,
screen mesh and log grates can be removed from a fac-
tory-built firebox in order to gain minimum insert open-
ing requirements.
• Any smoke shelves, shields and baffles may be removed
from a factory-built firebox if attached with mechanical
fasteners.
• The metal floor of the factory-built firebox may be
removed to facilitate the installation of the insert only
when a 1 inch (25mm) airspace is provided between the
insert and the floor of outer wrap.
The following is only one example as there are many differ-
ent models of factory-built fireplaces.
NOTE: This example is for reference only.Any modifica-
tions must not compromise the structural integrity
or reduce the protection for combustible materials.

August 3, 2015 7082-131J 11
MT VERNON E2 INSERT
Keep sharp edge of
metal floor away from
power cord
Leveling Leg

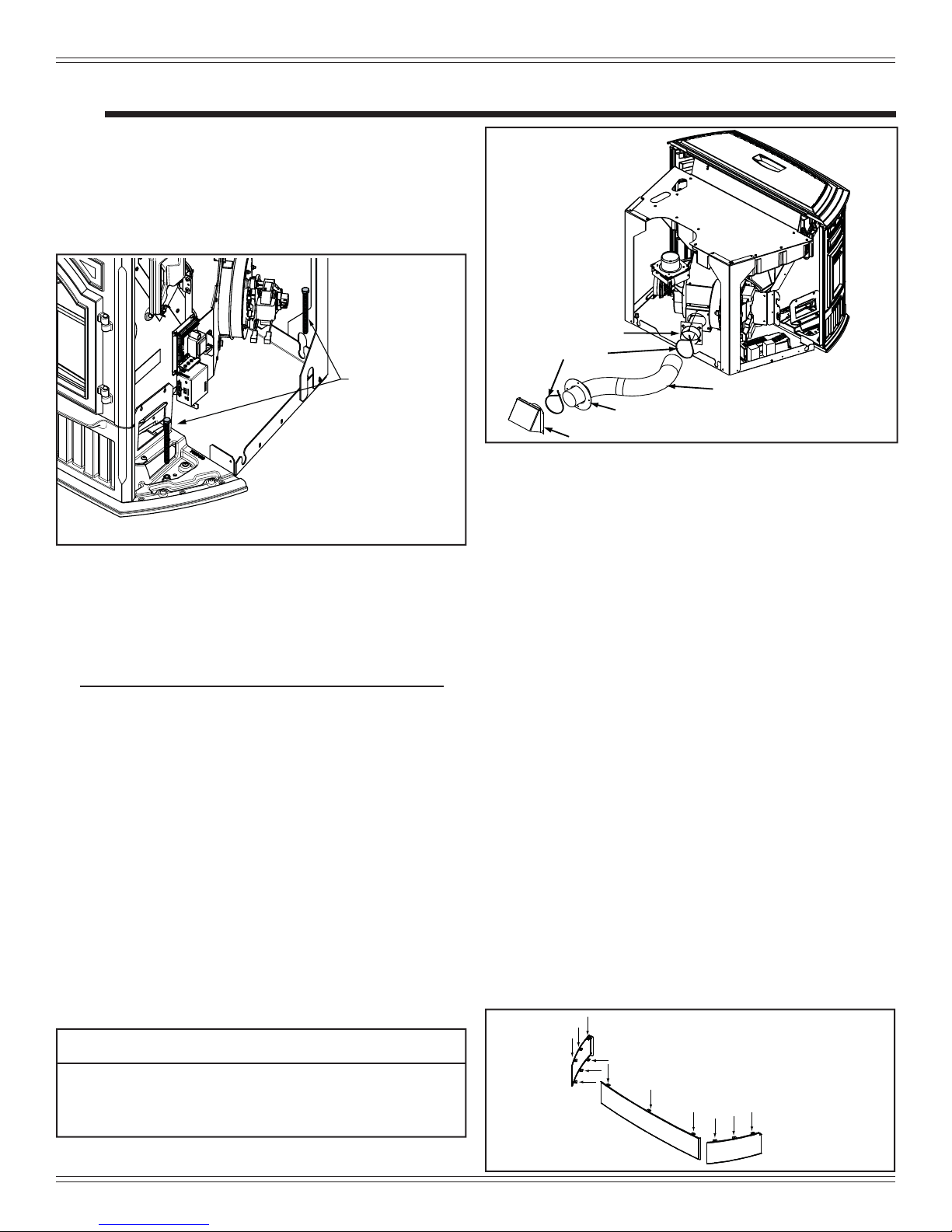

Figure 11.1. Place the insert into the facto-
ry-built firebox. Ensure that the power cord
can not be damaged by the sharp metal
edge. You may need to cut out a notch to
accommodate the cord.
Figure 11.2. Ensure that the leveling leg is
positioned over the 2 x 4 before leveling the
insert. Minimum 1” clearance.

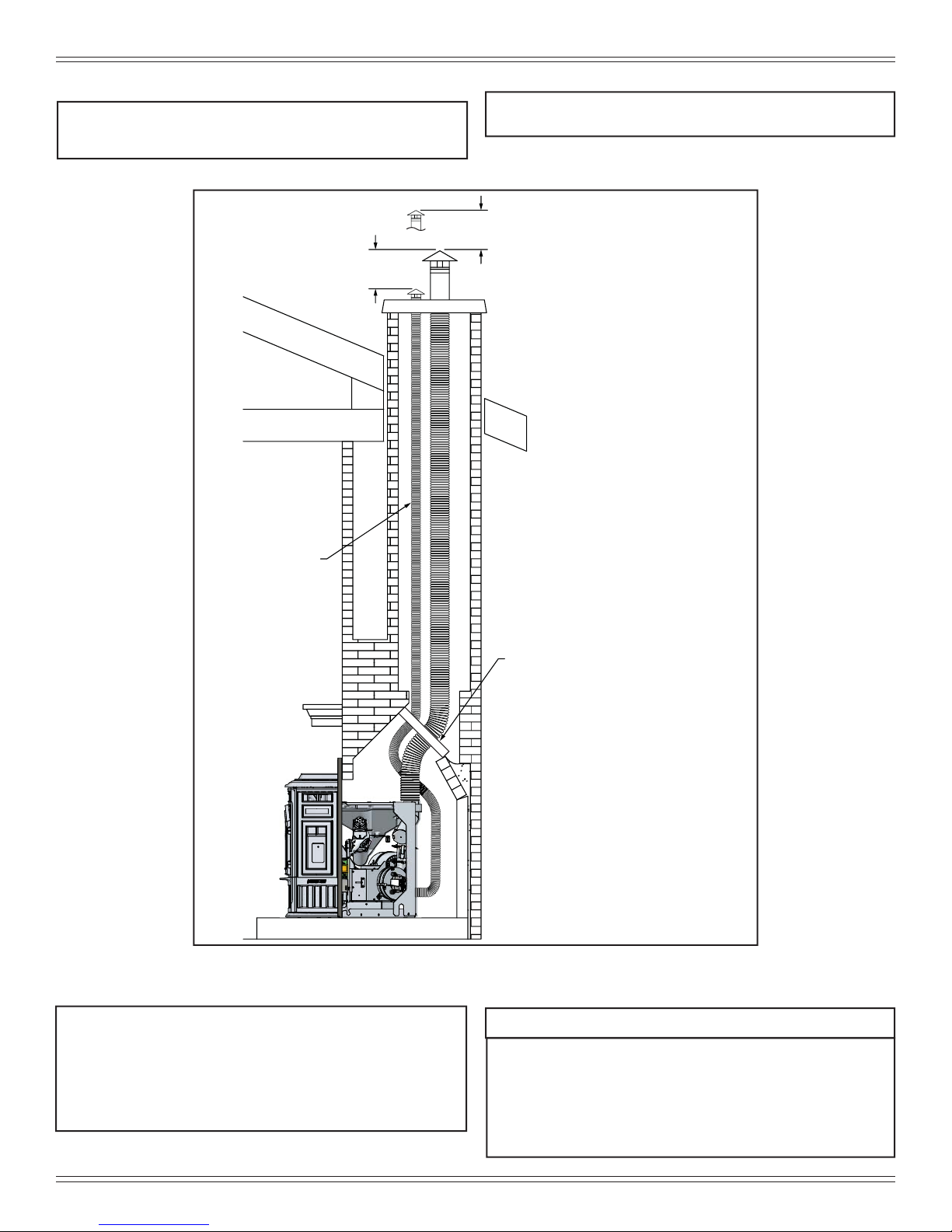

NOTICE: In Canada when using a factory-built chim-
ney it must be safety listed, Type UL103 HT (2100
o
F)
[1149oC] CLASS “A” or conforming to CAN/ULC-
S629M, STANDARD FOR 650oC FACTORY-BUILT
CHIMNEYS.
H. Prefabricated Metal Chimney
Thechimneycanbenewor existing, masonry or prefabricated
and must meet the following minimum requirements:
•Must be minimum 6 inch (152mm) inside diameter of
high temperature chimney listed to UL 103 HT (2100oF)
or ULC-S628.
•Must use components required by the manufacturer for
installation.
•Must maintain clearances required by the manufacturer
for installation.
•Refer to manufacturers instructions for installation
•This insert is listed to ASTM E 1509-12 Standard and
is approved for installation into listed factory-built zero
clearance fireplaces listed to UL 127 conforming to the
following specifications and instructions:
•The original factory-built clearance fireplace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
•If the chimney is not listed as meeting HT requirements,
or if the factory built fireplace was tested prior to 1998, a
full height listed chimney liner must be installed from the
appliance flue collar to the chimney top.
•Thelinermustbesecurelyattached to the insert flue collar
and the chimney top.
•The air flow of the factory-built zero-clearance fireplace
system must not be altered. The flue liner top support
attachment must not reduce the air flow for the existing
air-cooled chimney system.
•No dilution air is allowed to enter the chimney.
1. Secure the fireplace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
2.Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the fireplace.
3.Both methods must be removable and replaceable
for cleaning and re-installation.
• Removing floor of fireplace must not weaken structure
offirebox or reduce protectionfor combustiblematerials.
• Final approval of this installation type is contingent upon
the appropriate local authority having jurisdiction.
WARNING
G. Installation into a Masonry Fireplace
All modifications that can be made to a Factory Built Fire-
place can be made to a Masonry Fireplace.
In addition DO NOT remove any brick or mortar from the
existing fireplace.
Risk of Fire!
Follow venting manufacturer’s clearances and
instructions when installing venting system.
WARNING
1”
Example Removal of Factory-Built Fireplace Cont.

12 7082-131J August 3, 2015
MT VERNON E2 INSERT
4 Vent Information
A. Venting Termination Minimum Requirements
J or K
X
V
M
I
H
AVG
B
V
V
A
B
V
FV
C
B
B
E
L
V
D
V
Electrical
Service
V
N
VN
V
N
N
V
Inside Corner
FIXED
CLOSED
OPEN
OPEN
FIXED
CLOSED
VX
G
G
Termination Cap Air Supply Inlet Gas Meter Restricted Area
O
P

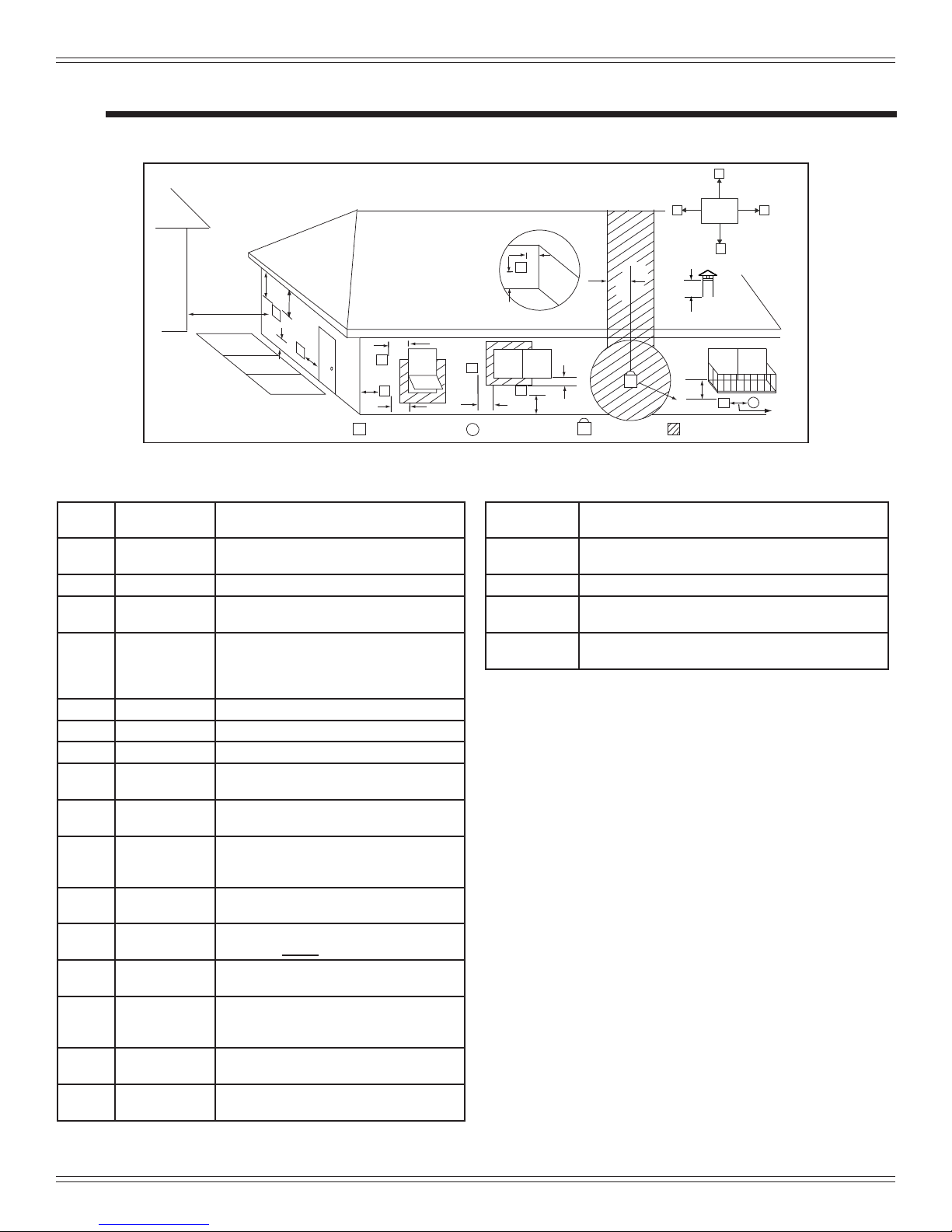

Figure 12.1
A12 in. Above Finish Grade (the grade surface
must be a non-combustible material
B12 in.
48 in. no OAK Open door or window: below or to the side
B12 in. Open door or window: above
C6 in. Permanently closed window: above, below
or to the side
D18 in.
36 in. no OAK Vertical clearance to a ventilated soffit located above the terminal within a hori-
zontal distance of 2 ft from the center-line
of the terminal
E12 in. Clearance to unventilated soffit
F12 in. Clearance to outside corner
G12 in. Clearance to inside corner
H36 in. Above gas meter/regulator measured from
horizontal center-line of regulator
I36 in. USA
72 in. Canada Clearance to service regulator vent outlet
J12 in.
48 in. no OAK Clearance to non-mechanical air supply inlet to the building or the combustions air
inlet to any other appliance
K10 ft horizontal
3 ft vertical Clearance to mechanical air supply
L7 ft. Above paved sidewalk, paved driveway
located on public property
M12 in. Under an open veranda, porch, deck or
balcony
NSee Note
below* Electric service: above, below or to the side (location must not obstruct or interfere
with access)
O24 in. Adjacent building, fences and protruding
parts of the structure
P12 in. Clearance above roof line for vertical
terminations
All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below.
24 in. Above grass, top of plants, wood or any other com-
bustible
12 in.
36 in. no OAK Clearance from any forced air intake of other appli- ance
12 in. Clearance horizontally from combustible wall
15 in. Vented directly through a wall, minimum length of
horizontal pipe
6 in. horizontal
12 in. vertical Minimum horizontal or vertical terminations must protrude from wall
*NOTE: Consult local building, fire officials or authorities having jurisdic-
tion. Local codes or regulations may require different clearances.
NOTICE:
Do NOT Terminate Vent:
• In any location that will allow flue gases or soot from en-
tering or staining the building
• In any location which could create a nuisance or hazard
• In any enclosed or semi-enclosed area such as a carport,
garage, attic, crawl space, under a sun deck or porch,
narrow walkway
• Closely fenced area, or any location that can build up
a concentration of fumes such as a stairwell, covered
breezeway, etc.
NOTICE:
Termination must exhaust above air inlet elevation.
• It is recommended that at least 60 inches (1.52m) of vertical
pipe be installed when appliance is vented directly through a
wall. This will create a natural draft, which will help prevent
the possibility of smoke or odor venting into the home during
a power outage.
• It will also keep exhaust from causing a nuisance or hazard
by exposing people or shrubs to high temperatures.
• Thesafestand preferred ventingmethodisto extend thevent
vertically through the roof or above the roof.

August 3, 2015 7082-131J 13
MT VERNON E2 INSERT
B. Avoiding Smoke and Odors
Negative Pressure, Shut-Down and Electrical Power
Failure
To reduce the probability of back-drafting or burn-back in
the pellet appliance during power failure or shut down con-
ditions, it must be able to draft naturally without exhaust
blower operation.
Negative pressure in the house will resist this natural draft if
not accounted for in the pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
air must be replaced with cold air from outdoors which flows
into lower levels of the house.
Vents and chimneys into basements and lower levels of the
house can become the conduit for air supply and reverse
under these conditions.
Outside Air
An outside air kit is recommended in all installations and
must be ordered separately.
Per national building codes, consideration must be given to
combustion air supply to all combustion appliances. Failure
to supply adequate combustion air for all appliance demands
may lead to backdrafting of those and other appliances.
When the appliance is roof vented (strongly recommended):
The air intake is best located on the exterior wall oriented
towards the prevailing wind direction during the heating
season.
When the appliance is side-wall vented:
The air intake is best located on the same exterior wall as
the exhaust vent outlet and located lower on the wall than
the exhaust vent outlet.
The outside air supply kit can supply most of the demands of
the pellet appliance, but consideration must be given to the
total house demand.
House demand may consume the air needed for the appli-
ance. It may be necessary to add additional ventilation to
the space in which the pellet appliance is located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
Vent Configurations
To reduce probability of reverse drafting during shut-down
conditions Hearth & Home Technologies strongly recom-
mends:
• Installing the pellet vent with a minimum vertical run of
5 feet (1.52m). Preferably terminating above the roof
line.
• Installing the outside air kit at least 4 feet (1.22m) below
the vent termination.
To prevent soot damage to exterior walls of the house and to
prevent re-entry of soot or ash into the house:
• Maintain specified clearances to windows, doors and
air inlets, including air conditioners.
• Vents should not be placed below ventilated soffits.
Run the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks or
onto covered porches.
• Maintain minimum clearance of 12 inches (305mm)
from the vent termination to the exterior wall. If you
see deposits developing on the wall, you may need to
extend this distance to accommodate your installation
conditions.
CAUTION
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TOANY AIR DISTRIBUTION DUCT
OR SYSTEM.

14 7082-131J August 3, 2015
MT VERNON E2 INSERT
C. Negative Pressure
WARNING
USE ONLY RECOMMENDED VENTING COMPONENTS;
OTHERWISE MAKESHIFT PARTS MAY RESULT IN PROP-
ERTY DAMAGE, PERSONAL INJURY, OR DEATH.
Negative pressure results from the imbalance of air avail-
able for the appliance to operate properly. It can be strongest
in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensureadequateoutdoorairforallcombustionappliances
and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
D. Draft
Draft is the pressure difference needed to vent an appli-
ance successfully. When an appliance is drafting suc-
cessfully, all combustion byproducts are exiting the home
through the chimney.
Install through the warm airspace enclosed by the build-
ing envelope. This helps to produce more draft, especially
during lighting and die-down of the fire.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the chimney
system caused by:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
E. Chimney and Exhaust Connection
1. Chimney & Connector: Use 3 or 4 inch (76-102mm) diameter
type “L” or “PL” venting system. It can be vented vertically or
horizontally.
2. Mobile Home: Approved for all Listed pellet vent. If using the 3
to6 inch (76-152mm)TopVent OffsetAdapter,useListed double
wall flue connector. AQuadra-Fire OutsideAir Kit (OAK-3) must
be used with manufactured home installations.
3. Residential: The3 inch(76mm)verticalTopVentAdapterKitand
the 3 to 6 inch (76-152mm) Top Vent Offset Adapter are tested
to use 24 gauge single wall flue connector or Listed double wall
flue connector to Class A Listed metal chimneys, or masonry
chimneys meeting International Residential Code standards for
solid fuel appliances.
4. INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Vent Assembly to Insert Instructions:
These instructions are for connecting the vent pipe to the
ventassemblyprior to installing the appliancein the fireplace.
a. Unlatch the vent assembly for the exhaust blower and
attach to the vent pipe end using high temperature
silicone and at least three screws.
b. Slide the appliance into place and line up the bent
assembly with the exhaust blower.
c. Make sure the high-temperature gasket is in place.
d. Latch the top vent assembly to the exhaust blower.
6. DO NOT INSTALLAFLUE DAMPER IN THE EXHAUST VENT-
ING SYSTEM OF THIS UNIT.
7. DONOTCONNECTTHISUNITTOACHIMNEYFLUESERVING
ANOTHER APPLIANCE.
8. Disconnect the vent pipe from the appliance to allow removal
of the fireplace insert for the purpose of inspecting the fireplace
insert and the fireplace.
NOTE: All pipe must be welded seam pipe whenever possible.
Seal pipe joints with high temperature silicone (500°F [260°C]
minimum rated only).
WARNING
Risk of Asphyxiation!
Negative pressure can cause spillage of combustion
fumes and soot.
NOTE: The appliance exhaust outlet is designed to ac-
commodate 3 inch venting. Use of 4 inch venting requires
the use of a 3-to-4 inch exhaust vent increaser in addition
to any other venting components needed, sold separate-
ly.

August 3, 2015 7082-131J 15
MT VERNON E2 INSERT
2 ft.
2 ft.
3 ft.
2 ft.

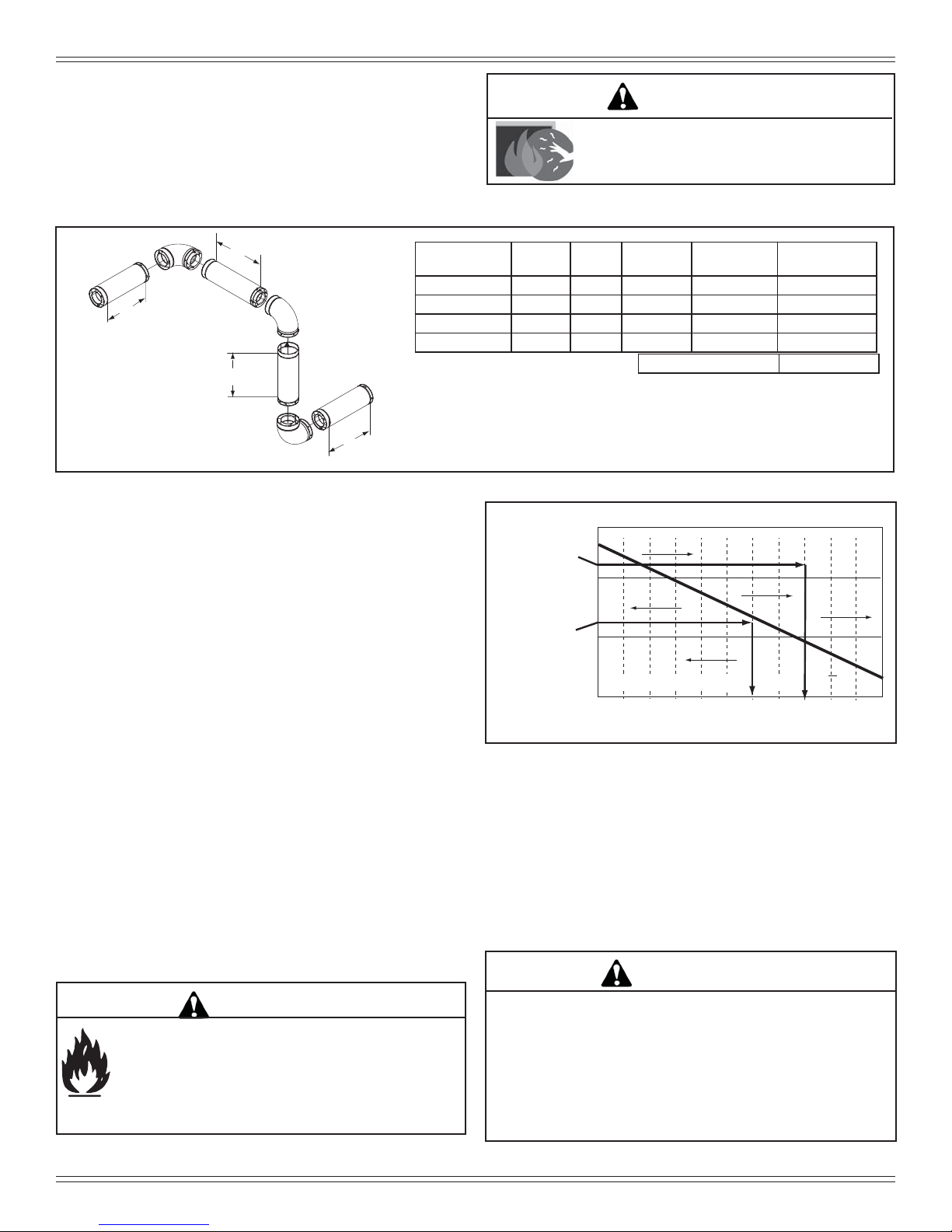

Example of 3 Elbow-Rear Vent Termination Calculation
Pellet Venting
Component # of Elbows Feet of Pipe Multiplied By Equivalent Feet Components
Equivalent Feet
90oElbow or Tee 3X515
45oElbow X3
Horizontal Pipe 7X 17
Vertical Pipe 2X 0.5 1
Total Equivalent Feet 23
Note: This is a generic example and is not
intended to represent any specific fuel type.
Vent surfaces get HOT, can cause burns if
touched. Non-combustible shielding or guards
may be required.
WARNING
Figure 15.2
3 in. or 4 in. (76mm or 102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only
10
Example 1
Example 2
Example1: Iftheequivalentlength of pipe is23feet(7m)with
altitude of 8,000 feet (2438m) you must use 4 inch (102mm)
diameter type “L” or “PL” vent.
Example 2: If the equivalent length of pipe is 12 feet (3.7m)
with altitude of 6,000 feet (1829m) you may use 3 or 4 inch
(76 to 102mm) diameter type “L” or “PL” vent.
G. Pipe Selection Chart
The chart will help you in determining proper venting size
according to the equivalent feet of pipe calculated previously
and the altitude above sea level of this installation.
Figure 15.2
a. Locatethecalculated equivalent feet of pipe on the vertical
left side of the chart.
b. Move to the right horizontally on the chart until you reach
your altitude above sea level.
c. Ifyoufallbelowthediagonalline,3or4inch(76to102mm)
pipe may be used.
d. Ifit is anywhere abovethe diagonalline, a4inch(102mm)
diameter pipe is required.
NOTICE:
• A90° elbow is 5 times as restrictive to the flow of exhaust
gases under positive pressure as 1 foot (305mm) of hori-
zontal pipe.
• A foot of horizontal pipe is twice as restrictive as a foot of
vertical pipe. WARNING
RISK OF INJURY OR PROPERTY DAMAGE!
• Improper installation, adjustment, alteration, service or main-
tenance can cause injury or property damage.
• Refer to the owner’s information manual provided with this
appliance.
• For assistance or additional information consult a qualified
installer, service agency or your dealer.
Risk of Fire!
• Only LISTED venting components may be used.
• NO OTHER vent components may be used.
• Substitute or damaged vent components may impair
safe operation.
WARNING
Figure 15.1
F. Equivalent Feet of Pipe
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size.
Figure 15.1.

16 7082-131J August 3, 2015
MT VERNON E2 INSERT
NOTE:
In Canada, where passage through a wall or partition of com-
bustible construction is desired, the installation shall conform
to CAN/CSA-B365.
Figure 16.1
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
•
Factory-built chimney must be a minimum 6 inch
(152mm) UL103 HT.
WARNING
CAUTION
Never draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
A. Full Reline With Outside Air - Horizontal
NOTE: Use metal plate around
exhaust vent pipe and seal all edges
with non-flammable insulation such
as fiberglass, mineral wool or
ceramic.
Do not use high temperature
caulking materials to seal any edge
to prevent future serviceability.
Outside Air
Termination
5 Venting Systems

August 3, 2015 7082-131J 17
MT VERNON E2 INSERT
NOTE: Check clearances carefully for this type of instal-
lation to ensure adequate room for outside air venting.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult local building, fire officials or authorities having juris-
diction about restrictions, installation inspection, and permits.
CAUTION
NOTE: In Canada only a full reline is allowed per ULC
S628, ORD ULC C1482-M1990.
B. Full Reline With Outside Air - Vertical
Figure 17.1
NOTE: Use metal plate around
exhaust vent pipe and seal all edges
with non-flammable insulation such
as fiberglass, mineral wool or
ceramic.
Do not use high temperature
caulking materials to seal any edge
to prevent future serviceability.
Outside Air
Termination at
Chimney Top
(Vertical)
12 in [305mm]
min. below
12 in [305mm]
min. below
NOTE: In Canada this fireplace insert must be installed
with a continuous chimney liner extending from the fire-
place insert to the top of the chimney. The chimney liner
must conform to the Class 3 requirements of CAN/ULC-
S635, Standard for Lining Systems for Existing Masonry
or Factory-Built Chimneys and Vents, or CAN/ULC-S640,
Standard for Lining Systems for New Masonry Chimneys.

18 7082-131J August 3, 2015
MT VERNON E2 INSERT
A. Leveling System
The leveling bolts are located on the sides of the appliance,
front and rear. To access the bolts, remove the front access
panels. Reach in and turn the bolt to the desired height to
level the appliance. Figure 18.1
B. Outside Air Kit Instructions
Included in Kit: 2 wire ties, 1 collar assembly,
1 termination cap assembly, 1 trim ring, fasteners.
3 INCH (76mm) ALUMINUM FLEX PIPE NOT INCLUDED
Tools Needed: Phillips head screw driver; wire cutters;
hole saw or jig saw.
1. Measure distance from floor to air vent opening in appli-
ance and mark location on wall.
2. Use saw to cut opening in wall. Cut a 3-1/2 to 4 inch
(89-102mm) opening on inside wall and a 4 to 4-1/2 inch
(102-114mm) opening on outside of house.
3. Use wire ties to secure flex pipe to collar assembly.
4. Slide trim ring over flex pipe and run pipe through wall.
5. Attach flex pipe (not included) to outside termination cap
with second wire tie.
6. Secure termination cap to outside surface.
7. Secure trim ring to interior wall.
CAUTION
Never draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage
Figure 18.1
Collar
Wire Ties
Trim Ring
Termination Cap
3 inch Aluminum Flex
Pipe (not included)
Figure 18.2 - OAK Exploded View
Lower the leveling
bolts if necessary to
keep the insert level
when installing.
Figure 18.3
Bend tabs down. Shipped
flat from the factory.
C. Hearth Support
Included in Kit: (1) bottom, (1) trim front, (2) trim sides, (2)
trim extensions
Tools Needed: Phillips head screw driver, measuring tape,
gloves
1. Remove contents from box and lay on protective surface
to avoid scratching the paint.
2. Lay front and sidesface down. Bend the tabs down toward
the inside. Figure 18.3
3. The side pieces are shipped flat. It is must easier to flex the
sides into a bowed position before installing.
4. Lay the cast bottom face up. Attach the 2 sides FIRST and
then the front piece. Figure 19.1 on pg. 19
5. Turn the cast bottom right side up and attach the panel
extensions. Note the alignment hole.
6. Attach the appropriate footers depending on the panels &
trim set you are installing. The footers come in 2 sizes, 3
and 5 inches. Discard the footers not used.
7. Place the assembled hearth support under the insert.
Lower the leveling bolts if necessary to keep the insert
level.
8. Open the door and attach the hearth support to the insert.
There are 9 attachment holes. Figure 19.2 on pg. 19
6 Appliance Set-Up

August 3, 2015 7082-131J 19
MT VERNON E2 INSERT
Figure 19.3 - Shown with Cast Panel Set
Basic
Cast
Attach Trim to Base
from underneath
Attach Trim to Insert from
inside Insert.
Install Front Trim Last,
Corner Overlap Side
Trim Pieces
5 in
3 in
5 inch
high Set
3 inch
high Set
Location of Latch
for Removing
Cast Sides
Lower the leveling
bolts if necessary to
keep the insert level
when installing the
Hearth Support.
D. Removal of Cast Sides
Remove the right side panel by releasing the upper, spring-
loaded latch. Access the latch through the upper panel vent
holes. The cast panel should fall forward. Lift it out of its
lower nest and set the panel aside. You may need to discon-
nect the dial control wire harness.
Figure 19.1
9 attachment holes - 3 on
each side and 3 in the front
Figure 19.2
E. Surround and Trim Set - Cast
Included in Surround Kit: (2) side panels, left and right;
(1) panel top; (1) fastener package.
Included in Cast Trim Kit: (2) cast trim legs, left and right;
(1) cast trim header; (2) cast trim footers, left and right; (1)
fastener package.
Tools Needed: Powered Phillips head screw driver
1. Remove contents from box being careful not to scratch or
damage the cast trim pieces.
2. Lay the surround set face down on protective covering to
prevent scratching the painted surface.
3. Secure the surround legs to top panel with the screws
provided.
4. Now bend the tabs down toward the backside of the panel
set, 5 on top and 2 on each leg. Leave the panel set face
down. Figure 19.4
5. Place the corresponding cast trim pieces ( 2 cast trim legs
and1casttrimheader)underneaththepanelset,alsoface
down.
6. Place washer provided over tab and secure the trim and
panel together with screw. Continue for all tabs.
7. Secure cast footers with screws.
8. Remove both left and right cast sides from insert. See
Figure 19.3.
9. Carefully slide surround and trim over the top of the
insert into place matching the mounting holes on the
panel with the mounting holes on the insert. Secure with
screws provided.
Figure 19.4
Figure 19.5- Completed View
1. Screw panels
together
2. Bend tabs down
1. Screw panels
together
3. Install Cast Trim Header
2. Bend tabs
down

20 7082-131J August 3, 2015
MT VERNON E2 INSERT
Figure 20.3
Figure 20.2
F. Surround & Trim Set, Basic
Included in Surround & Trim Kit: (2) corner brackets and set
screws; (1) trim set, 3 piece; (2) side panels; (1) top panel;
(4) screws.
Tools Needed: Powered Phillips head screw driver
1. Secure the top panel to the surround sides with the
screws provided. Figure 20.1
2. Assemble the trim with the (2) corner brackets provided.
Figure 20.2
3. Remove the 2 cast sides and slide the assembled trim
over the assembled surround set. Figure 19.3 on pg 19
4. Carefully slide surround and trim over the top of the insert
into place matching the mounting holes on the panel with
the mounting holes on the insert. Secure with screws
provided. Figure 20.3
Back of Top Surround
Back of Side Surround
Screws
Figure 20.1
Shown with trim installed on panel set
G. Optional Log Set Placement Instructions
2 PIECE LOG SET INSTALLATION
1. Place the left log as shown. There are 2 indentations in
the bottom of the log to fit over the screw heads in the
firebox. Figures 20.4 & 20.5
2. Place the right log in front of the 2 screw heads in the
firebox. Figures 20.6 & 20.7
CAUTION
Logs are FRAGILE. Use extreme care when handling or
cleaning logs.
NOTICE:
Due to the abrasive nature of a pellet appliance fire, the
logs are not covered under warranty. Any placement vari-
ation other than shown here can cause excessive heat and
shall void the appliance warranty.
Figure 20.4
Figure 20.5
Log fits over screws
Left Log
bottom to fit over the screw
heads.
Log rests in front of screws
Right Log
Figure 20.6
Figure 20.7
