QualGear QG-TM-032-BLK User manual

`Lorem ipsum
Adjustments
6
Put a padlock on the safety bar to prevent the TV from being stolen.
Adjust to the desired position
by tilting -10°~+5°, swiveling
-90°~+90° , -180°~+180° , -90°~+90°
at three pivot points and by
leveling -4°~+4°.
Do not exceed the maximum rated weight
specified. Otherwise, serious injury or
property damage may occur.
70
40kg
(88lbs)
40kg
(88lbs)
For Most 37" to 70" Flat Panel and
Curved TVs
Tilt -10°~+5°
Level -4°~+4°
IMPORTANT: Make sure the TV is safely secured before releasing
Padlock is not
included
BSafety Bar
Scan the QR Code™ below
for more info about this product:
QG-TM-032-BLK
;
200x200|300x200|300x300
400x200|400x300|400x400
600x200|600x300|600x400
Version April 2018Version April 2018

2
Parts Checklist
Hardware Package
IMPORTANT: Before starting installation, please check that all parts shown in this checklist
are included. If any parts are missing or damaged, contact your local distributor or
[email protected] for replacement parts and do not start assembly and installation
until you receive all the parts.
ST6.3x65mm
Lag Bolt (x5)
W-A
10x60mm
Concrete Anchor (x5)
W-B
D6 Washer (x5)
W-C
Wall Mount (x1)
A
ST2.9x6.5 Screw (x4)
G
Safety Bar (x1)
B
Decorative Cover (x2)
F
Left Adapter Bracket (x1)
C
Right Adapter Bracket (x1)
D
Marking Template (x1)
H
Antiskid Block (x2)
QG-TM-032-BLK
1
WARNING
This product was designed to be installed on the following wall construction only:
WALL CONSTRUCTION HARDWARE REQUIRED
Wooden Stud Included
Wooden Beam Included
Solid Concrete Included
Other Contact Qualified Professional
Do not begin to install your QualGear product
until you have read and understood all the
instructions and warnings contained in this
installation manual.
US customers with questions regarding
instructions, please contact QualGear customer
support via email at [e-mail].
For all international customers, please contact
your local distributor.
This product should only be installed by
someone of good mechanical aptitude, has
experience with basic building construction,
and fully understands these instructions.
This product was designed to be installed
and utilized only as specified in this manual.
Improper installation of this product may cause
damage or serious injury. QualGear is not
liable for the improper use or installation of its
products.
Make sure that the supporting surface
will safely support the combined load of the
equipment and all attached hardware and
components.
Always use an assistant or mechanical
lifting equipment to safely lift and position the
equipment.
Tighten screws firmly, but do not over tighten.
Over tightening can damage the items, greatly
reducing their holding power.
All QualGearproducts are intended for
indoor use only and any outdoor use voids the
limited warranty.
All QualGear products are designed
and tested for residential use only and any
commercial use voids the limited warranty.
For warranty information, please visit
http://www.qualgear.com/warranty.php.
If mounting to wooden studs, make sure that
mounting screws are anchored into the center
of the studs. Use of an edge-to-edge stud finder
is highly recommended.
Never exceed the maximum rated weight
specified in this manual.
All bolts and screws must be used at the
designated points in the installation instructions
to prevent property damage and/or personal
injury.
DO NOT install near air conditioner vents or
where there is excessive dust or smoke.
When drilling holes in the wall, it is very
important to take care of electrical cables,
water, or gas pipes in the wall.
Please read the entire installation manual. Check to ensure that all parts are included
before you start installation and assembly.
NOTE
M4x14mm (x4)
M-A
M8x50mm (x4)
M-G
M5x14mm (x4)
M-B
M6x14mm (x4)
M-C
M8x20mm (x4)
M-D
5mm
Small Spacer (x8)
M-I
M6x30mm (x4)
M-E
15mm
Large Spacer (x8)
M-J
5.5mm/8.5mm
Washer (x4)
M-H
M8x30mm (x4)
M-F

AWall Plate
SKIP TO STEP 3
34

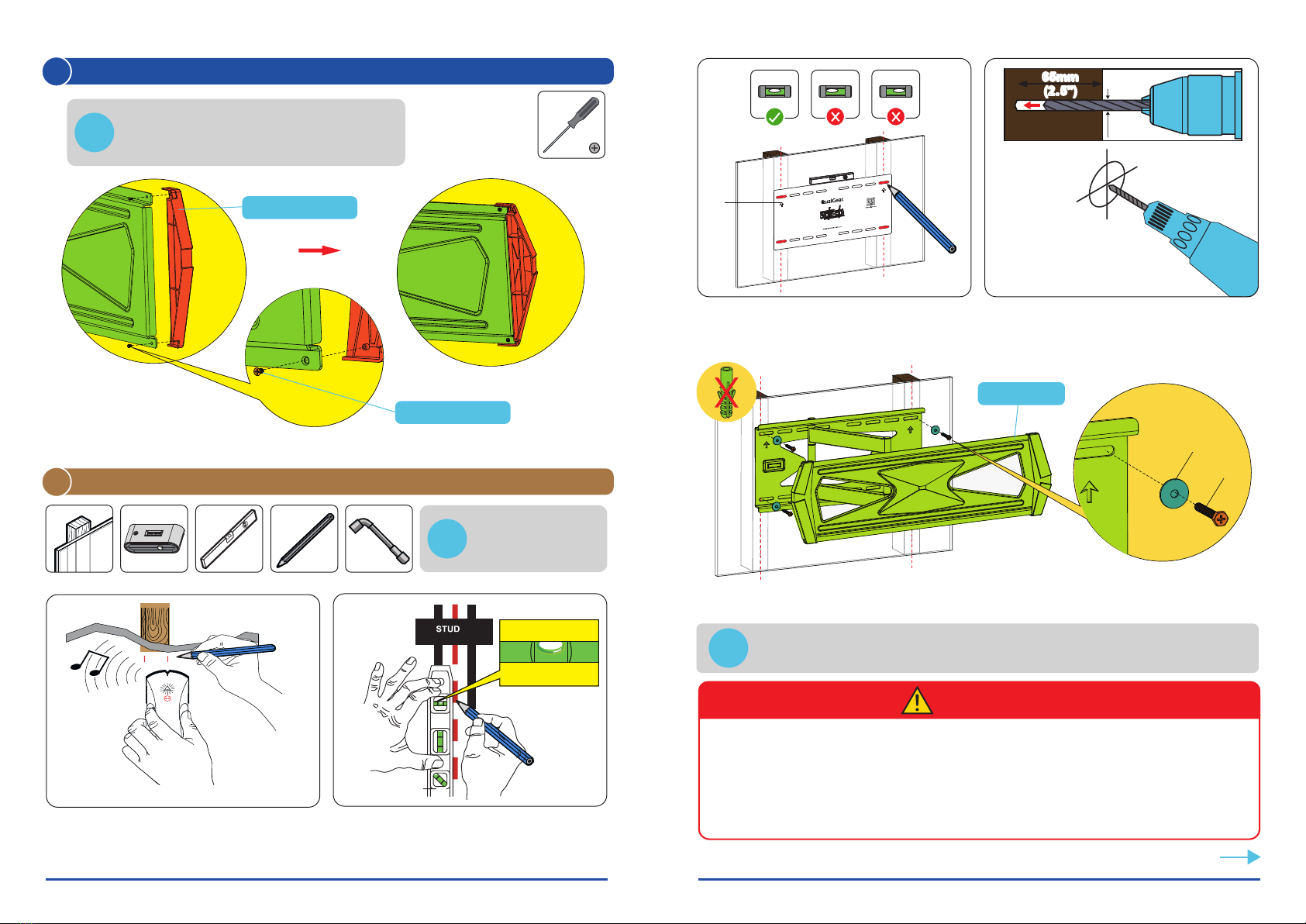

Installing the Decorative Covers
1
WARNING
Make sure that mounting screws are anchored into the center of the studs. The use
of a stud finder is highly recommended.
Installers are responsible for providing hardware for other types of mounting situations.
 Installers must verify that the supporting surface will safely support the combined
weight of the equipment and all attached hardware and components.
FDecorative Cover
GST2.9x6.5 Screw
Mounting to a Wooden Stud Wall
2a
Using an edge-to-edge stud finder, find the
edges of the stud.
1
Using a level, mark the centerline of the stud.
2
NOTE Do NOT use power drill and do NOT over tighten the lag bolts.
Mount the wall mount (A) and tighten it with the provided
lag bolts (W-A) and D6 washers (W-C) using a socket wrench.
5
Attach the decorative covers to the wall mount using the screws.
For concrete wall
mounting, follow
Step 2b.
NOTE
Using the marking template (H) provided,
mark four holes for drilling on the centerline of
the stud.
3
Using a power drill and 3/16" drill bit, drill
pilot holes of 3/16" (4.5 mm) diameter and at
least 2.5" (65 mm) depth.
4
ø 4.5mm
(ø 3/16")
(2.5")
65mm
(2.5")
65mm
H
QG-TM-0 32-BLK
Stud Finder
When decorative covers are installed correctly,
there will be a gap between the bottom of the wall
plate and the decorative covers. This gap is for the
safety bar installation on Step 5.
NOTE
W-A
W-C

56
WARNING
 Installers must verify that the supporting surface will safely support the combined
weight of the equipment and all attached hardware and components.
Mounting to a Concrete Wall
2b
3Place concrete anchors (W-B) in each hole. Tap each anchor flush with the wall using a hammer.
Using a socket wrench, mount the wall mount (A) and fasten them with the provided lag bolts
(W-A) and D6 washers (W-C).
Hold the marking template (H) provided against the wall where you want to install the TV,
mark five holes for drilling.
1
NOTE Do NOT use power drill and do NOT over tighten the lag bolts.
Installing to a Flat Back Panel of a TV
3a
Flat Back
Panel
Top Backside of the TV
AWall Mount
W-A
W-C
W-B
Using a power drill and a 3/8" masonry drill bit, drill mounting holes of 3/8" (10 mm) diameter
and 2.7" (70 mm) depth at the marked locations in the previous step.
2
ø 10mm
(ø 3/8")
70mm
(2.7")
70mm
(2.7")
HMarking Template
QG-TM-032-BLK
DRight Adapter Bracket
CLeft Adapter Bracket

78

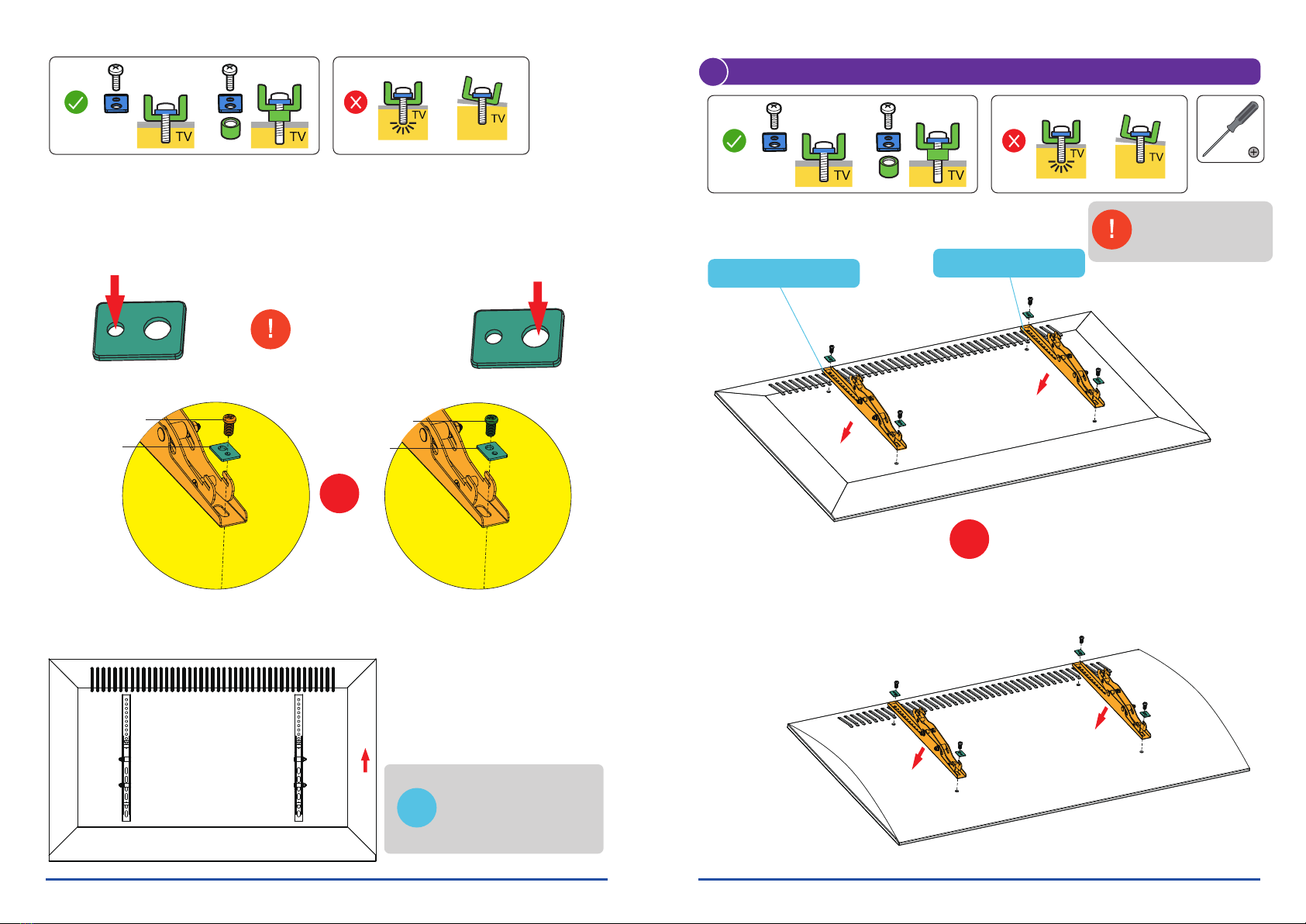

Choose the appropriate screws and washers according to the
type of your TV, and attach adapter brackets (C and D) to the back of
the TV using a Phillips screwdriver.
Top of the TV
NOTE
According tothe direction
indicator arrows on the
adapter brackets, make
sure the adapter brackets
are installed in the correct
direction.
5.5mm 8.5mm
IMPORTANT!
Tighten all screws but
do NOT over tighten
OR
Installing to a Curved or Recessed Back Panel of a TV
3b
IMPORTANT!
Tighten all screws but
do NOT over tighten
OR
Recessed
Back Panel
Curved
Back Panel
Top Backside of the TV
Top Backside of the TV
M-A/ M-B
M-H
M-C/ M-D
M-H
CLeft Adapter Bracket
DRight Adapter Bracket

910
Choose the appropriate screws, washers, and spacers (if necessary) according to the type of your
With an assistant, hook the TV onto the
mounted wall mount.
TV and attach adapter brackets (C and D) to the back of the TV using a Phillips screwdriver.
Install both of the antiskid blocks
as close to the adapter brackets
as possible.
Tighten screws on the antiskid blocks using a proper
screwdriver to prevent TV from moving.
Insert the safety bar onto the rail (at the bottom of the wall plate) to secure.
8.5mm
OR
OR OR
Hooking the TV onto the Wall Plate
4Installing the Safety Bar and the Padlock
5
M-I
M-D/ M-E/ M-F
M-H
M-I
M-I
M-E/ M-F
M-H
M-J
M-I
M-D
M-H
M-H
M-J
M-E/ M-F
M-J
M-G
M-H
M-J
IMPORTANT!
Tighten all screws but do
NOT over tighten
EAntiskid Block
BSafety Bar
Depending on your TV, the antiskid blocks
can be installed on the inner or the outer side
of the adapter brackets.
NOTE
M-J
M-G
M-H
M-J
M-I M-J
M-G
M-H
M-J
M-I
M-I
