Quantex ScanDoc Compact User manual

Instruction Manual
ScanDoc
COMPACT
QUANTEX

Contents
2
QUANTEX GmbH 2014
Introduction 3
Safety precautions and warnings 4
Installation 5
Minimum system hardware requirements 5
Program installation 5
Connection 6
On-line activation 8
ScanDoc program description 10
Program settings 10
Main menu 13
Identication 13
Diagnostic Trouble Codes 14
Hot keys 30
Manufacturer 31

Introduction
Use
A multi car diagnostic scanner ScanDoc Compact is used for the information
readout from the car engine control modules (ECM) via the diagnostic outlet
OBD-II.
Functionality
• Reading and error codes decoding.
• Errors reset.
• Display of current data both in digital and graphical formats.
• Final controlling drives actuation.
• Systems identication (controlling units).
• Immobilizer device reading and programming.
Available Interfaces
• Russian.
• English.
• German.
• Greek.
Hardware specication
• CPU: 32bit, 72 MHz.
• RAM: 32 МB.
• Protocols hardware support: KL-Line, 2xCAN, VPW, PWM, J1708.
• Protocols software support: KW71, KW81, KW82, KW1284, DS2, ISO8,
ISO14230, ISO9141, ISO15765, J1979, J1850, TP2.0, J1939.
• Integrated electronic commutation: 13 channels.
• Connection with РС: WI-FI IEEE 802.11b 100 mV (54 Mb/s).
• Power supply: 9-30 V DC.
Service and operation conditions
• Operating temperature: 0-50°C.
• Maximum relative humidity: 80% (up to 30°С) and 50% (at 40°C and
higher).
• Any liquids inside the device are inadmissible .
General characteristics
• Scanner dimensions: 24х44х93 mm.
• Weight: 67 gram.
3
QUANTEX GmbH 2014

Safety precautions and warnings
Read this instruction manual rst and then use the device. Make sure you’re
aware of the instruction manual information. The Manufacturer isn’t responsible for
accidents involving injuries, except equipment manufacturing defects.
4
QUANTEX GmbH 2014
Poisoning
Test an operative vehicle in a well ventilated work area. The engines
vent the carbon oxide, it’s an odourless toxic gas with slow reaction
time that can result in a serious injury or death.
Personal injury
Link on the hand break before using the device. Use break shoes
for front drive vehicles, as the hand break doesn’t block major front
wheels.
Test during driving
Don’t test the car while driving. Carelessness may lead to a fatality.
One person must do the test while another one is driving the vehicle.
Don’t place a laptop or a tablet PC ahead when driving a car. The
laptop may cause an injury to you if a safety bag comes into ac-
tion. Don’t scan safety bag system SRS while driving the car, as the
safety bag may operate unintentionally.
Electrical elements
Always cut the ignition off by connection and disconnection of elec-
trical elements, if there aren’t any other special instructions.
Battery energy storage (BES)
Don’t put a device on the BES of a vehicle. It can short the BES ter-
minals out, that may result in a personal injury as well as device and
the battery fault.

Installation
To start, do the following:
Step 1 - Make sure your PC meets the system hardware requirements.
Step 2 - Install the ScanDoc program to your PC.
Step 3 - Connect the adapter to the car and the PC.
Step 4 - Activate the device on-line.
The device is ready for service.
Step 1 - Minimum system hardware requirements
• CPU Intel Core 2 Duo 2 GHz.
• RAM 512 MB.
• Display adapter 1024х768, True-Color.
• OS Windows 7 / 8
• Internet (to update the adapter rmware and new rmware unlocking for the
cars only).
• Wireless LAN controller 802.11 g/n.
Step 2 - Program installation
To install the program, use USB Flash Drive containing the software and start the
le Setup.exe.
The software is also available at the manufacturer’s site at: www.quantexlab.
com.
5
QUANTEX GmbH 2014

Step 3 - Connection
1. Connect ScanDoc Compact to the car diagnostic outlet OBD-II.
2. Connect to the PC via the wireless network Wi-FI. Select QUANTEX in the Wi-
FI connections list available on the PC.
This is the easiest way to connect.
Note: This option within the Wi-Fi device unit is default
6
QUANTEX GmbH 2014
Wi-Fi
Guest
Quantex
Connect 2

If the adapter is connected to the PC successfully, there will be a green indicator,
showing the robust connection to the adapter. To make sure the scanner ScanDoc
Compact is connected to your PC, select the button Connection Test in the tab
Options.
Connection via Wi-Fi with internet access point
If it ‘s necessary to work with several devices via wireless connection or the
wireless connection has been already set up, this connection via Wi-Fi with Inter-
net Access Point is used. In this case you may need to change an IP-address of
the diagnostic scanner ScanDoc Compact.
For more information on types of connection and additional settings, please visit
our web site: www.quantexlab.com
7
QUANTEX GmbH 2014

8
QUANTEX GmbH 2014
Step 4 - On-line activation.
To activate, do the following:
1. Connect ScanDoc Compact to the car diagnostic outlet OBD-II.
2. Connect to the PC via the wireless network Wi-Fi.
3. Select the button Get key in the tab Options (The PC should be connected to
the Internet).
4. If the program and remote server are connected successfully, a message say-
ing the key is received successfully will appear.
5. Press the button Upload key to save the information received to the ScanDoc
Compact adapter.
6. After the Key is saved into the adapter, the program will reload ScanDoc
Compact automatically.
If a PC can’t be connected both to the Internet and to the scanner ScanDoc Com-
pact simultaneously (e.g. a PC has an Internet access via Wi-Fi router), please do
the following:
1. Don’t connect to the adapter ScanDoc via wireless network Wi-Fi and try to
start ScanDoc program. Using the PC connect to the Internet and press the
button Get key (or the button Activation via the Internet) in the tab Options.
You will see this message:
2. Select the adapter type (ScanDoc Compact) and its serial number in the win-
dow. If the program and the remote server are connected successfully, there
will be a message saying the key is received successfully.
3. Disconnect from the wireless network for the Internet access and connect to
the Internet Access Point QUANTEX.
4. Select the button Upload key to save the received information to the Scan-
Doc Compact adapter.
5. After the key is saved to the adapter the program will automatically reload
ScanDoc Compact.

Actuators
There are the reset switch to factory settings.
The device condition is shown by inboard LED indicators. They are on after the
power is supplied to the device and the integral test is run.
Device power supply
ScanDoc Compact gets the power supply from the car diagnostic outlet OBD-II.
Possible Reasons for Power Supply Absence:
• The adapter is put in to the car diagnostic socket incorrectly.
• The adapter output connectors are damaged.
• The car wiring before the diagnostic outlet is faulty.
9
QUANTEX GmbH 2014
Connector view. End view.
Indicators (light) condition Description
The device is switched off.
The PC is connected to Wi-Fi.
The data interchange is in process.
When it is on:
Integral hardware- based test is run. The red indicator
should go off in a while after it’s been switched on.
• If the indicator is dull, then there are not any pro-
grams in the adapter or the program is corrupted. To
restore it, one should activate the device.
• If the indicator ashes on and off and doesn’t go off,
then the unit is out of service. Contact your seller.
When operated on:
• Emergency activity. Don’t switch the power off till the
activity is nished.

10
QUANTEX GmbH 2014
ScanDoc program description
Program settings
The section Options contains 3 subsections, connected to the device operation
and program settings.
System
This tab is for the program system settings. It contains the basic information on
the scanner connected (the serial number, type, IP-address, database version, etc.),
and can update its rmware, run the connection test, view the log-les folder and
activate the device.
Database version:
Make sure you use the latest database version. New program version can be al-
ways downloaded from the corresponding section at our site: www.quantexlab.com
Serial number:

11
QUANTEX GmbH 2014
The serial number of the device is read. This number is used by dealers request-
ing when buying the new brands.
Select the button Read to read the device serial number. The program will also
read and show the adapter type.
Beta-test
It’s used by beta-testers. Brands and units are discovered, which haven’t been
fully tested yet. Errors can occur in these units.
Device operation
Connection test
The test checks if the device connected or not and its quality. When one presses
the button, 2 types of tests are run.
• Ping-test checks if the device can be connected or not.
• Complete packages test sends the maximum length package and controls the
surge protector and Ethernet controller properties.
IP-address change
It can assign a device an IP- address.
An IP-address in a device or in a program is not necessary to be changed as a
rule. If there is a plant LAN, where IP-addresses have been already assigned, it’s
necessary to do it. Buttons for an IP-address change are shown by selecting the fol-
lowing keys: Ctrl+Alt+Y.
Beware! An expert is the only person to change the IP-address in the
device.

12
QUANTEX GmbH 2014
Log-les Folder
It opens the folder containing log-les.
Read
The device serial number, its type and list of open brands are read. Information on
opened brands is saved to the device by activation.
Access Level
This is the level, giving additional opportunities when working with a brand (only
the rst basic level is being currently supported).
Color
In the tab Color one can change the text and diagrams colors displayed by the
program.
Averaging
The averaging mode engaging adds to the datastream diagram the averaged
data. These data are displayed both in the digitalized and graphical forms. The aver-
age is calculated from operation start to the current moment.
The above sections are always accessible in the ScanDoc program interface
whether the scanner is connected to the car or not. The rest program sections are
displayed when the scanner is switched on and the connection to the car is made.

13
QUANTEX GmbH 2014

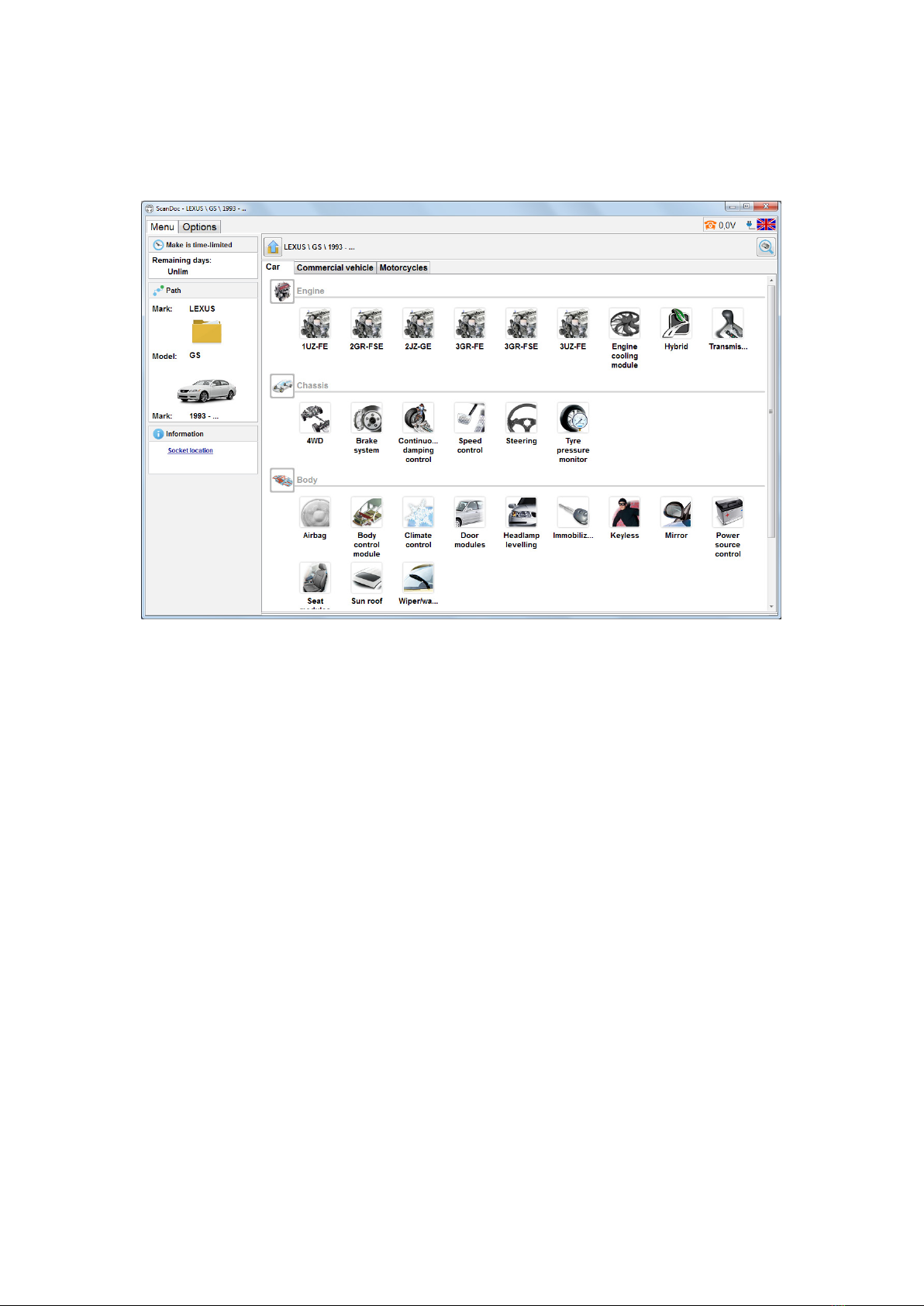

Main menu
To start the work, one should select the car and the system to work with. All the
car brands are divided into regions (Europe, Americas, Asia, etc.). Please, double
click the left mouse button on the icon and choose the option you need, for exam-
ple, the car brand or the car model.
The right eld of the “Menu” section contains information on car brands which
have been activated, the left one contains the activation time and more detailed
data on the car selected.
After the car model is selected, one can either search for units automatically or
choose necessary ECU (Electronic Control Unit) manually.

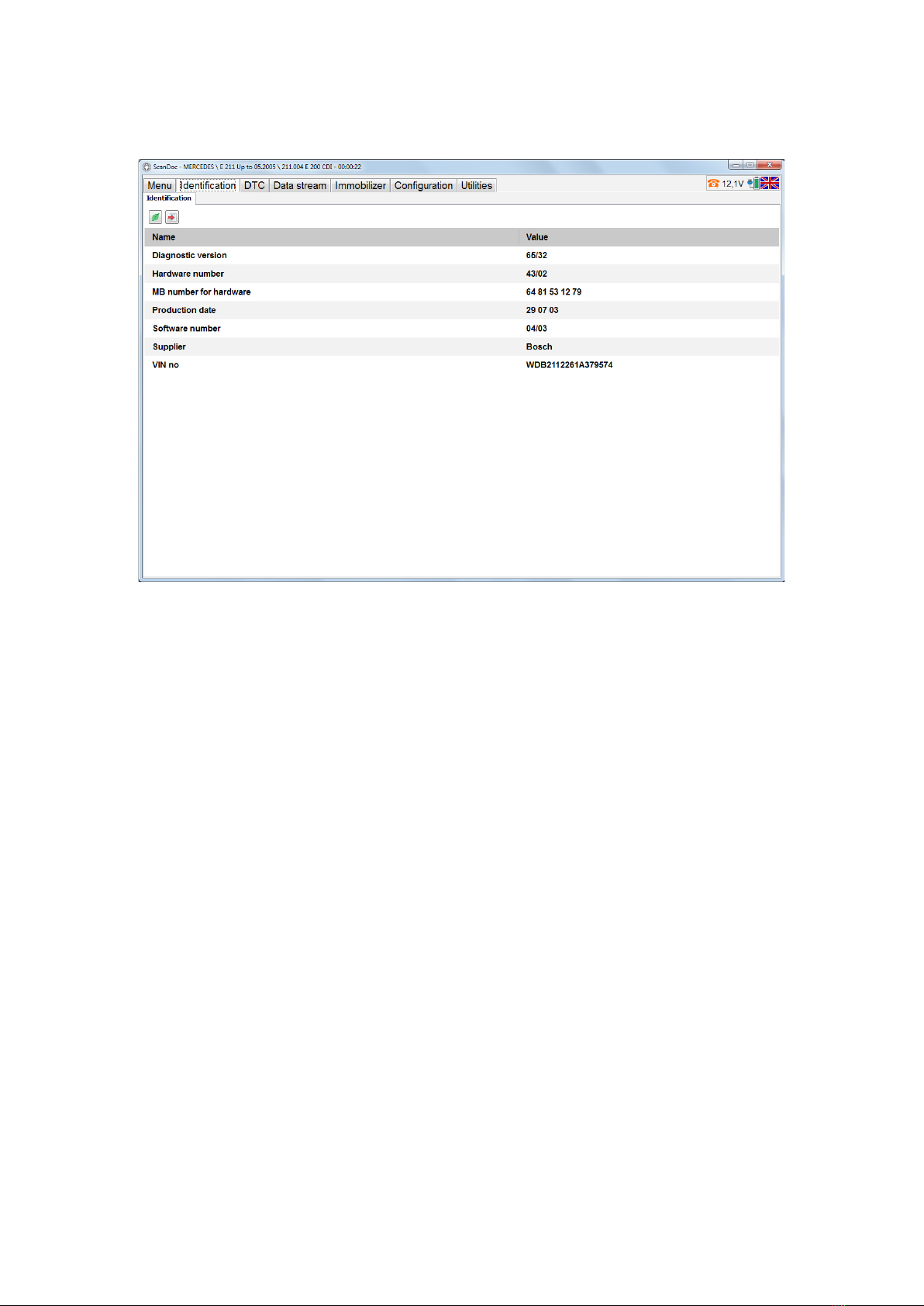

Identication
After the connection to Electronic Control Unit (ECU) is made, the program will
display the ECU identity. These data are necessary to determine the software and
hardware versions, control units calibration versions. The identity data contain ad-
ditional information, necessary to test this control unit correctly.

14
QUANTEX GmbH 2014
It may take from 0,5 to 15 seconds to get an ECU started depending on the Elec-
tronic Control Unit type or the diagnostic protocol. Some ECU-s need more time. It
can happen because of both diagnostic protocol features or the car conguration
reading by the scanner.
Beware! The program controls software versions within ECU and iden-
tities. If the program nds an unknown identity, the message will be
displayed. Further operation is then not possible or limited as a rule. In
some cases a user can continue operating being fully responsible for
the risks.
Diagnostic Trouble Codes (DTC)
The tab “Codes” displays the error codes (DTC), which have been saved to the
Electronic Control Unit.

15
QUANTEX GmbH 2014
Code and error name
The scanner reads out the error code and decodes it. An error can have number-
ing assigned by the manufacturer or by the OBD-II standard. The OBD-II standard
also admits codes, assigned by a manufacturer. These codes start from the number
P1000.
Errors in accordance with OBD-II standard:
Symbols Description
P
P - Powertrain.
B - Body.
C - Chassis.
U - Communication.
00 - Codes are assigned by the OBD-II standard.
1 - Codes are assigned by the manufacturer.
1System or car component code.
1Error code.
2Error code.
Some manufacturer’s standards involve the error digital value.

16
QUANTEX GmbH 2014
Errors statuses
Most ECU-s can display current error status besides the error saving. Statuses
show additional information on the code. For example, the code is active or it has
been active but it’s currently not having the code.
Saved data when there are errors (Freeze frame)
Some units support the Freeze frame mode. When an error appears, information
on denite settings is saved to the control unit memory. This enables to determine
conditions under which the error appears. Freeze frame is saved for each error
separately.
To get the information, use left mouse button and select the error’s name. Freeze
frame will be displayed for selected error.
Some ECU-s can show several Freeze frames for one error code.
Data before, during and after DTC (Diagnostic trouble code) appeared are usually
saved.

17
QUANTEX GmbH 2014
Additional Information
If the error code doesn’t have any descriptions, please, contact support or consult
the dealer to nd the car repair information.
If there is an error additional description in the database, an icon with the question
mark will appear before the number of this error. Use left mouse button to select this
icon and you will see a window with the additional information.

18
QUANTEX GmbH 2014
Datastream
In the tab “Datastream” one can look through the current information, read out
from the control units sensors.
The control bar enables to manage graphs and tests.
Control bar buttons description.
Button Description Hot key
Start / Stop. Activates or stops the options cycling
mapping mode Options cursory measuring can be
made within this mode.
Space
Save data. Options, displayed to the le in a tempo-
rary folder of Clients program. Ctrl+S
Previous group. Determines options previous group
according to the list. Groups are generated out of the
options in the alphabetical order.
Page
Up
Next group. Determines options next group according
to the list. Groups are generated out of the options in
the alphabetical order
Page
Down
Install user group.
Calls the control box of options users group.
3D diagram.Enables to see how options change and
inuence one another.
Zoom in by X.
Zoom in the oscilloscope picture scale by X. “+”
Zoom out by X. Zoom out the oscilloscope picture
scale by X. “-”
Automatic scale. Sets the scale when the maximum
option value isn’t showed outside the display. Ctrl+А
Picture view.
View mode of one, two or all the options on the dis-
play. To install the active group, press Tab.
Ctrl+V
Add the protocol. Adds current options values to the
protocol. Ctrl+R
Exhaust gas tester. Activates the exhaust gas tester
program. Ctrl+G
Tests. Tests list opening. Ctrl+T

19
QUANTEX GmbH 2014
Picture view
Current options groups can be viewed differently:
• One options group.
• Two options groups.
• All the options simultaneously.
• 3D diagram.
One or two option groups viewing. Options are displayed in the alphabetical order.
Click the right mouse button on the graphs to open any options. Each option is dis-
played both in graphical and digital forms. Click the left mouse button on the option
header and change the form of its view.

20
QUANTEX GmbH 2014
Picture view of all the options simultaneously enables to overview quickly.
If a picture is 3D viewed, it’s necessary to choose the axes to display the graphs.
If two options are indicated, there will be a 2D mode, if 3 options are indicated,
then there will be a 3D mode. One can set minimum and maximum values on the
axes for each option to view in detail.
Graphs data will be viewed as points linked together by lines.
Buttons Description of 3D Graphs Window.
Button Description
Start / Stop
It activates or stops the options cycling mapping mode
Clear
It discards 3D picture. The graphs start drawing again.
Graphs axes transfer
It helps to transfer the graphs axes manually.
Graph turn.
It helps to rotate the graphs around the axes manually.
Zoom change
It helps to zoom in (with the left mouse button) or zoom out (with the
right mouse button) the graphs size.
Changes reset.
It restores all the graphs settings defaulted. It adds the graphs to the
protocol.
Add to the protocol.
It adds the graph to the protocol.
