Quantum Rehab Cantilever Lift System Technical manual

ACN# 088 609 661
Cantilever Lift System

Cantilever Lift System www.quantumrehab.com RevA/Nov03
Copyright © 2003
Pride Mobility Products Corporation
INFMANU253
The symbols below are used throughout this owner's manual and on the product
to identify warnings and important information. It is very important for you to read
them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation that
can cause either personal injury, component damage, or malfunction
(black symbol on yellow triangle with black border).
MANDATORY!Theseactionsshouldbeperformedas specified. Failure
to perform mandatory actions can cause personal injury to personnel
and/or equipment damage (white symbol on blue dot).
PROHIBITED!These actions shouldnotbe taken orshouldbe stopped.
Performing a prohibited action can cause personal injury and/or
equipment damage (black symbol with red circle and red slash).
NOTE: Supplemental information that may be helpful to operate the
equipment.
PRODUCT SAFETY SYMBOLS
Read and follow the information in the owner’s manual.
Pinch Point.

Cantilever Lift System www.quantumrehab.com RevA/Nov03
TABLE OF CONTENTS
SAFETY......................................................................................... 4
CANTILEVER LIFT SYSTEM ....................................................... 6
VIBE WITH CANTILEVER LIFT SYSTEM SPECS....................... 8
CANTILEVER LIFT OPERATION - VSI......................................... 9
CANTILEVER LIFT OPERATION - REMOTE PLUS .................. 10
CANTILEVER LIFT OPERATION - EUROPA............................. 11
SEAT DUMP ADJUSTMENT ...................................................... 12
SEAT POSITION ADJUSTMENT................................................ 14
WARRANTY................................................................................ 15

4 BasicOperationInstructions
Cantilever Lift System www.quantumrehab.com RevA/Nov03
SAFETY
WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation
(Pride). The product you have purchased combines state of the art components
with safety, comfort and styling in mind. We are confident that the design features
will provide you with the conveniences you expect during your daily activities.
Understanding how to safely operate and care for this product should bring you
years of trouble free operations and service.
Read and follow all instructions, warnings, and notes in this manual and all other
accompanying literature before attempting to operate this product for the first
time. In addition, your safety depends upon you, as well as your provider, caretaker,
or healthcare professional in using good judgement.
This manual is to be used in addition to the power base owners manual that came
with your power chair. If there is any information in this manual which you do not
understand, or if you require additional assistance for setup or operation, please
contact your Quantum Rehab Specialist. Failure to follow the instructions,
warnings, and notes in this manual and those located on your Pride product can
result in personal injury or product damage and will void Prides product warranty.
INTERNETANDPRIVATEPURCHASES
The contents of this manual are based on the expectation that a mobility device
expert has properly fit the product to meet your needs and has assisted the
prescribing healthcare professional and/or the Quantum Rehab Specialist in the
instruction process for the use of the product.
If you purchased this product over the internet or from a previous owner and you
have any questions about the safe use and/or maintenance of the product, please
visit the Pride web site or contact your Quantum Rehab Specialist.
PURCHASER’SAGREEMENT
By accepting delivery of this product, you promise that you will not change, alter
or modify this product or remove or render inoperable or unsafe any guards,
shields, or other safety features of this product; fail, refuse or neglect to install any
retrofits kits from time to time provided by Pride to enhance or preserve the safe
use of this product.

BasicOperationInstructions 5
Cantilever Lift System www.quantumrehab.com RevA/Nov03
INFORMATIONEXCHANGE
We want to hear your questions, comments, and suggestions about this manual.
We would also like to hear about the safety and reliability of your new lift system,
and about the service you received from your Quantum Rehab Specialist.
Please notify us of any change of address, so we can keep you apprised of important
information about safety, new products, and new options that can increase your
ability to use and enjoy your Pride product. Please feel free to contact us at the
address below:
Pride Mobility Products Corporation
Attn: Customer Care Department
1 2 Susquehanna Avenue
Exeter, PA 1 643-2694
customercare@pridemobility.com
00- 00- 5 6 (Quantum - US)
-570-1113 (Quantum - CAN)
NOTE: If you ever lose or misplace your product registration card or
your copy of this manual, contact us and we will be glad to send you a
new one immediately.
PRIDEOWNER’SCLUB
As an owner of a Pride product, you are encouraged to enroll in the Pride Owners
Club. Complete and return your enclosed product registration card or visit Pride's
web site at www.pridemobility.com.
From our home page, select "Owners Club" to enter a page dedicated to current
and potential Pride product owners. You will gain access to interviews, stories,
recreation ideas, daily living tips, product and funding information, and interactive
message boards. These message boards invite you to communicate with other
Pride customers as well as Pride representatives who are available to assist you
with any questions or concerns you may have.

6 BasicOperationInstructions
Cantilever Lift System www.quantumrehab.com RevA/Nov03
Figure 1. Cantilever Lift System
LIFT FRAME
ACTUATOR
ALM
CANTILEVERLIFTSYSTEM
The Cantilever Lift System is designed specifically for the Vibe power base. The
Cantilever Lift System consists of a lift frame that is integrated into the Vibe power
base, an actuator, and an actuator lighting module (ALM). See figure 1. The ALM
enables the controller to divert power from the batteries to the actuator. The actuator
provides the lift. The total lift is 12 inches. Lift speed is 1/2 inch per second. The
Cantilever Lift System is equipped with a speed inhibit that reduces your power chairs
speed to one quarter (1/4) when the seat is elevated more than 3 inches.
Rear View

BasicOperationInstructions 7
Cantilever Lift System www.quantumrehab.com RevA/Nov03
NOTE: Raising the cantilever lift can change your center of gravity.
Thecantilever lift option isintendedfor use on a flat,hard, level surface
only. See figure 2.
NOTE:Checktobesurethespeedinhibitsystemisoperatingproperly
before using your power chair.
NOTE: Limit your movement while the lift is in an elevated position.
Raising the lift can enhance the capabilities of the power chair in the following ways:
nYour level of reach is extended to allow more freedom and independence in
many environments.
nYou are closer to the eye level of standing persons. This provides better
interaction.
WARNING! Maintain recommended tire pressure in the drive wheels
and the caster wheels to ensure stability. Refer to the Vibe Owner’s
Manual.
WARNING! Do not raise the lift from its lowest position on an inclined
surface.
WARNING! Do not raise the cantilever lift while your power chair is in
freewheel mode.
WARNING! Fasten the lap belt prior to operating the cantilever lift.
WARNING! Downward movement of the lift can create a pinch point.
Keep all body parts out of the path of travel.
Failure to heed any of the above can result in personal injury and/or
property damage.
NOTE: Lift adjustment speed is less than 1/2-inch per second.
Figure 2. Use Lift on Flat, Hard, Level Surface Only

8 BasicOperationInstructions
Cantilever Lift System www.quantumrehab.com RevA/Nov03
VIBE WITH CANTILEVER LIFT SYSTEM SPECIFICATIONS
Suspension: Full suspension - Sport Trac
Drive Wheels: 14 in., pneumatic, rear-mounted (14 in., solid are optional)
Caster Wheels: 9 in. pneumatic, front-mounted (9 in. solid, 8 in. solid, and 6 in.
solid are optional)
nti-tip Wheels: 4 in., solid, rear-mounted
Maximum Speed:* Up to 6 mph
Brakes: Intelligent Braking electronic regenerative, disc park brake
Ground Clearance: 3.75 in.
Turning Radius: 24 in. (without foot riggings)
Turning Diameter 48 in. (without foot riggings)
Overall Size: Length: 35.5 in. (without foot riggings)
Length: 48 in. (with swing-away footrests)
Width: 25 in.
Seating Options: Specialty Seat (standard)
Medium-Back Seat (optional)
Synergy Seat (optional)
High-Back Seat (optional)
Reclining Seat (optional)
Drivetrain: Two motor, rear-wheel drive
Batteries: Group 34
Range:* Up to 25 miles
Battery Charger: 8-amp, off-board
Electronics: 50-amp PG Drives VSI (standard)
70-amp PG Drives Remote Plus (optional)
70-amp Dynamic Europa (optional)
Weight Capacity: 300 lbs.
Component Weights: Base: 90.5 lbs. (without batteries and with pneumatic dri e wheels)
Cantilever Lift Speed: 1/2-in. per second
Cantilever Lift
Extention: Maximum 12 in.
*Depending on user weight and terrain.

BasicOperationInstructions 9
Cantilever Lift System www.quantumrehab.com RevA/Nov03
Figure 3. VSI Controller
CANTILEVERLIFTOPERATION-VSI
To operate the cantilever lift:
1. Bring your power chair to a complete stop.
2. Press an actuator key until the actuator light is on. See figure 3.
3. Push the joystick forward to raise the lift. Pull the joystick back to lower the
lift. Once the lift reaches its highest extension and the lift action stops, you
should continue to hear and/or feel the lift motor running. This is because there
is a clutch mechanism that allows the motor to continue running after the lift
has reached its limit. This clutch works at both the top and bottom extensions
of the lift. When you release the joystick, the lift motor will stop.
NOTE: Do not allow the motor to run more than a few seconds after
the lift reaches the top or bottom limit.
4. Press the actuator key again until the actuator light goes out.

10 BasicOperationInstructions
Cantilever Lift System www.quantumrehab.com RevA/Nov03
SPEED
SETTING
INDICATOR
ACTUATOR
INDICATOR
MODE
KEY
Figure 4. Remote Plus Controller
CANTILEVERLIFTOPERATION-REMOTEPLUS
To operate the cantilever lift:
1. Bring your power chair to a complete stop.
2. Press the mode key until the actuator indicator lights up. See figure 4.
3. Push the joystick forward to raise the lift. Pull the joystick back to lower the
lift. Once the lift reaches its highest extension and the lift action stops, you
should continue to hear and/or feel the lift motor running. This is because there
is a clutch mechanism that allows the motor to continue running after the lift
has reached its limit. This clutch works at both the top and bottom extensions
of the lift. When you release the joystick, the lift motor will stop.
NOTE: Do not allow the motor to run more than a few seconds after
the mechanism reaches the top or bottom limit.
4. Press the mode key again until the speed setting indicator lights up.

BasicOperationInstructions 11
Cantilever Lift System www.quantumrehab.com RevA/Nov03

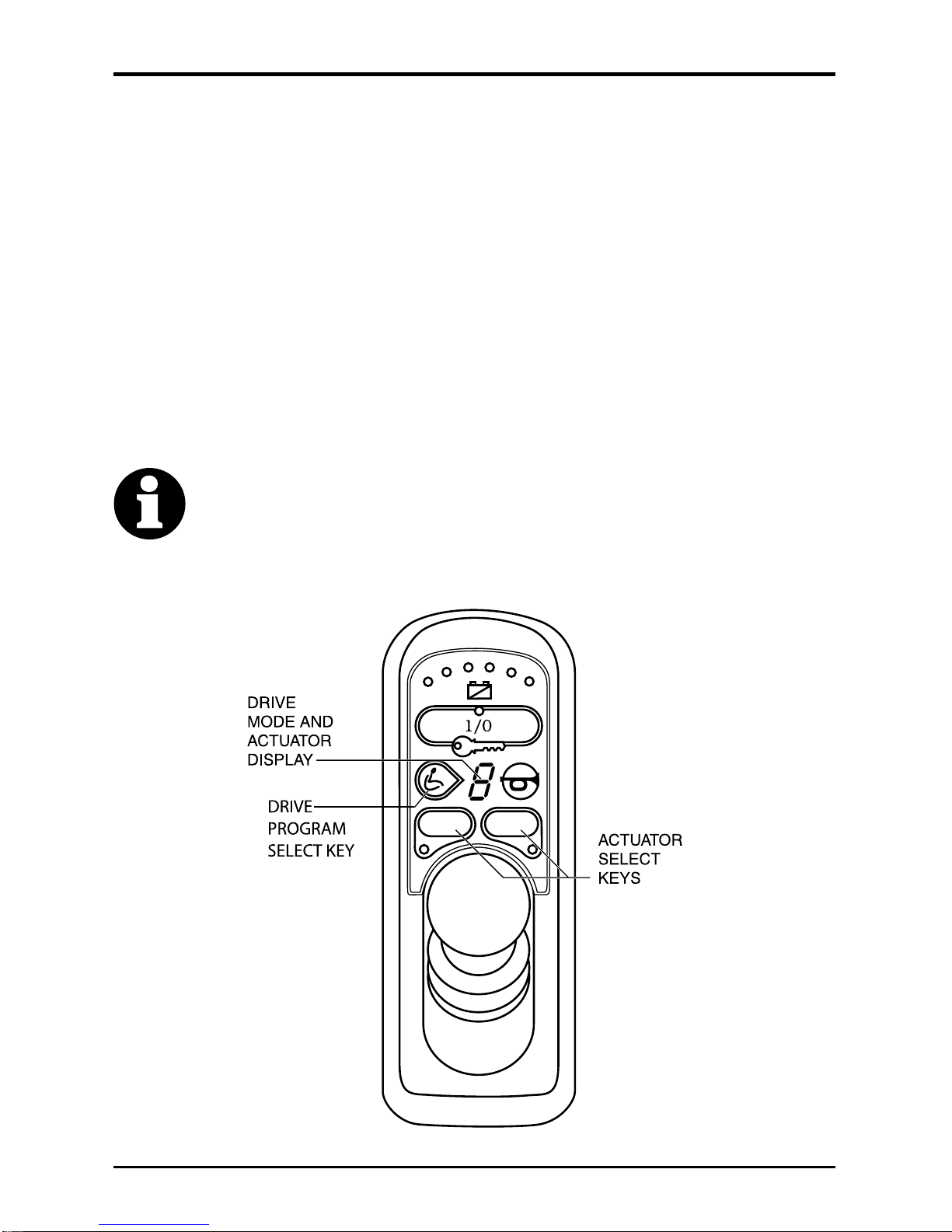

Figure 5. Europa Controller
CANTILEVERLIFTOPERATION-EUROPA
To operate the cantilever lift:
1. Bring your power chair to a complete stop.
2. Press an actuator select key until an A appears in the drive mode and actuator
display. See figure 5.
3. Pull the joystick back to raise the lift. Push the joystick forward to lower the
lift. Once the lift reaches its highest extension and the lift action stops, you
should continue to hear and/or feel the lift motor running. This is because there
is a clutch mechanism that allows the motor to continue running after the lift
has reached its limit. This clutch works at both the top and bottom extensions
of the lift. When you release the joystick, the lift motor will stop.
NOTE: Do not allow the motor to run more than a few seconds after
the mechanism reaches the top or bottom limit.
4. Press the drive program select key until a number appears in the drive mode
and actuator display.

12 BasicOperationInstructions
Cantilever Lift System www.quantumrehab.com RevA/Nov03
SEATDUMPADJUSTMENT
The cantilever seat dump is preset at 5°. The seat adjustment range is 0 - 10°. See
figure 6.
WARNING! Donotservice this product beservicedwhile it is occupied.
Failure to heed can result in personal injury and/or property damage.
NOTE: Changing the seat dump is a complicated task and should be
performed by a Quantum Rehab Specialist only.
To adjust the seat dump:
1. Turn the fasteners on the front cover one quarter (1/4) turn in any direction.
See figure 7.
2. Remove the cover.
3. Loosen the locknuts on each of the turnbuckles.
4. Rotate the large turnbuckle clockwise and the small turnbuckle
counterclockwise to increase seat dump. Rotate the large turnbuckle
counterclockwise and the small turnbuckle clockwise to decrease seat dump.
5. Tighten the locknuts on each of the turnbuckles.
6. Reinstall the cover.
10
Figure 6. Seat Dump

BasicOperationInstructions 13
Cantilever Lift System www.quantumrehab.com RevA/Nov03

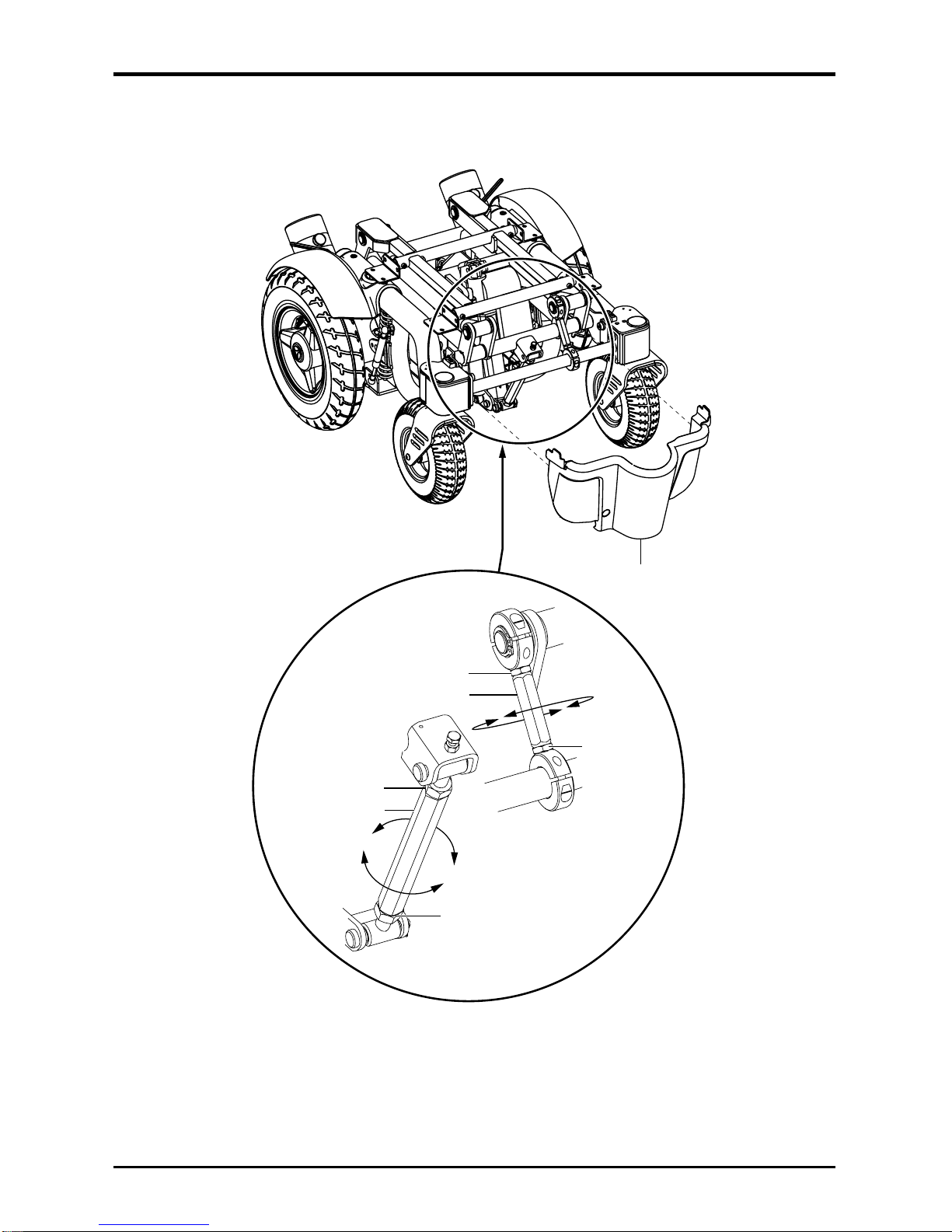

LOCKNUT
FRONT COVER
LOCKNUT
TURNBUCKLE
TURNBUCKLE
LOCKNUT
LOCKNUT
Figure 7. Seat Dump Adjustment

14 BasicOperationInstructions
Cantilever Lift System www.quantumrehab.com RevA/Nov03

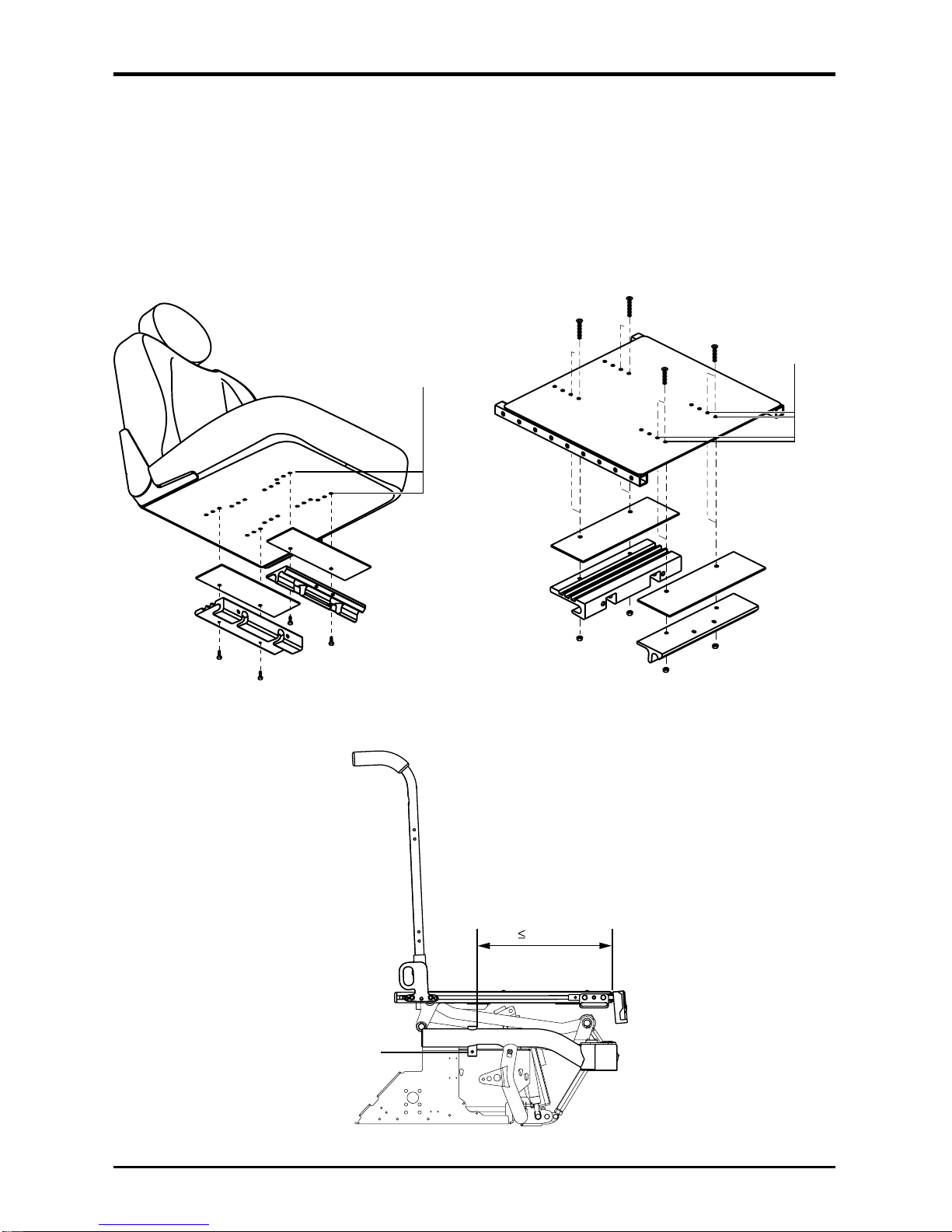

SEATPOSITIONADJUSTMENT
Seat position is preset at Pride during assembly. If for any reason, the seat was
removed from the cantilever lift frame, it must be reinstalled exactly as illustrated
below. See figures , 9, and 10. For removal and installation instructions, refer to
the Vibe Owners Manual or the Basic Operation Instructions that accompanied
the seat.
USE FIRST
HOLE ONLY
USE ONLY
THE FIRST
OR SECOND
HOLES
14.5 in.
SEAT POST HOLE
Figure 8. Contoured Seat (UMS) Figure 9. Specialty Seat (UMS)
Figure 10. Synergy Seat

BasicOperationInstructions 15
Cantilever Lift System www.quantumrehab.com RevA/Nov03
18-MONTHLIMITEDWARRANTY
For eighteen (1 ) months from the date of purchase, Pride will repair or replace at
our option to the original purchaser, free of charge, any of the following parts
found upon examination by an authorized representative of Pride to be defective
in material and/or workmanship:
nActuator
nLift Mechanism
Warranty service can be performed by your authorized Pride Provider. Do not
return faulty parts to Pride without prior consent. All transportation costs and
shipping damage incurred while submitting parts for repair or replacement are the
responsibility of the purchaser.

Quality Control - Cantilever Lift System
We have thoroughly inspected your Cantilever Lift System. The following
checkmarks indicate that it has been tested and inspected.
Date Inspected
Inspector
Pride keeps a more detailed report on file at the factory.
Fit and Finish
Inclusion of
all Parts
Model #______________
Serial #______________
Performance
Table of contents
Popular Lifting System manuals by other brands

Clarke
Clarke Strong Arm CML2 Operating & maintenance instructions

TIGIEFFE
TIGIEFFE AIRO A Series Use and maintenance manual

Paragon Pro
Paragon Pro Telpro The Troll 112 manual

MONSTER MOBILE
MONSTER MOBILE MST13012 owner's manual

WOOD'S POWR-GRIP
WOOD'S POWR-GRIP P110L02DC3 operating instructions

Extreme Max
Extreme Max Boat Lift Buddy Installation & use instructions
