Quantum QP-650 User manual

QP-650 user manual
Quantun Electronics,LLC

Government law prohibits the operation of unlicensed radio
transmitters. Illegal operation is punishable by fine or imprisonment
Of both.
To avoid problem caused by electromagnetic interference and
electromagnetic compatibility, please turn off the transceiver at
the sites where you are required, such as hospital, airplane etc.
In the vehicle equipped with air bag safety, don't put the transceiver
within the scope of the air bag inflation.
Please turn off the transceiver before step into the inflammable
and explosive places.
Don't transmit for a long time, it may damage the transceiver or
it may cause scald.
Don't use the transceiver which antenna is damaged or else when
the exposed metal touch the skin, it may cause scald also.
Don't expose the transceiver to long periods of direct sunlight,
nor place it close to heating appliances.
If belt the transceiver on with belt clip, please notice that the distance
Between body and antenna should be more than 5cm when
transmitting.
If an abnormal odor or smoke is detected coming from the
transceiver, switch OFF the power immediately and remove the
optional battery pack from the transceiver. Contact our dealer
nearby.
NOTICES TO THE USER
We are grateful for you choice of Quantun transceiver.
This Professional two-way radio incorporates the
advanced technology and craft. You will be pleased
with the quality and features of our product. Please
read this manual carefully to ensure you know how
to property operate the radio before use.
THANK YOU

3
User Safety, Training, and General Information
READ THIS IMPORTANT INFORMATION ON SAFE AND
EFFICIENT OPERATION BEFORE USING YOUR
QUANTUN PORTABLE TWO-WAY RADIO.
Compliance with RF Energy Exposure Standards
Your Quantun two-way radio is designed and tested to comply with a number of national
and international standards and guidelines (listed below) regarding human exposure to
radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and
ICNIRP exposure limits for occupational/controlled RF exposure environment at duty
cycles of up to 50% talk-50% listen and should be used for occupational use only. In terms
of measuring RF energy for compliance with the FCC exposure guidelines, your radio
radiates measurable RF energy only while it is transmitting (during talking), not when it is
receiving (listening) or in standby mode.
Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle
(5% talk-5% listen-90% standby), even though this radio complies with the FCC
occupational RF exposure limits at duty cycles of up to 50% talk.
Your Quantun two-way radio complies with the following of RF energy exposure
standards and guidelines:
zUnited States Federal Communications Commission, Code of Federal Regulations;
47CFR part 2 sub-part J
zAmerican National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
zInstitute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
zInternational Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
zMinistry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio
Frequency Electromagnetic Fields in the Frequency Range from 3KHz to 300GHz,
1999

4
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled
environment RF energy exposure limits in the above standards and guidelines, users
should transmit no more than 50% of the time and always adhere to the following
procedures:
Transmit and Receive
To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button.
Hand-held radio operation
Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm)
away from the lips.
Body-worn operation
zAlways place the radio in a Quantun approved clip, holder, holster, case, or body
harness for this product. Use of non-Quantun-approved accessories may exceed
FCC RF exposure guidelines.
zIf you do not use a Quantun approved body-worn accessory and are not using the
radio in the intended use position in front of the face, then ensure the antenna and the
radio are kept one inch (2.5 cm) from the body when transmitting.
Antennas & Batteries
zUse only Quantun approved, supplied antenna or Quantun approved replacement
antenna. Unauthorized antennas, modifications, or attachments could damage the
radio and may violate FCC regulations.
zUse only Quantun approved, supplied batteries or Quantun approved replacement
batteries. Use of non-Quantun-approved batteries may exceed FCC RF exposure
guidelines.
Approved Accessories
For a list of Quantun approved accessories, see the accessories page of this user manual
or visit the following website which lists approved accessories: http://www.Quantun.com

5
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
Industry Canada Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme à la norme NMB-003 Canada.
FCC Requirements
Your radio must be properly licensed by the Federal Communications Commission prior to
use. Your Quantun Wireless dealer can assist you in meeting these requirements. Your
dealer will program each radio with your authorized frequencies, signaling codes, etc.,
and will be there to meet your communications needs as your system expands.
Caution: 
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with part 15
of the FCC Rules. 
Operation is subject to the condition that this device does not cause harmful interference

CONTENTS
Unpacking and Checking Equipment
Supplied Accessories
Battery Pack information
Charging Notices
Charging Instructions
Care and cleaning
Accessories Installation
Installing and Removing the Battery Pack
Installing and Removing the Antenna
Installing and Removing the Belt Clip
Installing the Optional Mic. And Speaker
Radio Overview
Basic Operation
Switch On/Off
Adjusting Volume
Selecting Channel
Transmitting
Features
Battery Save
Low Battery Alert
Squelch Tail Elimination
Time-Out Timer [TOT]
Monitor
Priority Scan
Wired Clone
PC Programming
Selectable Squelch Level(0-9)
Busy Channel Lockout[BCL]
Programmable 12.5kHz/25kHz Channel Spacing
DTMF ANI Encode
CTCSS/DCS Signalling
Frequecy List
Troubleshooting
VOX operation
Channel Annunciation
Key function programmable
VOX
High/low power

Battery Information
Charging Notice
The battery is not charged at the factory, which can not reach its full
capacity for the first charging.After being charged and discharged
two or three times,it will get optimum.When the battery power is low,
it either needs to be charged or replaced by a new one.
Notices:
Do not short the battery terminals or throw the battery into the fire.
In order that the battery attached to the radio is fully charged, the
radio needs to be turned off.
Do not leave the battery or the radio with battery into the charger
if it needs not to be charged.Otherwise,the battery life will be
shortened.
Do not charge the battery whose power is high.Overcharging will
shorten the battery life.
Store the battery in a place about room temperature (25 ) if
possible.Charging the battery in temperature less than 10 may
cause electrolyte leakage and damage the battery.
Charging the battery in temperatures greater than 35 will affect
work of the battery and further affect the use of the radio.
Unpacking and Checking Equipment
Carefully unpack the transceiver. We recommend that you identify
the items listed in the following table before discarding the packing
material. If any items are missing or have been damaged during
shipment, please contact Sureave dealers immediately.
Supplied Accessories
ITEM QUANTITY
Antenna
Charger
Switch Power Supply
Li-ion battery pack
Belt Clip
Strap
Instruction Manual
1
1
1
1
1
1

Charging Instruction
Insert the battery or the radio with the battery into the charger,
and make sure than the battery connectors are in contact with
the charging terminals.The LED indicators glows red during
charging and green when the battery is fully charged.
Do not carry your radio by the antenna or remot microrhone;
Wipe the battery contacts with a lint-free cloth to re-move dirt,
grease,or other material that may prevent good electrical
connection;
When not in use,keep the accessory jacks covered with the
protective caps;
Clean the shell,controls and keys of your radio wyth neutral
detergent and warm water after a long period df usage.Avoid
using strong chemicals.
Care and Cleaning
LED INDICATOR CHARGING STATUS
Red Charging
Green Fuil Charge

Accessory lnstallation
Attaching the Battey
1.Turn off the radio.
2.Insert the tabs at the bottom of the battery intothe slots at the
bottom of the radio chassis.
3.Press the top of the battery towards the radio until a click is
heard.(See Figure 1)
Removing the Battery
1.Turn off the radio.
2.Push the battery latch on the back panel towards the top of the
radio.
3.Pull the top of the battery away from the radio chassis, and lift
the battery from the radiio.(See Figure2)
1.Align the grooves of the belt clip those of the battery.
2.Press the belt clip downwards until the belt clip tab locks.
(See Figure 4)
Note: attach the belt clip before installing the battery.
Removing the antenna
1.Turn the antenna counterclockwise until you can remove it.
(See Figure 3)
Attaching the Belt Clip
Figure1
Figure2
Attach Remove
Figure 3
Figure 4
Attaching the antenna
1. Align the threaded end of the antenna with the Radio’s antenna
connector.
2. Turn the antenna clockswise to tighten.(See Figure 3)

1.Remove the cover of earphone jack.
2.Rotate the cover until earphone jack comes into view.
Insert the earphone plug into the jack.(See Figure6)
1.Press the belt clip tab upwards until it releases.
2.Slide the belt clip upwards to remove it.(See Figure 5)
Note: remove the battery pack prior to removing the belt clip.
Removing the Belt Clip
Attaching External Earphone(Optional)

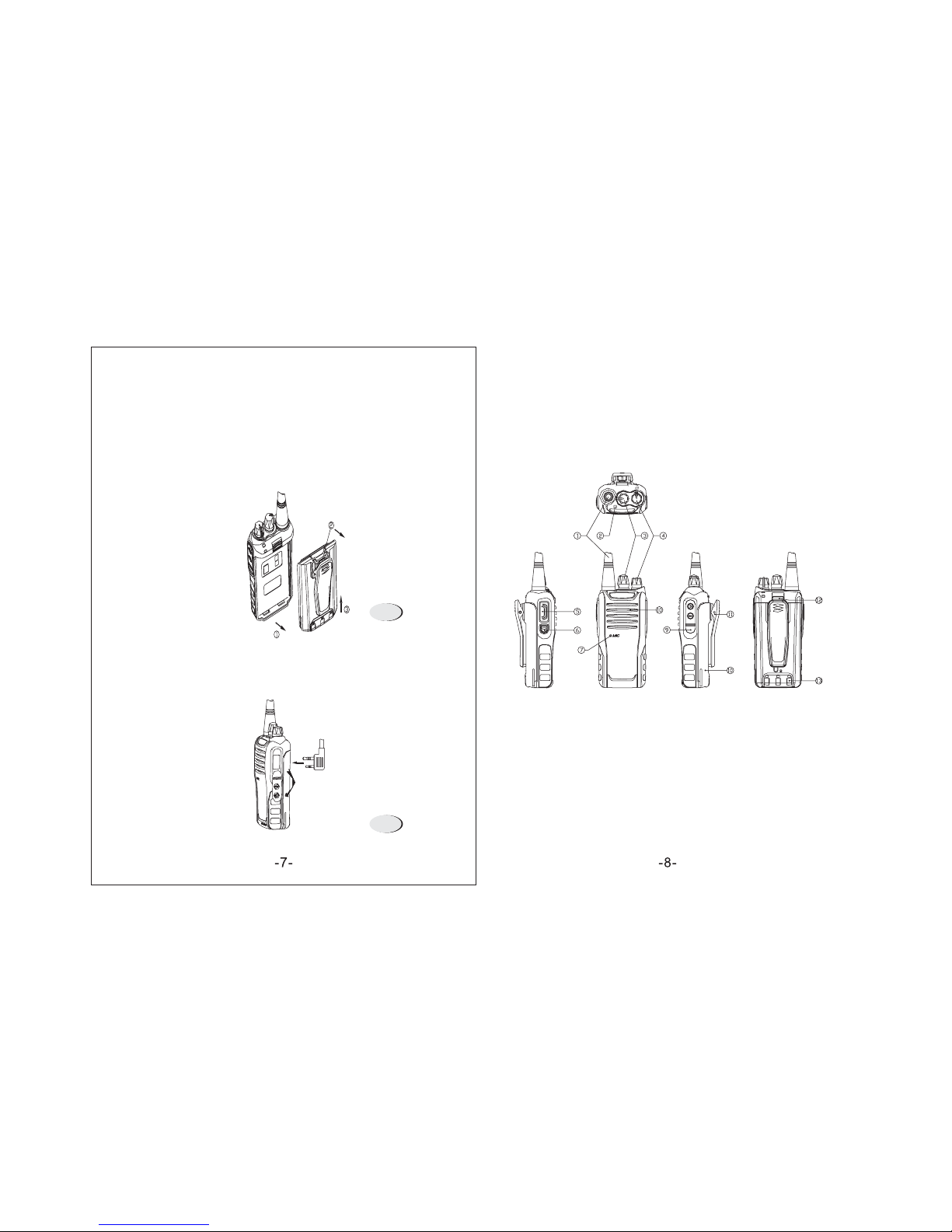

Radio Overview
Figure 5
Figure 6

(8) Speaker
Used to output sounds.
(9) External Jack(for external earphone
or radio programming)
Rotate the jack cover and insert accessory plug
or insert programming cable into the jack to
program the radio via programming software.
(10) Battery
(11) Belt Clip
Used to clip radio on your belt.
(12) Battery Latch
Used to fasten and remove the battery.
(13) Charging Connector
Insert the battery into the charger; connect the
charging connectors with those on the charger
to begin charging.
(1) Antenna
Used to transmit/receive signals.
(2) LED Indicator
The radio LED glows red during transmission
and green during reception; The LED flashes
red when battery voltage is low.
(3) Channel Selector Knob
(4) Power/Volume Control Knob
Rotate the knob clockwise until a "click"
sound is heard to turn the radio on,fully counter
clockwise until a "click" is heard to turn the radio
off.When theradio is on,turn the knob to adjust
volume.
(5) PTT Key
Hold down the [PTT] key to transmit, release
it to receive.
(6) Function Key
Thekeycanbeprogrammedtoaccessthe
radio features with the preset type of key pre
ssing through the programming software.
(7) Microphone
Used to input sounds.

1. Turn on the radio: Turn the Power/Volume Control Knob clockwise
until a "click" is heard.
2. Adjust the volume:Turn the Power/Volume Control Knob to adjust
the volume.When function key is programmed with monitor feature,
turn the knobwhile holding down the function key to adjust thevolume
to a comfortable level.
3. Select a Channel: Rotate Channel Selector knob to select
your desired channel.
4. Transmit: Hold down the [PTT] key ,speak into the microphone
with normal voice. Keep microph one about 5cm away from
your mouth.
5. Receive: Release the [PTT] key, the radio returns to receive mode.
Note: when battery voltage becomes too low, transmission
will stop and radio LED flashes red. Please refer to "Low
Battery Alert" for more details.
Basic Operation
Squelch Tail Elimination
The function will minimize the annoying audio outputs that occur at
the receiver on completion of a transmission to relieve the fatigue of
you ears.
Time-Out-Timer(TOT)
The Time-Out-Timer(TOT) is used to prevent someone from using
the same channel for a long time and to prevent the radio from
damage due to continuous transmission.
If the transmission exceeds the preset time (it's set by your dealer),
transmission will be inhibited and a beep tone will sound.To stop the
beep tone, release the [PTT] key .Press the [PTT] key again to
resume transmitting.
Features
TOT Reset Time
When this feature is activated,TOT won't reset until the preset
TOT Reset Time (it's set by your dealer) expires,even if you h
ave released the [PTT] key.
VOX Operation
Conecting a VOX Headset
1. Turn off your radio
2. Connecting the VOX accessory to your radio and turn the radio on.
Note:
1. Before you use VOX operation, it need to be enabled by PC
programming software.
2. Pressing the PTT button disables VOX.
Channel Annunciation
When you rotate the channel selector, the current channel number
will be heard.
Key function programmable
Your dealer may program the Function Key(long or short press)
with one of the following auxiliary functions respectively.
Monitor/Monitor monentary/Squelch off/Squelch off Monentary
/Channel Lock/Power Level/Battery Indicator/Scan/VOX

Monitor
This feature is enabled/disabled by your dealer.In receive mode,
press the preprogrammed MONI key to monitor activities on the
current channel .This operation is especially useful for adjusting
volume level or receiving a weak signal.The LED indicator glows
green in monitor mode.
Busy Channel Lockout
If the Busy Channel Lockout feature is enabled by your dealer,
it will prevent you from talking on a channel that is already in
use.When you press the [PTT] key , the radio will sound a beep
tone and will not transmit. Release the [PTT] key to stop the
beep tone. Wait until the channel is not in use before you again
try to transmit.
Wired Clone
Cloning enables duplication of radios in the field via a simple
interface cable,without the use of a PC or a special equipment.
PC Programming
Function settings and frequencies can be customized via
programming software.
Selectable Squelch Level(0-9)
The purpose of squelch is to mute audio output from the
speaker when no signals are present.The higher the squelch
level selected,the stronger the signals must be to receive.The
appropriate squelch level depends on ambient RF noise con
ditions.
Priority Channel Scan
Any programmed channel may be set as the priority channel.The
radio will check the priority channel periodically while stopping
on a non-priority channel.When there is any activity on the priority
channel,the radio will automatically switch to the priority channel
for communications.
Programmable 12.5kHz/25kHz Channel Spacing
The feature enables flexibility an easy migration of channel spacing
requirements when the need arises,with no need to buy new radios.
DTMF ANI
This feature is enabled /disabled by your dealer.DEMF ANI is encoded
by PTT ID.Each radio is assigned with one ANI code consisting of
BOT ID (Beginning of Transmission) and EOT ID(End of Transmission).
Each channel can be programmed by PC programming software to
transmit/not transmit ANI code in transmitting mode.
CTCSS/DCS Signalling
CTCSS/DCS may have been programmed on a channel to ignore
unwanted calls from other parties on the same channel.When
CTCSS/DCS signalling is set,user will receive the calls on the same
channel only when the received signals contain the matching
CTCSS/DCS code;otherwise,the user receives all the calls on the
same channel within communication range.
The dealer preset CTCSS/DCS signalling on all or just certain channels.
NOTE:Although using CTCSS/DCS enables you to avoid hearing
Unwanted calls,it does not mean your calls will be private.
VOX
When hands-free operation is desired, your radio can be activated
by voice alone using the VOX feature when you speak through an
accessory that is connected to your radio.
High/low power
High transmit power optimizes range coverage while low transmit
power conserves battery consumption, all at the user's control.

FREQUENCY LIST
Model No.:
Serial No.:
Channel TX Frequency RX Frequency CTCSS/DCS
Battery Save
The Battery Save feature is automatically activated once no activity
on the channel and no operation performed for 10 seconds, for
extended operation time. When a signal is received or an operation
is performed, the Battery Save feature is automatically deactivated.
Low battery Alert
When the battery voltage goes below a preset value, the LED indicator
Will flash red and the alert tone sound and then the radio stops transmitting.
This feature is designed to automatically reminds you of recharging
or replace the battery.

Warranty Card
Mode Number:
Serial Number:
Purchasing Date:
Dealer: Telephone:
User's Name: Telephone:
Address: Post Code:
Remarks:
1.This guarantee card to be kept by the user, no replenishment
if lost.
2.This guarantee card to be filled & chopped by the dealer,
or it is invalid.
3.Don't alter the guarantee card, please confirm the serial
number on the guarantee card is same as that on the
machine.
4.The guarantee period of radio is 18 months and the
guarantee period of the accessories such as charger,
battery and antenna is 6 month.
5.The user can get repairing service from the following ways:
a. Go to the shop where you buy the machine.
b. Our local repairing agent.
Troubleshooting Guide
Trouble
No power
Power doesn't
last long even
if fully charged
Can't talk to or
hear group
members
Other voice(non
-group members
are present on
the channel)
Solution
Battery is low. Recharge or replace the battery.
The battery may not be properly installed. Remove the
battery and attach it again.
Battery has lost its capacity, replace it with a new one.
Make sure you are using the same frequency, same
CTCSS/DCS and same 2-Tone as your group members.
Your group members may be out of the communication
range.
Change CTCSS/DCS tone. Make sure your group
members all change to the same tone.
