QUBINO ZMNHWD1 User manual

EN.
USER MANUAL EN.
QUBINO RGBW DIMMER
The Qubino RGBW Dimmer is ideal for dimming RGB/RGBW strips, LED strips and bulbs, or
even halogen bulbs. It can create different lighting effects (scenes) and adjust the color and
intensity of the light source.

EN.
Table of contents
About Qubino .............................................................................................................................3
Safety Information .................................................................................................................... 4
Flush RGBW Dimmer - Available Frequencies............................................................................ 4
1. Introduction.............................................................................................................................5
2. Qubino Flush RGBW Dimmer Advantages and Highlights...................................................... 6
3. Package Contents .................................................................................................................. 8
4. Technical Terms Used In the Manual ..................................................................................... 9
5. Installation..............................................................................................................................10
6. Product Information and Support ......................................................................................... 14
7. Electrical Diagram 12/24 VDC ................................................................................................ 15
8. Z-Wave Inclusion.................................................................................................................. 16
9. Z-Wave Exclusion ................................................................................................................. 18
10. Additional Information........................................................................................................ 19
11. Flush RGBW Dimmer Mode Descriptions ............................................................................. 21
12. Configuration Parameters....................................................................................................25
13. Technical Specifications ......................................................................................................34
14. Z-Wave Command Classes..................................................................................................35
15. Important Disclaimer...........................................................................................................37
16. Warning...............................................................................................................................37
17. Regulations ........................................................................................................................ 38

EN.
About Qubino
Qubino is a family of innovative Z-Wave modules, many of them the smallest of their kind in
the world. Numerous breakthrough innovations, 100% quality control and responsive customer
service make Qubino the number one choice for ambitious DIYers.
Qubino enables you to transform – inexpensively and invisibly – any traditional electric device
into a smart, connected one which you can control with your smart phone. Qubino modules are
simple to install and use, but also extremely versatile - if you are a demanding and ambitious
DIYer, there is also a wealth of additional features and parameters for you to play with.
What we really love to do is help dedicated DIYers – people who enjoy creating new ideas for
their home and then using their hard work and skill to turn ideas into reality. We admire your
passion and resourcefulness. We do our best to supply you with products that will enable you
to create a unique and special home for yourself. We innovate so that you can be free to make
the smartest home possible. With just a touch of magic.
"Simple is smart". We believe it is smart to make complex things simple. But only when this
means simple for our customers, not for ourselves. We think a lot so that DIYers won't have to
when it comes to installing or using our modules.
For more information visit: www.qubino.com
About Z-Wave:
The Z-Wave protocol is an interoperable, wireless, RF-based communications technology
designed specifically for control, monitoring and status reading applications in residential and
light commercial environments. Mature, proven and broadly deployed (with over 50 million
products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing
affordable, reliable and easy-to-use 'smart' products to many millions of people in every
aspect of daily life.
Source: www z-wavealliance.org

EN.
Safety Information
To ensure your safety, please read this manual carefully before device installation and follow
the instructions herein. The manufacturer (GOAP d.o.o. Nova Gorica) shall not be legally
responsible for any equipment damage or personnel injury caused by incorrect installation or
operation other than that covered in this manual.
Flush RGBW Dimmer - Available Frequencies
ORDERING CODE Z-WAVE FREQUENCY
ZMNHWD1 868,4 MHz
ZMNHWD2 921,4 MHz
ZMNHWD3 908,4 MHz
ZMNHWD4 869,0 MHz
ZMNHWD5 916,0 MHz
ZMNHWD8 865,2 MHz

EN.
1. Introduction
The Qubino RGBW Dimmer is designed to control your RGB/RGBW strips and LED strips or
bulbs in order to create countless color options and includes 6 special scene effects (Ocean,
Lightning, Rainbow, Snow, Romantic and Party). The wide range of colors lets you "paint" your
home according to your mood. Highlight your favourite wall by illuminating a picture on it in
tones that you choose yourself. The module can work in combination with the other Z-Wave
devices in your house. You can control it either remotely through the Z-Wave network or
through wall switches.
Choose from among 16 million different shades. Change the colors of your rooms and the
things in them and create lighting effects on outdoor surfaces such as summerhouses, paths
or even the outlines of your house. Come home from work to a relaxing atmosphere created by
a pre-set lighting scene. Use it to decorate your kitchen work surface or to light up the shower
or the mirror in your bathroom. Whatever the weather outside, let your living room glow in
warm and welcoming rainbow colors. And all this by simply tapping your smartphone or tablet!
The Qubino Flush RGBW Dimmer module can operate across a wide temperature range, from a
chilly 0˚C to a scorching 40˚C (32˚–104˚F). Every module acts as a repeater in order to improve
the range and stability of the Z-Wave network

EN.
2. Qubino Flush RGBW Dimmer Advantages and
Highlights
•Qubino Flush Dimmer allows the easiest and quickest installation. It fits smoothly even
in the smallest, most shallow and crowded flush mounting boxes which are stuffed
with lots of electrical cables. All this is possible because Qubino Flush Dimmer is the
smallest Z-Wave dimmer in the world.
•Qubino RGBW Dimmer has function to behave as usual dimmer and it also allows a
direct connection of LED lights which are working on DC voltage.
•The Flush RGBW dimmer module is the only Z-Wave dimmer for controlling LED strips
which can be used without a Z-Wave gateway. Without gateway you can use its
functions with 4 push buttons:
-Change Brightness (I1)
-Change Colour (I2)
-Turn on or off the scenes or change the scenes (I3)
-Turn on the Q4 output (I4) - White colour on the RGBW strip
•Every Qubino module has guaranteed 100% quality control throughout the production
process. Every product has a unique a serial number and a part number, which are
assigned to the module only after it goes through strict testing procedure.
•By scanning the QR code on the back of your Qubino, the serial and part number of the
module are automatically copied on user’s mobile device and they can have direct
access to Qubino’s technical support team. With the help of serial and part number, the
support team can check the production log file, which contains the date of production
as well as all the relevant product parameters and information, so they are able to give
the best support possible.
•Qubino Flush RGBW Dimmer is engineered and manufactured entirely in the EU and
contains only the highest quality components.
•Qubino Flush RGBW Dimmer is safety certified by an independent European Institute
and has LVC and EMC certificates.

EN.
ADDITIONAL PRODUCT HIGHLIGHTS:
•Local and wireless control of all LED strips
•Use it with toggle and push-button (momentary) wall switches or hide it completely
behind a dry wall
•Straightforward installation
•Remembers and restores its state after power outage
•Comes with auto-inclusion mode for the quickest set-up possible (add it to your Z-
Wave network with one click)
•Schedule the switch to automatically turn on or off after a fixed period of time with the
built-in timer*
•Equipped with over a dozen advanced parameters for further customization*
•Set minimum and maximum dimming levels*
•Go from 20% to full brightness with a double-click - no more pushing and holding*
•Customize ramp rate - regulate the speed which the dimmer adjusts brightness with*
•Equipped with strong signal repeater powered by Z-Wave Plus technology
*Your controller needs to support advanced configuration and parameter input to display these
features.
CLICK HERE TO WATCH THE FLUSH RGBW DIMMER VIDEO ANIMATION

EN.
3. Package Contents
•Flush RGBW Dimmer Module
•Installation Manual

EN.
4. Technical Terms Used In the Manual
Symbol
Switch example images
Definition
EU
USA
Qubino
Other
names
Single pole,
single throw
(SPST)
One-way
switch
Two-way
switch
(regular
switch)
Toggle
switch
Switch;
Bi-stable
switch
Single pole,
double throw
(SPDT)
Two-way
switch
Three-
way
switch
Two-way
switch
Used when you
have three or
more switches
controlling the
same light
Intermedi-
ate switch
Four-way
switch
Intermedi-
ate switch
Crossover
switch;
Cross
connection
After relasing it
goes back to
original state
Momentary switch Momentary
switch
Monostable
switch;
Push button

EN.

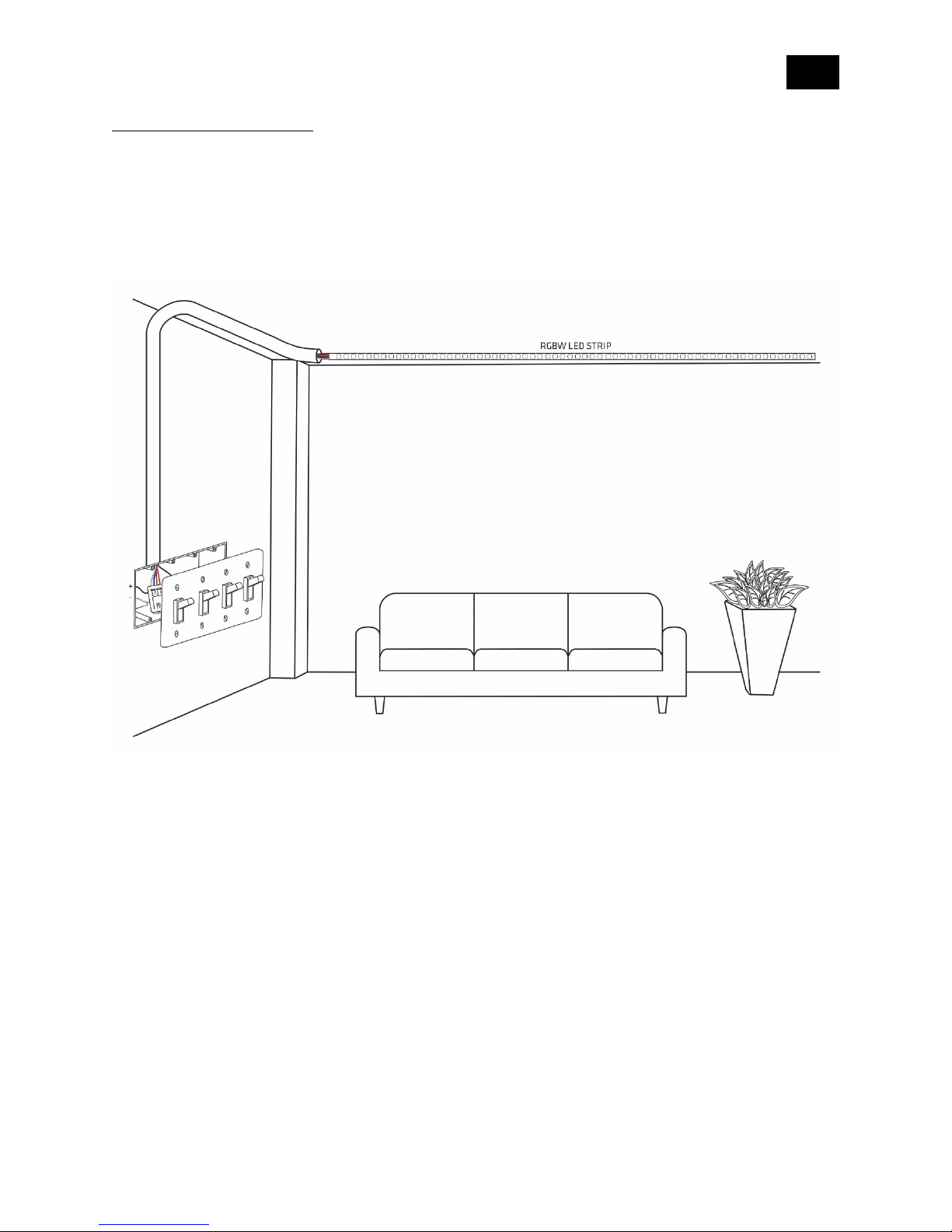

5. Installation

EN.

EN.
After Qubino installation:

EN.
The installation process, tested and approved by professional electricians, consists of the
following simple steps:
1. Before the installation disconnect power supply (12 - 24VDC).
2. Connect the module exactly according to the diagram.
3. Pull out the antenna and keep it at 90 degree to enhance the RF signals.
4. Place the antenna as far as possible from metal elements as they may cause signal
interference.
5. Do not shorten the antenna.
ⓘ Danger of electrocution!
Installation of this module requires a great degree of skill and may be performed only by a
licensed and qualified electrician. Please keep in mind that even when the module is turned off,
voltage may still be present in the module’s terminals.
ⓘ Note!
Do not connect the module to loads exceeding the recommended values. Connect the module
exactly as shown in the provided diagrams. Improper wiring may be dangerous and result in
equipment damage. Device must be powered by a dedicated regulated power adapter.

EN.
6. Product Information and Support
Did you know that Qubino offers Z-Wave modules with guaranteed 100% quality control
throughout the production process? Every single unit is tested and examined before being
approved for sale – a truly unique pledge in the industry.
Why is this important?
Every product has a dedicated a serial number and a part number, which is assigned to the
module only after it goes through a strict testing procedure.

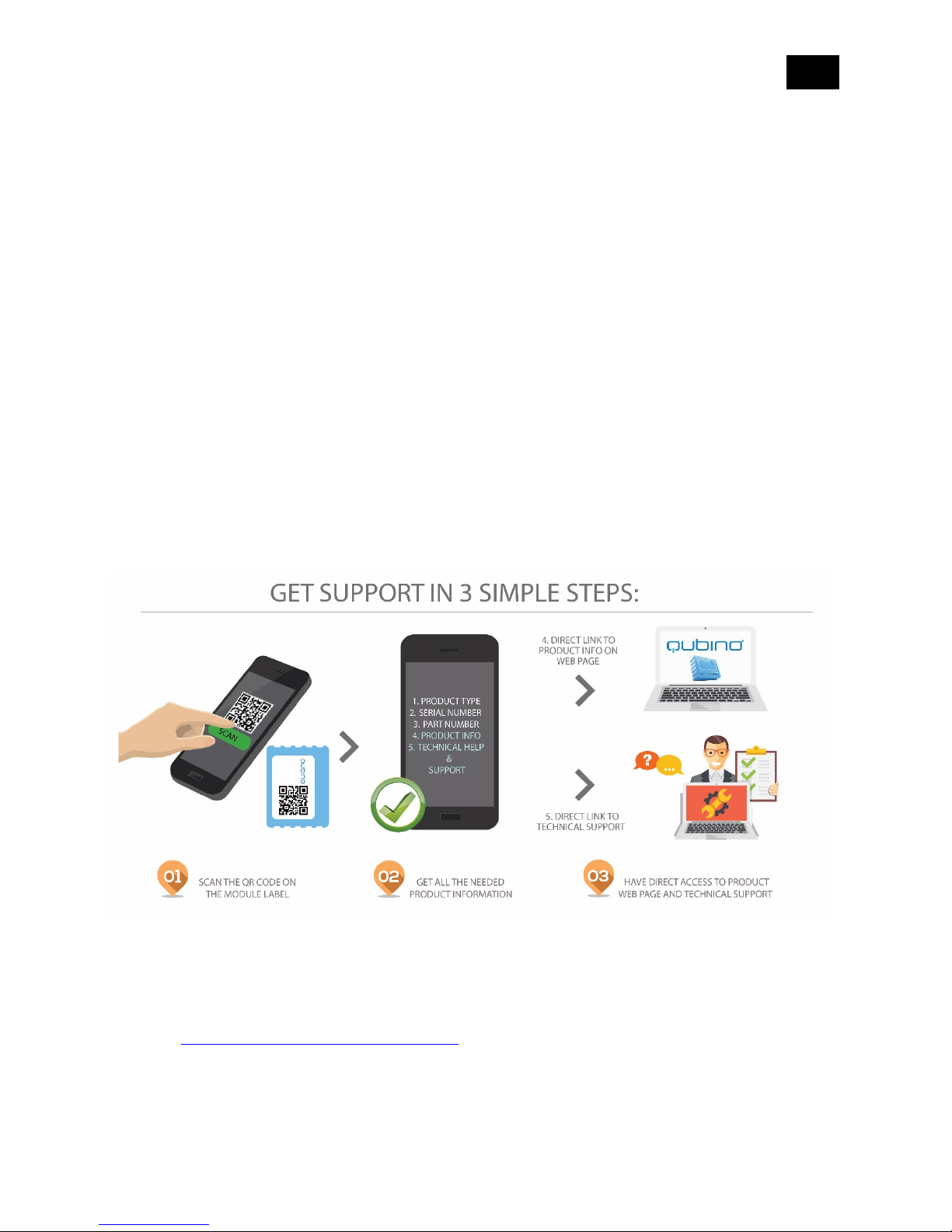

By scanning the QR code on the back of your Qubino module, its product title, serial number,
and part number are automatically copied to your mobile device. You can also use the code for
direct access to the module’s product page for more information. If you still don’t find what
you’re looking for, click on the link to Qubino technical support team. They will be able to
automatically read the serial and part number from your module and quickly review the
production log file containing production date as well as any relevant device parameters and
information. This process allows our team to immediately identify and address issues, giving
you the best support possible.
Based on customer and business partner feedback, we’re proud to boast Qubino’s support
team as the best and fastest on the market If you don't find the answers to your questions in
this document, please contact our support team by scanning the QR code or through our
website: http://qubino.com/support/#email. We will try to help you as soon as possible.

EN.

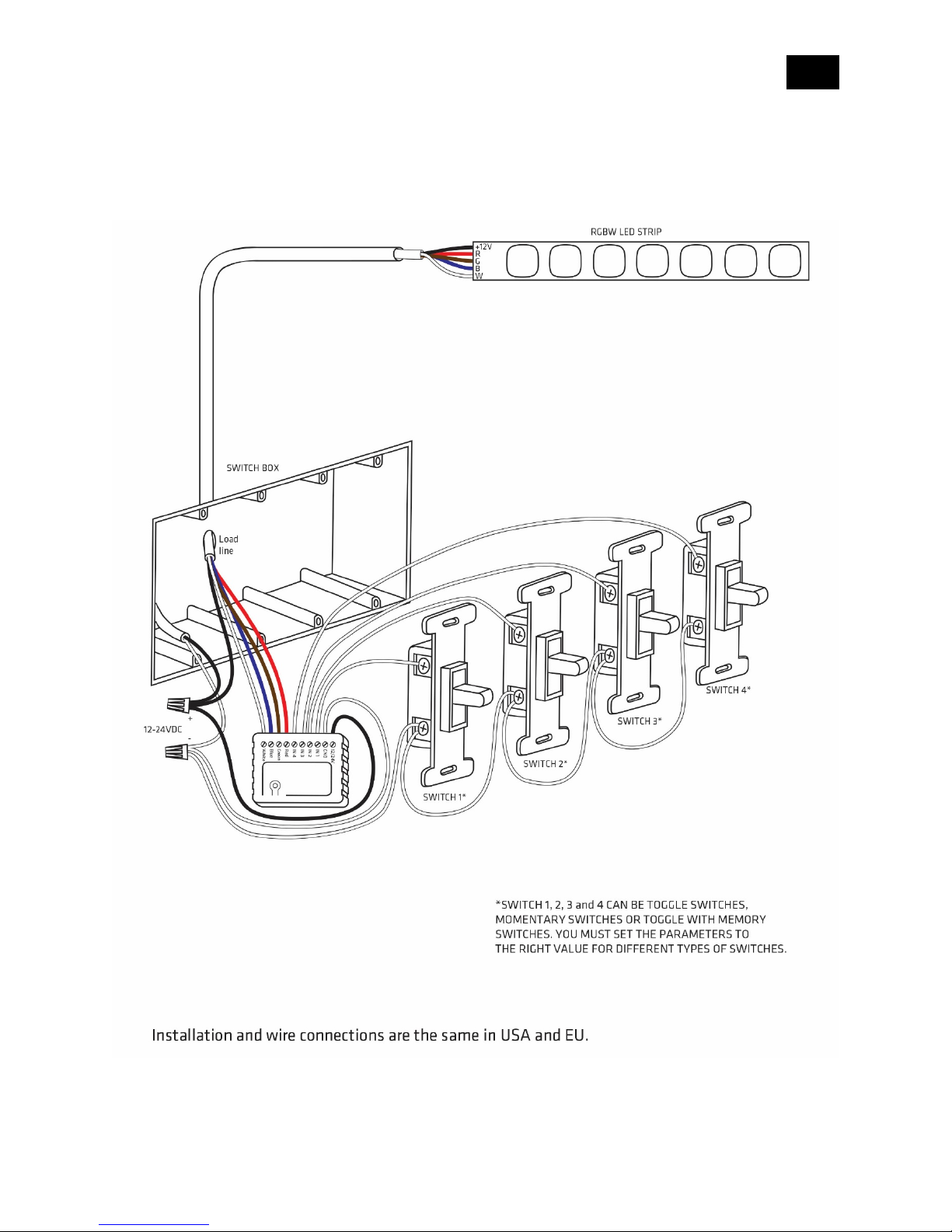

7. Electrical Diagram 12/24 VDC
Notes for diagram:
12/24V
GND
IN1
Input for 12VDC or 24VDC (+)
Ground (-)
Push button – Brightness control (in default configuration)
IN2
Push button – Rainbow mode (in default configuration)
IN3
Push button – Scene mode (in default configuration)
IN4
Push button – Normal mode (in default configuration)
S
Red
Green
Blue
White
Service button – Inclusion/ Exclusion/ Reset
Output for R wire of the LED strip or bulb in 4 Dimmers mode
Output for G wire of LED strip or bulb in 4 Dimmers mode
Output for B wire of LED strip or bulb in 4 Dimmers mode
Output for W wire of LED strip or bulb in 4 Dimmers mode

EN.
8. Z-Wave Inclusion

EN.
AUTO-INCLUSION
1. Enable inclusion mode on your Z-Wave controller
2. Connect the module to the power supply
3. Auto-inclusion will be initiated within 5 seconds of connection to the power supply and the
module will automatically enrol in your network. If the device is properly included, the RGBW
strip will blink once. Auto-inclusion times out after 2 minutes.
MANUAL INCLUSION
1. Connect the module to the power supply
2. Enable inclusion mode on your Z-Wave controller
3. Press and release the S (Service) button 3 times within 2 seconds

EN.
9. Z-Wave Exclusion
Z-WAVE EXCLUSION
1. Connect the module to the power supply
2. Make sure the module is within direct range of your Z-Wave controller or use a hand-held Z-
Wave remote to perform exclusion
3. Press and release the S (Service) button 3 times within 2 seconds
4. After exclusion module will automatically attempt to re-include in the next 2 minutes.
NOTE: The module will be excluded from your network, but any custom configuration
parameters will not be erased.
FACTORY RESET
1. Connect the module to the power supply.
2. Press and hold the S (Service) button for more than 10 seconds (the white blink on LED strip,
signal that the module is reset now you can release the S button)
3. After the factory reset module will automatically attempt to re-include in the next 2
minutes.
ⓘ By resetting the module, all custom parameters previously set on the module will return
to their default values, and the owner ID will be deleted. Use this reset procedure only when
the main controller is missing or otherwise inoperable.

EN.
10. Additional Information
1. Flush RGBW Dimmer is suggested to operate within low voltage circuits (12VDC or 24VDC).
Connecting loads powered by higher voltage to the module may damage the Flush RGBW
Dimmer. Please refer to the following table when wiring the module.
RGBW Strip Current
Stranded Wire
High current
18 AWG
Low Current
22 AWG
2. Flush RGBW Dimmer must be powered by the same voltages as the connected light source.
I.e. when controlling a 12V LED strip, the module must be connected to a matching 12V power
supply. Similarly, when controlling a 24V RGBW strip, the Flush RGBW Dimmer must be
powered by a 24V power supply.
3. The module’s output is controlled by PWM at 488Hz.
4. When controlling long RGBW/RGB/LED strips, voltage drops may occur, resulting in lower
light brightness farther away from the R/G/B/W outputs. To minimize this issue, it's
recommended to connect several shorter strips in parallel instead of one long strip connected
in sequence. The maximum recommended RGBW/RGB/LED strip length is 33 feet (10 m).
Please follow manufacturer recommendations regarding connection wire size for each load
you connect to the module.
5. If your primary Z-Wave controller is damaged or lost, but you have connected the module to
an external switch, the Flush RGBW Dimmer can operate normally with local control.
Otherwise, please replace your Z-Wave controller to exclude the module from your previous
network and re-include it to restore wireless control (follow inclusion / exclusion instructions
above for the process).

EN.
LED Indication
Status
LED Signal
Remark
Not included to the Z-
Wave network
Red & Green blinking
interchangeably
Included to the Z-Wave
network
Solid Green
Inclusion
Blinking Green
(Interval: 1 sec)
Press 3 times in 2
seconds
Exclusion
Blinking Green
(Interval: 1 sec.)
Press 3 times in 2
seconds
Auto inclusion
Blinking Green
(Interval: 1 sec.)
Power cycle to
connect with Z-Wave
network
Input Type
Remark
Momentary
Mono-stable or push
button switch
Toggle
Bi-stable switch
Toggle w/Memory
ON: Active for closing
terminals
OFF: Active for
opening terminals
