QUBINO ZMNHWD2 User manual

USER MANUAL EN.
QUBINO FLUSH RGBW DIMMER
The Qubino Flush RGBW Dimmer is ideal for dimming 12/24VDC RGB/RGBW strips, LED strips
and bulbs, or even halogen bulbs. It can create different lighting effects (scenes) and adjust
the colour and intensity of the light source.

EN.
2
Table of contents
About Qubino.........................................................................................................................................................3
Safety Information ................................................................................................................................................. 5
Flush RGBW Dimmer - Available Frequencies.......................................................................................................... 6
Where To Buy.........................................................................................................................................................7
1. Introduction ....................................................................................................................................................... 7
2. Use Cases ........................................................................................................................................................... 9
2.1. Installation examples for Flush RGBW Dimmer ............................................................................................9
2.2. Additional features of Flush RGBW Dimmer which can make your life easier ............................................. 11
3. Qubino Flush RGBW Dimmer Advantages and Highlights................................................................................... 12
3.1. Advantages ............................................................................................................................................... 12
3.2. Highlights.................................................................................................................................................. 15
4. Package Contents ............................................................................................................................................. 16
5. Technical Terms for Switches............................................................................................................................ 17
6. Compatibility with Z-Wave Gateways (hubs) ..................................................................................................... 18
7. Installation ....................................................................................................................................................... 19
8. Device Information and Support ....................................................................................................................... 28
9. Electrical Diagram (12/24VDC).......................................................................................................................... 29
10. Adding the device to a Z-Wave network (Inclusion)......................................................................................... 30
11. Removing the device from a Z-Wave network (Exclusion)................................................................................ 31
12. Additional Information.................................................................................................................................... 32
13. Flush RGBW Dimmer Mode Descriptions......................................................................................................... 34
14. Configuration Parameters............................................................................................................................... 39
15. Technical Specifications .................................................................................................................................. 49
16. Z-Wave Command Classes .............................................................................................................................. 50
17. Important Disclaimer ...................................................................................................................................... 52
18. Warning ......................................................................................................................................................... 52
19. Regulations..................................................................................................................................................... 52

EN.
3
About Qubino
Qubino is a family of innovative Z-Wave devices, many of them the smallest of their kind.
Numerous breakthrough innovations, 100% quality control, and responsive customer service
make Qubino the number one choice for making your life more comfortable.
Qubino enables you to transform –inexpensively and invisibly –any traditional electric device
into a smart, connected one that you can control with your smart phone. Qubino devices are
simple to install and use, but also extremely versatile - they offer a wealth of additional features
and parameters for you to play with.
We love helping people who enjoy creating new ideas for their home and then using their hard
work and skill to turn those ideas into reality. We admire their passion and resourcefulness. We
do our best to supply you with products that will enable you to create a unique and special
home for yourself. We innovate so that you can be free to make the smartest home possible.
With just a touch of magic.
"Simple is smart." We believe it is smart to make complex things simple. But only when this
means simple for our customers, not for ourselves. We think a lot so that you won't have to
when it comes to installing or using our devices.
For more information visit: www.qubino.com

EN.
4
About Z-Wave:
The Z-Wave protocol is an interoperable, wireless, RF-based communications technology
designed specifically for control, monitoring, and status reading applications in residential and
light commercial environments. Mature, proven, and broadly deployed (with over 50 million
products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing
affordable, reliable, and easy-to-use 'smart' products to millions of people in every aspect of
daily life.
Source: www.z-wavealliance.org

EN.
5
Safety Information
For Qubino, safety is first, so we have prepared lots of safety tips and information that can be
found throughout this manual.
To ensure your safety, please read this manual carefully before installing the device; follow
the instructions exactly. The manufacturer (GOAP d.o.o. Nova Gorica) shall not be legally
responsible for any equipment damage or personal injury caused by incorrect installation or
operation other than that covered in this manual.
ⓘPlease check the Technical Specifications and Electrical Diagram chapters, as well as fuse
requirements in the Installation chapter before installing the device.

EN.
6
Flush RGBW Dimmer - Available Frequencies
ORDERING CODE
(MODEL NUMBER)
Z-WAVE FREQUENCY*
ZMNHWD1
868,4 MHz
ZMNHWD2
921,4 MHz
ZMNHWD3
908,4 MHz
ZMNHWD4
869,0 MHz
ZMNHWD5
916,0 MHz
ZMNHWD6
868,4 MHz
ZMNHWD7
919,8 MHz
ZMNHWD8
865,2 MHz
ZMNHWD9
922,5 MHz
ZMNHWDA
919,7 –921,7 –923,7 MHz
ZMNHWDB
868,1 MHz
ZMNHWDC
868,1 MHz
ZMNHWDD
919,8 MHz
ZMNHWDE
920,9 MHz
*You can check the Z-Wave frequency in your country here:
http://z-wave.sigmadesigns.com/wp-content/uploads/Z-Wave_Frequency_Coverage.pdf

EN.
7
Where To Buy
To find your nearest Qubino dealer visit: http://qubino.com/where-to-buy/
1. Introduction
The Qubino Flush RGBW Dimmer is designed to control your RGB/RGBW strips, LED strips or
bulbs and even halogen bulbs in order to create countless colour options and includes 6 special
lighting effects (Ocean, Lightning, Rainbow, Snow, Romantic and Party). The wide range of
colours let you "paint" your home according to your mood. Highlight your favourite wall by
illuminating a picture on it in tones that you choose yourself. The Flush RGBW Dimmer can
work in combination with the other Z-Wave devices in your house. You can control it either
remotely through the Z-Wave network or through wall switches. The Qubino Flush RGBW
Dimmer also acts as a Z-Wave repeater to improve the range and stability of the Z-Wave
network.

EN.
8
Flush RGBW Dimmer supported functions:
Control
RGB/RGBW
strips, LED
strips or
bulbs,
halogen
bulbs
lighting
effect-
Ocean
lighting
effect-
Lightning
lighting
effect-
Rainbow
lighting
effect–
Snow
lighting
effect-
Romantic
lighting
effect-
Party
Automatically
turn ON/OFF
Z-Wave
Repeater
Auto-
inclusion
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓

EN.
9
2. Use Cases
The Flush RGBW Dimmer can be used in many different scenes, which can help make your life
more comfortable. We have prepared a few of them for you so you can get an idea for your
next smart home project. Of course, there are countless of other options for how to use Qubino
Flush RGBW Dimmer to remotely control devices via your smartphone.

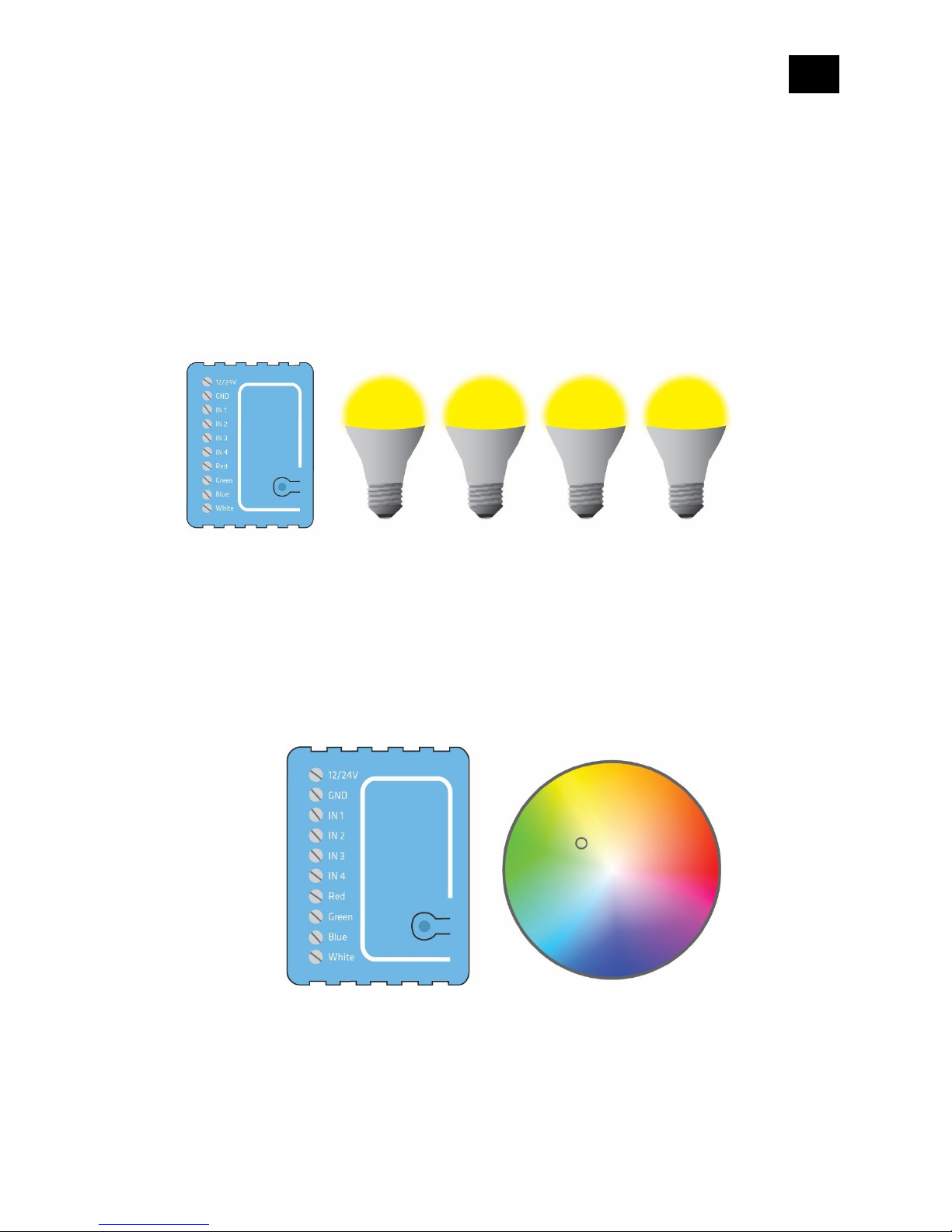

2.1. Installation examples for Flush RGBW Dimmer
•Remotely dim RGBW strips or turn them
ON/OFF
•Remotely dim RGB strips or turn them
ON/OFF
•Remotely dim up to 4 LED strips or turn
them ON/OFF
•Remotely dim up to 4 halogen bulbs or
turn them ON/OFF

EN.
10
•Remotely dim up to 4 LED bulbs or turn
them ON/OFF

EN.
11
2.2. Additional features of Flush RGBW Dimmer which can make your life easier
•Do you often forget to turn off the lights/RGBW/RGB
strips when you leave your home, like in the basement or
attic?

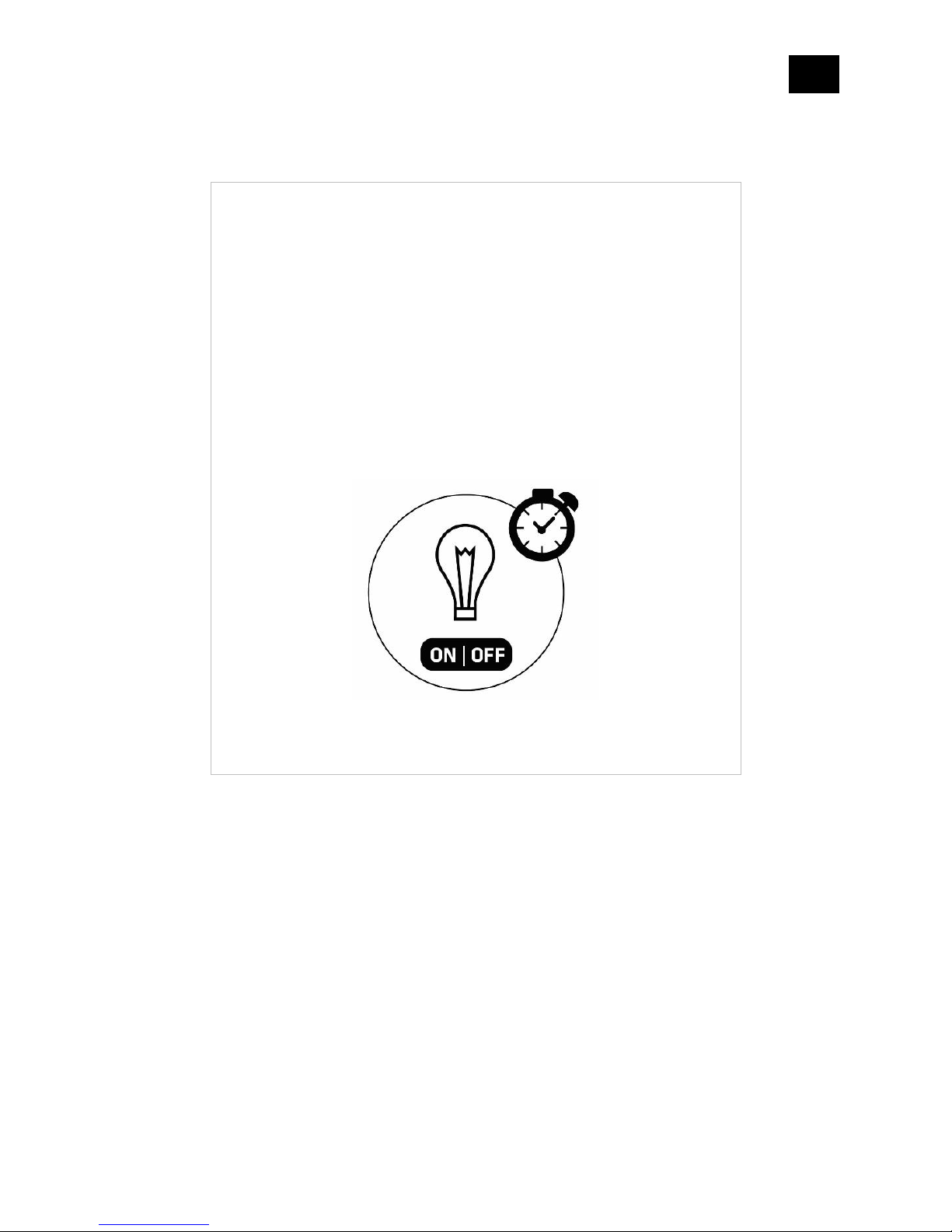

•The Flush RGBW Dimmer can automatically turn
lights/RGBW/RGB strips on or off after a set period of time
(when you’re away from home). For example, the light will
automatically turn off if it’s been on for 8 hours, let’s say.
This function is independent of other scenes and gateway
(hub) commands.

EN.
12
3. Qubino Flush RGBW Dimmer Advantages and
Highlights
3.1. Advantages
•Qubino Flush RGBW Dimmer has a function to behave as usual dimmer, but it also
allows a direct connection of LED lights which are working on 12/24DC voltage.
•With Qubino Flush RGBW Dimmer you can choose from among 16 million different
shades. Change the colours of your rooms and the things in them and create lighting
effects on outdoor surfaces such as summerhouses, paths or even the outlines of your
house.

EN.
13
•Qubino Flush RGBW Dimmer comes with 6 pre-programmed lighting effects: Ocean,
Lightning, Rainbow, Snow, Sun and Party, so you can come home from work to a
relaxing atmosphere created by the pre-set lighting effects.
•Qubino Flush RGBW is the only Z-Wave dimmer for controlling LED strips which can be
used without a Z-Wave gateway. Without gateway you can use its functions with 4 push
buttons:
Change Brightness (I1)
Change Colour (I2)
Turn on or off the lighting effects or change the lighting effects (I3)
Turn on the Q4 output (I4) - White colour on the RGBW strip

EN.
14
•Qubino guarantees 100% device quality. Such high quality can be delivered because
every Qubino goes through rigorous quality control standards throughout the
production process. Every device has a unique serial number and a part number, which
are assigned to the device only after it goes through a strict testing procedure.
•By scanning the QR code on the back of your Qubino device, the serial and part numbers
will be automatically copied on your mobile phone; they also provide direct access to
Qubino’s technical support team. The serial and part numbers of your device are given
automatically every time you open an inquiry with our support team: this instantly
shares the relevant device information we need to provide the best technical support
possible. For details, please see the Device Information and Support chapter.

EN.
15

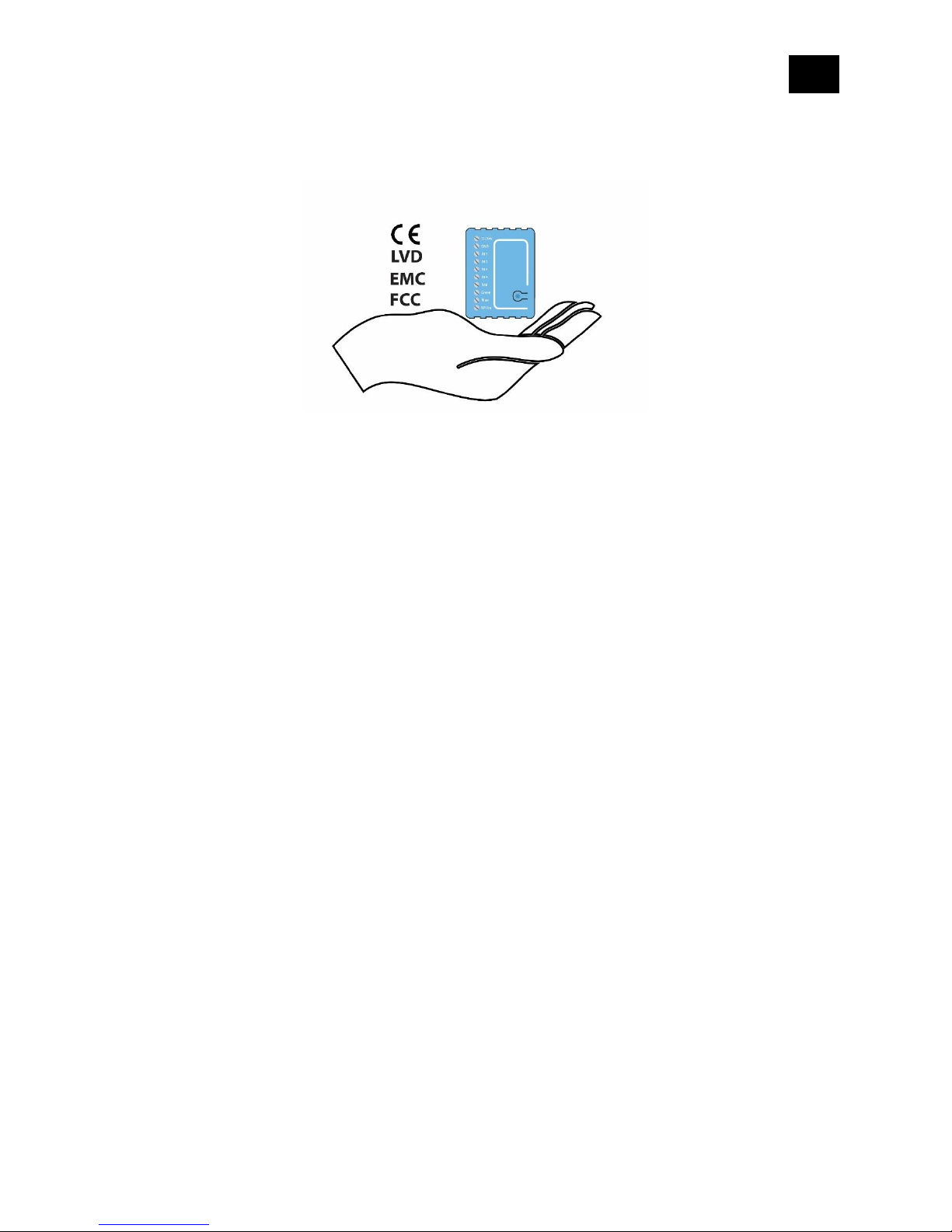

•The Qubino Flush RGBW Dimmer has CE, LVD, EMC and FCC certificates to ensure the
highest safety standards.
3.2. Highlights
•Remote (via smartphone or PC) and local on/off control of RGB/RGBW strips, up to 4
LED strips or bulbs and up to 4 halogen bulbs
•Features one of the easiest and quickest installations of devices of this kind
•Saves and restores the last status after a power failure.
•Supports auto-inclusion mode for quick set up
•Can automatically turn devices on and off after a set period of time (helpful when you’re
away from home, for example)*
•Supports additional parameters for expert users, which allows for advanced
configuration*
•Acts as a signal repeater which improves the range and stability of your Z-Wave network
•Can be used to remotely control and trigger other devices in your Z-Wave network
•Set minimum and maximum dimming levels*
•Go from any value between 0% and 98% to full brightness with a double-click - no more
pushing and holding*
•Customize ramp rate - regulate the speed which the dimmer adjusts brightness with*
*Your gateway (hub) needs to support advanced configuration and parameter input if you wish
to use this feature

EN.
16
4. Package Contents
•Flush RGBW Dimmer Device
•Installation Manual

EN.
17
5. Technical Terms for Switches
Symbol
Switch example images
Definition
EU
USA
Qubino
Other
names
Single pole,
single throw
(SPST) - One
switch
controlling one
light / circuit of
lights
One-way
switch
Two-way
switch
(regular
switch)
Toggle
switch
Switch;
Bi-stable
switch
Single pole,
double throw
(SPDT) - Two
switches
controlling the
same light /
circuit of lights
Two-way
switch
Three-way
switch
Two-way
switch
Used when you
have three or
more switches
controlling the
same light
Intermedi-
ate switch
Four-way
switch
Intermedi-
ate switch
Crossover
switch;
Cross
connection
After being
released, it goes
back to its
original state
Momentary switch
Momentary
switch
Monostable
switch;
Push button
Used when
motion sensor
is connected to
the device.
Toggle with memory
switch
Toggle with
memory
switch

EN.
18
6. Compatibility with Z-Wave Gateways (hubs)
Please check compatibility with your Z-Wave gateway (hub) before you purchase this device. If
you don’t see your gateway (hub) in the table below, please contact us at:
http://qubino.com/support/#email.
ⓘPlease note that the gateway (hub) compatibility was tested on 1.7.2017 and it may not
include the latest testing data.
Flush
RGBW
Dimmer
IN 1
updates
UI
IN 2
updates
UI
IN 3
updates
UI
IN 4
updates
UI
ON/OFF
using UI
Brightness
in UI
Change
RGBW
colours
using UI
4
dimmers
mode
Comments
Domoticz
V3.5877
✕
✕
✕
✕
✓
✓
✕
✕
Fibaro HC
Lite v 4.100
✕
✕
✕
✕
✓
✓
✓
✓
Vera edge v
1.7.2406
✕
✕
✕
✕
✓
✓
✕
✓
zipato
1.1.38
✓
✓
o
✓
✓
✓
✓
✓
I3 update state
only in 4 dimmer
mode
Zwave me
T
T
T
T
T
T
T
T
eedomus
T
T
T
T
T
T
T
T
jedom
T
T
T
T
T
T
T
T
homeseer 3
o
o
o
o
✓
✓
✓
✓
in 4 dimmers
mode display input
state
open zwave
✕
✕
✕
✕
✓
✓
✓
T
piper
T
T
T
T
T
T
T
T
Unable to include
the device
SmartThings
✓
✓
✓
✓
✓
✓
✓
✓
NETIChome
T
T
T
T
T
T
T
T
homey
T
T
T
T
T
T
T
T
Symbol
Explanation
✓
Works fully
✕
Not working
O
See comment
T
Testing in progress

EN.
19
7. Installation
Before installing the device, please read the following carefully and follow the instructions
exactly:
ⓘDanger of electrocution!
Installation of this device requires a great degree of skill and may be performed only by a
licensed and qualified electrician. Please keep in mind that even when the device is turned off,
voltage may still be present in the device’s terminals.
ⓘNote!
Do not connect the device to loads exceeding the recommended values. Connect the device
exactly as shown in the provided diagrams. Improper wiring may be dangerous and result in
equipment damage.

EN.
20
The installation process, tested and approved by professional electricians, consists of the
following simple steps:
Step 1 –Turn OFF the fuse:
•To prevent electrical shock and/or equipment damage, disconnect electrical power at
the main fuse or circuit breaker before installation and maintenance.
•Be aware that even if the circuit breaker is off, some voltage may remain in the wires —
before proceeding with the installation, be sure no voltage is present in the wiring.
•Take extra precautions to avoid accidentally turning the device on during installation.
