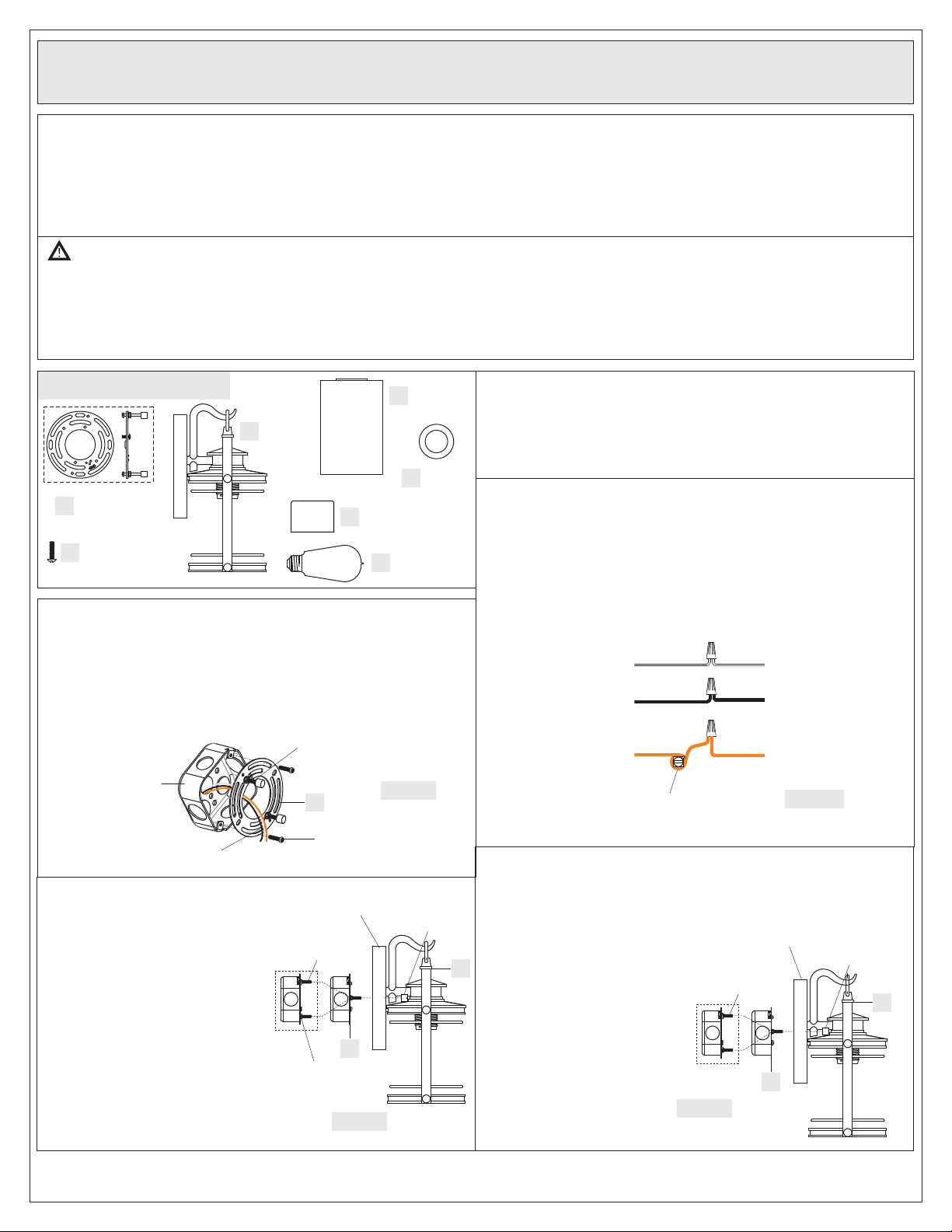

Package Contents
Warnings and Cautions
1of2
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
A
Crossbar
Assembly
x1
STEP 1 Install Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
Figure 1
B
Alternate
Mounting screw
x2
STEP 2 Fit Backplate to
Crossbar Assembly
-
A.
on Fixture
Body (C) to the
Remove mounting balls from
the Crossbar Assembly (A).
Fit the backplate
Crossbar
Assembly (A) and secure with
mounting balls. Note: The
backplate
should be snug against the
wall and the mounting balls. If
on Fixture Body (C)
not, adjust the length of the
mounting screw or alternate
short mounting screw on the
Crossbar Assembly (A) by
unscrewing the
preassembled hex nut and Figure 2
(Step 2 Continued)
Lock washer and then screwing the mounting screws or alternate
short mounting screws in or out of the crossbar until the correct
length is achieved. Once the backplate on Fixture Body (C) is
secure, remove the mounting ball and Fixture Body (C) and proceed
to Step 3.
Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
(1)A21MediumBaseVintageBulb150WMaximum,bulbincluded.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactyouroriginalplaceofpurchase.
ToolsRequired:
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
STEP 3 - Wire Connections
A.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Figure 3
Figure 4
STEP 4 Install Fixture Body-
A. Carefully tuck all wires into the outlet box and position the backplate
of fixture body (C) over the outlet box. Align the holes in the
C
Mounting Ball
A
Mounting Screw
or Alternate Short
Mounting Screw
Backplate
backplate with the
mounting screws or
alternate short mounting
screws. Secure with the
previously removed
mounting balls and hand
tighten until snug.
Outlet Box Screws
(not included)
A
Outlet Box
Supply Wires with
Ground Wire
Mounting Screw
or Alternate Short
Mounting Screw
Fixture
Body
x1
Shade
x1
E
D
Wahser
x1
C
Socket Collar
x2
GEdison Bulb
x1
F
Mounting Screw
or Alternate Short
Mounting Screw
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
C
Installation Guide
