Quoizel WAR8407GZ User manual

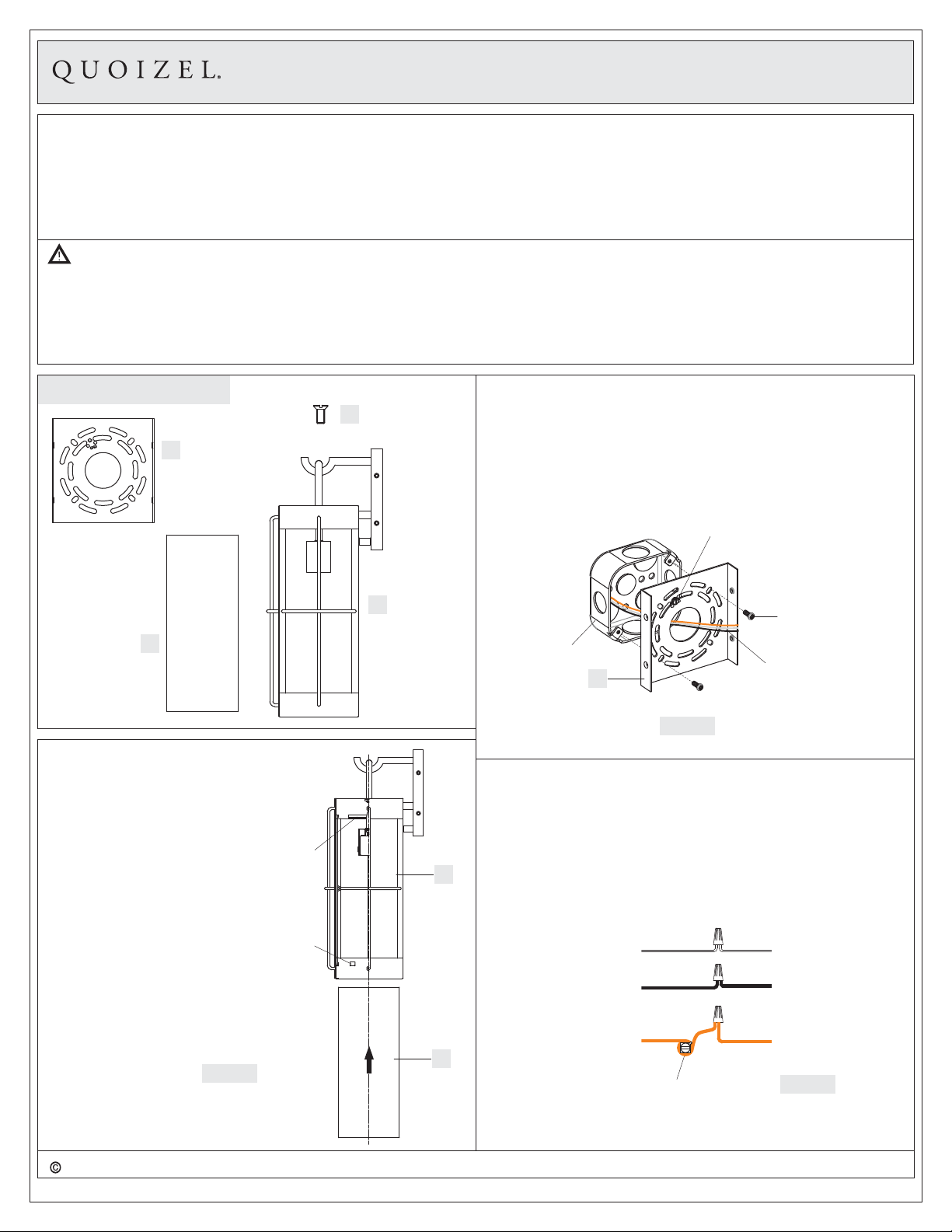

Package Contents
Warnings and Cautions
1of2
For Style WAR8407GZ
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
A
Inner
Backplate
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A19MediumBaseBulb100WMaximum,MediumBaseVintageBulbisrecommended,bulbnotincluded.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactyouroriginalplaceofpurchase.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
Fixture Body
x1
C
Installation Guide #IS-WAR8407GZ
2019 QuoizelInc. ReleasedDate:2019-03-21
visit us on-line at www.quoizel.com
BMounting screw
x4
D
Glass Panel
x4
STEP 1 Install Glass Panels-
A. Insert the top edge of the Glass
Panel (D) into the slot in the
Fixture Body (C) and fold tabs in
the bottom edge of the Fixture
Body (C) onto the bottom edge
of the Glass Panel (D) to secure
the Glass Panel (D).
Figure 1
STEP 2 -Install the Inner Backplate to the outlet box
A. Place the supply wires and ground wire through the Inner
Backplate (A). Attach the Inner Backplate (A) to the outlet box with
the head of the green ground screw facing you. Secure it with
outlet box screws (not included). Tighten until snug with
screwdrivers.
D
C
Slot
Tab
Figure 2
STEP 3 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Figure 3
Outlet Box
A
Green Ground Screw
Supply Wires
with Ground Wire
Outlet Box Screw
(not included)

2of2
2019 QuoizelInc. ReleasedDate:2019-03-21
visit us on-line at www.quoizel.com
WAR8407GZ
NOTE: ALL DIMENSIONS ARE ROUNDED UP
TO THE NEAREST 1/4"
STEP 4 - Install the Fixture Body
A. Place the backplate of the Fixture Body (C) onto the Inner
Backplate (A) and secure with Mounting Screws (B). Tighten until
snug with screwdrivers.
STEP 5 Install Bulb and-Apply Silicone Sealer
A. Install the bulb onto the socket and screw snugly into place.
B. Make sure the exterior wall surface and fixture backplate are free of
dirt before applying caulk. Using exterior grade caulk, caulk over top
of backplate and down both sides. Do not caulk the bottom of the
fixture backplate to ensure proper moisture drainage.
Your fixture is now assembled and ready to use. Enjoy!
Exterior
Grade Caulk
Backplate
Exterior
Grade Caulk
FINISH: GILDED BRONZE
Figure 4
Figure 5
Socket
Vintage Bulb
(recommended
but not included)
C
B
Backplate
A
17.75”
4.5”
7” 7.75”
3.5”
6.75”
Fixture can
only be
mounted in
the direction
indicated
