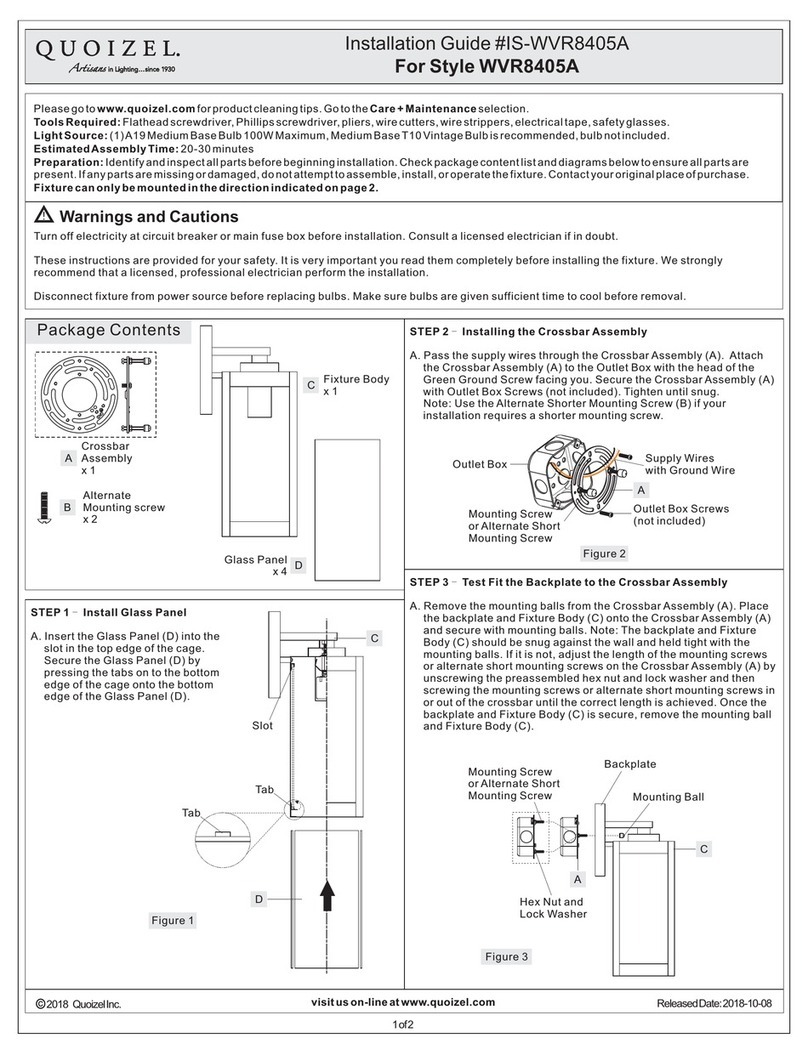

Quoizel WVR8405A User manual

Quoizel

Quoizel WVR8405A User manual

Quoizel HC8409IB Mounting instructions

Quoizel

Quoizel HC8409IB Mounting instructions

Quoizel CHI9011IB User manual

Quoizel

Quoizel CHI9011IB User manual

Quoizel MRL9009SU User manual

Quoizel

Quoizel MRL9009SU User manual

Quoizel Inglenook TFIK8407VA Mounting instructions

Quoizel

Quoizel Inglenook TFIK8407VA Mounting instructions

Quoizel RNL8407WT Mounting instructions

Quoizel

Quoizel RNL8407WT Mounting instructions

Quoizel TPE9008MB User manual

Quoizel

Quoizel TPE9008MB User manual

Quoizel NY8409K Mounting instructions

Quoizel

Quoizel NY8409K Mounting instructions

Quoizel WAR8407GZ User manual

Quoizel

Quoizel WAR8407GZ User manual

Quoizel SNN8411K Mounting instructions

Quoizel

Quoizel SNN8411K Mounting instructions

Quoizel GLV8406MB Mounting instructions

Quoizel

Quoizel GLV8406MB Mounting instructions

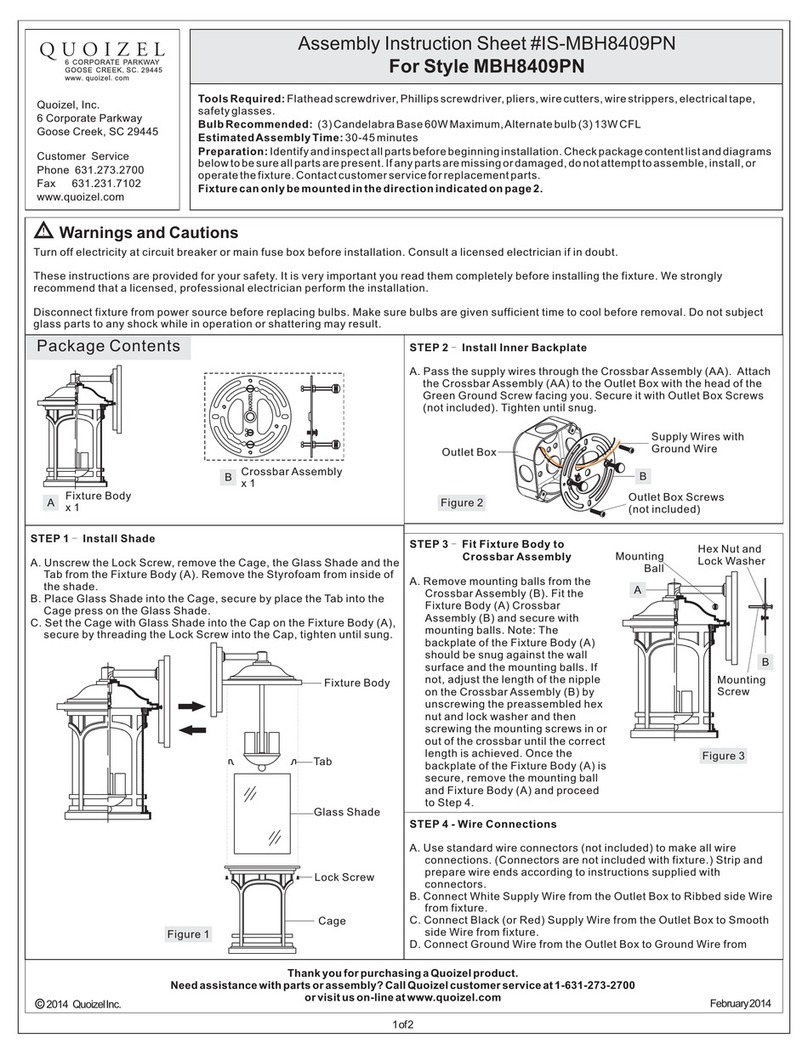

Quoizel MBH8409K Instruction manual

Quoizel

Quoizel MBH8409K Instruction manual

Quoizel MCI8705MBK User manual

Quoizel

Quoizel MCI8705MBK User manual

Quoizel NY8318P Mounting instructions

Quoizel

Quoizel NY8318P Mounting instructions

Quoizel RPT8411PN User manual

Quoizel

Quoizel RPT8411PN User manual

Quoizel PCMCN8624C User manual

Quoizel

Quoizel PCMCN8624C User manual

Quoizel MUL8408MBK User manual

Quoizel

Quoizel MUL8408MBK User manual

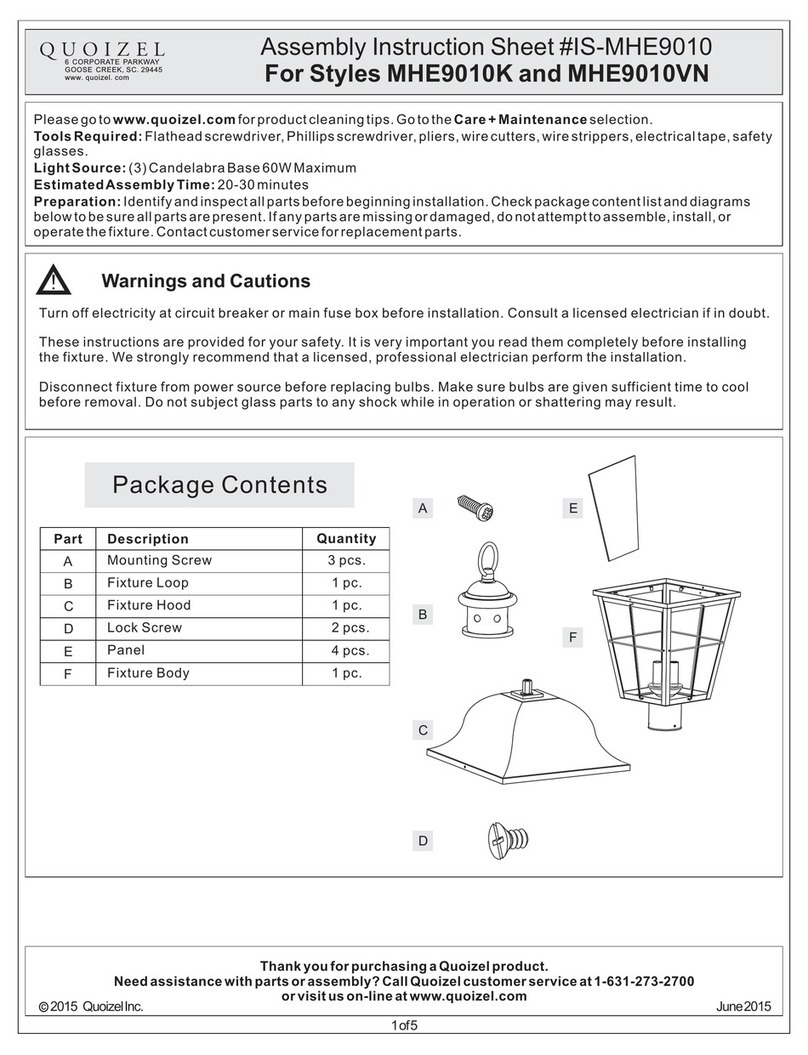

Quoizel MHE9010K Mounting instructions

Quoizel

Quoizel MHE9010K Mounting instructions

Quoizel SNNL8408K Mounting instructions

Quoizel

Quoizel SNNL8408K Mounting instructions

Quoizel UMA8407MBK User manual

Quoizel

Quoizel UMA8407MBK User manual

Quoizel CCR8412CU User manual

Quoizel

Quoizel CCR8412CU User manual

Quoizel EVG8411EK Mounting instructions

Quoizel

Quoizel EVG8411EK Mounting instructions

Popular Outdoor Light manuals by other brands

Kichler Lighting HELEN 37536 instructions

Kichler Lighting

Kichler Lighting HELEN 37536 instructions

Thorn OXANE L installation instructions

Thorn

Thorn OXANE L installation instructions

esotec Solar Globe Light multicolor 20 operating instructions

esotec

esotec Solar Globe Light multicolor 20 operating instructions

mitzi HL200201 ELLIS Assembly and mounting instructions

mitzi

mitzi HL200201 ELLIS Assembly and mounting instructions

HEPER TILA S AFX 3 Module Installation & maintenance instructions

HEPER

HEPER TILA S AFX 3 Module Installation & maintenance instructions

Designplan TRON 180 installation instructions

Designplan

Designplan TRON 180 installation instructions

Sealey LED37 instructions

Sealey

Sealey LED37 instructions

nordlux VEJERS Mounting instruction

nordlux

nordlux VEJERS Mounting instruction

SImx ELITE LED LHTC637 installation instructions

SImx

SImx ELITE LED LHTC637 installation instructions

GEV CAROLINE 10833 manual

GEV

GEV CAROLINE 10833 manual

WE-EF PFL540 LED Installation and maintenance instructions

WE-EF

WE-EF PFL540 LED Installation and maintenance instructions

HEPER DOGO Side LW6048.585-US Installation & maintenance instructions

HEPER

HEPER DOGO Side LW6048.585-US Installation & maintenance instructions

BEGA 84 253 Installation and technical information

BEGA

BEGA 84 253 Installation and technical information

HEPER LW8034.003-US Installation & maintenance instructions

HEPER

HEPER LW8034.003-US Installation & maintenance instructions

HEPER MINIMO Installation & maintenance instructions

HEPER

HEPER MINIMO Installation & maintenance instructions

LIGMAN BAMBOO 3 installation manual

LIGMAN

LIGMAN BAMBOO 3 installation manual

Maretti TUBE CUBE WALL 14.4998.04 quick start guide

Maretti

Maretti TUBE CUBE WALL 14.4998.04 quick start guide

Maxim Lighting Carriage House VX 40428WGOB installation instructions

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB installation instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-CSE8406_R1
For Styles CSE8406PN and CSE8406EK
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)MediumBase100WbulbMaximumor
(1)MediumBaseVintageBulbisrecommendedbutnotsupplied.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssemblyTime:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
Package Contents
ACrossbar Assembly
x1
C
Fixture
Body
x1
BD
Shade
x1 E
Steel
Collar
x1
Socket
Collar
x1
STEP 1 Install Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug.
Figure 1
STEP 2 -Remove Styrofoam
inside of the Fixture Body
A.
and
Remove the Package
Material Shade (C)
inside the Fixture Body (B).
Figure 2
B
Package
Material
STEP 3 Test Fitting Backplate to Crossbar Assembly-
A. Remove mounting balls from the Crossbar Assembly (A). Fit the
backplate on Fixture Body (B) to the Crossbar Assembly (A) and
secure with mounting balls. Note: The backplate on Fixture Body (B)
should be snug against the wall and the Mounting balls. If not, adjust
the length of the mounting screws on the Crossbar Assembly (A) by
unscrewing the preassembled hex nut and lock washer and then
screwing the mounting screws in or out of the crossbar until the
correct length is achieved. Once the backplate on Fixture Body (B) is
secure, remove the mounting ball and Fixture Body (B).
B
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
Figure 3
Mounting Screw
2017 QuoizelInc. RevisedDate:2017-11-03
Supply Wires with
Ground Wire
Outlet Box Screws
(not included)
Outlet Box
A
C
2of2
2017 QuoizelInc.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
RevisedDate:2017-11-03
STEP 4 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 4
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
STEP 5 Install Fixture Body-
A. Carefully tuck all wires into
the outlet box and position
the backplate of Fixture
Body (B) over the outlet
box. Align the holes in the
backplate with the mounting
screws. Place caulk (not
supplied) into the
previously removed
mounting balls and then
attach Fixture Body (B)
using the mounting balls.
Hand tighten until snug.
B
Mounting Ball
A
Backplate
Figure 5
Mounting Screw
STEP 6 Install Shade and Bulb-
A. Place Shade (C) and Steel
Collar (D) over the Socket,
secure by threading Socket
Collar (E) onto Socket. Hand
tighten until sung.
B. Insert bulb onto socket and
screw snugly into place.
Figure 6
B
D
E
Vintage Bulb
(recommended
but not supplied)
Socket
STEP 7 -Apply Silicone Sealer
A. Make sure exterior wall surface and fixture backplate are free of dirt
before applying caulk. Using exterior grade caulk, caulk over top of
backplate and down other side. Do not caulk bottom of fixture
backplate to ensure proper moisture drainage.
Your fixture is now assembled and ready to use. Enjoy!
Figure 7
Exterior
Grade Caulk
Backplate
Exterior
Grade
Caulk
CSE8406PN
6” Dia.
4” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/4"
Fixture can
only be
mounted in
the direction
indicated
7.75”
7”
11”
4.75”
5” Dia.
6.5”
FINISH: PALLADIAN BRONZE
CSE8406EK
FINISH: EARTH BLACK
C
