Quoizel CATL9011PN User manual

1of2
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc.
Pleasegoto forproductcleaningtips.Gotothe selection.
LED16W
www.quoizel.com Care + Maintenance
LightSource:
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
EstimatedAssemblyTime:
Preparation:
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.

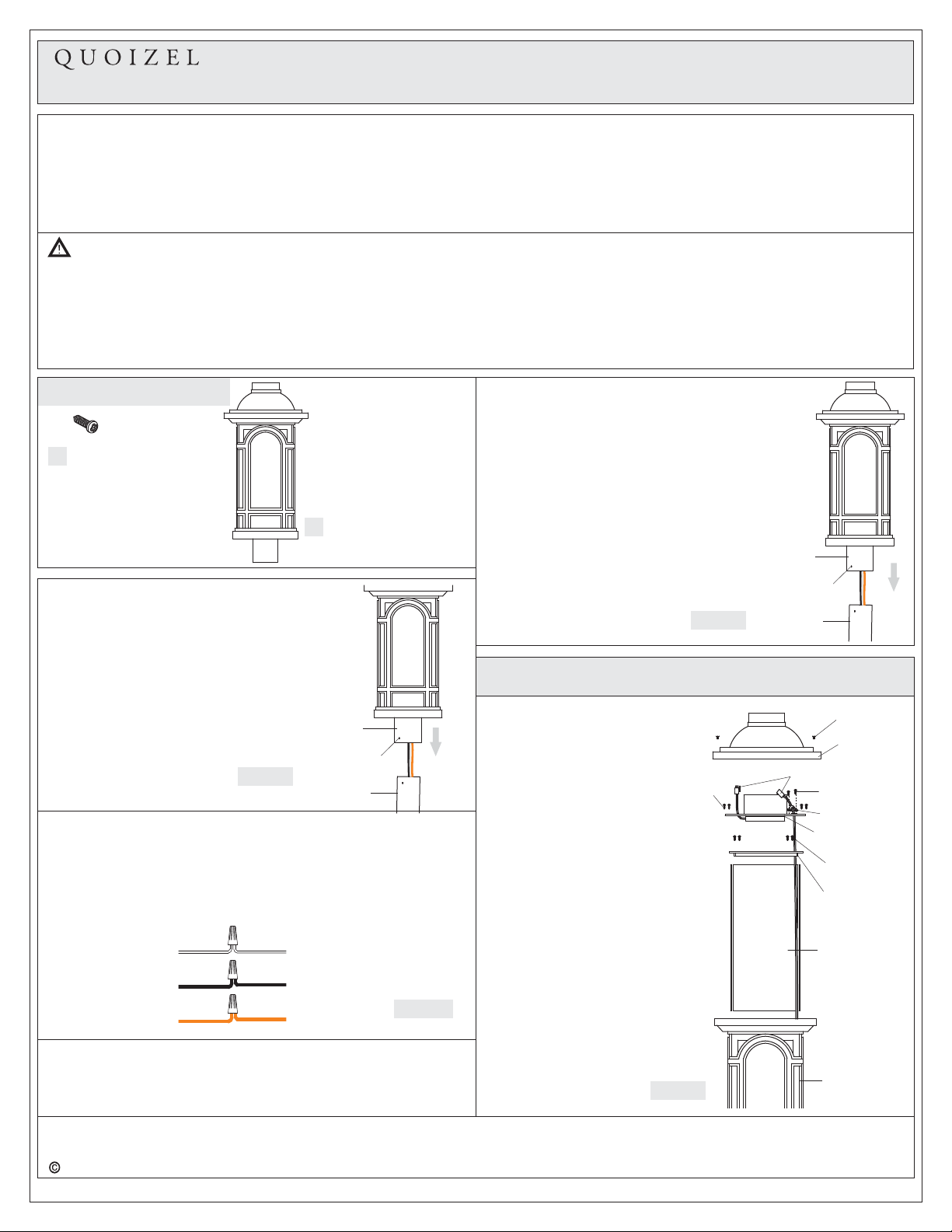

Assembly Instruction Sheet #IS-CATL9011PN
For Style CATL9011PN
Package Contents
A
Mounting
Screw
x3
STEP 1 Drill Pilot Holes on Post-
A. Carefully fit the Post Fitter over the
end of the Post (not supplied), making
sure the Post Fitter is fully seated.
B. Mark the drill point for the (3)
Mounting Screws, using (3) Mounting
Holes as reference. After marking hole
locations, remove fixture from post
and drill 1/16” pilot holes for screws.
Post
Post Fitter
Figure 1
Mounting Hole
Fixture Body
x1
B
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 2
October2015
STEP 3 -Attach Fixture Body to Post
A. Coat the top 1” of the Post with Clear Silicone Caulk (not supplied)
and position the Post Fitter onto the Post. Be sure to seat it
(Step 3 Continued)
completely, aligning the holes in the Fitter
with the 1/16” Pilot Holes drilled into the
Post.
B. Secure the Fixture to Post with (3)
Mounting Screws (A).
Your fixture is now assembled and ready
to use. Enjoy!
Post
Post Fitter
Figure 3
Mounting Hole
HOW TO REPLACE GLASS PANELS
A.
Fixture Hood and remove the
Fixture Hood from the Cage.
B. Remove Wire Fastener by
unscrewing Screws. Separate
Quick Connector. Unscrew
Screws from the Cage and
remove LED Module and Heat
Sink.
C. Unscrew Screws from the Cage
and remove Glass Holders.
Replace Glass Panels from the
Cage and then re-install Glass
Holders to secure them. Secure
with removed Screws.
D. Re-install LED Module and
Heat Sink onto the top edge of
the Cage. Secure with Screws.
Connect Quick Connectors. Re-
attach the Wire Fastener and
secure with Screws. Attach the
Fixture Hood back onto the
Cage and secure with Allen
Screws.
Unlock Allen Screws on the Allen Screw
Cage
Fixture
Hood
Screw
LED Module
and Heat Sink
Quick Connector
Glass Panels
Screw
Glass Holder
Figure 7
Screw
Wire Fastener

2of2
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc. October2015
HOW TO REPLACE LED MODULE
A.
Fixture Hood and remove Cage
with Glass Panels from the
fixture.
B. Remove Wire Fastener by
unscrewing Screws. Separate
Quick Connector. Unscrew
Screws from the Cage and
remove LED Module and Heat
Sink.
C. Unscrew Lock Screws on the
LED Module and remove LED
Module from the Board. Attach
the replacement LED Module
onto the Board. Pass Lock
Screws through the
replacement LED Module, the
Board and the Heat Sink.
Secure by threading Hex Nuts
onto Lock Screws. Hand tighten
until snug. Pass the Quick
Connector from the LED
Module through the hole on the
Heat Sink.
D. Re-install LED Module and
Heat Sink onto the top edge of
the Cage. Secure with Screws.
Unlock Allen Screws on the Allen Screw
Fixture
Hood
Screw
LED Module
Quick
Connector
Cage with
Glass Panels
Lock
Screw
Heat Sink
Board
Figure 8
CATL9011PN
FINISH: PALLADIAN BRONZE
PART NUMBER
1
NO. PART NUMBER REPLACEMENT PART REQ.
G12217PA 2
SIDE GLASS PANEL
2G12218PA 2
FRONT/BACK GLASS PANEL
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
12
Hex Nut
18.75”
11.5”
8.5”
Screw
Wire Fastener
Connect Quick Connectors. Re-attach the Wire Fastener and
secure with Screws. Attach Cage with Glass Panels back onto the
Fixture Hood and secure with Allen Screws.
