Quoizel SNNL8409PN Mounting instructions

Package Contents
Warnings and Cautions
1of2

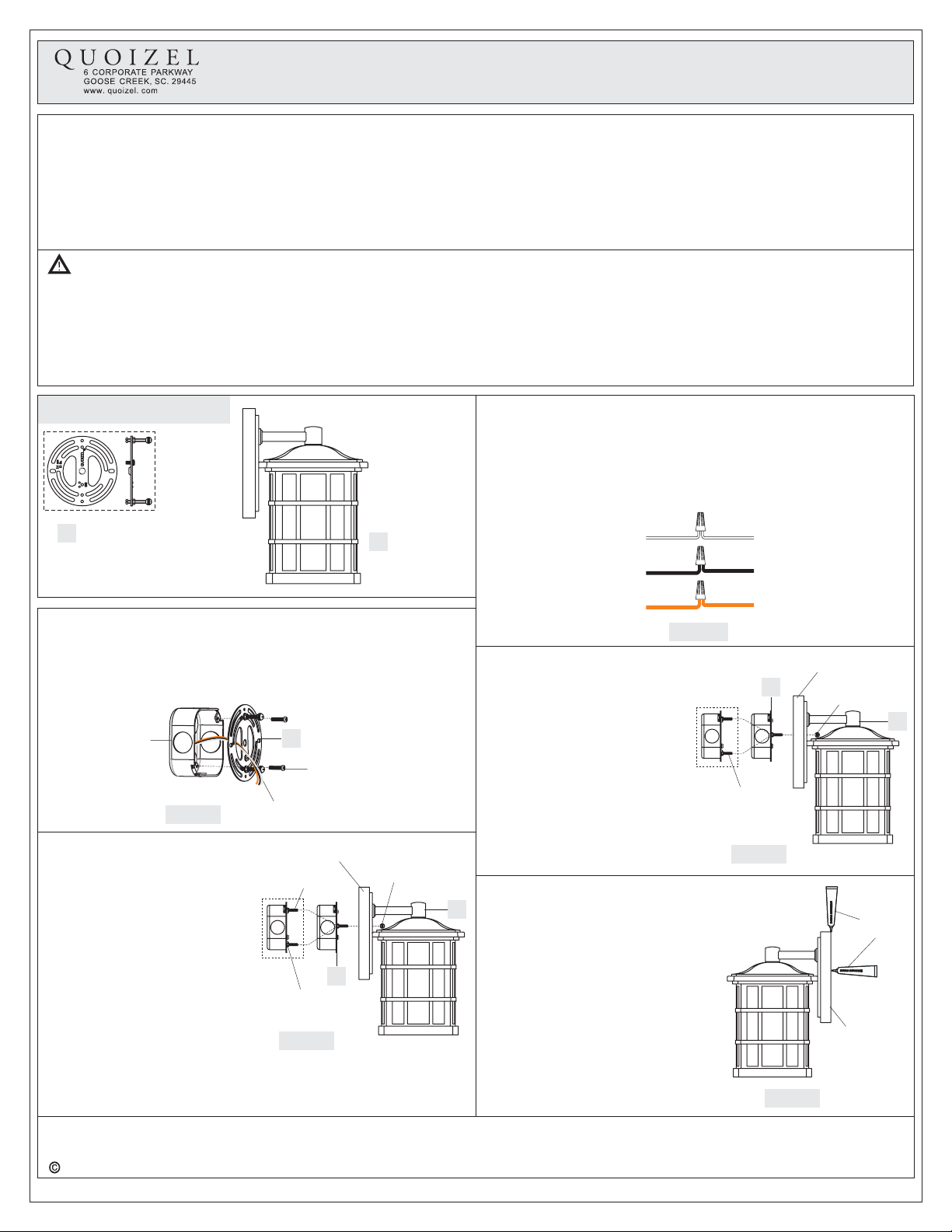

Assembly Instruction Sheet #IS-SNNL8409
For Styles SNNL8409K and SNNL8409PN
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc.
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
A
Crossbar
Assembly
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
LED16W
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssemblyTime:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
BFixture Body
x1
STEP 1 Install Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug.
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
Outlet
Box
Figure 1
A
STEP 2 Fit Backplate to
Crossbar Assembly
-
A.
on Fixture Body (B) to
the
Remove mounting balls from the
Crossbar Assembly (A). Fit the
backplate
Crossbar Assembly (A) and
secure with mounting balls.
Note: The backplate
should be snug against
the wall and the mounting balls.
If
on Fixture
Body (B)
not, adjust the length of the
mounting screw on the Crossbar
Assembly (A) by unscrewing the
preassembled hex nut and lock
washer and then screwing the
Figure 2
mounting screws in or out of the crossbar until the correct length is
achieved. Once the backplate on Fixture Body (B) is secure, remove
the mounting ball and Fixture Body (B) and proceed to Step 3.
Mounting
Screw
B
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
STEP 3 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Twist
connectors until wires are tightly joined together. Wrap each
connection with approved electrical tape and carefully stuff all the
connected wires into the Outlet Box.
White wire
from supply White wire
from fixture
Black wire from
supply (or Red)
Black wire
from fixture
Ground wire
from supply
Ground wire
from fixture
Figure 3
Figure 4
STEP 4 Install Fixture Body-
A. Carefully tuck all wires into the
outlet box and position the
backplate of Fixture Body (B)
over the outlet box. Align the
holes in the backplate with the
mounting screws. Place caulk
(not supplied) into the
previously removed mounting
balls and then attach Fixture
Body (B) using the mounting
balls. Hand tighten until snug.
Mounting Screw
B
Mounting Ball
A
Backplate
Figure 5
STEP 5 -Apply Silicone Sealer
A. Make sure exterior wall surface and
fixture backplate are free of dirt
before applying caulk. Using
exterior grade caulk, caulk over top
of backplate and down other side.
Do not caulk bottom of fixture
backplate to ensure proper moisture
drainage.
Your fixture is now assembled and
ready to use. Enjoy!
Exterior
Grade
Caulk
Backplate
July2015

2of2
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2015 QuoizelInc.
HOW TO REPLACE GLASS PANELS
Allen Screw
Glass Panel
Cage
A. Fixture Hood. Separate Quick
Connector and then remove Cage with Glass Panels from the
fixture.
B. Unscrew Screws from the Cage and remove LED Module and Heat
Unlock Allen Screws on the
Figure 6
Glass Holder
Fixture Hood
Sink, Glass Holders.
Replace Glass Panels from
the Cage and then re-install
Glass Holders, LED Module
and Heat Sink . Secure with
removed Screws.
C. Connect Quick Connectors.
Attach Cage with Glass
Panels back onto the Fixture
Hood and secure with Allen
Screws.
LED Module
and Heat Sink
Quick
Connector
Screw
HOW TO REPLACE LED MODULE
A. Fixture Hood. Separate Quick
Connector and then remove Cage with Glass Panels from the
fixture.
B. Unscrew Screws from the Cage and remove LED Module and Heat
Sink.
C. Unscrew Lock Screws on the LED Module. Replace the LED Module
Unlock Allen Screws on the
SNNL8409K
FINISH: MYSTIC BLACK
SNNL8409PN
FINISH: PALLADIAN BRONZE
PART NUMBER
1
NO. PART NUMBER REPLACEMENT PART REQ.
G3728PA 4
GLASS PANEL NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
Fixture can only be
mounted in the
direction indicated
with the replacement.
Pass Lock Screws
through the replacement
LED Module, the Heat
Sinks as shown and
thread Hex Nuts onto
Lock Screws to secure
them together. Hand
tighten until snug.
D. Pass the Quick
Connector from the LED
Module through the hole
on the Heat Sink.
E. Re-install LED Module
and Heat Sink onto the
top edge of the Cage.
Secure with Screws.
Connect Quick
Connectors. Attach
Cage with Glass Panels
back onto the Fixture
Hood and secure with
Allen Screws.
15”
8”
6”
10.5”
9.5”
4.5”
OUO ZEL
1
July2015
Allen Screw
Fixture Hood
Screw
LED Module
Quick
Connector
Cage with
Glass Panels
Lock Screw
Heat Sink
Figure 7
Hex
Nut
Upper
Heat Sink
