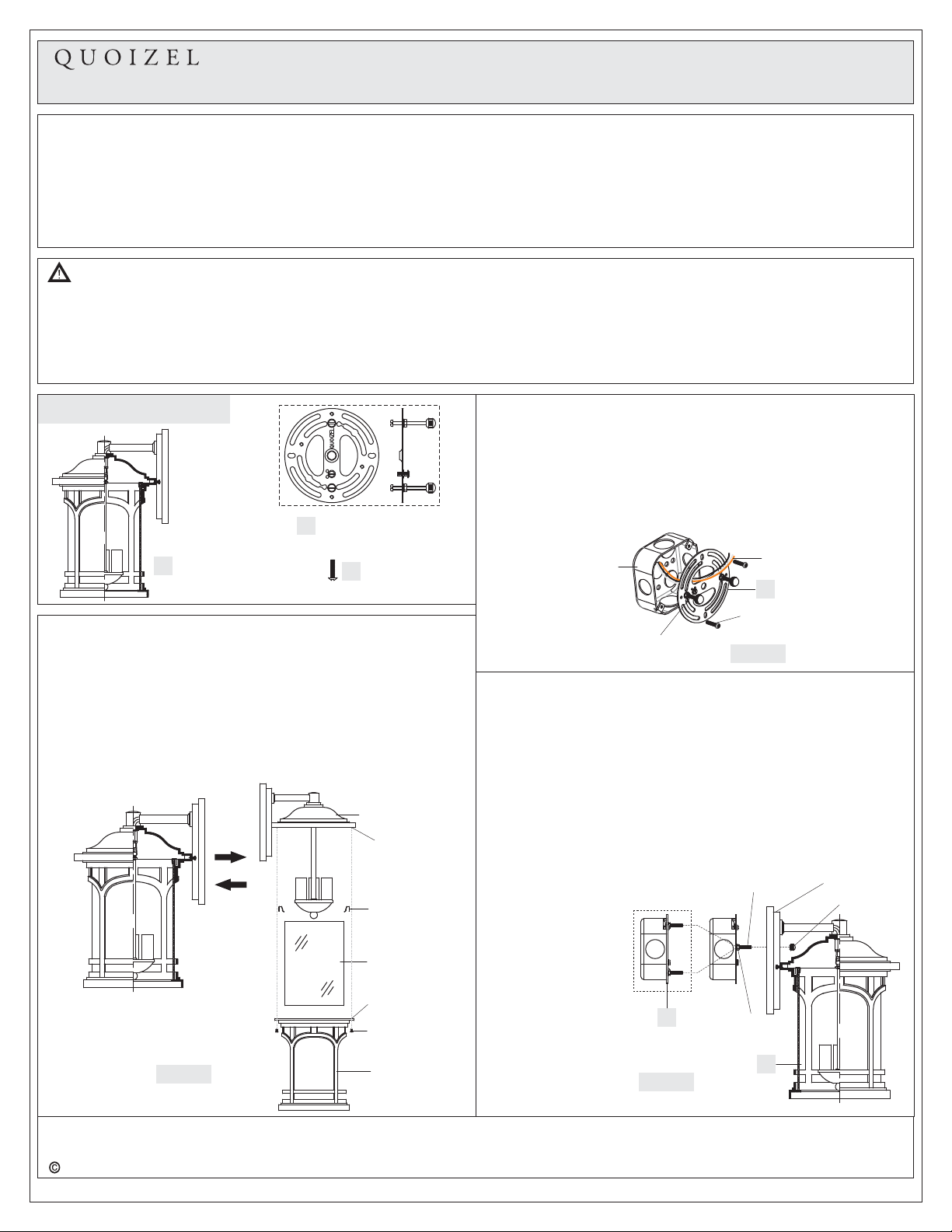

Quoizel MBH8409K Instruction manual

Package Contents
1of2
BCrossbar Assembly
x1
Figure 3
STEP 2 Install Crossbar Assembly-
.
A. Pass the supply wires through the Crossbar Assembly (B). Attach
the Crossbar Assembly (B) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (C) if your
installation requires a shorter mounting screw.
STEP 3 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (B). Place
the backplate and Fixture Body (A) onto the Crossbar Assembly (B)
and secure with mounting balls. Note: The backplate and Fixture
Body (A) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screws
or alternate short mounting screws on the Crossbar Assembly (B)
by unscrewing the preassembled hex nut and lock washer and then
screwing the mounting screws or alternate short mounting screws
in or out of the crossbar until the correct length is achieved. Once
AFixture Body
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
(3)B10CandelabraBaseBulbs60WMaximum
30-45minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
ToolsRequired:
LightSource:
EstimatedAssemblyTime:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
Warnings and Cautions
Assembly Instruction Sheet #IS-MBH8409K_R1
For Style MBH8409K
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
,.
..
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
C
Alternate
Mounting
screw
x2
Mounting Screw
or Alternate Short
Mounting Screw
Supply Wires with
Ground Wire
B
Outlet Box Screws
(not included)
Outlet Box
Figure 2
Hex Nut and
Lock Washer
A
Mounting Ball
B
Mounting Screw
or Alternate Short
Mounting Screw Backplate
2017 QuoizelInc.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
RevisedDate:2017-8-03
Figure 1
Fixture Hood
Cage
Tab
Glass Shade
Lock Screw
the backplate and
Fixture Body (A) is
secure, remove the
mounting ball and
Fixture Body (A) and
proceed to Step 4.
STEP 1 Instal Shade-
A.
A Remove the Styrofoam from
inside of the shade.
B. Place Glass Shade into the Cage, secure by place the Tab into the
Cage press on the Glass Shade.
C. Align the label “A” on the bottom of the fixture hood to the label “A”
on the top edge of the cage. Place the fixture hood onto the top
edge of the cage and secure with lock screws. Hand tighten until
snug with screwdrivers.
Unscrew the Lock Screw, remove the Cage, the Glass Shade and
the Tab from the Fixture Body ( ).
Label “A”
Label “A”

2of2
STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 4
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from fixture
Bare, or Green
Ground wire
from outlet box
OR
Ground wire
from fixture
Green Ground Screw
on the Crossbar
STEP 5 Install the Fixture Body-
A. Position the backplate and Fixture Body (A) onto the Crossbar
Assembly (B). Place the holes in the backplate over the mounting
screws. Secure the backplate and Fixture Body (A) by using the
mounting balls and hand tighten the mounting balls until snug.
Figure 5
STEP 6 -Install the Bulb and Apply Silicone Sealer
A. Insert the bulb onto socket and screw snugly into place.
B. Make sure the exterior wall surface and fixture backplate are free of
dirt before applying caulk. Using exterior grade caulk, caulk over
Socket
Bulb (not
Supplied)
Figure 6
Exterior
Grade Caulk
Backplate
Exterior
Grade
Caulk
top of backplate and down
both sides. Do not caulk the
bottom of the fixture
backplate to ensure proper
moisture drainage.
Your fixture is now
assembled and ready to
use. Enjoy!
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/4"
Fixture can
only be
mounted in
the direction
indicated
2017 QuoizelInc.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
RevisedDate:2017-8-03
A
Mounting Ball
B
Mounting Screw
or Alternate Short
Mounting Screw Backplate
8”
5.5”
10” 9” Dia.
14.5”
MBH8409K
FINISH: MATTE BLACK
