Quoizel RNL8405WT Mounting instructions

Package Contents
Warnings and Cautions
1of2

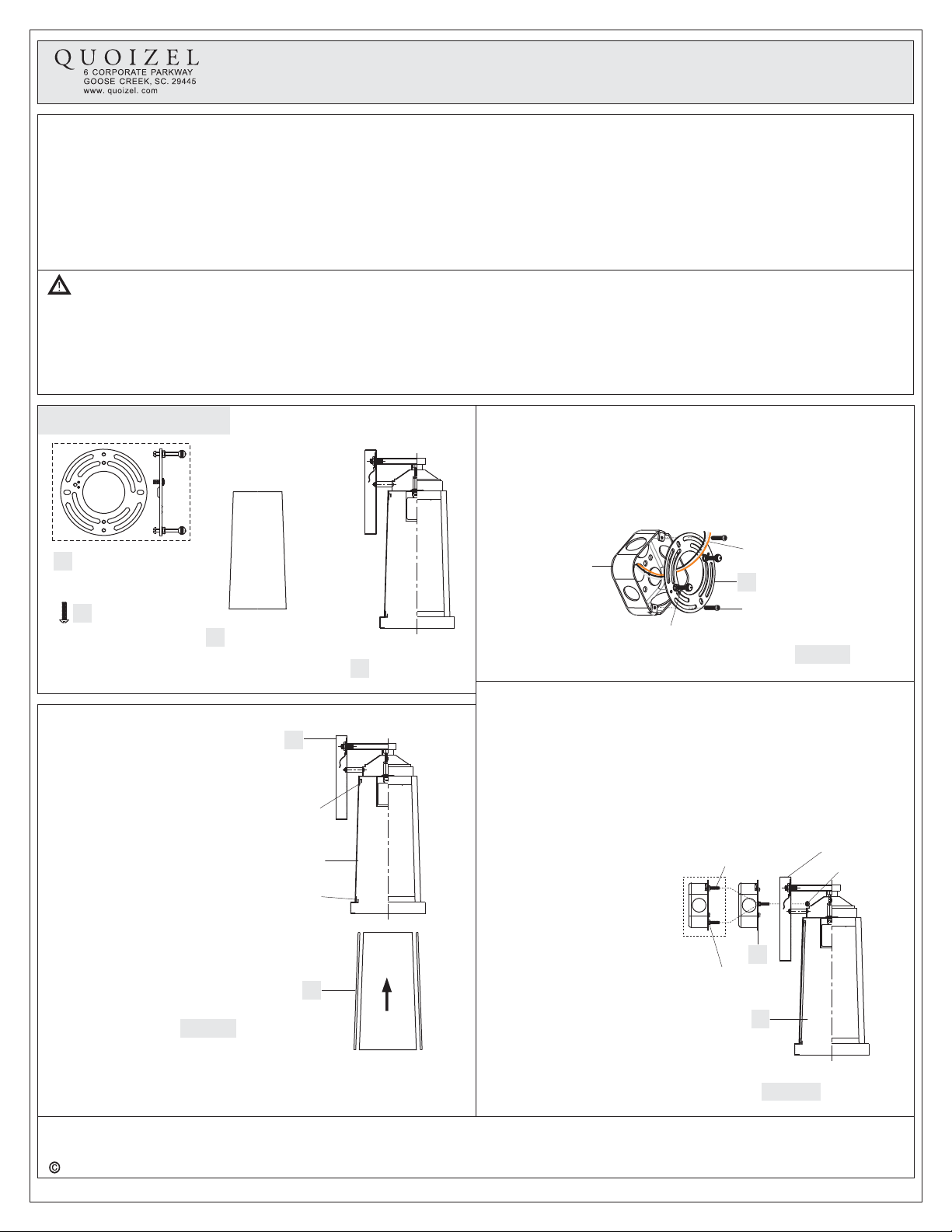

Assembly Instruction Sheet #IS-RNL8405WT
For Style RNL8405WT
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
ACrossbar Assembly
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A19MediumBasebulb100WMaximumor
(1)MediumBaseVintageBulbisrecommendedbutnotsupplied.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
C
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
D
Glass Panel
x4
B
Alternate
Mounting
screw
x2
STEP 1 Install Glass Panels-
A. Insert the Glass Panel (C) into the
cage. Attach the top edge of the
Glass Panel (C) to the slot in the
top of the cage. Fold tabs in the
bottom edge of the cage to secure
Glass Panels (C).
Figure 1
STEP 2 Installing the Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure the Crossbar Assembly (A)
with Outlet Box Screws (not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
Outlet Box
A
Figure 2
Mounting Screw
or Alternate Short
Mounting Screw
Fixture Body
x1
D
C
Slot
Tab
Cage
STEP 3 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (D) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (D) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screw or
alternate short mounting screw on the Crossbar Assembly (A) by
unscrewing the preassembled hex nut and lock washer and then
D
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
Mounting Screw
or Alternate Short
Mounting Screw
Figure 3
screwing the mounting
screws or alternate short
mounting screws in or out
of the crossbar until the
correct length is achieved.
Once the backplate and
Fixture Body (D) is secure,
remove the mounting ball
and Fixture Body (D) and
proceed to Step 4.
2017 QuoizelInc. ReleasedDate:2017-10-17

2of2
2017 QuoizelInc.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
STEP 5 Install the Fixture Body-
A. Position the backplate and Fixture Body (D) onto the Crossbar
Assembly (A). Place the holes in the backplate over the mounting
screws or alternate short mounting screws. Secure the Fixture Body
by using the mounting balls and hand tighten the mounting balls until
snug.
STEP 6 -Install the Bulb and
Apply Silicone Sealer
A. Insert the bulb onto socket and
screw snugly into place.
B. Make sure the exterior wall
surface and fixture backplate are
free of dirt before applying caulk.
Using exterior grade caulk, caulk
over top of backplate and down
both sides. Do not caulk the
bottom of the fixture backplate to
ensure proper moisture drainage.
Your fixture is now assembled
and ready to use. Enjoy!
Socket
Vintage Bulb
(recommended
but not Supplied)
Figure 6
Exterior
Grade
Caulk
Backplate
Exterior
Grade
Caulk
RNL8405WT
FINISH: WESTERN BRONZE
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/4"
ReleasedDate:2017-10-17
D
Mounting Ball
A
Backplate
Mounting Screw
or Alternate Short
Mounting Screw
Figure 5
5.25"
5.25"
4.5"
6"
2.5"
12.5”
6.25"
Fixture can
only be
mounted in
the direction
indicated
STEP 4 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 4
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
