r.LiNK RL2-NBT User manual

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
r.LiNK Video-inserter
RL2-NBT
Compatible with BMW vehicles with
Business/Professional NBT navigation systems or
radios with 6.5”, 8.8” or 10.2” monitor
with 4 + 2pin HSD LVDS connector
Video-inserter for rear-view camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
FBAS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for rear-view camera (not for all vehicles)
Picture-in-picture mode combining after-market rear-view and front camera
picture(s) with factory parking sensor graphic (not for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Ultra-wide picture mode 24:9 (only with ultra-wide screens 8.8" and 10.2")

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors
1.3.1. Video-interface
1.3.2. CAN-bus box
1.4. Dip-switch settings
1.4.1. Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
1.4.3. PDC settings (dip 7)
1.4.4. Monitor selection (dip 8)
1.5. Dip-switch settings of CAN-Box
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connecting video-interface and CAN-box
2.4. Connection to the factory monitor
2.5. Connection to the head-unit
2.6. Connecting peripheral devices
2.6.1. Switching of picture formats
2.6.2. After-market rear-view camera
2.6.2.1. Video signal connection of rear-view camera
2.6.2.2. Case 1: CAN-box detects reverse gear
2.6.2.3. Case 2: CAN-box does not detect reverse gear
2.6.2.4. Activation PIP
2.6.3. After-market front camera
2.6.4. After-market video-source
2.6.5. Audio-insertion
2.7. Connecting video-interface and keypad
2.8. Picture settings and guide lines
3. Interface operation
3.1. By iDrive-buttons
3.2. By keypad
4. Specifications
5. Frequently asked questions
6. Technical support

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents
If the HSD2 image cable of the vehicle harness is too short for the installation, an HSD2
extension can be ordered separately with item number CAB-HSD2-MF100B.
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page4
Compatibility
Brand
Model
Navigation
BMW
All 1series (F20/F21),
all 3series (F30/F31/F32/F33), all X1 (F48)
and all other F-series vehicles
from approx. 06/2012 up to approx.06.2017
with
Radios and Business navigation - F-
series - 6.5" or 7" monitor
All 1series (F20/F21),
all 3series (F30/F31/F32/F33)
all X1 (F48)
and all other F-series vehicles
from approx 06/2012.
All mentioned vehicles only til approx
05/2016 - (with old main menu)
Professional navigation NBT
F-series
with 8.8inch or 10.25inch monitor
Mini
from about 2014 til about 2016/2017
609 Professional Navigation NBT
with 8.8inch monitor (old main menu)
from about 2014 til about 2016/2017
(vehicles with old main menu)
609 Professional Navigation NBT2 Evo
with 8.8inch monitor (new main menu)
Limitations
Ultra-wide mode Only available for ultra-wide screens 8.8”/10.2”
Video only The interface inserts ONLY video signals into the infotainment.
For sound use the factory-audio-AUX-input or a FM-modulator.
Factory rear-view camera Automatic switch-back from inserted video to factory rear-view
camera only while reverse gear is engaged. To delay the switch-
back time, additional electronics is required.
Guide lines / PDC If the CAN-box does not receive the required information from the
vehicle CAN-bus, neither guide-lines nor PDC will be supported.
Video input formats only NTSC
1.2. Checking the compatibility of vehicle and accessories

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page5
1.3. Boxes and connectors
1.3.1. Video-interface
The video-interface converts the connected after-market sources video signals to an LVDS
signal which is the inserted into the factory monitor on certain trigger options.
1.3.2. CAN-box
The CAN-bus box reads digital signals from the CAN-bus and converts them for the video-
interface.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page6
1.4. Dip-switch settings
Some settings must be selected by the dip-switches on the
video-interface. Dip position down is ON and position up is OFF.
See following chapters for detailed information.
1.4.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
1.4.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface witches to its rear-view camera input CAM while the reverse gear
is engaged.
1.4.3. PDC settings (dip 7)
If set to ON, the PDC car graphic will be shown on the display. If set to Off, the PDC car
graphic will disappear.
1.4.4. Monitor selection (dip 8)
Dip 8 is for monitor-specific video settings which cannot be predicted as even within the
same head-unit version, the monitor specifications may vary. Try both positions of dip 8 to
find the best picture while a working video source is connected to the chosen input of the
interface, to receive the best picture quality and size. It is possible to first hot plug through
the dip combinations, but if you do not experience any change of picture, retry and
disconnected the 6pin power plug of the video-box between every change of the dip setting.
Dip
Function
ON (down)
OFF (up)
1
No function
Set to OFF
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
Set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
-
set to OFF
7
PDC
enabled
disabled
8
Monitor selection
Try both positions of dip 8 to find the best picture
(quality and size)

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page7
1.5. Dip-switch settings of the CAN-box
All 4 dip-switches of the CAN-box have no function for normal use and
must be be set to OFF.
Dip position down is ON and position up is OFF.
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent
12V source. If according to factory rules disconnecting the battery is to be avoided, it is
usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show
success, disconnect the battery with a resistor lead.
If power source is not taken directly from the battery, the connection has to be checked
for being start-up proven and permanent.
2.1. Place of installation
The interface is installed on the backside of the factory monitor and on the backside of the
head-unit.
Deviation BMW i3: With installation in BMW i3 the PNP cable requires an extention to the
video interface, as its head unit is located in the rear of the vehicle.
The installation place of the video Interface remains in the front of the vehicle.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page8

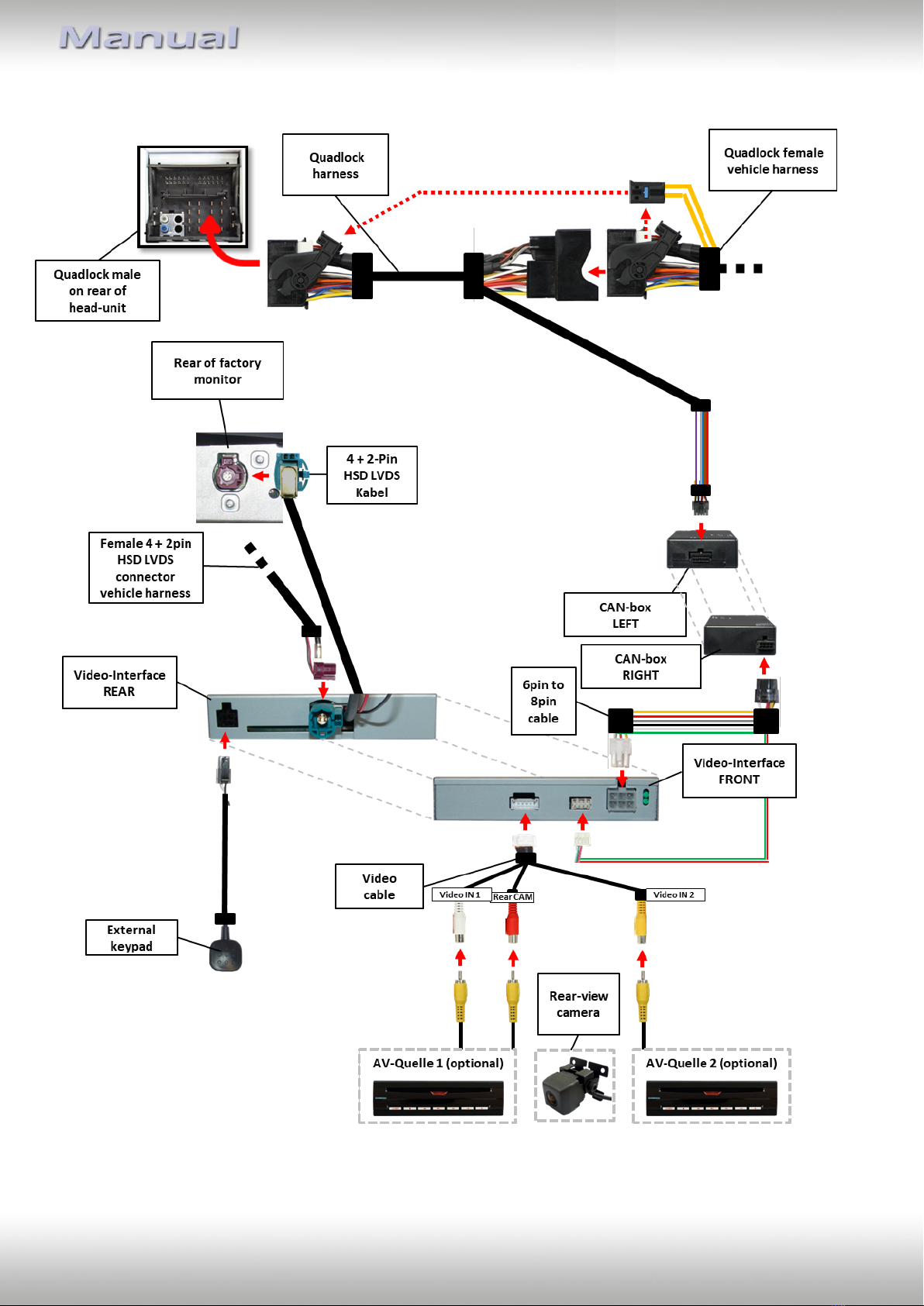

2.2. Connection schema

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page9
2.3. Connecting video-interface and CAN-box
The CAN-bus box reads digital signals from the CAN-bus and converts them for the video-
interface. ACC +12V max. 0.5A (red of 6pin) and reverse gear +12V max. 0.5A (green of 6pin)
constant signal. Video-source switching (white of 6pin) as +12V impulse.
Connect black female 4pin Micro-Fit connector of the 4pin cable to the male 4pin
Micro-Fit connector of the CAN-box.
Note: Check LEDs on CAN-box after reconnecting the battery, one must be on.
Pin-assignment quadlock connector NBT
No liability for vehicle wire colors and pin definition!
Possible changes by the vehicle manufacturer. The given
information must be verified by the installer.
Cable colour
Assignment
●●Brown/Red
+12V permanent 15
●Brown
Ground Pin 12
●Black
CAN HIGH Pin 11
●Yellow
CAN LOW Pin 9

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page10
Connect white female 6pin Molex connector of the 6pin to 8pin cable to the male
6pin Molex connector of the video-interface.
Connect black female 8pin Micro-Fit connector of the 6pin to 8pin cable to male 8pin
Micro-Fit connector of the CAN-box.
Note: Check LEDs on video-interface after reconnecting the battery, one must be on.
Connect red-green drilled cable of 6pin of 8pin cable to the male 4pin connector of
the video-interface.
Note: The CAN-box is not compatible with all vehicles. If the CAN-box does not deliver ACC
to pin2 of the video-interface or blocks the vehicle CAN, it is possible to install without CAN-
box. In this case see also note in chapter after-market rear-view camera if one is supposed to
be connected.
2.4. Connections to the factory monitor
Remove factory monitor.
Remove female 4 + 2pin HSD LVDS connector from the rear of the factory monitor
and connect it to the male 4 + 2pin HSD LVDS connector of the video-interface.
Connect female 4pin connector of the 4 + 2pin HSD LVDS cable to the male 4pin HSD
LVDS connector of the factory monitor.
Connect female 2pin connector of the 4pin cable to the male 8pin MB connector
of the factory monitor.
Note: If the HSD2 image cable of the vehicle harness is too short for the installation, an HSD2
extension can be ordered separately with item number CAB-HSD2-MF100B.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page11
2.5. Connections to the head-unit
Remove head-unit.
Remove the female Quadlock connector of the vehicle harness from the rear of the
navigation computer.
Remove optical leads –if existing- from the female Quadlock connector of the vehicle
harness and insert them into the female Quadlock connector of Quadlock harness at
the same position.
Connect female Quadlock connector of vehicle harness to the male Quadlock
connector of Quadlock harness.
Connect female Quadlock connector of Quadlock harness to the male Quadlock
connector of the head-unit.
Deviation BMW i3: With installation in BMW i3 the PNP cable requires an extention to the
video interface, as its head unit is located in the rear of the vehicle.
The installation place of the video Interface remains in the front of the vehicle.
2.6. Connecting peripheral devices
It is possible to connect an after-market rear-view camera, an after-market front camera and
an after-market AV-source to the video-interface.
Before final installation of the peripheral devices, we recommend a test-run of the
interface. Due to changes in the production of the vehicle manufacturer is always the
possibility of incompatibility.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page12
2.6.1. Switching of picture formats
Short press OPTION-button to switch the picture format.
2.6.2. After-Market Rear View Camera
Some vehicles have a different reverse gear code on the Can-Bus, which is not compatible to
the CAN-Box included in the scope of delivery. For this reason there are two possibilities of
installation. If the Can-Box supports the reverse gear, the green wire of the 6Pin to 8pin
cable is occupied by +12V, as long as the reverse gear is engaged.
Note: Before testing, please, don’t forget to shift the Dip 5 of the Video Interface to ON.
2.6.2.1. Video signal connection of rear-view camera
Connect the video-RCA of the after-market rear-view camera to the female RCA port
of the video-interface which is labeled as CAM.
BMW
Mini

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page13
2.6.2.2. Case 1: CAN-Box supports Reverse Gear
In case the Can-Bus-Box delivers +12V to the green wire 6Pin to 8pin cable while reverse
gear is engaged, the Interface switches automatically to CAM input.
In addition power supply of +12V (500mA max.) of the After-Market Rear View
Camera can be realised by the green wire of of 6Pin to 8pin cable
2.6.2.3. Case 2: Can Box does not support reverse gear
In case the Can-Bus-Box does not deliver +12V to the green wire 6Pin to 8pin cable while
reverse gear is engaged (not all of the vehicles are compatible) an external switch-over signal
of the reverse light will be required. Because of the fact that the reverse light signal is not
free from electronic interferences, a relay (eg. AC-RW-1230 with AC RS5 wiring) or an
interference filter (e.g. AC-PNF-RVC) will be required. The diagram below shows the use of
the relay.
Disconnect green cable of 6pin to 8pin cable near the black 8pin connector .
Isolate short end of the green cable (CAN-Box side).
Connect Reverselight/Power with Coil (85) and Ground (86) to relay.
Connect power of rear-view camera and the green cable (Video Interface side) of
6pin to 8pin cable with relay output (87)
Connect continuous battery current to relay input (87)

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page14
2.6.2.4. Activation PIP
Dip 7 activates/deactivates the PIP display (After-market camera picture incl. park distance
control display on the right side).
The display of the park distance control can be
adjusted from vertical to horizontal in the menu item
PDC OFFSET of the OSD menu.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page15
2.6.3. After Market Video Source
Connect 6pin male connector of video cable to female 6pin connector of
video interface
Connect video RCA of video sources to yellow and white RCAs “Video IN1 and “Video
In 2” of video cable.
2.6.4. Audio Insertion
This interface can only insert video signals into the factory infotainment. If an AV-source is
connected, audio insertion must be done by factory audio AUX input or FM-modulator. The
inserted video-signal can be activated simultaneously to each audio-mode of the factory
infotainment.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page16
2.7 Connection Video Interface and external keypad
Connect 4pin female Microfit connector of external keypad to male 4pin
Microfit connector of video interface

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page17
2.8 Picture settings and guide lines
The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU
button to open the OSD settings menu or to switch to the next menu item. Press UP and
DOWN change the selected value. The buttons are embedded in the housing to avoid
accidental changes during or after installation. Picture settings must be done separately for
RGB, AV1 and AV2 while the corresponding input is selected and visible on the monitor. AV2
and CAM share the same settings which must be adjusted in AV2.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Brightness
Contrast
Saturation
Position H (horizontal)
Position V (vertical)
Guide CNTRL (ON/OFF) = Guide lines for
rear-view camera
Note: If the CAN-box does not support the very vehicle, the guide-lines cannot be used. PDC
function is only available in a few cars.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page18
3. Interface operation
3.6. By iDrive-buttons
Some of the iDrive-buttons can be used to execute interface functions.
Long press MENU-button (approx.. 3 seconds) to switch the video source. Each
repetition will switch to the next enabled input. If all inputs are enabled the order is:
Factory video  video IN1  video IN2  factory video  …
Inputs which are not enabled are skipped. If the audio cable is connected, when
switching from video IN1 to video IN2, also the sound will be switched.
Press CD- or RADIO-button (AUDIO-button of the small iDrive)to return to the
factory-video.
Long press OPTION-button to switch the picture format 16:9 (split-screen) and 24:9
(only available for ultra-wide screens 8.8”/10.2”).
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the
external keypad must be used.
3.7. By keypad
Alternatively or additionally to the MENU-button the interface’s keypad can be used to
switch the enabled inputs.
Note: The white wire of the 6pin cable can be used with a +5-12V pulse to switch the video-
sources alternatively.
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 45mA
Power consumption 380mA
Video input formats 0.7V - 1V
Video input formats NTSC
Temperature range -40°C to +85°C
Dimensions video-box 113 x 22 x 115 mm (W x H x D)
Dimensions CAN-box 88 x 25 x 66 mm (W x H x D)

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page19
3. FAQ –Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.

Version 26.04.2021 HW CAM(V31)/(V71) RL2-NBT
Page20
Symptom
Reason
Possible solution
Camera input picture
black.
Camera power taken directly
from reverse gear lamp.
Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.
Camera input picture
has distortion.
Camera input picture
settings cannot be
adjusted.
Camera input picture settings
can only be adjusted in AV2
mode.
Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.
Graphics of a car in
camera input picture.
Function PDC is ON in the
interface OSD.
In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.
Chinese signs in
camera input picture
Function RET or ALL is ON
(function for Asian market) in
the interface OSD.
Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.
Not possible to switch
video sources by OEM
button.
CAN-bus interface does not
support this function for
vehicle.
Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Pressed too short.
For video source switching a longer press of about 2.5
seconds is required.
Not possible to switch
video sources by
external keypad.
SW-version of interface does
not support external keypad.
Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Interface does not
switch to camera input
when reverse gear is
engaged.
CAN-bus interface does not
support this function for the
vehicles.
Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" R-gear lamp power.
Interface switches
video-sources by itself.
CAN-bus interface
compatibility to vehicle is
limited.
Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.
4. Technical Support
Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.
NavLinkz GmbH
distribution/tech dealer-support
Heidberghof 2
D-47495 Rheinberg
Tel [phone]
Email [email protected]
10R-05 0068
Made in China
