RACCEWAY KOBRA User manual
-1-
(EN) USER’S MANUAL
- KOBRA
- 2-
READ THIS MANUAL BEFORE OPERATING YOUR E-SCOOTER
STRONGLY SUGGEST THE OPERATOR OF THIS PRODUCT BE 16 YEARS OF AGE OR OLDER
For the most recent version of this user’s manual and for all updated product information, please
contact with the local dealer.
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING USE OF
THE E-SCOOTER. TO DETERMINE IF COVERAGE IS PROVIDED YOU SHOULD CONTACT YOUR
INSURANCE COMPANY OF AGENT
- 3-
Introduction
Dear Customer,
Wow! You are excited! You have just received our brand new E-Scooter! We are excited too,
because as designers and developers of our e-scooters, we want to make you happy, and we
believe that your new e-scooters will give you lots of fun.
I know that you want to get this scooters on the road immediately, but please STOP!
Why? Well, first of all, you need to charge your batteries fully before using it. So, while your
e-scooters is charging, take the time to read this manual. We have worked hard to make it as
readable and fun as possible! This manual will help prevent injury and teach you how to care for
your new e-scooters.
►It is the Owner’s responsibility to carefully read all of the contents of this manual and to
comply with all laws pertaining to the operation of electric scooters in your local jurisdiction. If
you have any questions please consult with the Laws web page or consult your local
department of motor vehicles for clarification.
►To drive the vehicle on the roads,check local laws.
►We have worked hard to provide you a quality product, well designed, and without defects.
That is our responsibility. You too have a part to play with proper care and maintenance and
attention to e-scooters safety rules, our e-scooters will give you years of enjoyment.
►Please read the instructions carefully before using. Do not ride this bicycle until you have
read and thoroughly understand the Owner’s manual. It contains information critical to your
safety. If you have questions about the operation of this e-scooter, consult your authorized
dealer. It is extremely important that you follow the safety guidelines contained in this manual in
order to ensure your maximum safety. If you loan your e-scooters to anyone make sure they
also know how to operate it safely.
►When using, the load should not be greater than the maximum capacity, and please pay
attention to increase the braking distance during rainy or snowy days.
►This e-scooter is not afraid of the rain and snow, but it can't be submerged in water. It will
cause short circuit and damage to the electric apparatus, when water submerges the rear wheel
center.
►The exposed metal contact on the battery box is positive and negative , can't be touched at
the same time with wet hands, also it can’t be kept in touch with anything metal at the same
time, otherwise it will cause short circuit and accidents!
►Please don't dismantle and repair the spare parts by yourself, please go to the local
distributor or the servicing station to repair if necessary.
- 4-
►Please take time to record the following information:
Recording Your Serial Number
VIN: _______________________________________________
Model: _ __
Color: ______________________________________________
Date of Purchase : ____________________________________
Distributor: _________________________________________
- 5 -
TABLE OF CONTENTS
Introduction ……………………………………………………………………………………………………………………3
Record Your Serial Number .......................................................................................4
Table of Contents ………………………………………………………………………………………………………….5
General safety guidelines ………………………………………………………………………………………….6-7
Before each ride …………………………………………………………………………………………………………7-8
After each ride …………………………………………………............................................................8
Vehicle and assembly instructions………….…………..................................................9-15
Battery and charging instructions…………………………………………………………………………16-18
Operating instructions –Safe driving …………………………………………………………………….…19
Driving power system instructions …………………………………………………………………..20-21
General Usage Notes ………………………………………………………………………………………………….21
Maintenance ………………………………………………………………..…………………………………………22-23
Troubleshooting …………………………………………………………………………………………………………..23
Warranty ………………………………………………………………………………………………………………….23-24
Warranty Service ………………………………………………………………………………………………….24-25
- 6-
UNDERSTANDING THIS MANUAL
This Manual contain many ▲WARNING notes concerning the consequences of failure to
maintain or inspect your E-SCOOTER. A ▲WARNING means that failure to follow the
instructions following it may result in injury to the rider or others during use, which may
include loosing control and falling. Because any fall can result in serious injury or even death,
we do not repeat the warning of possible injury or death whenever the risk of falling is
mentioned. A ▲CAUTION on the other hand means that failure to follow the instructions may
result in damage to the E-SCOOTER or component during installation or use. (I.e. risk or
property （product）damage only).
Thank you for the purchasing the electrical powered Moped, The Moped complies with the
Electric Motor Vehicle Safety Regulation.
GENERAL SAFETY GUIDELINES & RESTRICTIONS
1. Don't weave through traffic or make any moves that may surprise people with whom
you are sharing the road.
2. Never carry anything which obstructs your vision or your complete control of the
E-SCOOTER or which could become entangled in the moving parts of the E-SCOOTER.
3. Never hitch a ride by holding on to another vehicle.
4. By any physically or mentally challenged person
5. By any person with vision, balance, hearing or coordination impairments
6. By any person using headphones or a cellular phone [ They mask traffic sounds and
emergency vehicle sirens, distract you from concentrating on what's going on around you,
and their wires can tangle in the moving parts of the E-SCOOTER , causing you to lose
control ].
7. To carry more than 15kgs of cargo in the cargo compartment (in addition to the rider).
8. Don't running over 25 km/h (with or without the motor activated)
9. Don't using vehicle by barefoot or those wearing sandals, open toed, high heeled, platform
or slip on footwear
10. By any person who has ingested any alcohol or drug that could impair their ability to
operate the E-SCOOTER.
11. Without 2 hands on the handle bar.
12. Please seated on the seat while running.
13. Don't jump ramps, curbs, or objects or attempt any stunts.
14. Don't beyond your ability or prior experience.
15. Don't stopping with only the front brake. Use both brakes simultaneously.
16. Do not try to accelerate and have the brake (s) on at the same time.
[ This may cause damage to the motor or drive train or cause the motor or drive train to
overheat. ]
NEITHER MANUFACTURE NOR THE RETAIL SELLER OF THE E-SCOOTER IS RESPONSIBLE
FOR THE CONSEQUENCES OF FAILURE TO COMPLY WITH FEDERAL AND PROVINCIAL
ORDINANCES RELATING TO THE USE OF THE E-SCOOTER.
- 7 -
! WARNING
ALWAYS USE A HELMET WHILE RIDING THE E-SCOOTER.
The safety regulations require that you use a helmet like those used by human powered bike
riders while riding the E-SCOOTER.
E-SCOOTER should not be used under any circumstances without properly wearing a helmet.
! WARNING
IN ADDITION TO THE REQUIREMENTS ABOVE, THE E-SCOOTER IS NOT
TO BE RIDDEN / USED:
1. on any roadways where the speed limit is
in excess of 25 km/h
2. on any sidewalks or pedestrian walkways
3. on any bumpy, rough or unpaved surfaces
4. in darkness without lights on
5. on sandy or gravel covered surfaces
6. by any person weighing more than 150 Kgs
7. by any person with an inseam of less than 22"
BEFORE EACH RIDE:
!WARNING !CAUTION
1. Make sure you properly wear a helmet.
2. Wear protective clothing and gloves.
3. Wear eye protection that does not interfere with your peripheral vision.
4. Check local and state laws before operating the E-SCOOTER in any area.
5. Make sure all tail/brake lights, turn signals and headlight are operational.
6. Make sure the horn is operational.
7. Make sure the brakes are properly adjusted and working correctly (see further detailed
instructions).
8. Make sure you understand how the brakes work and that your hands can reach and squeeze
the levers comfortably and hard enough to stop the E-SCOOTER safely.
9. Make sure all parts of the E-SCOOTER are properly and securely fastened and adjusted,
- 8 -
including but not limited to wheels, all controls and cargo (Please refer to Assembly
Instructions).
10. Make sure the tires are not excessively worn, do not have tears or cuts, and are properly
seated on the rim and inflated to the proper pressure on the sidewall
11. Make sure the wheels spin straight and that the rims are not bent or damaged (front wheel
must be undamaged for front brake to work properly).
12. Make sure the throttle is in the "OFF" position before turning E-SCOOTER key on.
This will prevent the E-SCOOTER from moving forward without notice once the ignition key
is turned.
13. Make sure the “Air Switch” under the seat is in the “On” position before turning key on.
AFTER EACH RIDE:
!WARNING !CAUTION
1. Make sure that the ignition key is turned OFF and that all keys are removed and kept in a
safe place.
2. Make sure to plug the battery on charge.
3. Make sure the throttle is rotated to the off position
4. Ensure the E-SCOOTER is not kept outdoors or where moisture can damage it
5. Do not charge or store the E-SCOOTER closer than 20 feet from any flame (e.g. furnace,
fireplace, water heater, space heater).
6. Do not allow children under 16 to play on or near the unattended E-SCOOTER.
!WARNING FAILURE TO FOLLOW THESE OPERATION INSTRUCTIONS CAN RESULT IN
SERIOUS INJURY OR DEATH OR COULD RESULT IN AN ELECTRICAL SHORT AND OR FIRE.
!WARNING DO NOT MAKE ANY ALTERATIONS OR MODIFICATIONS TO THE MOTORINOTM ,
OR ADD ANY PARTS NOT AUTHORIZED BY Manufacturer EXCEPT THOSE DISCUSSED IN THIS
MANUAL OR THOSE REQUIRED BY LAW. DO NOT REMOVE ANY REFLECTORS, LIGHTS OR
OTHER STANDARD EQUIPMENT. DOING THAT WILL VOID YOUR WARRANTY.
All authorized replacement parts are listed on the parts list enclosed or by calling your local
dealer.
- 9-
NOTICE
Before you start assembly:
Inspect the shipping container for significant damage. Then remove all packing material
and components from the box.
Before mounting, make sure that the main circuit breaker is off.
Estimated time required for installation:
· Allow at least 30 minutes for installation.
· 6-10 hours should be enough to charge the battery (in no case should it
recharge more than 14 hours).

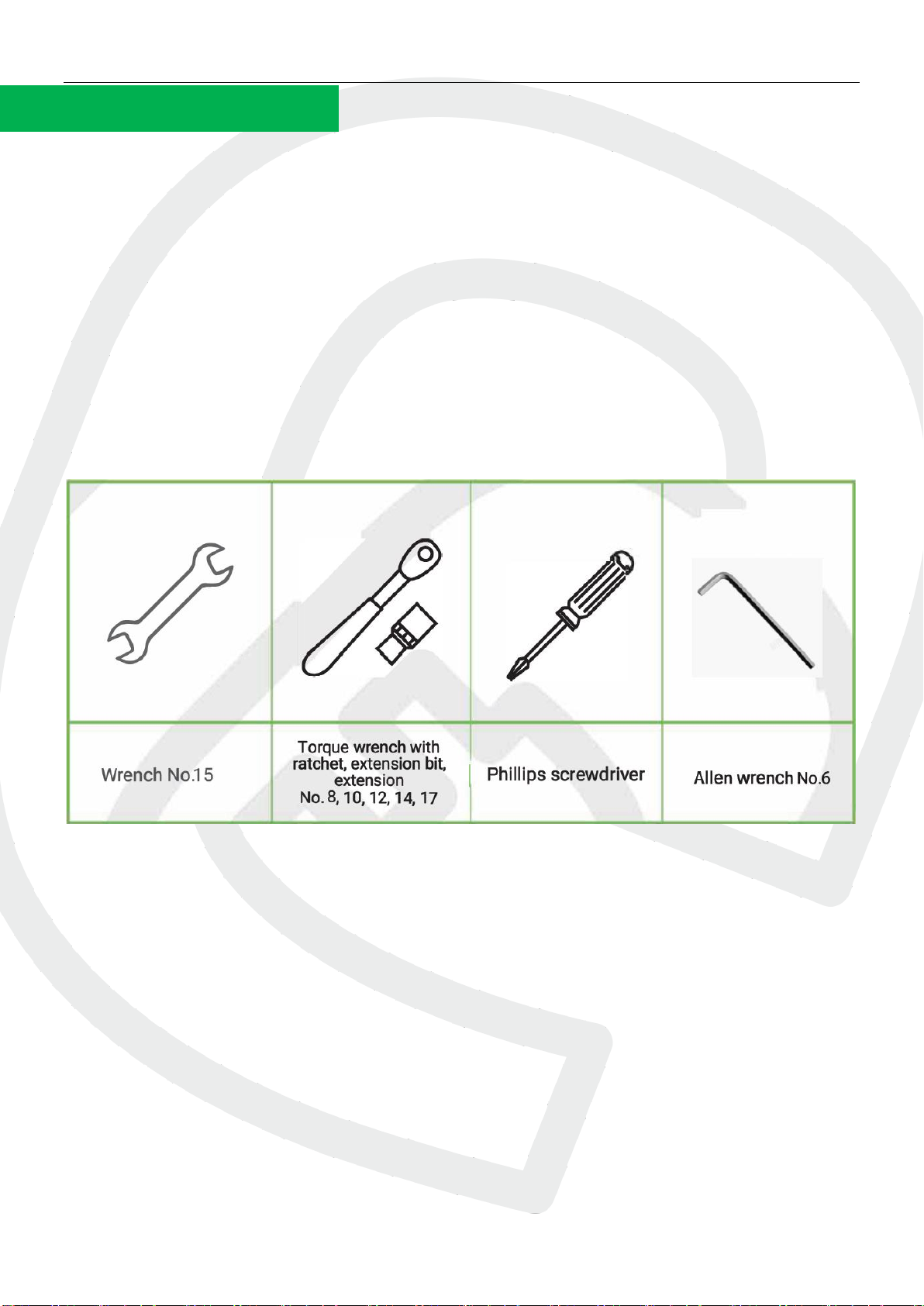

Assembly tools (not included):
- 10 -
VEHICLE INSTRUCTIONS AND ASSEMBLY INSTRUCTIONS
Each electric scooter was carefully assembled and inspected before leaving the factory.
You have to install the pedals.
Follow the installation instructions.
Tools Required: Key; hex key; screwdriver, etc.
1
3
2
4
5
6
7
8
10
9
11
12
13
- 11 -
List of Parts.
1
Hand throttle
6
Rear suspension
11
Drum brake
2
Brake lever
7
Front basket
12
Pedal
3
LCD display
8
Front fork
13
Stand
4
Front light
9
Mudguard
5
Battery under foot
step
10
Pneumatic
- 12 -
INSTALLING THE WHEEL AND FRONT BRAKE
Installation tools: Wrench No. 14*2
1. Install the drum brake in the hub →install the bushing on the other end of the hub
→install the front wheel into the front fork, pay attention to the drum brake to be clamped
to the positioning post of the front fork →install the axle and lock it with two No. 14 wrenches.
2. Pass the brake cable tube into the fork shoulder cable hole →put the brake cable end into
the drum brake hole →put on the long spring and install the hollow column
→put the brake cable end through the hollow column and twist the brake nut (if the wire core
Not long enough, please check if the brake cable is not stuck in the brake lever).
1
2
3
4
5
6
7
8
9
- 13 -
INSTALLING THE HANDLEBAR
Installation tools: Allen Wrench No. 6
1. Place the handlebar module on the steering column.
2. Connect the handlebar module to the steering column using 4 screws with a front
cover.
3. Adjust the proper handlebar angle and lock the handlebar cover with an allen wrench
No. 6
INSTALLING THE DISPLAY AND HANDLEBAR COVER
Installation tools: Installation tools: Phillips screwdriver
1. The display is fixed by two phillips screws.
2. Install the plastic handlebar cover and tighten the set screws.
1
2
3
10
11
12
1
2
3
- 14 -
INSTALLING THE TURN LIGHT AND REFLECTOR
1. Push directly into the hole until you hear a click.
2. Yellow reflectors should be installed on both sides of the front fork.
INSTALLING THE FRONT BASKET
Installation tools: Phillips screwdriver
1. Position the front storage basket to the front frame.
2. Use the two screws and longer metal to fix the back of the basket.
3. Use the two longer screws and shorter metal to fix the bottom of the basket
INSTALLING THE PEDALS
Installation tools: Wrench No. 15
Warning: Do not tighten by force, as the handles are made of
aluminum alloy.
1. The right pedal (marked "R" on the pedal shaft) must be
mounted on the crank on the right and tightened clockwise.
2. The left pedal (marked with symbol "L") is mounted
on the crank on the left and tightened firmly
counterclockwise.
1
2
3
1
2
3
4
- 15 -
INSTALLING THE BACKREST OF THE TAILSTOCK
Installation tools: Wrench No. 10
INSTALLING THE FEET PADS FOR THE TAILSTOCK
Installation tools: Phillips screwdriver
1. There are two sets ,need make clear which set is left side and right side.
2. First, to install the metal parts, you need to sandwich the bracket of the rear fender,and
usd wrench No. 10 to fasten the iron plate to the frame.
3. Use a screwdriver to attach the plastic pedal to the iron plate.
1
2
3
1
2
3
4
5
- 16 -
BATTERY AND CHARGING INSTRUCTIONS
1. For 12Ah
2. For 20Ah
Two plastic posts in the middle need to be removed.
WARNING!
• Store batteries in a dry, warm environment.
• Keep the batteries charged at all times.
• If you park in an outdoor or cold environment, the battery must always be charged,
otherwise it will be irreversibly damaged.
• If the scooter is not used for a long time, the battery will self-discharge, so it is
recommended to check the battery condition continuously so that the voltage does
not drop below the critical value when the battery can no longer be charged.
• Any claims concerning a battery damaged due to such improper treatment will not
be accepted.
- 17 -
•Use only the charger designed for this electric scooter (never use a charger from another
model). Before charging, set the switch to the OFF position and remove the key. Use the
charger in a dry and well-ventilated area.
•The charger is for indoor use only. Protect the charger from water to avoid short circuiting.
Do not use in wet, flammable, or explosive environments. Do not remove the plug by pulling
the cord, always grasp the charging port by the metal body.
•First, plug the charger's output plug securely into the battery receptacle, and then insert
the input plug into a power outlet. The charger indicator lights up to indicate that charging is in
progress.
•When the light changes from red to green, it indicates that the battery is fully charged.
Typically, it will take approximately 6-10 hours for the battery to fully charge. lf you have time,
it is recommended to charge it for 2 more hours after the indicator light turns green. (This will
positively affect battery life).
•When the green light is on, the charger is in a maintenance charging state. lf you are away
for a long time, you should remove the charger plug, especially in hot weather.
•The charger heats up during charging, so keep it away from heat. Always keep the charger
dry and clean. The electronics inside are under high voltage, so never disassemble it yourself.
•After charging, first unplug the power plug and then remove the output connector from the
battery. Do not leave the charger plugged into a battery or wall outlet for an extended period of
time as this may damage the charger and cause a fire.
•Keep the charger out of the reach of children while charging. Do not place anything on the
charger or allow any liquid to come into contact with the charger.
•The first 10-15 charges are unstable, the charging time can be up to 12 hours, and the
charge indicator on the scooter display can show a partially discharged battery. After
formatting the battery, everything will be fine
•Furthermore, the battery is protected by its own fuse 30A, which is stored from the side of
the plastic battery pack and secured with a plastic screw cap.
Charger has three charging options:
1. Remove the battery from the under-seat part, bring it to the electrical outlet and start
charging
2. Disconnect the battery in the under-seat part from the power connector, connect the
charger and charge
3. The e-scooter has, above the rear wheel in the fixed part of the mudguard, a connector
for connecting the charger.
The charger has 2 diodes. The first (red) lights up when the charger is plugged in, while the
second signals charging. When the charger is connected, the first red light comes on
immediately and the second one lights up green, then red when everything is OK. lt will glow
green again when fully charged.
- 18 -
!WARNING DO NOT CHARGE OR STORE THE MOTORINOTM CLOSER THAN 20 FEET FROM
ANY FLAME (E.G. FURNACE, FIREPLACE, WATER HEATER, SPACE HEATER)
!WARNING DO NOT KEEP THE CONNECTED TO THE CHARGER
FOR LONGER THAN 18 HOURS UNDER ANY CIRCUMSTANCES! DOING SO COULD CAUSE THE
BATTERY OR CHARGER TO OVERHEAT AND CAUSE A FIRE.
!WARNING DO NOT COVER THE THE CHARGER WHILE CHARING.DOING SO COULD CAUSE
THE CHARGER TO OVERHEAT AND CAUSE A FIRE.
!WARNING DO NOT CHARGING UNDER THE RAIN DOING SO COULD CAUSE THE CHARGER
SHORT CIRUIT.
!WARNING DO NOT CHARGING WHILE THE TEMPERATURE LOW THAN 5℃DOING SO COULD
CAUSE REDUCE THE EFFICIENCY OF THE BATTERY.
!WARNING DO NOT CARRY THE CHARGER IN THE VEHICLE UNLESS CUSHIONED UNDER THE
CHARGER.
!WARNING NEVER LEAVE THE 220V BATTERY CHARGER CONNECTED TO THE POWER
SOURCE IN AMERICAN AREA.
!WARNING KEEPING THE CHARGER PLUGGED INTO THE 110V/220V POWER SOURCE AND
NOT THE BATTERY DOING SO COULD CAUSE THE BATTERY TO OVERHEAT AND OR CAUSE A
FIRE.
!WARNING FAILURE TO KEEP THE E-SCOOTER BATTERY CHARGED WILL
CAUSE TOTAL BATTERY FAILURE. DO NOT ALLOW BATTERY TO BECOME FULLY
DISCHARGED!!! ALWAYS RECHARGE THE BATTERY BEFORE THE POWER INDICATOR ON THE
INSTRUMENT PANEL SHOWS NO POWER. ALLOWING THE BATTERY TO FULLY DISCHARGE
WILL REDUCE BATTERY LIFE AND MAY RUIN THE BATTERY OR COULD CAUSE THE BATTERY
OR CHARGER TO OVERHEAT AND CAUSE A FIRE THE NEXT TIME THE E-SCOOTER IS
CHARGED.
!WARNING
BATTERY POSTS, TERMINALS, POWER CORDS AND BRAKE CABLES MAY CONTAIN LEAD
AND LEAD COMPOUNDS, AND OTHER CHEMICALS. WASH HANDS AFTER HANDLING.
WARNING IF YOU HAVE ANY DOUBT ABOUT THE CONDITION OF THE SCOOTER OR ANY OF
ITS PARTS, DONT USE IT . CALL YOUR E-SCOOTER DEALER.
BATTERY RECYCLING
When maintained and used properly, (by following charging and storage guidelines), the Lead
Acid Battery Pack used in this product has a normal lifespan of two to three years. When the
battery pack no longer holds a charge or is unable to be charged properly, it should be
removed from the vehicle and delivered to a recycling facility. Federal Laws prohibit disposal
of lead-acid batteries in everyday trash. Please contact your local solid waste or recycling
authority for recycling information in your area.
- 19 -
OPERATING INSTRUCTIONS - SAFE DRIVING
• Follow the Road Traffic Regulations. Do not transport other persons on this electric scooter.
• Read this manual carefully and make sure you fully understand it and that you are able to
drive the electric scooter before heading out on the road.
• Do not lend the electric scooter to anyone who is unfamiliar with how to operate it.
• Check regularly that the battery is properly charged.
• Check the condition of the brakes before each journey. lf necessary, adjust them carefully to
make sure they work properly. Brake early and always reduce your travel speed when it rains
or snows.
•Always hold the handlebar with both hands .
• Drive in such a way that no limbs or other objects come into contact with the cha in or
wheels.
•Do not touch the battery charging connector with a wet hand, wrench, or other metal object,
as this wil I damage the battery pole and cause a short circuit.
• Wear bright colors when driving at night to be clearly visible to drivers of other motor
vehicles.
• Qnly one person can drive this electric scooter, 2 for a short time, but the maximum load is
150 kg. Do not drive under the influence of addictive substances, alcohol or medication that
could affect your ability to operate a motor vehicle .
• Do not drive in poor conditions, such as uneven, wet or unpaved surfaces .
• lf possible, do not drive in poor weather conditions, poor visibility or if you are very tired .
• This electric scooter can be operated in rainy weather, but its control unit, motor or other
electrical devices must not be submerged in water. This could cause a short circuit and could
result in an accident.
•Never use spray water to wash your electric scooter to avoid its electrical components
getting wet (battery connector, motor, control unit, cables, handlebar controls, etc.)
• This electric scooter must not be driven by person s under 16 years of age.
Check before driving for the first time:
Before leaving the factory, an escooter exit check was performed - but check the following
before
driving for the firsttime:
First, make surethe battery is fully charged and correctly positioned.
Check the front and rear brakes and make sure they work pro perly.
Check the tires and make surethey are well inflated.
Check that the front and rear wheels are properly secured.
Check the pedals to make sure they are properly secured and that all lock nuts and bolts are
tightened properly.
Table of contents
Languages:
Other RACCEWAY Scooter manuals
