HERO PLEASURE+ User manual

PREFACE
This booklet is your guide to the basic operation and maintenance of your new
Hero MotoCorp PLEASURE+ vehicle. Please take time to read it carefully. As with any fine
machine, proper care and maintenance is essential for trouble-free operation and optimum
performance.
Thank you for selecting a Hero MotoCorp PLEASURE+ vehicle. We wish you many miles of
continued riding pleasure in the years ahead.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve environment
compatibility, comply with all applicable environment legislation and strengthen the green
supply chain.
Your Authorised Distributor and Dealer(s) of the Distributor (“Dealer”) will be glad to provide
further information or assistance and is equipped to handle your future service needs.
Let us make this world a safer, healthier and more environment friendly place.
No: IB31A

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,
SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S
MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE
AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR
CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.
Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS
CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY
OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY
PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN
PERMISSION FROM Hero MotoCorp Ltd.
NOTE

CONTENTS
Pg. No. Pg. No.
•Center compartment 25
ESSENTIAL INDIVIDUAL COMPONENTS 22
•Steering lock 23
•Ignition switch 22
•Document compartment/Tool kit holder 25
•Tyres (Tubeless) 18
•Luggage hook/Inner rack or Front box 27
•Side stand indicator 27
•Boot lamp/Boot lamp switch 25
•Side stand switch/Side stand 27
•Pillion footrest 28
MAJOR COMPONENTS 15
•Rear brake 16
•Fuel 17
FEATURES 23
•USB charger 26
HANDLEBAR SWITCHES CONTROL 23
•Seat lock/Helmet holder 24
•Brakes (Integrated Braking) 15
VEHICLE VIEWS 11
•Load limits and guidelines 7
•Protective apparel 5
SAFE RIDING TIPS 9
VEHICLE SPECIFICATION 2
PARTS FUNCTION 14
•Accessories and modifications 8
•Instruments and indicators/Fuel gauge 14
VEHICLE IDENTIFICATION 1
•Important safety information 4
VEHICLE SAFETY 4
TIPS FOR HEALTHY ENVIRONMENT 10
•Rear view mirror 33
•Floor side cover 32
•Front upper cover 31
•Rear grip 31
BODY PARTS REMOVAL 28
•Center compartment 28
•Body cover/Center cover 30
SERVICE RECORD SHEET
OWNERSHIP RECORD AND DATA
JOBS APPLICABLE TO PERIODIC SERVICES
SERVICE ADVICE SHEET
HERO GENUINE PARTS
SAFETY PRECAUTIONS 46
TOOL KIT 43
MAINTENANCE 45
AIR CLEANER ELEMENT 50
AIR CLEANER DRAIN TUBE CLEANING 51
MAINTENANCE SCHEDULE 47
SECONDARY AIR SUPPLY SYSTEM 51
THROTTLE OPERATION 52
CLEANING OF VEHICLE/WASHING OF VEHICLE 43
•Headlamp focus adjustment 34
PRE-RIDE INSPECTION 34
RUNNING IN/RIDING 37
ANTI-THEFT TIPS 35
PARKING 42
STEERING LOCK 42
STARTING THE ENGINE 35
CATALYTIC CONVERTER 63
STORAGE GUIDE 64
DELIVERY CER IFICATET
BASIC TROUBLESHOOTING 66
POLISHING OF VEHICLE 64
REMOVING ROAD SALT 64
AIR SUCTION VALVE (ASV) 63
BATTERY 58
IDLE SPEED 57
FUSE REPLACEMENT 59
SPARK PLUG 56
BULB REPLACEMENT 60
SUSPENSION 60
FINAL DRIVE OIL REPLACEMENT 55
ENGINE OIL 53
BRAKE SHOE WEAR 57
•Headlamp case 33

MBLJFW08#########
Vehicle Identification Number (VIN)
VEHICLE IDENTIFICATION
Engine No.
Location: Stamped on the lower side of
the left crankcase.
Location: Stamped on the lower right side of
the frame, visible from the window provided
on right floor side cover.
JF33AD#
#######
Model: PLEASURE+
VIN
JFN05
Engine
JF33AD
Variants
JFW08 JF33AD
VIN: MBLJFW08#########
1. During registration of the vehicle.
2. For dealing with legal & insurance departments.
VIN and Engine No. may be required:
Sheet metal wheel/Integrated braking
Cast wheel/Integrated braking
1
MBL JFW08 #
Manufacturer
code Vehicle
Description Model Year
#
Check
Digit
Engine No.: JF33AD########
JF33AD # #
Engine
Description Year of
Manufacturing Assembly Plant
## #####
Plant
Code Month of
Manufacturing Production
Serial Number
# #####
Month of
Manufacturing Serial Number

VEHICLE SPECIFICATION SPECIFICATIONSITEM
Dimensions
Overall length
Overall width
Overall height
Wheelbase
Saddle height
Ground clearance
Kerb weight
1769 mm
704 mm
1161 mm
1238 mm
765 mm
155 mm
101 kg
Weight
Engine oil
Transmission oil
Fuel tank
Maximum power
Maximum torque
Bore and stroke
Compression ratio
Displacement
0.80 litre at disassembly and 0.70 litre at draining
0.12 litre at disassembly
0.10 litre at draining
4.8 litres
6.0 kW(8 BHP) @ 7500 rpm
8.70 N-m @ 5500 rpm
50.0x56.5 mm
9.5:1
110.9 cc
Champion-PRZ 9 HC (Federal Mogul)
Capacities
Engine
Spark plug gap
Valve clearance
Idle speed
Front suspension
Rear suspension
Caster angle
0.6-0.7 mm
0.14±0.02 mm
0.14±0.02 mm
1700±200 rpm
27° 30'
Intake (cold)
Exhaust (cold)
Chassis and suspension
Spark plug
Chassis type High rigidity under bone type
Bottom link with spring loaded hydraulic damper
Swing arm with spring loaded hydraulic damper
Tyre size Front
Rear
90/100x10-53 J (Tubeless tyre)
90/100x10-53 J (Tubeless tyre)
2
Payload 130 kg

VEHICLE SPECIFICATION SPECIFICATIONSITEM
Primary reduction
Final reduction Variomatic (2.53-0.8)
50/20x49/13 (9.423)
Transmission
Front/Rear brake drum type
Battery
Alternator
12V-4Ah (ETZ-5) *MF Battery
110 W @ 5000 rpm
Electricals
Starting system
Headlamp (High/Low)
Tail/Stop lamp
Turn signal lamp
Meter illumination
Electric start/Kick start
12V-35/35W Halogen bulb-**MFR
12V 5W/21W **MFR
12V 10W x 4 nos.( MFR-Clear lens-Amber bulb)
**
12V-1.7Wx2 nos.
Turn signal indicator 12V-3.0Wx2 nos.
Hi beam indicator
Side stand indicator
Fuse
12V-1.7W
12V-1.7W
15A &10A (Circuit fuse) 15A &10A (Spare fuse)
* MF stands for Maintenance Free
** MFR stands for Multi-Focal Reflector
Internal expanding shoe type (Dia. 130 mm)
(Integrated braking system)
Clutch system Dry, automatic centrifugal clutch
3
Boot lamp
12V-40mA Maximum LED (White)
Licence plate lamp Integrated in rear tail lamp assy.
Fuse box (1)
Fuse box (2) 10A (Circuit fuse) 10A (Spare fuse)

4
VEHICLE SAFETY
IMPORTANT SAFETY INFORMATION
There is much that you can do to protect
yourself when you ride. You will find many
helpful recommendations through out this
manual. Following are a few that we consider
most important.
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your pillion are both wearing an
approved vehicle helmet and protective
apparel. Instruct your pillion on holding onto
the grab rail or your waist, leaning with you in
turns, and keeping their feet on the footrest,
even when the vehicle is stopped.
Your vehicle can provide many years of
service and pleasure if you take responsibility
for your own safety and understand the
challenges you can meet on the road.
Always wear a helmet
Before riding your vehicle
Even if you have ridden other vehicles,
practice riding in a safe area to become
familiar with how this vehicle works and
handles, and to become accustomed to the
vehicle's size and weight.
It is a proven fact, Helmet significantly reduces
the number and severity of head injuries. So
always wear a helmet and make sure your
pillion rider does the same. We also
recommend that you wear eye protection,
sturdy boots, gloves and other protective gear
(page 6).
Take time to learn & practice your
vehicle
Some drivers do not see vehicles because they
are not looking for them. To make yourself
more visible, wear bright reflective clothing,
position yourself so that others can see you,
signal before turning or changing lanes, and
use horn which will help others to notice you.
Ride defensively
Pushing the limits is another major cause of
vehicle accidents. Never ride beyond your
personal abilities or faster than conditions
demand. Remember that fatigue and
negligence can significantly reduce your ability
to make good judgements and ride safely.
Do not drink and ride
Make yourself easily visible
Always pay due attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop quickly or
perform an evasive maneuver.
Ride within your limits
Riding under the influence of alcohol or drugs
is dangerous. Alcohol can reduce your ability
to respond to changing conditions and reduce
the reaction time. Do not drink and ride.
Keep your vehicle in safe condition
For safe riding, its important to inspect your
vehicle before every ride and perform all
recommended maintenance. Never exceed
load limits, and only use accessories that have
been approved by Hero MotoCorp for this
vehicle. See (page 7) for more details.

5

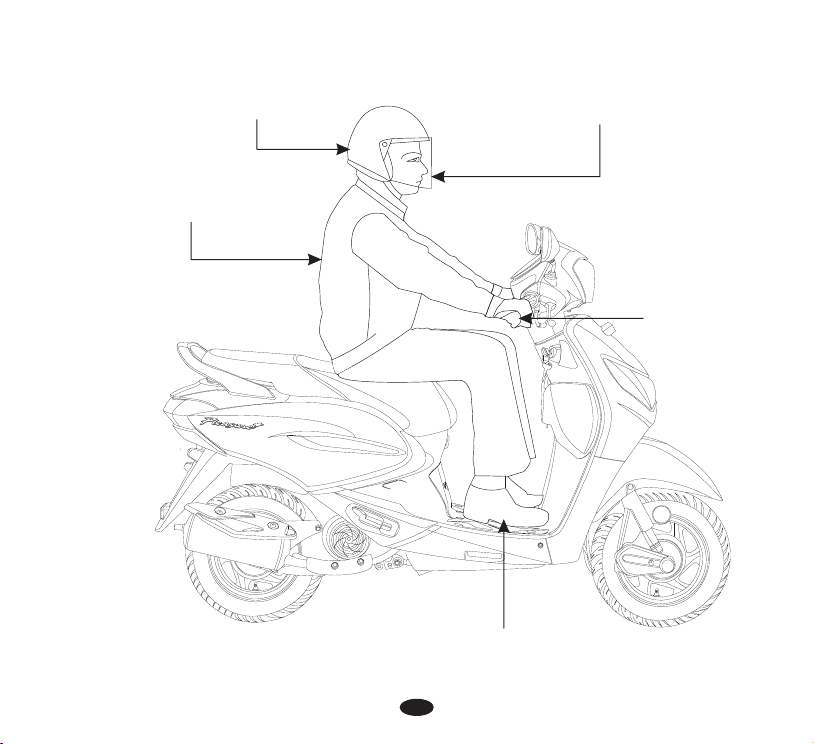

•A two wheeler riding suit or jacket for
comfort as well as protection. Bright
coloured reflective clothing can help make
you more noticeable in traffic. Be sure to
avoid loose clothes that could get caught on
any part of your vehicle.
•Leather gloves to keep your hands warm
and help prevent blisters, cuts, burns, and
bruises.
•Sturdy boots with non-slip soles to help
protect your feet and ankles.
Helmets and eye protection
Your helmet is your most important piece of
riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and securely.
A bright coloured helmet can make you more
noticeable in traffic, as can reflective strips.
An open-face helmet offers some protection,
but a full-face helmet offers more. Always
were face shield or goggles to protect your
eyes and help your vision.
In addition to a helmet and eye protection, we
also recommend:
Additional riding gear
pants and a long sleeve shirt or jacket
whenever you ride. Take care of loose/
hanging clothes while solo/pillion riding.
Although complete protection is not possible,
wearing proper gear can reduce the chance of
injury when you ride.
If you are involved in a crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether
it is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable
laws and regulations if another person or
vehicle is involved in the crash.
If you decide to continue riding, first evaluate
the condition of your vehicle. If the engine is
still running, turn it off. Inspect for fluid leaks,
check the tightness of critical nuts and bolts,
and check the handlebar, brake levers, brakes,
and wheels. Ride slowly and cautiously. Your
vehicle may have suffered damage that is not
immediately apparent. Have your vehicle
thoroughly checked at a qualified service
facility as soon as possible.
PROTECTIVE APPAREL
For your safety, we strongly recommend that
you always wear a helmet which should
conform as per your country standards, in
addition to eye protection, boots, gloves, long
Following are suggestions to help you choose
proper riding gear.
WARNING
!!
•Be sure you and your pillion always wear a
helmet, eye protection and other protective
apparel when you ride.
•Not wearing a helmet increases the chance
of serious injury or death in a crash.

PROTECTIVE APPAREL
Always wear HELMET
Wear bright or reflective
clothing
Wear a face shield or goggles
Wear gloves
Shoes should be close fitting, low heels
and offer ankle protection
6

Loading
How much weight you put on your vehicle,
and how you load it, are important to your
safety. Anytime you ride with a pillion or cargo
you should be aware of the following
information.
However exceeding the weight limit
or carrying an unbalanced load can seriously
affect your vehicle's handling, braking and
stability. Non Hero MotoCorp accessories,
modifications, and poor maintenance can
reduce your safety margin.
LOAD LIMITS AND GUIDELINES
Your vehicle has been designed to carry you,
one pillion and limited amount of cargo. When
you add cargo or carry a passenger, you may
feel some difference during acceleration and
braking. But so long as you keep your vehicle
well maintained, with good tyres and brakes,
you can safely carry loads within the limits and
guidelines.
The following pages give more specific
information on loading, accessories and
modifications.
Rear luggage hook : 3.0 kg
Putting too much weight in individual storage
compartments can also affect stability and
handling. So be sure to stay within the limits
given below:
Maximum weight:
Center compartment : 10 kg
Inner rack or Front box : 1.5 kg
Includes the weight of the rider, pillion, all
cargo and all accessories.
Load limits
Following are the load limits for your vehicle:
Maximum weight capacity: 130 kg
2
3
1
Improperly loading your vehicle can affect its
stability and handling. Even if your vehicle is
properly loaded, you should ride at reduced
speeds whenever carrying cargo.
Loading guidelines
Your vehicle is primarily intended for
transporting you and a pillion. If you wish to
carry more cargo, check with your Authorised
Distributor/Dealer for advice and be sure to
read the information regarding accessories on
(page 8).
7
WARNING
!!
•Overloading or improper loading can cause
a crash and you can be seriously injured.
•Follow all load limits and other loading
guidelines in this manual.
(1) Center compartment (inside)
(2) Inner rack (3) Rear luggage hook

Follow these guidelines whenever you carry a
pillion or cargo:
•Check that both tyres are properly inflated.
•To prevent loose items from creating a
hazard, make sure the center compartment
is closed and that any other cargo is securely
tide down before you ride away.
•Place cargo weight as close to the center of
the vehicle as possible.
•Balance cargo weight evenly on both sides.
ACCESSORIES & MODIFICATIONS
Modifying your vehicle or using non-Hero
MotoCorp accessories can make your vehicle
unsafe. Before you consider making any
modifications or adding any accessory, be sure
to read the following information.
Accessories
We strongly recommend that you use only
genuine Hero MotoCorp accessories that
have been specifically designed and tested for
your vehicle. Hero MotoCorp cannot test all
other accessories, you must be personally
responsible for proper selection, installation
and use of non-Hero MotoCorp accessories.
Check with your dealer for assistance and
always follow these guidelines:
•Be sure electrical equipment does not
exceed the vehicle's electrical system
capacity (page 3). A blown fuse can cause
loss of lights.
Modifications
Removing or modifying your lamps, muffler,
emission control system or other equipment
can also make your vehicle not meeting the
emission standards.
•Do not pull a trailer or sidecar with your
vehicle. This vehicle is not designed for
these attachments, and their use can
seriously impair your vehicle handling.
•Make sure the accessories does not obstruct
any lamps, reduce ground clearance and
banking angle, limit suspension travel or
steering travel, alter your riding position or
interfere with operating any controls.
We strongly advise you not to remove any
original equipment or modify your vehicle in
any way that would change its design or
operation. Such changes could seriously
impair your vehicle's handling, stability and
braking, making it unsafe to ride.
8
WARNING
!!
•Improper accessories or modifications can
cause a crash in which you can be seriously
hurt or killed.
•Follow all instructions in this owner's manual
regarding accessories and modifications.

•Always conduct simple pre-ride inspection
(page 34).
•To make yourself more visible, wear bright
reflective clothing that fits well.
•Give way to others on the road and signal
before you make a turn.
•To stop the vehicle (in Integrated brake
system), press the rear brake lever for the
application of front and rear brakes
simultaneously. However, for more effective
braking, it is advised to apply both front and
rear brake simultaneously, keeping the
throttle in close position.
•During night time, dip headlamps of your
vehicle for oncoming traffic, or when
following another vehicle.
•keep your leg closed and While riding, sit in
a comfortable position.
•Ride defensively and at a steady speed
(between 40-50 km/hr).
•Always wear a helmet with chinstrap
securely fastened and insist on a helmet for
your pillion rider. Helmet should conform as
per safety standards applicable in your
country.
•ake careT of loose/hanging clothes while
solo/pillion riding.
•Get your vehicle serviced regularly by the
Authorised Distributor/Dealer.
•Do not attach large or heavy items to the
handlebars.
•Never take your hands off the steering
handle while riding.
•Avoid sudden acceleration, braking and
turning of your vehicle.
•Never ride under the influence of alcohol or
drugs.
•Concentrate on the road and avoid talking
to the pillion rider or others on the road.
•Never use cell phone while riding the
vehicle.
•Never touch any part of the hot exhaust
system like muffler.
•Do not litter the road.
•Do not cross the continuous white/yellow
line in the center of the road, while
overtaking.
SAFE RIDING TIPS
Do's: Don'ts:
9

•Noise pollution: Noise beyond a certain decibel is pollution. Whether it is from horns or
defective mufflers, excessive noise will cause headaches and discomfort.
•Fuel saving & Reduce pollution: Switch "OFF" the engine while waiting at traffic signal
points to save fuel and reduce pollution, if the waiting period is long.
•Healthy engine: The engine is the lifeline of every vehicle. To keep it healthy, it should be
tuned regularly, which will also help reduce pollution and improve vehicle performance.
•Regular servicing: Get your vehicle serviced at an Authorised service station, as per the
service schedule, for an optimum performance and keep the emission level under check.
The following tips shall ensure a healthy vehicle, healthy environment, and a healthy you.
•Genuine spares: Always insist on Hero MotoCorp genuine parts as spurious or
incompatible spares and accessories can upset or deteriorate your vehicle’s running
condition.
•Genuine engine oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MB) engine oil
recommended by Hero MotoCorp and make sure you change it every 6000 km. (with
top up every 3000 kilometres) to keep the engine fit and environment healthy.
TIPS FOR HEALTHY ENVIRONMENT
10

(5) Parking lever
(8) Odometer
(3) Turn signal switch
(1) Bystarter knob
(4) Integrated brake lever
(2) Horn switch
(6) Rear view mirror
(9) Speedometer
(7) Dimmer switch
(10) Fuel gauge
(11) Side stand indicator
(12) Turn signal indicator
(13) High beam indicator
(14) Front brake lever
(17) Ignition switch with steering lock
(15) Throttle grip
(16) Starter switch
(18) USB charger
*Accessories and features shown may not be part of standard fitment.
TOP VIEW VEHICLE VIEWS
14
15
16
17
5
4
2
3
1
12
97 813
11
10 11
18
6

8
6
10
*Accessories and features shown may not be part of standard fitment.
7
1
(1) Side stand switch
(2) Side stand
(3) Main stand
(4) Kick starter pedal
(5) Pillion step
(6) Rear turn signal lamp
(7) Tail/stop lamp
(8) Rear grip
(10) Luggage hook
(9) Boot lamp (inside)
(11) Headlamp
LEFT SIDE VIEW
12
9
2345
11

(1) Exhaust muffler
(2) Oil level dipstick
(3) Pillion step
(4) Inner rack or Front box
(5) Front reflex reflector
(6) Front turn signal lamp
(7) Center compartment (inside)
(8) Document compartment (inside)
RIGHT SIDE VIEW
6
34
2
1
7
*Accessories and features shown may not be part of standard fitment.
13
8
5

INSTRUMENTS AND INDICATORS
The indicators are in the speedometer panel
above the headlamp. The functions are as
below :
PARTS FUNCTION
Sl. No.
1
2
3
4
5
Description Function
Odometer Shows accumulated distance travelled.
High beam indicator Light glows when headlamp is in high beam.
Speedometer Indicates driving speed.
Turn signal indicator Flashes when turn signal switch is operated.
When the fuel gauge needle (1) enters the red
band (2), fuel will be low and you should refill
the tank as soon as possible.
FUEL GAUGE
(1) Fuel gauge needle (2) Red band
6
Fuel gauge Indicates approximate fuel quantity.
Side stand indicator Light glows when the vehicle is parked on the side stand.
54
3
2
1
14
6
21

MAJOR COMPONENTS
Brakes are items of personal safety and should
always be maintained with proper adjustments.
BRAKES (INTEGRATED BRAKING)
(Information you need to operate this
vehicle)
When one applies the left brake lever, front &
rear brakes activate jointly.
(i)
(ii)
A
4
(4) Integrated brake arm (5) First adjuster nut
( ) Decrease free play (ii) Increase free playi
15
(1) Front brake lever
(3) Free play : 10-20 mm
1
3
NOTE
“F” & “I” is marked on integrated brake arm.
(2) Integrated brake lever
(3) Free play:10-20 mm
2
3
•Turn the first adjuster nut (5) till you cannot
turn it by hand.
FREE PLAY: 10-20 mm
•Push the integrated brake arm (4) by hand
in the direction as shown.
The distance, the front brake lever (1) and
integrated brake lever (2) moves before each
brake starts to engage is called free play (3).
Measured at the tip of brake levers, free play
should be maintained at 10-20 mm.
Right hand front brake cable (A) on “F”
side
Adjustment
•Check the free play of front brake lever.
•If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
5
F
I

(6) Second adjuster nut (7) Joint
(i) Decrease free play (ii) Increase free play
(i)
(ii)
6
B
4 7
16
•Check brake cable for kinks or signs of wear
that could cause sticking or failure.
Other checks:
•Make sure the brake arm spring and
fasteners are in good condition.
If proper adjustment cannot be obtained by
this method, visit your Authorised
Distributor/Dealer.
(3) Adjusting nut (4) Brake joint pin
Make sure the cut-out on the adjusting nut
(3) is seated on the brake joint pin (4) after
making final free play adjustment.
FREE PLAY: 10-20 mm
•Make free play adjustment by turning the
adjuster nut (1) in the brake arm (2).
REAR BRAKE
•Check the free play of integrated brake
lever.
•If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
(ii)
(i) 2
1
Left hand front brake cable (B) on “I” side
•Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
•After ensuring the gap, turn the second
adjuster nut counterclockwise by half rotation.
•Push the integrated brake arm (4) by hand
in the direction as shown.
Adjustment
ü
X
(B) Cut-out seated
3
(A) Cut-out not seated
4
(1) Adjuster nut (2) Brake arm
(i) Decrease free play (ii) Increase free play
F
I
34
