Racing RAC52PB-AB-3 User manual

ORIGINAL INSTRUCTIONS
1
GASOLINE BRUSH CUTTER & GRASS TRIMMER
RAC52PB-AB-3
INSTRUCTION MANUAL
Read carefully this manual before any use.
BUILDER
32, rue Aristide Bergès - ZI 31270 Cugnaux - France
Made in China - 2021

ORIGINAL INSTRUCTIONS
2
CONTENT
1. SAFETY WARNINGS...............................................................................................................3
2. PRODUCT DESCRIPTION.......................................................................................................8
3. ASSEMBLY..............................................................................................................................11
4. FILLING………………………………………………………………………………………………..13
5. OPERATION............................................................................................................................14
6. MAINTENANCE & CARE........................................................................................................16
7. TROUBLE SHOOTING...........................................................................................................18
8. DECLARATION OF CONFORMITY........................................................................................19
9. WARRANTY...........................................................................................................................20
10. PRODUCT FAILURE...............................................................................................................21
11. WARRANTY EXCLUSIONS....................................................................................................22

ORIGINAL INSTRUCTIONS
3
1. SAFETY WARNINGS
WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk
of fire and injury.
Read all instructions carefully before attempting to use this product and retain these instructions. Be
familiar with all the operations described in these operating instructions. This product must be operated
by experienced users.
Inexperienced users shall first have training in all operations with a professional.
If you are giving this machine to others, please also provide them with this instructions manual.
Read all markings affixed on the product (symbols, stickers, technical data, etc.). The symbols are
explained in this manual.
Use this machine as described in this instruction manual. It is strictly forbidden to use this tool for
applications other than those described in this manual.
Failure to follow these instructions can result serious injuries and, in some cases, death.
This product is intended for private domestic use only. Do not use it for commercial purposes.
Never let people unfamiliar with these instructions or children use this product.
National regulations may limit the use of the machine.
People under the age of 18 must not use this product
Keep in mind that the operator or user is responsible for accidents or risks to other persons or their
property.
WARNING: Do not use of the unit when tired, ill or under the influence of alcohol or other drugs.
Do not use the tool if you are not in an adequate physical condition.
This tool is intended for outdoor use. Never use it indoors.
Secure the machine during transport to prevent loss of fuel, damage or injury; always install the
protection device on the blade, check the cap of the fuel tank, and do not transport the tool upside down.
Keep people and animals away from the work area. Children and people who do not know how to use
this tool should not touch it and handle it.
WARNING: Keep people at least 15 m from the machine during operation.
Use the product only under daylight or under good artificial light.
When using the machine, always wear full protective equipment including a protective helmet, protective
mask, hearing protection, ocular protection, gloves, slip-resistant foot protection and protective clothing.
The protective equipment shall be in conformity with the European norms.
Wear appropriate clothing. Do not wear loose or unbuttoned clothes. Do not wear jewellery that may
come in contact with moving parts. If you have long hair, tie them down and wear an appropriate safety
helmet.
Do not operate the product with damaged guards or shields not in place.
Keep hands and feet far away from the cutting parts at all times and especially when switching ON/OFF
the tool.
Do not use the tool in an area where ventilation is poor. Gas emissions can cause injury.
Do not work when it rains and in bad weather. Do not use the tool in damp locations.
Do not use the tool in the presence of flammable liquids or gases.

ORIGINAL INSTRUCTIONS
4
Keep the work area clear. Before working, inspect the work area and remove any materials or objects
that could cause accidents.
Do not force the tool.
Use only accessories and guards supplied or recommended by the manufacturer. The use of
non-recommended accessories (e.g. metal multi-piece pivoting chains and flail blades) may result an
accident. Ask your dealer for advice.
Keep firm footing and balance during operation. Always use the harness provided.
Have a correct working posture; stay stand, do not lean. The working positions should be changed
regularly.
Always inspect the machine before and after operation. If the tool is damaged or faulty, stop using the
tool and bring it to an authorized service for inspection and repair.
Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when
you are tired.
Remove the blade guard before using the tool.
A damaged part must be properly repaired or replaced by an authorized service center, unless otherwise
specified in this instruction manual.
Do not use the tool if the switch is not working (if it cannot be turned ON or OFF).
Immediately stop the tool in the event of a malfunction of the motor or in case of unusual noise.
Do not use the tool if the starter is damaged.
Avoid any contact with the cutting attachment during operation; they can cause severe cuts.
When not in use, the machine must be stored in a dry, locked place out of the reach of children.
Before using the tool and after any impact, please check for signs of wear or if it is not damaged. If
repairs are required, they should be done by a qualified service.
Always switch off the machine:
oEvery time you leave it unattended;
oBefore inspection and maintenance
oafter hitting a foreign object;
oWhen abnormal vibration occurs;
oDuring the replacement of parts.
Do not use the product on a slippery surface.
Do not use the product on steep, slippery slopes.
When planning your work schedule, allow enough time for rest. Limit continuous use of the tool. For
example, do 30 ~ 40 minute sessions interspersed with a 10 ~ 20 minute break. Work a maximum of two
hours a day.
If the machine has struck foreign objects, check if the tool is damaged and bring it to repair if necessary.
Keep handles dry, clean and free of oil and grease. Oily, greasy grips are slippery and cause loss of
control.
Be careful when using the machine during stormy weather. Do not use the machine during lightning and
thunderstorms.
Warning - When operating the tool, be careful of the emission of exhaust gases, avoid to be exposed to
these and wear protective equipment.

ORIGINAL INSTRUCTIONS
5
For machines with a clutch, check regularly that the cutting attachment stops turning when the engine
idles.
Check the tool before and after use. Check for loose fasteners, fuel leaks and damaged parts, such as
cracks in the cutting attachment. If the tool is damaged, if parts are missed or meet some dysfunctions,
do not use the tool and bring it to a service agent for inspection and reparation.
Check the tool after dropping or other impacts to identify any significant defects; if any defects are
observed, stop to use the tool and bring it to a service agent for inspection and reparation.
Fuel Handling
Be very careful when handling fuels. They are flammable and the vapors are explosive.
Use only an approved container.
Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and
exhaust components to cool before refuelling.
Do not smoke.
Never refuel inside a room.
Never store the tool and the fuel tray indoors where there is a naked flame, such as near a water heater.
If fuel has spilled, do not attempt to start the machine, but rather move it away from the spill before
starting to use it. Clean any spills.
Replace and tighten the fuel tank cap after refuelling.
Follow the instructions in this manual for filling the tool with fuel.
Maintenance and storage
Stop the tool and wait until it stops. Make sure all moving parts have come to a standstill.
Allow the machine to cool before performing inspection, adjustments, maintenance, servicing and
storage.
Maintenance and cleaning shall always be done after operation. Follow the instructions given in this
manual for maintenance, cleaning and storage.
Store the tool where fuel vapors will not reach a flame or spark.
During transport, maintenance and storage, always install the cover on the metal blade.
When the machine is placed in storage for a long time, drain the fuel tank clean the parts. Move the
machine to a safe place and confirm that the engine is cooled down.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or hung rotary fitting (or other accessory). Pinching or
catching causes the rotary attachment to stop quickly, which in turn tilts the tool in the opposite direction.
Kickback is the result of improper use of the tool and / or procedures or conditions of use and can be
avoided by taking the precautions indicated as indicated below:
- Never place your principal close to the rotary accessory. The accessory may bounce off your hand.
- Do not place your body in the area where the use will move if the rebound occurs. The rebound will
propel the tool in the opposite direction to the movement.
- Sharp parts and edges tend to catch the rotating accessory and cause loss of control or kickback.
Take extreme care when using the tool on sharp edges.

ORIGINAL INSTRUCTIONS
6
Residual risks
Even if you use this product in accordance with all safety requirements, the potential risk of injury and
damage remains. The following hazards may arise:
- There are harmful health consequences resulting from the emission of vibrations if the product is used
for long periods of time or not managed adequately and properly maintained. The vibrations can produce
the so-called “white finger” disease. If any of the symptoms of "white finger" syndrome appear, see a
doctor immediately. Symptoms of the "white finger" include: numbness, loss of sensitivity, tickling,
tingling, pain, loss of strength, colour changes, or skin condition. These symptoms usually appear on the
fingers, hands or wrists. The risk increases at low temperatures. To reduce this risk, please wear gloves
and keep your hands warm. Limit the operating time.
- There is a risk of hearing loss during prolonged use, in particular if you do not wear hearing protection.
Always wear hearing protection and limit the operating time.
- Cuts if no suitable protective clothing is worn.
-Inhalation of particles and exhaust gases if a mask of protection is not worn.
-Contact with projected objects.
-Burns when touching with hot surfaces.
Intended use
This machine can be used as a trimmer with the cutting edge, and as a brushcutter with the cutting blade.
The grass trimmer must be strictly and only to cut grass or weeds that are not too dense. The brush cutter must be
used to cut hard grass, more dense weeds and small branches with a maximum diameter of 10mm.
This machine is not intended to cut bushes or others similar plants requiring the tool to get off the ground. Do not use
this tool to work other materials such as stones, clay soils, etc.
Symbols
This graphic accompanied by the words WARNING and
DANGER calls attention to an act of a condition which can lead to
SERIOUS INJURY.
READ & UNDERSTAND Operator’s Manual and Safety Manual
ALWAYS WEAR EYE PROTECTION, EAR PROTECTION AND
HEAD PROTECTION.
WEAR FOOT PROTECTION
WEAR GLOVES

ORIGINAL INSTRUCTIONS
7
BEWARE OF FOOT INJURY BY CUTTING ATTACHMENT
PAY ATTENTION THAT BYSTANDERS ARE NOT INJURED
THROUGH FOREIGN OBJECTS THROWN FROM THE
MACHINE.
BEWARE OF THROWN OBJECTS HIT BY CUTTING
ATTACHMENTS. NEVER USE WITHOUT PROPERLY
MOUNTED BLADE GUARD.
BEWARE OF BLADE THRUST.
KEEP BYSTANDERS AT LEAST 15 M AWAY.
DO NOT USE SAW BLADE.
GUARANTEE SOUND POWER LEVEL
RISK OF HOT SURFACE
DOT NOT EXPOSE TO FIRE

ORIGINAL INSTRUCTIONS
8
2. PRODUCT DESCRIPTION

ORIGINAL INSTRUCTIONS
9

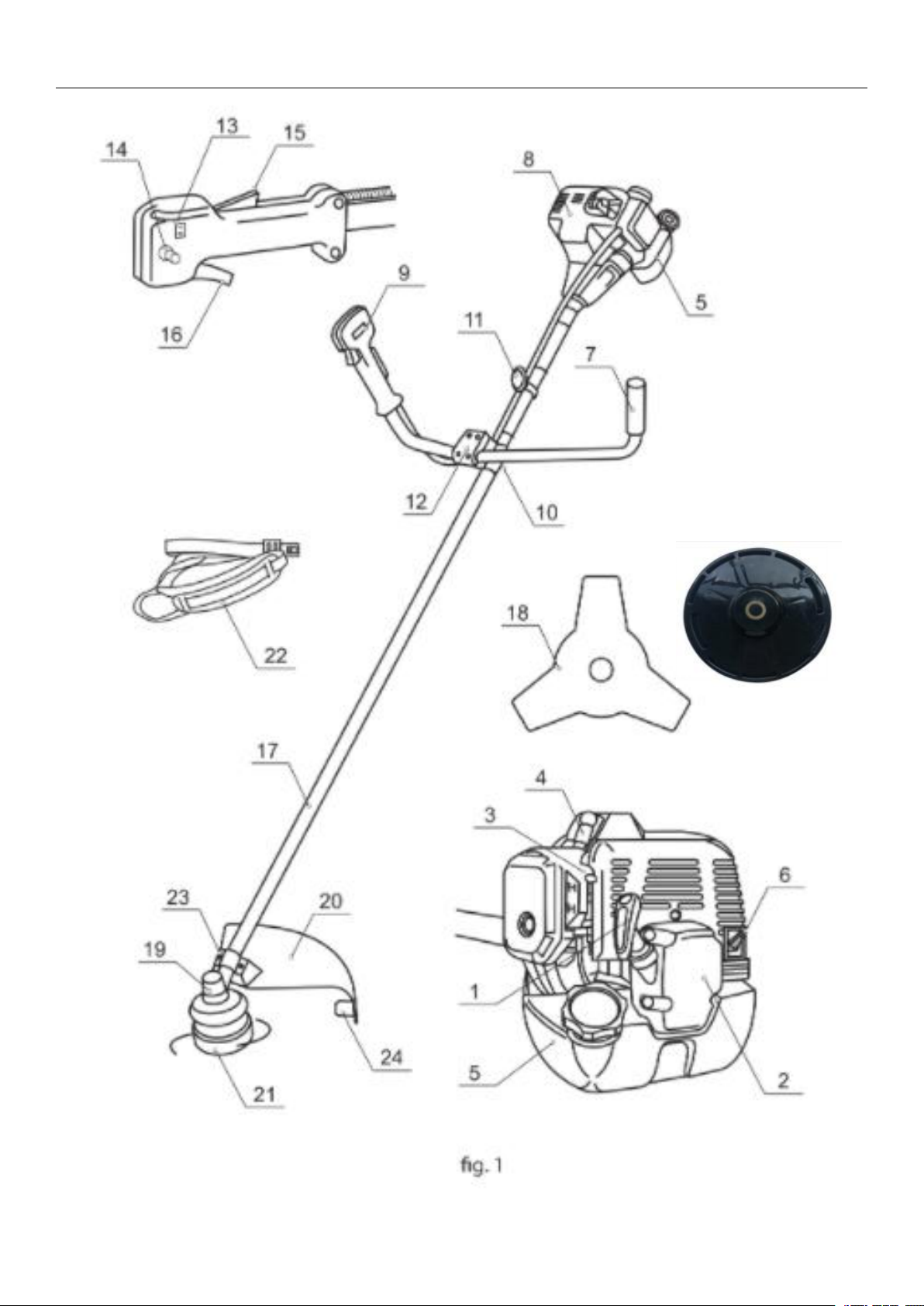

a. Description
1. Starter handle
2. Starter
3. Throttle valve control lever
4. Plug cables
5. Fuel tank
6. Exhaust pipe
7. Left handle
8. Engine casing
9. Right handle
10. Lower part for attaching the handle
11. Shoulder strap ring
12. Upper part for attaching the handle
13. Switch (on/off)
14. Gas throttle trigger (note: not included for this
model)
15. Gas throttle lock
16. Gas throttle lever
17. Pipe and engine connection
18. Cutting head / blade/NYLON
19. Lower gearbox
20. Protective cover
21. Coil with nylon thread
22. Strap
23. Mounting plate for the protective cover
24. Casing knife

ORIGINAL INSTRUCTIONS
10
b. Technical data
MODEL
RAC52PB-AB-3
Main unit
Remote type
Centrifugal Clutch;
Hard transmission
Maximum speed of cutter head
9,500/min
Idle speed of engine
3,000 /min
Measured vibration emission value
at each manipulation (m/s2)
(According to ISO 22867)
Brush cutter: 7.824m/s² ,K=1.5 m/s2
Grass trimmer: 8.856 m/s², K=1.5 m/s2
Measured sound pressure level at operator’s
position
Brush cutter: Idle:81.1 dB (A), Racing:99.4dB (A)
Grass trimmer: Idle:93.0 dB (A), Racing:108.0 Racing:
K=3 dB (A)
Guaranteed sound power level
112 dB (A)
Line Max. Cutting Path /Diameter of line
43 cm(φ2.4mm)
Metal blade (Type/Diameter)
3-tooth
Ø255xØ25.4x1.4mm
Weight
8.1kg
Engine
Name of engine
1E44F-5
Type
Air-cooled; 2 cycle; vertical
Piston valve; gasoline engine
Displacement( cm3)
52 cm3
Maximum output(kW)
(in accordance with ISO 8893)
1.45Kw 7500/min
Maximum speed of engine (/min)
9,500
Specific fuel consumption at max.
engine performance（g/kWh）
≤695
Carburetor
Diaphragm-type
Ignition
CDI ignition
Method of starting
Recoil type
Fuel used
Gasoline mixed with lubricating oil (ratio of 40:1)
Fuel tank capacity( cm3)
1200

ORIGINAL INSTRUCTIONS
11
3. ASSEMBLY
HANDLE INSTALLATION
Remove the upper part of the handle attachment (1) by unscrewing the 4 screws. Install the operating handles (3 and
5). The right-hand grip (3) is equipped with engine controls, the trigger of the right-hand grip should be directed toward
the gearbox.
Install the rod assembly to the engine using four screws.
Adjust the comfortable position of the handles and eyelets for the shoulder strap.
Hook the shoulder strap to the eyelet
Assembly of the carter of protection
-Install the carter of the protection on mounting plate; make sure that the holes are aligned.
-Screw the carter of protection with the 2 screws.
NOTE: the carter of protection shall be always installed.
Assembly of the 3-theeth blade (for brushcutting)
Warning - sharp edges; wear gloves when manipulate the blade.
-Insert a metal locking tool in the hole on the side of the drive sprocket and on the drive.
-Remove the retaining nut, the cover bell and the plate.
-Install in the following order, on the shaft: the blade, the plate, the cover bell.
-Screw with the retaining nut.
-Remove the metal locking tool.

ORIGINAL INSTRUCTIONS
12
To disassemble the blade, insert a metal locking tool in the hole on the side of the drive sprocket and on the drive.
Loosen the retaining nut and then remove all elements.
NOTE
After installation, always check if the installation is correct. If blade is not well installed, it will vibrate
excessively and can cause injury. When operation, if there is abnormal vibration, immediately stop the tool and
check the installation.
Assembly of the nylon cutting head (for grass trimming)
-Insert a metal locking tool in the hole on the side of the drive sprocket and on the drive shaft.
-Remove the retaining nut, the cover bell and the plate.
-Install and screw the nylon cutting head.
-Remove the metal locking tool.
To disassemble the nylon cutting, head, insert a metal locking tool in the hole on the side of the drive sprocket and on
the drive. Unscrew the nylon cutting to remove it.
Installing the harness
-Put on the harness.
-If necessary, adjust the bands of the harness to have the blade parallel to the ground when standing in your
normal working position to provide you most effectiveness and comfort on operating the machine.
-Install the hook on the main unit to attach the harness.
Quick release mechanism
Pull the strip to release the machine from you in the case of emergency.

ORIGINAL INSTRUCTIONS
13
4. FILLING
1) Filling fuel tank
WARNING: When filling the tank:
-The tool must always be stopped and cooled.
-Never smoke during refueling. It must not have flames or sparks near the fuel.
-Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is
hot.
-If fuel has been spilled, immediately stop refueling and do not start the engine. Clean up the spill and
fill the machine in another location
-Never fill the fuel tank to the flange; there is a risk of overflow.
-Do not refuel in a closed and unventilated area.
The fuel used for this tool is a mixture of unleaded gasoline and registered engine lubricant. When mixing
gasoline with oil, use only gasoline that does not contain ethanol or methanol.
Unleaded gasoline is a quality gasoline type. This will help to avoid damaging the fuel lines of the engine
and other engine parts.
The recommended mixing ratio is 40:1 (make sure the mixing ratio is correct before filling the product).
a. Mixing
-Mix in a clean, empty container (supplied).
-Pour the oil into the container.
-Pour the fuel into the tank. Mix the mixture long enough (more than one minute) to get a good combination.
b. Filling the fuel tank
-Unscrew the fuel tank cap and remove it.
-Fill the tank slowly with the mixture. Do not exceed the maximum capacity (fill to 80% of its capacity
preferably).
-Replace the cap on the fuel tank and tighten it.
-Wipe any spillage around the unit if necessary
NOTE: To avoid damage and accidents, DO NOT USE OTHER MIXTURES AND OTHER TYPES OF OIL /
PETROL
c. Storage of fuel
The fuel must be kept in a clean and safe container and always closed.
If you are not using the product for a long time, remove the fuel mixture and add it to a container.
Do not leave the fuel for a long time in the product. The fuel may clog the carburetor and the engine will not
operate properly.
d. Disposal of fuel
When the fuel is no longer used or worn, please dispose of it in an authorized location. Check local laws
regarding disposal of fuels.

ORIGINAL INSTRUCTIONS
14
5. OPERATION
a. Starting the operation
Cold starting
-Switch on the tool by putting the Start/stop button on the position I (ON).
-Push the primer bulb 5-7 times, until fuel comes into the primer bulb.
-Pull the choke lever to the START position.
-Pull the starter cord until the engine starts.
-Pull the choke lever to the RUN position.
-Allow engine to warm up for a few minutes before using.
-Push the safety switch then the throttle trigger to start the operation
Warm starting
The warm starting can be done when the tool was switched off but still hot.
-Switch on the tool by putting the Start/stop button on the position I (ON).
-Push the primer bulb 5-7 times, until fuel comes into the primer bulb.
-The choke lever must be kept in the RUN position. If it is not the case, restart the machine by performing a cold
starting.
-Pull the starter cord until the engine starts.
-Allow engine to warm up for a few minutes before using.
-Push the safety switch then the throttle trigger to start the operation

ORIGINAL INSTRUCTIONS
15
b. Stopping the operation
Release the throttle trigger.
Let the tool to rum a few minutes.
Switch off the tool by putting the Start/stop switch on the position O (OFF).
c. Grass trimmer operation
Trimming
Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree,
approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head
slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier. If trimming up
to a wire mesh or chain linked fence be careful to feed only up to wire. If you go too far the line will snap off
around the wire. Trimming can be done to cut through weed stems one at a time. Place the trimmer line head
near the bottom of the weed-never high up which could cause the weed to chatter and catch the line. Rather
than cut the weed right through, just use the very end of the line to wear through the stem slowly.
Scalping and edging
Both of these are done with the line head tilted at a steep angle Scalping is removing top growth without
damaging the ground.
Edging is trimming the grass back where it has spread over a sidewalk or drive way. During both edging and
scalping, hold the unit a steep angle and in a position where the debris, and any dislodging dirt and stones, will
not come back towards you even if it ricochets off the hard surface. Although the picture shows how to edge
and scalp every operator must find for himself the angles which suits his body size and cutting situation.
d. Brushcutter operation
-Do not the brushcutter for cutting trees
-Do not cut with dull, cracked or damaged blade.
-Before cutting growth, inspect for obstructions such as boulders, metal stakes or strands of wire from broken
fences. If an obstruction cannot be removed, mark its location so that you can avoid it with the blade. Rocks and
metal will dull or damage a blade. Wire can catch on the blade head and flap around or be thrown into the air.
-Use the shoulder harness at all times adjust both harness and harness clamp on the unit so that the unit hangs a
few inches above ground level .The cutting head and the debris shield should be level in all directions. Harness the
unit on the right side of your body.
-Cut only with the side of the blade that the debris is moving away from you.
-If kickback occurs, the blade may be dull, or the material so thick and hard that you should use other tool instead of
this machine.
-Do not force the blade to cut. Do not change the angle of cut after into the wood. Avoid using any pressure or

ORIGINAL INSTRUCTIONS
16
leverage which could cause the blade to bind or crack.
Scything weeds
This is cutting by swinging the blade in a level arc. It can quickly clear areas of field grass and weeds. Scything
should not be used to cut large, tough weeds or woody growths.
Scything can be done in both directions, or just in one way which results in the debris being thrown away from
you.
That is using the side of the blade that it is rotating away from you. Tilt down the blade slightly on this same
side. You will be hit by some debris if you scythe in both directions.
Cut only with the side of the blade that the debris is moving away from you.
If kickback occurs, the blade may be dull, or the material so thick and hard that you should use other tool
instead of this machine.
Do not force the blade to cut. Do not change the angle of cut after into the wood. Avoid using any pressure or
leverage which could cause the blade to bind or crack.
6. MAINTENANCE & CARE
Before any maintenance work, the machine must be switched off and completely cooled.
Maintenance shall be provided regularly and must be done according to the instructions provided in
this instruction manual. A clean, well-maintained machine increases its lifetime and efficiency.
Improper maintenance can cause damage, accidents and render the tool inoperable in the short
term.
Any other maintenance, modification or repair must be carried out by a qualified professional.
Do not immerse the tool in water or any other liquid.
a. Air filter
Check the air filter as often as necessary to maintain in a clean condition. Light surface dust can readily be
removed by tapping the filter. Heavy deposits should be washed out in suitable solvent. To clean the filter, remove
filter cover by loosening air filter cover knob.

ORIGINAL INSTRUCTIONS
17
b. Adjusting the carburettor
Do not adjust carburettor unless necessary. If you have trouble with the carburettor, see your dealer. Improper
adjustment may cause engine damage and void warranty.
c. Fuel filter
Fuel tank is fitted with a filter. Filter is situated at the free end of fuel pipe. It can be picked with a hook or similar
device. Check the fuel filter periodically. Do not allow dust to enter into fuel tank. Clogged filter will cause difficulty
in starting engine or abnormalities in starting engine or abnormalities in engine performance.
When filter is dirty, replace the filter. When the inside of the fuel tank is dirty, it can be cleaned by rinsing the tank
with gasoline.
d. Spark plug
The tool must be completely cold before manipulating the park plug.
-Clean or replace the spark plug in case of ozone contamination.
-Replace the spark plug if the end of the center electrode is worn.
e. Replacement of the cutting string
-Push the tab which is on the housing cutting string and turn the cover to open it (see the markings on the
housing.
-Remove the string and replace it by a new one.
-To reinstall the cutting string, first pass the two ends of the string on the holes localized on the housing.
-Put the cutting string in the housing; pull correctly the string outside of the tool in equal part.
-Place the cover on the housing; turn it to lock it in place.
f. Storage
-Inspect and clean the tool as explained in this manual.
-Empty fuel tank (it can be done by switching on the tool and let it consume all remaining fuel).
-Disassemble the accessories.
-Store the main unit and the accessories in a clean area, out of reach of children. It is recommended to place
the tool and accessories in the original package.

ORIGINAL INSTRUCTIONS
18
7. TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
The unit does not start
The tool is not started in the
correct way
Star the tool by following the instructions
given in this manual
Problem with the carburettor
The carburettor shall be inspected by an
authorized service centre
Spark plug is worn
Clean/gap or replace plug
Fuel tank is empty
Fill fuel tank as described in this
instruction manual
Primer bulb was not enough
pressed
Press the primer bulb fully and slowly
10 times
The unit starts with a low
power
Fuel filter is plugged.
Replace the fuel filter.
the choke lever is not
positioned correctly
The choke lever should be on the OPEN
position
Dirty air filter
Clean the air filter as described in this
instruction manual
Problem with the carburettor
The carburettor shall be inspected by an
authorized service centre
the engine sputters
Problem with the carburettor
The carburettor shall be inspected by an
authorized service centre
Air filter is blocked
Clean the air filter as described in this
instruction manual
Old or improperly mixed fuel
Fill fuel tank as described in this
instruction manual
Runs erratically
The spark plug is not correctly
gapped
adjust or replace the spark plug
Dirty air filter
Clean the air filter as described in this
instruction manual
Smokes excessively
Problem with the carburettor
The carburettor shall be inspected by an
authorized service centre

ORIGINAL INSTRUCTIONS
19
8. DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
BUILDER SAS
ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France
Tel : [phone] Fax : [phone]
Declares that the machines:
Brush Cutter & Grass Trimmer
Model: RAC52PB-AB-3
Serial No.: 20210423932-20210429051
The people name holding the technical file：M. Olivier Patriarca
have been designed in compliance with the following standards:
EN ISO 11806-1:2011
EN ISO 14982:2009
And in accordance with the following directives:
Directive Machine 2006/42/EC
Directive EMC 2014/30/EU
Noise Directive 2000/14/EC Annex V & Directive 2005/88/EC
Emission directive 2016/1628/EU & 2018/989/EU
Philippe MARIE / PDG
Cugnaux, le 05/01/2021
Guaranteed sound power level
112 dB (A)

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
9. WARRANTY
20
