Radiators Direct Renata User manual

Pipe centres left to right =
Pipe centres from wall =
Depth from wall =
width less 30mm
58mm - 68mm
73mm - 83mm
Drawings
Pipe Centres
www.radiatorsdirect.co.uk 01342 305555
Steel Flat Tube Towel Rail
Please read these instructions and terms and conditions carefully prior
to installation. Failure to do so may invalidate the warranty.
Renata
Fitting Instructions
g. 1 g. 2
1. Unpack & Inspect
This product shouldhavereachedyou inperfect condition.
Please carefully unpack and inspect this radiator and
all ttings. Your point of purchase must be notied of
any shortages or damage within 28 days of delivery.
For further information please see terms and conditions
at the bottom of the next page.
• 1 Radiator
• 4 Wall Bracket
• 1 Manual Airvent
2. Contents
You will need:
You should have:
The xing kits (screws and dowels) are suitable for compact walls or
hollow bricks. Please ensure suitable xings are used for the correct
wall type.
A
B
C
D
E
• Electric drill & bits
• Tape measure
• Screwdriver
• Spanner
• Hex Keys
• Spirit Level
• PTFE Tape
• Valves

Mark position of brackets on wall. From left to right,
width of towel rail less 30mm (15mm from each side)
From top to bottom Measure 156.5mm from
required base of the towel rail for the bottom
xing. Follow diagram to measure from bottom
xing to top xing. See g 2 (shown on 1st page)
Drill and x bracket sleeves and check they are level.
Please Note:
In accordance with Part L1 2006 of the Building Regulations
and BS7593:1992 code of practice for the treatment of hot
water and central heating systems, we strongly recommend
ushing the heating system post installation of new radiators
and then adding the correct quantity and type of inhibitor
for use with your radiator and system to prevent corrosion.
Damage caused to systems not protected by a suitable
inhibitor will not be covered by manufacturer’s guarantee.
Technical Specications
Materials Steel
Connections ½” ow and return.
Test pressure 5.2 Bar
Testing authority CE/UKCA Approved and certied to BS EN442
Maximum operating pressure 4 Bar
Maximum working temperature 95ºC
Packaging Wrapped in polythene and boxed
3.Installing Radiator
All products must be inspected once removed
from the packaging and your point of purchase
notied within 28 days of delivery of any scratches,
blemishes or other damage. Your point of purchase
will then agree appropriate action.
Imperfect radiators should therefore not be
tted and we will not accept responsibility for
replacement of scratched or damaged radiators
once they have been tted. This includes any
consequential loss or cost of tting.
If we are not notied within 28 days of the date on
the signed delivery note then it will be deemed
that we have fully complied with our obligations
and claims will not be considered.
Failure to comply with any of the above may
invalidate any claims. We recommend that
after you check the product on delivery that it is
stored in its packaging to prevent damage prior to
installation, we cannot accept responsibility for
items damaged after delivery.
For full details of our Terms and Conditions
please visit www.radiatorsdirect.co.uk or call us
on 01342 305555.
Terms & Conditions
This product is guaranteed for 5 years. As we are not the manufacturers of
this product we will take all reasonable endeavours to make over to you
the benet of any warranty or guarantee given by the manufacturer.
The guarantees in all cases are subject to the products being installed in
accordance with British and or European standards as well as these tting
instructions. The guarantees in all cases are restricted to the free of charge
replacement or repair of the failed product only. Our liability will under no
circumstances extend beyond the repair or replacement of the product
Guarantees & Liabilities
www.radiatorsdirect.co.uk 01342 305555
PLEASE NOTE:
Systemsusing micro bore pipe work must have adequate pressure and ow rates for the number and style ofradiators
on the system.

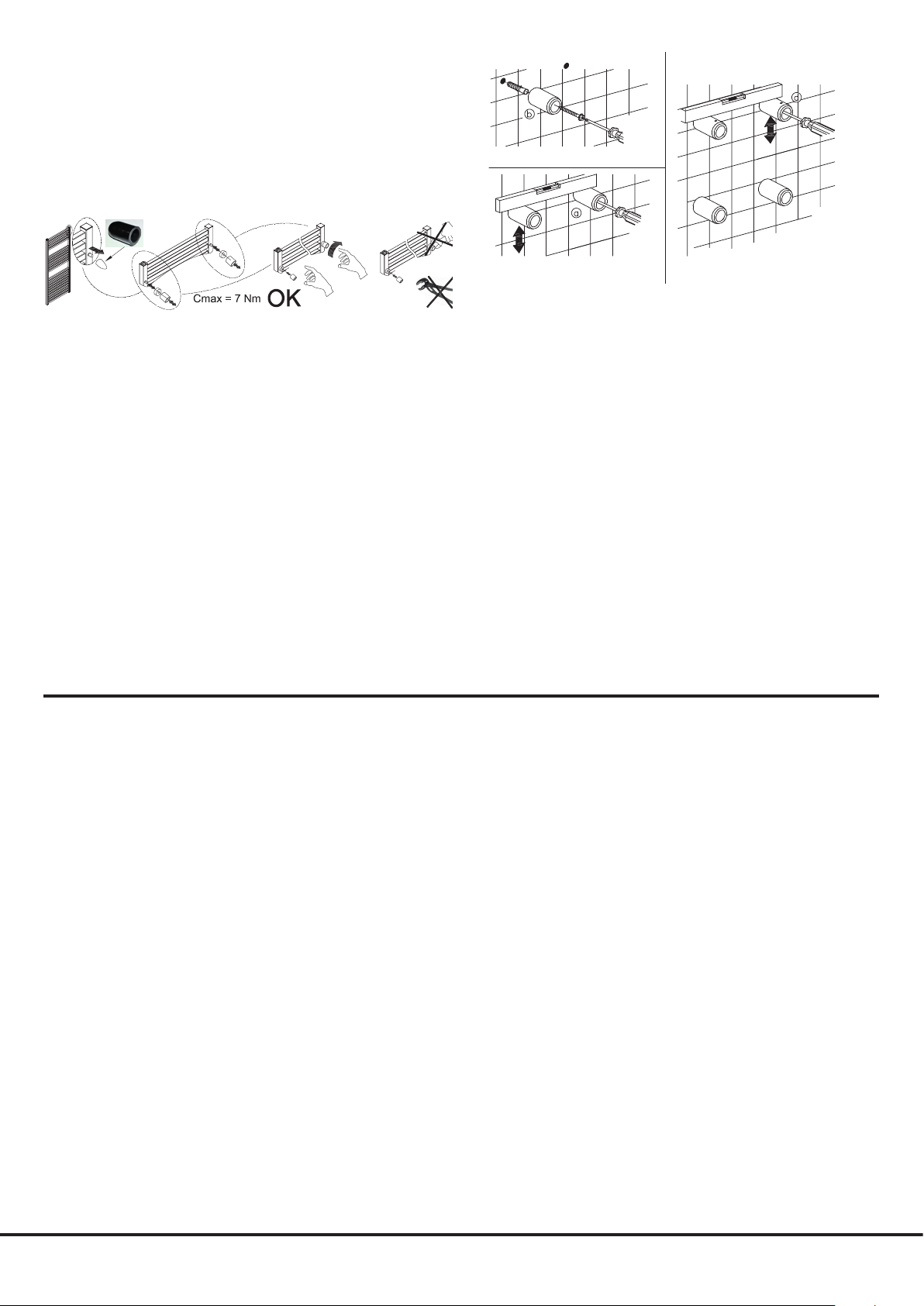

Remove rubber protectors on the studs on the rear of
the towel rail. Slide spacer “B” onto stud followed by
threaded bracket stud “D”.
NB this needs to be hand tightened only, DO NOT
USE PUMP PLIERS.
PLEASE NOTE :
It is essential that all brackets are level to ensure a vertical
alignment for connecting the pipework.
4. Hang & Commission
Radiator
Loosely t grub screw “A”
Lift towel rail and insert the rear studs
into the bracket sleeves and tighten grub
screws. Insert air vent and connect pipework.
