Radikal E640 User manual

Main Rotor Blade Diameter: 57.3 in /
145.5 cm (640 mm Blades)
Tail Rotor Blade Diameter: 10.25 in /
26.0 cm (92 mm Blades)
Length: 49 in / 124.50 cm
Height: 13.7 in / 34.80 cm
Width: 4.5 in / 11.45 cm
Version 1.01
© 2012 Century Helicopter Products - All rights reserved.
103T Main gear, 11T Motor pinion gear
4.5:1 Tail gear ratio
Designed for power systems up to 12S Li-Po
Carbon fiber frames for ultra-rigid and compact design
Push/Pull CCPM control system
Triple bearing supported 10mm hardened main shaft
120 degree dual race ball bearing metal swashplate
Stainless steel damper mounted bearing torque tube for high efficiency
Dual race ball bearing with thrust bearing supported tail blade grips
Kit Features: Specifications:

Radikal E640
Page 2
INTRODUCTION
Thank You
Warning!
Flight Checklist
General Guidelines
Pre-Assembly Information
Thank you for purchasing this new class of helicopters. By incorporating the use of blade sizes up to 640mm allowing 700 class flight
characteristics in a smaller, you’ve made the right choice by going for an economical yet extremely high performance helicopter.
This R/C helicopter is not a toy! It is a precision machine requiring proper assembly and setup to avoid accidents. It is the responsibility of
the owner to operate this product in a safe manner as it can inflict serious injury otherwise. It is important for the user/pilot to be respon-
sible for the damage the model is capable of inflicting on one’s self and others around the model during its operation. Century Helicopter
Products, affiliated individuals, and shops/sellers hold no accountability for the operation or use of this model. It is recommended that
if you are in doubt of your abilities; seek assistance from experienced radio control modelers and associations. Although the helicopter
is considered small in size, you must be very cautious during the operation of the model as serious damage, injury, or death can occur.
Apply thread lock to all metal to metal thread contact points. Do not apply CA (cyanoacrylate) glue or thread lock to ny-lock nuts (metal
nuts with plastic inserts). Diagrams indicated by bounding boxes for screws, bearings, etc. are illustrated at a 1-to-1 ratio. All other il-
lustrations are not drawn to scale. Throughout this manula, you will find building tips. Please follow the tips and use common sense when
building.
Upon opening the kit, all the major component parts are bagged for ease of assembly which correspond to the sections of the manual.
Various assemblies have been pre-assembled however, only as a reference assembly. Final assembly is up to the user. Installation onto
the particular parts, screws and nuts required for each step are packaged in the same bag as the parts. Be careful when opening each
bag as not to lose any hardware. Care has been taken in filling and packing of each bag however mistakes do happen. If there is a parts
shortage or missing hardware, please contact us directly or contact your place of purchase.
Century Helicopter Products
1740-C Junction Ave.
San Jose, CA. 95112
U.S.A.
www.centuryheli.com
Make sure your transmitter battery is fully charged.
Turn on the transmitter FIRST prior to turning on anything else on the model.
Inspect all parts before each flight to ensure no damage has occurred.
Check all nuts, bolts, and screws to be sure they are securely fastened.
Verify all parts are installed correctly and in proper working condition.
Make sure you have control of the model prior to engaging the motor or engine.
Allow all the components to initialize and test all controls.
Fly the model and be sure the model is capable of a proper hover prior to performing aerobatics.
Land the model and shut off the motor or engine.
Turn off or unplug any battery(ies) on the model BEFORE turning off your transmitter.

Radikal E640
Page 3

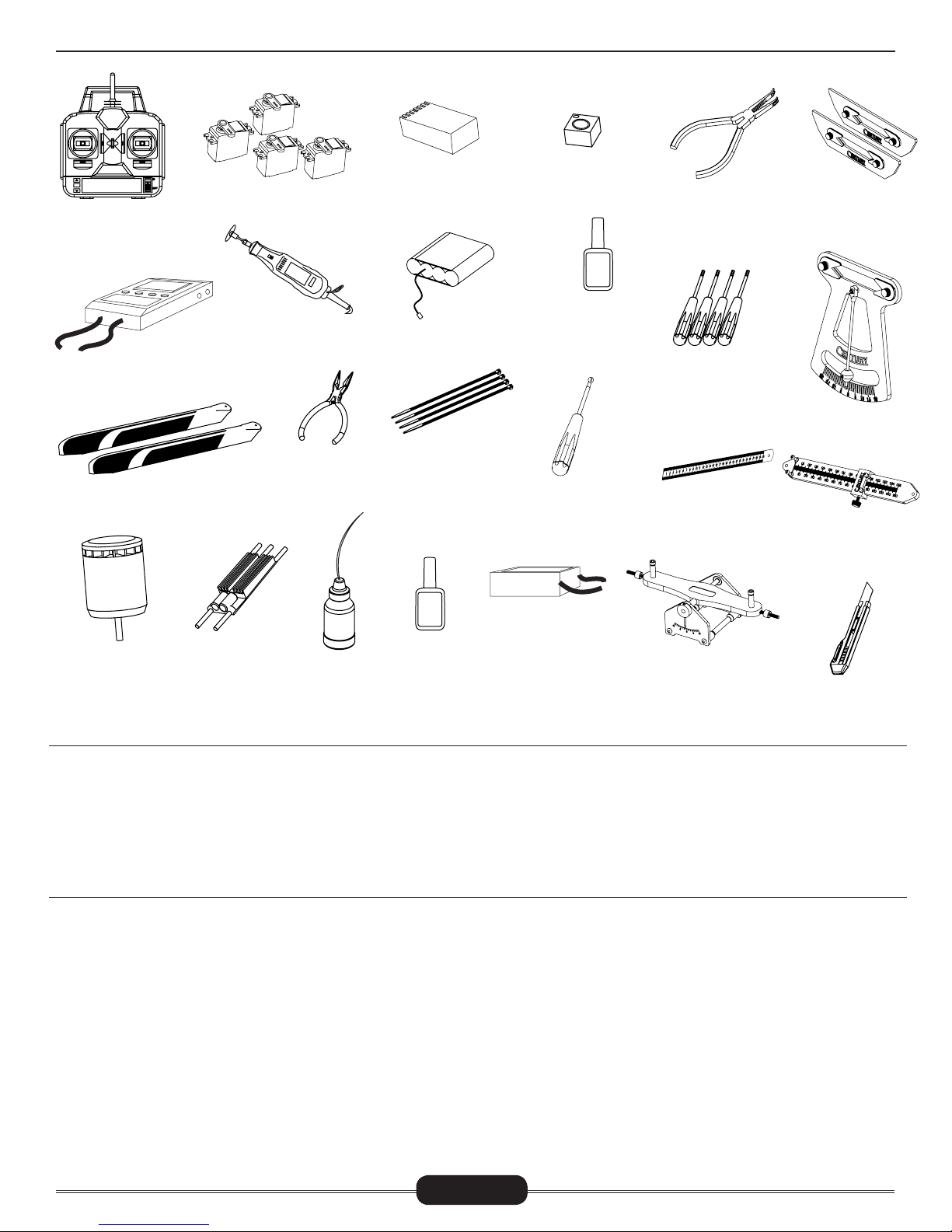

CN2050
PADDLE GAUGE
CN2034A
BALL LINK PLIERS
HOBBY KNIFE
RECEIVER BATTERY
SERVOS X
ZIP TIES
GYRO
6 CHANNEL RECEIVER
(MINIMUM)
METRIC RULER OR
SIMILAR MEASURING
DEVICE
6 CHANNEL
CCPM TRANSMITTER
(MINIMUM)
CN2027
G-FORCE PITCH GAUGE
CN2051
ACCURATECH BLADE BAL-
ANCER V.2
CN2255
CONTROL ROD
SETUP GAUGE
NEEDLE NOSE
PLIERS
SYNTHETIC
OIL/GREASE
600-640MM
MAIN ROTOR BLADES
LI-PO CHARGER
ELECTRIC MOTOR 6 TO 12S ESC
ELECTRONIC SPEED
CONTROLLER
SLOW &
MEDIUM CA
GLUE
MEDIUM
THREADLOCK
6S LI-PO
BATTERY OR
LARGER
DREMEL TOOL
OR SIMILAR
4
REQUIRED/RECOMMENDED ITEMS
Warranty
Warranty Period
Century Helicopter Products assures the purchaser that should a defect in materials or workmanship occur within 30 days from the
date of purchase affecting the original customer (“Purchaser”) under normal use, Century Helicopter Products will assume warranty
replacement or repair as seen fit. In the event the helicopter is assembled by the Purchaser and damage occurs by the Purchaser of the
final product, Century Helicopter Products shall not be liable. The assembled product by the Purchaser shall accept full responsibility and
liability. If the Purchaser is not prepared to accept such liability associated with the assembly or operation of the model, the kit must be
immediately returned in new and unused condition to the original place of purchase.
This warranty is limited to the original customer (“Purchaser”) and is non-transferable. THE PURCHASER IS RESPONSIBLE FOR TRANS-
PORTATION CHARGES OF ANY AND ALL REPAIRS OR REPLACEMENTS PROVIDED UNDER THIS WARRANTY. The warranty coverage
will only apply to those products purchased from an authorized Century Helicopter Products dealer or distributor. This warranty can
change or be modified without any prior notice and shall supersede all other warranties expressed or implied. To initiate a warranty claim,
please be sure you have proof of purchase of the product. Century Helicopter Products reserves the right to inspect any and all items
involved in a warranty claim. Century Helicopter Products does not warrant that the operation of the product will be uninterrupted or
error-free. Century Helicopter Products will not be responsible for damage coming from failure to follow instructions relative to the prod-
ucts assembly and usage. This warranty does not apply to damage caused by products other than Century Helicopter Products’, dam-
age caused by accident, abuse, cosmetic damage, negligence, misuse, flood, fire, earthquake other external causes, commercial use, or
modification of or to any part of the Product. This warranty does not cover damage due to improper installation, operation, maintenance,
or attempted repair by anyone other than Century Helicopter Products.
CN2017
HEX DRIVERS
1.5, 2.0, 2.5, 3.0, 4.0, 5.0
CN2055ABL
BALL LINK SIZING TOOL

Radikal E640
Page 4
AMA RULES & REGULATIONS
1. Model aircraft will not be flown:
(a) In a careless or reckless manner.
(b) At a location where model aircraft activities are prohibited.
2. Model aircraft pilots will:
(a) Yield the right of way to all man carrying aircraft.
(b) See and avoid all aircraft and a spotter must be used when appropriate. (AMA Document #540-D-See and Avoid Guidance.)
(c) Not fly higher than approximately 400 feet above ground level within three (3) miles of an airport, without notifying the airport
operator.
(d) Not interfere with operations and traffic patterns at any airport, heliport or seaplane base except where there is a mixed use
agreement.
(e) Not exceed a takeoff weight, including fuel, of 55 pounds unless in compliance with the AMA Large Model Aircraft program. (AMA
Document 520-A)
(f) Ensure the aircraft is identified with the name and address or AMA number of the owner on the inside or affixed to the outside of
the model aircraft. (This does not apply to model aircraft flown indoors).
(g) Not operate aircraft with metal-blade propellers or with gaseous boosts except for helicopters operated under the provisions of
AMA Document #555.
(h) Not operate model aircraft while under the influence of alcohol or while using any drug which could adversely affect the pilot’s ability
to safely control the model.
(i) Not operate model aircraft carrying pyrotechnic devices which explode or burn, or any device which propels a projectile or drops
any object that creates a hazard to persons or property.
3. Model aircraft will not be flown in AMA sanctioned events, air shows or model demonstrations unless:
(a) The aircraft, control system and pilot skills have successfully demonstrated all maneuvers intended or anticipated prior to the
specific event.
(b) An inexperienced pilot is assisted by an experienced pilot.
4. When and where required by rule, helmets must be properly worn and fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE
approved or comply with comparable standards.
Radio Control (RC)
1. All pilots shall avoid flying directly over unprotected people, vessels, vehicles or structures and shall avoid endangerment of life and
property of others.
2. A successful radio equipment ground-range check in accordance with manufacturer’s recommendations will be completed before
the first flight of a new or repaired model aircraft.
3. At all flying sites a safety line(s) must be established in front of which all flying takes place (AMA Document #706-Recommended
Field Layout):
(a) Only personnel associated with flying the model aircraft are allowed at or in front of the safety line.
(b) At air shows or demonstrations, a straight safety line must be established.
(c) An area away from the safety line must be maintained for spectators.
(d) Intentional flying behind the safety line is prohibited.
4. RC model aircraft must use the radio-control frequencies currently allowed by the Federal Communications Commission (FCC). Only
individuals properly licensed by the FCC are authorized to operate equipment on Amateur Band frequencies.
5. RC model aircraft will not operate within three (3) miles of any pre-existing flying site without a frequency-management agreement
(AMA Documents #922- Testing for RF Interference; #923- Frequency Management Agreement)
6. With the exception of events flown under official AMA Competition Regulations, excluding takeoff and landing, no powered model
may be flown outdoors closer than 25 feet to any individual, except for the pilot and the pilot’s helper(s) located at the flight line.
7. Under no circumstances may a pilot or other person touch a model aircraft in flight while it is still under power, except to divert it
from striking an individual. This does not apply to model aircraft flown indoors.
8. RC night flying requires a lighting system providing the pilot with a clear view of the model’s attitude and orientation at all times.
9. The pilot of a RC model aircraft shall:
(a) Maintain control during the entire flight, maintaining visual contact without enhancement other than by corrective lenses pre-
scribed for the pilot.
(b) Fly using the assistance of a camera or First-Person View (FPV) only in accordance with the procedures outlined in AMA Document
#550.
Free Flight
1. Must be at least 100 feet downwind of spectators and automobile parking when the model aircraft is launched.
2. Launch area must be clear of all individuals except mechanics, officials, and other fliers.
3. An effective device will be used to extinguish any fuse on the model aircraft after the fuse has completed its function.
General

Radikal E640
Page 5

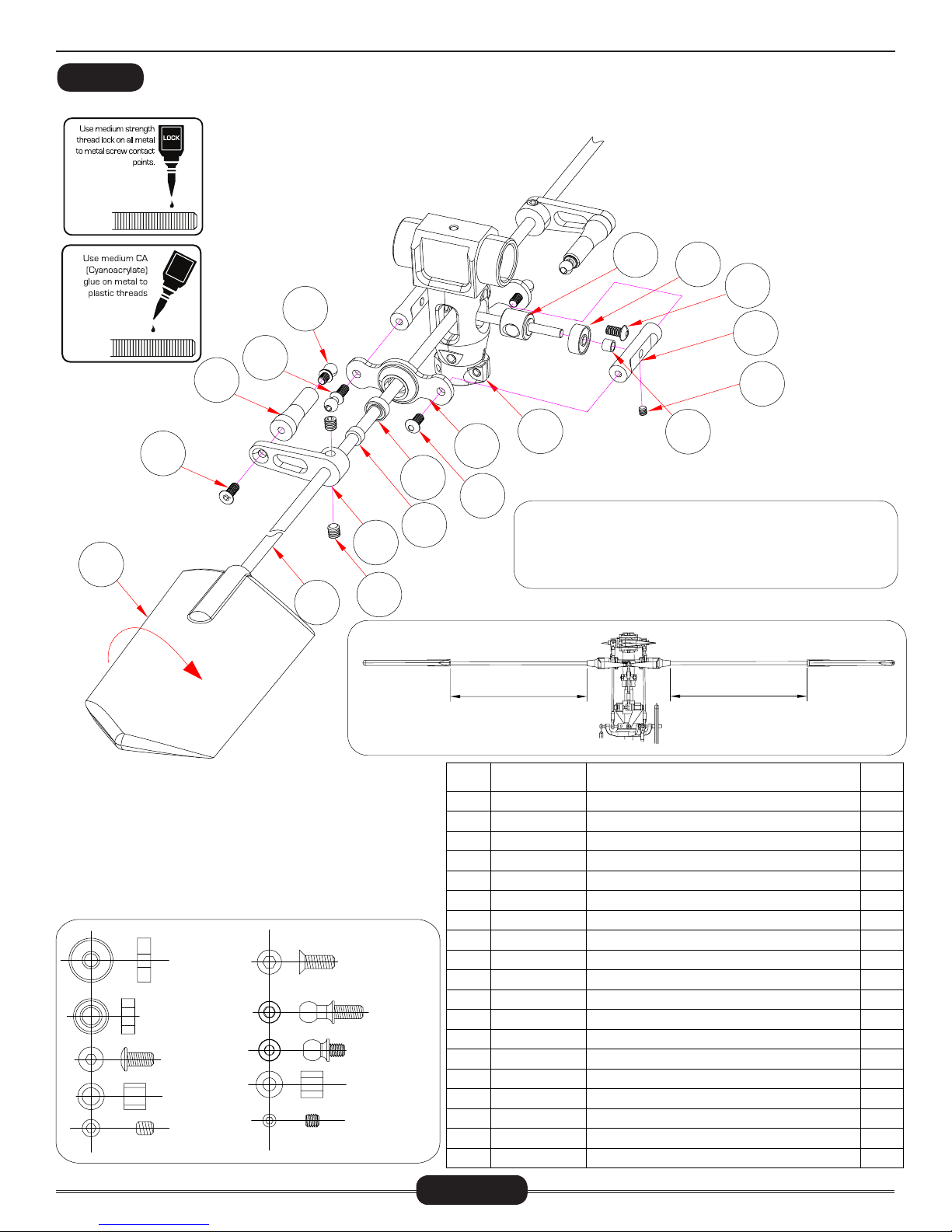

HEAD ASSEMBLY (FLYBAR VERSION)
Do not open all the bags prior to starting assembly. Open the bags step by step as you go through this
instruction manual. The components are bagged to make assembly easier. The next few pages will per-
tain to the assembly of the head. Please follow the instructions based on the head type you own. Make
sure to apply threadlock to any screws going into metal.
BAG 1
CA
Make sure the distance on
both sides are equal
Make sure the distance on
both sides are equal
2
1
4
6
7
8
9
10
11
12
13
16
17
18
19
14
15
3
5
Parts diagrams are drawn on a 1-to-1 scale.
The flybar head comes pre-assembled however, it is only assem-
bled as an example of how it should be assembled. The entire
head will need to be taken apart and medium thread lock is
required on all metal to metal parts.
CNBB0840
CNM3x6BHCS
CNBB1030
4X6X5
CNM4X4SS
3X6X5
CNM3x3SS
CNM3x8FHCS
CNLR1017
CNLR1014
2
1
2
3
4
5
6
7
8
9
10
11
12
CNE518
1
2
1
4
2
1
2
2
Seesaw Shaft( 旋转轴)
3X10X4 Bearing(轴承)
CNBB1030
No. Description Qty
Part #
13
CNE559AS
2
2
4X6X5 Spacer(套子)
2
2
14
15
16
17
Button Head Cap Screw( 圆头内六角螺丝)
CNM3x6BHCS
Seesaw Tie Bar Set(平衡杆控制臂)
Rotor Head Yoke(主旋翼中心座)
CNE556-1
HI3167H3 Seesaw Offset Plates(平衡杆固定片)
Button Head Cap Screw(圆头内六角螺丝)
CNM3x6BHCS
4X8X3 Bearing(轴承)
CNBB0840
CNE559AS Flybar Control Arm(平衡翼控制臂)
CNE564S
CNM4x4SS M4x4 Socket Head Set Screw( 无头内六角螺丝)
HW3173A 4mm Flybar(平衡杆)
HI3179A Flybar Paddles(平衡翼)
Flush Head Cap Screws(斜头内六角螺丝)M3x8
CNM3x8FHCS
CNE559AS Flybar Control Arm(平衡翼控制臂)
CNLR1017 M3 Ball Link Long(M3球头螺丝)
CNLR1014 M3 Ball Link Short(M3 球头螺丝)
2
2
2
2
CNE564S
3x6x5 Spacer( 3x6x5铝套)
2
18
M3x3 Socket Head Set Screw(无头内六角螺丝)
2
19
CNE564S

Radikal E640
Page 6
HEAD ASSEMBLY (FLYBAR VERSION)
BAG 1
2
1
3
4
5
6
7
89
10
11
12
13
14
15
16 17
18

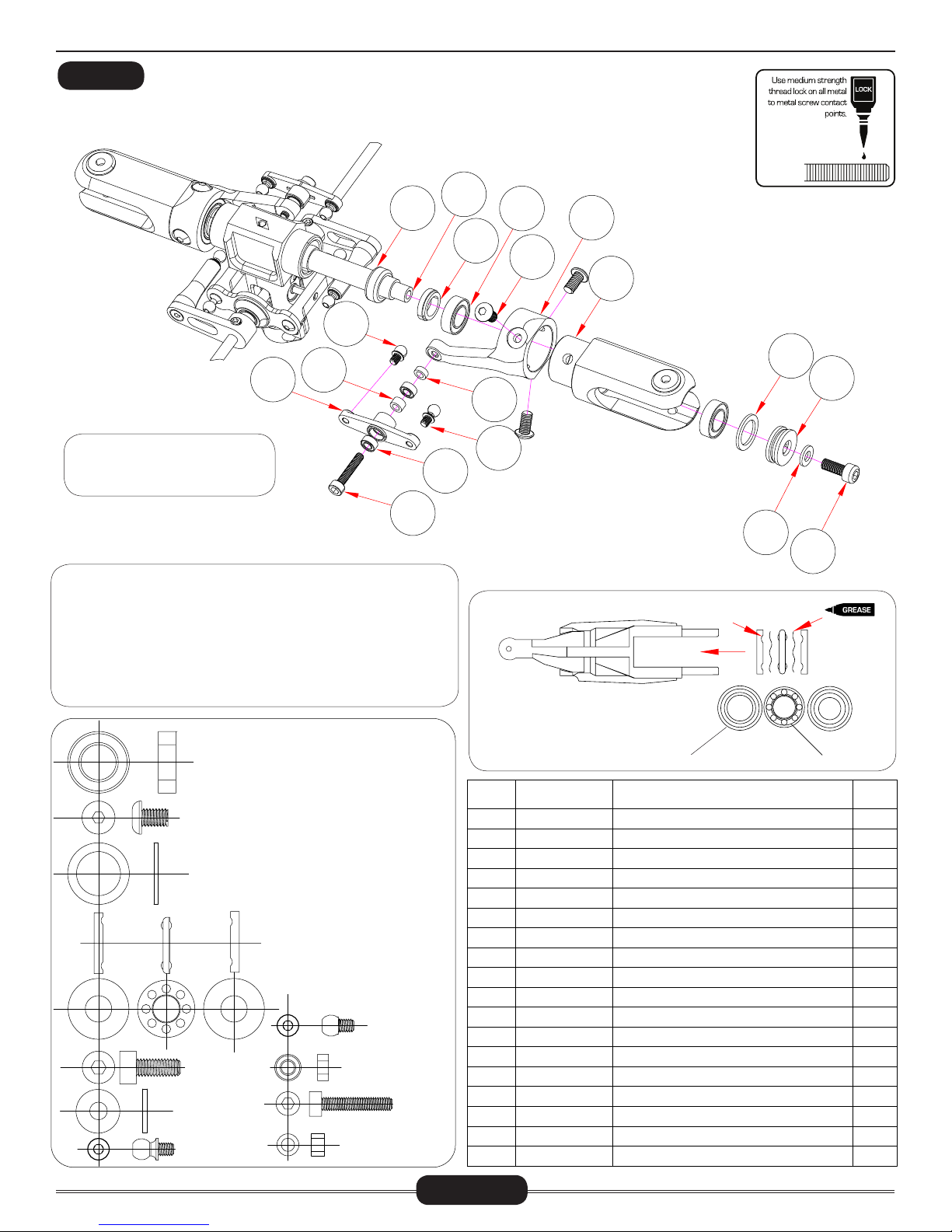

Notice the direction of the blade
grips as well as the direction of
the flybar control arm.
SIDE PROFILE - BLADE GRIP
RECESSED CREVICE FACES MAIN SHAFT
THRUST BEARING INSTALLATION GUIDE
GROOVES INSIDE
SMALLER ID
LARGER INNER DIAMETER TOWARDS HEAD BLOCK
LARGER ID
Ensure lubricant is applied to the thrust bearings. Be careful when
taking the thrust bearings out of the blade grips. The radial bear-
ings (part #4) should stay within the grips. DO NOT try to remove
these as they have been factory installed. It is best to remove the
grips one side at a time. Before assembly, notice the direction of the
control arm on the grip. It should be assembled as indicated within
this diagram.
1
2
3
4
5
6
7
8
9
10
11
12 2
4
2
2
2
6
2
No. Description Qty
Part #
13
2
2
2
2
14
15
16
17
Rubber Dampener( 橡皮环)
HI6181D
Feathering Shaft( 横轴)
CNE521A
(间隔套)
CNE522-28
CNBB814 8X14X4Bearing( 轴承)
Button Head Cap Screw(圆头内六角螺丝)
CNM4x6BHCS
Main Rotor Blade Grips(主旋翼夹片座)
CNE557A-1
CNBB614T 6x14x5 Thrust Bearing(止推轴承)
CNM4X10CS M4x10 Cap Screws( 杯头螺丝)
CNM4X10FW M4x10x1Flat Washer(平面垫片)
HW6206 3X5X2 Spacer(固定套)
CNLR1014 M3 Ball Link(M3 球头螺丝)
CNBB364 3X6X2.5Bearing( 轴承)
CNM3X16CS M3x16 Cap Screws(杯头螺丝)
Bell Mixer Arm(混控臂)
CNE558S
3X5X3 Brass Spacer(固定套)
HW6205
1
Main Rotor Blade Grip Arms(主旋翼夹片臂)
2
CNM10X14FW M10x14x1Flat Washer(平面垫片)
4
2
2
2
18 CNLR1023 M3 Ball Link(M3 球头螺丝) 2
CNM4X6BHCS
CNBB814
CNM10X14FW
CNBB614T
CNM4x10CS
CNM4X10FW
CNLR1014
CNBB364
M3X16CS
CNM3X5X3
CNLR1023
CNE557-2
T=2.8mm, Blade Grip Spacer

Radikal E640
Page 7
HEAD ASSEMBLY (FLYBAR VERSION)
BAG 1
CA
1
23
45
6
CNM3x3SS
M3X22CS
M3X8CS
M3 CNM3LOCK 2
1
2
3
4
5
6
2
1
1
1
No. Description Qty
Part #
1
M3 Locknut(M3螺母)
CNM3LOCK
CNM3X8CS M3x8 Cap Screws(杯头螺丝)
CNM3x3SS M3x3 Socket Head Set Screw(无头内六角螺丝)
Aluminum Washout Guide(剪型臂导柱)
CNE556-2
M3x22 Cap Screws(杯头螺丝)
10mm Main Shaft(主轴)
HW5053
Do not over-tighten!
CNM3X22SCS

Radikal E640
Page 8
HEAD ASSEMBLY (FLYBAR VERSION)
BAG 1
CNLR1022SP
Hint: To ensure this pin does
not pop out, periodically
check it between flights. You
also can apply a tiny drop of
CA to either side of the pin.
4
1
2
3
4
5
6
7
8
9
10
11
12
3
2
2
1
1
2
2
2
No. Description Qty
Part #
2
4
2
CNBB36 3X6X2.5 Bearing(轴承)
3X5X3 Brass Spacer(固定套)
CNE516B
Radius Link w/ Pin( 三角控制臂)
Radius Link w/ Pin( 插销)
CNE516B
CNM3X12CS M3x12 Cap Screws( 杯头螺丝)
Washout Arm(摆臂)
CNE560S
CNLR1023 M3 Ball Link(M3 球头螺丝)
CNLR1011 M3 Ball Link(M3 球头螺丝)
Washout Hub (控制臂固定座)
CNE594
NX Dual Ball Bearing Swashplate(十字盘)
M3 Ball Link L=32.3mm(M3球头螺丝)
CNLR1003 3X5X0.5 Flat Washer(平面垫片)
M3 Ball Link L=18MM(M3 球头螺丝)
13
HW6205
2
CNBB36
M3x5x0.5 CNLR1003
CNM3X5X3
Ø2x12
M3X12CS
M3 L=18MM
1
2
3
4
5
6
7
9
11
10 12 13
8
HW5146E
HW5146E
CNE594A

Radikal E640
Page 9
NOTICE SIZE OF HOLES ON BALL LINKS
THE SIDE WITH THE SMALLER HOLE
SHOULD FACE OUTWARDS

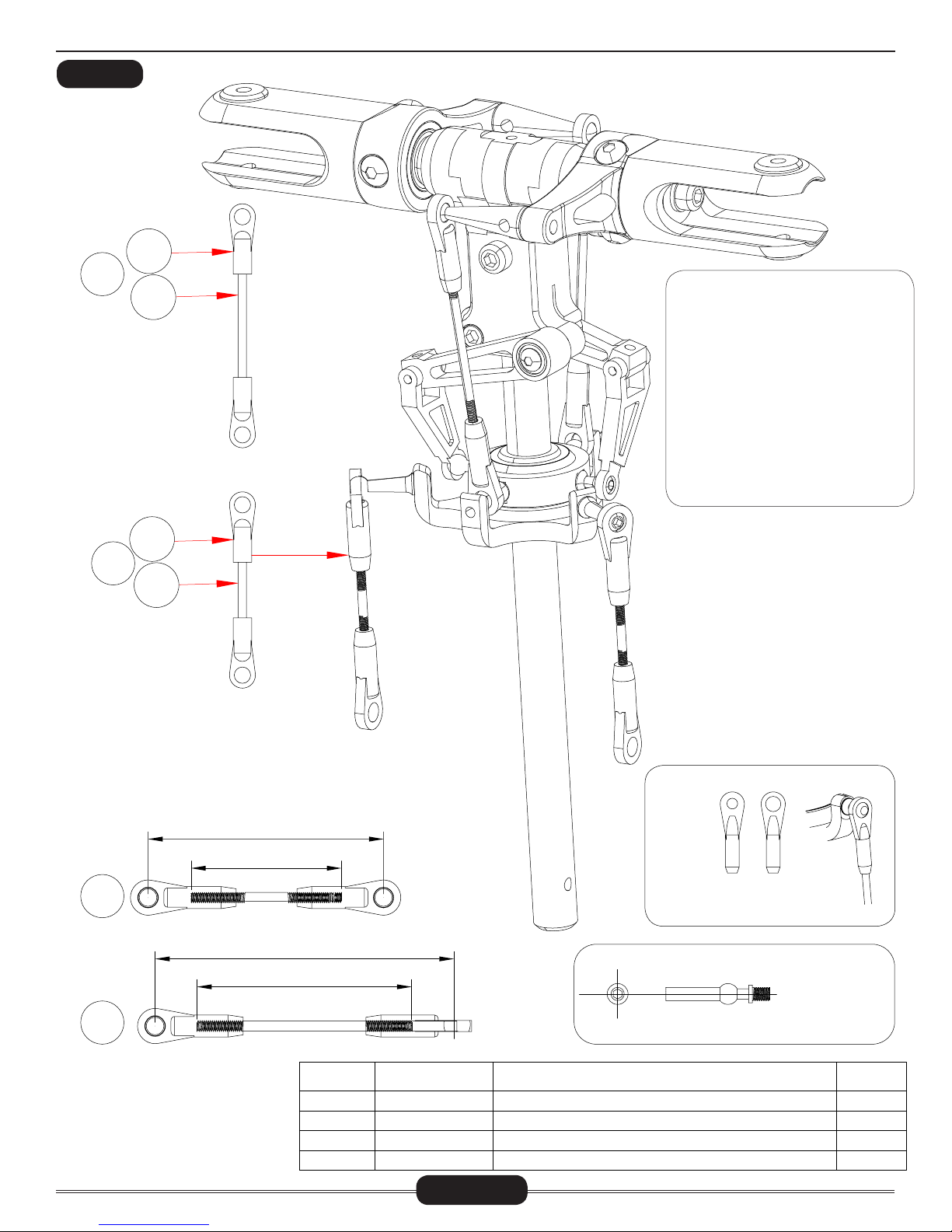

LINKAGE RODS (FLYBAR VERSION)
BAG 1
A
B
C
D
1
2
3
4
5
6
8
7
2
1
2
3
4
5
6
2
4
4
2
No. Description Qty
Part #
4
7
8
Ball Link Set (26 Long, 4 Short)(球头连接杆)
HI6145
HW5192 Pushrod Set( 连杆)
Ball Link Set (26 Long, 4 Short)(球头连接杆)
HI6145
HW5192 Pushrod Set( 连杆)
Ball Link Set (26 Long, 4 Short)(球头连接杆)
HI6145
HW5192 Pushrod Set( 连杆)
Ball Link Set (26 Long, 4 Short)(球头连接杆)
HI6145
HW5192 Pushrod Set( 连杆)
4
2
A
97
51,5
25
14
B
C
D
54,5
80
30
35
The linkage rods come pre-built. Even
though they are pre-built, you will need
to verify their lengths. The diagram
with lengths are drawn at a true to
life scale, therefore you can lay your
linkages on the diagram to find the
correct measurements.

Radikal E640
Page 10

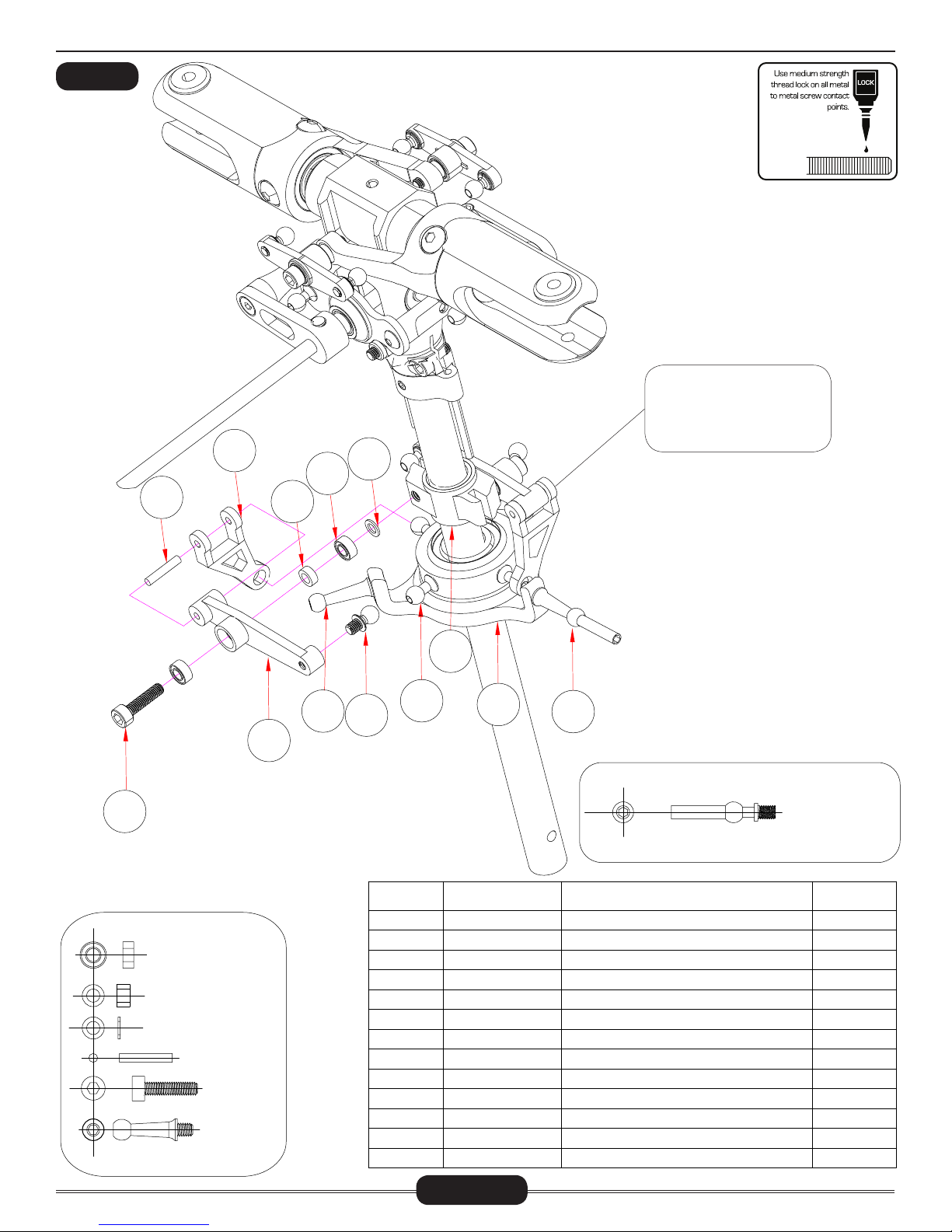

HEAD ASSEMBLY (FLYBARLESS)
BAG 1
SIDE PROFILE - BLADE GRIP
RECESSED CREVICE FACES MAIN SHAFT
THRUST BEARING INSTALLATION GUIDE
GROOVES INSIDE
SMALLER ID
LARGER INNER DIAMETER TOWARDS HEAD BLOCK
LARGER ID
The flybarless head comes pre-assembled
however, it is only assembled as an ex-
ample of how it should be assembled. The
entire head will need to be taken apart and
medium thread lock is required on all metal
to metal parts. Ensure lubricant is applied
to the thrust bearings. Be careful when
taking the thrust bearings out of the blade
grips. The radial bearings (part #9) should
stay within the grips. DO NOT try to remove
these as they have been factory installed.
It is best to remove the grips one side at a
time. Before assembly, notice the direction
of the control arm on the grip. It should be
assembled as indicated within this diagram.
Make sure the open ball side of the thrust bearing
is facing towards the rotor head.
Parts diagrams are drawn on a 1-to-1 scale.
2
1
2
3
4
5
6
7
8
9
10
11
12
2
2
2
2
2
2
1
1
2
No. Description Qty
Part #
13
14
6
4
2
2
Flybarless Arm Ball(摆臂)
Flybarless Arm(摆臂座)
Main Rotor Blade Grip(主桨夹片)
Button Head Screw( 圆头螺丝)M4x6
Head Block(主旋翼中心座)
Feathering Shaft( 横轴)
8x14x4 Bearing( 轴承)
(铝套)
Head Damper Spacers(塑料圈)
Flat Washer(垫片)10x14x1
Thrust Ball Bearing( 止推轴承)6x14x5
M4x10x1 Spacer( 垫圈)
M4x10 Cap Screws(杯头螺丝)
CNM4x6BHCS
CNE521A
CN2517A-6
HI6181D
CNBB814
CNM10X14FW
CNBB614T
CNM4X10CS
CNM4X10FW
Rubber Dampener( 橡皮环)
CNM4x6BHCS
CNBB814
4x10x1
CNBB614T
M4X10X1
CNM4X10CS
1
2
3
4
5
679
8
10
11
12
13
14
CN2517A-1
CN2517A-1
CN2517A-2
CN2517A-1
CN2517A-25 T=2.5mm Spacer

Radikal E640
Page 11
HEAD ASSEMBLY (FLYBARLESS)
BAG 1
10mm Main Shaft(主轴)
2
1
2
3
4
5
6
7
8
9
10
11
12 1
2
1
2
1
2
2
4
No. Description Qty
Part #
2
2
2
M3x22 Cap Screws(杯头螺丝)
CNM3X12CS M3x12 Cap Screws(杯头螺丝)
M3x3 Socket Head Set Screw(无头内六角螺丝)
CNM3X3SS
Radius Link w/ Pin( 三角控制臂)
Radius Link w/ Pin(插销)
Button Head Cap Screw( 圆头内六角螺丝)M3x16
CNM3x16BHCS
Bearing(滚珠轴承)3x8x3
Washout Control Arm( 剪型臂)
Spacer(铁套)3x5x3
HW6205
CNLR1003 3x5x0.5 Micro Washer( 垫圈)
防松螺母)
HW5053A
67
8
9
11
12
1
2
3
4
5
10
The follower arms already come pre-assembled.
DO NOT try to remove the bearings as they are
factory installed.
CNBB0830
M3x5x3 HW6205
M3x5x0.5 CNLR1003
CNM3LOCK
CNM3x12CS
CNM3X3SS
Ø2x12
CNM3x16BHCS
M3X22CS
CN2517A-5
CN2517A-5
CNBB0384
CN2517A-5
CNM3X22SCS
CNM3LOCK M3 Locknut (M3

Radikal E640
Page 12
HEAD ASSEMBLY (FLYBARLESS)
BAG 1
1
2
3
4
Although the swashplate comes assembled
with the steel balls already installed, it is impor-
tant to check they all have thread lock applied.
M3 L=18MM
CNLR1011
CNLR1023SP
4
1
2
3
2
No. Description Qty
Part #
1
M3 Ball Link L=18MM(M3 球头螺丝)
CNLR1021
CNLR1011 M3 Ball Link(M3 球头螺丝)
NX Dual Ball Bearing Swashplate(十字盘)
4M3 Swash Plate Special Ball Link (M3 十字盘特殊球头螺丝) 1
HW5146E
HW5146E

Radikal E640
Page 13
HEAD ASSEMBLY (FLYBARLESS)
BAG 1
4
1
2
3
44
2
No. Description Qty
Part #
2
HW5192A Pushrod Set( 连杆)
Ball Link Set (26 Long, 4 Short)(球头连接杆)
HI6145
HW5192A Pushrod Set( 连杆)
Ball Link Set (26 Long, 4 Short)(球头连接杆)
HI6145
CNLR1022SP
A
53.5
B
55
68
34
A
B
2
1
4
3
The linkage rods come pre-built. Even
though they are pre-built, you will need
to verify their lengths. The diagram
with lengths are drawn at a true to
life scale, therefore you can lay your
linkages on the diagram to find the
correct measurements. The ball links
are heavy duty ball links and must be
sized properly to provide the smooth-
est operation of the head. A ball
link sizing tool such as part number
CN2055ABL should be used on all
plastic links to provide the smoothest
operation.
NOTICE SIZE OF HOLES ON BALL LINKS
THE SIDE WITH THE SMALLER HOLE
SHOULD FACE OUTWARDS

Radikal E640
Page 14
MOTOR MOUNT ASSEMBLY
BAG 2
1
2
4
5
6
7
8
9
10
3
Optional slant cut heli-
cal cut gear for extreme
power systems requir-
ing heavy duty power
transfer systems.
The motor plate comes with mount-
ing points for 25mm & 30mm bolt
patterns. The M3 inserts should be
used if the motor being used uses M3
bolts.
Apply a small amount of threadlock
to this area on the pinion to secure
the pinion within the bearing.
INCLUDED
INCLUDED
1
1
2
3
4
5
6
7
8
9
1
1
1
2
1
No. Description Qty
Part #
2
2
1
Motor(马达)
Motor Mount( 马达座)
CNM3X10CS M3X10 Cap Screw( 杯头螺丝)
M4x4 Set Screw( 无头内六角螺丝)
CNM4X4SS
Alloy Drive Helical 10T( 合金传动斜齿轮)
Threaded Spacer( 铝柱)L=33mm
CNBB814 8X14X4Bearing( 轴承)
轴承座)
Button Head Cap Screw( 圆头内六角螺丝)
CNM3x12BHCS
10
3x4x4.5 Reducer(套子)
4CNM4X10CS M4X10 Cap Screw( 杯头螺丝)2
2
6Alloy Drive Gear 11T( 合金传动齿轮)1
NOT INCLUDED
HW5563E
HW5563E
HW5043E
HW5043EA
HW5031E
HW5041E
CNM3x12BHCS
M3X10CS
CNM4X4SS
CNBB814
CNM4x10CS
3x4x4.5
Motor Gear Bottom Mount(

Radikal E640
Page 15

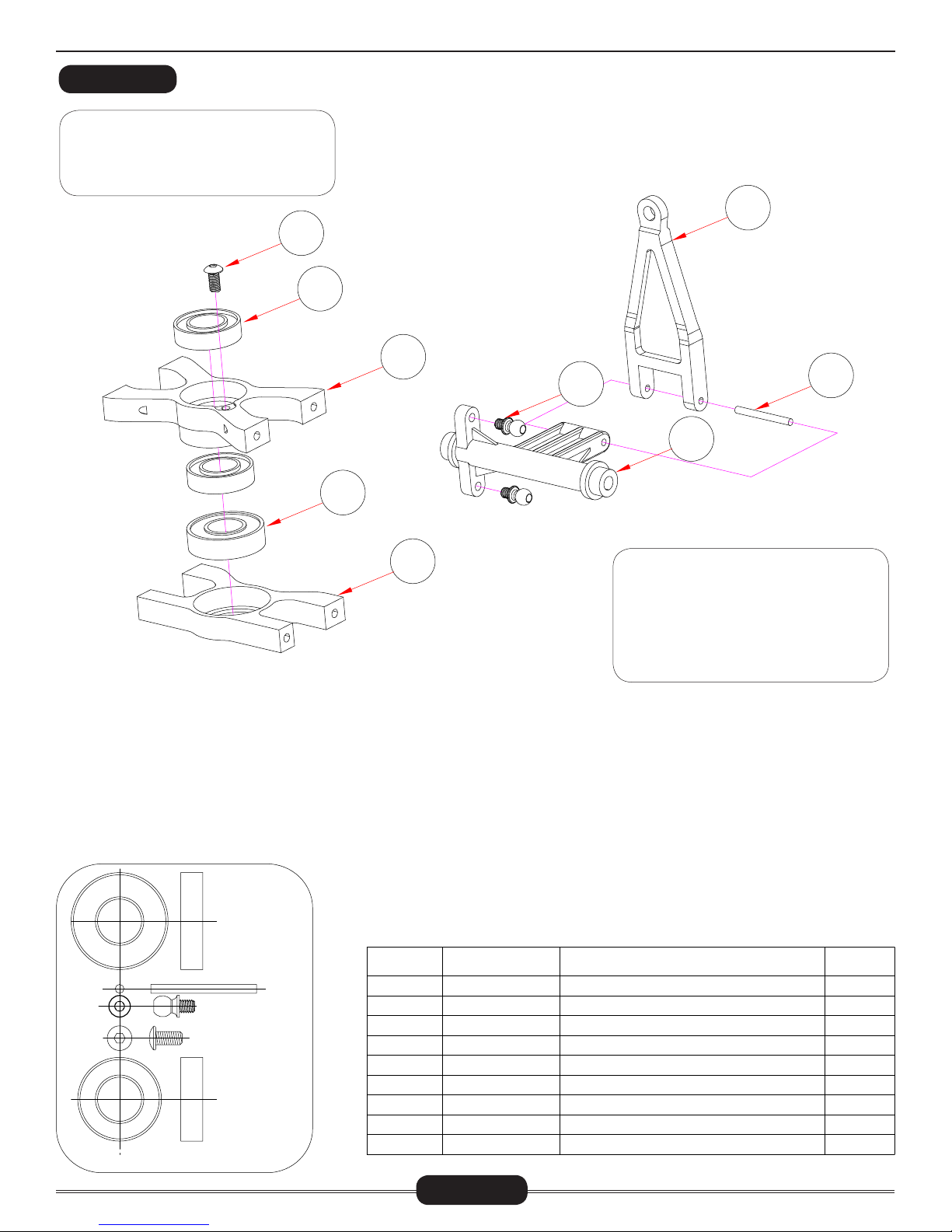

MAIN SHAFT BEARING BLOCKS & ELEVATOR ARM
BAG 2 & 4
1
2
3
4
5
6
7
8
9
CNBB1022
Ø2X24
CNLR1014
CNM3x6BHCS
CNBB1019
1
2
3
4
5
6
7
8
9
No. Description Qty
Part #
1
1
1
1
2
1
2
1
1
Lower Main Shaft Bearing Block (主轴下轴承座)
Bearing(滚珠轴承)10x22x6
CNBB1022
Pin(插销)Ø2x24
A Control Arm(A 型控制臂)
A-Arm Block(A 型控制臂座)
Bearing(滚珠轴承)10x19x5
CNBB1019
Upper Bearing Block( 主轴上轴承座)
HW6042GU
Button Head Cap Screw( 圆头内六角螺丝)M3x6
CNM3x6BHCS
CNLR1014 M3 Ball Link(M3 球头螺丝)
HI5032
HI5032
HI5032
HW5042
The bearings #6 & #8 are already factory
installed. Please be sure to apply thread-
lock to the the M3x6 button head screw
(#5).
Hint: The A-Arm already comes assem-
bled. To ensure the pin does not slide out
during operation, please be sure to check
it periodically between flights. To be sure it
does not have a chance of falling out, ap-
ply a small drop of CA glue to either side
of the pin.

Radikal E640
Page 16

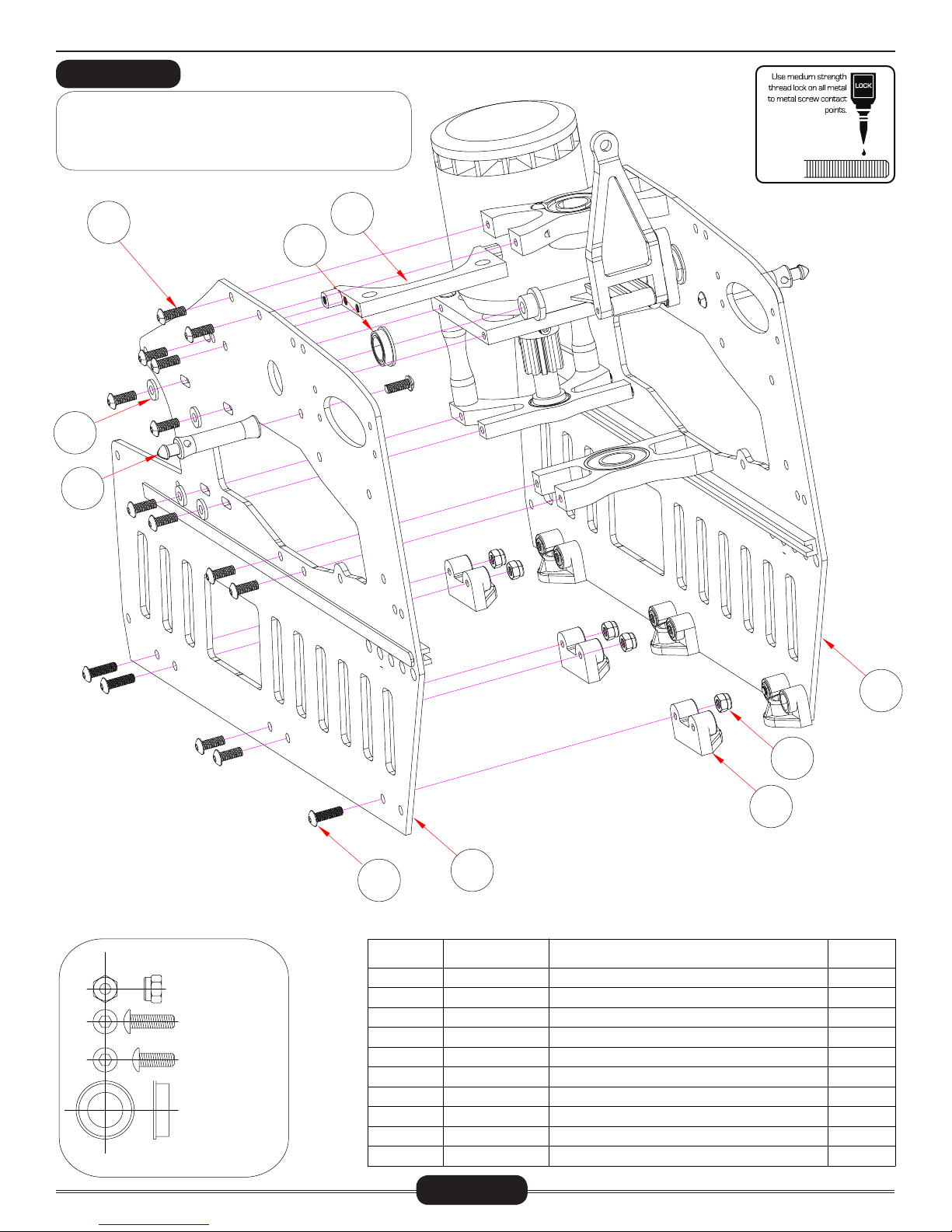

MAIN FRAME ASSEMBLY
1
2
3
4
5
6
8
9
7
3
6
1
2
3
4
5
6
7
8
12
10
2
8
2
No. Description Qty
Part #
1
1
M3 Lockmut(M3 螺母)
CNM3LOCK
Strut Holder( 脚架固定座)
Right Main Frame (右侧板)
Button Head Cap Screw( 圆头内六角螺丝)M3x10
Canopy Standoff( 机头罩支架)
HW6125B
Elevator Lever Flange Bearing(带边滚珠轴承)
CNBB812F
CNM3X8FW M3x8x1Flat Washer (平面垫片)
Frame Bracket(摆臂固定座)
9
Button Head Cap Screw( 圆头内六角螺丝)M3x8
CNM3x8BHCS 22
HI5005E
3Left Main Frame (左侧板)1
HW5040E
It is best to start this process by doing one side at a time.
Assemble the motor mount and elevator arm on to the
frames. Notice part #8 and the direction the flanged bear-
ing is facing as well as the battery tray guides.
BAG 2 & 3
CNM3x8BHCS
CNBB812F
CNM3x10BHCS
M3 CNM3LOCK
HW5115EL
HW5115ER
CNM3X10BH

Radikal E640
Page 17
MAIN FRAME ASSEMBLY
BAG 2
CNM3x8BHCS
M3x5x0.5 CNLR1003
CNM3x25BHCS
CNBB0730
CNM3X5X3
CNLR1014
CNM3X5X7
Hint: The rudder control bell crank assembly
(Part # 1 through 8) should be loosely attached
to the frame. This part will need to be removed
at a later time in order to install the tailboom as-
sembly to the frame.
16
15
13
9
10
11
12
14
1
2
3
4
7
5
6
8
1
2
3
4
5
6
7
8
9
No. Description Qty
Part #
6
10
11
12
13
14
15
CNLR1014 M3 Ball Link(M3 球头螺丝)
Bellcrank Spacer( 垫片)3x5x7
HI5031E
Bell Crank(左右控制臂)
HI5031E
Socket Head Cap Screw(圆头内六角螺丝)M3x25
CNM3x25CS
Long Hex Spacers( 六角铝柱)L=52MM
HW6007GS
Electronics Mounting Tray(接受器座)
16
CNLR1003 3X5X0.5 Flat Washer(平面垫片)
3X7X3 Bearing(轴承)
CNBB0730
2
4
2
2
2
4
1
1
1
10
2
1
1
1
2
CNLR1003 3X5X0.5 Flat Washer(平面垫片)
Button Head Cap Screw(圆头内六角螺丝)M3x8
CNM3x8BHCS
3X7X3 Bearing(轴承)
CNBB0730
Button Head Cap Screw(圆头内六角螺丝)M3x14
CNM3x14BHCS
3X5X3 Brass Spacer
(固定套)
Rudder Bellcrank(摆臂)
Rudder Bellcrank Mount(摆臂座)
CNLR1014 M3 Ball Link(M3 球头螺丝)
HI5002
HI5001
HI5015
CNE552 3X5X3.35 Brass Spacer

Radikal E640
Page 18

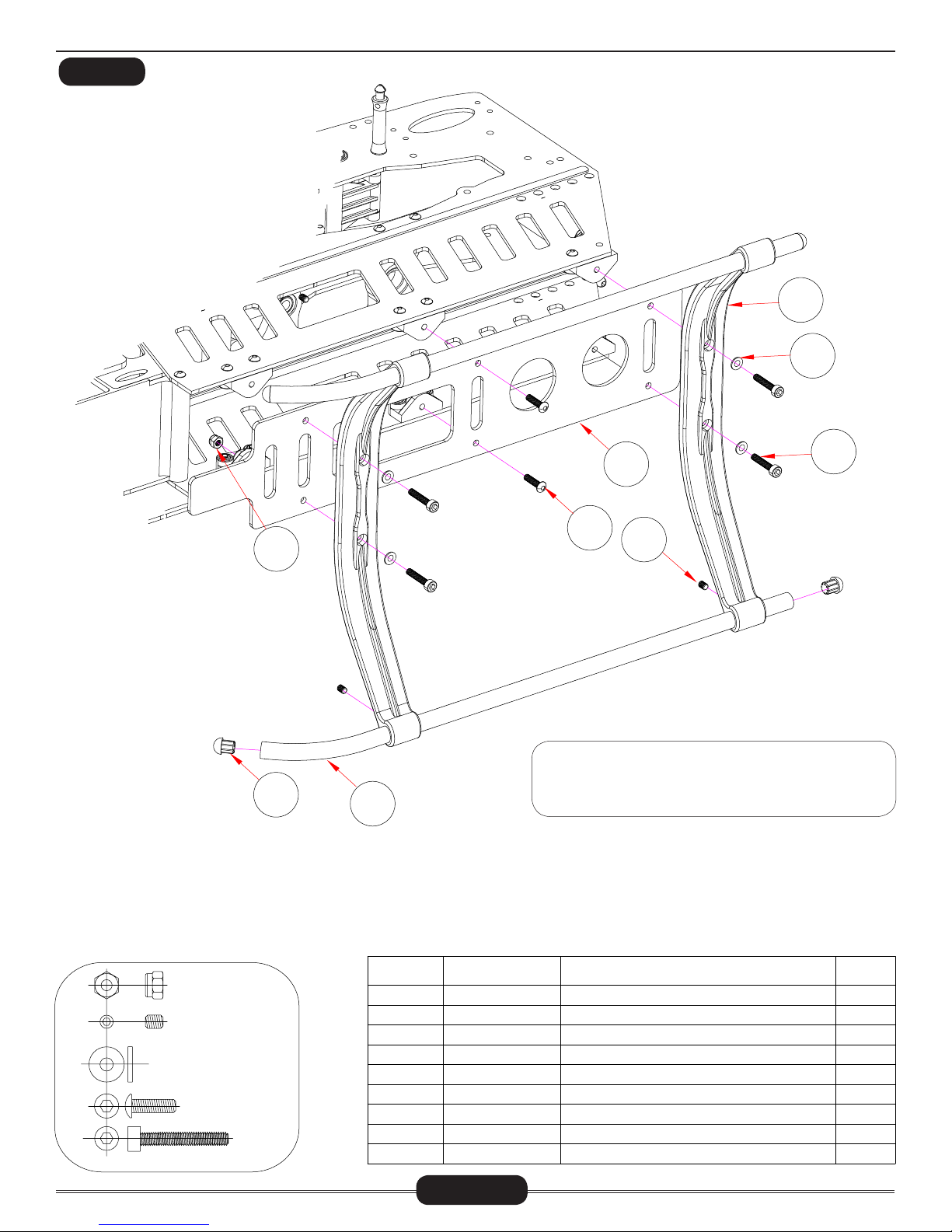

LANDING GEAR ASSEMBLY
BAG 5
1
2
3
6
4
5
7
8
9
Hint: Some thick CA glue or expoxy should be applied to
the end caps on the skids to ensure they do not fall out
during operation.
CNM3x4SS
3x8x1
CNM3x12BHCS
M3X20CS
M3 CNM3LOCK
4
1
2
3
4
5
6
7
8
9
1
1
2
4
2
No. Description Qty
Part #
4
6
4
Bottom Frame(机身底板)
Landing Struts(脚架)
Aluminum Skids with Caps(脚架弯管)
Set Screw(无头内六角螺丝)M3x4
CNM3x4SS
Landing Gear Cap(脚架塞)
CNM3X20CS M3x20 Cap Screws(杯头螺丝)
Button Head Cap Screw(圆头内六角螺丝)M3x12
CNM3x12BHCS
CNM3X8FW M3x8x1 Flat Washer(平面垫片)
M3 Locknut(M3 螺母)
CNM3LOCK
HI5122
HW6123B
HW6123B
HW5116E

Radikal E640
Page 19

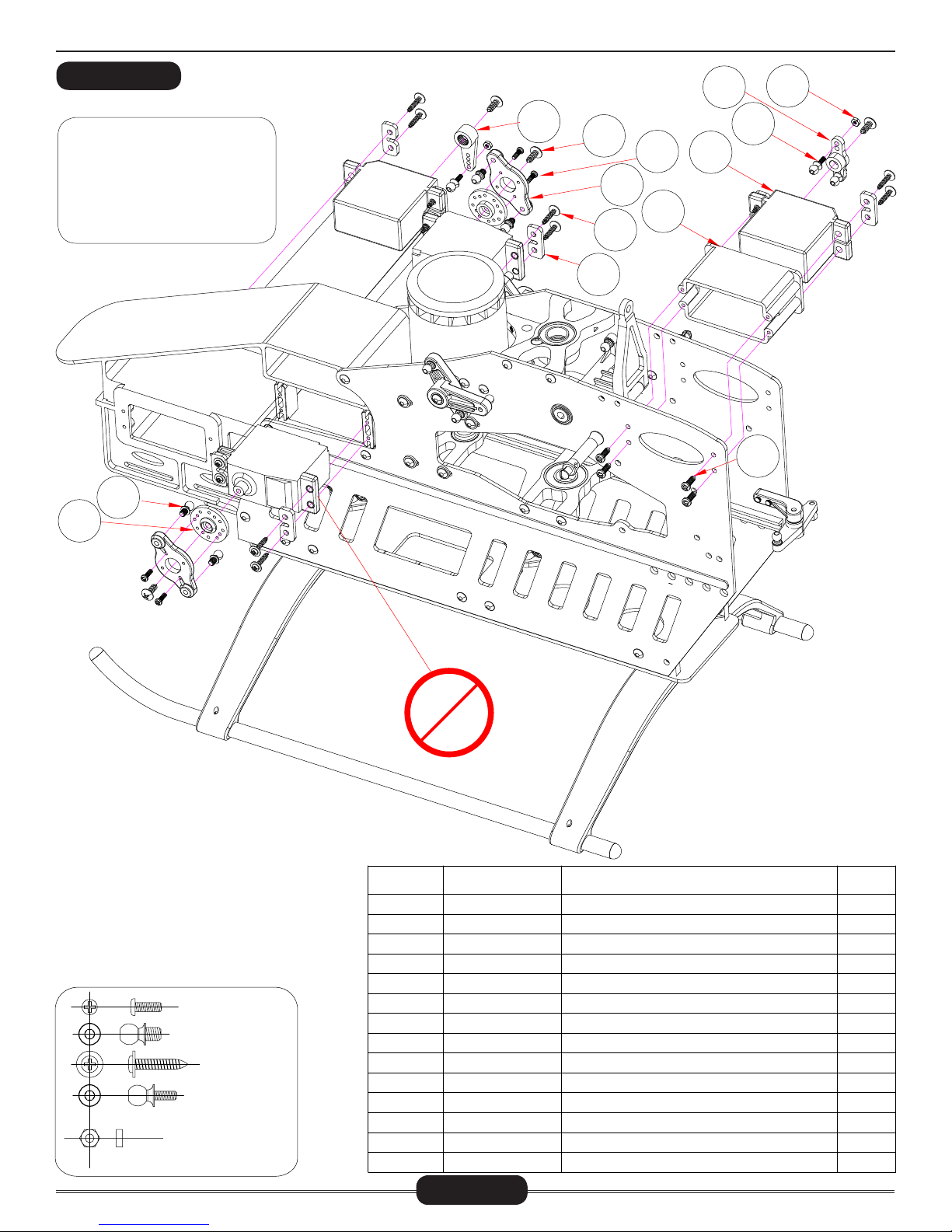

SERVO INSTALLATION
123
4
5
6
7
8
9
11
10
14
13
12
BAG 2 & 3
INCLUDED
The diagram does not show
the servos being installed with
servo grommets which are usu-
ally included with all servos. It is
recommended you run the servo
grommets to prolong the life of
the servos.
CNLR1014
CNM2.3x12ST
CNLR1013
CNM2x6PH
CNM2NUT
4
1
2
3
4
5
6
7
8
9
2
1
8
4
1
No. Description Qty
Part #
4
3
4
10
11
12
13
14
Phillips Screw( 十字螺丝)M2x6
CNM2x6PH
Servo Control Arm(伺服机控制臂)
HW6192C
Servo Arm( 伺服机控制臂)
NOT INCLUDED
M2.3x12 Self Tapping Screws(尖尾自攻螺丝)
CNM2.3x12ST
Servo Mounting Plates(伺服机固定板)
HI3205A
Servo(伺服机)
NOT INCLUDED
Elevator Servo Mount( 升降伺服机座)
Servo Arm( 伺服机控制臂)
NOT INCLUDED
CNLR1014 M3 Ball Link(M3 球头螺丝)
Servo Arm Screws( 尖尾自攻螺丝)
NOT INCLUDED
Steel Ball 2mm Thread(M2 球头螺丝)
CNLR1013
Servo Arm(伺服机控制臂)
NOT INCLUDED
CNM2NUT M2 Nut(M2螺母)
CNM2.6x8ST M2.6x8 Self Tapping Screws(尖尾自攻螺丝)
1
3
4
2
4
HI5016

Radikal E640
Page 20
PUSHROD LENGTHS
BAG 2 & 7
55
A
102
B
C
35
75
290
270
43
B
21
A
5
678
C
The linkage rods come pre-built. Even though they are pre-built, you
will need to verify their lengths. The diagram with lengths are drawn
at a true to life scale with the exception of the tail control rod, there-
fore you can lay your linkages on the diagram to find the correct
measurements. The ball links are heavy duty ball links and must be
sized properly to provide the smoothest operation of the head. A ball
link sizing tool such as part number CN2055ABL should be used on
all plastic links to provide the smoothest operation.
2
1
2
3
4
5
6
2
1
1
1
No. Description Qty
Part #
1
7
8
Carbon Fiber Tube( 碳纤管)
Pushrod Set( 连杆)
Fastening Nut( 紧固螺母)
Ball Link Sets(球头连接杆)
HW6145
Ball Link Set (26 Long, 4 Short)(球头连接杆)
Pushrod Set( 连杆)
Pushrod Set( 连杆)
Ball Link Set (26 Long, 4 Short)( 球头连接杆)
HI6145
HW5192B
HW5192B
HI6145
2
2
HW5043A
HW5043A
HW5043A
