Radio Engineering Industries HD6-600 Instructions for use
HD6-600 Mobile DVR
Page 1 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Radio Engineering Industries
HD6-600
Mobile Digital Video Recorders
Hardware User Manual
Hardware Installation Manual
HD6-600 Mobile DVR
Page 2 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Table of Contents
List of Figures.................................................................................................................... 4
Introduction....................................................................................................................... 6
Features.............................................................................................................................. 6
Specifications..................................................................................................................... 7
System Overview............................................................................................................... 9
Front and Back Panels.......................................................................................................... 10
Live View...................................................................................................................... 11
Initial Set Up................................................................................................................. 11
Removable HDD and SD Card...................................................................................... 12
DVR Loading and Unloading....................................................................................... 12
SD Card Loading and Unloading.................................................................................. 13
HDD Record Times.............................................................................................................. 14
Long Term Storage....................................................................................................... 14
Installation....................................................................................................................... 15
External Record Indicator / Event Mark Button Harness............................................. 16
GPS Antenna Module Harness ..................................................................................... 17
Vehicle Sensor Options Harness................................................................................... 18
Vehicle Sensor Options Harness Vehicle Connections ................................................ 19
On-Screen Information with Vehicle Sensor Options Harness .................................... 20
Accelerometer Module Harness.................................................................................... 21
Physical Mounting Requirements................................................................................. 22
L Bracket Mounting.............................................................................................................. 22
Security Cover Mounting ..................................................................................................... 23
Camera Placement ........................................................................................................ 24
System Start-Up............................................................................................................ 24
System Shut Down........................................................................................................ 24
Playback Options............................................................................................................ 25
TV Video Outputs......................................................................................................... 25
Removable HDD and SD Card..................................................................................... 25
PC Network Connection ............................................................................................... 25
REI Toolkit ................................................................................................................... 27
REI Toolkit Dongle Connection........................................................................................... 27
Connecting to an Android™................................................................................................. 28
Connecting to an iPhone™................................................................................................... 28
Auto Local/Manual Remote.......................................................................................... 28
Logging In..................................................................................................................... 29
SD Card Function ......................................................................................................... 30
Logging Out.................................................................................................................. 30
Menu Configuration ....................................................................................................... 31
Main Menu Page........................................................................................................... 31
HD6-600 Mobile DVR
Page 3 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Setup Menu................................................................................................................... 31
System Setup Menu.............................................................................................................. 32
ID Menu................................................................................................................................ 32
Time & Date Menu............................................................................................................... 33
Start Up Menu....................................................................................................................... 34
Faults Menu.......................................................................................................................... 35
Password Menu..................................................................................................................... 36
Video Setup .......................................................................................................................... 37
Camera Menu........................................................................................................................ 38
IP and Port Setup Menu........................................................................................................ 39
Network Setup Menu............................................................................................................ 40
Alarm Menu.......................................................................................................................... 40
SD Menu............................................................................................................................... 41
Sub-Stream Menu................................................................................................................. 42
Image Menu.......................................................................................................................... 42
Motion Menu........................................................................................................................ 43
OSD Menu............................................................................................................................ 45
Input Setup............................................................................................................................ 45
Speed Menu.......................................................................................................................... 46
Inputs Menu.......................................................................................................................... 47
Accel Menu........................................................................................................................... 48
GPS Port Menu..................................................................................................................... 49
Network Setup...................................................................................................................... 51
WAN/LAN Setup ................................................................................................................. 51
Server.................................................................................................................................... 52
WIFI Menu ........................................................................................................................... 53
Cellular ................................................................................................................................. 54
Route..................................................................................................................................... 54
Firewall................................................................................................................................. 55
Info........................................................................................................................................ 56
Camera.................................................................................................................................. 56
Inputs.................................................................................................................................... 56
Alarms .................................................................................................................................. 57
System .................................................................................................................................. 57
WAN/Cell............................................................................................................................. 58
WIFI...................................................................................................................................... 58
Versions................................................................................................................................ 59
Logs...................................................................................................................................... 59
Advanced.............................................................................................................................. 60
Server.................................................................................................................................... 61
Maintenance.................................................................................................................. 61
Firmware............................................................................................................................... 61
Config Menu......................................................................................................................... 62
File Data ............................................................................................................................... 62
Storage.................................................................................................................................. 63
Live............................................................................................................................... 63
Info Button............................................................................................................................ 63
Settings button...................................................................................................................... 64
Channel Selection................................................................................................................. 64
Play Back...................................................................................................................... 64
HD6-600 Mobile DVR
Page 4 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Video (Time/Date Search).................................................................................................... 65
Alarm.................................................................................................................................... 65
FCC Statement................................................................................................................ 67
List of Figures
Figure 1: HD6-600 MDVR System Diagram..................................................................... 9

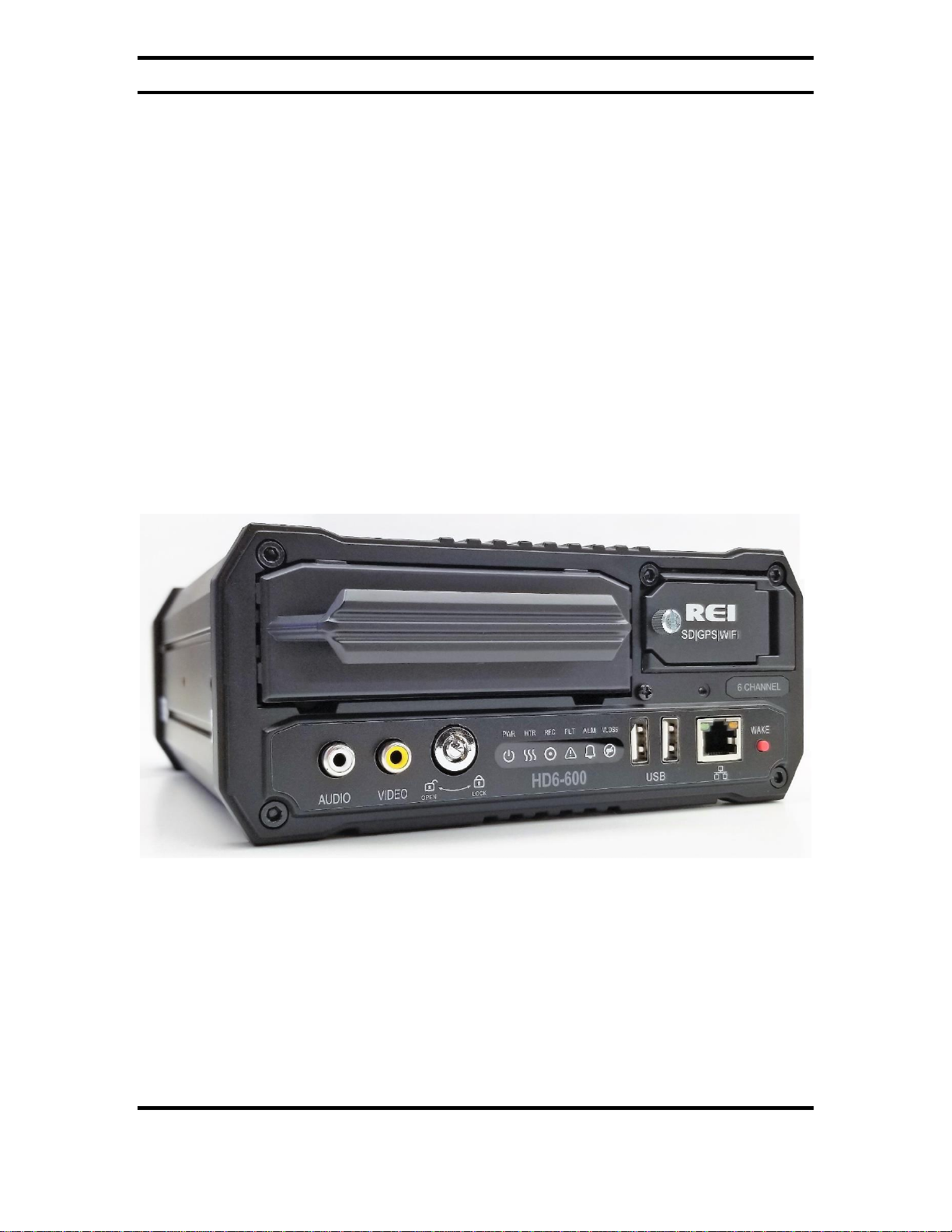

Figure 2: Front Panel Layout............................................................................................ 10
Figure 3: Rear Panel Layout............................................................................................. 11
Figure 4: Removable Hard Drive Module........................................................................ 12

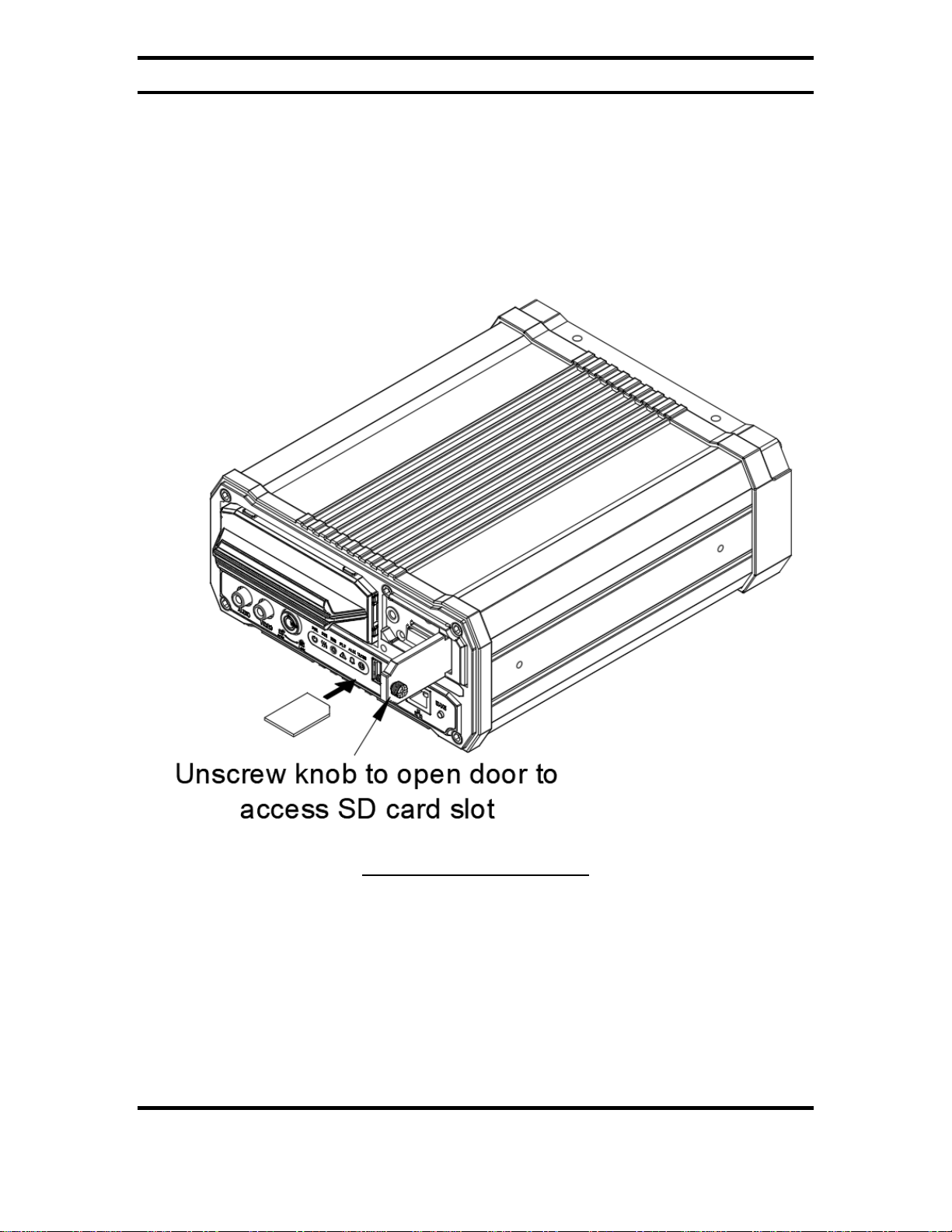

Figure 5: Removable SD Card.......................................................................................... 13
Figure 6: Estimator for HDD Record Times (HD5 shown).............................................. 14
Figure 7: System Wiring - Power and Camera Cables..................................................... 15

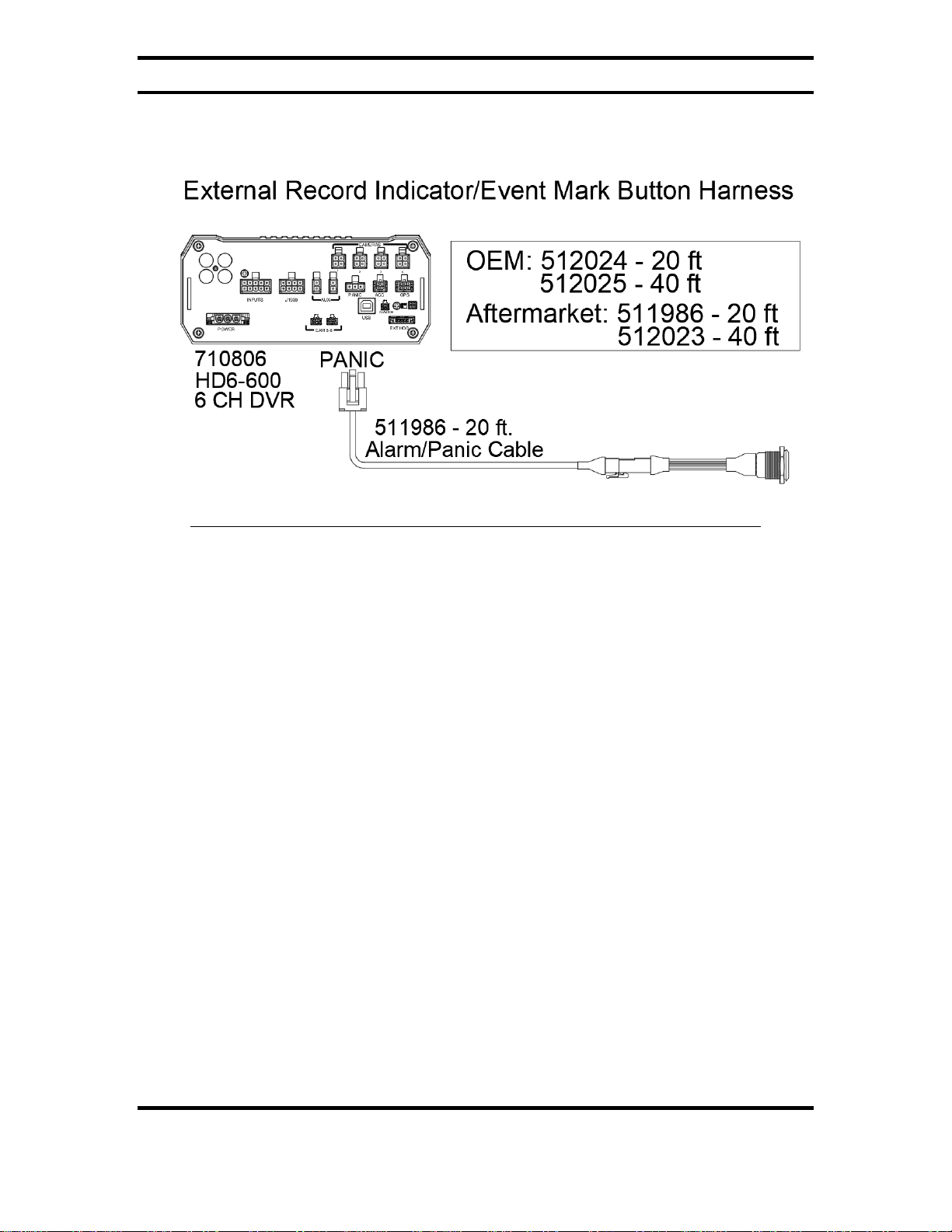

Figure 8: External Record Indicator/Event Mark Button Harness Connection................ 16

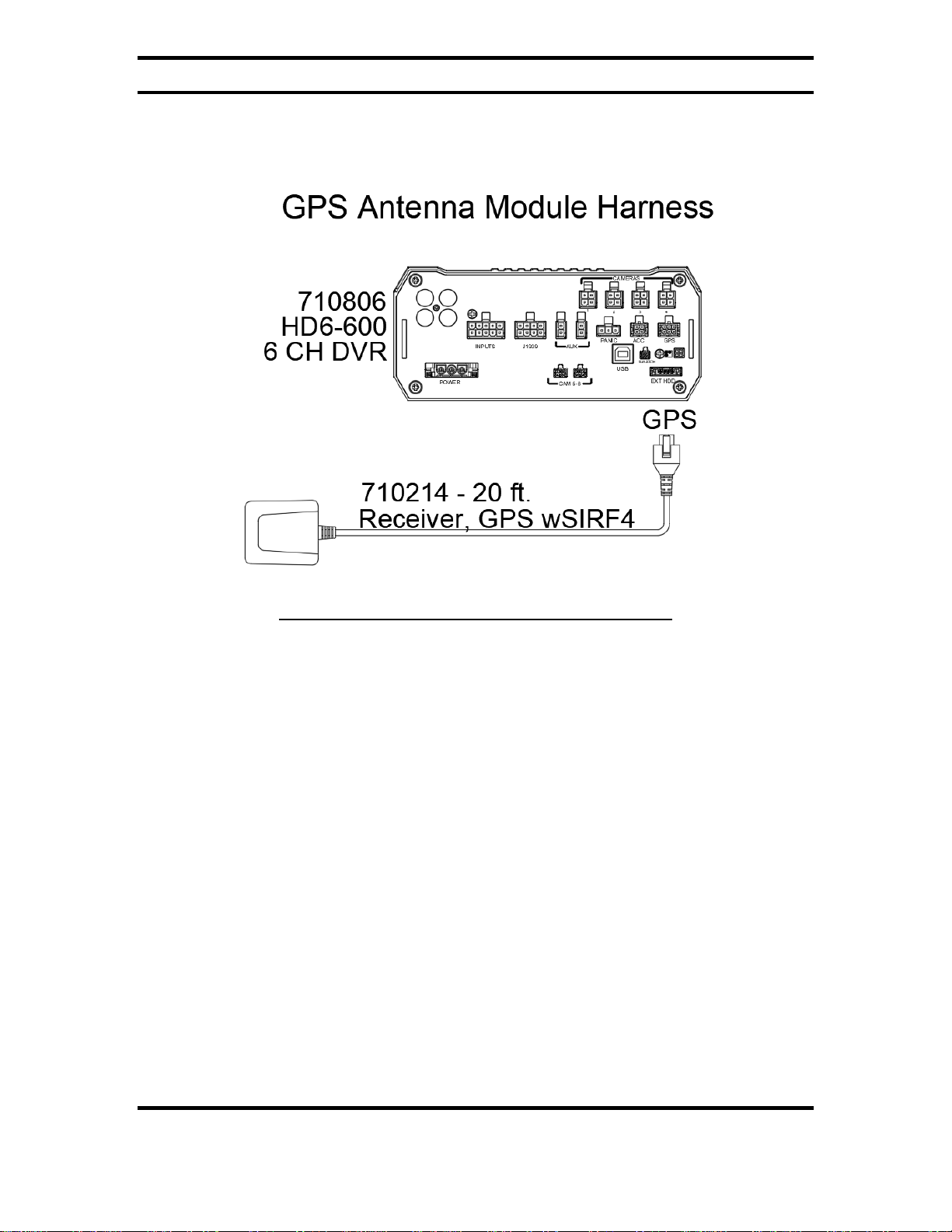

Figure 9: GPS Antenna Module Harness Connection ...................................................... 17

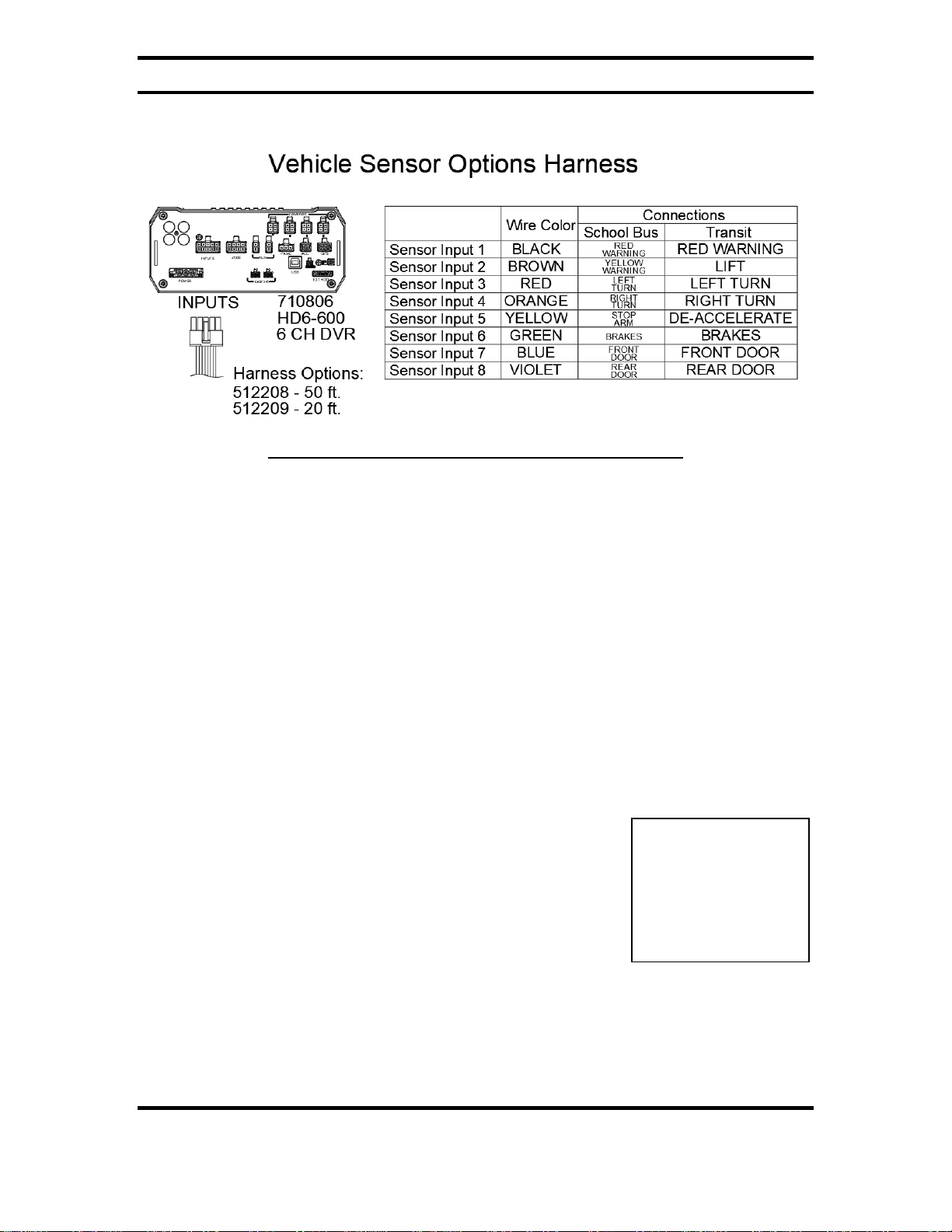

Figure 10: Vehicle Sensor Options Harness Connection.................................................. 18
Figure 11: Accelerometer Module Harness Connection................................................... 21
Figure 12: 3 Axis Inertia Sensor Directions ..................................................................... 21
Figure 13: L Bracket Mounting ........................................................................................ 22
Figure 14: DVR Dimensions ............................................................................................ 23
Figure 15: Security Cover Mounting................................................................................ 23
Figure 16: Connecting to the DVR with a Computer through the Ethernet Connection.. 25
Figure 17: Initial DVR Window....................................................................................... 29
Figure 18: Login Window................................................................................................. 29
Figure 19: Logout Window............................................................................................... 30
Figure 20: Main Menu...................................................................................................... 31
Figure 21: Setup Menu...................................................................................................... 31
Figure 22: System Setup Options ..................................................................................... 32
Figure 23: ID Menu .......................................................................................................... 32
Figure 24: Time & Date.................................................................................................... 33
Figure 25: Custom DST Triggers ..................................................................................... 34
Figure 26: Start Up Menu in Ignition Mode..................................................................... 34
Figure 27: Record Schedule Menu ................................................................................... 35
Figure 28: Faults............................................................................................................... 35
Figure 29: Password.......................................................................................................... 36
Figure 30: Video Setup..................................................................................................... 37
Figure 31: Camera –Camera Setup.................................................................................. 38
Figure 32: Custom Record Settings.................................................................................. 38
Figure 33: IPC Setup Pop-up Window ............................................................................. 39
Figure 34: Individual Channel Network Setup................................................................. 40
Figure 35: Alarm Setup..................................................................................................... 40
Figure 36: SD Setup.......................................................................................................... 41
Figure 37: Sub-Stream Setup............................................................................................ 42
Figure 38: Image Setup..................................................................................................... 42
HD6-600 Mobile DVR
Page 5 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Figure 39: Motion Setup................................................................................................... 43
Figure 40: Motion Setup - Set Grid .................................................................................. 44
Figure 41: OSD Setup....................................................................................................... 45
Figure 42: Input Setup ...................................................................................................... 45
Figure 43: Speed Setup..................................................................................................... 46
Figure 44: Inputs Setup..................................................................................................... 47
Figure 45: Input Setup - Custom....................................................................................... 47
Figure 46: Accelerometer Setup ....................................................................................... 48
Figure 47: Accel Alarm .................................................................................................... 49
Figure 48: Accelerometer Threshold................................................................................ 49
Figure 49: GPS Port.......................................................................................................... 49
Figure 50: Network Setup................................................................................................. 51
Figure 51: General Network Setup................................................................................... 51
Figure 52: Server............................................................................................................... 52
Figure 53: WIFI Setup ...................................................................................................... 53
Figure 54: Cellular Setup.................................................................................................. 54
Figure 55: Route Setup ..................................................................................................... 54
Figure 56: Firewall Setup.................................................................................................. 55
Figure 57: Info Menu........................................................................................................ 56
Figure 58: Camera Tab ..................................................................................................... 56
Figure 59: Inputs Tab........................................................................................................ 56
Figure 60: Alarms Tab...................................................................................................... 57
Figure 61: System Tab...................................................................................................... 57
Figure 62: WAN/Cell Tab ................................................................................................ 58
Figure 63: WIFI Tab......................................................................................................... 58
Figure 64: Versions Tab.................................................................................................... 59
Figure 65: Fault Logs Tab................................................................................................. 59
Figure 66: Logs –Search Result System Logs................................................................. 60
Figure 67: Advanced Tab.................................................................................................. 60
Figure 68: Server Tab ....................................................................................................... 61
Figure 69: Upgrade Firmware........................................................................................... 61
Figure 70: Export Configuration....................................................................................... 62
Figure 71: File Data Tab................................................................................................... 62
Figure 72: Storage Tab...................................................................................................... 63
Figure 73: Live Menu ....................................................................................................... 63
Figure 74: Channel Bar..................................................................................................... 63
Figure 75: Sample Info Data Table................................................................................... 64
Figure 76: Channel Selection Buttons .............................................................................. 64
Figure 77: Playback Menu................................................................................................ 64
Figure 78: Video Tab - Time/Date Search for Date ......................................................... 65
Figure 79: Alarm Tab - Alarm Search.............................................................................. 65
HD6-600 Mobile DVR
Page 6 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Introduction
This manual intends to provide information required for proper installation, initial setup,
and explanation of the individual programming options pertaining to the HD6 Series
Mobile DVR surveillance system. For assistance or to answer any questions call:
24 HOUR SERVICE HOT LINE
USA & CANADA
1-877-726-4617 Toll Free
1-402-339-2200
The HD6-600 is a cost effective, embedded mobile DVR solution supporting up to 4 analog
camera inputs and 2 IP camera inputs. This system features a unique compact rugged
design engineered to meet the demands of harsh mobile environments. The HD6 mobile
DVR features the latest technologies including H.264/MPEG-4 Advanced Video
Compression, dual streaming technology, and all solid-state construction.
Features
•High Definition (1080p) on All Channels
•Ultra HD (4k) Channels
•GPS
•4G Cellular (optional)
•Fast 802.11n Wi-Fi
•Optional Panic Button
•Full-Frame rate up to 30fps/Channel
•H.264 / H.265 Triple Streaming
•Optional Accelerometer
•Up to 2TB Hard Drive or optional Solid State Hard Drive
•Up to 256GB SD Card (optional)
•Optional Lockbox
•Extruded aluminum chassis
•Internal ACC
•Fanless design
HD6-600 Mobile DVR
Page 7 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Specifications
Power: 8 to 32 Volts DC, <2A operating (excludes cameras, accessories)
Dimensions: Without brackets: 7.4" x 3.2" x 9.5"; with brackets: 9.1" x 4.0" x
9.5" (max)
Weight: 8.6 lbs. (3.90 kg) with mounting brackets
Standby Current: < 2mA
Operating Temperature: -40°-+160°F continuous operation
Operating Humidity: 10% - 95%, non-condensing
Video Recording
Video Inputs: Up to 6 Channels
Video Standards: NTSC, AHD, & REI
Resolution: Up to 1080P Channels 1-4; Up to UHD (4K) Channels 5 & 6
Frame Rate: Up to 30 fps per channel
Bit Rate: 40 Mbps
Compression: H.265 Triple stream encoding/ recording –high quality recording +
efficient network video streaming
Audio Inputs: 6
Total Channels: 6
Storage
Hard Drive: Removable hard disk or solid-state drive module with USB 3.0
interface, integrated shock and vibration dampening, and heater
Expandable Storage: eSATA port for external storage expansion (external HDD) –
up to 16TB of total internal/external storage
SD Card: SD slot for simultaneous (mirror) or alarm video recording
Communication Module
Easily Upgradeable Communication Module: Field or factory installed removable
communication module
WIFI (internal): Optional 802.11a/b/g/n 2.4Ghz/5Ghz Wi-Fi (Wi-Fi models only)
Cellular (internal): Optional 4G modem for cellular connectivity
GPS (internal): Optional internal or external GPS receiver
HD6-600 Mobile DVR
Page 8 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Inputs/Outputs
USB ports: Two front panel USB ports for mouse and video backup, firmware
update, configuration, and debugging (log files, etc.)
WAN Ports: Rear panel WAN (Ethernet) port for connection to external 3G/4G
cellular router and for connection to REI and non-REI in-vehicle systems
LAN Ports (IPC, etc.): Front panel LAN port for local DVR configuration, camera
adjustment, IP camera setup, etc.
Front Panel Audio/Video Port: Front panel composite audio/video outputs for local
DVR configuration, camera setup, etc. using a USB mouse
Vehicle Interface (J1939): Dual SAE J1939 250kbps/500kbps interface for
connection to in-vehicle networks, multiplex systems, etc.
Accessory Port (RS485): For connection to optional REI peripherals, including
accelerometer, output modules, display modules, RFID, etc., and non-REI devices
GPS/Status Port (RS232): Optional external (RS232) GPS receiver Optional
GPS/Status output (RS232) for interface to third-party AVL systems
Sensor Inputs: Eight sensor inputs for detection of vehicle signals (brakes, turn
signals, etc.)
HD6-600 Mobile DVR
Page 11 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Figure 3: Rear Panel Layout
Live View
The default view in live view mode using a video monitor connected to the front of the 6-
channel DVRs displays all channels in matrix view. Left clicking a USB mouse while in
matrix view displays the video from that window into full screen. Left clicking the mouse
returns the display to matrix view.
Initial Set Up
The HD6-600 Mobile DVR system will operate prior to any user setup with the default
settings. However, it may not show the correct time and date (factory set to Central
Standard Time). To set the correct date and time, and program the system operation to your
requirements, refer to the Menu Configuration section of this manual.
When accessing the menu, it is necessary to connect a video monitor to the video jack on
the front or back of the unit. REI recommends using its battery-powered color LCD monitor
P/N 750207.
HD6-600 Mobile DVR
Page 12 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22

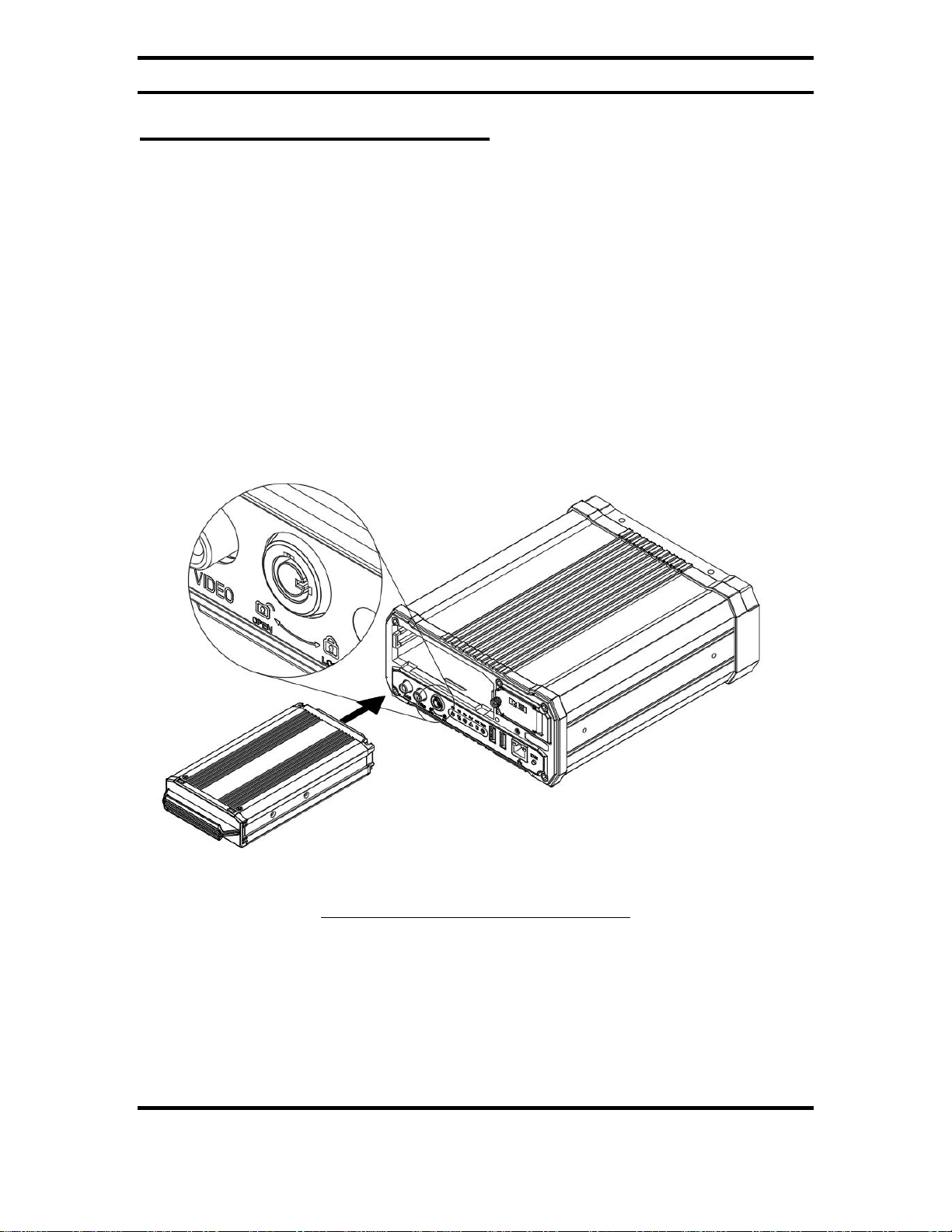

Removable HDD and SD Card
DVR Loading and Unloading
Inserting HDD: Turn the HDD key to the unlocked and off position. Slide the HDD into
the DVR and press firmly to make sure it is all the way in. Turn the HDD key to the locked
and on position.
Removing HDD: Turn the HDD key to the unlocked and off position. Grab the handle on
the HDD and carefully pull it out.
Note: The HD6-600 Mobile DVR will function even in the absence of an HDD. Without
HDD, DVR will power on and allow the user to configure the settings, but it will not
record any videos unless the user loads the HDD and locks the HDD key.
Figure 4: Removable Hard Drive Module
HD6-600 Mobile DVR
Page 13 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
SD Card Loading and Unloading
Inserting SD Card: Open the access door and insert the SD card all the way in until it
locks in place.
Removing SD Card: Push on the SD card all the way in, then release to eject the SD card.
Figure 5: Removable SD Card
HD6-600 Mobile DVR
Page 14 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
HDD Record Times
To help estimate record times please visit our website www.radioeng.info/rte/HD6.zip.
Figure 6: Estimator for HDD Record Times (HD5 shown)
Long Term Storage
The HD6-600 Mobile DVR system draws a small amount of current in stand-by mode.
If the systems are installed, but not used for an extended length of time (i.e., longer than
two weeks) it is recommended that the power be disconnected from the DVR to avoid
draining the vehicle battery. The DVR internal clock will hold the time and date for up
to 10 years sitting on a shelf. The daylight-saving time functions will resume upon re-
initialization when power is applied.
HD6-600 Mobile DVR
Page 16 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
External Record Indicator / Event Mark Button Harness
Figure 8: External Record Indicator/Event Mark Button Harness Connection
The optional external record indicator / event mark button harnesses (Panic Button) are
available with two different types of switches, OEM, and aftermarket. The OEM switch is
rectangular and fits into a standard size dashboard knockout. The aftermarket switch is
round, for easier installation in vehicles without spare switch knockouts. Both styles of
switches plug into the same port on the back of the DVR.
HD6-600 Mobile DVR
Page 17 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
GPS Antenna Module Harness
Figure 9: GPS Antenna Module Harness Connection
The optional DVR GPS antenna module harness plugs into the back of the DVR. This
module will track up to 12 satellites at a time while providing one-second navigation
updates at low power consumption.
The GPS antenna module is housed in a black, water-resistant case and designed to
withstand rugged operating conditions. Information provided to the DVR system includes
longitude, latitude, speed, heading, date, and time. Internal memory backup allows the
GPS antenna module to retain critical data such as satellite orbital parameters, last position,
date, and time to reduce valid data acquisition time.
The 710214 GPS antenna is used for extremely accurate requirements, if the DVR is used
with a lot-based Wi-Fi network, it could be more cost effective to use the combination Wi-
Fi/GPS antenna that comes with the higher end DVRs.
HD6-600 Mobile DVR
Page 18 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Vehicle Sensor Options Harness
Figure 10: Vehicle Sensor Options Harness Connection
The Vehicle Sensor Options harness connects to various locations in the vehicle to
provide on-screen information regarding vehicle performance. Vehicles have different
sets of signals that can be monitored. Two levels of pre-defined on-screen displays are
available to the installer: SCHOOL BUS and TRANSIT.
The default SCHOOL BUS monitored points in the vehicle are:
•Red warning lamp operation
•Amber warning lamp operation
•Left turn signal
•Right turn signal
•Stop arm lamp operation
•Brake activation
•Front Door
•Rear Door
The default TRANSIT monitored points in the vehicle are:
•Auxiliary 1
•Auxiliary 2
•Left turn signal
•Right turn signal
•Warning lamp operation (de-acceleration lights)
•Brake activation
•Front door switch operation
•Back door switch operation
•Optional point with Auxiliary
Aux inputs are user-
defined and may be
used to monitor
points such as
wheelchair lifts,
inertia sensors, etc.
HD6-600 Mobile DVR
Page 19 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
Vehicle Sensor Options Harness Vehicle Connections
(Shown as School Bus)
WIRE COLOR
WIRE DESCRIPTION
BLACK
RED WARNING LAMP
BROWN
YELLOW WARNING LAMP
RED
LEFT TURN SIGNAL
ORANGE
RIGHT TURN SIGNAL
YELLOW
STOP ARM
GREEN
BRAKES
BLUE
FRONT DOOR
VIOLET
REAR DOOR
Yellow Warning Lamps
Connect the BROWN wire to the Yellow lamp output of the Warning Lamp
Flasher.
Red Warning Lamps
Connect the BLACK wire to the Red lamp output of the Warning Lamp Flasher.
Stop Arm Lamps
Connect the YELLOW wire to the switched side of the stop arm lamp.
Brake Lamp
Connect the GREEN wire to the switched side of one brake lamp.
Turn Signals
Connect the RED and ORANGE wires to the left and right turn signal lamps.
Front and Back Doors
Connect the BLUE and VIOLET wires to the switched side of the door switches.
HD6-600 Mobile DVR
Page 20 of 67
Radio Engineering Industries, Inc.
640611 –8/17/22
On-Screen Information with Vehicle Sensor Options Harness
The HD6-600 Mobile DVR Surveillance system, when equipped with the HD6-600 Mobile
DVR Option Harness, will display information on-screen in the Installers Mode when the
monitored switches on the vehicle are activated and signals are applied to the monitored
sensors.
ACTIVE SWITCH OR SIGNAL
ON-SCREEN DISPLAY
BRAKE APPLIED
BR
STOP ARM DEPLOYED
SA
YELLOW WARNING LAMPS On
YW
RED WARNING LAMPS On
RW
LEFT TURN SIGNAL On
LT
RIGHT TURN SIGNAL On
RT
FRONT DOOR OPEN
FD
REAR DOOR OPEN
RD
SPEEDOMETER
(SEE NOTE 1)
XX MPH
NOTE 1: The XXs represent the vehicle speed (i.e., 35).
