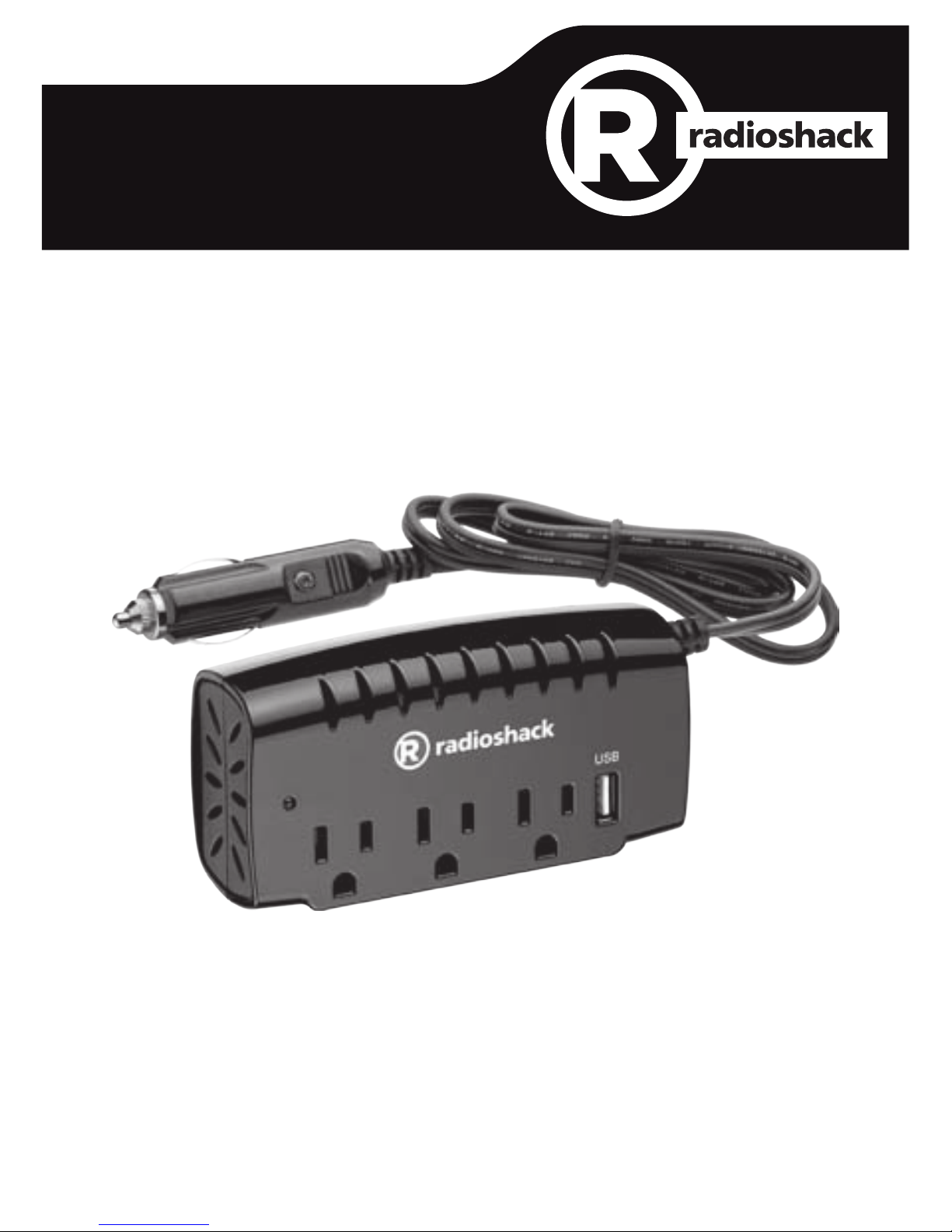

We hope you enjoy your 150-Watt Power Inverter from
RadioShack. Please read this user’s guide before using
your new inverter.
150-Watt
Power Inverter

WIRELESS TOUCHPAD KEYBOARD
COMPACT USB RECEIVER
barely protrudes from
your computer
2-IN-1 TOUCHPAD
lets you use touch gestures
to navigate through Windows
8 and other applications
NUMERIC KEYPAD
is activated when you press
the number lock button
WIRELESS TOUCHPAD KEYBOARD
2

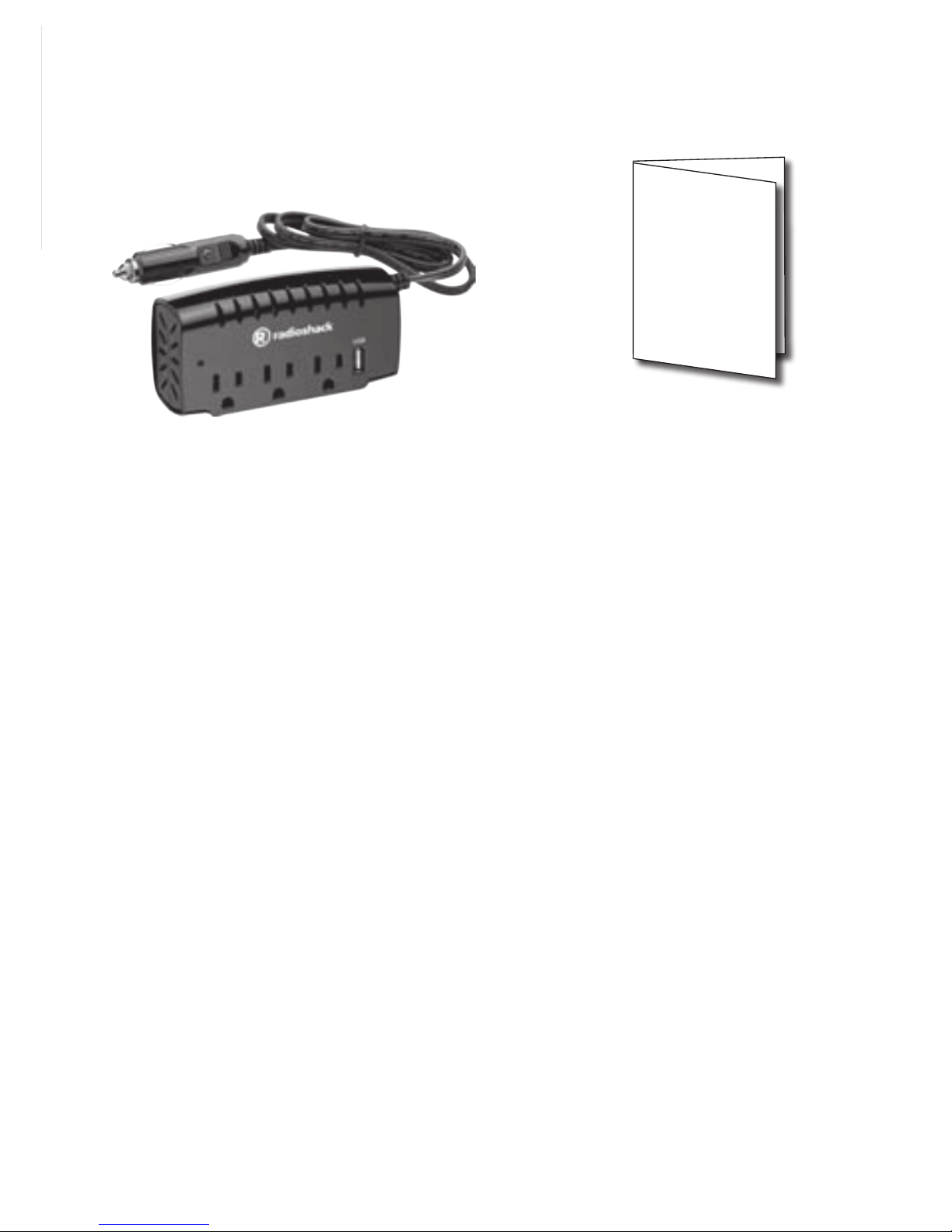

Package Contents
Features
• Operate115VACequipmentfromyourvehicle.
• Threeoutletsallowoperationofmultipledevices
suchasdigitalcameras,DVDplayers,portable
TVs,andmanyotheritems.
• PowerUSBdevicessuchascellphones,
handheldgames,andMP3players.
• Automaticallyshutsoifyourvehicle’sbattery
runslow.
User’s
Guide
Power Inverter

WIRELESS TOUCHPAD KEYBOARD
COMPACT USB RECEIVER
barely protrudes from
your computer
2-IN-1 TOUCHPAD
lets you use touch gestures
to navigate through Windows
8 and other applications
NUMERIC KEYPAD
is activated when you press
the number lock button
WIRELESS TOUCHPAD KEYBOARD
3
Using Your Inverter
1. Plugthepowerinverterintoyourvehicle’s
powersocket.
2. Plugindevices.
PluginanACdevice
(max150watts).
LEDlightswheninverter
isconnected.

WIRELESS TOUCHPAD KEYBOARD
COMPACT USB RECEIVER
barely protrudes from
your computer
2-IN-1 TOUCHPAD
lets you use touch gestures
to navigate through Windows
8 and other applications
NUMERIC KEYPAD
is activated when you press
the number lock button
WIRELESS TOUCHPAD KEYBOARD
4
nNote:
• Devicemustdraw150Worlessof
continuous AC power.
• Ifnecessary,youcanuseanAC
extension cord. The extension
cord’s rating should be equal to or
greater than the device’s rating.
• If the USB port and or AC outlets do
notwork,butLEDlightsupnormally,
unplug the inverter then plug it back
intothepowerport,makingsure
you insert properly and securely.

WIRELESS TOUCHPAD KEYBOARD
COMPACT USB RECEIVER
barely protrudes from
your computer
2-IN-1 TOUCHPAD
lets you use touch gestures
to navigate through Windows
8 and other applications
NUMERIC KEYPAD
is activated when you press
the number lock button
WIRELESS TOUCHPAD KEYBOARD
5

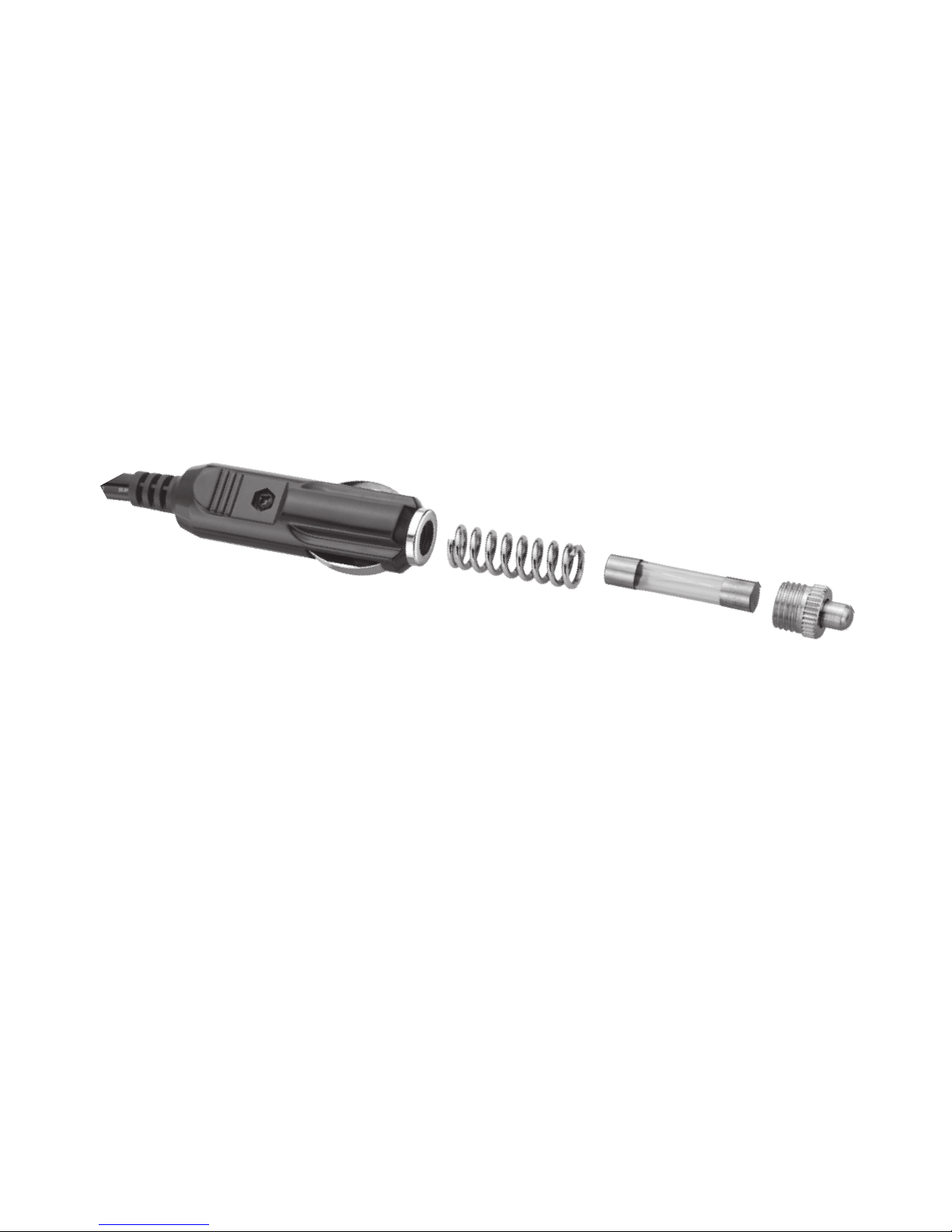

Replacing the Fuse
Ifthefuseisblown,replaceitwitha20A,250Vtube-
typefuse(notsupplied).
1. Unscrewinvertercap.
2. Replacethefuse,thenscrewtheinvertercap
backon.
wCaution:
• Donotuseafusewithadierentrating.Doingso
can damage your inverter.
• Watchoutforlooseparts(springcoilandinverter
tip) when replacing the fuse.

WIRELESS TOUCHPAD KEYBOARD
COMPACT USB RECEIVER
barely protrudes from
your computer
2-IN-1 TOUCHPAD
lets you use touch gestures
to navigate through Windows
8 and other applications
NUMERIC KEYPAD
is activated when you press
the number lock button
WIRELESS TOUCHPAD KEYBOARD
6
Heat Dispersion
Thepowerinverter‘sthermalprotectionprevents
itfromoperatingwhenitstemperatureexceed
167°F(75°C).Iftheinvertergetstoohotwhile
working,itwillturno.Positionthepowerinverter
whereairowsfreelyaroundittoallowtheheatto
disperse.Operationresumeswhenthetemperature
decreasestoabout154°F(67°C).
Safety Information
WARNING! Shock Hazard
This150Winvertergeneratesthesamepotentially
dangerousACvoltageasahouseholdwalloutlet.
Failuretofollowthesewarningsmayresultinpersonal
injuryordamagetotheinverter.
Donotinsertforeignobjects
intotheinverter’sACoutletsor
vents.
Donotexposetheinverterto
water.

7
Caution
• Donotconnectdevicesthatrequirepower
greaterthan150watts.
• Thetotalpowerformultipledevicesconnected
totheACandUSBsocketscannotexceed150
watts.Ifyoudonotknowthetotalpowerforyour
devices,connectjustonedevice.
• Alwaysremovetheinverterfromthelighter
socketwhennotinuse.
• Thepowerinverter’spowerplugmaygethot
whileitispluggedintoapowersocket.Usea
clothoraglovetounplugitfromthesocket.
• Lettheinvertercooldowncompletelybefore
youstoreit.
• Duringoperation,keeptheinverteraway
frommaterialsthatmaybeaectedbyhigh
temperatures.
• Makesurethepowersocketandplugareclean.
Adirtysocketcanpreventtheinverterfrom
workingproperly.
• Donotusethepowerinverterinapositive-
groundedvehicle.Checkwithyourvehicle
dealeroramechanictondoutifyourvehicleis
positive-grounded.

8
Troubleshooting
Theinverterwillshutdown(theLEDashes)under
conditionssuchasexcessivetemperature,overload,
orlowvoltage.Followtherecommendedsolutionsto
restoreoperation.
Cause Solution
Faultydevice
pluggedintothe
inverter
Tryanotherdevice.Ifanother
deviceworksusingtheinverter,
therstdevicemaybefaulty.
Temperature
exceeds167°F
(75°C)
Disconnectalldevicesand
waituntiltheinvertercools.
Yourdevice’spowerrequire-
mentmightalsoexceedthe
inverter’srating(see“Heat
Dispersion”onpage6)
Continuous
Powerload
exceeds150W
Disconnectalldevices.Only
connectdeviceswithacon-
tinuouspowerloadof150W
orless.
Vehiclebattery
voltageislower
than10V
Runthevehicle’sengineto
rechargethebattery,then
connecttheinverterintoyour
vehicle’spowersocket.

9
USBcurrent
exceeds3.8A
Disconnectalldevicesfromthe
inverter.Unplugtheinverter
thenplugitbackintothe
powerport.Thetotalpower
requirementfromyourdevices
mustbelessthan3.8A.
Specications
Input................................................................ 11~16VDC
Output...................................115V±10VAC,60Hz±3Hz
StandbyCurrent................................<0.4A@13.5VDC
OutputPower................ 300Wpeakpowerfor1cycle
............................................... @60Hz,150Wcontinuous
USBOutput...................................5VDC±5%,1A(max)
AutoShut-o............................................... Shortcircuit
.......................................... Temperature>167°F(75°C)
............................................................. Powerload>150W
...................................................Vehiclebattery<10VDC
Fuse................................................... 20Atube-typefuse
Dimensions(L×W×H)..............................5×2.6×1.5in
................................................... (126.9x66.7x38.9mm)
Specicationsaresubjecttochangeand
improvementwithoutnotice.Actualproductmay
varyfromtheimagesfoundinthisdocument.
