Radio Shack DC-to-AC Power Inverter User manual

2345

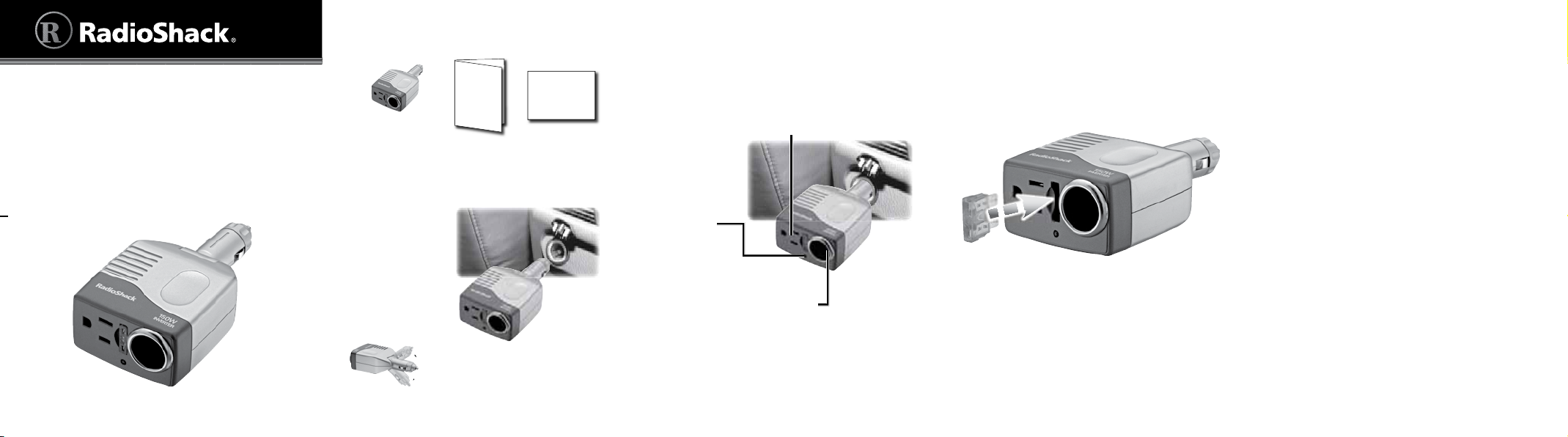

Plug Inverter into your vehicle’s
power port.
The power port
must be rated for
at least 20 amps
to continuously
power a 150 watt
load.
Adjust the inverter plug for
better positioning.
Thank you for purchasing your 150-Watt
DC-to-AC Power Inverter from RadioShack.
Please read this user’s guide before installing,
setting up, and using your new Power Inverter.
Check package contents Plug in an AC device
Device must draw 150W or less of continuous
AC power.
If necessary, you can use an AC extension
cord. The extension cord’s rating should be
equal to or greater than the device’s rating.
Plug in a DC device
You can use an AC and a DC device at the
same time, but the total current cannot
exceed 15 amps.
150-Watt • DC-to-AC Power Inverter
User’s Guide 22-154
Power
Indicator
Lights when
the inverter is
connected.
Replacing the Fuse
If the fuse has blown, replace it with a 20A
blade-type fuse (not supplied).
1. Take out the fuse with pliers.
2. Insert the new fuse.
YCaution: Do not use a fuse with a
different rating. Doing so can damage your
inverter.
Troubleshooting
If an appliance doesn’t power up, or the
power indicator doesn’t light, there are several
possible causes:
• Defective device plugged into the
inverter.
Try another device to see if the first one is
defective.
• Vehicle battery voltage is lower than 10V.
Run the vehicle’s engine to recharge the
battery.
•Temperature exceeds 158°F (70°C).
Unplug the appliance and wait until the
inverter cools. See “Heat Dispersion.” Your
device’s power requirement might also
exceed the inverter’s rating.
•Continuous power load exceeds 150
watts.
Disconnect the device. Use only devices
with a continuous power load of 150 watts
or less.
•Blown fuse.
See “Replacing the Fuse.”
Quick Start
User’s
Guide
Power Inverter

678910
Heat Dispersion
The inverter’s thermal protection prevents it
from operating when its temperature exceeds
158°F (70°C). If the inverter gets too hot while
working, it will turn off. Position the inverter
where air flows freely around it to allow the
heat to disperse. Operation resumes when the
temperature decreases to about 104°F (40°C).
Safety Information
WARNING! Shock Hazard
This 150W inverter generates the same
potentially dangerous AC voltage as a
household wall outlet. Failure to follow these
warnings may result in personal injury or
damage to the inverter.
Do not insert foreign objects
into the inverter’s AC outlets
or vents.
Do not expose the inverter to
water.
YWCaution:
• Do not connect devices that require power
greater than 150 watts to the inverter.
• Do not use the power inverter in a
positive-grounded vehicle. Check with
your mechanic to determine if your vehicle
is positive-grounded.
• The total current for multiple devices
connected to the AC and DC socket
cannot exceed 15 amps. If you do not
know the total amps for your devices,
connect just one device.
• During operation, keep the inverter away
from materials that may be affected by
high temperatures.
• Make sure the power port and plug are
clean. A dirty power port can prevent the
inverter from working properly.
• Always remove the inverter from the
power port when not in use.
• Let the inverter cool down completely
before storing.
Specifications
Input .................................................... 11 ~ 16V DC
Output ...................115V AC (± 10V), 60Hz (± 3 Hz)
Standby Current...........................<0.4 [email protected]
Output Power..................150W Continuous Power
Fuse ........................................20A, 32V Blade-Type
Dimensions (H × W × D) ....... 1.46 × 2.68 × 5.31 in
....................................................(37 × 68× 135 mm)
Weight ................................................ 6.5 oz (185 g)
Specifications are subject to change and
improvement without notice. Actual product may
vary from the images found in this document.
Protect the environment. Go to
E-CyclingCentral.com to find an
electronic recycling center near you.
FCC Information
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult your local RadioShack store or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Limited Warranty
RadioShack warrants this product against defects in materials and
workmanship under normal use by the original purchaser for ninety (90)
days after the date of purchase from a RadioShack-owned store or an
authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO
OTHER EXPRESS WARRANTIES.
This warranty does not cover: (a) damage or failure caused by or
attributable to abuse, misuse, failure to follow instructions, improper
installation or maintenance, alteration, accident, Acts of God (such
as floods or lightning), or excess voltage or current; (b) improper or
incorrectly performed repairs by persons who are not a RadioShack
Authorized Service Facility; (c) consumables such as fuses or batteries; (d)
ordinary wear and tear or cosmetic damage; (e) transportation, shipping
or insurance costs; (f) costs of product removal, installation, set-up service,
adjustment or reinstallation; and (g) claims by persons other than the
original purchaser.
Should a problem occur that is covered by this warranty, take the
product and the RadioShack sales receipt as proof of purchase date to
any RadioShack store in the U.S. RadioShack will, at its option, unless
otherwise provided by law: (a) repair the product without charge for
parts and labor; (b) replace the product with the same or a comparable
product; or (c) refund the purchase price. All replaced parts and products,
and products on which a refund is made, become the property of
RadioShack. New or reconditioned parts and products may be used
in the performance of warranty service. Repaired or replaced parts and
products are warranted for the remainder of the original warranty period.
You will be charged for repair or replacement of the product made after
the expiration of the warranty period.
RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDI-
TIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WAR-
RANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE
ON THE EXPIRATION OF THE STATED WARRANTY PERIOD.
EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO
LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT
OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY
LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY
USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF
ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED
TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY
LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Some States do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from State to State. You may contact RadioShack at:
RadioShack Customer Relations
300 RadioShack Circle, Fort Worth, TX 76102 04/08
www.RadioShack.com
Printed
in Taiwan 02A09 22-154
©2009. RadioShack Corporation.
All rights reserved. RadioShack and RadioShack.com are
trademarks used by RadioShack Corporation.
