15-1867 OWNER’S MANUAL — Please read before using this equipment.
Thank you for purchasing the RadioShack Night Light/
Indoor TV Antenna. It can receive both VHF and UHF
channels, and consists of loop and telescoping antenna
elements. A 6-foot coaxial cable with a gold plated male F-
connector is attached to the antenna for TV connection.
219'4+0)"6*'"#06'00#
Your antenna uses an optional 4.5V DC, 100mA adapter or
three size C batteries (not supplied, available at your local
RadioShack store) for illuminating the night light indicator.
After connecting to power, press LIGHT to turn the light on or
off while in darkness. .#
.#.#
.#±
9+6*"#0"#&#26'4
Plug a 4.5V DC, 100mA adapter into the antenna’s DC 4.5V
jack. Plug the adapter into an AC outlet.
9+6*"$#66'4+'5
1. Use a screwdriver to loosen the screw from the battery
compartment cover, and remove the cover.
#"+/2146#06"#
If an icon appears at the end of a
paragraph, go to the box on that
page with the corresponding icon
for pertinent information.
Rý— Warning #— Important
.
..
.— Caution °
°°
°— Hint
±— Note
VHF Telescope Rod Antennas — Swivel up
to 180 degrees for the best VHF reception.
UHF Turntable Knob
— Adjust knobs to
receive UHF stations in
most metropolitan
areas.
UHF Turntable
Knob
LIGHT — After connecting to
power, press it to turn the night
light on or off when in darkness.
TUNING — Adjust to 12
different settings to fine tune
VHF channels.
."%#76+10".
If you do not plan to use the
antenna for several months,
remove the batteries. Batteries can
leak chemicals that can destroy
electronic parts.
±"016'"±"
• The power from the batteries or
adapter is only for the night light
LED. The antenna will work
without the power for the LED.
• The antenna has a light sensor
circuit that automatically lights if
you are using an adapter or
have batteries installed. If you
press LIGHT while in a dark
room, the light turns on. When
the surroundings are bright, the
light will not turn on when you
press LIGHT.
0KIJV".KIJV"1"+PFQQT"68"#PVGPPC

15-1867
AO0115AAA1
05A02
Printed in China
RadioShack Corporation
Fort Worth, Texas 76102
2. Place three batteries in the compartment according to
the polarity symbols (+and –) marked inside.
3. Replace the cover and secure it with the screw.
%100'%6+0)"#0&"75+0)"
6*'"#06'00#

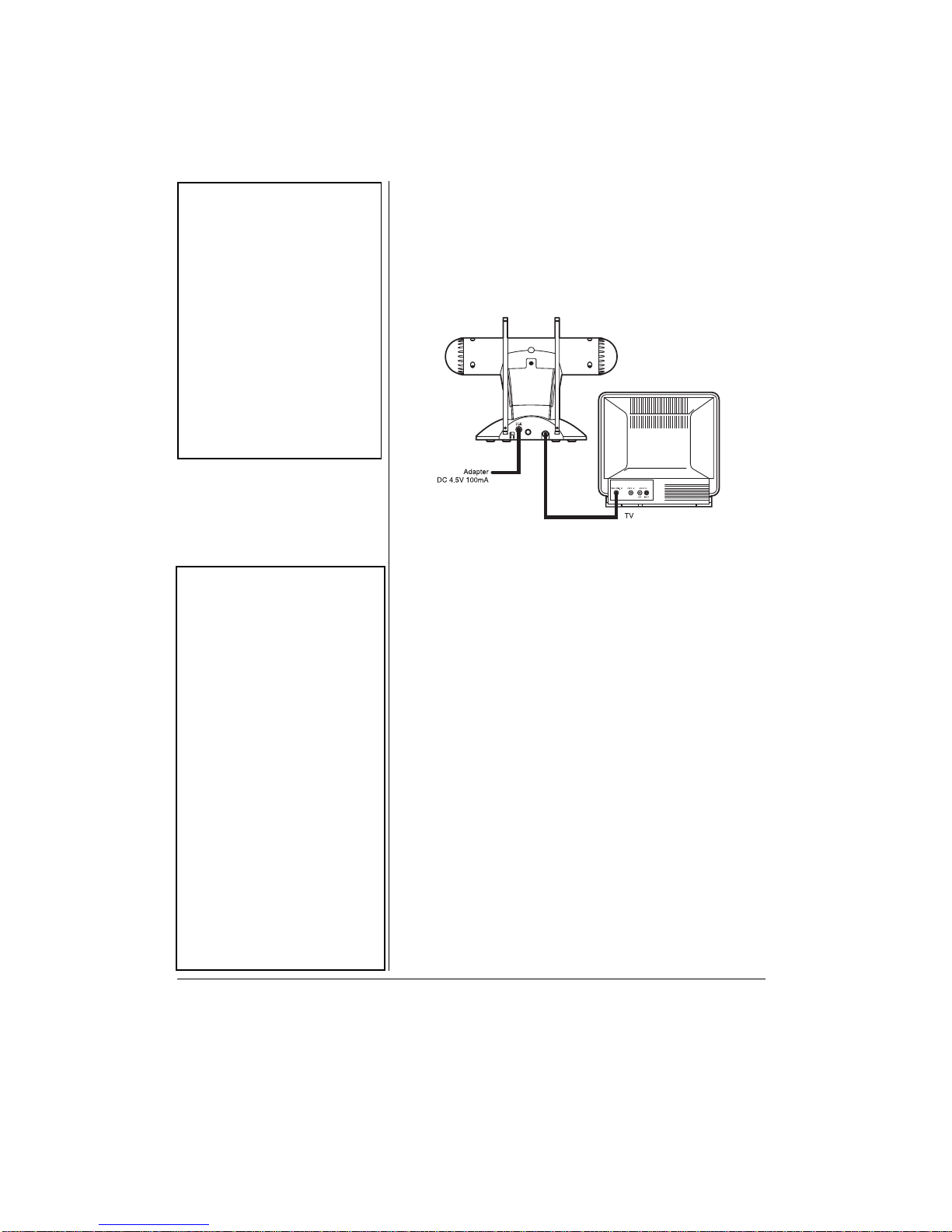

1. Place the antenna on the top of the TV set.
2.
If your TV has a 75-ohm female F-connector,
screw the
antenna cable’s F-connector onto the TV’s antenna
terminal. Then turn the connector clockwise. ±
If your TV has a 300-ohm twin-lead connector,
you
need an optional adapter (available at your local
RadioShack store) to connect to it.
3. For the best VHF reception, fully extract the rod
antennas and adjust the position of the antenna base.
Adjust TUNING to improve the VHF reception.
4. For the best UHF reception, rotate the antenna base or
the UHF turntable knobs.
%#4'
Keep the antenna dry; if it gets wet, wipe it dry immediately.
Use and store the antenna only in normal temperature
environments. Handle the antenna carefully; do not drop it.
Keep the antenna away from dust and dirt, and wipe it with
a damp cloth occasionally to keep it looking new. ±
±"016'"±"
Connecting and Using the
Antenna
Some rooms have dead spots, or
null points, where no TV signals
can be received. If the reception is
poor, move the antenna around the
room for maximum reception.
Service and Repair
If your antenna is not performing as
it should, take it to your local
RadioShack store for assistance.
Modifying or tampering with the
antenna’s internal components can
cause a malfunction and might
invalidate its warranty.
