RADIVA Arno User manual

Date, Stamp and Signature
RADİVA ISI SİSTEMLERİ SAN VE TİC LTD. ŞTİ.
Head Office: Esenyalı Mah. E-5 Yanyol Cad. Varyap Plaza
No:61 D:178 Pendik / İSTANBUL
Warehouse: Organize cad. No:3 Alt kat Depo-1 Balçık
Köyü-Gebze / KOCAELİ
[phone] Web:www.radiva.com.tr

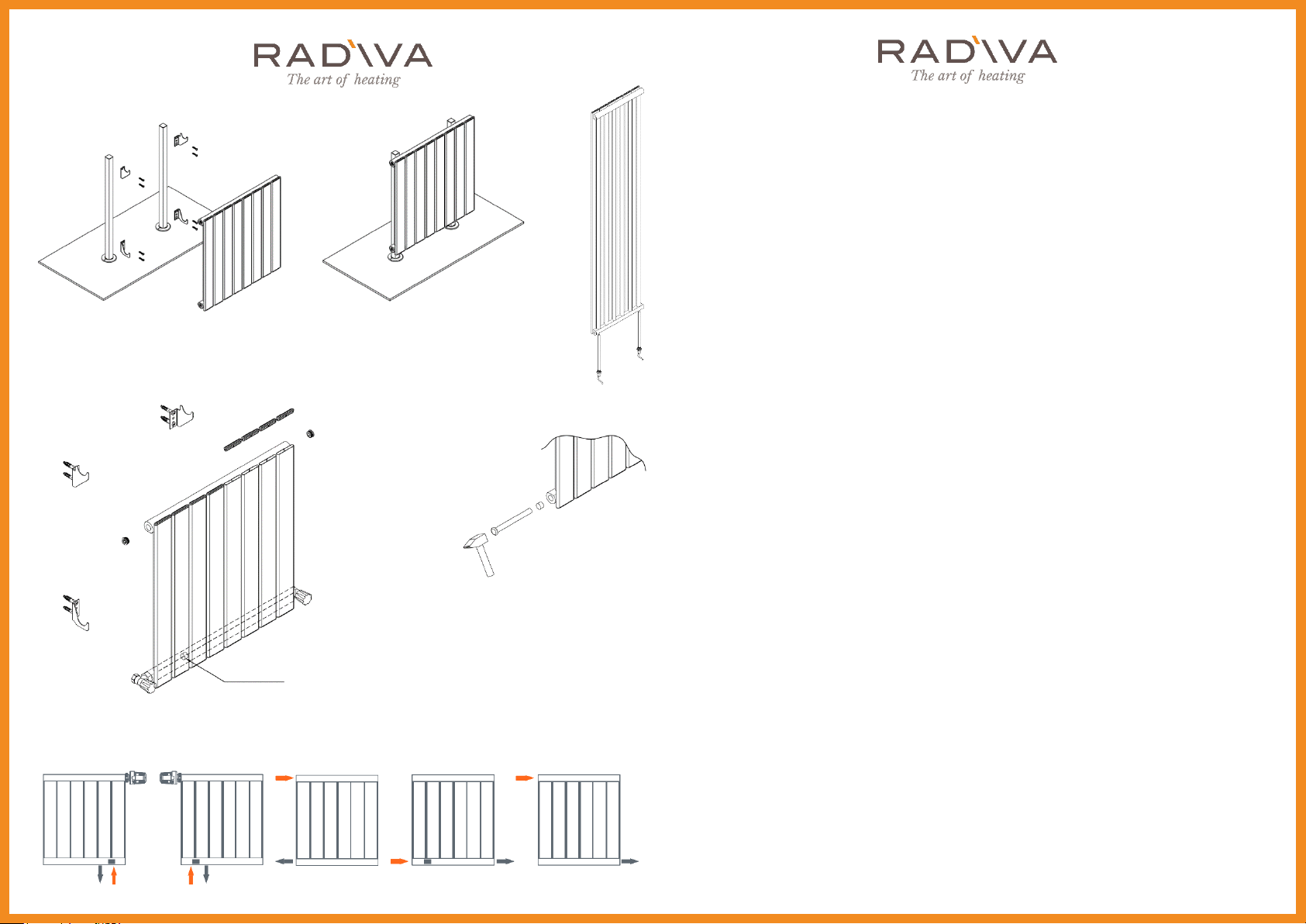

Assembly Instructions
WARRANTY CONDITIONS
Warranty Period shall start on the date of invoice of the product and is 5 years.
1- All of the products, including all of its parts, are under the warranty of our company.
2- In case that the product becomes defective during warranty period, the period to elapse in repair shall be added to the warranty
period. Delivery period for the product shall be 30 business days. This periods starts from the date of delivery of the product to the
service station, or, in the lack of service station, to any of the seller, dealer, agency, representative, importer or exporter of the
product. In case that the defect of the industry product could not be corrected in 15 days, the importer or exporter is required to
allocate to the use by the consumer another product that has similar specifications until the repair of the product is completed.
3- In case that the product becomes defective due to material or production errors within the warranty period, it shall be repaired
without claiming for any workmanship cost, cost of replaced part or any other charge under any name whatsoever.
4- In spite of the consumer using the right of repair, if the product
a)becomes defective for the same fault more than twice in the same year following the date of delivery to the consumer, or
different defects occur more than four times, provided that these shall remain within the warranty period specified, or is the sum
of difference defects within the specified warranty period is more than six times, and additionally these defects make inability to
use the product continuous,
b)the maximum period required for repair is exceeded,
c)the company does not have a service station;
upon the agreement of the producer and if it is determined that it is not possible to repair the defect with a report to be prepared
one of the seller, dealer, agency, representative, importer or exporter of the product in the same order, the consumer may as for
free replacement of the product, return the price thereof, or ask for discount equal to the rate of defect.
5- All these warranty conditions are applicable if there are no issues which exclude the product from warranty scope.
ISSUES WHICH EXCLUDE THE PRODUCT FROM WARRANTY SCOPE
1- Using the product in violation of and/ or without respect to the issues specified in the Assembly and Operating Manual,
2- Using well water, or water which has a value exceeding the PH (min 6.5 - max 8), total hardness (max. 25 Fr), chloride (max 500
ppm) limits, which is deforming, corrosive, calcifying in the installation during the initial start-up or thereafter even for testing
purposes, ,
3- Using substances such as inhibitor, anti-freeze, pH regulator, anti-calcification and anti-bacterial, chemical claimed to increase
radiator efficiency etc. without written approval of RADİVA.
4- Not making the building and installation grounding in accordance with regulations,
5- Making erroneous installation or faulty mounting not in compliance with the installation technique,
6- Not using pressure reducer in installations where water input pressure is higher than 10 bars,
7- Finding corrosive and clogging substances such as sand, construction debris, plaster etc. in the installation water,
8- Defects that occur with the freezing of the installation water,
9- Damages that occur due to falling and colliding during loading, transportation, unloading, stocking or mounting.
10- Trying to clean the radiators with hard or corrosive cleaning substances, and defects that occur on the surface for that reason,
11- The product being exposed to corrosive effect arising from storage conditions at the construction site prior to mounting, or
being impacted etc.
12- Failure to present the warranty document, or making any alteration on the warranty document, shall exclude the product from
warranty scope.
For any disputes with regard to warranty period, the invoice date shall be taken as basis and it is necessary to present the invoice. .
Model
A (mm)
Aks (centres) (mm)
C (mm)
E (mm)
Arno
45
H - 50
W - 175
H - 110
Oti
65
H - 50
W - 175
H - 110
Bia
45
H - 50
W - 140
H - 110
Tano
65
H - 50
W - 140
H - 110
Kotto
65
H - 50
W - 120
H - 135
Mati
45
H - 50
W - 165
H - 110
Part
Number
Quantity
1
45
2
65
3
45
4
65
5
65
6
45
7
1

ISSUES TO PAY ATTENTION PRIOR TO ASSEMBLY
RADİVA ALUMINUM RADIATOR shall be assembled and commissioned by expert persons with experience in aluminum radiator in
compliance with the principles specified in the assembly guide and standards related to installation principles in heating systems.
Prior to mounting the radiators to the installation, make relevant checks and cleaning or have these made, in order to make sure
that there is no construction debris or chemical substance in the heating device as well as overall installation. Debris or chemicals
that are present in the heating device or installation may clog the water canals of the radiator or may damage the water canals of
the radiator. Damages to be caused by chemicals or debris shall be outside the warranty scope.
Pressure reducer shall be used in installations where water input pressure is higher than 10 bars. Problems that occur from not
using pressure reducer shall be excluded from warranty scope.
The system shall be grounded against electricity leakage. The product shall be excluded from warranty scope of there is no
grounding.
Check that hot water input - output connections to the radiator are correct. Ways of connection not in compliance with
installation rules shall prevent the operation of your radiator.
Mount your radiator without removing from its nylon packaging. Remove the protective nylon before use after all modification
and painting works are completed. (Initial commissioning operation could be performed while the protective nylon is on the
device)
RADİVA radiators can be easily mounted to the wall with the help of consoles. Radiator valve connections are G 1/2”. Radiator
valves to be used shall be chromium or nicked coated. All elements required for assembly are inside the packaging.
ISSUES TO PAY ATTENTION DURING ASSEMBLY
Locate the radiators on the consoles by means of the hanger elements at the back.
Make sure that the radiators is at scale after being placed on the console. If there is any slope in the radiator, some slices may not
heat up, preventing operation with full efficiency.
ISSUES TO PAY ATTENTION DURING AND AFTER COMMISSIONING
DO NEVER USE WELL WATER in your system (even if for testing the heat system).
Using well water, water with hardness over 25 Fr and pH value outside the 6,5 - 8 interval (with acidic or basic character) shall
exclude the product from warranty.
After the assembly is completed, perform initial water filling to the installation and after a water circulation of 5 minutes, make
sure that you evacuate all water and remove all construction and installation debris.
Fill the installation with water, heat the radiators, and evacuate the air of radiators using the air relief clock at the corner of the
radiator. Repeat the air evacuation process in a few following heating. If the radiator sounds as if water is flowing inside, this
means that air is trapped in. In this case repeat the air evacuation process.
Do not add any chemical substance (inhibitor, anti-freeze, pH regulator, anti-calcification and anti-bacterial agent, chemicals
claimed to increase radiator efficiency etc.)which is not approved by RADİVA in writing. Otherwise the radiators will be excluded
from warranty scope.
System (or combi boiler) filter shall be checked as certain intervals, and any clogging shall be cleaned. If the filter is clogged, the
efficiency will decrease since there will not be sufficient amount of water circulation in the radiators.
Take relevant measures in order to prevent freezing of water in the installation. Freezing of the water will damage the radiator and
damage caused by the freezing water will be excluded from warranty.
Do never clean your radiator with a hard cleaning materials that leave marks. Do not use any chemical such as bleacher,
hydrochloric acid etc., and clean with a wet and soft cloth. Chemicals and corrosive substances will damage the paint or eloxal
layer on the radiator. Damages to occur in this way are excluded from warranty.
Pipe connection types
Flow diverter
