RADLEY 1270-003 User manual

3 Year limited warranty for tool
JD3515TU
E114847

1

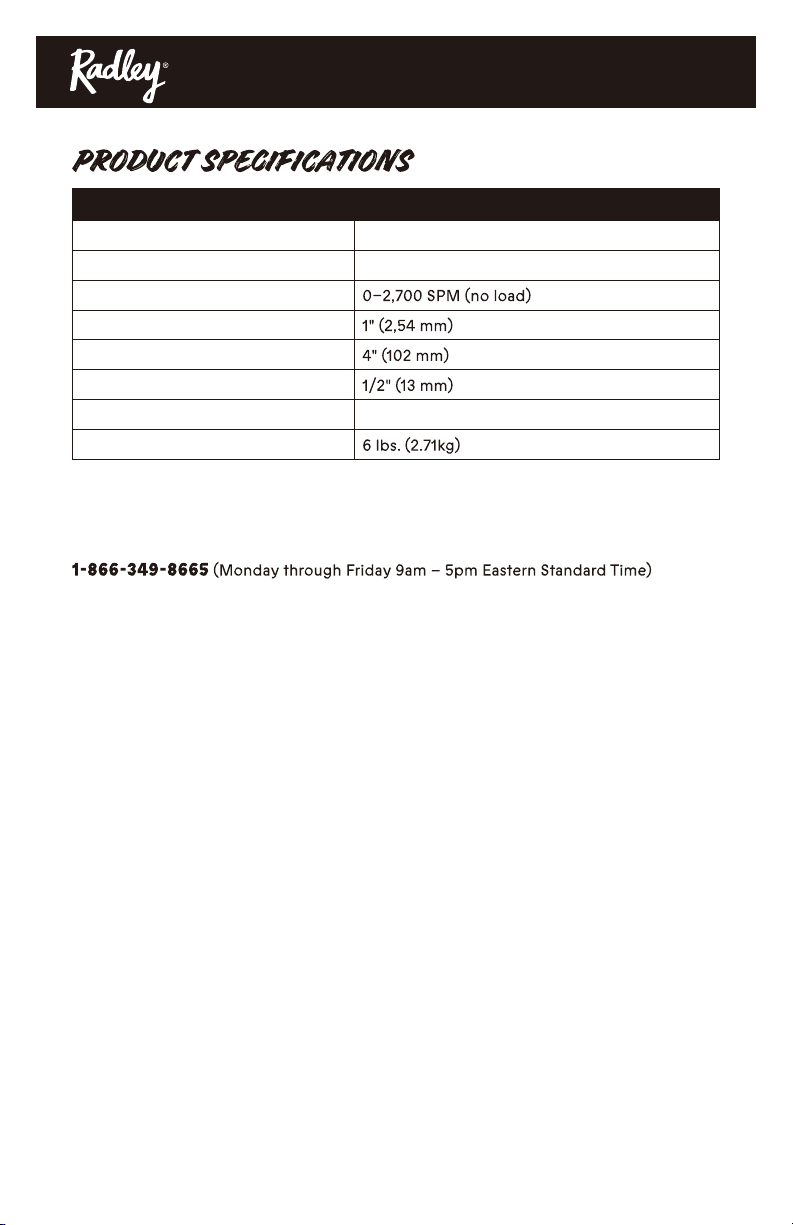

6 AMP RECIPROCATING SAW
Rating 120V, 60Hz, AC
Amperes 6 AMP
Variable Speed
Stroke Length
Maximum cutting depth in wood
Maximum cutting depth in metal
Blade change system Tool-less
Weight
NEED ASSISTANCE?
Call us on our toll-free customer support line:
•Technical questions
•Replacement parts
•Parts missing from package.

1270-003
6 AMP RECIPROCATING SAW
2
...........................................................................................................1
Table of contents.................................................................................................................... 2
General safety warnings....................................................................................................
....................................................................................................
......................................................................................................................
Power tool safety................................................................................................................
......................................................................
............................................................................................................ 7
8
6
5
4-5
Symbols ...................................................................................................................................
Know your reciprocating saw............................................................................................... 9
16
9-15
17-18
Assembly and operating..................................................................................................
.......................................................................................................................
Parts listing.......................................................................................................................
Warranty ................................................................................................................................ 19

WARNING
Before using this tool or any of its accessories, read this manual and follow all
Safety Rules and Operating Instructions. The important precautions, safeguards
and instructions appearing in this manual are not meant to cover all possible situations.
It must be understood that common sense and caution are factors which cannot
be built into the product.
SYMBOL MEANING
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH
CSA Z94.3 or ANSI SAFETY STANDARD Z87.1
Non-compliant eyewear can cause serious injury if broken
during the operation of a power tool.
Use hearing protection, particularly during extended periods of
operation of the tool, or if the operation is noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OP-
ERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
and other construction activities may contain chemicals that are
known to cause cancer, birth defects, or other genetic abnormalities.
These chemicals include:
•Lead from lead-based paints
•Crystalline silica from bricks, cement, and other masonry products
•Arsenic and chromium from chemically treated lumber .
The level of risk from exposure to these chemicals varies, according
to how often this type of work is performed. In order to reduce
exposure to these chemicals, work in a well-ventilated area, and use
To avoid electrical hazards, fire hazards or damage to the tool,
use proper circuit protection.
This tool is wired at the factory for 120 Volts AC operation.
-
tected by a time-delayed fuse or circuit breaker. To avoid shock or
or damaged in any way.
SAVE THESE INSTRUCTIONS FOR REFERENCE
3

1270-003
4
6 AMP RECIPROCATING SAW
WARNING
Read all safety warnings and instructions.
Save all warnings and instructions for future reference.

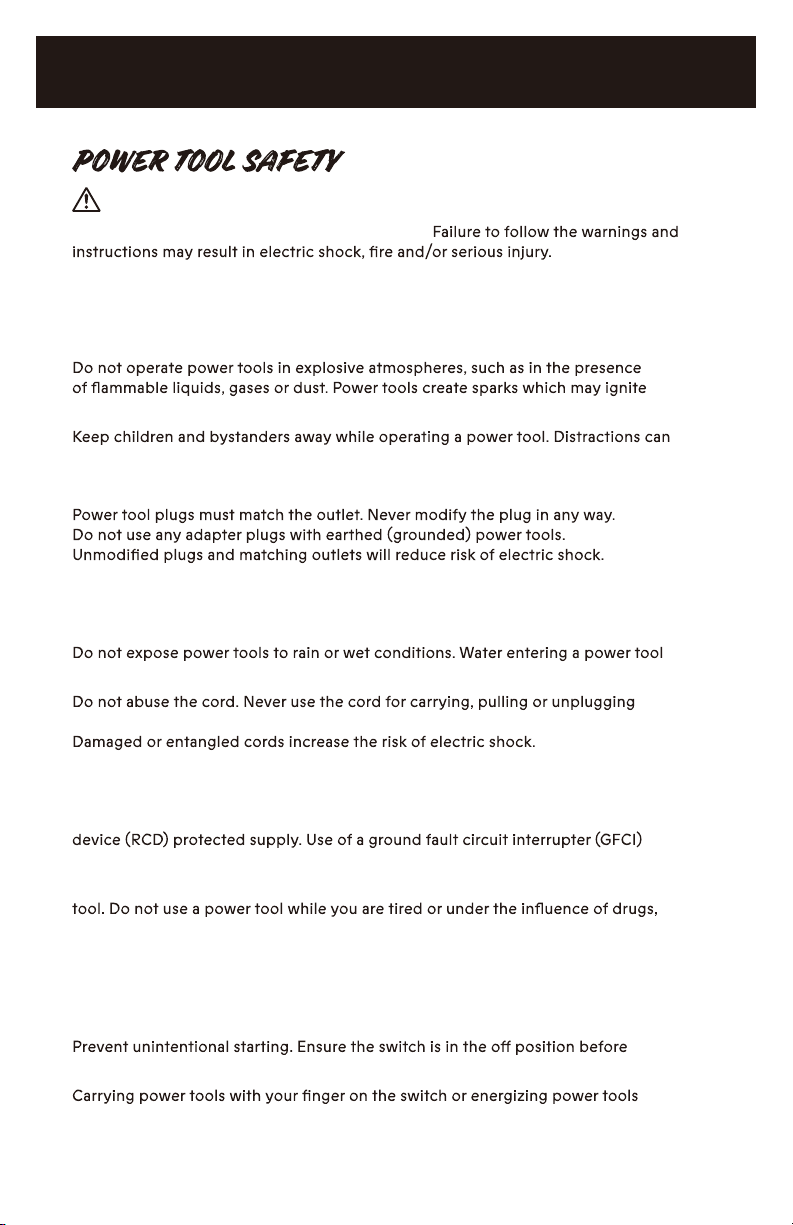

Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
the dust or fumes.
cause you to lose control.
Electrical safety
Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body
is earthed or grounded.
will increase the risk of electric shock.
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current
reduces the risk of electric shock.
Stay alert, watch what you are doing and use common sense when operating a power
alcohol or medication. A moment of inattention while operating power tools may result
in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
connecting to power source and/or battery pack, picking up or carrying the tool.
that have the switch on invites accidents.

5
Power Tool Safety – cont’d
Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
better control of the power tool in unexpected situations.
clothing and gloves away from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
Power tool use and care
The correct power tool will do the job better and safer at the rate for which it was
designed.
that cannot be controlled with the switch is dangerous and must be repaired.
before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage
have the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of
situation.
Service
replacement parts. This will ensure that the safety of the power tool is maintained.
Save these instructions for reference

1270-003
6
6 AMP RECIPROCATING SAW
WARNING
Know your reciprocating saw. Do not plug in the tool until you have read
and understand this Instruction Manual. -
tions,
-
Always wear eye protection. Any power tool can throw foreign objects into your
eyes and cause permanent eye damage.
WARNING
when they break.
WARNING
Always use hearing protection when sawing, particularly during extended periods
of operation.
WARNING
Hold the tool by its insulated gripping surfaces when performing an operation where
the saw blade may contact hidden wiring or its own cord. Contact with a "live" wire
will make exposed metal parts of the tool "live" and shock the operator.
Always hold the tool with two hands. Attempting to control the tool with only one
hand is dangerous. It could result in loss of control and serious injury.
guide the tool with both hands.
Always make sure the work surface is free from nails and other foreign objects.
Cutting into a nail can cause the blade and the tool to jump and damage the blade.
blade may cause tool to jump.
After changing a blade or making adjustments, make sure the blade clamp is holding
the blade securely. Loose blades could be violently thrown from the tool.
the workpiece, possibly causing the blade to break.
hot to be touched.
Save these instructions for reference

Make sure your extension cord is the proper size. When using an extension cord,
be sure to use one heavy enough to carry the current the tool will draw. An undersized
cord will cause a drop in line voltage resulting in loss of power and overheating.
The table on at right shows the correct size to use according to cord length and
nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the
gauge number the heavier the cord.
Be sure your extension cord is properly wired and in good condition. Always replace
using it. Protect your extension cord from sharp objects, excessive heat and damp
or wet areas.
Use a separate electrical circuit for your power tools. This circuit must not be less
breaker. Before connecting the power tool to the power source, make sure the switch
Running at lower voltage will damage the motor.
When operating a power tool outdoors, use an outdoor extension cord
marked “W -A” or “W”. These cords are rated for outdoor use and reduce the risk
of electric shock.
so it will not get caught on the workpiece, tools or any other obstructions while
you are working with the power tool.
7
MINIMUM GUAGE (AWG)
EXTENSION CORDS (120 V use only)
Ampere rating Total length in feet
More than Not more than 7.5 m (25 ft) 15 m (50 ft) 30 m (100 ft) 45 m (150ft)

1270-003
8
6 AMP RECIPROCATING SAW
WARNING
Some of the following symbols may appear on the reciprocating saw.
Study these symbols and learn their meaning. Proper interpretation of these symbols
This symbol designates that this tool os listed with U.S. repuirements by
MET Laboratories, Inc.
UL62841-1，UL62841-2-11;
CSA C22.2#62841-1，CSA C22.2#62841-2-11.
Alternating or direct current
Class II construction
Splash-proof construction
Watertight construction
Protective grounding at
grounding terminal,
Class I tools
Revolutions or
Reciprocations per minute
Warning Symbol
Wear your safety glasses
Volts
Amperes
Herts
Watts
Kilowatts
Microfarands
Liters
Kilograms
Hours
square centimeter
Pascals
Oscillations per minute
Minutes
Seconds
Alternating current
Three-phase
alternating current
Three-phase alternating
current with neutral
JD3515TU
E114847

WARNING
When servicing, use only identical replacement parts. The use of any other part
may create a hazard or cause product damage.
from various types of commercial solvents and may be damaged by their use.
Use a clean cloth to remove dirt, dust, oil, grease etc.
WARNING
to come into contact with plastic parts. They contain chemicals that can damage,
weaken or destroy plastic.
WARNING
-
cation is misuse and could result in a hazardous condition leading to possible serious
injury. It will also void the warranty.
It has been found that electric tools are subjected to accelerated wear and possible
spackling compounds or plaster. The chips and grindings from these materials are highly
abrasive to electric tool parts such as bearings, brushes, commutators, etc.
Consequently, it is not recommended that this tool be used for extended work on any
materials it is extremely important that the tool is cleaned frequently by blowing it out
with an air jet.
WARNING
Always wear safety goggles or safety glasses with side shields during all cutting oper-
ations. It is critical that you also wear safety goggles or safety glasses with side shields
take these safety precautions could result in permanent eye or lung damage.
9

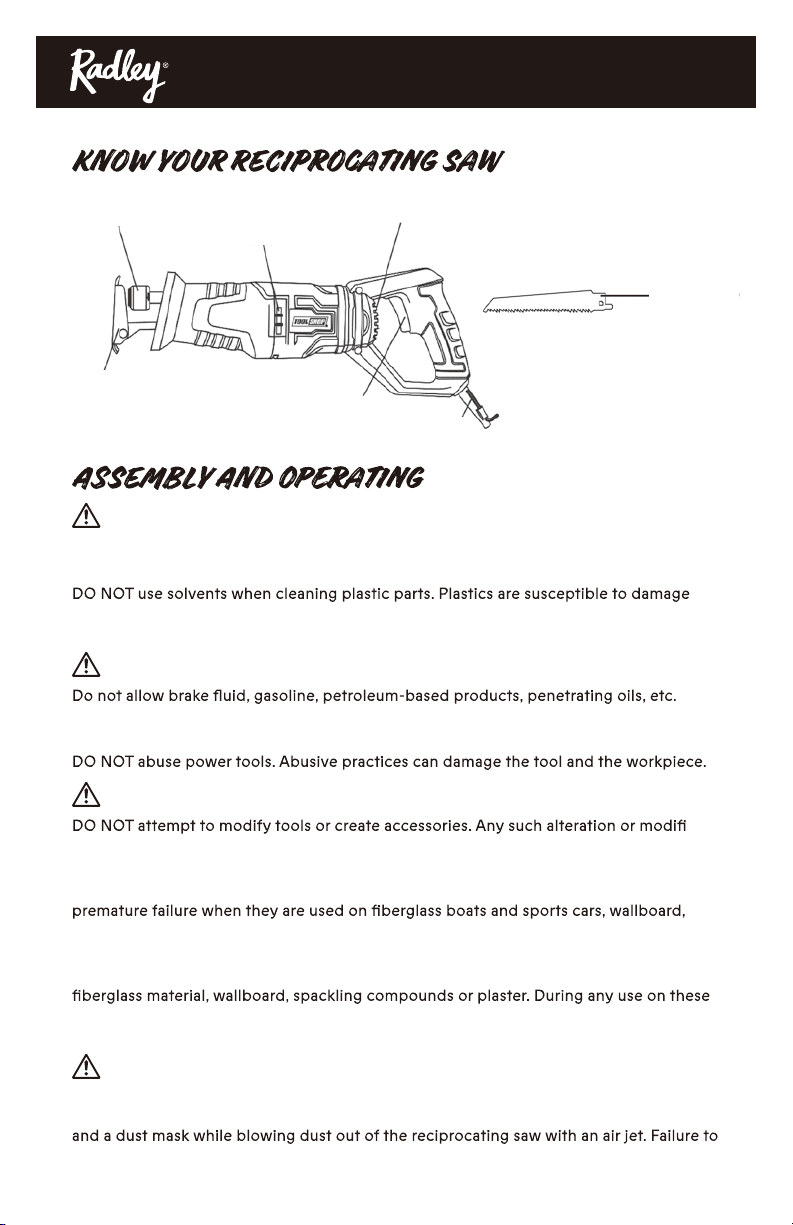

Hex
key
Blade
holder Motor
vent
Motor
vent
Pivoting
shoe Variable speed
trigger switch
Cutting
blade

1270-003
10
6 AMP RECIPROCATING SAW
LUBRICATION
-
cant for the life of the unit under normal conditions. Therefore, no further lubrication is
required.
INSTALLING A BLADE
WARNING
Always remove the plug from the power source before installing or removing a blade or
adjusting the saw in any way.
3. Release the blade locking sleeve.
NOTE: The blade will automatically be locked into the blade holder. Pull outward
on the blade to ensure it is properly locked into the blade holder.
REMOVING A BLADE
To remove a blade, simply rotate the blade locking sleeve counter-clockwise
and remove the blade from the blade holder
Fig. 1
1
2
3

11
ASSEMBLY AND OPERATING – cont’d
ADJUSTING THE PIVOTING SHOE
The pivoting shoe will pivot to follow the angle of the blade to the workpiece. This
action and easier control of the saw.
points on the blade. This will provide longer blade life as one section of the blade be-
comes dull.
2. Slide the pivoting shoe in or out until it is in the appropriate position.
3. Lock the pivoting shoe in place by tightening the pivoting shoe hex screws.
VARIABLE SPEED TRIGGER SWITCH
the tool.
2.
NOTE: The saw will start at its slowest speed. To increase the speed of the saw,
squeeze the switch trigger harder.
NOTE: When the switch trigger is squeezed fully, the saw will run at
its maximum speed.
Fig. 3
1
Fig. 2
1
23

1270-003
12
6 AMP RECIPROCATING SAW
MATERIALS YOU CAN CUT
of materials. Some of these materials include:
• Wood products such as lumber, hardwood, plywood, composite board,
and paneling
• Drywall
• Fiber board and plastic
• Metals, such as pipe, steel rods, sheet steel, aluminum, brass,
and copper.
NOTE:
blades (fine teeth) and wood cutting blades (coarse teeth). Use the correct blade
for your application. The packaging on the blade will indicate the type of materials
each blade is designed to cut.
WARNING
For safety reasons, the operator must read the sections of this Owner’s Manual entitled
"GENERAL SAFETY WARNINGS", "POWER TOOL SAFETY", "SPECIFIC SAFETY RULES",
"EXTENSION CORD SAFETY" and "SYMBOLS" before using this reciprocating saw.
Verify the following every time the reciprocating saw is used:
1. The correct blade for the material being cut is installed
in the saw.
2. The blade is firmly clamped in the blade holder.
3. The blade is sharp and in good condition.
4. The workpiece is properly secured.
5. Safety glasses and hearing protection are
being worn.

13

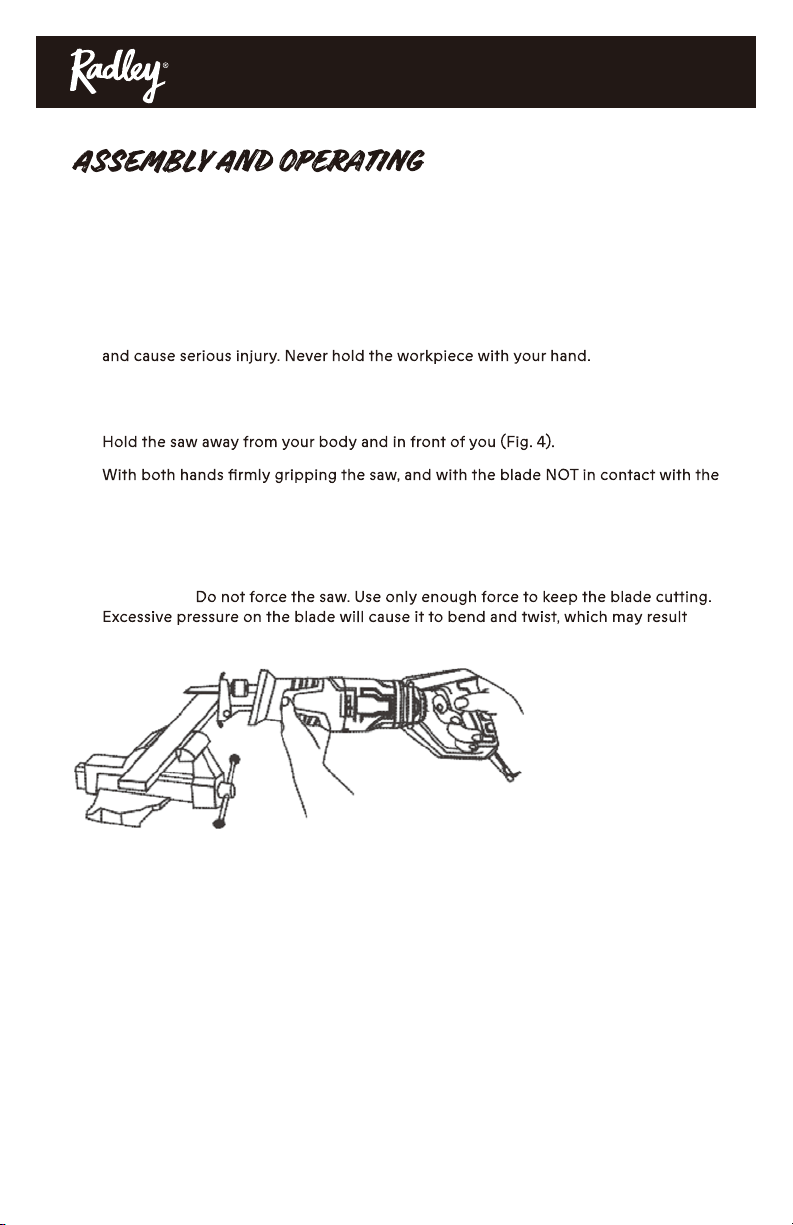

GENERAL CUTTING
1.
Clearly mark the workpiece to locate the position of the cut.
2.
Hold smaller workpieces with a vice. Clamp larger workpieces to
a workbench or table.
DANGER:
Any workpiece that is not adequately clamped in place may come loose
3.
Make sure there are no nails, screws, clamps or foreign materials in the path of the
saw blade.
4.
5.
surface to be cut, start the saw by squeezing the switch trigger.
6.
Once the saw has reached the desired speed, place the adjustable pivoting shoe
against the workpiece and gradually bring the moving blade into contact with the
workpiece at the appropriate location.
CAUTION:
in breaking the blade.
Fig. 4

1270-003
14
6 AMP RECIPROCATING SAW
PLUNGE CUTTING
1. Clearly mark the workpiece to locate the position of the cut.
NOTE: Make sure the area to be cut is clear under the workpiece so that the blade
will not come into contact with anything other than the workpiece.
3. Select a convenient starting point in the area to be cut out. Place the tip
of the blade over that point.
WARNING
Make sure the blade does not touch the workpiece until
the saw reaches full speed. Loss of control and possible injury could result.
6. With the saw running at full speed, slowly tilt the saw until the tip of the blade con-
tacts the workpiece and begins to cut. After the blade cuts through the workpiece,
tilt the saw upward until the blade is perpendicular to the workpiece.
METAL CUTTING
Metals such as pipe, steel rods, sheet steel, aluminum, brass and copper can
•To cut thin sheet material, "sandwich" the material between hardboard
or plywood and clamp the layers to limit vibration and material tearing.
•
medium speeds when cutting metal.
•Use cutting oil to keep the blade cool, increase cutting action,
and prolong the life of the blade.
•
•
Fig. 6
Fig. 5

15
the motor may cause an explosion. Gasoline will also damage the plastic
components of the saw.
DANGER
the motor may cause an explosion. Gasoline will also damage the plastic
components of the saw.

1270-003
16
6 AMP RECIPROCATING SAW
Always order by PART NUMBER, not by key number.

17
WARNING
When servicing, use only original equipment replacement parts.
The use of any other parts may create a safety hazard or cause damage to the reciprocating
saw. Any attempt to repair or replace electrical parts on this reciprocating saw may create
-
Always order by PART NUMBER, not by key number.
Key # Part # Quantity
1Hex Key 1
2Cord and plug 1
3Cord Sleeve 1
2
Strain relief 1
6Switch 1
2
8Left hand housing 1
Right hand housing 1
10 3011110008 Motor housing 1
11 1020110006 Stator 1
12 Air guiding ring 1
13 2
Base plate assembly 1
1
16 2
Soft Sheath support 2
18 Screw cover 1
Soft sheath 2
20 Gear box 1
21
22 Lower cover 1
23 1
1
26 1
Bearing clamp 1
28 3
1010110006 Rotor 1
30 Carbon brush 2

1270-003
18
6 AMP RECIPROCATING SAW
Key # Part # Quantity
31 Brush holder 2
32 Brush holder support 2
33
34
35
Brusher holder support clamp
Tapping screw ST2.9X9
2
4
Bearing 608-2Z 1
36
37
Bearing sleeve
Screw M5X12
1
1
38
39
Spring washer ø5 1
Bearing washer 1
40 4010010043 Bearing 6000-2Z 1
41 4010010078
2040040089
2040080028
4110010014
2040220026
2010150041
4020010006
2030160121
3160090079
1150010025
4020010006
2030160120
2010150040
2040160170
2050060204
2040160171
4100020002
3150160186
2050050045
2040310033
Bearing 6201-2Z 1
42 Spindle
Big gear
1
43
44
45
1
Pin
Ring
Reciprocating lever support
14
1
46
47
1
Screw M4x12 4
48
49
Clamping plate 1
Top cover 1
50 Plunger assembly
Screw M4x12
1
2
51
52 Clamping plate
Reciprocating lever support
Lock pin
Spring
Pin
1
53
54
55
1
1
1
56
57
1
Spring washer ø11
Bottom cover
1
58
59
1
Spring 1
60 Blade sleeve 1
2040310034
2030110013
6060030005
Sleeve
61
62
1
Spring washer ø12 1
63 Blade 1
2030070007
3150060011
2030160088
4030010136
4010010036
2030160080
4020080011
4040030003
4040010009

19
RADLEY 6 AMP RECIPROCATING SAW WARRANTY
If this Radley Tool fails due to a defect in material or workmanship within three years
from the date of purchase, return it to any Home Hardware store with the original bill
of sale for exchange. Two years for battery and charger. This warranty does not include
expendable parts including but not limited to blades, brushes, belts and light bulbs.
This warranty covers defects in material or workmanship only. It does not cover normal
wear and tear, failure due to abuse/misuse, or defects caused by careless or accidental
mishandling. If this Radley product is used for commercial or rental purposes, this
warranty does not apply.
